AC Hom Circuit Court Breaker nrog Residual Tam Sim No Ua Haujlwm

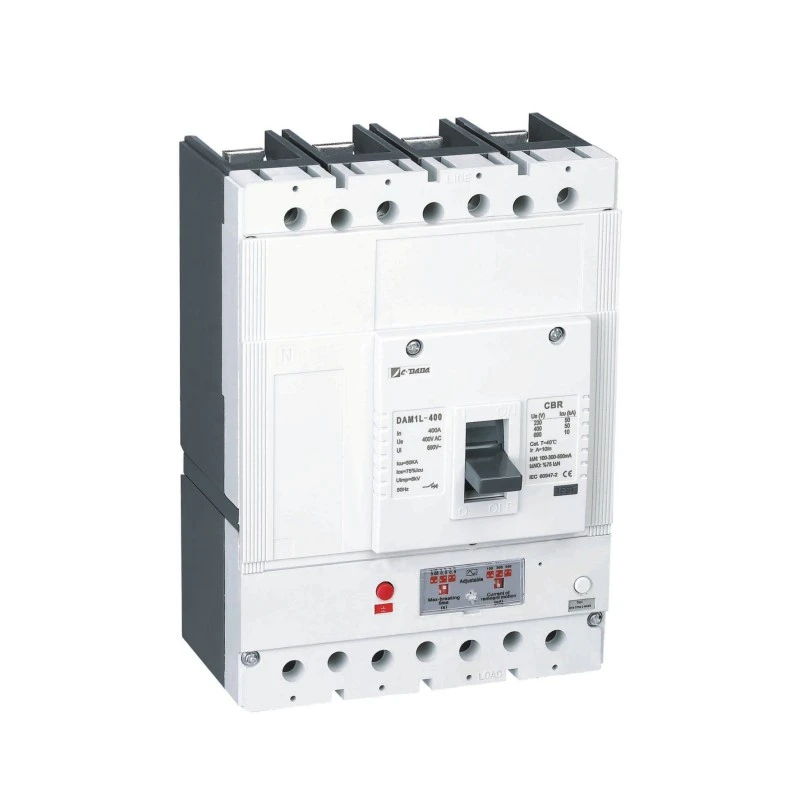

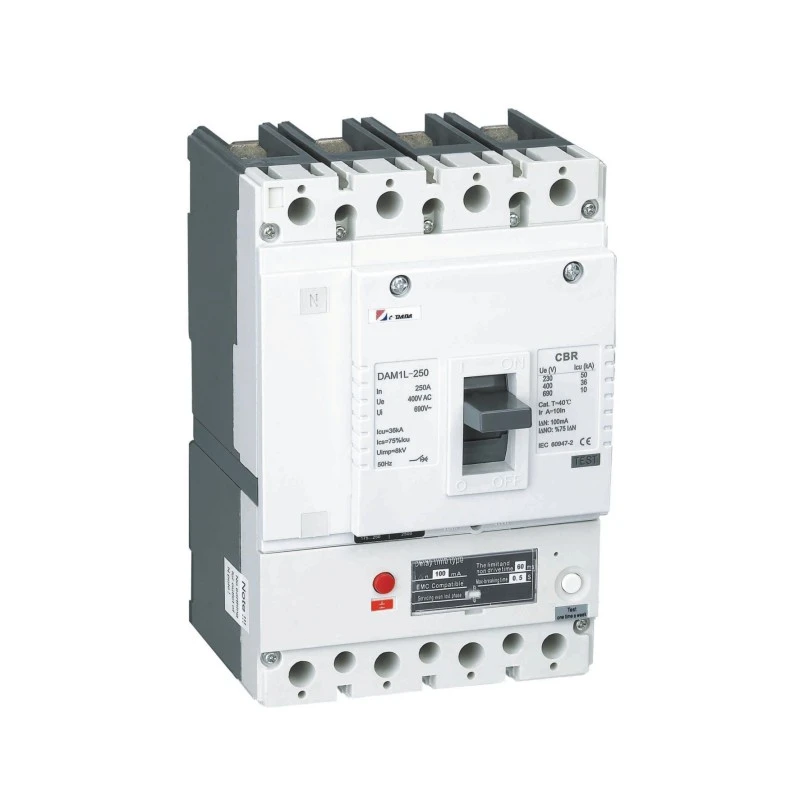

Ua tau raws li cov qauv kev nyab xeeb thoob ntiaj teb nrog CDADA DAM1L AC Hom Circuit Court Breaker nrog Residual Current Operation a high-precision earth to to MCCB engineered by Shanghai DADA Electric CO., LTD. rau kev txhim khu kev qha tiv thaiv sinusoidal AC av txhaum nkaus xwb (ib IEC 60755).

Tsim los ua 4P molded case breaker ntsuas 10A rau 500A ntawm 400V / 415V, nws sib xyaw ua ke ntau dhau, luv-circuit, thiab qhov seem tiv thaiv tam sim no hauv ib chav tsev compact. Muaj ntawv pov thawj rau CE, CB, thiab SEMKO, DAM1L yog qhov zoo tagnrho rau cov ntawv thov uas muaj cov khoom siv hluav taws xob tsis zoo txaus xws li cov txheej txheem hluav taws xob hauv tsev, teeb pom kev zoo, lossis lub cev muaj zog tsis muaj hluav taws xob.

Nrog adjustable I△n (30mA–1000mA), multi-phase powered electronics (kev khiav hauj lwm mus rau 50V), thiab robust arc sib cais, nws muab kev tsis zoo-kev ua tau zoo nyob rau hauv lub tsev, tunnels, thiab infrastructure-thaum ua raws li nruj me ntsis raws li AC-hom RCD cov cai.

Ntsiab Specifications

Cov yam ntxwv tseem ceeb:

★ Multi-phase powered RCD Circuit Court → ua haujlwm ntawm ≥50V

★ Nias-rau-test khawm

★ cais lub ntsiab & arcing hu

★ Adjustable sib nqus mus txawv tebchaws (0.8–1.0 × Hauv)

★ Muaj zog EMI kev tiv thaiv

★ Kev them nyiaj yug tag nrho (shunt mus txawv tebchaws, aux contacts, rotary kov)

Vim li cas thiaj xaiv CDADA AC HOM CBR?

★ Muaj tseeb AC-Type Ua Raws Cai

Tsis zoo li "universal" A-type li, CDADA's AC-type CBR yog optimized tsuas yog rau sinusoidal AC to - muab tus nqi siab dua qhov twg hluav taws xob loads (xws li, VFDs, SMPS) tsis tuaj.

★ Fail-Safe Power Design

RCD hluav taws xob siv hluav taws xob los ntawm txhua theem, ua kom muaj kev ua haujlwm txawm tias thaum lub sijhawm poob ib zaug lossis tsis muaj hluav taws xob hnyav - qhov txiaj ntsig tseem ceeb ntawm cov neeg sib tw ib-theem-powered.

★ Dual Safety Roles

● 30mA: Ua tau raws li IEC rau kev tiv thaiv tus kheej poob siab

● 100mA–1000mA: Tiv thaiv kev tiv thaiv hluav taws xob tsis ua haujlwm hauv cov cables thiab cov thawv sib txuas

★ Field-Adjustable tiv thaiv

Teem lub rhiab heev thiab lub sij hawm ncua sij hawm kom haum rau installation tej yam kev mob - tsis txhob muaj teeb meem mus ncig teb chaws thaum tswj kev ua raws cai.

★ Industrial-Qib kev koom ua ke

Ua ke MCCB thiab RCD nyob rau hauv ib lub tsev kaw-txuag qhov chaw, txo cov xov hlau tsis raug, thiab ua kom muaj kev sib koom tes zoo.

★ Tau txais thoob ntiaj teb

Nrog CE, CB, thiab SEMKO, nws tau pom zoo siv thoob plaws Tebchaws Europe, Middle East, Africa, thiab Asia - zoo tagnrho rau cov neeg tsim vaj huam sib luag xa tawm.

★ Peb cov khoom tau muab rau cov phiaj xwm phiaj xwm hluav taws xob, cov chaw tsim khoom lag luam, cov tsev lag luam, thiab cov phiaj xwm hauv ntau lub teb chaws.

★ Peb nqis peev tsis tu ncua hauv R&D, saib xyuas cov qauv thoob ntiaj teb thiab cov qauv kev lag luam, thiab koom tes nrog cov kws tshaj lij kev lag luam los txhim kho peb cov khoom lag luam.

Tej kev siv

Cov vaj tse nyob: Cov vaj huam sib luag loj lossis cov kab hluav taws xob sib txuas (cov teeb pom kev zoo, qhov (socket)) yam tsis muaj hluav taws xob

Commercial Lighting: Chaw ua hauj lwm qab nthab circuits, txoj kev teeb pom kev zoo

Ib txwm muaj lub cev muaj zog Loads: Twj, kiv cua, compressors (tsis-VFD tsav)

Infrastructure: Tunnel teeb pom kev zoo, txoj kev txee, elevator tshuab chav

Tus Nqi-Sensitive Projects: Qhov twg A-hom RCDs tsis tsim nyog thiab tshaj qhov tshwj xeeb

FAQ

Q1: "AC HOM" txhais li cas rau cov khoom seem tam sim no?

A1: AC HOM CBRs teb tsuas yog ua kom du, sinusoidal alternating residual tam sim no (piv txwv li, los ntawm cov rwb thaiv tsev puas hauv cov cua sov lossis cov motors). Lawv tsis pom DC pulsating los ntawm hluav taws xob xws li xov tooj chargers lossis LED tsav tsheb. Siv A-hom yog tias muaj cov loads.

Q2: Kuv puas tuaj yeem siv qhov no AC CBR 63A rau lub qhov hluav taws xob hauv tsev?

A2: Tsuas yog hais tias lub voj voog tsis muaj cov khoom siv hluav taws xob (xws li, cov khoom siv hluav taws xob ntshiab xws li cov roj teeb lossis cov kav dej qub). Rau cov tsev niaj hnub nrog TVs, laptops, lossis LED teeb, xaiv A-hom RCD hloov.

Q3: Vim li cas kuv thiaj xaiv AC-hom dhau A-hom?

A3: Tus nqi qis dua thiab muaj kev tiv thaiv ntau dua rau kev dag ntxias hauv AC ib puag ncig. Yog tias koj lub cev tsis muaj cov khoom siv hluav taws xob, cov khoom siv hluav taws xob, lossis cov khoom siv hluav taws xob hloov pauv, AC-hom yog txaus thiab pheej yig dua.

Q4: Nws puas ua haujlwm yog tias ib theem ua tsis tiav?

A4: Yog! RCD Circuit Court yog siv los ntawm ntau theem khoom, yog li nws tseem ua haujlwm txawm tias lub sijhawm poob lossis qhov hluav taws xob poob mus rau 50V - kom ntseeg tau tias muaj kev tiv thaiv tsis tu ncua.

Q5: Vim li cas thiaj xaiv CDADA rau AC Hom Circuit Breaker nrog Residual Tam Sim No Ua Haujlwm?

A5: CDADA muab:

● Muaj tseeb IEC 60755-raws li AC-hom tsim

● Integrated MCCB + RCD nyob rau hauv ib chav tsev (tsis muaj teeb meem compatibility)

● Multi-phase powered electronics rau kev ntseeg tau

● On-site adjustability ntawm I△n thiab ncua sij hawm

● Cov ntawv pov thawj thoob ntiaj teb (CE/CB/SEMKO) nrog rau tus nqi OEM
