MCB Accessories yog dab tsi?

MCB accessories yog cov khoom siv ntxiv tsim los txhim kho kev ua haujlwm, kev tiv thaiv, thiab kev tswj cov peev txheej ntawmMiniature Circuit Breakers (MCBs). Cov modular add-ons no hloov cov cuab yeej tiv thaiv hluav taws xob rau hauv cov khoom ntse, kev sib koom ua ke ntawm cov tshuab hluav taws xob niaj hnub. Ua haujlwm hauv qabIEC 60898-1 Cov (circuit-breakers rau tsev neeg thiab zoo sib xws installation) thiabIEC 60947-5-1 Cov (tswj cov khoom siv hluav taws xob), MCB cov khoom siv ua haujlwm ua haujlwm rau cov chaw taws teeb, saib xyuas cov xwm txheej, kev cuam tshuam kev nyab xeeb, thiab kev sib txuas tsis sib haum nrog kev tswj hwm lub tsev.

MCB accessories yog characterized los ntawm lawvmodular 17.5mm dav (ib nrab-module los yog tag nrho-module tsim), tso cai rau lawv mount ncaj qha rau ntawm DIN rails nrog MCBs los yog clip mus rau lub breaker lub cev. Cov qauv qauv no ua kom muaj kev sib raug zoo thoob plaws cov tuam txhab loj xws li Schneider Electric, ABB, Hager, Siemens, thiab Chint.

Kev lag luam thoob ntiaj teb MCB tau ntsib kev loj hlob tseem ceeb los ntawm kev siv lub tsev ntse, kev tswj hwm lub zog, thiab kev lag luam automation, nrog cov tuam txhab muab cov ntaub ntawv nthuav dav uas txhim kho kev nyab xeeb, yooj yim, thiab kev txawj ntse.

MCB Accessory Product Categories & Configurations

Qeb	Yam khoom siv	Muaj nuj nqi	Technical Specifications
Kev ua haujlwm nyob deb	Shunt Trip (ST)	Tej thaj chaw deb tripping ntawm sab nraud voltage teeb liab	AC: 24V, 110V, 230V, 415V; DC: 12V, 24V, 48V, 110V; Inrush 200VA (AC) / 200W (DC), kaw 20VA (AC) / 20W (DC); Lub sij hawm mus ncig <50ms; Dav: 17.5mm (1 module)
	Undervoltage Release (UVR)	Tsis siv neeg tripping thaum voltage poob qis dua qhov pib	Pickup: 0.85 × Un; Kev poob qis: 0.35-0.7 × Un (35-70% ntawm qhov ntsuas); Tiv thaiv tsis siv neeg rov kaw; Dav: 17.5mm (1 module)
	Overvoltage tso tawm	Kev mus ncig thaum qhov hluav taws xob muaj kev nyab xeeb tshaj qhov txwv	Feem ntau 270-280V AC rau 230V systems; Tiv thaiv cov xwm txheej overvoltage
	Lub cev muaj zog ua haujlwm ntaus ntawv	Kev them nyiaj hluav taws xob thiab chaw taws teeb ON / OFF ua haujlwm	230V AC mov, 3-5s lub sijhawm ua haujlwm, phau ntawv hla dhau, txoj haujlwm tawm tswv yim
Status Signaling	Kev Pabcuam Tiv Thaiv (AX)	Qhia txog txoj haujlwm breaker (ON/OFF)	1NO + 1NC lossis 2NO + 2NC, 6A ntawm 230V AC / 3A ntawm 400V AC, nyiaj alloy hu; Dav: 9mm (0.5 module)
	Tswb Contact (AL)	Cov teeb liab breaker tripped vim yog txhaum	1NO + 1NC, ua haujlwm nkaus xwb ntawm kev mus ncig tsis siv neeg (tsis yog phau ntawv OFF), txawv ntawm pab pawg; Dav: 9mm (0.5 module)
	Fault Signal Contact	Qhia txog tej yam txhaum	Microswitch-based, kev koom ua ke nrog cov khoom siv hluav taws xob mus ncig
Kev Nyab Xeeb & Kev Ruaj Ntseg	Padlock Attachment	Locks breaker hauv ON lossis OFF txoj haujlwm	Txais 2 padlocks nrog 4.75mm hasps; Tiv thaiv kev ua haujlwm tsis raug cai
Kev Nyab Xeeb & Kev Ruaj Ntseg	Cov khoom siv xauv	Ruaj ntseg toggle nyob rau hauv ib txoj hauj lwm	Rau kev saib xyuas kev kaw haujlwm / tagout (LOTO) cov txheej txheem
Busbar Systems	Pin-type Busbar	1-theem lossis 3-theem muab kev sib txuas	1m ntev, mus txog 56 tus ncej, 100A ntsuas, insulated
Busbar Systems	Fork-type Busbar	Multi-pole faib	Rau 1P, 2P, 3P, 4P configurations, lateral connectors muaj
Kev Tiv Thaiv & Kev Qhia	Terminal Cov	Tiv thaiv kev sib cuag	IP20 rau IP40, theem teeb meem, tus ntiv tes ruaj ntseg tsim
Kev Tiv Thaiv & Kev Qhia	Cov Cim Cim	Kev txheeb xyuas Circuit Court	13-module strips rau labeling, snap-on installation
Smart/Kev sib txuas lus	Wireless Auxiliary	Bluetooth/WiFi saib xyuas xwm txheej	Tuya App tau tshaj, tus kheej-powered los yog roj teeb, ceeb toom real-time

Accessory Combination Txoj Cai:

Kev sib xyaw ua ke siab kawg: 3 add-on blocks ib MCB (feem ntau sab laug nkaus xwb)

Qhov chaw: 1 undervoltage lossis shunt tso ncaj qha rau ntawm MCB sab, tom qab ntawd 2 hu ( pabcuam + tswb)

Dav qauv: 9mm (0.5 module) rau kev sib cuag, 17.5mm (1 module) rau kev tshaj tawm

Core Functions & Txoj Cai Ua Haujlwm

Shunt Trip (ST) - Tej thaj chaw deb Tripping Mechanism

Cheebtsam	Muaj nuj nqi	Cov ntsiab lus technical
Electromagnetic Chev	Tsim magnetic teb thaum muaj zog	AC: Inrush 200VA, kaw 20VA; DC: Inrush 200W, kaw 20W; Rwb thaiv tsev chav F (155 ° C) lossis H (180 ° C)
Plunger Mechanism	Strikes mus txawv tebchaws bar kom tso mechanism	Hardened steel, caij nplooj ntoos hlav-rov qab, stroke 3-5mm, quab yuam 2-5N
Mounting	Snap-fit ntawm MCB sab laug	Cov cuab yeej-dawb installation, tsis siv neeg sib dhos nrog kev mus ncig bar
Qhov taw qhia	Mechanical chij ntawm fascia	Visual indication ntawm coil ua haujlwm

Kev khiav hauj lwm ib ntus:

Tswj voltage siv rau shunt mus txawv tebchaws terminals (A1-A2)

Coil energizes, generating magnetic teb (AC lossis DC)

Plunger ntaus MCB mus ncig ua si bar nrog lub zog txaus los kov yeej lub tshuab latch

MCB kev mus ncig qhib, kev sib cuag tseem ceeb sib cais

Mechanical chij qhia txog kev ua haujlwm ntawm shunt

Coil de-energizes, plunger rov qab los ntawm lub caij nplooj ntoos hlav

MCB xav kom rov pib dua phau ntawv (rov qhib dua)

Daim ntawv thov:

Emergency stop systems (E-stop nyees khawm)

Hluav taws kub tswb system kev koom ua ke (automatic shutdown)

Tej thaj chaw deb load shedding (xav tau cov kev pab cuam teb)

Generator hloov schemes (synchronized qhib)

Undervoltage Release (UVR) - Kev ntsuas hluav taws xob

Parameter	Specification	Kev nyab xeeb muaj nuj nqi
Txais Voltage	0.85 × Un (tuaj yeem kaw tau)	Tiv thaiv kev kaw ntawm qhov hluav taws xob tsis txaus
Tshem tawm Voltage	0.35-0.70 × Un (35-70% ntawm qhov ntsuas)	Tsis siv neeg mus ncig ntawm undervoltage
Sijhawm ncua	Instantaneous lossis 0.1-3s (hom hluav taws xob)	Tiv thaiv kev ntxhov siab los ntawm kev poob qis
Lub luag haujlwm txuas ntxiv	100% ntsuas voltage	Coil energized tsis tu ncua thaum lub sijhawm ua haujlwm
Dav	17.5mm (1 module)	Txheem DIN rail mounting

Txoj Cai Kev Ua Haujlwm: UVR coil tseem ua haujlwm tsis tu ncua thaum lub sijhawm ua haujlwm ib txwm muaj, txhua yam tuav lub MCB kaw tshuab. Thaum cov khoom siv hluav taws xob poob qis hauv qab qhov kev tso tawm rau lub sijhawm teev tseg:

Electromagnetic quab yuam ua tsis txaus los tuav lub latch

Mechanical caij nplooj ntoos hlav tsav mus ncig teb chaws mechanism

MCB qhib tau txais

Tiv thaiv kom rov qab kaw kom txog thaum qhov hluav taws xob rov qab mus rau qib nqa

Qhov no tiv thaiv:

Motors los ntawm qis-voltage pib (siab tam sim no, overheating)

Cov khoom siv los ntawm kev puas tsuaj brownout

Kev nyab xeeb tiv thaiv tsis tau rov pib dua tom qab lub zog rov qab los

Pab vs. Tswb Contacts

Feature	Kev Pabcuam Tiv Thaiv (AX)	Tswb Contact (AL)
Kev ua haujlwm	Hloov lub xeev nrog MCB tuav txoj hauj lwm	Ua haujlwm tsuas yog ntawm kev mus ncig tsis siv neeg (overload / luv-circuit)
Qhov taw qhia	ON/OFF xwm txheej	Ua txhaum kev mus ncig nkaus xwb
Hu rau Configuration	1NO + 1NC lossis 2NO + 2NC	1NO + 1NC tus qauv
Kev ntsuas	6A ntawm 230V AC, 3A ntawm 400V AC	6A ntawm 230V AC, 3A ntawm 400V AC
Dav	9mm (0.5 module)	9mm (0.5 module)
Daim ntawv thov	Cov xwm txheej qhia, sib cuam tshuam, tswj circuits	Fault alarm, ceeb toom txij nkawm, qhia txog kev mus ncig

Daim Ntawv Thov Ib puag ncig & Siv Case

Daim ntawv thov	Accessory Configuration	Kev Xav Tau	Kev koom ua ke
Cov Tsev Nyob Hauv Tsev Smart	Shunt mus txawv tebchaws + Pab + Wireless module	230V AC, WiFi / Bluetooth, Tuya App	Tsev automation, chaw taws teeb tswj, kev tswj fais fab
Cov tsev lag luam	UVR + Auxiliary + Tswb	230V AC, BMS kev koom ua ke, hluav taws kub tswb interface	Lub Tsev Tswj Xyuas Qhov System, kaw thaum muaj xwm ceev
Kev Tswj Lag Luam	Shunt mus txawv tebchaws + 2 × Pabcuam + Lub cev muaj zog	24V DC, PLC compatibility, teb ceev (<50ms)	PLC / DCS tswj, tshuab kev nyab xeeb circuits
Cov Tsev Kho Mob	UVR + Tswb + Padlock	Kev kho mob-qib, kev ntseeg siab, LOTO muaj peev xwm	Kev tswj fais fab tseem ceeb, kev tswj xyuas kev nyab xeeb
Data Centers	Shunt mus txawv tebchaws + Tswb + Busbar system	48V DC, siab ceev, modular expansion	Fais fab faib units (PDUs), tswj chaw taws teeb
Lub zog tauj dua tshiab	Shunt mus txawv tebchaws + Overvoltage tso tawm	1000V DC systems, kev ntsuam xyuas sab nraum zoov, kaw nrawm	Hnub ci PV systems, lub zog cia, inverter kev koom ua ke
Roj & Roj	Cov khoom siv tawg-pov thawj + UVR	ATEX / IECEx tau ntawv pov thawj, tropicalized	Kev kaw thaum muaj xwm txheej ceev (ESD), thaj chaw muaj kev phom sij
Infrastructure	Tus neeg tsav tsheb lub cev muaj zog + Pab txhawb nqa + Lub xauv qhov tseem ceeb	400V AC, hnyav-duty, 50,000 lub neej voj voog	SCADA systems, chaw taws teeb tswj chaw taws teeb

Kev tsim khoom & Kev ua haujlwm ntau lawm

Precision Manufacturing Sequence

Raw Khoom IQC → Electromagnetic Chev Winding → Plunger / Armature Machining → Sib cuag System Fabrication → Tsev Txhaj Molding → Sub-Assembly → Calibration & Test → Final Integration → Ntim

Cov theem tsim khoom tseem ceeb

Theem	Txheej txheem txheej txheem	Cov ntsiab lus tswj tau zoo
Coil Winding	Enameled tooj liab hlau (0.1-0.3mm), automated winding nrog nro tswj, lub tshuab nqus tsev vacuum impregnation	Hloov suav ± 1%, DC tsis kam ± 5%, dielectric zog 2kV / 1min, rwb thaiv tsev tsis kam> 100MΩ
Plunger Machining	Cold-dov hlau SPCC los yog hlau hmoov metallurgy, precision sib tsoo, hardening (HRC 45-55)	Dimensional kam rau ua ± 0.02mm, nto tiav Ra 0.8, sib nqus permeability> 5000
Hu rau Fabrication	Nyiaj-nickel (AgNi 90/10) stamping, riveting rau tooj liab nqa, so geometry sib sau	Hardness HV 80-120, tiv taus <50mΩ, brazing zog> 50MPa
Tsev Moulding	PA66 GF30 los yog PBT GF30, 280-320 ° C txhaj, 17.5mm modularity tseem ceeb	Dimensional kam rau ua ± 0.05mm, nrhiav qhov ntsuas> 600V, UL 94 V-0, kub tsis kam 160 ° C
Caij nplooj ntoos hlav Manufacturing	Roj-tempered carbon steel SWOSC-V lossis stainless hlau 301, CNC coiling, kev kho cua sov	Lub neej qaug zog> 100,000 cycles, caij nplooj ntoos hlav tus nqi ± 10%, so <5%
Sub-Assembly	Coil-plunger-hu rau kev sib koom ua ke, kev kho mob stroke, snap-fit mechanism kuaj	Kev khiav hauj lwm voltage 0.85-1.1 × Un, mus ncig teb chaws quab yuam 2-5N, teb lub sij hawm <50ms
Calibration kawg	Pickup/dropout voltage verification (UVR), kev ntsuas lub sij hawm ua hauj lwm (shunt mus txawv tebchaws), tiv tauj kuj	100% automated test, data logging, traceability QR coding

Primary Raw Materials & Component Specifications

Cheebtsam	Khoom Specification	Tus qauv tsim khoom	Cov khoom tseem ceeb
Coil Hlau	Enameled tooj liab hlau Class F (155 ° C) los yog Class H (180 ° C)	IEC 60317, NEMA MW 35	Kev tawg voltage> 2kV, solderability 390 ° C / 2s, yooj
Sib nqus Core	Silicon steel laminations (0.35-0.5mm) los yog hlau khoom	IEC 60404-8, JIS C 2552	High permeability, tsis tshua muaj coercivity, zoo ib yam magnetic zog
Plunger/Armature	Cold-dov hlau SPCC lossis hlau hmoov (Fe-99%)	JIS G 3141, MPIF Standard 35	HRC 45-55, nto tiav Ra 0.8, corrosion kuj
Tiv tauj	Silver-nickel (AgNi 90/10) los yog silver-cadmium oxide (AgCdO)	ASTM B152, IEC 60368, Kev Tswj Xyuas Zoo	Conductivity> 90% IACS, arc yaig tsis kam, tiv thaiv vuam
Hu rau Springs	Beryllium tooj liab (CuBe2 C17200) los yog stainless hlau 301	ASTM B196	Kev qaug zog lub neej> 100,000 cycles, siab zoo, corrosion kuj
Tsev	PA66 GF30 (30% iav fiber) los yog PBT GF30	IEC 60664-1, UL 94 V-0	Kev ntsuas ntsuas> 600V, kub tsis kam 160 ° C, cuam tshuam lub zog> 7 kJ / m²
DIN Rail Clip	Lub caij nplooj ntoos hlav steel 65Mn lossis stainless hlau 304, zinc-plated	GB/T 1222, ISO 3506	Clamp quab yuam 50-100N, 10,000 lub voj voog qaug zog, corrosion kuj
Terminals	Brass C36000 los yog tooj liab C11000 nrog tin plating (5-8μm)	ASTM B16 / B187 Kev ntsuas	Tam sim no ceev 1.0-1.5 A / mm², torque withstand 1.5-2.5Nm

Standards Compliance & Testing Protocols

International Standards Framework

Txuj	Scope	Cov Kev Xav Tau
IEC 60898-1 Cov Cov	Circuit Court-breakers rau tsev neeg thiab zoo sib xws installation	Lub hauv paus txheem rau MCBs, accessory compatibility
IEC 60947-5-1 Cov Cov	Tswj cov khoom siv hluav taws xob thiab hloov cov khoom siv	Kev pabcuam kev sib cuag, hluav taws xob endurance, cov cim davhlau ya nyob twg
IEC 60947-2: Cov	Tsawg-voltage switchgear - Circuit Court breakers	Shunt mus txawv tebchaws / UVR kev ua haujlwm, kev sib koom tes
EN 60898-1 / EN 60947-5-1	European kev sib haum xeeb versions	CE cim, EU kev lag luam nkag

Yam yuav tsum tau ua (IEC 60947-5-1 / IEC 60898)

Qeb xeem	Kev Xeem Tshwj Xeeb	Kev lees txais
Hluav taws xob Endurance	10,000 kev ua haujlwm ntawm qhov ntsuas tam sim no (AC-15 / DC-13)	Tiv tauj hnav <50%, tsis muaj vuam, ua haujlwm zoo ib yam
Mechanical Endurance	100,000 tsis-load haujlwm	<5% parameter drift, tsis muaj txhua yam tsis ua haujlwm
Dielectric Properties	2kV AC / 1min (tswj circuits), 4kV impulse	Tsis muaj kev tawg, tsis muaj flashover
Kub nce	Kev ua haujlwm tsis tu ncua ntawm qhov ntsuas voltage / tam sim no	Chev ≤85K (Class F), terminals ≤80K
Shock & Vibration	IEC 60068-2-27 (kev poob siab), IEC 60068-2-6 (kev vibration)	Tsis muaj kev ua haujlwm tsis raug, tsis muaj kev puas tsuaj, ua haujlwm tom qab kuaj
Ib puag ncig	Kev kub ceev (IEC 60068-2-30), txias, qhuav cua sov	Ua haujlwm tom qab txias, tsis muaj corrosion
EMC	Kev tiv thaiv rau kev cuam tshuam / radiated cuam tshuam	TS EN 60947-5-1: Tsis muaj kev cuam tshuam

Factory Quality Control & Inspection Standards

Cov khoom xa tuaj QC (IQC)

Khoom siv	Cov khoom soj ntsuam	Sampling Plan	Khoom siv
Enameled hlau	Txoj kab uas hla, tawg voltage, elongation, solderability	TSI 0.65	Micrometer, dielectric tester, tensile tshuab
Sib nqus hlau	Permeability, core poob, rwb thaiv tsev txheej	Rau batch	Epstein ncej, ib daim ntawv tester
Nyiaj tiv tauj	Purity, hardness, ntom, dimensional kam rau ua	Rau batch	Spectrometer, hardness tester, CMM
Yas granules	Cov ntsiab lus iav, viscosity, noo noo, flammability	Rau batch	Melt flow indexer, DSC, UL 94 apparatus
Caij nplooj ntoos hlav steel	Tensile zog, qaug zog kuj, sib sau	Rau batch	Tensile tshuab, qaug zog tester

In-Process Quality Control (IPQC)

Chaw nres tsheb	Tswj Parameters	Ntau zaus	Txoj kev
Coil winding	Hloov suav, nro, tsis kam, rwb thaiv tsev	Txhua chav	Automated winding nrog tawm tswv yim, ohmmeter
Plunger machining	Dimensional kam rau ua, nto tiav, hardness	Txhua 100 units	CMM, profileometer, hardness tester
Hu rau kev sib dhos	Alignment, siab, tsis kam, brazing zoo	Txhua 100 units	Lub zog ntsuas, micro-ohmmeter, XRF
Lub tsev molding	Kub, siab, qhov tseeb	Txhua lub voj voog	SCADA saib xyuas, SPC kab kos
Sub-assembly	Kev khiav hauj lwm voltage, stroke, teb lub sij hawm	Txhua chav	Automated xeem lub rooj ntev zaum, cov ntaub ntawv logging

Kev Tswj Xyuas Qhov Kawg (FQC) & QC (OQC)

Cov khoom kuaj	Txuj	Qauv Loj
Kev khiav hauj lwm voltage	0.85-1.1 × Un (pickup), > 0.2 × Un (dropout rau UVR)	100%
Lub sijhawm teb (shunt trip)	<50ms ntawm qhov ntsuas hluav taws xob	100%
Tiv tauj tiv thaiv	<50mΩ (ntsuas), <100mΩ ( tswb)	100%
Dielectric tiv taus voltage	2 kV AC / 1 min	100%
Rwb thaiv tsev tsis kam	> 100MΩ @ 500V DC	100%
Mechanical ua haujlwm	10 cycles, du, tsis sticking	100%
Snap-fit compatibility	Mating nrog tsim MCB ncej	100%
Visual & Dimension soj ntsuam	17.5mm modularity, cim kev ruaj khov	100%
Hluav taws xob endurance sampling	1,000 kev ua haujlwm ntawm kev ntsuas load	AQL 1.0
Ntim kev ncaj ncees	Poob xeem, kev vibration (ISTA 3A)	Rau ntau

Kev Tsim Nyog Infrastructure & Manufacturing Capability

Cov cuab yeej tsim khoom siab heev

Qeb khoom siv	Tshuab Specification	Muaj nuj nqi	Muaj peev xwm
Coil Winding	CNC winding tshuab (Nittoku / Marsilli) nrog kev tswj nruj	Precision coil ntau lawm	20,000 coils / hnub
Stamping & Forming	60-ton progressive tuag xovxwm (Bruderer)	Hu rau stamping, caij nplooj ntoos hlav sib sau	30,000 Cheebtsam / hnub
Txhaj Molding	80-tuj thermoplastic xovxwm (Arburg)	Vaj tse, enclosures, DIN rail clips	10,000 tsev/hnub
Sib dhos Automation	Robotic cells (ABB/Fanuc) nrog rau lub zeem muag	Sub-assembly, calibration, kuaj	5,000 accessories / hnub ib kab
Cov khoom siv kuaj	Automated accessory xeem lub rooj ntev zaum	Cov yam ntxwv ua haujlwm, lub sijhawm, kev ua siab ntev	1,000 units / teev
	Mechanical endurance tester	100,000 lub voj voog pov thawj	200 units ib txhij
	EMC chav kuaj	Kev ntsuas kev tiv thaiv / emission	100 units / hnub

Muaj Peev Xwm Ntau Lawm & Lub Sijhawm Lead

Yam khoom	Muaj peev xwm txhua hli	Standard Lead Time	Ceev Order Muaj peev xwm
Shunt Trips (tag nrho cov voltages)	50,000 units	4-5 lub lis piam	3 hnub
Undervoltage tso tawm	20,000 units	4-5 lub lis piam	3 hnub
Kev Sib Txuas Sib Txuas	10,000 units	4-5 lub lis piam	3 hnub
Tswb Contacts	50,000 units	4-5 lub lis piam	3 hnub
Lub cev muaj zog ua haujlwm Devices	50,000 units	4-5 lub lis piam	5 hnub
Busbar Systems	1,000 meters	4-5 lub lis piam	3 hnub

Engineering & Technical Team Structure

Department	Cov neeg ua haujlwm	Kev txawj ntse	Lub luag haujlwm
R & D Engineering	5 engineers	Electromagnetic tsim, hu rau physics, IoT kev koom ua ke, kev sib txuas lus wireless	Kev txhim kho khoom siv tshiab, ntse nta, patent portfolio (30+ patents)
Txheej Txheem Engineering	15 engineers	Coil winding automation, precision stamping, yas molding, lean manufacturing	Kev tsim kho kom zoo, kev txhim kho cov txiaj ntsig (> 99%), txo nqi
Kev xeem & validation	12 engineers	IEC 60898 / 60947 Kev ua raws, kev sim siab, EMC, ib puag ncig simulation	Hom kev soj ntsuam kev sib koom tes, tsis ua hauj lwm tsom xam, kev tswj xyuas ntawv pov thawj
Application Engineering	10 engineers	MCB kev koom ua ke, tswj tshuab, BMS / SCADA interface	Cov neeg siv khoom txhawb nqa, kev tsim qauv, commissioning
Quality Assurance	25 tus kws tshaj lij	ISO 9001, IATF 16949, statistical process control, metrology	Supplier audit, txheej txheem audit, kho kom raug, calibration

Vim Li Cas Peb MCB Accessory Manufacturing Stands Sib nrug

Peb qhov chaw tsim khoom sawv cev20 xyoo kev tshwj xeeb nyob rau hauv qis-voltage Circuit Court tiv thaiv accessories, xa MCB accessories uas tshaj ntiaj teb no cov qauv los ntawm:

Modular kev txawj ntse: Kev nkag siab tob ntawm 17.5mm DIN rail modularity, ua kom muaj kev sib txuam nrog MCBs los ntawm cov tuam txhab loj (Schneider Acti9, ABB System pro M, Siemens Sentron, Hager)

Smart accessory innovation: Proprietary wireless auxiliary contacts thiab lub zog saib xyuas sensors uas hloov cov pa MCBs rau hauv IoT-enabled ntse li yam tsis muaj kev hloov pauv

Vertical kev koom ua ke: Nyob rau hauv tsev coil winding nrog lub tshuab nqus tsev impregnation, precision contact stamping, thiab thermoplastic molding kom ua tiav kev tswj xyuas zoo thiab kev hloov kho sai

Kev ntsuam xyuas infrastructure: $ 2M + nqis peev hauv automated test nrog rau 100,000-cycle mechanical endurance verification, EMC immunity testing, thiab MCB compatibility testing

Ceev ceev customization: Saj zawg zog manufacturing enabling voltage, tiv tauj configuration, thiab kev sib txuas lus raws tu qauv customization nrog 2-lub lim tiam ua lead lub sij hawm

View as

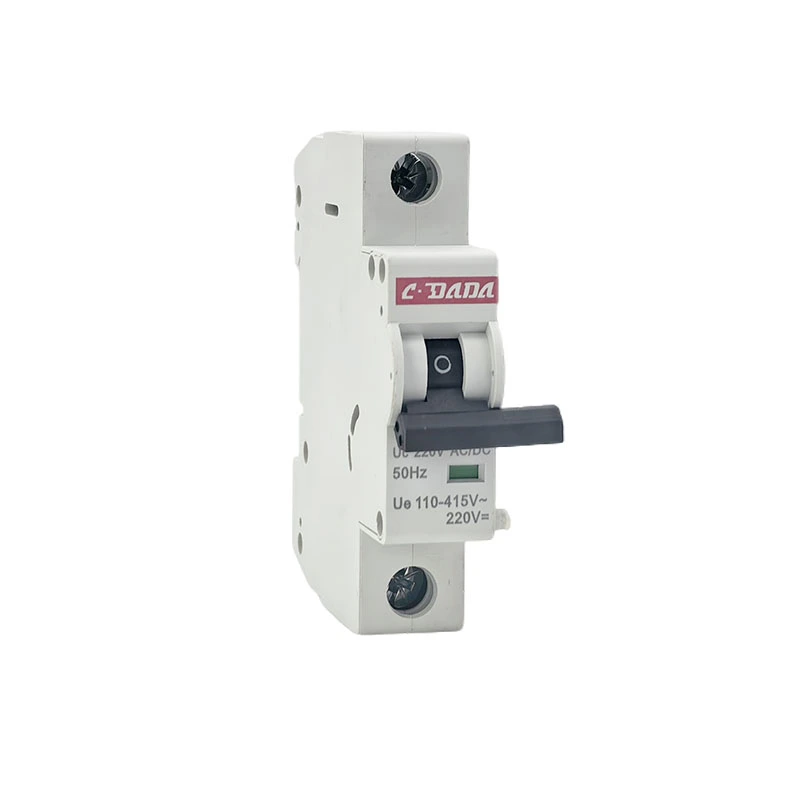

MCB Shunt Tso Tawm

Xaiv CDADA raws li koj tus MCB Shunt Release tsum, cov khoom no yog rau kev tswj chaw taws teeb ntawm koj DAB7-63 Circuit Court breakers. Muaj nyob rau hauv 24V txog 400V AC / DC, nws ua kom ntseeg tau kev ua haujlwm nyob rau hauv ntau qhov hluav taws xob ntau. Zoo tagnrho rau kev kaw thaum muaj xwm ceev thiab automation systems. Yooj yim rau nruab, nrog kev sib raug zoo ncaj qha rau CDADA's DAB7 series-tsis muaj qhov hloov pauv ntxiv.

Saib Ntxiv >> Xa lus nug >>

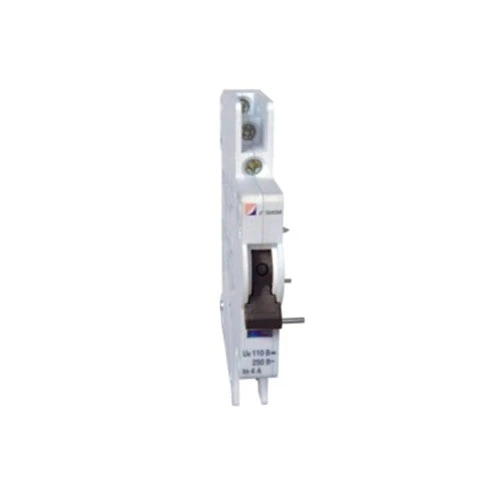

MCB Tswb thiab Pab Pawg Sib Txuas

Yuav CDADA MCB Tswb thiab Kev Sib Txuas Sib Txuas - dual-function module rau DAB7-63 breakers. Muab 2 tus neeg sib txuas lus sib txuas (auxiliary + tswb) nyob rau hauv ib chav tsev compact. Qhov zoo tshaj plaws rau kev saib xyuas tej thaj chaw deb thiab teeb meem txhaum cai hauv cov vaj huam sib luag. Yooj yim sab laug-sab snap-on nruab. Raws li lub Hoobkas ncaj qha, OEM / tus nqi muag khoom muaj.

Saib Ntxiv >> Xa lus nug >>

CDADA yog MCB Accessories cov chaw tsim khoom thiab cov chaw muag khoom hauv Suav teb. Peb lub Hoobkas ua haujlwm rau ntau hom kev lag luam xws li lub tshuab hluav taws xob, lub tsev automation, thiab kev tsim khoom lag luam, muab cov kev daws teeb meem OEM / ODM hloov tau.
