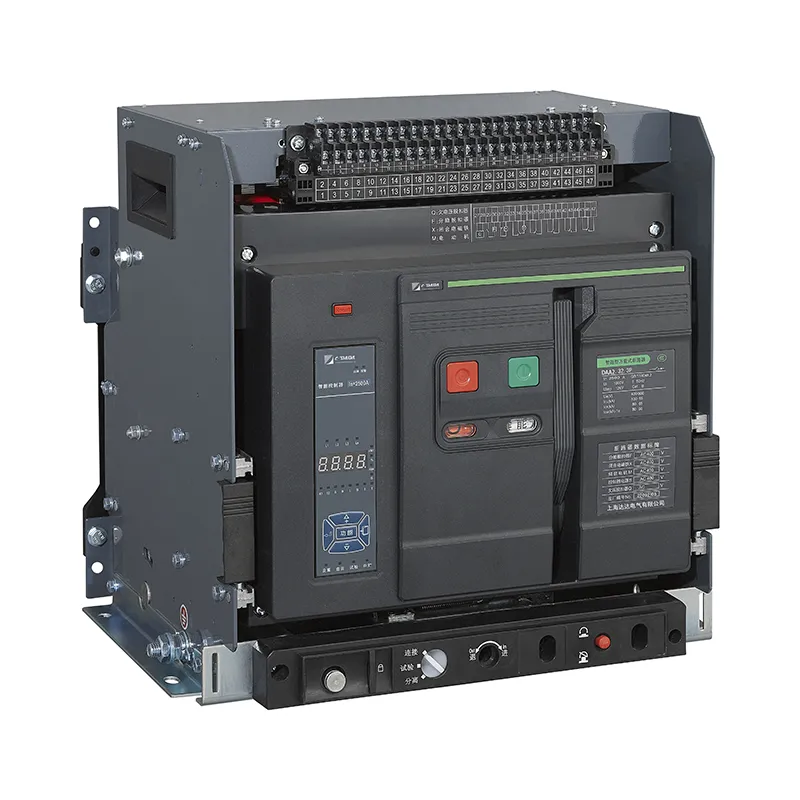

3200A Cua Circuit Court Breaker
Model:DAA2-3200 Series
CDADA yog cov kws tshaj lij ACB cov chaw tsim khoom thiab cov muag khoom hauv Suav teb. Qhov no 3200A Cua Circuit Court Breaker (DAA2-3200 Series) zoo meej rau kev yuav ntau, haum rau AC 50Hz, 690V tes hauj lwm. Nws boasts ntse kev tiv thaiv thiab meej xaiv tripping, nrog drawout / tsau xaiv. Nws yog qhov kev cia siab tsis tshua muaj hluav taws xob ACB rau cov neeg yuav khoom ntau xav tau kev ua haujlwm ruaj khov hluav taws xob.
CDADA 3200A Cua Circuit Court Breaker (DAA2-3200 Series) yog qhov zoo tagnrho rau kev yuav khoom ntau, tsim los rau kev lag luam hnyav AC 50Hz, 690V tes hauj lwm. Qhov no ACB (3P / 4P qauv) npog 2000-3200A, muab ntau dhau, luv Circuit Court thiab tiv thaiv hluav taws xob.
Lawv tau siv los ua cov khoom siv hluav taws xob nkag hauv cov tsev nyob, cov chaw lag luam thiab cov chaw lag luam los tiv thaiv kev kub ntxhov hauv lub zog hluav taws xob thiab kom ceev ceev qhib / kaw circuits hauv phau ntawv lossis hom tsis siv neeg.
Khoom Parameter (Specification)
| Qauv Series: | DAA 2-3200 |
| Ncej Rated Tam sim no (Inm): | 3200 A |
| Rated Tam sim no (hauv): | 2000A / 2500A / 2900A / 3200A |
| Rated Voltage (Ue): | 400V / 690V |
| Impulse tiv thaiv voltage: | 8000V @ 2000m qhov siab (≤12000V max) |
| Icu (400V / 690V): | 100kA / 65kA |
| n × Icu (400V / 690V): | 220kA/0.2/143kA/0.25 |
| Ics (400V / 690V): | 65kA / 50kA |
| Ib (1s): | 65kA @ 400V / 50kA @ 690V Cov |
| Standards Ua raws li: | GB14048.2, IEC60947-2 |
Khoom Feature Thiab Daim Ntawv Thov
CDADA 3200A cua Circuit Court breaker yog tsim los rau kev xav tau ib puag ncig xws li steel mills, tshuaj nroj tsuag, thiab chaw tsim khoom loj. Nws los nyob rau hauv ob qho tib si 3200A drawout ACB thiab cov teeb tsa ruaj khov, txhawb kev sib pauv kub hloov kho kom txo qis sijhawm. Nruab nrog kev xaiv tswj kev txawj ntse, nws muaj kev txhim kho qhov kev ntxub ntxaug thiab kev saib xyuas tej thaj chaw deb.
Cov txiaj ntsig tseem ceeb:
★ High impulse withstand voltage (txog 12000V)
★ Txhawb "Four Remotes" rau seamless kev koom ua ke rau hauv SCADA systems
★ Customizable branding thiab ntim xaiv muaj
Cov Lus Qhia Ntau Lawm

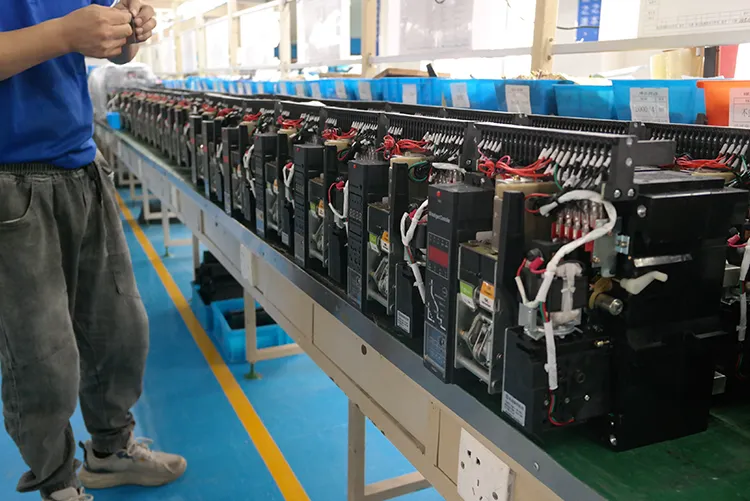

Tsim los ntawm SHANGHAI DADA ELECTRIC CO., LTD, txhua txhua 3200A cua Circuit Court breaker tau txais kev tswj xyuas nruj kom ntseeg tau tias muaj kev ntseeg siab thiab ua haujlwm ntev. Ua siv cov pa oxygen tsis muaj tooj liab nrog cov nyiaj hlau sib tshooj, cov chav no raug sim rau ntau tshaj 10,000 kev ua haujlwm. Piv nrog rau lwm txoj hauv kev, CDADA breakers muab nruj dua kev mus ncig (± 3%) thiab thermal stability zoo dua ntawm qhov kub siab.
Competitive ntug:
★ Precision-engineered arc quenching chamber
★ ISO 9001 cov txheej txheem ntau lawm
★ Cov kev pabcuam prototyping nrawm rau cov kev cai tshwj xeeb
Cov lus nug nquag nug (FAQ)
Q1: Dab tsi yog qhov siab tshaj plaws ntsuas tam sim no txhawb nqa los ntawm CDADA 3200A ACB?
A1: Qhov siab tshaj plaws ntsuas tam sim no txhawb nqa los ntawm CDADA 3200A ACB yog 3200A, nrog rau kev xaiv rau qis qis suav nrog 2000A, 2500A, thiab 2900A.
Q2: Lub tshuab hluav taws xob no puas tuaj yeem siv rau hauv ob qho tib si ruaj khov thiab kos duab teeb tsa?
A2: Yog lawm, CDADA 3200A ACB yog muaj nyob rau hauv ob qho tib si ruaj thiab drawout configurations, tso cai rau hloov tau yooj yim installation raws li koj xav tau.
Q3: Puas yog CDADA 3200A ACB tuaj nrog tus tswj hwm ntse?
A3: Thaum lub hauv paus qauv tuaj yeem ua haujlwm raws li kev sib cais yam tsis muaj kev tswj xyuas ntse, cov kev xaiv ntse tswj tau muaj rau kev txhim kho kev tiv thaiv thiab kev saib xyuas cov chaw taws teeb.
Q4: Yuav ua li cas lub impulse tiv taus voltage sib txawv nrog qhov siab?
A4: Lub impulse withstand voltage yog 8000V ntawm 2000 meters qhov siab thiab yuav tsum tsis txhob tshaj 12000V ntawm qhov siab dua.
Q5: Puas yog CDADA 3200A ACB ua raws li cov qauv thoob ntiaj teb?
A5: Yog lawm, CDADA 3200A ACB ua raws li ob lub teb chaws (GB14048.2) thiab thoob ntiaj teb (IEC60947-2) cov qauv, kom ntseeg tau tias kev siv thoob ntiaj teb.
