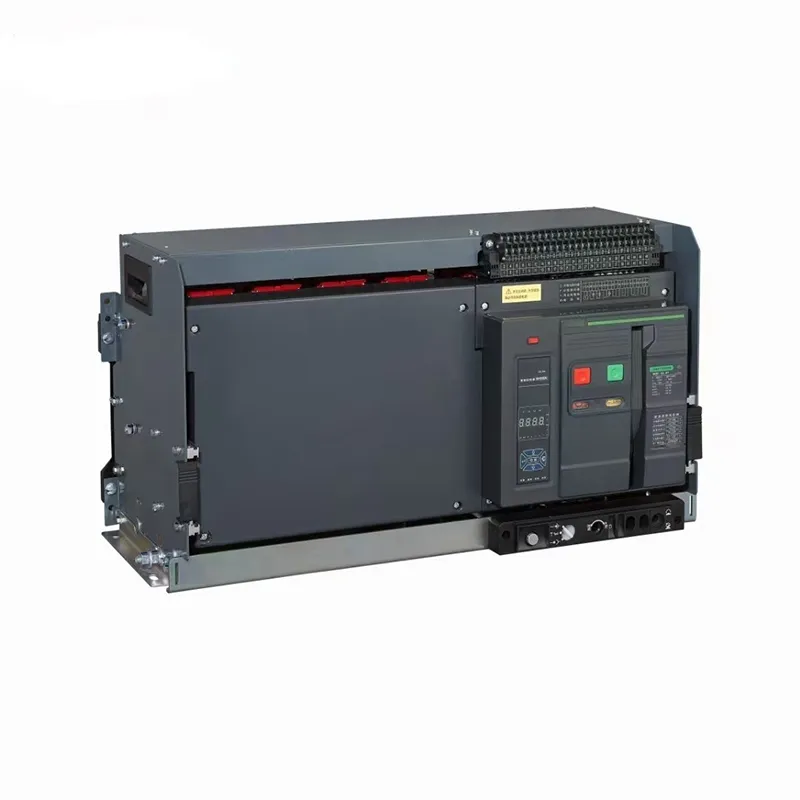

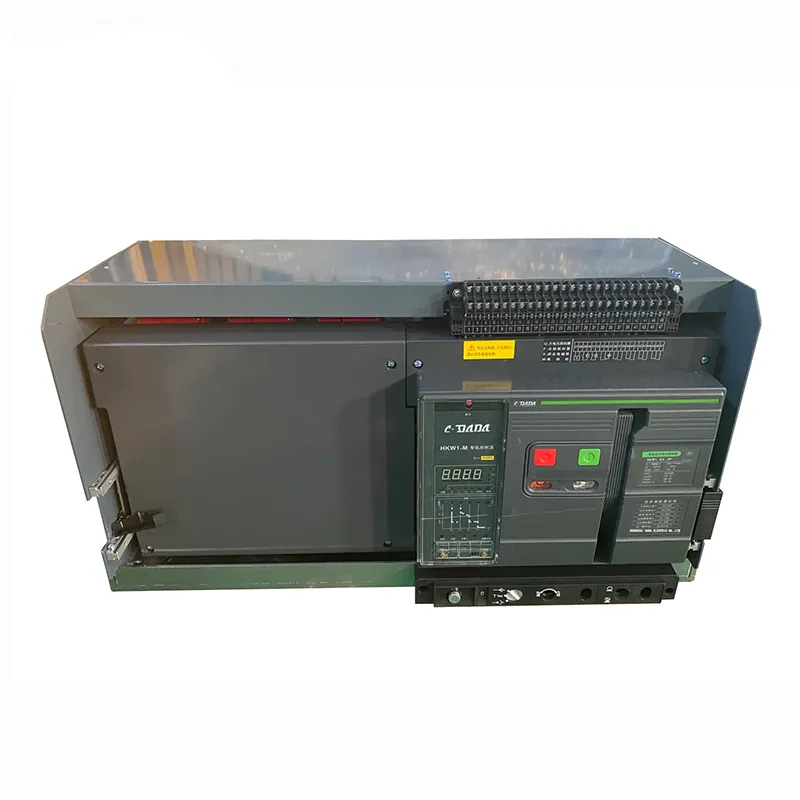

6300A Cua Circuit Court Breaker

Qhov CDADA 6300A Air Circuit Breaker no zoo meej rau kev yuav khoom ntau, ua rau lub luag haujlwm tseem ceeb hauv kev tsim kho nrog AC 50Hz, 690V kev sib raug zoo thiab 4000A-6300A tam sim no. Qhov ACB (4P qauv) no muab cov kev xaiv ntse xaiv kev tiv thaiv, zoo tagnrho rau cov chaw tsim hluav taws xob, cov mining thiab cov chaw lag luam loj. Nws txhawb Four Remotes ntawm qhov qhib interface, koom ua ke nrog SCADA thiab cov phiajcim ntse, thiab ua haujlwm raws li kev sib cais txhim khu kev qha yam tsis muaj tus maub los.

Khoom Parameter

Khoom Feature Thiab Daim Ntawv Thov

CDADA 6300A ACB rau kev siv fais fab nroj tsuag yog tsim kom muaj kev ntseeg siab nyob rau hauv tag nrho cov xwm txheej. Nws cov kev sib txuas lus txhawb zog thiab ntau lub chamber arc chute pab kom muaj kev cuam tshuam kev nyab xeeb ntawm 120kA txhaum theem - tseem ceeb rau kev siv hluav taws xob-qib hloov pauv. Muaj nyob rau hauv ob qho tib si 6300A drawout cua Circuit Court breaker thiab taag ACB configurations, nws txhawb ceev ceev tsis muaj de-energizing tag nrho busbar.

Vim li cas cov engineers qhia CDADA 6300A:

★ Lub peev xwm tawg siab tshaj plaws hauv CDADA qhov qis-voltage ACB lineup

★ Optimized thermal tsim rau kev ua haujlwm tas li 6300A

★ Pre-engineered compatibility nrog loj switchgear OEMs

★ Yeem kev txawj ntse tswj nrog kev tiv thaiv to

Cov Lus Qhia Ntau Lawm

Raws li ib tug ua 6300A cua Circuit Court breaker chaw tsim tshuaj paus, SHANGHAI DADA ELECTRIC ntiav precision casting thiab CNC machining los xyuas kom meej qhov tseeb seem ntawm tus ncej thiab hu rau caj npab. Txhua chav nyob undergoes:

★ Tag nrho-load kub nce siab (≤55K ntawm 6300A)

★ 3-cycle short-circuit validation ntawm Icu

★ Kev txheeb xyuas raws tu qauv (Modbus/Profibus yeem)

Kev sib tw sib tw:

★ 6-txheej nyiaj-plated hu rau saum npoo kom tsis muaj zog

★ Modular maub los bay rau yav tom ntej hloov khoom dua tshiab

★ Export ntim nrog IP54-rated davhlau ya nyob twg npog

CDADA Hoobkas Qhov Zoo:

● OEM & ODM kev paub: 42+ xyoo;

● Txhua xyoo tso zis: 3,000,000 Circuit Court breakers;

● Lub Hoobkas loj: 50,000 m2;

● Lub Tshuab ua haujlwm tseem ceeb: 100 teeb;

● Kev Tshuaj Xyuas Cov Tshuab Zoo: 50 teeb;

● Peb Cov Neeg Ua Haujlwm: 400 tus neeg ua haujlwm;

● Technical Engineers: 32 tus neeg ua haujlwm;

● Peb tau lees paub peb cov khoom hauv lub ntiaj teb cov koom haum kws tshaj lij

● Peb tseem tiv tauj los daws txhua qhov teeb meem zoo

FAQ

Q1: Dab tsi yog qhov ntsuas siab tshaj tam sim no muaj rau CDADA 6300A series?

A1: CDADA 6300A series txhawb cov ntsuas tam sim no mus txog 6300A, nrog cov kev xaiv nruab nrab ntawm 4000A thiab 5000A.

Q2: Puas yog 6300A Cua Circuit Court Breaker haum rau cov chaw tsim hluav taws xob cov nyiaj tau los?

A2: Yog lawm - nws tau tsim tshwj xeeb rau cov chaw tsim hluav taws xob, chaw tsim hluav taws xob, thiab kev lag luam hnyav, nrog rau Icu txog 120kA ntawm 400V.

Q3: Yuav tsum muaj pes tsawg tus tooj liab tuav ib tus ncej rau 6300A qauv?

A3: Rau 6300A, koj xav tau rau (6) daim ntawm 120 × 10 mm tooj liab tuav rau ib tus ncej kom muaj kev nyab xeeb tam sim no thiab qis kub nce.

Q4: Lub tshuab hluav taws xob no puas tuaj yeem ua haujlwm yam tsis muaj kev tswj xyuas ntse?

A4: Yog - lub hauv paus chav ua haujlwm raws li kev sib cais ntawm phau ntawv thaum tsis muaj tus tswj hwm raug teeb tsa, txawm tias kev tiv thaiv ntse yuav tsum muaj kev xaiv tswj module.

Q5: Puas yog CDADA muab kev cai ncej teeb tsa (piv txwv li, 3P tsis yog 4P)?

A5: Yog lawm. Thaum 4P yog tus qauv rau kev siv hauv av-sensitive, 3P versions muaj nyob rau ntawm kev thov rau cov qauv tsim tshwj xeeb.
