Txhim khu kev qha MCCB Accessories Factory

Ntxiv nrog rau peb cov kev paub ntau yam ntawmMoulded Case Circuit Breakers (MCCBs), CDADA kuj muaj kev xaiv tag nrho ntawm cov khoom siv MCCB cuam tshuam. Ob qho tib si sab hauv thiab sab nrauv yog muaj; thov hu rau peb yog tias koj xav tau kev pab nrog kev xaiv khoom lossis kev txhawb nqa.

MCCB Accessories yog dab tsi?

MCCB accessories yog cov khoom siv ntxiv tsim los txhim kho kev ua haujlwm, kev tiv thaiv, thiab kev tswj lub peev xwm ntawm Moulded Case Circuit Breakers (MCCBs). Cov khoom siv no hloov pauv lub hauv paus Circuit Court breaker mus rau hauv ib qho kev txawj ntse, kev sib koom ua ke ntawm cov khoom siv hluav taws xob niaj hnub thiab kev tswj hwm. Ua haujlwm hauv qabIEC 60947-2: Cov (circuit-breakers) thiabIEC 60947-4-1: Cov (cov neeg hu xov tooj thiab lub cev muaj zog pib), MCCB cov khoom siv ua haujlwm ua haujlwm rau cov chaw taws teeb, kev saib xyuas cov xwm txheej, kev cuam tshuam kev nyab xeeb, thiab kev sib txuas tsis sib haum nrog kev tswj hwm lub tsev thiab kev lag luam automation.

MCCB accessories poob rau hauv ob pawg thawj:

Sab hauv Accessories: Mounted nyob rau hauv lub breaker kab noj hniav (shunt mus ncig ua si, undervoltage tso tawm,pab tiv tauj, tswb hu)

Sab nrauv Accessories: Mounted ntawm lub breaker sab nrauv los yog enclosure (rotary handles, qhov rooj interlocks, davhlau ya nyob twg npog, txuas shafts)

Lub ntiaj teb no MCCB accessory kev ua lag luam tab tom muaj kev loj hlob tseem ceeb uas tau tsav los ntawm ntse daim phiaj saws, muaj automation, thiab tauj dua tshiab zog kev koom ua ke, nrog manufacturers xws li Schneider Electric, ABB, Eaton, thiab Chint muab cov ntaub ntawv accessory portfolios sib xws nyob rau hauv lawv MCCB ntau yam.

MCCB Accessory Product Categories & Configurations

Qeb	Yam khoom siv	Muaj nuj nqi	Technical Specifications
Kev ua haujlwm nyob deb	Shunt Trip (MX)	Tej thaj chaw deb tripping ntawm sab nraud voltage teeb liab	AC: 24V, 48V, 110V, 230V, 400V; DC: 12V, 24V, 48V, 110V; Inrush 200VA (AC) / 200W (DC), kaw 20VA (AC) / 20W (DC); Lub sij hawm mus ncig <50ms
	Undervoltage Release (MN/UVR)	Tsis siv neeg tripping thaum voltage poob qis dua qhov pib	Pickup: 0.85 × Un; Kev xa tawm: 0.35-0.7 × Un; Lub sij hawm ncua: 0.1s-3s (adjustable); Kev ua haujlwm tas mus li
	Motor Operator (MO)	Hluav taws xob them thiab kev ua haujlwm ntawm breaker mechanism	AC / DC muab, 3-5s lub sijhawm ua haujlwm, phau ntawv hla dhau, kev tawm tswv yim
Status Signaling	Cov Neeg Pab Koom Tes (AX)	Qhia tawm txoj hauj lwm breaker (ON/OFF)	1NO + 1NC lossis 2NO + 2NC, 10A ntawm 230V AC, nyiaj alloy hu, snap-action
	Tswb Contacts (AL)	Lub teeb liab breaker tripped vim yog txhaum	1NO + 1NC, tsuas yog ua haujlwm ntawm kev mus ncig (tsis yog phau ntawv OFF), txawv ntawm pab pawg
	Fault Signal Contacts	Qhia txog tej yam txhaum (overload, short-circuit, av txhaum)	Microswitch-based, kev koom ua ke nrog cov khoom siv hluav taws xob mus ncig
Kev nyab xeeb & kev sib tshuam	Rotary kov	Kev ua haujlwm sab nraud los ntawm qhov rooj / vaj huam sib luag	Ncaj lossis txuas ntxiv, padlockable, IP65, qhov rooj sib tshuam
	Qhov rooj Interlock	Tiv thaiv qhov rooj qhib thaum breaker ON	Mechanical linkage, defeatable rau thaum muaj xwm ceev nkag
	Xauv Xauv	Txwv kev ua haujlwm rau cov neeg ua haujlwm tau tso cai	Ntau hom xauv (Ronis, Profalux), qhov tseem ceeb tshem tau hauv ON lossis OFF
	Mechanical Interlock	Tiv thaiv ib txhij kaw ntawm ob lub breakers	Cable los yog pas nrig hom, rau kev hloov pauv kev siv
Kev Tiv Thaiv & Saib Xyuas	Terminal Cov	Tiv thaiv kev sib cuag nrog cov khoom nyob	IP20 rau IP40, theem teeb meem, txuas ntxiv rau kev sib txuas busbar
	Phase Barriers	Nce clearance ntawm theem	Cov khoom siv insulating, 400-690V rated, modular tsim
	Surge Protection Device (SPD)	Tiv thaiv breaker los ntawm xob laim surges	Hom 1 + II, 12.5-15kA impulse tam sim no, integrated mounting
Kev sib txuas lus & Ntse	Wireless Auxiliary Hu rau	Kev saib xyuas tej thaj chaw deb ntawm Bluetooth/WiFi	Tuya App tau tshaj, 45mm dav, roj teeb los yog tus kheej-powered
	Modbus Kev Sib Txuas Lus Module	Kev koom ua ke nrog BMS / SCADA systems	RS485 interface, cov ntaub ntawv ntawm lub sijhawm, kev tswj chaw taws teeb muaj peev xwm
	PowerTag Zog Sensor	Wireless zog saib xyuas	1% raug, 15-feeb cov ntaub ntawv, huab sib txuas

Accessory Compatibility Matrix (Tswj):

MCCB Ncej Loj	Shunt Trip	UVR	Pab txhawb	Lub cev muaj zog	Rotary kov
100A-250A	Sab hauv	Sab hauv	Sab hauv / Sab Nraud	Sab nraud	Sab nraud
250A-630A	Sab hauv	Sab hauv	Sab hauv / Sab Nraud	Sab hauv / Sab Nraud	Sab nraud
630-1600 Nws	Sab hauv	Sab hauv	Sab hauv	Sab hauv	Sab nraud / Extended
1600-2000 A	Sab nraud	Sab nraud	Sab nraud	Sab nraud	Extended/Heavy-duty

Core Functions & Txoj Cai Ua Haujlwm

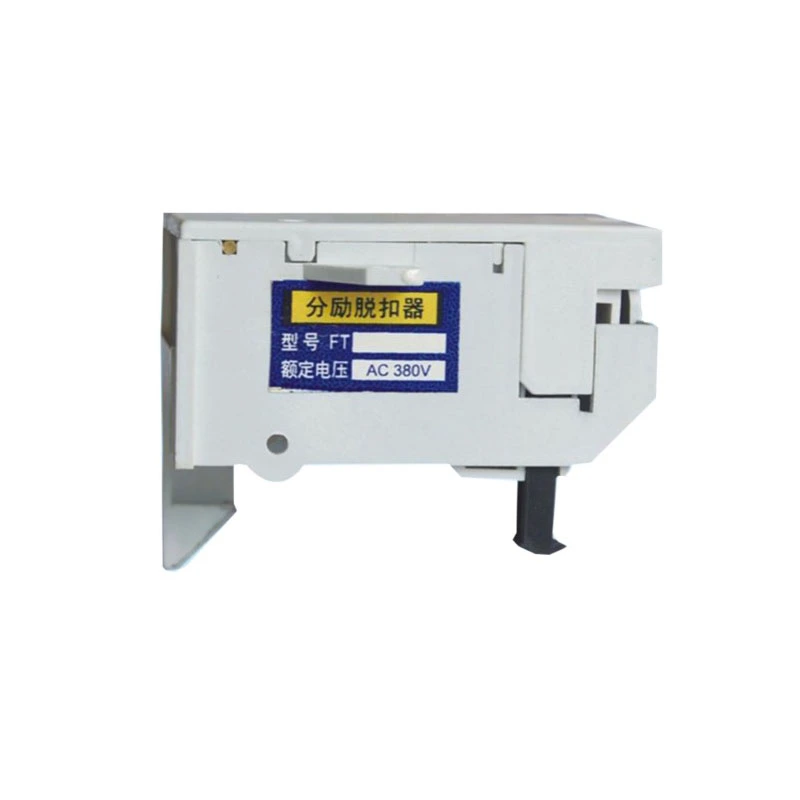

Shunt Trip (MX) - Tej thaj chaw deb Tripping Mechanism

Cheebtsam	Muaj nuj nqi	Cov ntsiab lus technical
Electromagnetic Chev	Tsim magnetic teb thaum muaj zog	AC: Inrush 200VA, kaw 20VA; DC: Inrush 200W, kaw 20W; Rwb thaiv tsev chav F (155 ° C)
Plunger Mechanism	Strikes mus txawv tebchaws bar kom tso mechanism	Hardened steel, caij nplooj ntoos hlav-rov qab, stroke 5-10mm
Tiv tauj System	Cais tawm ntawm lub ntsiab breaker circuits	Inforced rwb thaiv tsev, 4kV impulse withstand
Mounting	Snap-fit los yog ntsia hlau-mounted hauv kab noj hniav tawg	Tool-free installation ntawm feem ntau niaj hnub MCCBs

Kev khiav hauj lwm ib ntus:

Tswj voltage siv rau shunt mus txawv tebchaws terminals (feem ntau 110-240V AC los yog 24V DC)

Coil energizes, tsim magnetic teb

Plunger ntaus breaker trip bar nrog 2-5N quab yuam

Mechanism tso tawm, cov neeg tseem ceeb qhib

Plunger rov qab los ntawm lub caij nplooj ntoos hlav thaum voltage tshem tawm

Breaker yuav tsum tau rov pib dua phau ntawv (rov kaw)

Daim ntawv thov:

Emergency stop systems (E-stop nyees khawm)

Hluav taws kub tswb system kev koom ua ke (automatic shutdown)

Remote load shedding (xav tau teb)

Generator hloov schemes (synchronized qhib)

Undervoltage Release (MN/UVR) - Kev ntsuas hluav taws xob

Parameter	Specification	Kev nyab xeeb muaj nuj nqi
Txais Voltage	0.85 × Un (tuaj yeem kaw tau)	Tiv thaiv kev kaw ntawm qhov hluav taws xob tsawg
Tshem tawm Voltage	0.35-0.7 × Un (kho tau)	Tsis siv neeg mus ncig ntawm undervoltage
Sijhawm ncua	0.1s-3s (hom hluav taws xob)	Tiv thaiv kev ntxhov siab los ntawm qhov hluav taws xob dips
Lub luag haujlwm txuas ntxiv	100% ntsuas voltage	Coil energized tsis tu ncua thaum lub sijhawm ua haujlwm

Txoj Cai Kev Ua Haujlwm: Lub UVR kauj yog txuas ntxiv energized thaum lub sijhawm ua haujlwm ib txwm, tuav lub tshuab latch kaw. Thaum qhov hluav taws xob poob qis dua qhov pib rau lub sijhawm teem sijhawm ncua sijhawm, lub latch tso tawm thiab lub tshuab tawg tuaj yeem ua haujlwm. Qhov no tiv thaiv:

Lub cev muaj zog puas tsuaj los ntawm qis-voltage pib (siab tam sim no, overheating)

Kev tswj tsis tau rov pib dua tom qab lub zog rov qab los (kev nyab xeeb kev nyab xeeb)

Cov cuab yeej ua haujlwm nyob rau hauv qhov tsis muaj kev nyab xeeb voltage

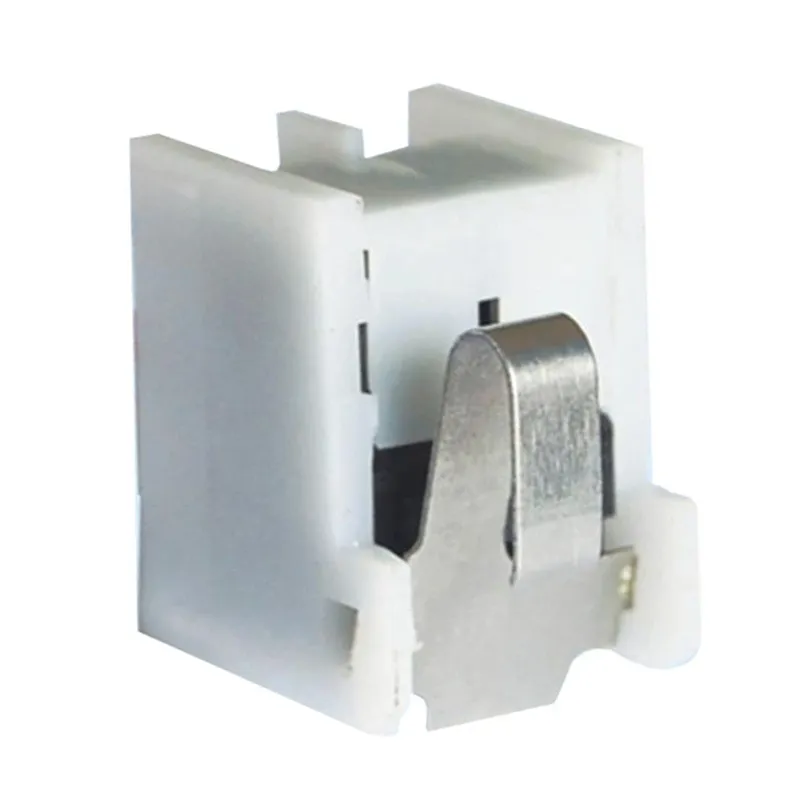

Pab Txhawb & Tswb Tiv tauj - Status Signaling

Hu rau hom	Kev ua haujlwm	Daim ntawv thov
Kev Pabcuam Tiv Thaiv (AX)	Hloov lub xeev nrog breaker lub ntsiab tiv tauj	Kev taw qhia txog xwm txheej (ON / OFF), sib cuam tshuam, tswj Circuit Court
Tswb Contact (AL)	Ua haujlwm tsuas yog ntawm kev mus ncig tsis siv neeg (overload / luv-circuit)	Fault indication, tswb vaj huam sib luag, ceeb toom txij nkawm
Short-circuit tswb	Tshwj xeeb rau kev ua haujlwm sib nqus	Selective fault indication
Overload tswb	Tshwj xeeb rau kev ua haujlwm thermal	Kev tiv thaiv kev tiv thaiv kev tiv thaiv

Tiv tauj Ratings (Hom):

AC-1510A ntawm 230V AC (inductive loads)

DC-132A ntawm 110V DC (inductive loads)

Yam tsawg kawg nkaus Load10mA ntawm 5V (PLC compatibility)

Neeg kho tshuab lub neej: 10,000-100,000 ua haujlwm

Hluav taws xob lub neej:5,000-50,000 kev ua haujlwm (ntawm qhov ntsuas ntsuas)

Daim Ntawv Thov Ib puag ncig & Siv Case

Daim ntawv thov	Accessory Configuration	Kev Xav Tau	Kev koom ua ke
Muaj Automation	Shunt mus txawv tebchaws + 2 × Pabcuam + Lub cev muaj zog	24V DC tswj, ceev ceev (<50ms), txoj hauj lwm tawm tswv yim	PLC / DCS kev koom ua ke, chaw taws teeb HMI tswj
Cov tsev lag luam	UVR + Auxiliary + Rotary kov	230V AC, qhov rooj sib tshuam, padlockable	BMS kev koom ua ke, hluav taws kub tswb interface
Data Centers	Shunt mus txawv tebchaws + Tswb + Kev sib txuas lus module	48V DC, redundant signaling, Modbus / BACnet	DCIM software, automated load shedding
Cov Tsev Kho Mob	UVR + 2 × Pab + Cov Ntsiab Lus	Kev kho mob-qib, kev ntseeg siab, txwv kev nkag	Qhov tseem ceeb ntawm kev tswj fais fab, cais panels
Lub zog tauj dua tshiab	Shunt mus txawv tebchaws + Surge tiv thaiv + Wireless	1000V DC muaj peev xwm, kev ntsuam xyuas sab nraum zoov, kev saib xyuas tej thaj chaw deb	Hnub ci SCADA, lub zog tswj tshuab
Roj & Roj	Cov khoom siv tawg-pov thawj + UVR + Shunt	ATEX / IECEx tau ntawv pov thawj, corrosion-resistant, tropicalized	Emergency shutdown systems (ESD)
Marine / Offshore	Tropicalized UVR + Mechanical interlock	55 ° C ambient, ntsev tsuag resistant, redundant	Nkoj automation, generator synchronization
Infrastructure	Tus neeg tsav tsheb lub cev muaj zog + Ncua kev sib hloov + Txoj haujlwm hloov	400V AC, hnyav-duty, 50,000 lub neej voj voog	SCADA systems, chaw taws teeb tswj chaw taws teeb

Smart Building Integration Piv txwv: Modern MCCB accessories pab kom muaj kev tswj hwm lub zog:

PowerTag wireless sensors saib xyuas tam sim no, voltage, hwj chim yam ntawm ib tug breaker

Wireless pab tiv tauj xa cov xwm txheej breaker mus rau hauv nruab nrab

Shunt mus ncig ua si pab kom automated load shedding thaum lub sij hawm ncov xav tau

Cov modules integrate nrog lub tsev automation rau kev kwv yees txij nkawm

Kev tsim khoom & Kev ua haujlwm ntau lawm

Precision Manufacturing Sequence

Raw Khoom IQC → Electromagnetic Chev Winding → Plunger / Armature Machining → Sib cuag System Fabrication → Tsev Txhaj Molding → Sub-Assembly → Calibration & Test → Final Integration → Ntim

Cov theem tsim khoom tseem ceeb

Theem	Txheej txheem txheej txheem	Cov ntsiab lus tswj tau zoo
Coil Winding	Enameled tooj liab hlau (0.1-0.5mm), automated winding nrog nro tswj, nqus cov kua roj vanish impregnation	Hloov suav ± 1%, DC tsis kam ± 5%, dielectric zog 2kV / 1min, rwb thaiv tsev tsis kam> 100MΩ
Plunger / Armature Machining	Cold-dov hlau los yog hlau hmoov metallurgy, precision sib tsoo, hardening (HRC 45-55), kev kho deg	Dimensional kam rau ua ± 0.02mm, nto tiav Ra 0.8, sib nqus permeability> 5000
Hu rau Fabrication	Silver-nickel (AgNi 90/10) los yog silver-cadmium oxide (AgCdO), stamping, riveting los yog vuam rau tooj liab	Hardness HV 80-120, tiv taus <50mΩ, brazing zog> 50MPa
Tsev Moulding	PA66 GF30 los yog PBT GF30, 280-320 ° C txhaj, 17.5mm modularity rau DIN rail compatibility	Dimensional kam rau ua ± 0.1mm, nrhiav qhov ntsuas> 600V, UL 94 V-0
Caij nplooj ntoos hlav Manufacturing	Roj-tempered carbon steel SWOSC-V lossis stainless hlau 301, CNC coiling, kev kho cua sov	Lub neej qaug zog> 100,000 cycles, caij nplooj ntoos hlav tus nqi ± 10%, so <5%
Sub-Assembly	Coil-plunger-hu rau kev sib koom ua ke, kev kho mob stroke, snap-fit mechanism kuaj	Kev khiav hauj lwm voltage 0.85-1.1 × Un, mus ncig teb chaws quab yuam 2-5N, teb lub sij hawm <50ms
Calibration kawg	Pickup/dropout voltage verification (UVR), kev ntsuas lub sij hawm ua hauj lwm (shunt mus txawv tebchaws), tiv tauj kuj	100% automated test, data logging, traceability QR coding

Primary Raw Materials & Component Specifications

Cheebtsam	Khoom Specification	Tus qauv tsim khoom	Cov khoom tseem ceeb
Coil Hlau	Enameled tooj liab hlau Class F (155 ° C) los yog Class H (180 ° C)	IEC 60317, NEMA MW 35	Kev tawg voltage> 2kV, solderability 390 ° C / 2s, yooj
Sib nqus Core	Silicon steel laminations (0.35-0.5mm) los yog hlau khoom	IEC 60404-8, JIS C 2552	High permeability, tsis tshua muaj coercivity, zoo ib yam magnetic zog
Plunger/Armature	Cold-dov hlau SPCC lossis hlau hmoov (Fe-99%)	JIS G 3141, MPIF Standard 35	HRC 45-55, nto tiav Ra 0.8, corrosion kuj
Tiv tauj	Silver-nickel (AgNi 90/10) lossis AgCdO	ASTM B152, IEC 60368, Kev Tswj Xyuas Zoo	Conductivity> 90% IACS, arc yaig tsis kam, tiv thaiv vuam
Hu rau Springs	Beryllium tooj liab (CuBe2 C17200) los yog stainless hlau 301	ASTM B196	Kev qaug zog lub neej> 100,000 cycles, siab zoo, corrosion kuj
Tsev	PA66 GF30 los yog PBT GF30, nplaim retardant	IEC 60664-1, UL 94 V-0	Kev ntsuas ntsuas> 600V, kub tsis kam 160 ° C, cuam tshuam lub zog> 7 kJ / m²
Terminals	Brass C36000 los yog tooj liab C11000 nrog tin plating	ASTM B16 / B187 Kev ntsuas	Tam sim no ceev 1.0-1.5 A / mm², torque withstand 1.5-2.5Nm
DIN Rail Clip	Lub caij nplooj ntoos hlav steel 65Mn lossis stainless hlau 304	GB/T 1222, ISO 3506	Clamp quab yuam 50-100N, 10,000 lub voj voog qaug zog, corrosion kuj

Standards Compliance & Testing Protocols

International Standards Framework

Txuj	Scope	Cov Kev Xav Tau
IEC 60947-2: Cov: Cov	Tsawg-voltage switchgear - Circuit Court breakers	Accessory compatibility, kev sib koom tes nrog breaker, luv-circuit withstand
IEC 60947-4-1: Cov: Cov	Contactors thiab motor starters	Lub cev muaj zog tus neeg teb xov tooj kev ua tau zoo, tswj Circuit Court yuav tsum tau
IEC 60947-5-1 Cov	Tswj cov khoom siv hluav taws xob thiab hloov cov khoom siv	Kev pabcuam kev sib cuag, hluav taws xob endurance, cov cim davhlau ya nyob twg
RoHS/REACH	Kev ua raws li ib puag ncig	Kev txwv tsis pub muaj kev phom sij, cov ntaub ntawv tshaj tawm

Yam yuav tsum tau ua (IEC 60947-2 / IEC 60947-5-1)

Qeb xeem	Kev Xeem Tshwj Xeeb	Kev lees txais
Hluav taws xob Endurance	10,000 kev ua haujlwm ntawm qhov ntsuas tam sim no (AC-15 / DC-13)	Tiv tauj hnav <50%, tsis muaj vuam, ua haujlwm zoo ib yam
Mechanical Endurance	100,000 tsis-load haujlwm	<5% parameter drift, tsis muaj txhua yam tsis ua haujlwm
Dielectric Properties	2kV AC / 1min (tswj circuits), 4kV impulse	Tsis muaj kev tawg, tsis muaj flashover
Kub nce	Kev ua haujlwm tsis tu ncua ntawm qhov ntsuas voltage / tam sim no	Chev ≤85K (Class F), terminals ≤80K
Shock & Vibration	IEC 60068-2-27 (kev poob siab), IEC 60068-2-6 (kev vibration)	Tsis muaj kev ua haujlwm tsis raug, tsis muaj kev puas tsuaj, ua haujlwm tom qab kuaj
Ib puag ncig	Kev kub ceev (IEC 60068-2-30), txias, qhuav cua sov	Ua haujlwm tom qab txias, tsis muaj corrosion
EMC	Kev tiv thaiv rau kev cuam tshuam / radiated cuam tshuam	TS EN 60947-2 Annex F

Factory Quality Control & Inspection Standards

Cov khoom xa tuaj QC (IQC)

Khoom siv	Cov khoom soj ntsuam	Sampling Plan	Khoom siv
Enameled hlau	Txoj kab uas hla, tawg voltage, elongation, solderability	TSI 0.65	Micrometer, dielectric tester, tensile tshuab
Sib nqus hlau	Permeability, core poob, rwb thaiv tsev txheej	Rau batch	Epstein ncej, ib daim ntawv tester
Nyiaj tiv tauj	Purity, hardness, ntom, dimensional kam rau ua	Rau batch	Spectrometer, hardness tester, CMM
Yas granules	Cov ntsiab lus iav, viscosity, noo noo, flammability	Rau batch	Melt flow indexer, DSC, UL 94 apparatus
Caij nplooj ntoos hlav steel	Tensile zog, qaug zog kuj, sib sau	Rau batch	Tensile tshuab, qaug zog tester

In-Process Quality Control (IPQC)

Chaw nres tsheb	Tswj Parameters	Ntau zaus	Txoj kev
Coil winding	Hloov suav, nro, tsis kam, rwb thaiv tsev	Txhua chav	Automated winding nrog tawm tswv yim, ohmmeter
Plunger machining	Dimensional kam rau ua, nto tiav, hardness	Txhua 100 units	CMM, profileometer, hardness tester
Hu rau kev sib dhos	Alignment, siab, tsis kam, brazing zoo	Txhua 100 units	Lub zog ntsuas, micro-ohmmeter, XRF
Lub tsev molding	Kub, siab, qhov tseeb	Txhua lub voj voog	SCADA saib xyuas, SPC kab kos
Sub-assembly	Kev khiav hauj lwm voltage, stroke, teb lub sij hawm	Txhua chav	Automated xeem lub rooj ntev zaum, cov ntaub ntawv logging

Kev Tswj Xyuas Qhov Kawg (FQC) & QC (OQC)

Cov khoom kuaj	Txuj	Qauv Loj
Kev khiav hauj lwm voltage	0.85-1.1 × Un (pickup), > 0.2 × Un (dropout rau UVR)	100%
Lub sijhawm teb (shunt trip)	<50ms ntawm qhov ntsuas hluav taws xob	100%
Tiv tauj tiv thaiv	<50mΩ (ntsuas), <100mΩ ( tswb)	100%
Dielectric tiv taus voltage	2 kV AC / 1 min	100%
Rwb thaiv tsev tsis kam	> 100MΩ @ 500V DC	100%
Mechanical ua haujlwm	10 cycles, du, tsis sticking	100%
Snap-fit compatibility	Mating nrog MCCB ncej	100%
Visual & Dimension soj ntsuam	Kos npe permanence, modularity	100%
Hluav taws xob endurance sampling	1,000 kev ua haujlwm ntawm kev ntsuas load	AQL 1.0
Ntim kev ncaj ncees	Poob xeem, kev vibration (ISTA 3A)	Rau ntau

Kev Tsim Nyog Infrastructure & Manufacturing Capability

Cov cuab yeej tsim khoom siab heev

Qeb khoom siv	Tshuab Specification	Muaj nuj nqi	Muaj peev xwm
Coil Winding	CNC winding tshuab (Nittoku / Marsilli) nrog kev tswj nruj	Precision coil ntau lawm	20,000 coils / hnub
Stamping & Forming	60-ton progressive tuag xovxwm (Bruderer)	Hu rau stamping, caij nplooj ntoos hlav sib sau	30,000 Cheebtsam / hnub
Txhaj Molding	80-tuj thermoplastic xovxwm (Arburg)	Vaj tse, enclosures, DIN rail clips	10,000 tsev/hnub
Kev sib dhos	Kev sib dhos ua haujlwm	Sub-assembly, calibration, kuaj	5,000 accessories / hnub ib kab
Cov khoom siv kuaj	Automated accessory xeem lub rooj ntev zaum	Cov yam ntxwv ua haujlwm, lub sijhawm, kev ua siab ntev	1,000 units / teev
	Mechanical endurance tester	100,000 lub voj voog pov thawj	200 units ib txhij
	EMC chav kuaj	Kev ntsuas kev tiv thaiv / emission	100 units / hnub

Muaj Peev Xwm Ntau Lawm & Lub Sijhawm Lead

Yam khoom	Muaj peev xwm txhua hli	Standard Lead Time	Ceev Order Muaj peev xwm
Shunt Trips (tag nrho cov voltages)	300,000 units	4-5 lub lis piam	3 hnub
Undervoltage tso tawm	200,000 units	4-5 lub lis piam	3 hnub
Kev Sib Txuas Sib Txuas	500,000 units	4-5 lub lis piam	3 hnub
Cov neeg tsav tsheb	50,000 units	4-5 lub lis piam	5 hnub
Kev sib txuas lus Module	30,000 units	4-5 lub lis piam	5 hnub

Engineering & Technical Team Structure

Department	Cov neeg ua haujlwm	Kev txawj ntse	Lub luag haujlwm
R & D Engineering	5 engineers	Electromagnetic tsim, tiv tauj physics, embedded systems, wireless kev sib txuas lus	Kev txhim kho khoom siv tshiab, ntse nta, patent portfolio (30+ patents)
Txheej Txheem Engineering	15 engineers	Coil winding automation, precision stamping, yas molding, lean manufacturing	Kev tsim kho kom zoo, kev txhim kho cov txiaj ntsig (> 99%), txo nqi
Kev xeem & validation	12 engineers	IEC 60947 Kev ua raws cai, kev sim siab, EMC, ib puag ncig simulation	Hom kev soj ntsuam kev sib koom tes, tsis ua hauj lwm tsom xam, kev tswj xyuas ntawv pov thawj
Application Engineering	10 engineers	MCCB kev koom ua ke, tswj tshuab, BMS / SCADA interface	Cov neeg siv khoom txhawb nqa, kev tsim qauv, commissioning
Quality Assurance	25 tus kws tshaj lij	ISO 9001, IATF 16949, statistical process control, metrology	Supplier audit, txheej txheem audit, kho kom raug, calibration

Vim Li Cas Peb MCCB Accessory Manufacturing Stands Apart

Peb qhov chaw tsim khoom sawv cev40 xyoo kev tshwj xeeb nyob rau hauv tsawg-voltage switchgear accessories, xa MCCB accessories uas tshaj ntiaj teb no cov qauv los ntawm:

Breaker-native design: Accessories engineered tshwj xeeb rau seamless kev koom ua ke nrog loj MCCB platforms (Schneider NSX, ABB Tmax, Eaton NZM, Chint NXM), kom ntseeg tau tias cov cuab yeej-dawb installation thiab txhim khu kev qha

Smart accessory innovation: Proprietary wireless auxiliary contacts thiab lub zog saib xyuas sensors uas hloov cov pa tawg rau hauv IoT-enabled ntse li yam tsis muaj kev hloov pauv

Vertical integration:Nyob rau hauv lub tsev coil winding nrog lub tshuab nqus tsev impregnation, precision contact stamping, thiab thermoplastic molding kom ua tiav kev tswj xyuas zoo thiab kev hloov kho sai.

Kev ntsuam xyuas infrastructure: $ 2M + nqis peev rau hauv kev ntsuas tsis siv neeg suav nrog 100,000-cycle mechanical endurance verification, EMC immunity testing, thiab MCCB compatibility testing

Ceev ceev customization: Saj zawg zog manufacturing enabling voltage, tiv tauj configuration, thiab kev sib txuas lus raws tu qauv customization nrog 2-lub lim tiam ua lead lub sij hawm

Digital manufacturing: Kev lag luam 4.0 kev siv nrog tag nrho traceability, kwv yees zoo analytics, thiab automated calibration kom ntseeg tau tias ± 3% parameter sib xws

Rau cov kev qhia tshwj xeeb, MCCB kev txheeb xyuas kev sib raug zoo, kev sib koom ua ke ntawm lub tsev ntse, lossis lub sijhawm kuaj xyuas lub Hoobkas, peb pawg neeg tsim khoom muab kev sib tham ncaj qha los xyuas kom meej koj cov kev tiv thaiv hluav taws xob thiab kev tswj xyuas ua tau raws li qhov yuav tsum tau ua thiab lub hom phiaj kev ntseeg tau ntev.

View as

MCCB Shunt Tso Tawm

Tshawb nrhiav CDADA MCCB Shunt Release rau kev tswj cov chaw taws teeb ntawm koj qhov kev ua haujlwm hauv Circuit Court breaker. Muaj nyob rau hauv 220V AC / DC, nws zoo meej rau cov ntawv thov uas yuav tsum tau txiav tam sim ntawd. Yooj yim rau nruab, nrog kev sib txuas ua ntej xaim los ntawm lub Hoobkas - tsuas yog ntxiv koj lub teeb liab tswj. Zoo tagnrho rau kev lag luam thiab kev lag luam kev nyab xeeb.

Saib Ntxiv >> Xa lus nug >>

MCCB Kev Pabcuam Tiv Thaiv

CDADA yog cov chaw tsim khoom thiab cov chaw muag khoom ntawm MCCB Auxiliary Contact, cov khoom no tuaj yeem yog koj cov kev daws teeb meem rau kev saib xyuas thiab tswj lub xeev Circuit Court breaker. Muaj nyob rau hauv kev teeb tsa zoo li 2NO / 2NC, nws zoo tagnrho rau kev taw qhia qhib / kaw. Pre-wired rau kev yooj yim installation, zoo meej rau industrial tswj systems. Cia siab rau CDADA rau kev ntseeg siab thiab kev ua haujlwm.

Saib Ntxiv >> Xa lus nug >>

CDADA yog MCCB Accessories cov chaw tsim khoom thiab cov chaw muag khoom hauv Suav teb. Peb lub Hoobkas ua haujlwm rau ntau hom kev lag luam xws li lub tshuab hluav taws xob, lub tsev automation, thiab kev tsim khoom lag luam, muab cov kev daws teeb meem OEM / ODM hloov tau.

Xov xwm pom zoo
