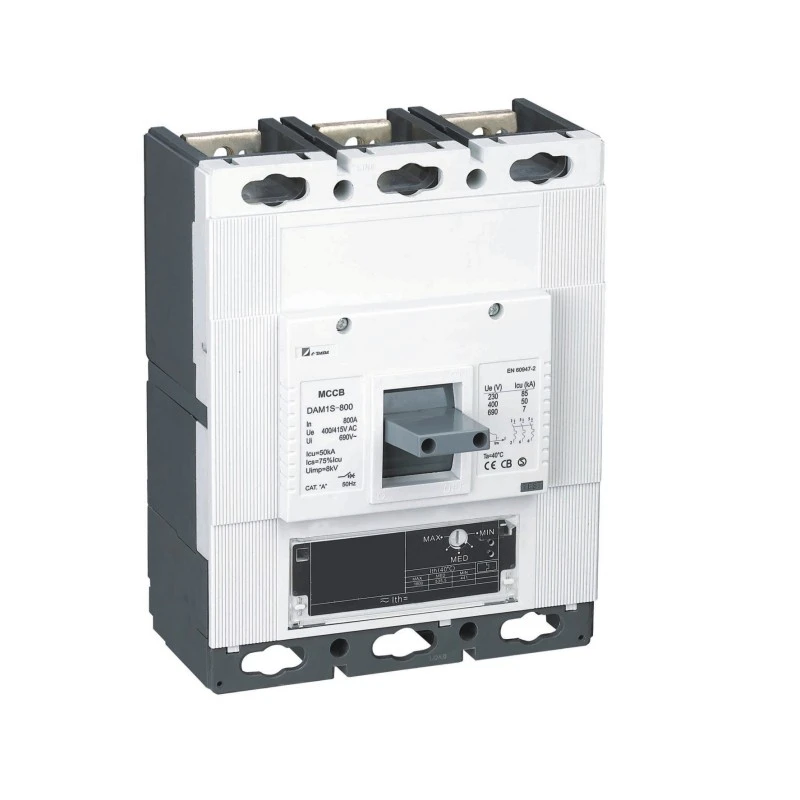

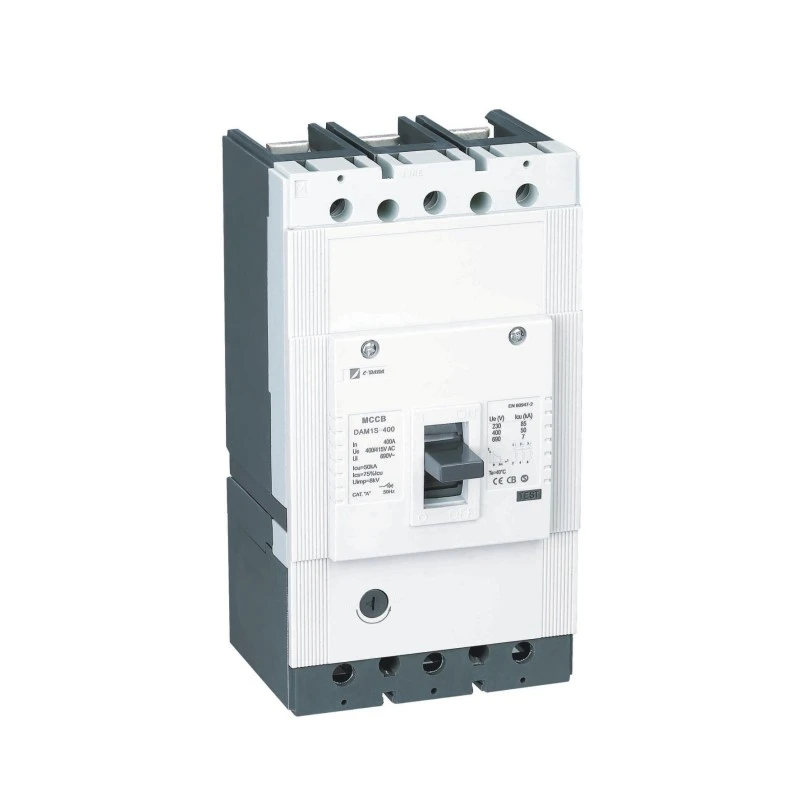

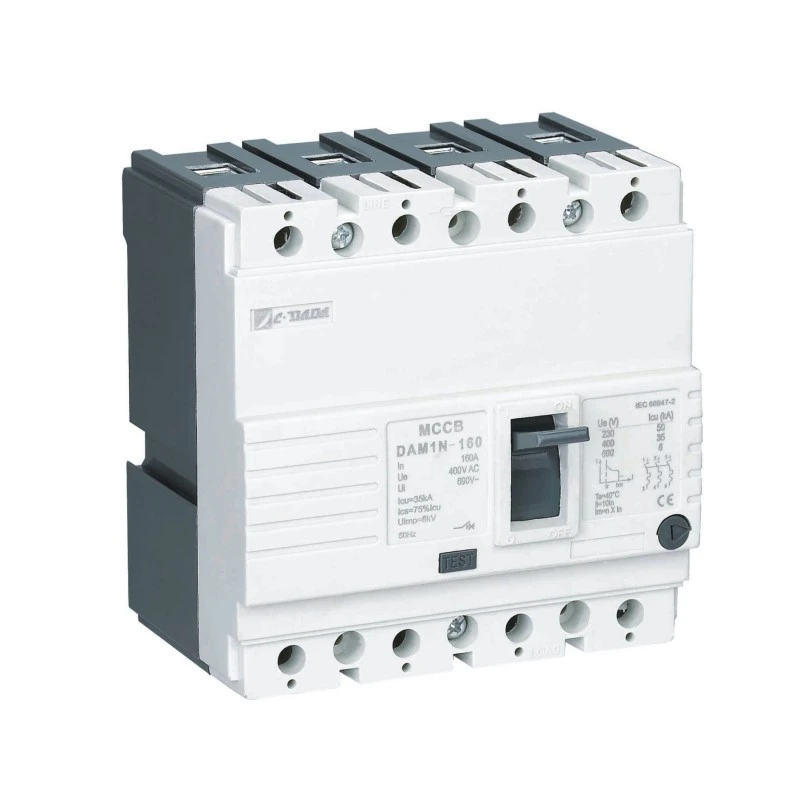

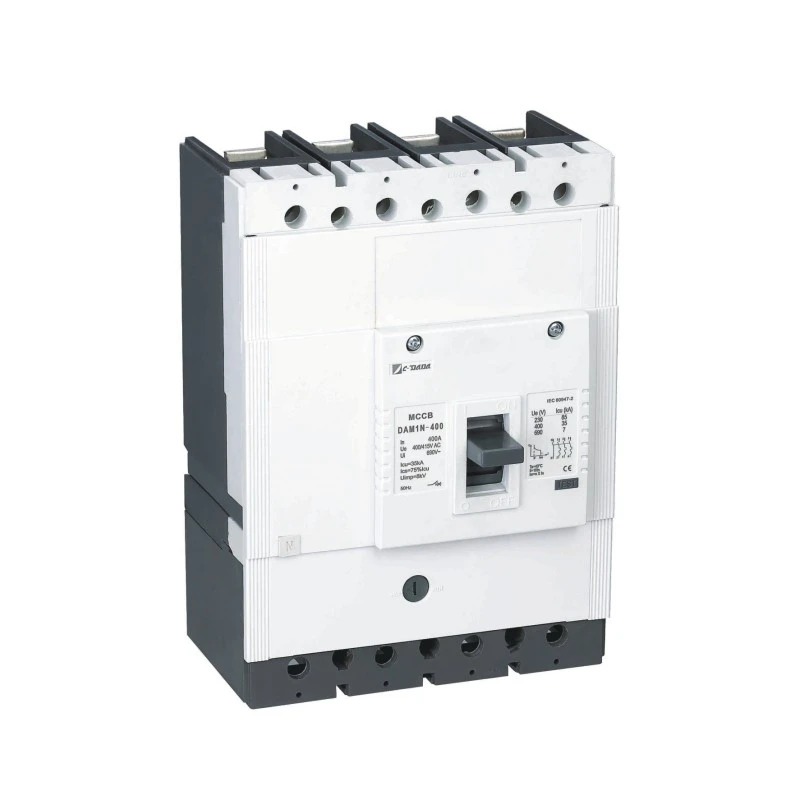

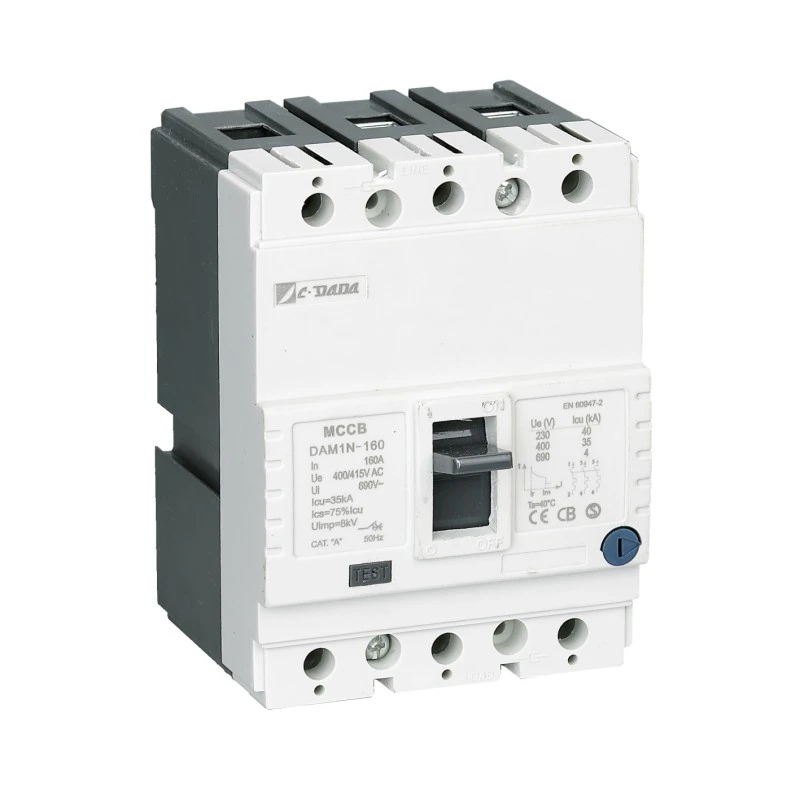

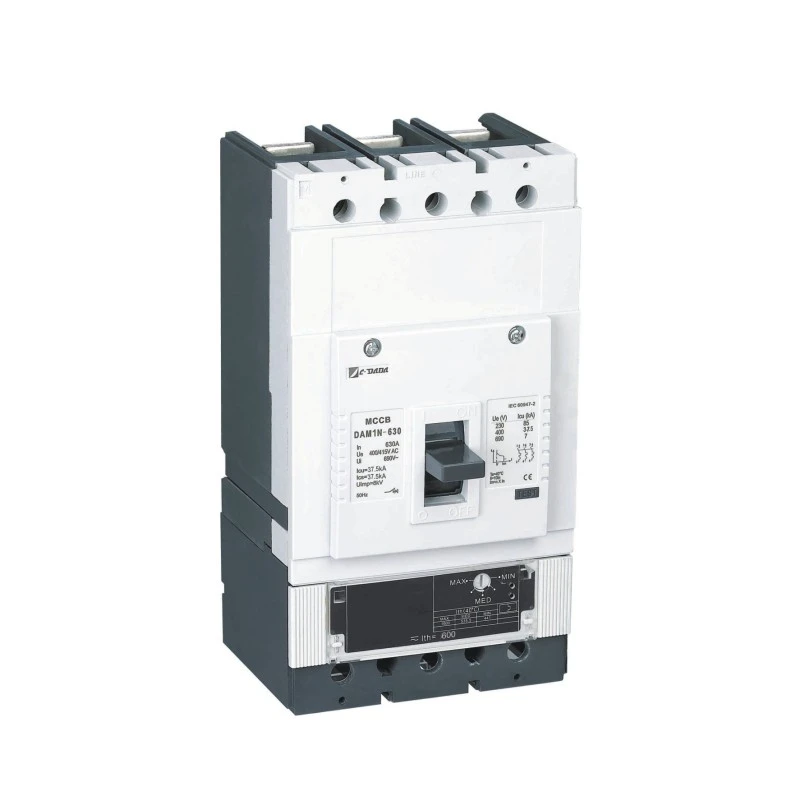

Thermal Adjustable Moulded Case Circuit Breaker
Model:DAM1 Series
Tshawb nrhiav CDADA DAM1 Series Thermal Adjustable Molded Case Circuit Breaker los ntawm 贴 lub Hoobkas txhim khu kev qha, Shanghai DADA Electric-certified (ASTA, KEMA, CE) thiab adjustable thermal settings (70-100% Hauv). Qhov zoo tshaj plaws rau kev tiv thaiv overload hauv kev lag luam. Muaj nyob rau hauv 3P / 4P configurations mus txog 1600A ntawm 400V / 415V. Zoo meej rau OEMs thiab cov neeg yuav khoom ntau.
DAM1 Series Thermal Adjustable Molded Case Circuit Breaker los ntawm Shanghai DADA Electric CO., LTD. yog tsim los ua kom tau raws li cov qauv hauv ntiaj teb, muab kev tiv thaiv zoo tiv thaiv ob qho tib si overload thiab luv-circuit. Nrog rau kev kho cua sov qhov ntau ntawm 70% mus rau 100% ntawm Nyob rau hauv, lub tshuab hluav taws xob no tuaj yeem hloov kho kom haum rau koj cov kev xav tau tshwj xeeb.
Muaj nyob rau hauv 3P thiab 4P configurations, ntsuas txog 1600A ntawm 400V / 415V, nws los nrog cov ntawv pov thawj thoob ntiaj teb xws li ASTA, KEMA, CE, CB, SEMKO, thiab RoHS, kom ntseeg tau tias kev ua raws cai thoob plaws ntau thaj tsam.
Hluav taws xob tsis muaj DAM1 Thermal Adjustable Molded Case Circuit Breaker
|
Thermal adjustable hom MCCB (0.7-1)In |
|||||||||
|
Duab |
Qauv |
code |
Icu (KA) |
Ics (KA) |
Rated Tam sim no - Hauv |
Ui(V) |
Ua (V) |
Ncej |
Uim (V) |
|
|

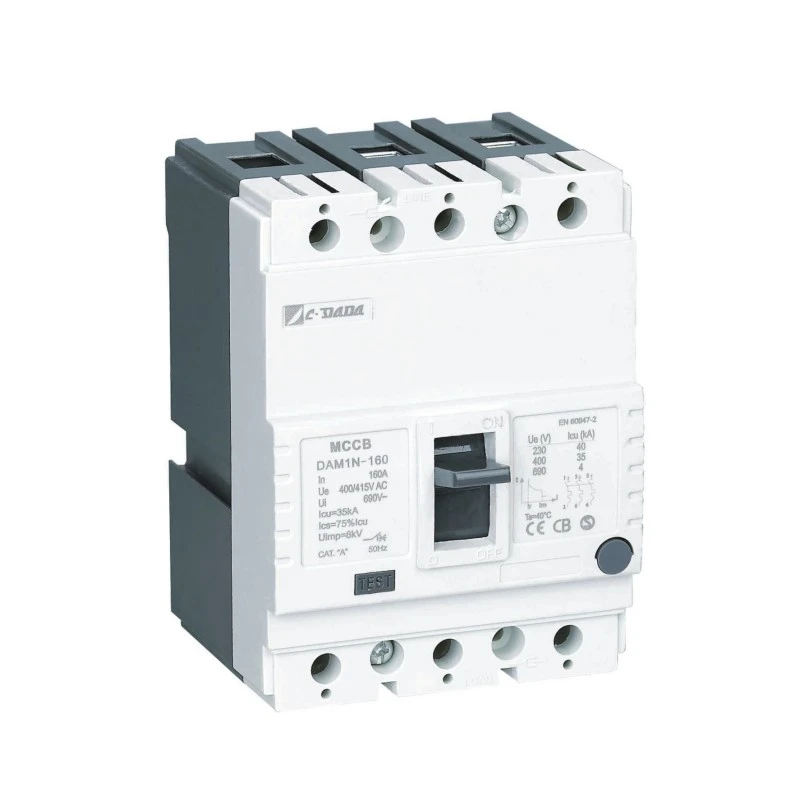

DAM 1-160 |
B |
25 |
12.5 |
10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160 (150)A |
750v ua |
400/415V |
3 P / 4 P |
8000 |
|
N |
35 |
26.25 |
|||||||
|
S |
50 |
37.5 |
|||||||
|
|

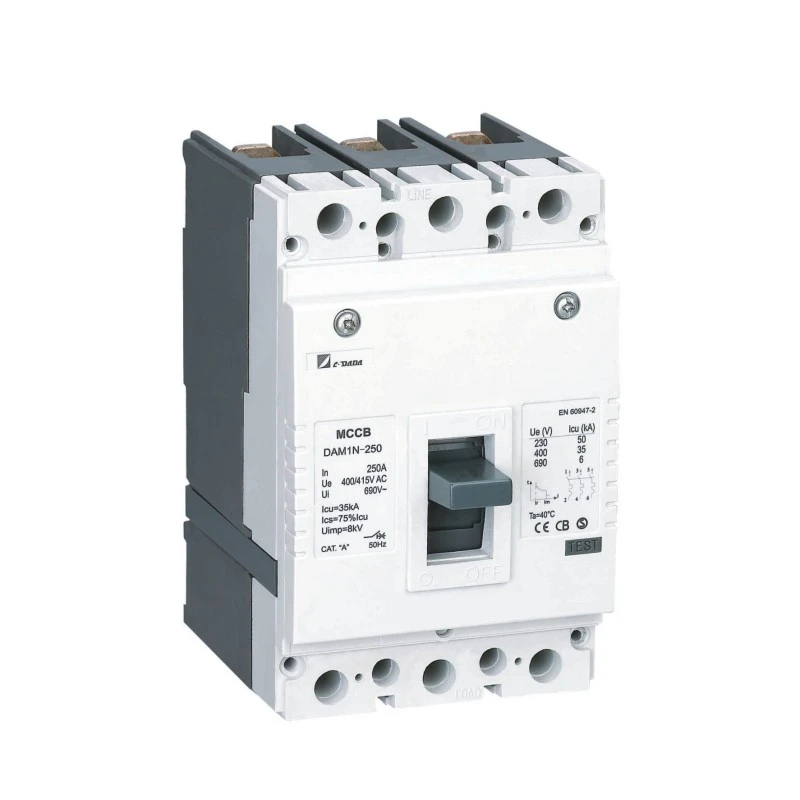

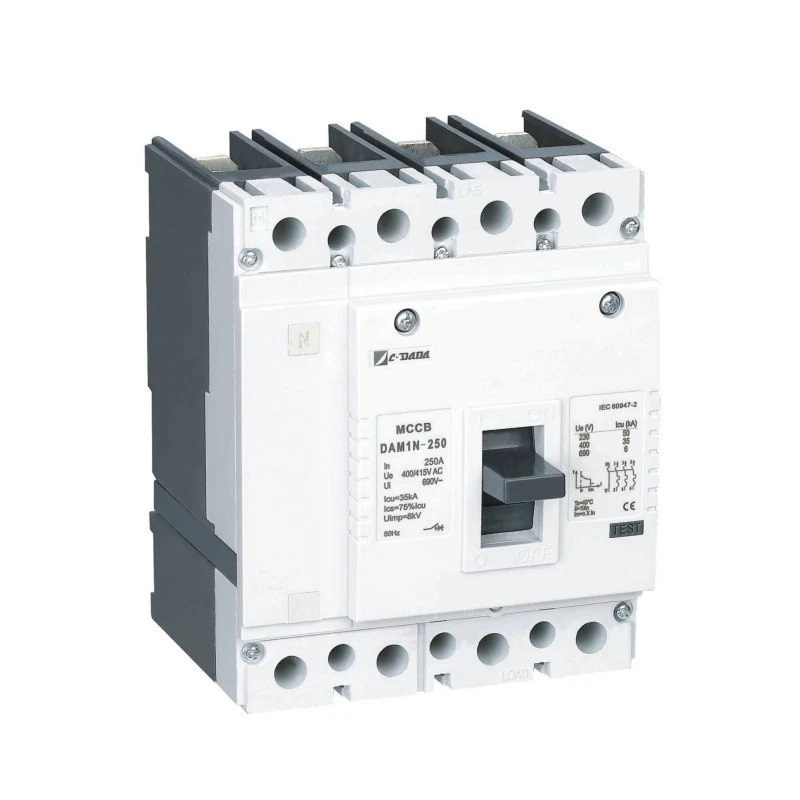

DAM 1-250 |
N |
35 |
26.25 |
63 - 80-100-125 - 160(180) - 200(225) - 250(320)A |
750v ua |
400/415V |
3 P / 4 P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
65 |
48.75 |
|||||||
|
G |
85 |
51 |
|||||||
|
|
DAM1-630 (400) |
N |
35 |
26.25 |
250 - 315 (350) - 400 - 500 - 630A |
750v ua |
400/415V |
3 P / 4 P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM 1-800 |
N |
35 |
35 |
400-500-630 (700)-800-1000A |
750v ua |
400/415V |
3 P / 4 P |
8000 |
|
S |
50 |
37.5 |
|||||||
|
H |
70 |
52.5 |
|||||||
|
G |
85 |
52.5 |
|||||||
|
|
DAM 1-1600 |
S |
65 |
50 |
800-1000-1250-1600A |
750v ua |
400 V |
3 P / 4 P |
8000 |
|
H |
85 |
50 |
|||||||
|
G |
100 |
50 |
|||||||
Ntsiab Specifications
Qauv: DAM1 Series Thermal Adjustable MCCB
Hom: Moulded Case Circuit Breaker (MCCB)
Ncej: 3P / 4P
Rated Voltage (Ue): 400V / 415V AC
Rated tam sim no (hauv): 16A - 1600A

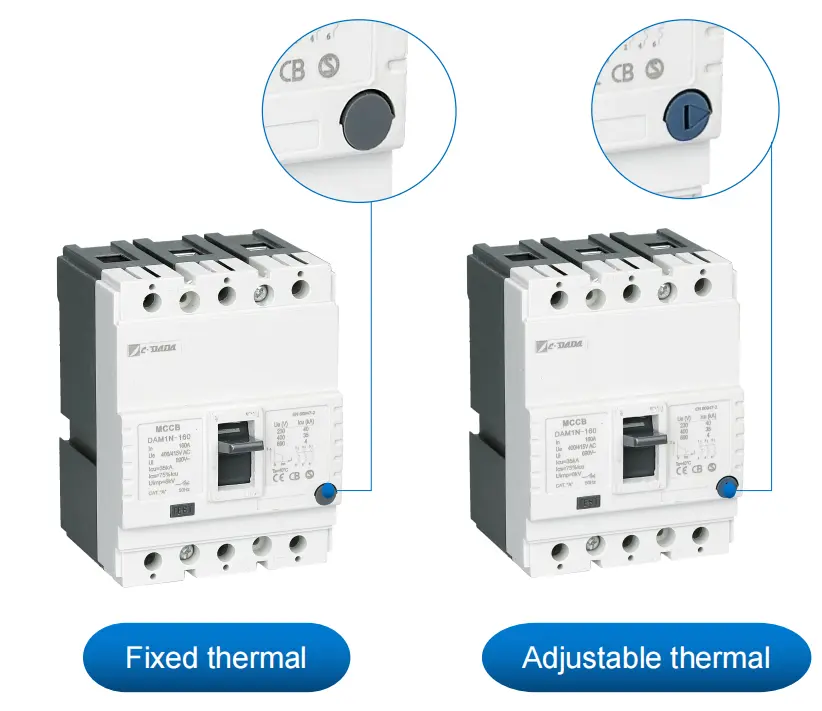

Adjustable Thermal Setting: 70% - 100% Hauv
Daim ntawv pov thawj: ASTA, KEMA, CE, CB, SEMKO, RoHS
Ncej Loj: 6 ncej loj
Ntxiv nta: Push-to-trip khawm, cais lub ntsiab thiab arcing hu
|
MCCB Rated Tam sim no (A) |
Thermal Trip Setting Min (0.7 hli) |
Thermal Trip Teem Max (1 Hauv) |
Adjustable Range 0.7 ~ 1 hli |
|
16 |
11.2 |
16 |
11.2–16 |
|
32 |
22.4 |
32 |
22.4–32 : kuv |
|
63 |
44.1 |
63 |
44.1–63 |
|
100 |
70 |
100 |
70–100 : kuv |
|
250 |
175 |
250 |
175–250 : kuv |
|
400 |
280 |
400 |
280-400 Nws |
|
630 |
441 |
630 |
441–630 : kuv |
|
800 |
560 |
800 |
560–800 : kuv |
|
1250 |
875 |
1250 |
875–1250 : kuv |
|
1600 |
1120 |
1600 |
1120-1600 Nws |
Txoj Cai Ua Haujlwm & Kev Tiv Thaiv Mechanism
★ Kev Tiv Thaiv Thermal (Ntau dhau)
Lub thermal caij nyob rau hauv lub DAM1 series siv ib tug bimetallic sawb uas khoov thaum rhuab los ntawm sustained overcurrent (> rated tam sim no). Los ntawm kev kho qhov kub thiab txias ntawm 70% thiab 100% ntawm Hauv, cov neeg siv tuaj yeem hloov kho lub sijhawm ua haujlwm kom tsis txhob muaj kev ntxhov siab thaum ua kom muaj kev tiv thaiv zoo.★ Push-to-Trip Button
Rau lub hom phiaj ntawm kev sim, lub laub-rau-trip khawm tso cai rau kev txav mus los ntawm lub breaker, xyuas nws qhov kev ua haujlwm ncaj ncees yam tsis tas yuav ua rau muaj qhov ua txhaum tiag tiag.★ Sib cais Main thiab Arcing Contacts
Txhawm rau txhim kho kev ua haujlwm ntev thiab kev ua tau zoo, DAM1 series nta cais cov ntsiab lus tseem ceeb thiab arcing. Qhov kev tsim no ua kom ntseeg tau tias cov kev sib cuag tseem ceeb raug tiv thaiv thaum muaj xwm txheej tam sim no, ua kom lub neej ntev ntawm lub breaker.
Daim ntawv thov Scenario
Lub DAM1 Thermal Adjustable Molded Case Circuit Breaker (MCCB) yog qhov zoo tagnrho rau ntau yam kev siv uas muaj kev tswj hwm kev tiv thaiv overload yog qhov tseem ceeb. Cov no suav nrog:
★ Cov nroj tsuag muaj kev lag luam: Ua kom muaj kev ruaj ntseg hauv steel mills, chemical nroj tsuag, thiab roj platforms.
★ Cov Tsev Ua Lag Luam: Tiv thaiv cov tshuab hluav taws xob hauv cov khw muag khoom, cov tsev ua haujlwm, thiab tsev so.
★ Utilities: Txhim khu kev faib tawm hauv cov chaw nres tsheb thiab cov phiaj xwm hluav taws xob.
★ Cov Chaw Cov Ntaub Ntawv: Tswj lub sijhawm ua haujlwm hauv IT infrastructure tseem ceeb.
Vim li cas thiaj xaiv CDADA?
1. Peb muaj cov kws tshaj lij R & D pab neeg, muaj txheej txheem kev tsim kho. tuaj yeem muab kev pabcuam zoo heev.

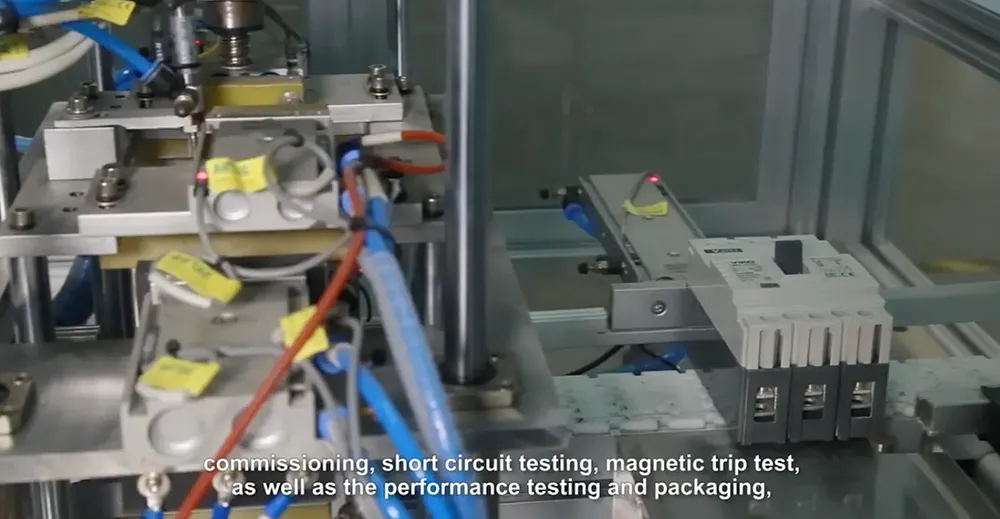

2. Peb tsim Circuit Court breaker los ntawm tsis siv neeg ntau lawm kab, Tam sim no, peb muaj 6 tsis siv neeg ntau lawm kab. Thiab muaj peev xwm txhua hnub yog ntau tshaj 1000pcs.

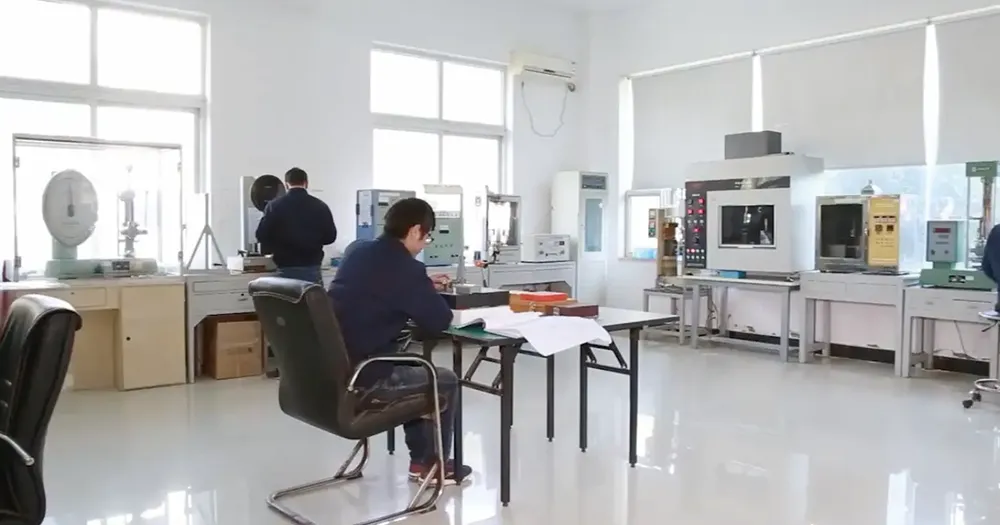

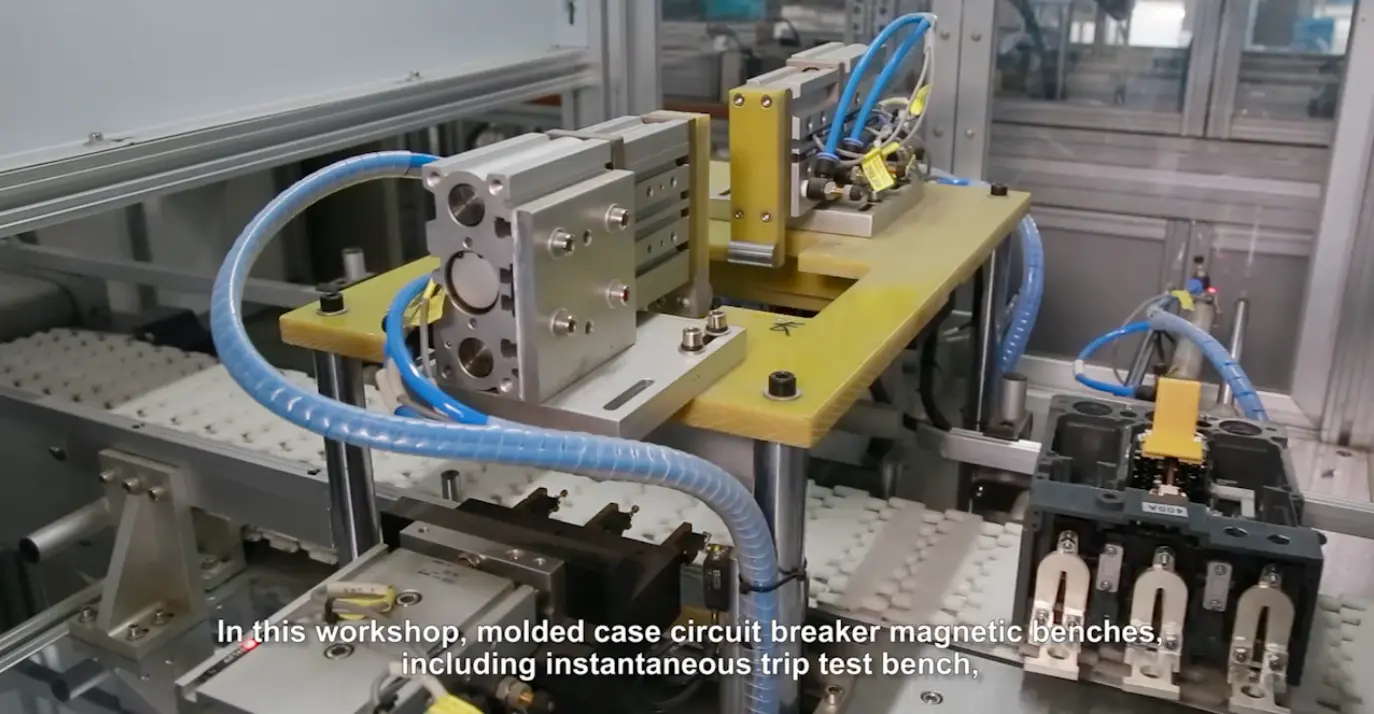

3. Peb muaj kev ua haujlwm tag nrho, peb lub chaw soj nstuam tuaj yeem kuaj pom, peb tuaj yeem ua cov thermal load, sib nqus, thiab tripping txwv, lub neej mechanism, EMC hauv peb chav kuaj.
4. Tau txais CB, CE, SEMKO, KEMA, ASTA, ROHS, SASO, CCC ntiaj teb no
FAQs
Q1: Dab tsi yog qhov hloov kho thermal qhov chaw rau DAM1 MCCB?
A1: Qhov chaw thermal ntawm DAM1 series tuaj yeem hloov kho ntawm 70% thiab 100% ntawm Hauv, tso cai rau kev tswj hwm kev tiv thaiv overload.
Q2: Puas yog DAM1 Thermal Adjustable Molded Case Circuit Breaker tuaj yeem siv rau hauv ob qho tib si 3-ncej thiab 4-ncej kev teeb tsa?
A2: Yog lawm, DAM1 series muaj nyob rau hauv ob qho tib si 3P thiab 4P teeb tsa, ua rau nws tsim nyog rau ntau yam kev siv.
Q3: Puas yog DAM1 MCCB tuaj nrog cov yam ntxwv ntxiv rau kev sim lossis kev saib xyuas?
A3: Yog lawm, DAM1 series suav nrog lub laub-rau-trip khawm rau kev sim yooj yim thiab kev txheeb xyuas qhov kev ua haujlwm ntawm lub tshuab hluav taws xob yam tsis muaj qhov cuam tshuam.
Q4: DAM1 MCCB ua haujlwm luv luv li cas?
A4: Lub DAM1 series suav nrog lub tshuab sib nqus mus ncig uas muab kev tiv thaiv tam sim ntawd tiv thaiv luv luv, ua kom muaj kev cuam tshuam sai ntawm qhov txhaum tam sim no.
Q5: Puas muaj cov khoom siv ntxiv rau DAM1 MCCB?
A5: Yog lawm, muaj ntau yam khoom siv, suav nrog kev hu xov tooj rau lub tswb, kev sib txuas lus pab cuam, kev tso tawm hluav taws xob, thiab cov tshuab hluav taws xob ua haujlwm, txhim kho qhov yooj thiab kev ua haujlwm ntawm lub tshuab tawg. Hot Tags: Thermal Adjustable Molded Case Circuit Breaker, Tuam Tshoj, Chaw tsim tshuaj paus, tsum, Hoobkas
