Electronic Hom Moulded Case Circuit Breaker

Rau cov tshuab hluav taws xob niaj hnub xav tau qhov tseeb, kev txawj ntse, thiab kev ntseeg siab, Electronic Hom Moulded Case Circuit Breaker los ntawm Shanghai DADA Electric CO., LTD. teeb tsa tus qauv tshiab hauv kev tiv thaiv hluav taws xob tsawg. Tsis zoo li cov tsoos thermal-magnetic breakers, MCCB ntse no siv lub microprocessor-raws li hluav taws xob mus ncig ua si kom xa tau qhov tseeb, programmable overcurrent tiv thaiv - tiv thaiv qhov kub thiab txias hloov pauv.

Nrog adjustable nqis los ntawm 40% mus rau 100% Nyob rau hauv (thermal) thiab 1.5 × rau 12 × Nyob rau hauv (magnetic), nws muaj unmatched yooj rau complex kev sib koom ua ke nyob rau hauv cov ntaub ntawv chaw zov me nyuam, industrial nroj tsuag, tsev kho mob, thiab lub zog tauj dua tshiab. Rated los ntawm 100A mus rau 1600A ntawm 400V / 415V, nws sib txuas cov qauv tsim nrog kev ua haujlwm siab heev - thiab suav nrog kev ua haujlwm tsis muaj kev nyab xeeb ncaj qha thaum muaj kev ua txhaum loj, txawm tias cov khoom siv hluav taws xob ua tsis tiav.

Ntsiab Specifications

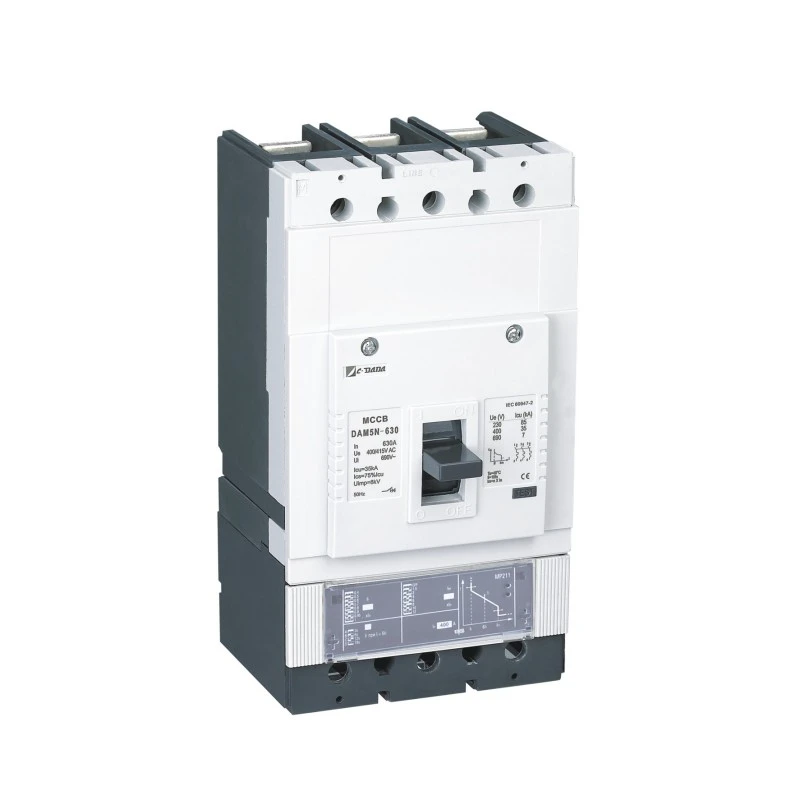

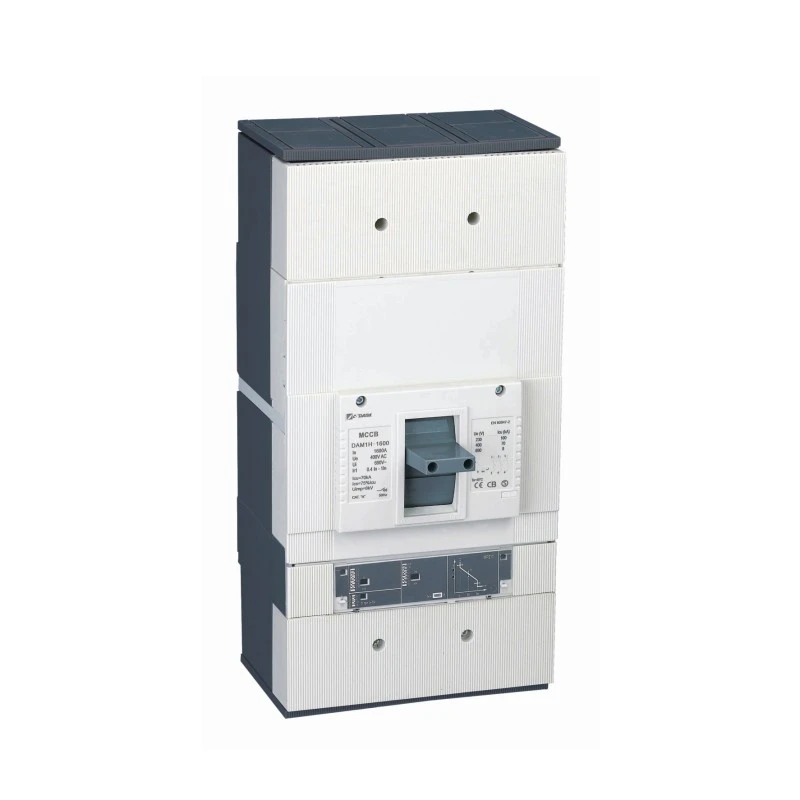

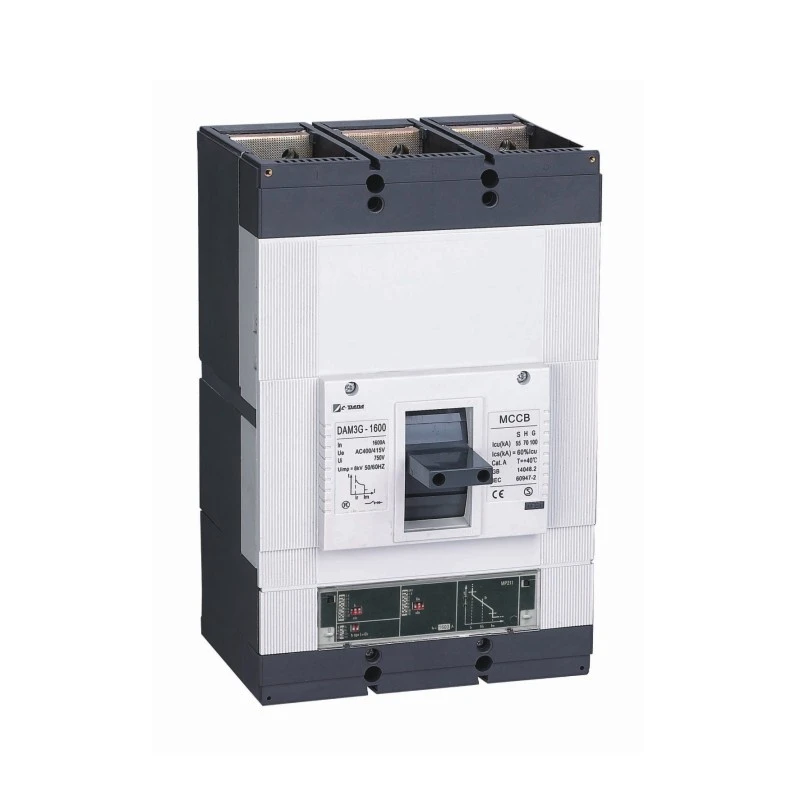

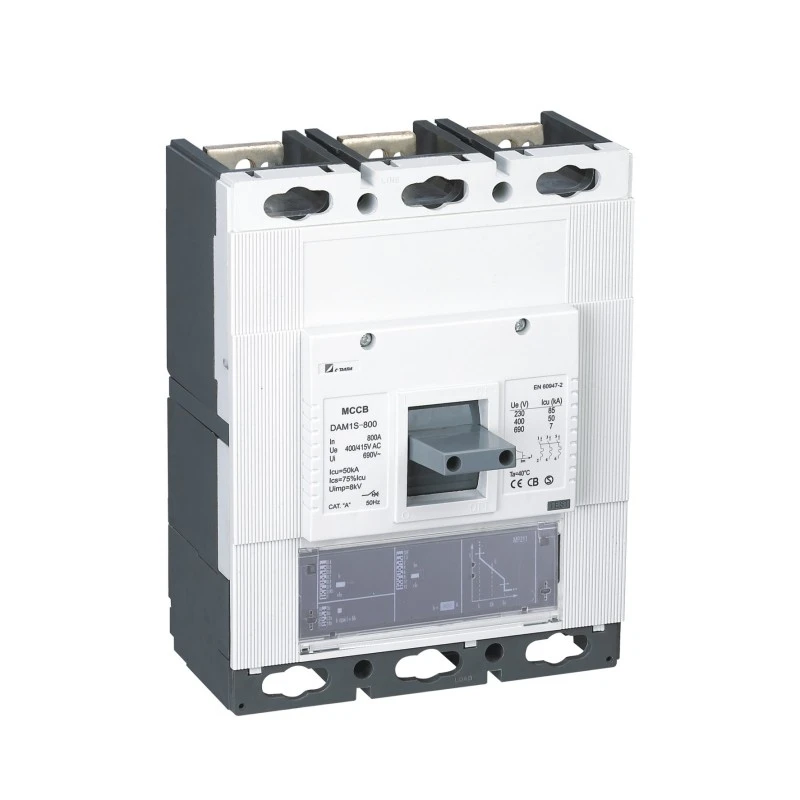

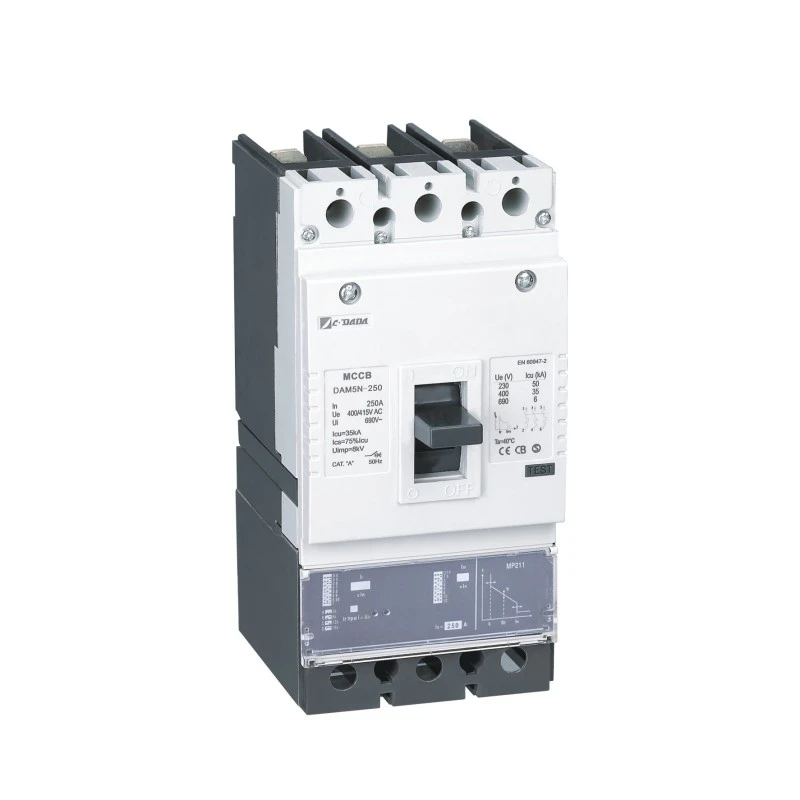

Qauv: CDADA DAM2 / DE Series (Electronic Hom Moulded Case Circuit Breaker)

Hom: Electronic Moulded Case Circuit Breaker

Ncej: 3P / 4P

Rated Voltage (Ue): 400V / 415V AC

Rated tam sim no (hauv): 100A - 1600A

Trip Unit: Microprocessor-based electronic tso tawm

Thermal Adjustment (Ir): 40% - 100% ntawm In

Magnetic Adjustment (Im): 1.5 × - 12 × Hauv

Qhov zoo

★ Dav ntau yam: 100A txog 1600A (AC)

★ Compact qhov ntev

★ Kho qhov chaw thermal (40-100%) Hauv.

★ Kho qhov chaw sib nqus (1.5-12times) Hauv.

★ Thawb mus rau lub pob mus txawv tebchaws.

★ cais cov ntsiab lus tseem ceeb thiab arcing sib cuag

★ Ntau yam khoom siv.

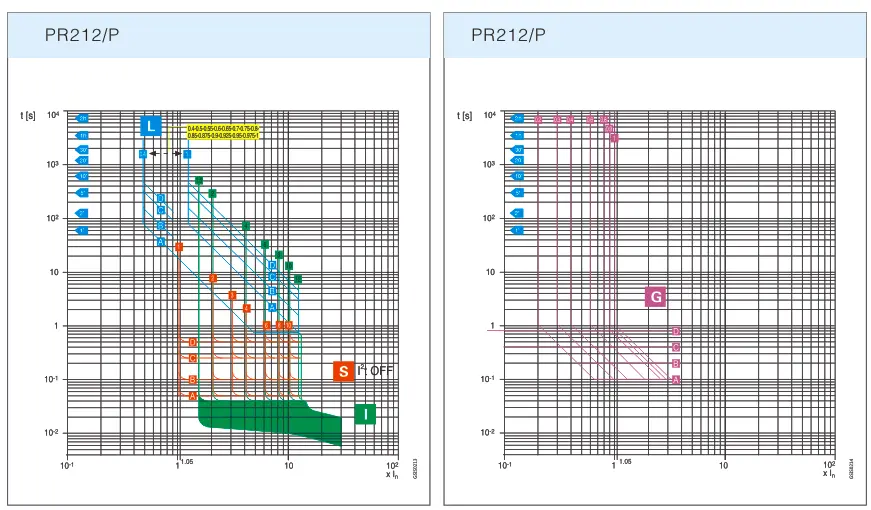

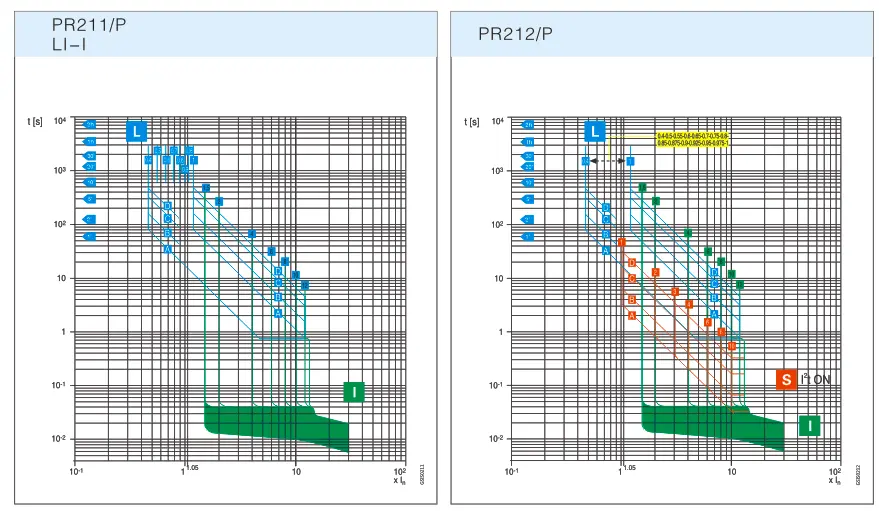

Electronic tso tawm yam ntxwv nkhaus

Kev ntsuas hluav taws xob

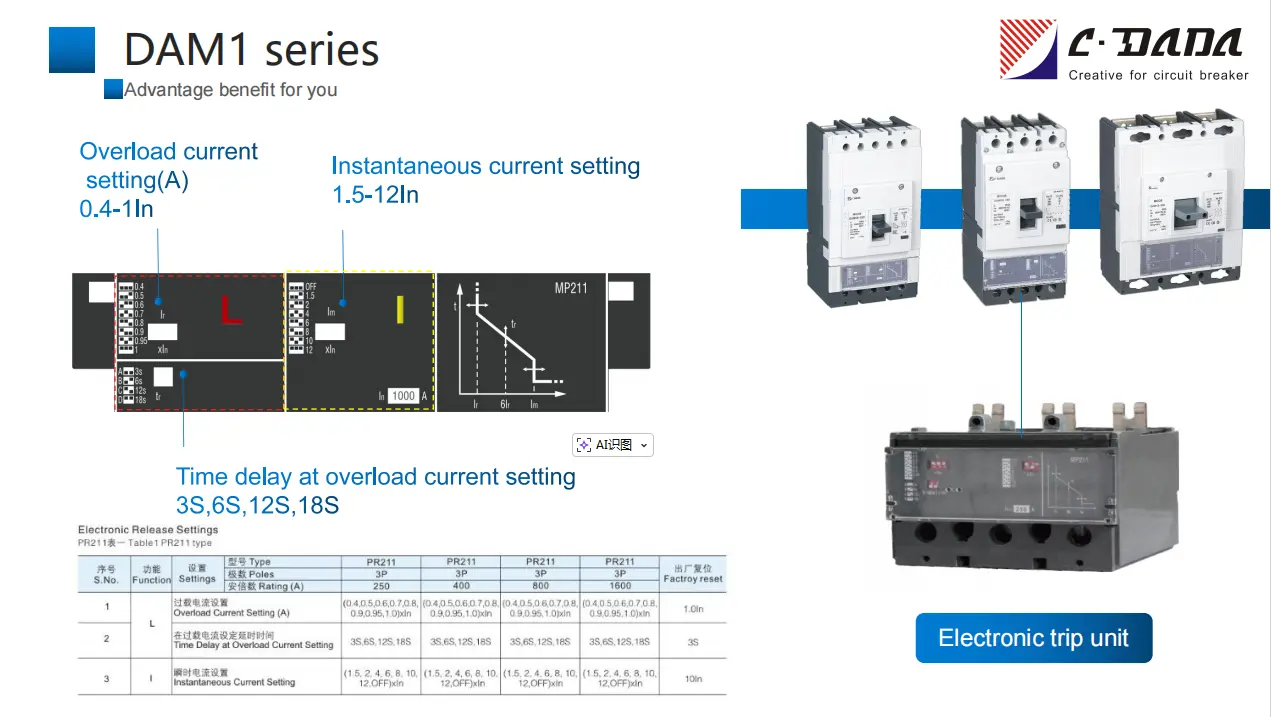

Table 1 PR211 yam

S. No.

Muaj nuj nqi

Chaw

Hom

PAB 211

PAB 211

PAB 211

PAB 211

Factroy rov pib dua

Ncej

3 P

3 P

3 P

3 P

Kev ntsuas (A)

250

400

800

1600

1

L

Overload Tam sim no Setting (A)

(0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 0.95, 1.0)xIn

(0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 0.95, 1.0)xIn

(0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 0.95, 1.0)xIn

(0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 0.95, 1.0)xIn

1.0 Ib

2

Sijhawm ncua sijhawm ntawm Overload Tam sim no teeb tsa

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3S

3

I

Instantaneous Current Setting

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

10 Ib

Table 2 PR212 hom

S. No.

Muaj nuj nqi

Chaw

Hom

PAB 212

PAB 212

PAB 212

PAB 212

Factroy rov pib dua

Ncej

3 P

3 P

3 P

3 P

Kev ntsuas (A)

250

400/630

800

1600

1

L

Overload Tam sim no Setting (A)

(0.4, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8) xIn

(0.4, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8) xIn

(0.4, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8) xIn

(0.4, 0.5, 0.55, 0.6, 0.65, 0.7, 0.75, 0.8) xIn

1.0 Ib

2

Sijhawm ncua sijhawm ntawm Overload Tam sim no teeb tsa

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3 S, 6S, 12S, 18S

3S

3

S

Short-Circuit Tam Sim No Setting (A)

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

6 Ib

4

Lub sij hawm ncua ntawm luv luv Circuit Court tam sim no teeb

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1 S

5

I

Instantaneous Current Setting

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

10 Ib

6

G

Ground Fault Tam sim no Setting (A)

(0.2, 0.3, 0.4, 0.6, 0.8, 0.9, 1.0, OFF)xIn

(0.2, 0.3, 0.4, 0.6, 0.8, 0.9, 1.0, OFF)xIn

(0.2, 0.3, 0.4, 0.6, 0.8, 0.9, 1.0, OFF)xIn

(0.2, 0.3, 0.4, 0.6, 0.8, 0.9, 1.0, OFF)xIn

1.0 Ib

7

Lub Sijhawm Ncua Sijhawm ntawm Kev Ua Haujlwm Hauv av

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4s ua

8

Kev xaiv hluav taws xob lossis hluav taws xob tsis muaj teeb meem

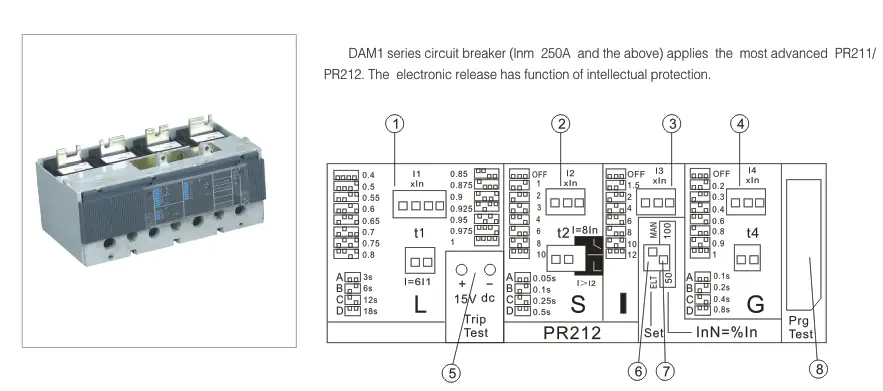

Muaj nuj nqi SET (hloov ELT/MAN)

9

Siv rau kev teeb tsa tsis muaj qhov hloov pauv ntawm xoom kab

InN =% Hauv, hloov 50/100

10

Qhov (socket) rau kev ntsuas kev sib txuas

Vaj huam sib luag qhov (socket).

Vim li cas thiaj xaiv CDADA Electronic MCCB?

★ Kev Txawj Ntse Tseeb, Tsis yog Automation xwb
Lub microprocessor tsis tu ncua soj ntsuam cov nthwv dej tam sim no, ua kom lub sijhawm hloov pauv-lub sijhawm, meej-lub sijhawm, thiab kev tiv thaiv tam sim-tsis muaj drift vim cua sov lossis kev laus.

★ Fail-Safe Design
Txawm hais tias lub tshuab hluav taws xob tsis ua haujlwm, lub tshuab hluav taws xob ncaj qha ua kom lub zog tawg mus rau lub sijhawm luv luv-ua raws li IEC 60947-2 kev ruaj ntseg redundancy cov cai.

★ Kev Koom Tes Zoo Tshaj Plaws
Kev hloov kho dav dav dav dav (40–100% Ir, 1.5–12 × Im) tso cai rau kev sib koom tes zoo tshaj plaws nrog cov khoom siv hluav taws xob sab saud / nqes qis - txo qis qhov chaw hluav taws xob tsawg.

★ Yav Tom Ntej-Proof Infrastructure
Tau tshaj cov kev xaiv kev sib txuas lus modules (Modbus RTU, Profibus) rau kev koom ua ke rau hauv Tsev Tswj Xyuas Txheej Txheem (BMS) lossis cov phiajcim ntse.

★ Ntiaj teb no zoo, sib tw nqi

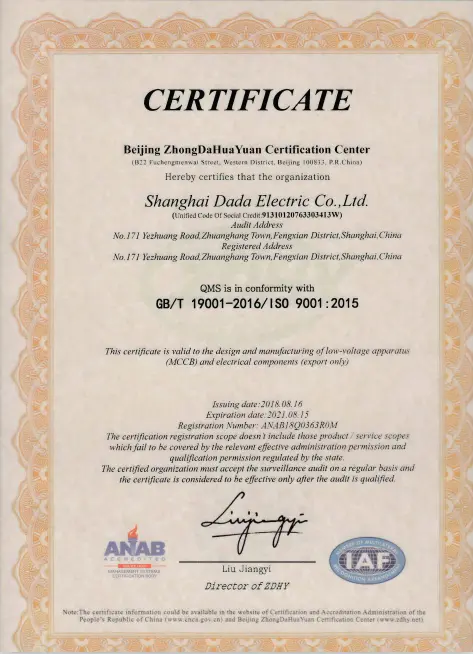

Tsim nyob rau hauv ISO 9001 hauv Shanghai, nrog cov ntawv pov thawj thoob ntiaj teb - muab European-theem kev ua tau zoo ntawm Asian nqi efficiency.

★ Peb muaj ib pab neeg mob siab rau 15 engineers tsom rau cov khoom tsim, kev txhim kho, thiab kev hloov kho.

Ideal Applications

Data Centers: Tiv thaiv cascading tsis ua hauj lwm nrog leej twg xaiv tripping

Tsev Kho Mob: Ua kom lub zog tsis muaj kev cuam tshuam rau lub neej kev txhawb nqa

Industrial Automation: Coordinate nrog VFDs, soft starters, thiab robotics

Hnub Ci / Cua Ua liaj ua teb: Hloov mus rau qhov sib txawv tiam neeg

Smart Commercial Buildings: Qhib lub zog saib xyuas yam tsis muaj ntsuas ntxiv

Cov lus nug nquag nug (FAQ)

Q1: Dab tsi ua rau hluav taws xob MCCB txawv ntawm thermal-magnetic?

A1: Electronic Hom Moulded Case Circuit Breakers siv lub microprocessor los tshuaj xyuas tam sim no thiab ua rau muaj kev ua haujlwm siab. Lawv tsis cuam tshuam los ntawm qhov kub thiab txias, muab qhov kev hloov kho dav dua, thiab tuaj yeem muab cov ntaub ntawv kaw lus-tsis zoo li bimetal / solenoid-based thermal-magnetic hom.

Q2: Puas yog 1600A hluav taws xob MCCB muaj nyob rau hauv 4-ncej kev teeb tsa?

A2: Yog-tag nrho CDADA hluav taws xob MCCBs ntawm 250A txog 1600A muaj nyob rau hauv ob qho tib si 3P thiab 4P versions.

Q3: Yuav ua li cas yog tias lub tshuab hluav taws xob mus txawv tebchaws tsis ua haujlwm thaum lub sijhawm luv luv?

A3: Lub breaker suav nrog cov khoom siv thaub qab: thaum lub sijhawm muaj kev txhaum loj (> 12 × Hauv), lub nplhaib sib nqus ua rau qhib ncaj qha - kom muaj kev nyab xeeb txawm tias muaj hluav taws xob offline.

Q4: Kuv puas tuaj yeem saib xyuas cov nqi tam sim no?

A4: Yog - chav tsev mus ncig hauv hluav taws xob qhia tam sim, max, min, thiab qhov nruab nrab tam sim no nyob rau lub sijhawm xaiv qhov rais (piv txwv li, 24h), muaj txiaj ntsig rau kev tswj hwm lub zog.

Q5: Vim li cas thiaj xaiv CDADA dua lwm hom MCCB ntse?

A5: CDADA muab:

● Muaj tseeb dual-ntau adjustability (ntau tus neeg sib tw txwv Im rau ≤10 ×)

● Fail-safe mechanical backup (tsis yog txhua "electronic" MCCBs muaj qhov no)

● Qhov loj me- haum cov vaj huam sib luag qub yam tsis muaj kev hloov kho

● Cov ntaub ntawv pov thawj thoob ntiaj teb muaj zog (ASTA, KEMA, CE)

● Tus nqi OEM tus phooj ywg nrog kev txhawb nqa ua lus Askiv
