Thermal Magnetic Adjustable MCCB

CDADA DAM1 Series Thermal Magnetic Adjustable MCCB, engineered los ntawm Shanghai DADA Electric, ib tug txhim khu kev qha tsum, muaj tag nrho customizable overload thiab luv-circuit tiv thaiv rau kev thov uas tsis muaj voltage daim ntawv thov. Rated mus txog 1600A ntawm 400V / 415V, qhov no 3P / 4P breaker muaj kev ywj pheej hloov ntawm thermal (70-100% Hauv) thiab sib nqus (5-10 × Hauv) qhov pib mus txawv tebchaws, ua kom muaj kev sib koom tes zoo hauv kev faib khoom.

Tau ntawv pov thawj rau CE, CB, ASTA, KEMA, SEMKO, thiab RoHS, nws ua tau raws li kev nyab xeeb thoob ntiaj teb thiab ib puag ncig cov qauv - ua rau nws zoo tagnrho rau OEMs, cov neeg cog lus, thiab kev sib koom ua ke thoob ntiaj teb.

Qhov zoo

★ Dav dav: 160A txog 1600A (AC)

★ Compact qhov ntev

★ Kho qhov chaw thermal (70-100%) Hauv.

★ Kho qhov chaw sib nqus (5-10times) Hauv.

★ Thawb mus rau lub pob mus txawv tebchaws.

★ cais cov ntsiab lus tseem ceeb thiab arcing sib cuag

★ Ntau yam khoom siv.

Ntsiab Specifications

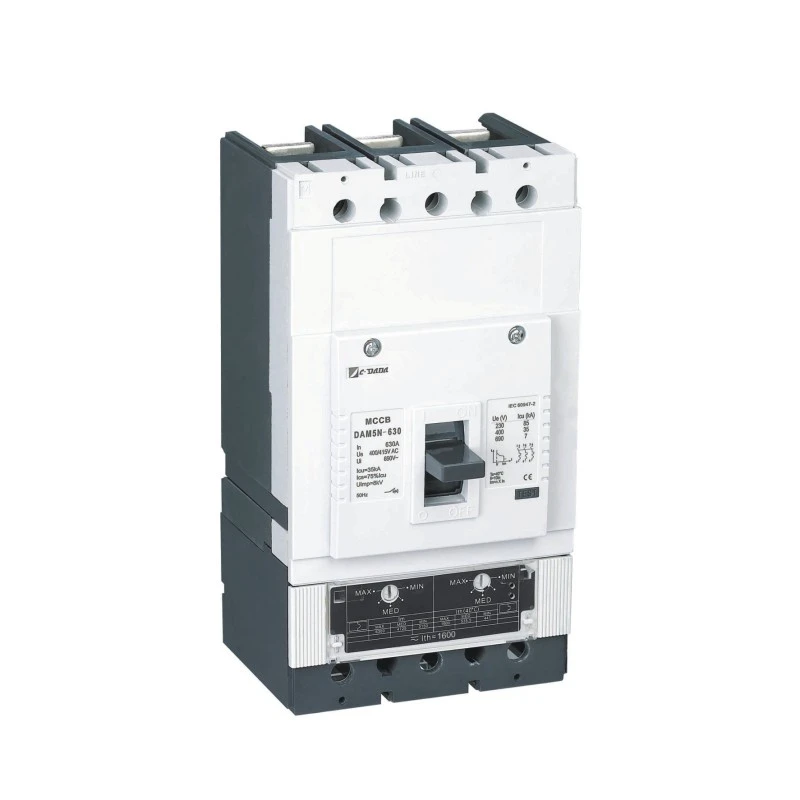

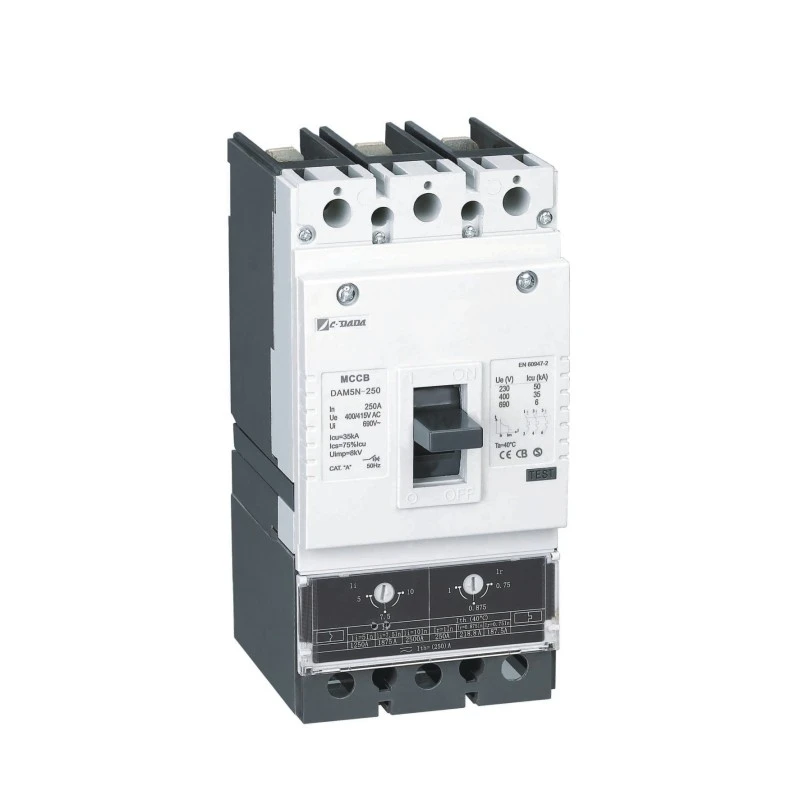

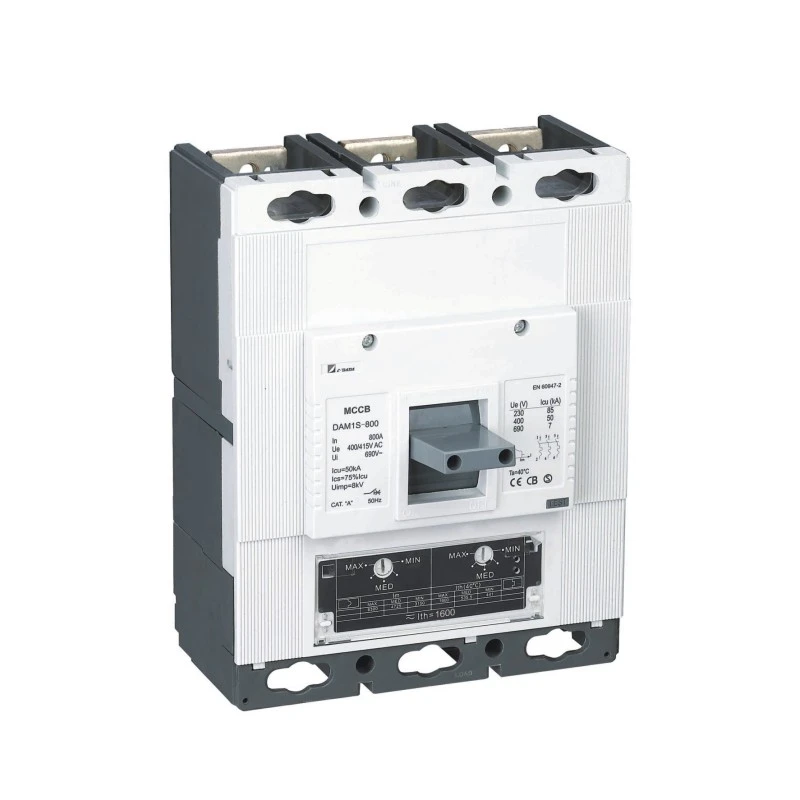

Qauv: DAM1 Series - Thermal Magnetic Adjustable MCCB

Hom: Moulded Case Circuit Breaker (MCCB)

Ncej: 3P / 4P

Rated Voltage (Ue): 400V / 415V AC

Kev ntsuas tam sim no: 160A - 1600A

Kev kho cua sov: 70% - 100% ntawm Hauv (kev tiv thaiv overload)

Sib nqus hloov: 5 × - 10 × Hauv (short-circuit instantaneous trip)

Daim ntawv pov thawj: CE, CB, ASTA, KEMA, SEMKO, RoHS

● Icu: O-t-CO test (O: Qhib maneuver, CO: Kaw-Open maneuver, t: Tos sijhawm)

● Ics: O-t-CO-t-CO test (O: qhib maneuver, CO: Kaw-Open maneuver, t: Tos sijhawm)

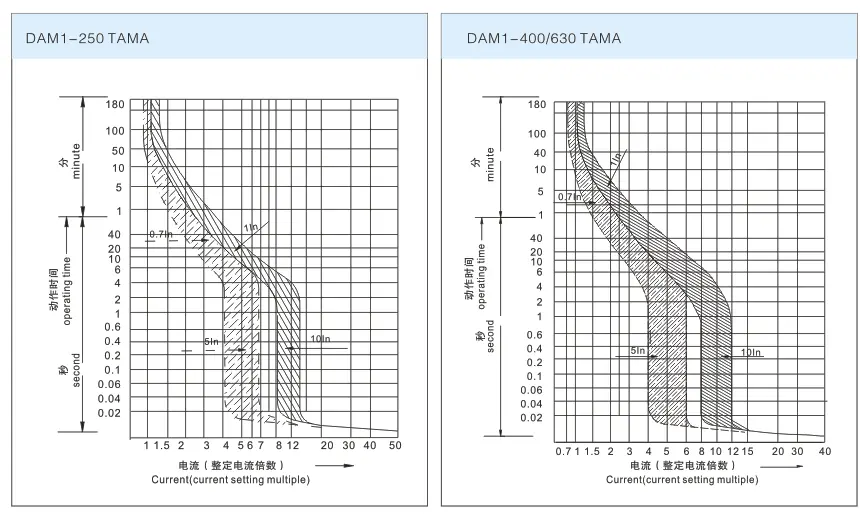

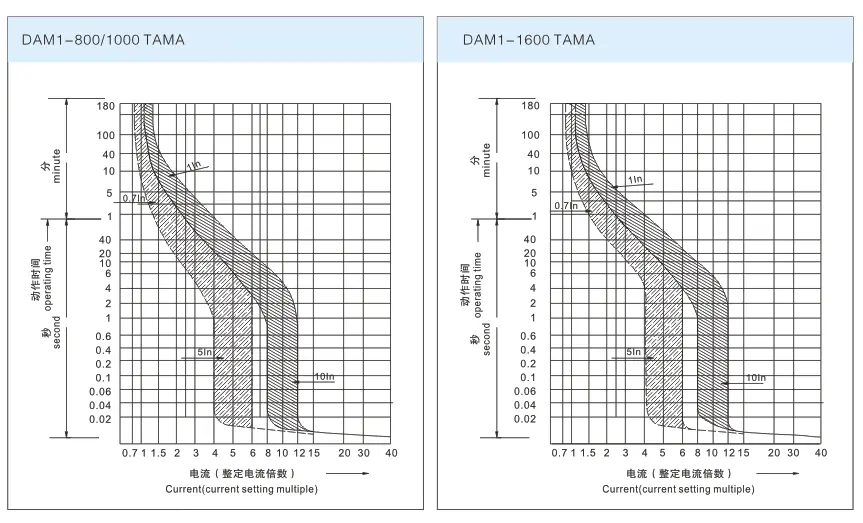

Cov yam ntxwv nkhaus rau TAMA MCCB.

Vim li cas thiaj xaiv CDADA?

★ Precision Engineering
Tsis zoo li cov qauv MCCBs nrog cov kev hloov kho tsis tu ncua, CDADA tus qauv ntsuas qhov ntsuas kub hloov tau tso cai rau cov kws ua haujlwm kom muaj kev tiv thaiv zoo kom phim cov nqi cable thiab cov khoom siv qis qis-txo cov kev mus ncig tsis zoo thiab txhim kho kev xaiv.

★ Ntiaj teb no ua raws, kev txhawb nqa hauv zos
Nrog ASTA (UK), KEMA (Netherlands), CE (EU), CB (thoob ntiaj teb), thiab RoHS ntawv pov thawj, CDADA cov khoom raug lees txais nyob rau hauv ntau tshaj 60 lub teb chaws - txhawb nqa los ntawm kev teb kev txhawb nqa los ntawm Shanghai.

★ Cov khoom siv zoo zoo

Peb muaj kev tswj hwm nruj rau cov neeg xa khoom thiab cov khoom siv raw. Peb feem ntau xaiv cov khoom zoo tshaj plaws rau cov khoom siv hluav taws xob.

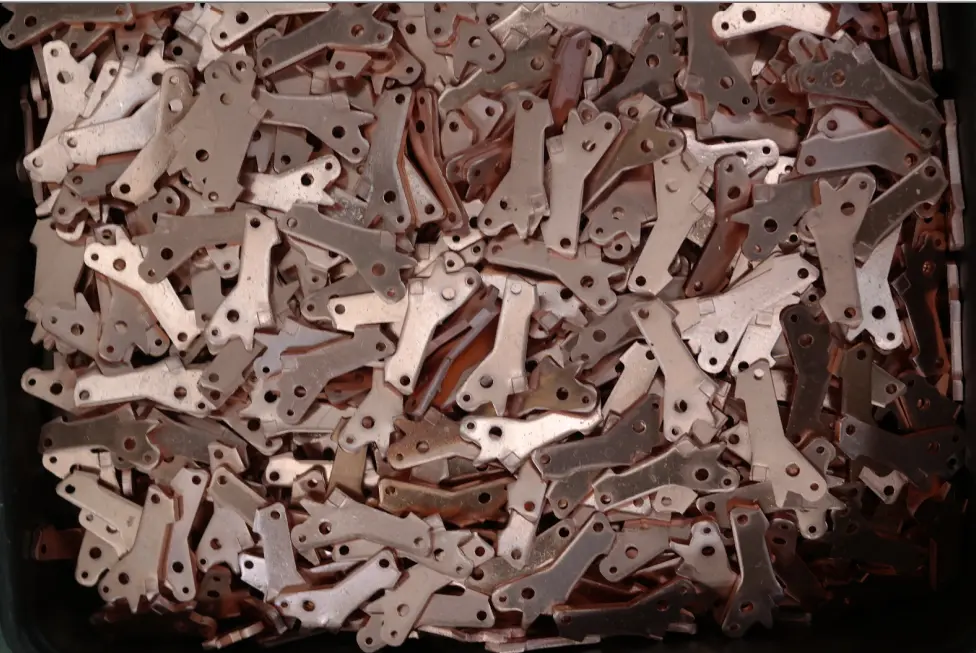

1) tooj liab siv T2> 99.9%,

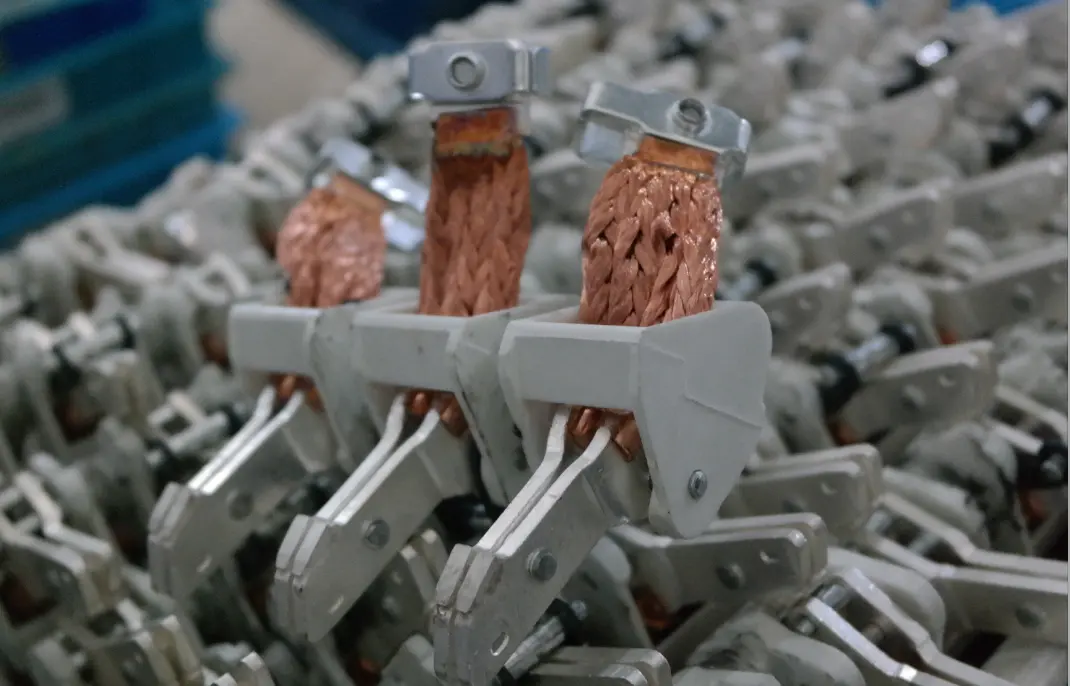

2) Nyiaj tiv tauj (Txiv taw tes: 50%, Chaw nres tsheb: 85%),

3) Lub hauv paus ncej siv BMC-1 (( iav fiber ntau: 25%, siab tshaj resin, siab tshaj plaws siv).

4) Npog thiab lub cev BMC (iav fiber ntau: 22%, siab dua resin, siv ntau dua)

★ OEM & Retrofit Tus phooj ywg
Compact qhov ntev pab tau ncaj qha hloov ntawm cov qub breakers yam tsis muaj vaj huam sib luag redesign. Modular accessories ua kom yooj yim rau kev hloov kho tshiab yav tom ntej.

✅ Kev tiv thaiv tus nqi
Adjustability tshem tawm qhov xav tau los npaj ntau qhov kev ntsuas qhov ntsuas-ib CDADA DAM1 chav nyob npog ntau qhov xwm txheej.

Tej kev siv

★ Industrial Motor Control Centers (MCCs) – Sib tw lub cev muaj zog pib tam sim no yam tsis muaj tripping

★ Data Center PDU Panels – Koom tes nrog IT load profiles

★ Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob - Kho kom haum rau lub hnub ci / cua tso zis ntau yam

★ Marine & Offshore Platforms - Txhim khu kev lag luam hauv qhov chaw hnyav

★ Lub Tsev Ua Lag Luam Hauv Tsev - Txhim kho kev tiv thaiv zoo rau HVAC, elevator, teeb pom kev zoo

Cov lus nug nquag nug (FAQ)

Q1: Dab tsi yog "thermal magnetic adjustable" txhais li cas hauv DAM1 MCCB?

A1: Nws txhais tau tias ob qho tib si overload (thermal) thiab luv-circuit (sib nqus) mus ncig ua si pib tuaj yeem hloov kho manually:

● Thermal: 70% -100% ntawm cov ntsuas tam sim no (hauv)

● Sib nqus: 5 mus rau 10 zaug hauv Qhov no tso cai rau kev tiv thaiv nkhaus rau koj daim ntawv thov tshwj xeeb.

Q2: Puas yog 250A thermomagnetic MCCB muaj nyob rau hauv 3P configuration?

A2: Yog-tag nrho DAM1 hloov kho qauv ntawm 160A txog 1600A muaj nyob rau hauv 3P thiab 4P versions.

Q3: Kuv yuav kho qhov chaw mus txawv tebchaws li cas?

A3: Siv ob lub dials sab nraud lossis cov ntsia hlau rau ntawm lub vaj huam sib luag pem hauv ntej: ib qho rau thermal (labeled "Ir"), ib qho rau hlau nplaum (labeled "Im"). Tsis xav tau disassembly.

Q4: Kuv puas tuaj yeem kuaj lub breaker yam tsis tsim qhov txhaum?

A4: Yog lawm - lub pob nyem-rau-trip ua ke simulates ib qho kev mus ncig rau kev ua haujlwm pov thawj thaum lub sijhawm tu.

Q5: Vim li cas thiaj xaiv CDADA dua lwm hom MCCB Suav?

A5: CDADA sawv tawm nrog:

● Muaj tseeb dual-adjustability (ntau tus neeg sib tw tsuas yog muab kev hloov kho thermal)

● Cov ntawv pov thawj thoob ntiaj teb (tsis yog CCC nkaus xwb)

● Kev tswj kom zoo ib yam (ISO 9001 certified Hoobkas)

● Cov ntaub ntawv qhia ua lus Askiv rau cov haujlwm thoob ntiaj teb
