OEM / ODM Lub Ntiaj Teb Leakage Circuit Breaker Supplier
Puas yog koj xav tau cov khoom zoo thiab ruaj khov Earth Leakage Circuit Breakers?CDADAmuaj cov kev daws teeb meem OEM customization. Raws li ib tug txhim khu kev qha chaw tsim tshuaj paus nrog peb tus kheej lub Hoobkas, peb muab 3-xyoo warranty rau peb cov khoom.

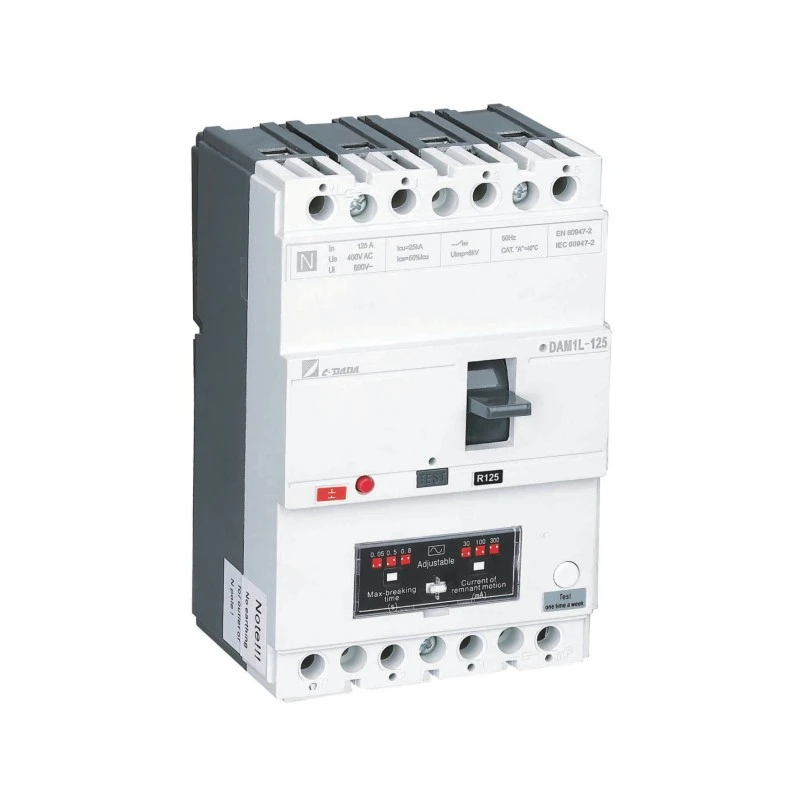

Lub Ntiaj Teb Leakage Circuit Breaker (CBR) yog dab tsi?
IbNtiaj teb Leakage Circuit Breaker (CBR), kuj hu uaLub ntiaj teb Leakage Circuit Breaker nrog Kev Tiv Thaiv Kev Tiv Thaiv Kev Tshaj Tawm (CBR) Raws li IEC 60947-2 Annex B, yog cov khoom siv tiv thaiv hluav taws xob qis uas ua keresidual tam sim no (lub ntiaj teb to) tiv thaiv nrogoverload thiab luv-circuit tiv thaiv nyob rau hauv ib qho molded case unit. Ua haujlwm ntawm qhov ntsuas voltages mus txog415V AC (50/60Hz) nrog kev ntsuas tam sim no los ntawm16A rau 800A, CBRs ua hauj lwm raws li kev tiv thaiv cov cuab yeej siv rau kev lag luam, kev lag luam, thiab cov ntawv thov tseem ceeb.
Tsis zoo li standaloneResidual Current Circuit Breakers (RCCBs)uas tsuas yog muab kev tiv thaiv hauv ntiaj teb, CBRs koom ua ke:
Thermal-magnetic los yog hluav taws xob overcurrent tiv thaiv (L-S-I nkhaus)
Residual tam sim no nrhiav tau (10mA txog 1000mA rhiab heev)
Luv-circuit breaking peev xwm mus 85kA
Kev sib koom ua ke no tshem tawm qhov xav tau ntawm kev sib cais MCB / RCCB kev sib txuas, txo qhov chaw teeb tsa thiab txhim kho kev sib koom ua ke kev ntseeg tau.
Khoom Ceg & Configurations
|
Kev faib tawm |
Hom |
Ntau yam tam sim no |
Cov yam ntxwv tseem ceeb |
|
Residual Current Type |
Hom AC |
16A - 800A |
Txheeb xyuas qhov sinusoidal AC seem tam sim no nkaus xwb, siv hom phiaj dav dav |
|
Hom A |
16A - 800A |
Pom AC + pulsating DC (rectified AC), cov khoom siv hluav taws xob niaj hnub |
|
|
Sensitivity (IΔn) |
Siab rhiab heev |
10mA - 30mA |
Kev tiv thaiv neeg ua haujlwm, chaw kho mob, chaw ntub dej |
|
Nruab nrab rhiab heev |
100mA - 300mA |
Kev tiv thaiv hluav taws, kev lag luam dav dav |
|
|
Tsawg Sensitivity |
500mA - 1000mA |
Kev tiv thaiv hluav taws nyob rau hauv high-kawg installation, xaiv kev tiv thaiv |
|
|
Sijhawm ncua |
Instantaneous |
Txhua qhov kev ntsuas |
Lub hom phiaj dav dav, <40ms ntawm 5 × Ib |
|
Xaiv (S-Type) |
100mA - 1000mA |
Kev ncua ntev (130-500ms ntawm 1 × IΔn), kev sib cais sab saud |
|
|
Ncej Configuration |
4-Poj |
16A - 800A |
Peb-theem + nruab nrab, kho qhov nruab nrab tiv thaiv (50-100%) |
|
Mounting |
Tsau |
16A - 800A |
Kev sib txuas ncaj qha busbar, raug nqi zoo |
Breaking Capacity Qib:
Txheem (N)25kA - 36kA (Kev faib tawm network)
Siab (S)Kev siv hluav taws xob: 50kA - 70kA (Industrial mains)
Ultra-siab (H)Lub cev muaj zog: 85kA
Core Functions & Protection Peev Xwm
Integrated Protection Functions
|
Muaj nuj nqi |
Detection Principple |
Technical Parameters |
|
Kev tiv thaiv overload (L) |
Bimetallic thermal expansion lossis hluav taws xob RMS sensing |
0.8 – 1.0 × Hauv kev teeb tsa, lub sijhawm hloov pauv, ± 10% raug |
|
Short-Circuit Delay (S) |
Hluav taws xob lub sij hawm los yog sib nqus ncua |
2-10 × Hauv, 0.1s - 0.5s ncua, xaiv kev sib koom ua ke |
|
Instantaneous Trip (I) |
Sib nqus solenoid lossis hluav taws xob instantaneous |
5-20 × Hauv, <20ms ua haujlwm, txwv tam sim no |
|
Lub ntiaj teb leakage (G / Δ) |
Core Balance Tam sim no Transformer (CBCT) |
10mA - 1000mA IΔn, ± 10% rhiab heev raug |
|
Av txhaum (GF) |
Vector sum tam sim no sensing |
20-100% ntawm Nyob rau hauv, 0.1s-1.0s ncua, core-balance method |
|
Kev Saib Xyuas Tus Kheej |
Internal Circuit Court xyuas kev ncaj ncees |
Nruam CBCT thiab taug kev coil saib xyuas, ua txhaum lub tswb tawm |
Residual Current Detection Technology
CovCore Balance Tam sim no Transformer (CBCT) los yogTom ntej: Tom ntej: Toroidal Transformer tsim lub plawv ntawm lub ntiaj teb to tiv thaiv:
Kev ua haujlwm li qub: Tag nrho cov nyob conductors (theem + nruab nrab) dhau los ntawm toroidal core. Balanced currents tsim tawm tsam cov teb sib nqus uas tshem tawm mus rau xoom net flux-tsis muaj qhov cuam tshuam tam sim no.
Fault condition: Thaum cov dej ntws tawm mus rau lub ntiaj teb (los ntawm kev rwb thaiv tsev tsis ua haujlwm lossis tib neeg kev sib cuag), qhov tsis sib xws tam sim no tsim cov hlau nplaum seem hauv lub toroidal core. Qhov no flux induces voltage nyob rau hauv lub thib ob winding, energizing ib tug rhiab relay los yog hluav taws xob mus ncig teb chaws circuit.
Cov yam ntxwv mus txawv tebchaws raws IEC 61008/61009:
1 × IB: Trip ≤ 300ms (instantaneous), ≤ 500ms (xaiv S-hom)
2 × IBn: Trip ≤ 150ms (instantaneous), ≤ 200ms (S-type)
5 × Ib: Trip ≤ 40ms (instantaneous), ≤ 150ms (S-type)
Daim Ntawv Thov Ib puag ncig & Siv Case
|
Kev lag luam sector |
Daim ntawv thov tshwj xeeb |
Hom Specifications |
|
Data Centers |
Main faib, UPS bypass, tsheb npav-coupler tiv thaiv |
250A-500A, Hom A, 300mA S-hom xaiv, 70kA Icu, kev sib txuas lus |
|
Cov Tsev Kho Mob |
Tsev kho mob loj faib, kho mob IT systems, kev khiav hauj lwm theaters |
100A-400A, Hom A, 10mA / 30mA siab rhiab heev, kev tshuaj xyuas kev sib cais |
|
Kev tsim cov nroj tsuag |
Cov chaw tswj lub cev muaj zog, cov khoom siv vuam, kev sib hloov ceev ceev |
160A-500A, Hom B (rau VFDs), 300mA, 50kA Icu, hluav taws xob mus ncig |
|
Cov tsev lag luam |
High-rise tis, khw malls, tshav dav hlau |
125A-400A, Hom A, 100mA / 300mA, 36kA Icu |
|
Roj & Roj / Marine |
Offshore platforms, drilling rigs, nkoj fais fab system |
250A-500A, Hom A, 500mA, tropicalized (T2), corrosion-resistant |
Kev tsim khoom & Kev ua haujlwm ntau lawm
Precision Manufacturing Sequence
Raw Material IQC → Toroidal Transformer Production → Moulded Case Fabrication → Sib cuag System Assembly → Electronic Trip Unit Integration → Residual Current Module Calibration → Primary Assembly → Comprehensive Test → Final QC → Ntim
Cov theem tsim khoom tseem ceeb
|
Theem |
Txheej txheem txheej txheem |
Cov ntsiab lus tswj tau zoo |
|
Tom ntej: Toroidal Transformer Winding |
High-permeability nanocrystalline lossis ferrite core (µr> 10,000), precision winding ntawm thawj (dhau-dhau) thiab theem nrab (sensing) windings, nqus impregnation |
Core magnetization nkhaus pov thawj, theem nrab voltage ntawm 1 × IΔn ± 5%, rwb thaiv tsev tsis kam> 100MΩ |
|
CBCT Integration |
Mounting ntawm toroidal core nyob ib ncig ntawm tag nrho cov theem / nruab nrab conductors, shielding tiv thaiv sab nraud magnetic teb, kev twb kev txuas mus ncig teb chaws relay / electronics |
Kev ntsuas ntsuas nrog 6 × Hauv kev thauj khoom (tsis muaj teeb meem mus ncig), kev tiv thaiv rau 3rd harmonics |
|
Residual Current Trip Mechanism |
rhiab heev polarized relay (5-50mW mus txawv tebchaws lub zog) los yog hluav taws xob MOSFET trigger, mechanical coupling rau lub ntsiab mus txawv tebchaws bar |
Kev kuaj xyuas lub zog, lub sij hawm teb <20ms, kub stability -25 ° C txog +70 ° C |
|
Moulded Case Production |
BMC thermosetting yas (DMC-2) txhaj tshuaj molding, 150-180 ° C kho, siab nrhiav tsis kam> 600V |
Dimensional kam rau ua ± 0.1 hli, dielectric zog> 15kV / mm, nplaim retardant UL 94 V-0 |
|
Main Contact Assembly |
Nyiaj-plated tooj liab (AgNi 90/10) tiv tauj, CNC-machined caj npab, brazing hauv nitrogen cua |
Tiv tauj tsis kam <50μΩ, nyiaj thickness 8-12μm (XRF), hardness HV 100-150 |
|
Electronic Trip Unit Programming |
Microprocessor-based LSIG + Δ tiv thaiv, firmware upload, nkhaus calibration, kev sib txuas lus raws tu qauv |
± 5% qhov tseeb tam sim no, ± 10% lub sijhawm raug, ZSI (Zone Selective Interlocking) pov thawj |
|
Kev sib xyaw zaum kawg & Calibration |
Kev sib dhos ntawm thermal-magnetic los yog hluav taws xob mus txawv tebchaws nrog cov khoom seem tam sim no, kev sib cuam tshuam kev sib txuas, kov mechanism |
Ua ke overcurrent + lub ntiaj teb to mus ncig ua pov thawj, dielectric withstand 3kV / 1min |
Primary Raw Materials & Component Specifications
|
Cheebtsam |
Khoom Specification |
Tus qauv tsim khoom |
Cov khoom tseem ceeb |
|
Toroidal Core (CBCT) |
Nanocrystalline alloy (Finemet) los yog Mn-Zn ferrite (PC40) |
IEC 60404-8, JIS C 2531 |
Siab permeability µr> 10,000, qis coercivity <2A / m, saturation flux ceev> 1.2T |
|
Sensing Coil Hlau |
Enameled tooj liab hlau (0.05-0.1mm), Chav F 155 ° C |
IEC 60317 (TSI) |
Kev tawg voltage> 1kV, yooj> 10 × txoj kab uas hla, solderability 390 ° C |
|
Trip Relay |
Polarized latching relay, rhiab heev 5-50mW |
IEC 61810: Ua |
Lub sij hawm teb <10ms, coil kuj 1-5kΩ, txhua yam lub neej> 10⁶ kev ua haujlwm |
|
Moulded Case Housing |
BMC (Bulk Moulding Compound) DMC-2, iav fiber reinforced |
IEC 60664-1, UL 94 V-0 |
Kev ntsuas ntsuas> 600V, kub tsis kam 180 ° C, cuam tshuam lub zog> 8 kJ / m² |
|
Cov neeg tseem ceeb |
Electrolytic tooj liab (Cu-ETP) + Silver-nickel plating (AgNi 90/10) |
ASTM B 152 |
Conductivity ≥100% IACS, arc yaig tsis kam, tiv thaiv vuam khoom |
|
Bimetallic Elements |
Inconel / Passivated Steel Composite (ASTM TM2) |
ASTM B 388 Cov Lus Qhia Tshwj Xeeb |
Deflection tus nqi 0.15-0.25mm / ° C, lub sij hawm ntev stability ± 3%, creep kuj |
|
Electronic Cheebtsam |
Industrial-qib PCBs, Hall-effect sensors, ARM Cortex-M4 processors |
IEC 60721-3-3, IEC 61000 Kev Ua Haujlwm Zoo |
Ua haujlwm kub -25 ° C txog +70 ° C, EMC tiv thaiv qib 4, SIL 2 muaj peev xwm |
|
Terminals |
T2 tooj liab (C11000) nrog tin plating (8-12μm) |
ASTM B187 / B16 |
Tam sim no ceev 1.2-1.5 A / mm², torque withstand 5-15Nm, corrosion kuj |
|
Kev Ua Haujlwm Mechanism |
Caij nplooj ntoos hlav steel (SWOSC-V) los yog stainless hlau (301) |
TIAB SA 3560 |
Lub neej qaug zog> 20,000 cycles, tensile zog 1800-2000MPa, so <5% |
Standards Compliance & Testing Protocols
International Standards Framework
|
Txuj |
Scope |
Kev ntsuas ntsuas |
|
IEC 60947-2 Anex B |
Circuit Breakers suav nrog cov kev tiv thaiv seem tam sim no (CBR) |
Muaj CBRs> 80A, kev tiv thaiv zoo |
|
TS EN 60947-2 |
IEC 60947-2 European kev sib haum xeeb |
CE cim, EU kev ua lag luam ua raws |
|
GB/T 14048.2 |
Suav teb tus qauv sib npaug |
CCC daim ntawv pov thawj, Tuam Tshoj ua lag luam |
Yam yuav tsum tau ua (IEC 60947-2 + Annex B)
|
Qeb xeem |
Kev Xeem Tshwj Xeeb |
Kev lees txais |
|
Residual Current Performance |
Tripping lub sij hawm ntawm 1 × IΔn, 2 × IΔn, 5 × Ib |
≤300ms, ≤150ms, ≤40ms (instantaneous); S-hom: ≤500ms, ≤200ms, ≤150ms |
|
Tsis-tripping ntawm 0.5 × Ib |
Tsis mus txawv tebchaws rau 2 × rated ncua sij hawm |
|
|
Surge tam sim no tiv taus (8/20μs, 3kA) |
Tsis muaj kev ntxhov siab, Hom A: 250A impulse, Hom F: 1000A, Hom B: 3000A |
|
|
Kev tiv thaiv overcurrent |
Kub nce ntawm rated In |
Terminals ≤80K, rooj plaub ≤40K |
|
Kev tawg luv luv (Icu / Ics) |
3 kev ua haujlwm, kev cuam tshuam zoo, dielectric rov qab |
|
|
Kev txheeb xyuas qhov nkhaus (L-S-I) |
± 10% qhov tseeb tam sim no, ± 20% lub sijhawm raug |
|
|
Dielectric Properties |
Fais fab zaus tiv taus (2.5kV-3.5kV / 1min) |
Tsis muaj kev tawg, tsis muaj flashover |
|
Impulse tiv taus (8kV 1.2 / 50μs) |
Tsis muaj kev cuam tshuam kev tso tawm |
|
|
Mechanical & Environmental |
Mechanical endurance (10,000-20,000 cycles) |
<5% parameter drift, tsis ua haujlwm |
|
EMC kev tiv thaiv (IEC 61000-4 series) |
Tsis muaj kev cuam tshuam los ntawm hluav taws xob / ua cuam tshuam |
Factory Quality Control & Inspection Standards
Cov khoom xa tuaj QC (IQC)
|
Khoom siv |
Cov khoom soj ntsuam |
Sampling Plan |
Khoom siv |
|
Toroidal cores |
Sib nqus permeability, saturation flux, core poob |
Ib pawg, B-H nkhaus kuaj |
B-H analyzer, impedance analyzer |
|
Sensing kab |
Txoj kab uas hla, rwb thaiv tsev thickness, tawg voltage |
TSI 0.65 |
Micrometer, dielectric tester |
|
BMC yas compound |
Cov ntsiab lus iav, viscosity, kho cov yam ntxwv, taug qab qhov ntsuas |
Ib pawg, COA + kuaj |
Rheometer, DSC analyzer, nrhiav cov cuab yeej ntsuas |
|
Silver plating daws |
Hlau concentration, pH, impurities |
Kev saib xyuas txhua hnub |
Atomic nqus spectrometer |
|
Cov khoom siv hluav taws xob |
Function test, parameter verification, firmware version |
100% AOI, 5% ua haujlwm |
LCR ntsuas, oscilloscope, ciam scan |
In-Process Quality Control (IPQC)
|
Chaw nres tsheb |
Tswj Parameters |
Ntau zaus |
Txoj kev |
|
Toroidal transformer winding |
Hloov piv, inductance, rwb thaiv tsev tsis kam |
Txhua chav |
LCR meter, rwb thaiv tsev tester |
|
CBCT sib dhos |
Ntsuas ntsuas nrog ntsuas load, tiv thaiv kev sib haum xeeb |
Txhua 100 units |
Kev txhaj tshuaj thawj zaug, lub tshuab hluav taws xob sib haum xeeb |
|
Residual tam sim no calibration |
Kev mus ncig pib ntawm IΔn, lub sijhawm teb, tsis mus ncig ntawm 0.5 × Ib |
Txhua chav |
Tsis siv neeg RCD tester (0.5-1000mA programmable) |
|
Kev sib cuag tseem ceeb |
Kev sib chwv sib txawv, siab, sib dhos, tsis kam |
Txhua 100 units |
Lub zog ntsuas, micro-ohmmeter |
|
Kev koom ua ke zaum kawg |
Ua ke overcurrent + lub ntiaj teb to mus ncig xyuas xyuas |
Txhua chav |
Integrated xeem lub rooj ntev zaum (thawj txhaj tshuaj + to simulation) |
Kev Tswj Xyuas Qhov Kawg (FQC) & QC (OQC)
|
Cov khoom kuaj |
Txuj |
Qauv Loj |
|
Residual tam sim no mus txawv tebchaws |
1 × IB, 2 × IΔn, 5 × IΔn rau IEC 61008/61009 |
100% |
|
Kev xeem tsis mus ncig ntawm 0.5 × Ib |
2 × ntsuas ncua sij hawm |
100% |
|
Overcurrent trip curve |
1.05 × 1.25 × 1.5 hli |
100% |
|
Dielectric tiv taus voltage |
2.5kV AC / 1 feeb |
100% |
|
Rwb thaiv tsev tsis kam |
> 100MΩ @ 500V DC |
100% |
|
Tiv tauj tiv thaiv |
<50μΩ ib tus ncej |
100% |
|
Torque marking pov thawj |
Terminal tightening ib specification |
100% |
|
Visual & Dimension soj ntsuam |
Zero defects ntawm qhov tseem ceeb qhov ntev |
100% |
|
Marking nyob mus ib txhis |
Solvent so, abrasion test |
AQL 1.0 |
|
Ntim kev ncaj ncees |
Poob xeem, kev vibration (ISTA 3A) |
Rau ntau |
Kev Tsim Nyog Infrastructure & Manufacturing Capability
Cov cuab yeej tsim khoom siab heev
|
Qeb khoom siv |
Tshuab Specification |
Muaj nuj nqi |
Muaj peev xwm |
|
Toroidal Winding tshuab |
Automated toroidal winding nrog kev tswj nruj |
CBCT thawj/secondary winding, precision txheej |
5,000 transformers / hnub |
|
Core Annealing Rauv |
Nqus annealing nrog nitrogen cua |
Nanocrystalline tub ntxhais kev kho cua sov, txo kev ntxhov siab |
2,000 cores / batch |
|
Txhaj Molding |
300-tuj BMC thermosetting xovxwm |
CBR vaj tse, arc chute, terminal blocks |
3,000 tus neeg/hnub |
|
CNC Machining |
5-axis ntsug machining chaw |
Precision hu machining, complex geometry |
8,000 tiv tauj teeb / hli |
|
Kev kho saum npoo |
Automated nyiaj plating kab |
Tiv tauj plating 8-12μm, thickness uniformity ± 1μm |
4,000 kg / hnub |
|
Kev sib dhos |
Cov kab mob sib xyaw ua haujlwm |
Mechanism los ua ke, CBCT kev koom ua ke, calibration |
1,500 units / hnub ib kab |
|
Cov khoom siv kuaj |
Integrated CBR xeem lub rooj ntev zaum |
Ua ke overcurrent + residual tam sim no pov thawj |
300 units / teev |
|
|
EMC xeem Chamber (3m / 10m, Teseq) |
Kev ntsuas kev tiv thaiv / emission rau cov khoom siv hluav taws xob |
50 units / hnub |
Muaj Peev Xwm Ntau Lawm & Lub Sijhawm Lead
|
Yam khoom |
Muaj peev xwm txhua hli |
Standard Lead Time |
Ceev Order Muaj peev xwm |
|
CBR 4P (16A-125A) Lub cev muaj zog |
10,000 units |
4-5 lub lis piam |
3 hnub (cov khoom hauv Tshuag) |
|
CBR muaj (160A-400A) |
8,000 units |
4-5 lub lis piam |
5 hnub |
|
CBR Hnyav Industrial (630A-800A) |
3,000 units |
4-5 lub lis piam |
7 noj |
|
Kev cai configurations (tshwj xeeb IΔn, nkhaus) |
Qhov project hauv paus |
5-6 lub lis piam |
2 lis |
Engineering & Technical Team Structure
|
Department |
Cov neeg ua haujlwm |
Kev txawj ntse |
Lub luag haujlwm |
|
R & D Engineering |
5 cov engineers |
Residual tam sim no technology, sib nqus sensor tsim, embedded systems, hwj chim electronics |
Kev tsim kho tshiab CBR, Hom B / F / B + kev tsim kho tshiab, patent portfolio (40+ patents) |
|
Txheej Txheem Engineering |
18 engineers |
Toroidal transformer manufacturing, BMC molding, precision sib dhos, lean manufacturing |
Kev tsim kho kom zoo, SOP cov ntaub ntawv, kev txhim kho cov txiaj ntsig (> 99.5%) |
|
Kev xeem & validation |
15 engineers |
Kev sim siab tam sim no, qhov seem tam sim no simulation, EMC, kev sim ib puag ncig |
Kev sib koom ua ke ntawm hom kev xeem (IEC 60947-2 Annex B, IEC 61008/61009), tsis ua haujlwm tsom xam |
|
Application Engineering |
10 engineers |
Kev xaiv kev sib koom ua ke, cov phiaj xwm kev tiv thaiv hauv ntiaj teb, EV / daim ntawv thov txuas ntxiv |
Kev txhawb nqa cov neeg siv khoom, kev tshawb fawb txog kev ntxub ntxaug, kev ua haujlwm ntawm qhov chaw |
|
Quality Assurance |
30 tus kws tshaj lij |
ISO 9001, ISO 14001, statistical process control, metrology laboratory |
Kev soj ntsuam ntawm tus neeg muag khoom, kev tshuaj xyuas cov txheej txheem, kev kho kom raug, kev tswj xyuas qhov ntsuas |
Daim ntawv pov thawj & Cov ntaub ntawv ua raws cai
|
Daim ntawv pov thawj |
Muab Lub Cev |
Scope |
Kev siv tau |
|
ISO 9001: 2015 |
ZHONGDA HUAYUAN |
Kev tswj hwm zoo |
Kev soj ntsuam txhua xyoo |
|
IEC 60947-2 Annex B Hom Kev Xeem |
Intertek |
CBR kev lag luam kev ua haujlwm |
Ib yam khoom series |
|
CE Marking |
Ceeb Toom Lub Cev |
EU kev lag luam nkag |
Tsim-dependent |
|
CCC (Tuam Tshoj) |
CQC |
Suav daim ntawv pov thawj |
5-xyoo lav |
|
CB Scheme |
IECEE |
International ntawv pov thawj |
Ib yam khoom series |
Vim Li Cas Peb CBR Manufacturing sawv sib nrug
Peb qhov chaw tsim khoom sawv cev40 xyoo kev tshwj xeeb nyob rau hauv seem tam sim no thiab lub ntiaj teb leakage tiv thaiv technology, xa CBRs uas tshaj ntiaj teb no cov qauv los ntawm:
Toroidal transformer kev txawj ntse: Hauv tsev nanocrystalline core ntau lawm, precision winding automation, thiab kev CBCT kuaj xyuas kom ntseeg tau <± 5% rhiab heev
Vertical kev koom ua ke: Los ntawm cov khoom siv tseem ceeb rau kev sib dhos zaum kawg, ua tiav kev tswj xyuas cov khoom tseem ceeb (toroidal transformers, hluav taws xob mus ncig ua si, cov rooj plaub molded)
Advanced xeem infrastructure: $ 3M + nqis peev rau hauv kev sib koom ua ke CBR cov tshuab muaj peev xwm ntawm kev tshawb nrhiav ib txhij overcurrent thiab residual tam sim no, Hom B DC rhiab heev kuaj, thiab EMC ua raws
Ntiaj teb no daim ntawv pov thawj zoo: Ntau tus qauv ua raws li kev ua lag luam seamless nkag mus thoob 100+ lub teb chaws yam tsis muaj kev sim rov qab
Rau cov kev qhia tshwj xeeb, kev xaiv kev sib koom tes, kev taw qhia daim ntawv thov hom B, lossis lub sijhawm kuaj xyuas lub Hoobkas, peb pab pawg neeg tsim khoom muab kev sib tham ncaj qha los xyuas kom meej tias koj lub ntiaj teb kev tiv thaiv kev tsim vaj tsev ua tau raws li cov neeg ua haujlwm kev nyab xeeb thiab cov hom phiaj ua haujlwm txuas ntxiv.
- View as
MCCB nrog Kev Tiv Thaiv Kev Tiv Thaiv
Tau qhov twg los CDADA MCCB nrog Leakage Protection (DAM1L Series) los ntawm Shanghai DADA Electric, raws li ib tug txhim khu kev qha Hoobkas, peb muaj peev xwm muab kev pab txhawb nqa thiab OEM cov kev pab cuam. 4P, 16-500A, kho lub ntiaj teb to (30mA-1000mA), CE / CB / SEMKO tau ntawv pov thawj. Zoo tagnrho rau hluav taws kub & kev nyab xeeb ntawm tus kheej hauv cov tsev, tunnels & cov chaw lag luam.
AC Hom Circuit Court Breaker nrog Residual Tam Sim No Ua Haujlwm
CDADA, lub chaw tsim khoom lag luam nrog 40+ xyoo ntawm kev paub, tuaj yeem muab cov khoom zoo AC HOM Circuit Breaker nrog Residual Current Operation (DAM1L). 4P, 10-500A, CE / CB / SEMKO tau ntawv pov thawj. Muaj tseeb AC-hom CBR rau sinusoidal to xwb. Zoo tagnrho rau tsev nyob & muaj hluav taws kub / tiv thaiv tus kheej.
CDADA yog Ntiaj teb Leakage Circuit Breaker cov chaw tsim khoom thiab cov chaw muag khoom hauv Suav teb. Peb lub Hoobkas ua haujlwm rau ntau hom kev lag luam xws li lub tshuab hluav taws xob, lub tsev automation, thiab kev tsim khoom lag luam, muab cov kev daws teeb meem OEM / ODM hloov tau.
