Tuam Tshoj Zoo DC Inverter Supplier
DC Inverters yog muab los ntawm cov chaw tsim khoomCDADA. Peb lub chaw muaj cuaj kab ntau lawm, txhawb nqa los ntawm 20 xyoo ntawm kev tsim khoom tsim khoom hauv cov khoom lag luam no. Ua raws li cov qauv thoob ntiaj teb, peb cov khoom lag luam khav theeb lub neej ua haujlwm txog li 25 xyoo thiab tuaj nrog 3 xyoo lav.
DC Inverter yog dab tsi?
A DC inverter, feem ntau hu ua aphotovoltaic (PV) inverter los yoghnub ci inverter, yog ib tug sophisticated hwj chim hluav taws xob ntaus ntawv uas convertsdirect tam sim no (DC) generated los ntawm solar panels rau hauvHloov tam sim no (AC) haum rau kev sib txuas kab sib txuas lossis hauv zos noj. Raws li cov ntsiab lus tseem ceeb ntawm photovoltaic lub zog tsim tshuab, lub inverter ua ntau yam haujlwm tseem ceeb suav nrogMaximum zog taw tes nrhiav (MPPT), kab sib chaws synchronization, kev tswj fais fab zoo, thiab kev tiv thaiv kab ke.
Niaj hnub nimno PV inverters ua haujlwm nyob rau hauv qhov hluav taws xob input ranges los ntawm200V DC rau 1500V DC, nrog tso zis zog ntsuam xyuas los ntawm1kW thaj chaw nyob rau ntau-megawatt nqi hluav taws xob-scale central inverters. Lub conversion efficiency ntawm hwm inverters tshaj99%, nrog European-hnyav kev ua tau zoo (η) feem ntau yog los ntawm97% mus rau 98.5%.
Tsis zoo li DC-AC converters yooj yim, PV inverters koom nrogntse tswj systems uas tsis tu ncua optimize zog sau, saib xyuas kev noj qab haus huv system, thiab xyuas kom meej raws li evolving kab lis kev cai. Lub inverter tseem ceeb yog "lub hlwb" ntawm lub tshuab hluav taws xob photovoltaic, kev sib koom ua haujlwm ntawm lub hnub ci modules, roj teeb, loads, thiab daim phiaj siv hluav taws xob.
DC Inverter Khoom Pawg & Kev teeb tsa
|
Kev faib tawm |
Hom |
Hwj chim Range |
Cov yam ntxwv tseem ceeb |
|
Los ntawm Daim Ntawv Thov |
Txoj hlua Inverter |
1 kW – 150 kW |
Ntau MPPT inputs, 3-theem tso zis, coj mus muag / chaw nyob, 98% + efficiency |
|
Central Inverter |
100 kW - 10 MW + |
Ib chav tsev loj, siv hluav taws xob-scale, transformer-coupled, nqi-zoo ib watt |
|
|
Microinverter |
250W-2000W |
Module-theem, ib-vaj huam sib luag MPPT, txhim kho shading kam rau ua, muaj kev ntseeg siab |
|
|
Hybrid Inverter |
3 kW-50 kW |
Roj teeb cia kev koom ua ke, bidirectional zog khiav, thaub qab muaj peev xwm |
|
|
Lub hwj chim Optimizer |
300W-1000W |
DC-DC converter + hlua inverter, module-theem optimization, ceev ceev |
|
|
Los ntawm Topology |
Transformer-raws li |
1 kW – 10 MW |
Galvanic cais, muaj zog, hnyav dua, ua haujlwm qis (96-97%) |
|
Transformerless |
1 kW – 250 kW |
Kev ua haujlwm siab dua (98% +), sib dua, kev tswj xyuas tam sim no xav tau |
|
|
H-Bridge |
Txhua qhov kev ntsuas |
Basic switching topology, PWM tswj, sine wave output |
|
|
Ntau theem (3-theem NPC / T-hom) |
10 kW - 10 MW + |
Txo kev hloov pauv tsis zoo, zoo dua waveform zoo, muaj peev xwm ntau dua |
|
|
Los ntawm Input Voltage |
Tsawg voltage |
200V-500V DC |
Cov chaw nyob, ib txoj hlua configurations |
|
Nruab nrab voltage |
500V-1000V DC |
Kev lag luam tshuab, 1000V NEC txwv hauv Asmeskas |
|
|
High Voltage |
1000V-1500V DC |
Utility-scale, 1500V ua tus qauv, txo BOS cov nqi |
|
|
Los ntawm Output |
Ib-theem |
1 kW - 10 kW |
Nyob, 230V / 120V, 50 / 60Hz |
|
Peb theem |
5 kW – 10 MW |
Kev lag luam / kev lag luam, 400V / 480V, kab sib chaws khi |
MPPT Configuration Options:
Ib leeg MPPT:Basic, tus nqi qis, ib txoj hlua nkag
Dual MPPT:Ob lub tswv yim ywj pheej, sib txawv orientations/shading
Ntau MPPT (4-12 inputs):Commercial systems, complex ru tsev geometry
Core Functions & Txoj Cai Ua Haujlwm
Fais fab hloov txheej txheem
|
Theem |
Muaj nuj nqi |
Kev Ua Haujlwm |
|
DC Input theem |
Txais DC hloov pauv los ntawm PV array, lim, tiv thaiv |
DC lim capacitors, surge tiv thaiv, rov qab polarity tiv thaiv, input voltage xyuas |
|
MPPT theem |
Maximizes fais fab rho tawm los ntawm kev taug qab qhov pom qhov voltage / tam sim no |
Buck-boost lossis boost converter, perturb & saib (P & O) los yog incremental conductance algorithm, 99% + nrhiav efficiency |
|
DC-AC inversion |
Hloov DC rau AC siv high-frequency switching |
IGBT lossis SiC MOSFET H-bridge, PWM tswj (2-20kHz), kev tswj lub sijhawm tuag |
|
Tso zis lim |
Tshem tawm high-frequency harmonics, smooths waveform |
LCL lossis LC lim, damping resistors, <3% THD |
|
Daim phiaj kev sib txuas |
Synchronizes nrog kab sib chaws, fais fab kev ua raws cai |
Phase-locked voj (PLL), tiv thaiv kev tiv thaiv, tiv thaiv lub zog tswj |
|
Tswj & Saib Xyuas |
Kev tswj hwm qhov system, cov ntaub ntawv kaw lus, kev sib txuas lus |
DSP/MCU tswj, Ethernet/WiFi/RS485, huab saib xyuas, firmware hloov tshiab |
Maximum Power Point Tracking (MPPT)
MPPT muaj nuj nqi yog cov thev naus laus zis tseem ceeb uas ua kom muaj zog tshaj plaws los ntawm cov hnub ci vaj huam sib luag. Txij li thaum PV modules nthuav tawm cov yam ntxwv uas tsis yog-linear tam sim no-voltage (I-V) nrog ib lub zog siab tshaj plaws (MPP) uas txawv nrog irradiance thiab kub, lub inverter yuav tsum tsis tu ncua taug qab lub hom phiaj txav mus no.
Qhov tseem ceeb MPPT Parameters:
MPPT Voltage Ntau:Lub qhov rais ua haujlwm qhov twg inverter tuaj yeem rho tawm lub zog siab tshaj plaws (piv txwv li, 200-850V rau 1000V inverter)
Tag nrho-load MPPT Range:Voltage range rau ntsuas fais fab tso zis
MPPT Efficiency:> 99% taug qab qhov tseeb nyob rau hauv dynamic tej yam kev mob
Scanning ceev:Teb rau kev hloov pauv sai irradiance (cuam tshuam huab cua)
MPPT Algorithms:
Perturb & Observe (P&O):Feem ntau, kev hloov kho voltage ntxiv, 99% + efficiency
Incremental Conductance (INC):MPP paub meej meej, zoo dua nyob rau hauv kev hloov pauv sai
Hybrid/Advanced:Genetic algorithms, fuzzy logic, neural networks rau complex shading scenarios
Grid Synchronization & Kev Nyab Xeeb
Niaj hnub nimno inverters yuav tsum ua raws li cov kab sib chaws nruj xws li:
Anti-islanding tiv thaivTsis siv neeg kaw hauv 2 vib nas this ntawm daim phiaj poob (UL 1741 / IEC 62116)
Frequency/voltage caij-los ntawm: Txuas ntxiv ua haujlwm thaum muaj kev cuam tshuam hauv kab sib chaws (LVRT/HVRT)
Reactive zog txhawb: Muab VAR kev txhawb nqa rau daim phiaj kev ruaj ntseg (IEEE 1547)
Harmonic distortion: <3% THD rau tam sim no, <5% rau voltage
Daim Ntawv Thov Ib puag ncig & Siv Case
|
Daim ntawv thov |
Qhov Loj |
Hom Specifications |
Cov Lus Qhia Tseem Ceeb |
|
Residential Grid-Tied |
3 kW-20 kW |
Ib-theem, 98% efficiency, 2 MPPT, WiFi saib xyuas, 10-xyoo warranty |
Compact, ntsiag to, yooj yim installation, ceev ceev kaw (NEC 2017) |
|
Nyob Hybrid |
5 kW-15 kW |
48V roj teeb, lub hwj chim thaub qab, lub sij hawm ntawm kev siv optimization, kev siv tus kheej maximization |
UL 9540 (roj teeb), seamless hloov, 24/7 ua haujlwm |
|
Kev lag luam Rooftop |
20 kW-500 kW |
Peb-theem, 98.5% efficiency, 4-12 MPPT, txoj hlua saib xyuas, 25-xyoo tsim lub neej |
Kev ntseeg siab, kev saib xyuas tsawg, kev saib xyuas tej thaj chaw deb |
|
Kev lag luam hauv av-Mount |
100 kW - 2 MW |
Central los yog hlua, 1500V DC, fais fab kev sib txuas lus, IV nkhaus scanning |
Qhov siab tshaj tawm, O&M optimization, struts adaptability |
|
Utility-Scale PV |
2 MW – 10 MW + |
Central inverters, 1500V, MV transformer kev koom ua ke, daim phiaj sib sau muaj peev xwm |
LCOE qis tshaj, 99% muaj, daim phiaj txhawb zog |
|
Zog Cia |
50 kW – 5 MW |
Bidirectional, DC-coupled los yog AC-coupled, zaus tswj, ncov shaving |
Round-trip efficiency> 90%, teb lub sij hawm <1s, cycling durability |
|
Off-Grid / Chaw taws teeb |
1 kW – 100 kW |
Roj teeb-raws li, diesel generator integration, load tswj, microgrid muaj peev xwm |
Kev ntseeg siab, kev ua haujlwm tsis muaj zog, kev ua siab ntev rau ib puag ncig |
|
EV Charging |
50 kW-350 kW |
DC them ceev ceev, muaj peev xwm V2G, siab zog ceev, ua kua txias |
99% uptime, kev them nyiaj sib koom ua ke, cov kev pabcuam sib npaug |
Kev tsim khoom & Kev ua haujlwm ntau lawm
High-Precision Manufacturing Sequence
Component IQC → PCB los ua ke (SMT) → Fais fab Module Assembly → Heat Sink Integration → Capacitor & Magnetics Installation → Final Assembly → Burn-in Test → Automated Final Test → Ntim
Cov theem tsim khoom tseem ceeb
|
Theem |
Txheej txheem txheej txheem |
Cov ntsiab lus tswj tau zoo |
|
PCB los ua ke (SMT) |
High-density nto mount, 0201 Cheebtsam, BGA processors, lead-free solder (SAC305) |
Kev tshuaj xyuas AOI, X-ray rau BGAs, ICT (hauv-circuit test), 100% kev ua haujlwm pov thawj |
|
Fais fab Module Assembly |
IGBT/SiC MOSFET tuag txuas, hlau sib txuas (Al / Cu), encapsulation, thermal interface cov ntaub ntawv thov |
Thermal resistance <0.5K/W, void-free tuag txuas, daim ntawv cog lus rub lub zog> 8g, 100% thaiv qhov ntsuas hluav taws xob |
|
DC Link Capacitor Integration |
Zaj duab xis capacitor mounting, tsheb npav bar txuas, ESL / ESR minimization |
Capacitance ± 5%, ESR <1mΩ, voltage withstand 1.5 × rated, 100% to test |
|
Sib nqus Winding |
High-frequency inductors, nanocrystalline lossis ferrite cores, Litz hlau rau cov nyhuv ntawm daim tawv nqaij |
Inductance ± 10%, core poob <2W / kg, hipot test 3kV, ib nrab tawm <10pC |
|
Heat Sink Assembly |
Aluminium extrusion los yog kua txias phaj, thermal paste / ncoo daim ntawv thov, mounting torque tswj |
Thermal tsis kam <0.3K/W, flatness <50μm, uniform siab faib |
|
Kev Sib Tham zaum kawg |
Kev sib koom ua ke ntawm chassis, cua txias installation, tso saib / kev sib txuas lus modules, xov hlau hlua |
Av txuas ntxiv <0.1Ω, clearance/creepage verification, torque marking |
|
Hlawv-hauv Kev Xeem |
48-72 teev ua haujlwm ntawm 50 ° C, kev thauj khoom tag nrho, kev caij tsheb kauj vab thermal |
Kev kuaj pom ntxov ntxov, kev tshuaj ntsuam xyuas menyuam mos tuag, <0.5% tsis ua haujlwm |
|
Automated Xeem Xeem |
Kev ntsuas kev ua tau zoo (IEC 61683), MPPT pov thawj, kev tiv thaiv kev ua haujlwm, kev ua raws kab sib chaws |
100% kev xeem, cov ntaub ntawv logging, calibration daim ntawv pov thawj, serial tooj traceability |
Primary Raw Materials & Component Specifications
|
Cheebtsam |
Khoom Specification |
Tus qauv tsim khoom |
Cov khoom tseem ceeb |
|
Lub zog semiconductors |
Silicon IGBT (1200V-1700V, 200A-600A) los yog SiC MOSFET (1200V, 50mΩ) |
TS EN 60747-9, JEDEC |
Hloov zaus 2-50kHz, Rds(on) <5mΩ, Tj(max) 175 ° C, luv-circuit withstand 10μs |
|
Rooj Tsav Tsheb |
Isolated gate driver ICs, magnetic los yog capacitive cais |
UL 1577, IEC 60747-5 |
CMTI> 100kV / μs, propagation ncua <100ns, undervoltage lockout |
|
DC Txuas Capacitor |
Metallized polypropylene zaj duab xis, 400-1500V DC, 100-5000μF |
IEC 61071: Ua |
ESR <1mΩ, ESL <20nH, 100,000 teev lub neej, kho tus kheej |
|
Sib nqus (Inductors) |
Nanocrystalline lossis ferrite cores, Litz hlau (Cu) |
IEC 60404-8, IEC 60317 Kev Tswj Xyuas Kev Nyab Xeeb |
Core poob <2W/kg ntawm 100kHz, Bsat>1.2T, Curie temp>200°C |
|
Kub dab dej |
Aluminium 6063-T5 los yog tooj liab, anodized los yog npib tsib xee-plated |
ASTM B 221 |
Thermal conductivity 200W / mK, nto roughness Ra 1.6, corrosion kuj |
|
Thermal Interface |
Theem hloov khoom siv lossis silicone roj, 0.5-3W / mK |
ASTM D 5470 Cov Lus Qhia Tshwj Xeeb |
Thermal resistance <0.5K·cm²/W, ruaj khov mus ntev, tsis muaj twj tso kua mis tawm |
|
Tswj PCBs |
FR-4 TG170 los yog high-Tg, 4-12 txheej, immersion kub |
IPC-6012, UL 796 |
Tg> 170 ° C, CTI> 600V, impedance tswj ± 10% |
|
MCUs/DSPs |
ARM Cortex-M4 / M7 lossis siab DSP, 100-400MHz |
IEC 60730 Kev nyab xeeb ua haujlwm |
SIL 2 muaj peev xwm, kho vajtse FPU, ECC nco, kub -40 ° C txog +85 ° C |
|
Npog |
Aluminium tuag-cam khwb cia ADC12 los yog hlau, hmoov-coated |
ISO 12944, IEC 60529 Kev Tswj Xyuas Kev Lag Luam |
IP65 kev ntsuam xyuas sab nraum zoov, C3 / C4 corrosion kuj, IK08 cuam tshuam |
|
Cov khoom sib txuas |
MC4 rau DC, Harting rau AC, RJ45 rau kev sib txuas lus |
IEC 62852, UL 6703 |
IP68, 30A txuas ntxiv, 1000V DC, 25 xyoo UV tiv thaiv |
Standards Compliance & Testing Protocols
International Standards Framework
|
Txuj |
Scope |
Cov Kev Xav Tau |
|
IEC 62109-1 / -2 |
Kev nyab xeeb ntawm cov hluav taws xob hloov hluav taws xob siv rau hauv cov tshuab hluav taws xob photovoltaic |
Cov kev cai dav dav (Part 1) thiab cov kev cai tshwj xeeb rau inverter (Part 2) |
|
IEC 61683 (TSI) |
Photovoltaic systems - Lub hwj chim txias - Cov txheej txheem rau kev ntsuas kev ua haujlwm |
Kev ntsuas kev ua tau zoo, MPPT kev ua tau zoo, kev lees paub |
|
IEC 62116: Ua |
Utility-interconnected photovoltaic inverters - Kev sim txheej txheem ntawm kev tiv thaiv kev tiv thaiv kev tiv thaiv |
Anti-islanding pov thawj pov thawj |
|
IEC 61727: Ua |
Photovoltaic systems - Utility interface yam ntxwv |
Daim phiaj kev sib txuas yuav tsum, lub zog zoo |
|
IEC 60068-2: Cov |
Kev kuaj ib puag ncig |
Thermal cycling, damp kub, mechanical stress |
|
IEC 61000-6-2 /-6-4 |
EMC tiv thaiv thiab emission |
Kev tiv thaiv ib puag ncig kev tiv thaiv, thaj chaw nyob / kev lag luam emission |
Yam yuav tsum tau ua (IEC 62109 & IEC 61683)
|
Qeb xeem |
Kev Xeem Tshwj Xeeb |
Kev lees txais |
|
Kev Nyab Xeeb & Kev Tiv Thaiv |
Overvoltage qeb, pollution degree, clearance/creepage |
CAT III/IV, PD2/3, 8mm clearance ntawm 1000V |
|
Kev tiv thaiv hluav taws xob poob siab (IP ntsuas) |
IP20 yam tsawg kawg nkaus (hauv tsev), IP65 (sab nraum zoov) |
|
|
Hauv av txuas ntxiv |
<0.1Ω |
|
|
Rwb thaiv tsev tsis kam |
> 1MΩ ntawm 500V DC |
|
|
Thermal Performance |
Kub nce mus kuaj ntawm tag nrho cov load |
Cheebtsam kub hauv qab qhov txwv, Tj < Tj(max) - 25K |
|
Thermal cycling (-40 ° C txog + 85 ° C, 100 cycles) |
Tsis muaj kev ua haujlwm tsis ua haujlwm, tsis muaj parameter drift> 5% |
|
|
Kev ntsuas kev ua tau zoo (IEC 61683) |
Euro efficiency (η) ntawm 5%, 10%, 20%, 30%, 50%, 100% load |
> 97% rau hlua inverters, > 98.5% rau cov qauv hwm |
|
Kev ua haujlwm siab tshaj plaws ntawm qhov chaw ua haujlwm zoo |
> 98% (transformerless), > 96% (transformer-raws li) |
|
|
MPPT efficiency |
Static> 99.5%, dynamic> 98% |
|
|
Ib puag ncig |
Dej kub (40 ° C / 93% RH, 96h lossis 21 hnub) |
Ua haujlwm tom qab txias, tsis muaj corrosion |
|
Cov dej ntsev (IEC 60068-2-52, qhov hnyav 2) |
Tsis muaj corrosion cuam tshuam rau kev nyab xeeb lossis kev ua haujlwm |
|
|
UV raug (rau cov ntaub thaiv sab nraum zoov) |
Tsis muaj degradation ntawm mechanical zog |
|
|
EMC |
Electrostatic paug (ESD) 8kV hu / 15kV cua |
Tsis muaj malfunction, tsis muaj kev nyab xeeb |
|
Kev tiv thaiv hluav taws xob (10V / m, 80MHz-6GHz) |
Ua haujlwm thaum kuaj |
|
|
Ua emissions (CISPR 11/16) |
Class B txwv rau tsev nyob, Class A rau industrial |
|
|
Grid Code Ua raws cai |
Kev tiv thaiv Island (IEC 62116) |
Kev mus ncig hauv 2s, tsis pom qhov chaw <5% |
|
Tsawg voltage caij-los ntawm (LVRT) |
Nyob twj ywm thaum lub sij hawm voltage dips |
|
|
Reactive zog muaj peev xwm |
Muab khoom / nqus VARs raws li xav tau |
Factory Quality Control & Inspection Standards
Cov khoom xa tuaj QC (IQC)
|
Khoom siv |
Cov khoom soj ntsuam |
Sampling Plan |
Khoom siv |
|
IGBT/SiC modules |
Thaiv qhov hluav taws xob, Rds(on), hloov cov yam ntxwv, kuaj pom |
100% ATE xeem |
Curve tracer, thermal impedance tester, X-ray |
|
DC txuas capacitors |
Capacitance, ESR, ESL, to tam sim no, dissipation yam |
Ib batch + 100% tuaj |
LCR ntsuas, rwb thaiv tsev ntsuas, AC choj |
|
Sib nqus cores |
Permeability, core poob, B-H nkhaus, qhov ntev kam rau ua |
Rau batch |
B-H analyzer, impedance analyzer |
|
PCBs |
Txheej suav, impedance, solderability, ionic huv |
Ib batch + qauv kuaj |
CMM, TDR, ion chromatography |
|
Kub dab dej |
Thermal tsis kam, flatness, nto tiav, seem |
Rau batch |
Thermal interface tester, CMM, profileometer |
In-Process Quality Control (IPQC)
|
Chaw nres tsheb |
Tswj Parameters |
Ntau zaus |
Txoj kev |
|
SMT qhov chaw |
Cheebtsam txoj hauj lwm, orientation, solder paste ntim |
100% AOI |
Automated optical soj ntsuam |
|
Reflow soldering |
Kub profile (preheat, soak, reflow, txias), ncov 245 ° C |
Txhua lub rooj tsavxwm |
Thermal profileing, X-ray tshuaj xyuas |
|
Lub zog module sib dhos |
Tuag txuas voids, hlau daim ntawv cog lus zog, thermal interface |
Txhua module |
Scanning acoustic microscopy, rub tester |
|
Kev sib dhos zaum kawg |
Torque qhov tseem ceeb, cable routing, clearance nrug, grounding |
Txhua chav |
Automated coj los ua ke, torque xyuas |
|
Software loading |
Firmware version, parameter settings, kev sib txuas lus raws tu qauv |
100% |
Automated programming, checksum pov thawj |
Kev Tswj Xyuas Qhov Kawg (FQC) & QC (OQC)
|
Cov khoom kuaj |
Txuj |
Qauv Loj |
|
Input / output voltage / tam sim no raug |
± 1% ntawm kev nyeem ntawv |
100% |
|
Kev ua tau zoo ntawm ntau lub ntsiab lus (IEC 61683) |
> 97% Euro efficiency |
100% |
|
MPPT nrhiav qhov tseeb |
Static> 99.5%, dynamic> 98% |
100% |
|
Kev tiv thaiv kev ua haujlwm pov thawj (OV, UV, OC, OT, av txhaum) |
Taug kev hauv lub sijhawm teev tseg |
100% |
|
Rwb thaiv tsev tsis kam (input-output, input-ground, output-ground) |
> 1MΩ @ 1000V DC |
100% |
|
Dielectric tiv taus (hi-pot) |
2kV AC los yog 3kV DC, 60s |
100% |
|
Hauv av txuas ntxiv |
<0.1Ω |
100% |
|
Cov dej ntws tam sim no (kov tam sim no, tiv thaiv tus neeg xyuas pib tam sim no) |
<3.5mA AC, <10mA DC |
100% |
|
EMC ua ntej ua raws (ua emissioned) |
Class A/B txwv |
AQL 1.0 |
|
Hlawv-hauv kev sim (48h ntawm 50 ° C, tag nrho load) |
<0.5% tus nqi tsis ua haujlwm |
100% |
|
Ntim kev ncaj ncees (poob, vibration, qhov siab) |
ASTM D4169, ASTM D4169 thiab ISTA 3E |
Rau ntau |
Kev Tsim Nyog Infrastructure & Manufacturing Capability
Cov cuab yeej tsim khoom siab heev
|
Qeb khoom siv |
Tshuab Specification |
Muaj nuj nqi |
Muaj peev xwm |
|
SMT kab |
High-speed pick-and-place (ASM SIPLACE, 100,000 CPH) |
Muab tso rau hauv, 01005 txog 50 × 50mm |
500,000 PCBs / hli |
|
Reflow Qhov cub |
10-zone nitrogen reflow (Heller, Rehm) |
Lead-free soldering, profile tswj ± 2 ° C |
300,000 PCBs / hli |
|
Fais fab Module Assembly |
Nqus soldering, hlau sib txuas (K&S, ASM) |
IGBT/SiC module txuas, ultrasonic kev sib txuas |
50,000 modules / hli |
|
Kev xeem tsis siv neeg |
ATE systems (Chroma, NH tshawb fawb) |
100% kev ua haujlwm, kev ua haujlwm, kev tiv thaiv kev xeem |
10,000 units / hnub |
|
Hlawv-hauv Chambers |
Taug kev hauv ib puag ncig Chambers (ESPEC, Weiss) |
48-72h hlawv-hauv, thermal cycling |
5,000 units ib txhij |
|
Kev xeem EMC |
3m / 10m anechoic chamber, ua EMI lab |
Pre-ua raws li kev xeem thiab ntawv pov thawj |
50 units / lub lis piam |
|
Kev kuaj ib puag ncig |
Thermal shock, ntsev tsuag, UV, IP xeem |
IEC 60068-2, IEC 60529 Kev ua raws cai |
100 units / lub lis piam |
Muaj Peev Xwm Ntau Lawm & Lub Sijhawm Lead
|
Yam khoom |
Muaj peev xwm txhua hli |
Standard Lead Time |
Ceev Order Muaj peev xwm |
|
Cov hlua hluav taws xob nyob hauv tsev (3-10kW) |
10,000 units |
4-5 lub lis piam |
5 hnub |
|
Kev lag luam hlua inverter (20-150kW) |
5,000 units |
4-5 lub lis piam |
7 noj |
|
Central inverter (500kW-3MW) |
500 units |
6-8 lub lis piam |
3 lis |
|
Hybrid inverter (5-20kW) |
30,000 units |
4-5 lub lis piam |
7 noj |
|
Microinverters (300-2000W) |
200,000 units |
2-3 lub lis piam |
5 hnub |
Engineering & Technical Team Structure
|
Department |
Cov neeg ua haujlwm |
Kev txawj ntse |
Lub luag haujlwm |
|
R & D Engineering |
5 engineers |
Fais fab electronics, tswj systems, embedded software, thermal tswj, grid integration |
Kev tsim khoom tshiab, topology innovation, patent portfolio (100+ patents) |
|
Txheej Txheem Engineering |
30 engineers |
SMT, fais fab module sib dhos, automated test, Kev lag luam 4.0 |
Kev tsim kho kom zoo, kev txhim kho cov txiaj ntsig (> 99%), txo nqi |
|
Kev xeem & validation |
25 engineers |
IEC 62109, IEC 61683, kab sib chaws, EMC, kev ntseeg siab engineering |
Hom kev xeem, kev tswj xyuas ntawv pov thawj, kev soj ntsuam tsis ua haujlwm, kev sim ua lub neej nrawm |
|
Application Engineering |
20 engineers |
PV system tsim, lub zog cia, kab sib koom ua ke, O&M |
Cov neeg siv khoom kev txhawb nqa, kev tsim qauv, commissioning, kev cob qhia |
|
Quality Assurance |
40 tus kws tshaj lij |
ISO 9001, ISO 14001, IATF 16949, statistical txheej txheem tswj |
Kev soj ntsuam ntawm tus neeg muag khoom, cov txheej txheem tshawb xyuas, ntsuas ntsuas ntsuas, ntsuas kev kho |
Yog vim li cas peb DC Inverter Manufacturing sawv sib nrug
Peb qhov chaw tsim khoom sawv cev20 xyoo kev tshwj xeeb nyob rau hauv photovoltaic zog hloov dua siab tshiab, xa inverters uas tshaj ntiaj teb no cov qauv los ntawm:
Kev paub txog lub zog semiconductor: Kev siv SiC MOSFET thaum ntxov, ua tiav 99% + kev ua haujlwm zoo thiab ua kom 1500V system architectures uas txo cov nqi BOS los ntawm 15-20%
Vertical kev koom ua ke: Nyob rau hauv lub tsev fais fab module sib dhos, sib nqus tivthaiv tsim, thiab automated PCB los ua ke kom ua tiav kev tswj xyuas zoo thiab cov saw hlau resilience
Kev ntsuam xyuas infrastructure: $ 10M + nqis peev hauv ATE systems, ib puag ncig chambers, thiab EMC lub chaw soj nstuam muaj peev xwm ua tiav IEC 62109 thiab IEC 61683 certification test
Grid Code kev coj noj coj ua: Kev ua raws cai nrog cov kab sib chaws hloov zuj zus (IEEE 1547-2018, VDE-AR-N 4110, G99) ua kom muaj kev lag luam nkag mus thoob 100+ lub teb chaws
Ntse zog innovation: Integrated roj teeb cia daws teeb meem, V2G muaj peev xwm, thiab virtual fais fab nroj tsuag (VPP) aggregation platforms rau lwm tiam zog systems
Digital manufacturing:Kev lag luam 4.0 kev siv nrog tag nrho traceability (ib yam khoom rau cov khoom tiav), kwv yees zoo analytics, thiab automated optical tshuaj xyuas kom ntseeg tau <100ppm tsis xws luag
Kev ntseeg tau tsom: 25-xyoo tsim lub neej, kev sim ua lub neej nrawm, thiab ua pov thawj MTBF> 100,000 teev
- View as

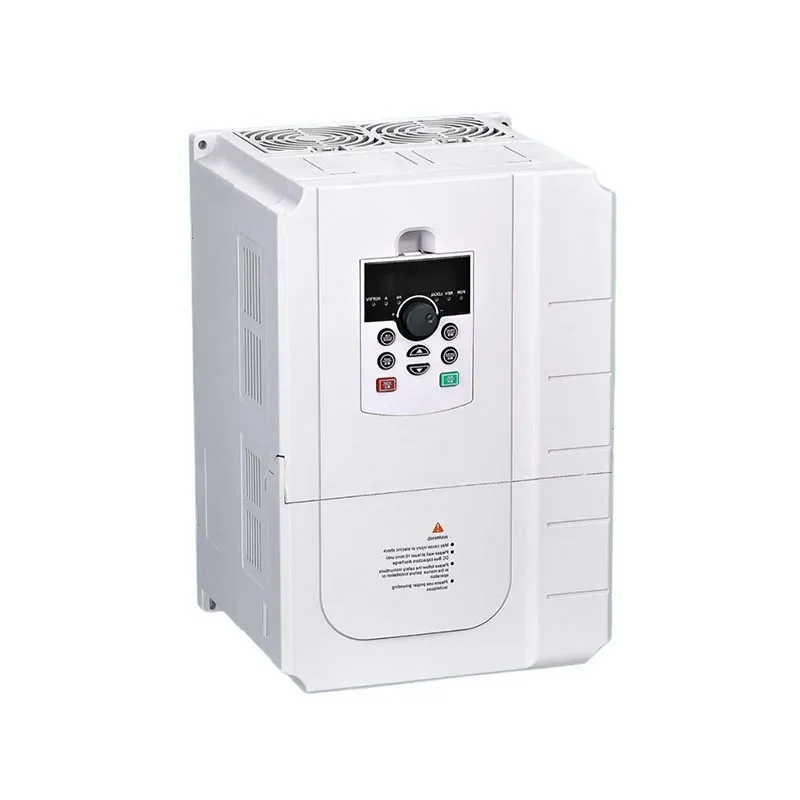

Hnub Ci Pump Inverter
Hu rau CDADA thiab cia peb ua koj lub chaw tsim khoom nrog rau cov khoom siv hnub ci twj tso kua mis Inverter. Cov khoom no yog 15kW-3-theem, MPPT-integrated, rau irrigation & dej. Tsis xav tau daim phiaj. IP65 xaiv tau, kev tiv thaiv qhuav-khiav, thiab kev saib xyuas tej thaj chaw deb. Zoo tagnrho rau kev ua liaj ua teb & cov haujlwm nyob deb nroog.

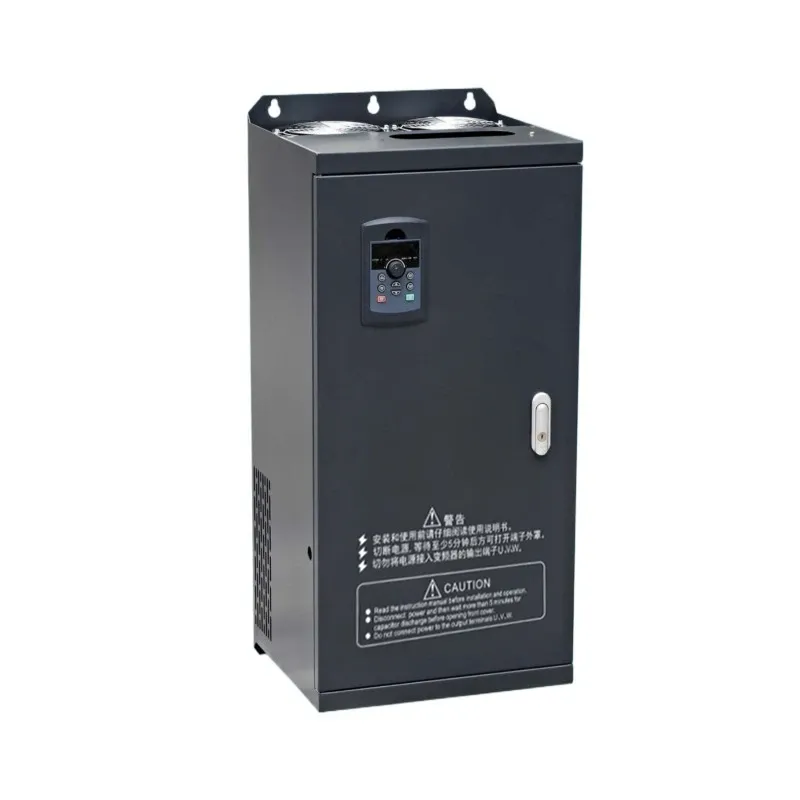

DC Inverter 0.75kW-630kW
Raws li tus neeg muag khoom txhim khu kev qha, CDADA's DC Inverter 0.75kW-630kW yog qib kev lag luam, DSP-raws li vector tswj, 4 hom (SVC/VC/V/F/Torque), Modbus, thiab nws pib-tuning. Rau cov twj, conveyors, extruders & high-precision tsav. Yuav kom tau txais lub Hoobkas ncaj nqe thiab kev daws teeb meem OEM, koj tuaj yeem tiv tauj peb.
CDADA yog DC Inverter cov chaw tsim khoom thiab cov chaw muag khoom hauv Suav teb. Peb lub Hoobkas ua haujlwm rau ntau hom kev lag luam xws li lub tshuab hluav taws xob, lub tsev automation, thiab kev tsim khoom lag luam, muab cov kev daws teeb meem OEM / ODM hloov tau.
