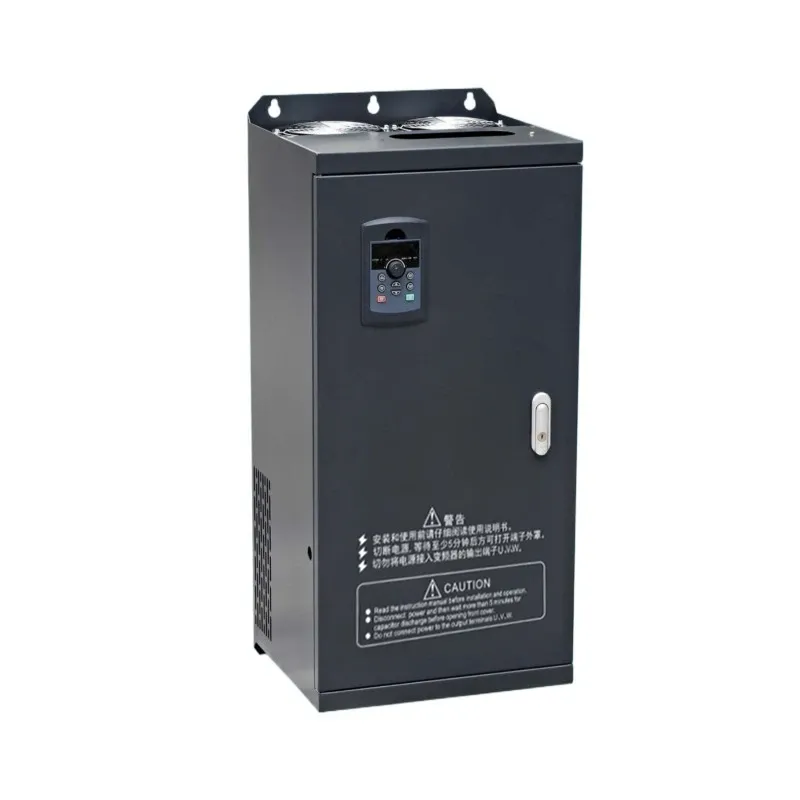

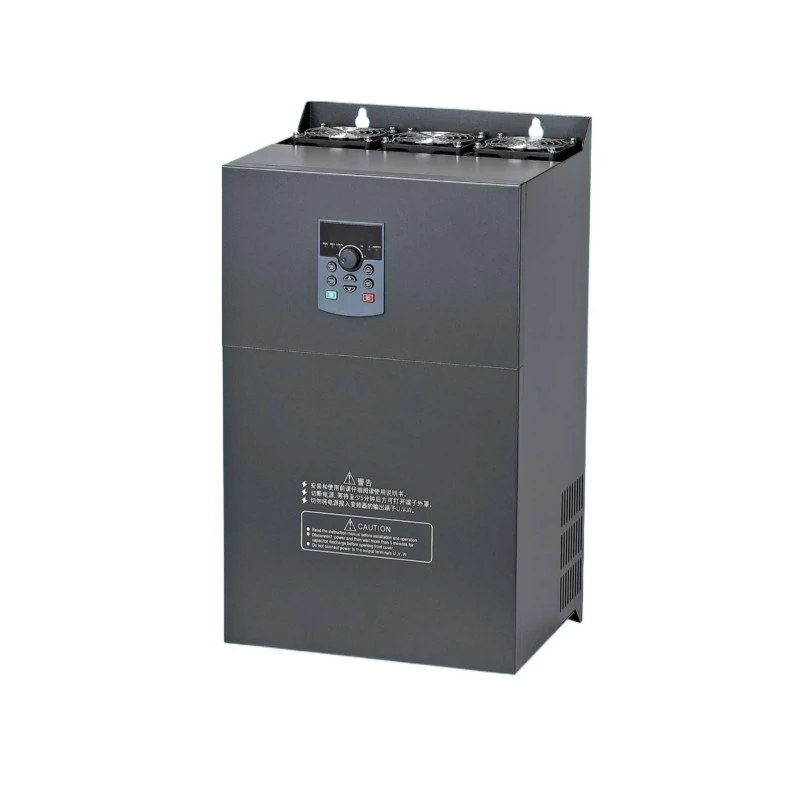

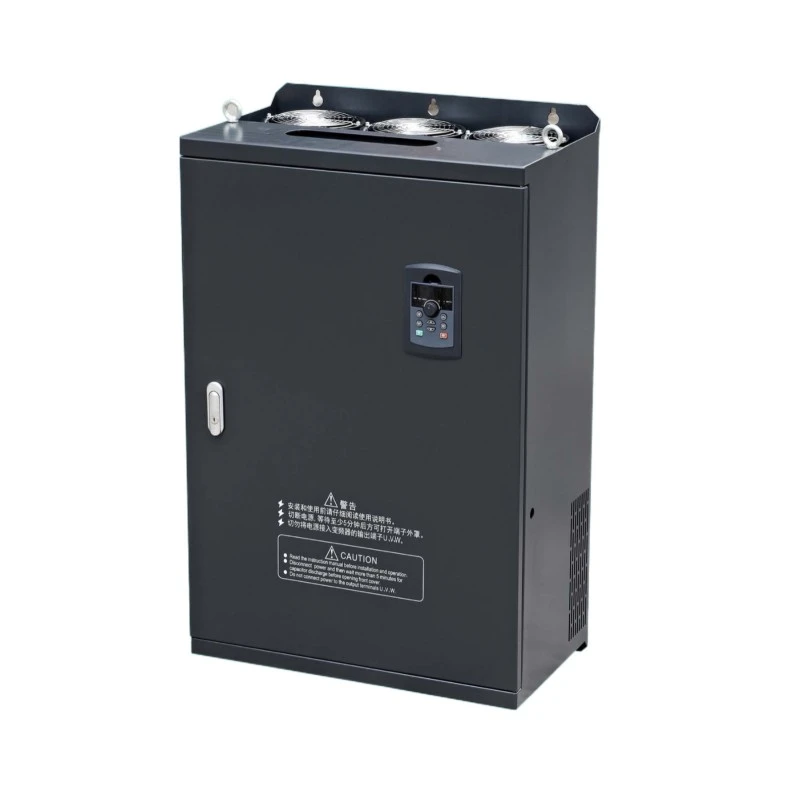

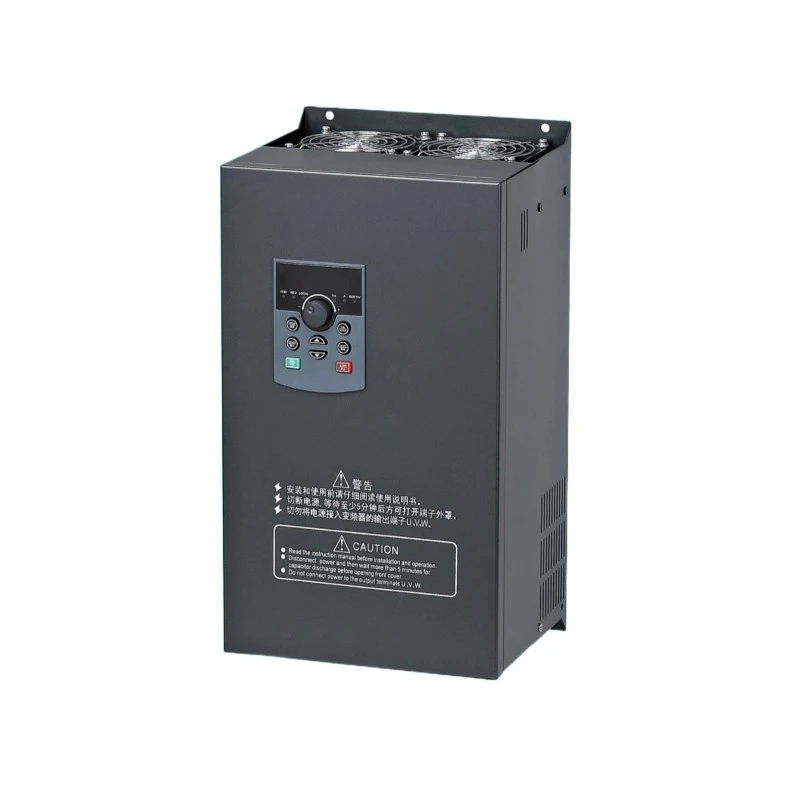

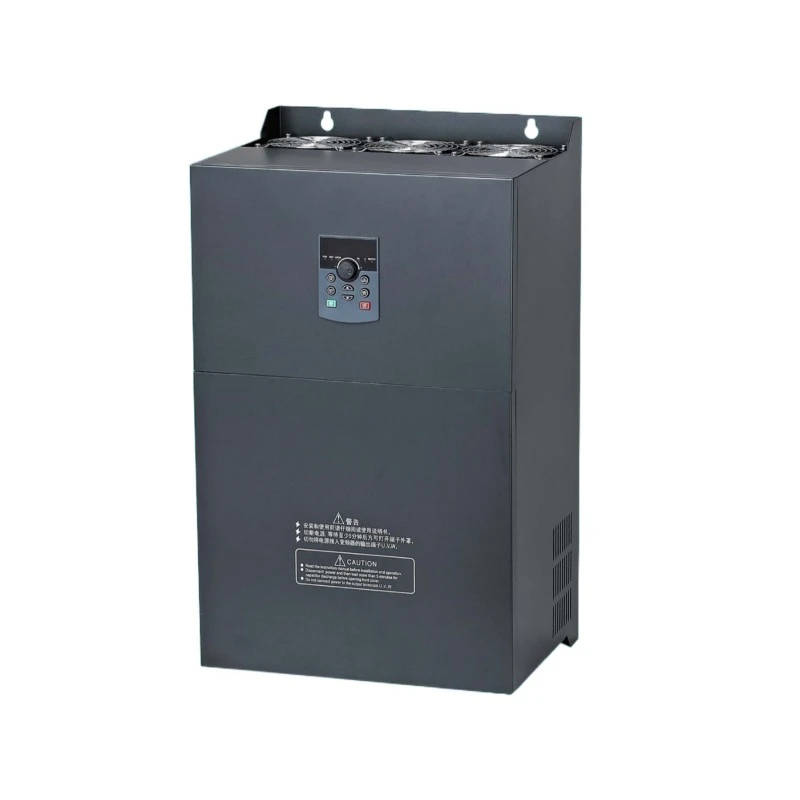

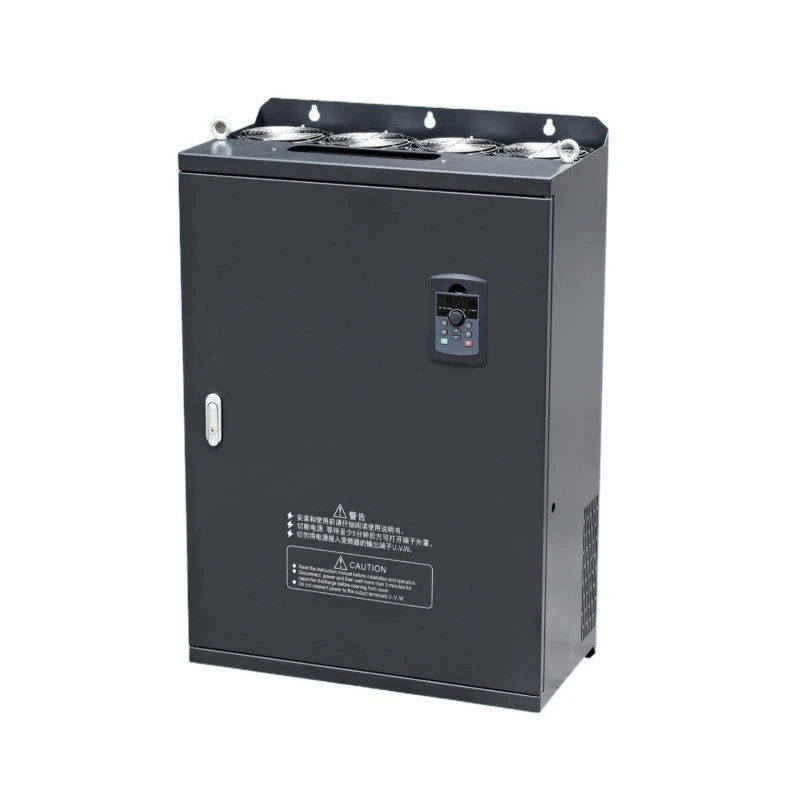

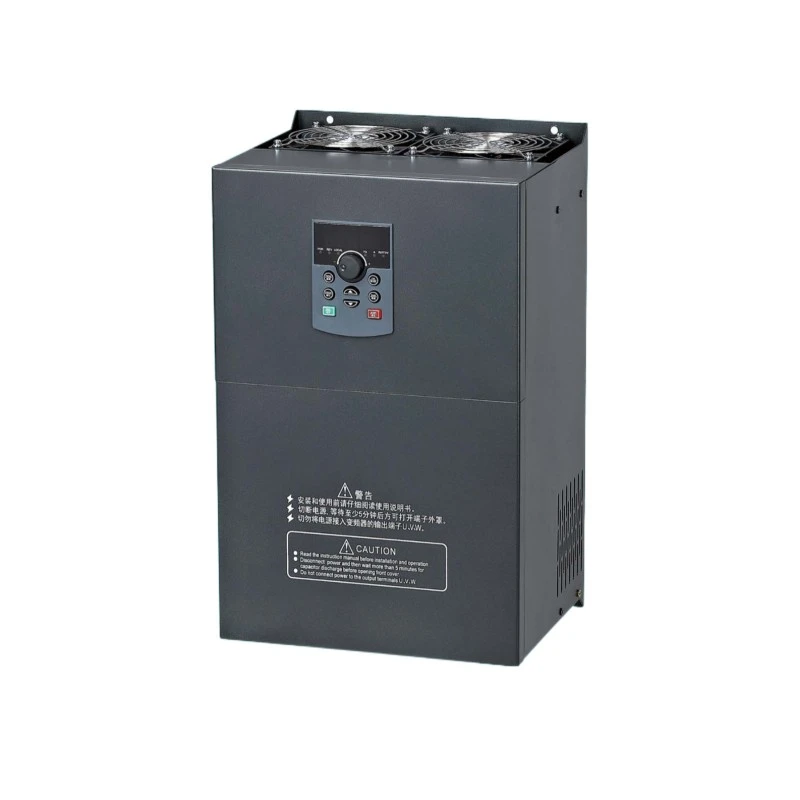

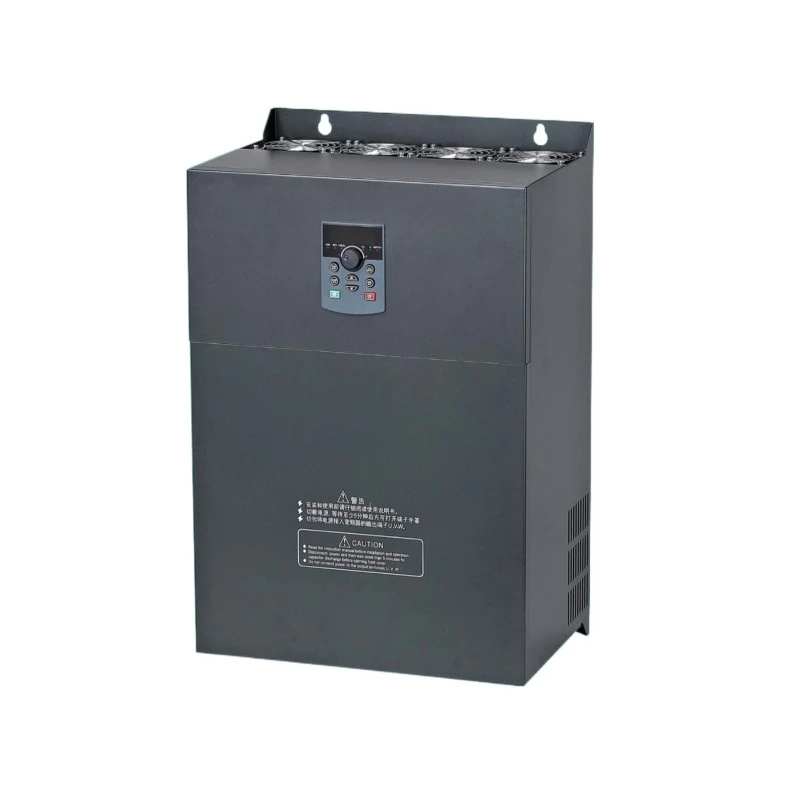

DC Inverter 0.75kW-630kW

Ua tau raws li CDADA Industrial DC Inverter 0.75kW-630kW-kev ua haujlwm siab tsav lub cev muaj zog rau kev thov kev lag luam automation. Ua rau ntawm qhov siab tshaj DSP (Digital Signal Processor) tswj architecture, lub inverter no muab qhov tseeb vector tswj nrog los yog tsis muaj encoder tawm tswv yim, ua kom ceev ceev, torque, thiab tsawg-frequency khiav unmatched los ntawm cov pa V / F drives.

Tsim los rau ntau yam, CDADA inverter txhawb plaub hom kev tswj:

Vector Control tsis muaj PG (SVC) - sensorless, zoo tagnrho rau cov khoom lag luam feem ntau

Vector Control nrog PG (VC) - kaw-voj precision rau cranes, elevator, lossis CNC spindles

V / F Tswj - yooj yim, muaj zog rau cov kiv cua thiab cov twj tso kua mis

Torque Control - zoo meej rau winding, unwinding, thiab nro tshuab

Nrog nws pib-tuning ntawm lub cev tsis muaj zog, 1: 1000 ceev ntau yam (nrog encoder), thiab 180% pib torque ntawm tsuas yog 0.5Hz, nws ua tau zoo nyob rau hauv daim ntawv thov yuav tsum tau ceev teb, du-ceev khiav lag luam, thiab dynamic load tuav - xws li extruders, hoists, textile machines, compressors, thiab conveyor systems.

Nruab nrog RS485 / Modbus, built-in PLC logic (16-kauj ruam ib ntus), PID kev cai, lub zog tsis ua haujlwm caij-los ntawm, thiab tsis siv neeg hloov pauv zaus (1-15kHz), CDADA inverter ua kom lub zog siab tshaj plaws, kev tsim khoom txuas ntxiv, thiab kev sib koom ua ke yooj yim rau niaj hnub ntse factories.

Cov yam ntxwv tseem ceeb

Vim li cas thiaj xaiv CDADA DC Inverter 0.75kW-630kW?

■ Muaj tseeb Muaj Vector Performance

Tsis yog VFD nkaus xwb - xa servo-zoo li kev tswj tsis muaj nqi servo, ua tsaug rau thaj chaw-oriented vector algorithm.

■ Lub Hwj Chim Loj Loj hauv Ib Lub Platform

Los ntawm cov twj me me (0.75kW) mus rau cov mills loj (630kW) - tib lub firmware, tib lub programming logic.

■ Ntse Automation Npaj

Built-in PLC + PID + Modbus txo qhov xav tau rau cov tswj hwm sab nraud - tus nqi qis dua & hneev taw.

■ Muaj zog rau ib puag ncig hnyav

Tsim los ua haujlwm tas li 24/7 hauv plua plav, kub, lossis hluav taws xob tsis zoo.

■ Ntiaj teb no Compatibility

Txhawb 380V / 480V / 690V AC input, nrog DC tsheb npav variants rau roj teeb lossis txuas txuas ntxiv.

■ Tus Neeg Siv-Centric Design

Tej thaj chaw deb keypad, clear fault logs, thiab ib-khawm pib-tuning yooj yim commissioning thiab txij nkawm.

Tej kev siv

★ Cov Khoom Siv: Cov khoom thauj, cov khoom thauj, AGVs

★ Plastics & Roj Hmab: Extruders, tshuab moulding, calenders

★ Kev Ua Hlau: Rolling mills, coil kab, CNC spindles

★ Textiles: Spinning thav ntawv, looms, winders

★ Dej & HVAC: Cov twj siv tau zoo nrog PID siab tswj

★ Mining & Cement: Crushers, kiv cua, slurry twj

Cov lus nug nquag nug (FAQ)

Q1: Puas yog lub hnub ci inverter lossis lub cev muaj zog tsav?

A1: Qhov no yog kev lag luam DC-rau-AC lub cev muaj zog inverter (VFD) - nws hloov kho DC lub tsheb npav lossis AC lub ntsiab rau hauv 3-theem AC tsav tsheb. Nws tsis yog lub hnub ci / kab sib chaws-khi inverter.

Q2: "DC inverter" txhais li cas ntawm no?

A2: Lub sijhawm hais txog nws lub peev xwm ua haujlwm los ntawm DC lub zog hluav taws xob (piv txwv li, DC tsheb npav, roj teeb, lossis cov khoom siv kho dua tshiab). Feem ntau cov qauv kuj lees txais tus qauv AC cov tswv yim-qhov txuas DC sab hauv lub zog rau theem inverter.

Q3: Kuv puas xav tau tus encoder rau vector tswj?

A3: Tsis yog - rau feem ntau daim ntawv thov, SVC (sensorless vector) muab kev ua tau zoo heev. Siv VC (nrog PG) tsuas yog thaum koj xav tau ultra-siab ceev raug (<0.01%) lossis xoom-ceev tag nrho torque (piv txwv li, elevator).

Q4: Nws puas tuaj yeem hloov kuv tus qub ABB / Siemens / Yaskawa tsav?

A4: Yog. CDADA inverters txhawb cov txheej txheem tswj thaiv, Modbus, thiab cov qauv tsis zoo sib xws. Peb muab cov lus qhia hla kev qhia thiab parameter tsiv teb tsaws cov cuab yeej rau kev hloov seamless.

Q5: Vim li cas thiaj xaiv CDADA thoob ntiaj teb hom?

A5: CDADA xa:

● 90% + kev ua tau zoo ntawm cov khoom lag luam hwm ntawm 60-70% tus nqi

● Kev xa khoom sai dua & kev txhawb nqa hauv zos hauv kev lag luam tawm tshiab

● Ib yam tseem ceeb nta: nws pib-tu, torque tswj, Modbus, PLC

● Customization xaiv (OEM branding, tshwj xeeb firmware)

● Pov thawj hauv 10,000+ qhov chaw muaj thoob ntiaj teb
