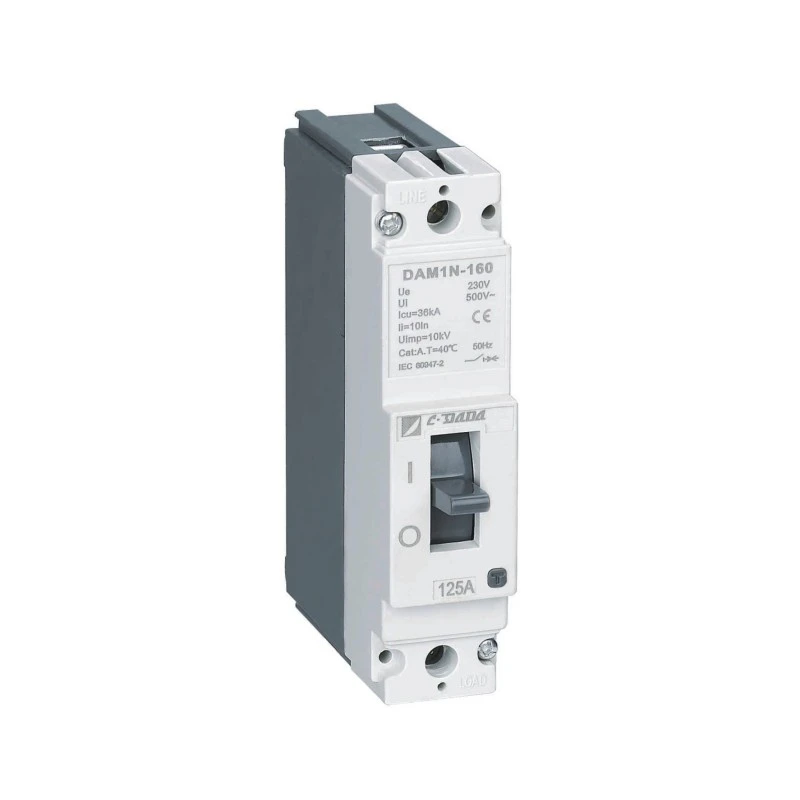

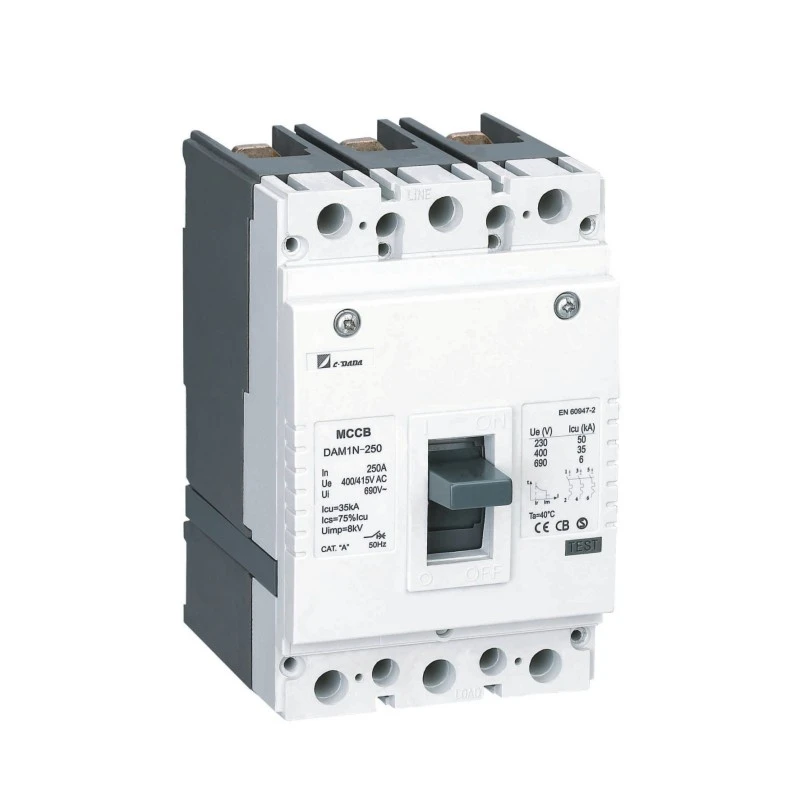

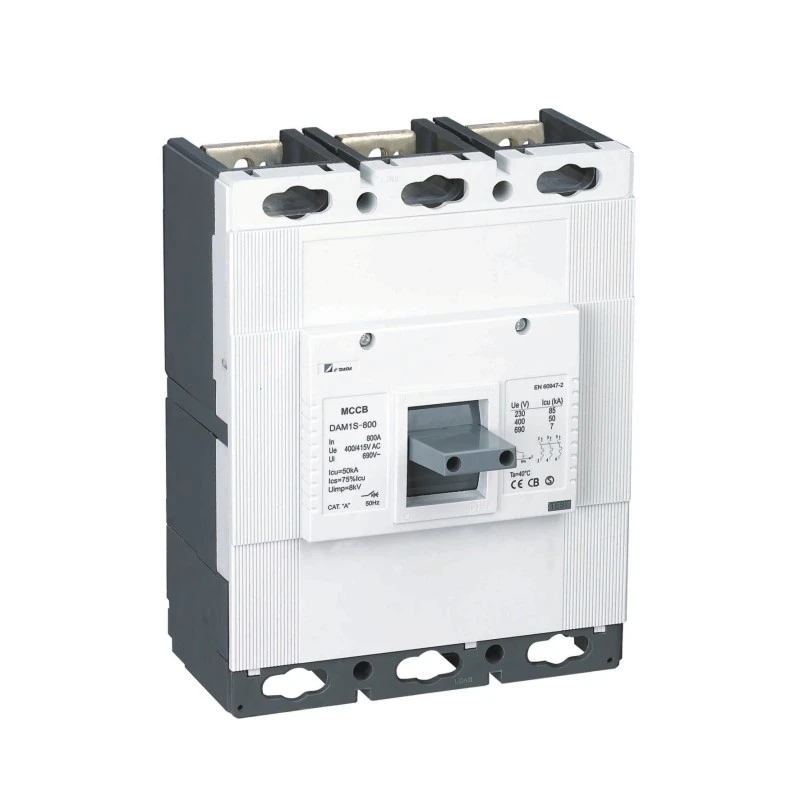

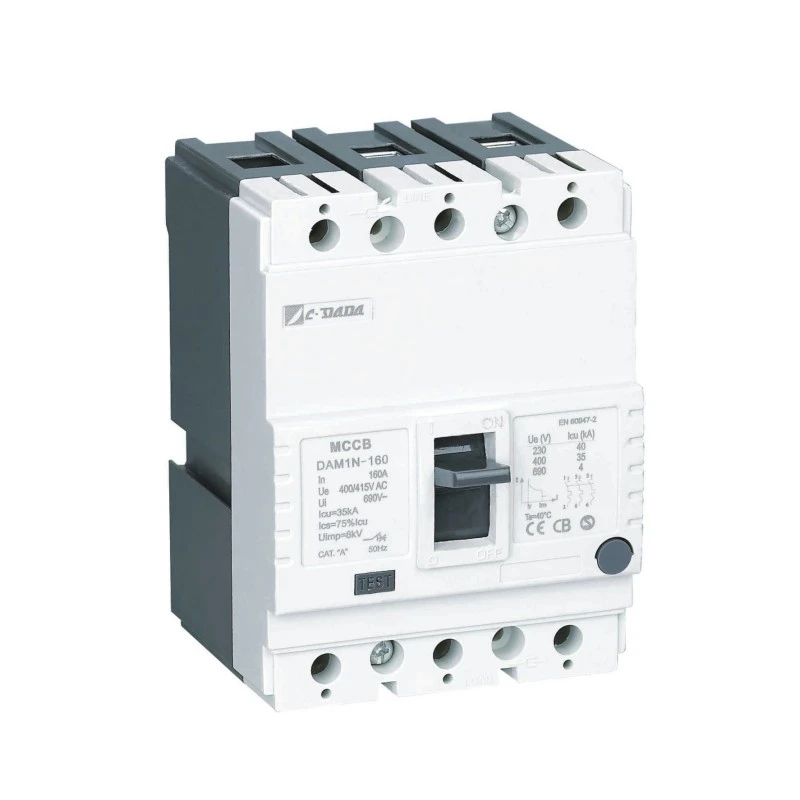

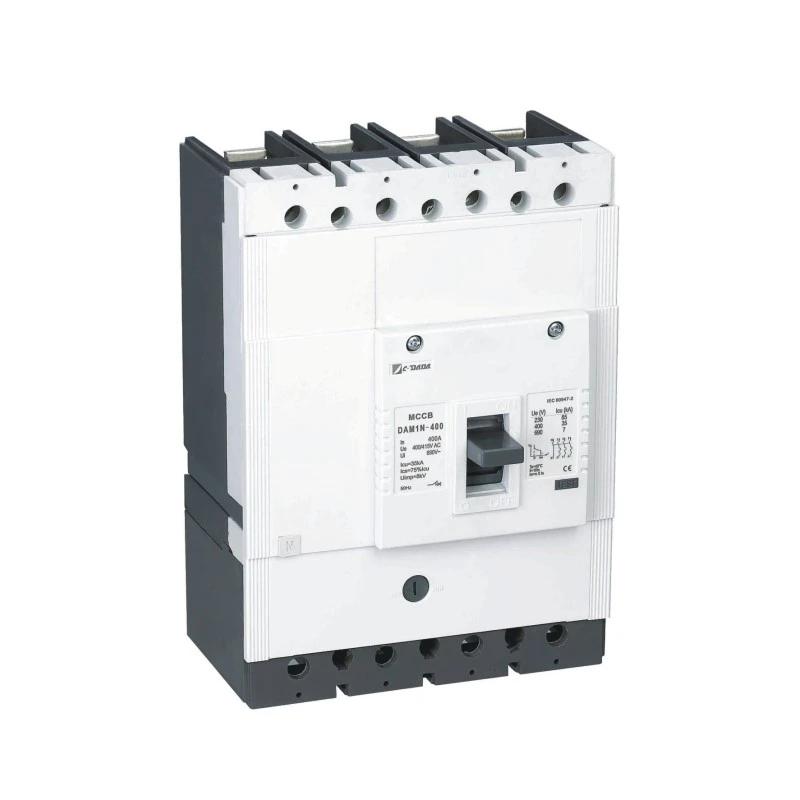

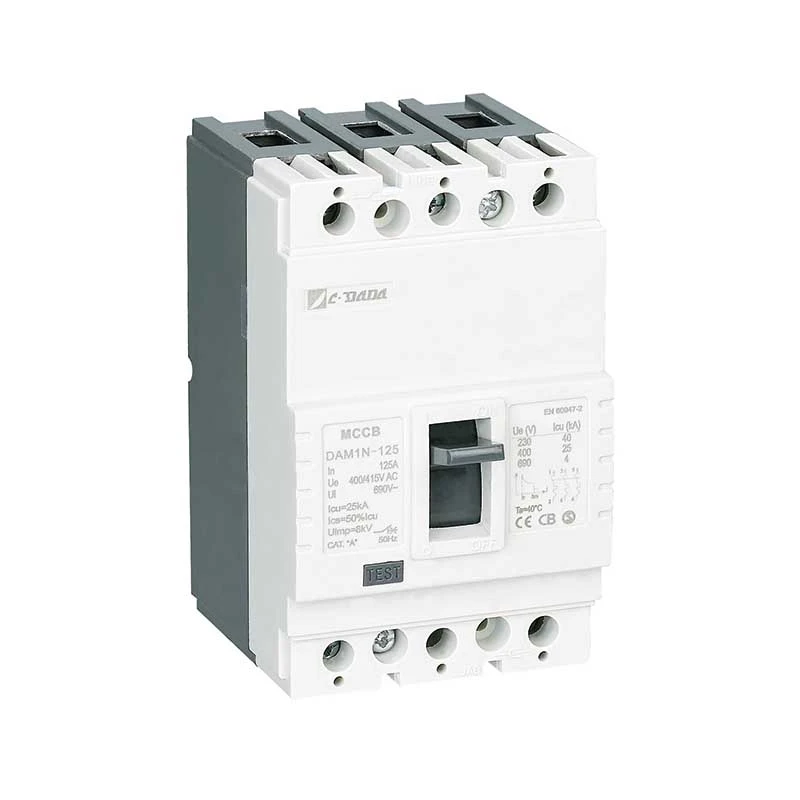

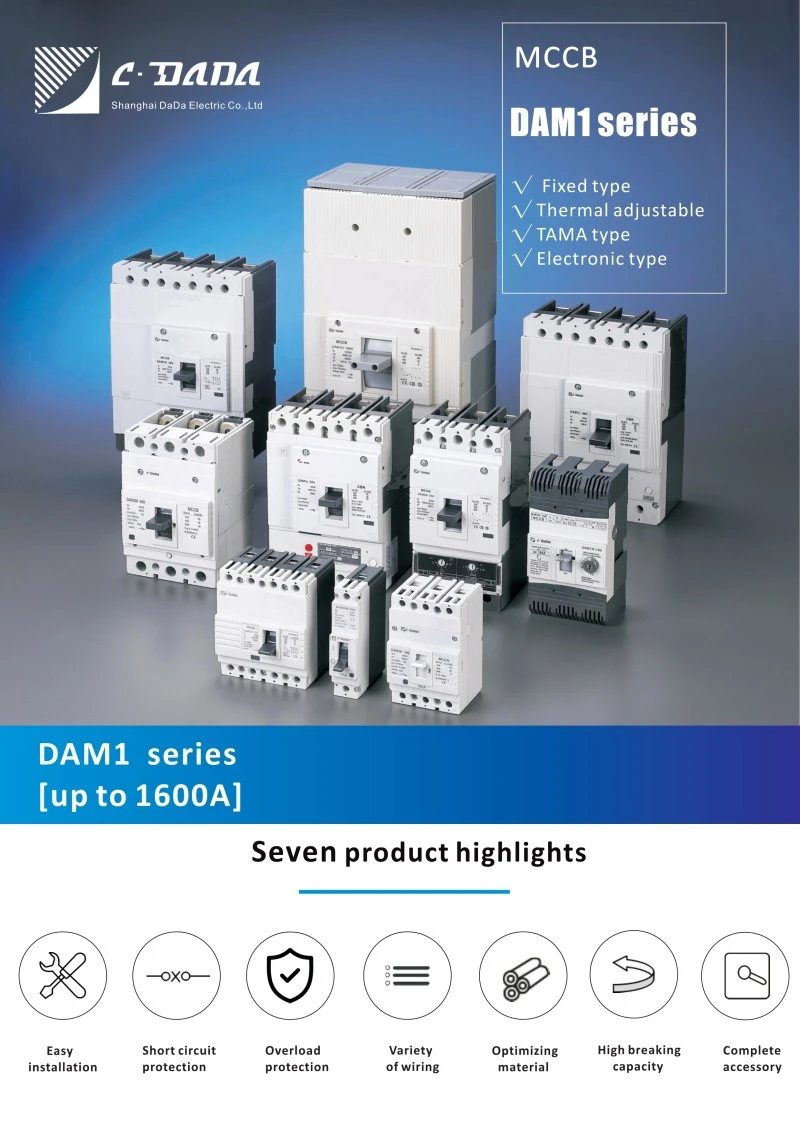

Tsau Hom Moulded Case Circuit Breaker
Model:DAM1 Series
Qhov zoo tshaj plaws thiab qib siab Tiav Hom Moulded Case Circuit Breaker (MCCB) los ntawm Shanghai DADA Hluav Taws Xob-certified (CE, CB, ASTA), thermal-magnetic tiv thaiv, 12.5A-1600A. Zoo tagnrho rau industrial & coj mus muag panels. Yooj yim DIN-rail lossis vaj huam sib luag mount. OEM & bulk xaj txais tos, xaiv CDADA ua koj tus neeg muag khoom nrog kev ntseeg siab.
CDADA Fixed Type Moulded Case Circuit Breaker (MCCB) DAM1 series ua tau raws li qhov xav tau ntawm txhua daim ntawv thov, los ntawm cov neeg siv me me mus rau cov khoom siv hluav taws xob thiab kev faib khoom.
Lub DAM1 series muaj xya qhov ntau thiab tsawg, mus txog 1600A, tawg muaj peev xwm mus txog 100 kA, kev khiav hauj lwm voltage mus txog 1000 Volts, yooj yim ua tau raws li ntau yam kev xav tau ntawm cov khoom siv hluav taws xob thiab cov khoom siv kho tshuab, muab ntau yam kev daws teeb meem kom ua tiav qhov kev xav tau ntawm txhua lub zog hluav taws xob.
Nrog thoob ntiaj teb ntawv pov thawj KEMA, ASTA, SEMKO, CB, CE, ROHS; DAM1 yog qhov kev xaiv zoo tshaj plaws rau cov khoom siv hluav taws xob thoob ntiaj teb thiab OEM.
Ntsiab Specifications
Kev ntsuas hluav taws xob ntawm DAM1 MCCB molded case Circuit Breaker

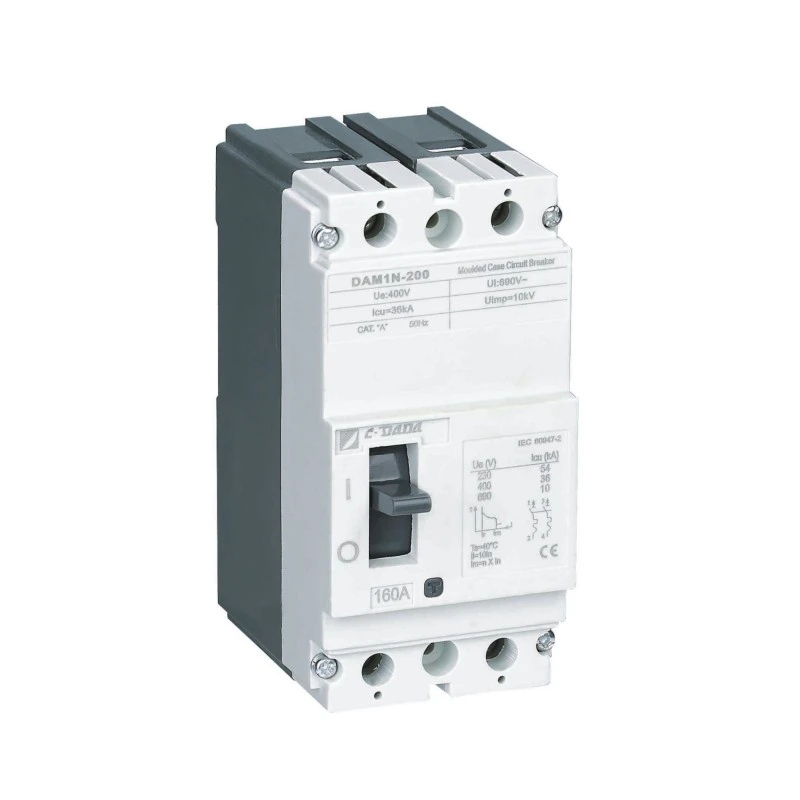

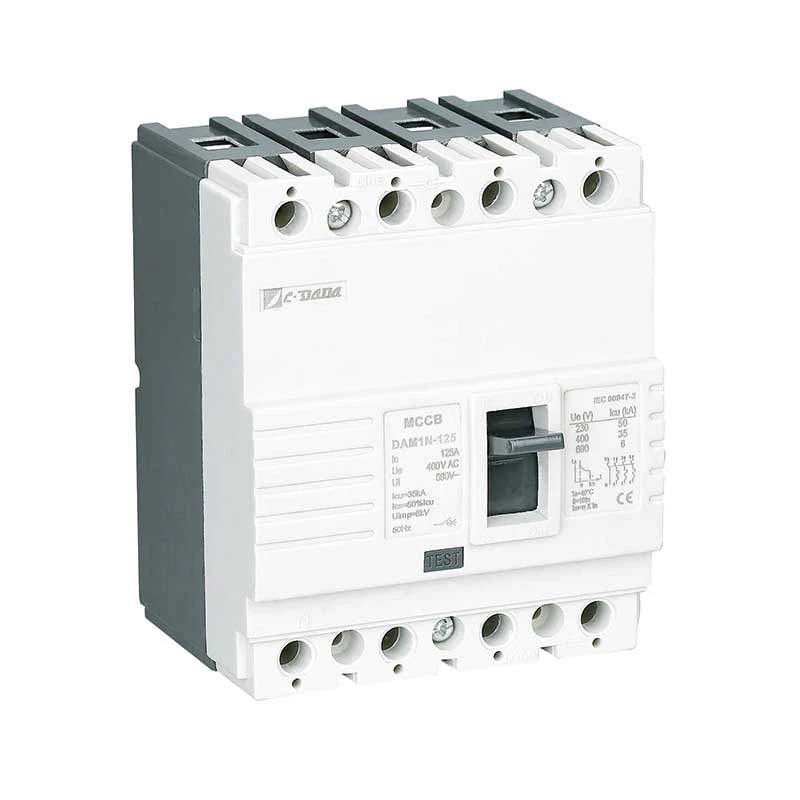

| Qauv | code | Icu (KA) | Ics (KA) | Rated Tam sim no -In | Ui(V) | Ua (V) | Ncej | Uim (V) |
| DAM 1-160 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 - 125-160A | 500 V | 2 30v | 1 P | 10000 |
| N | 36 | 27 | ||||||
| DAM 1-200 | B | 25 | 18.75 | 10 - 12,5 - 16 - 20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 - 125-160 (200)A | 750v ua | 400 V | 2 P | 10000 |
| N | 36 | 27 | ||||||
| DAIM 1-125 | B | 25 | 12.5 | 10 - 12,5 - 16 - 20 - 25 - 32 (30) - 40 - 50 - 63 (60) - 80 - 100 - 125A | 750v ua | 400 V | 3 P / 4 P | 10000 |
| N | 35 | 17.5 | ||||||
| S | 50 | 37.5 | ||||||
| DAM 1-160 | B | 25 | 12.5 | 10- 12,5-16-20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 -125 - 160 (150)A | 750v ua | 400/415V | 3 P / 4 P | 8000 |
| N | 35 | 26.25 | ||||||
| S | 50 | 37.5 | ||||||
| DAM 1-250 | N | 35 | 26.25 | 63 - 80-100-125 - 160(180) - 200(225) - 250(320)A | 750v ua | 400/415V | 3 P / 4 P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 65 | 48.75 | ||||||
| G | 85 | 51 | ||||||
| DAM1-630 (400) | N | 35 | 26.25 | 250 - 315 (350) - 400 - 500 - 630A | 750v ua | 400/415V | 3 P / 4 P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM 1-800 | N | 35 | 35 | 400-500-630 (700)-800-1000A | 750v ua | 400/415V | 3 P / 4 P | 8000 |
| S | 50 | 37.5 | ||||||
| H | 70 | 52.5 | ||||||
| G | 85 | 52.5 | ||||||
| DAM 1-1600 | S | 65 | 50 | 800-1000-1250-1600A | 750v ua | 400 V | 3 P / 4 P | 8000 |
| H | 85 | 50 | ||||||
| G | 100 | 50 |
● Icu: O-t-CO test (O: Qhib maneuver, CO: Kaw-Open maneuver, t: Tos sijhawm)
● Ics: O-t-CO-t-CO test (O: qhib maneuver, CO: Kaw-Open maneuver, t: Tos sijhawm)
★ ON/I Position: Nws qhia tias kev sib cuag ntawm lub breaker raug kaw. Nyob rau hauv txoj hauj lwm no, lub breaker lever yog nyob rau sab saum toj
★ TRIP Position: Nws qhia tau hais tias lub breaker yog qhib vim tsis ua hauj lwm (dhau load los yog luv luv Circuit Court). Nyob rau hauv rooj plaub no, breaker lever yog nyob rau hauv nruab nrab txoj hauj lwm ntawm ON thiab OFF txoj hauj lwm. Yuav kom coj lub breaker, uas yog nyob rau hauv txoj hauj lwm mus txawv tebchaws, mus rau ON txoj hauj lwm; thawb lub breaker lever downwards raws li qhia los ntawm OFF kos npe
Breaker yuav tsum tau teem nrog "nias" suab.Tom qab ntawd, rub lub lever raws li qhia los ntawm ON kos npe los kaw lub breaker
★ OFF/0 Txoj Haujlwm: Nws qhia tias kev sib cuag ntawm lub breaker qhib. Nyob rau hauv no txoj kev, lub breaker lever yog nyob rau hauv qab txoj hauj lwm.
Lub cev tsis zoo ntawm DAM1-125 MCCB molded case Circuit Breaker
| TS EN 60947-2 / IEC 60947-2 | Kev ua siab ntev |
|
||||||
| Qauv | Ncej | Dielectric khoom (V) | lonization nrug (mm) | Tag nrho cov voj voog | Hluav taws xob lub neej | Neeg kho tshuab lub neej | Main Circuit Court | Pab txhawb Circuit Court |
| DAM 1-160 | 1 P | 2500 | ≤30/0 | 20000 | 3000 | 17000 | A/0 | AC-15 |
| DAM 1-200 | 2 P | 2500 | ≤30/0 | 15000 | 2500 | 12500 | A/0 | AC-15 |
| DAIM 1-125 | 3 P / 4 P | 2500 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM 1-160 | 3 P / 4 P | 3000 | ≤30/0 | 8000 | 1000 | 7000 | A/0 | AC-15 |
| DAM 1-250 | 3 P / 4 P | 3000 | ≤30/0※ | 8000 | 1000 | 7000 | A/B | AC-15 |
| DAM1-630 (400) | 3 P / 4 P | 3000 | ≤60/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM 1-800 | 3 P / 4 P | 3000 | ≤80/0※ | 5000 | 1000 | 4000 | A/B | AC-15 |
| DAM 1-1600 | 3 P / 4 P | 3000 | ≤80/0※ | 3000 | 500 | 2500 | A/B | AC-15 |
Txoj Cai Ua Haujlwm & Kev Tiv Thaiv Mechanism
★ Kev Tiv Thaiv Thermal (Ntau dhau)
Lub bimetallic strip khoov thaum rhuab los ntawm sustained overcurrent (> ntsuas tam sim no). Txoj kev khoov ceev yog qhov sib npaug rau qhov tam sim no qhov loj - kom ntseeg tau tias lub sijhawm hloov pauv hloov pauv uas ua rau kev coj tus cwj pwm thermal, tiv thaiv kev mus ncig tsis zoo thaum tiv thaiv cov khoom siv.
★ Sib Nqus Tiv Thaiv (Short Circuit)
Thaum lub sij hawm luv luv Circuit Court (piv txwv li, theem-rau-theem lossis theem-rau-hauv av), lub siab tam sim no magnetic teb tam sim ntawd rub lub solenoid plunger, tso lub latch mechanism nyob rau hauv milliseconds - txiav tawm tam sim no ua ntej thermal puas tshwm sim.
Khoom zoo
★ Lub cev thiab npog:
Fiberglass polyester cob tau siv los ua lub cev thiab npog cov ntaub ntawv raws li EN 60512-20-2 tus qauv. Cov khoom no, uas yog hu ua BMC (Bulk Molding Compound) nyob rau hauv cov ntaub ntawv, yog nyiam vim muaj hluav taws xob thiab txhua yam muaj nuj nqis thiab tuaj yeem tiv taus qhov kub ntawm 160 ℃ tsis tu ncua. BMC cov ntaub ntawv tsis hlawv thaum sib cuag nrog hlau ntawm qhov kub ntawm 960 ℃ raws li IEC 695-2-1
Bimetal: Bimetal yog cov khoom siv sib xyaw ua ke ntawm ob lub phaj hlau nrog sib txawv txuas coefficients tiv thaiv tshav kub. Tam sim no dhau los ntawm lub breaker heats li bimetal. Vim qhov tshwm sim ntawm qhov kub no. bimetal khoov mus rau qhov tsawg-extending phaj. Txij li thaum tshav kub kub nce raws li qhov tam sim no dhau los ntawm lub breaker nce, bimetal yog rhuab ntau dua thiab khoov ntau dua. Nyob rau hauv txoj kev no, nws tswj qhov qhib mechanism qhib lub breaker.

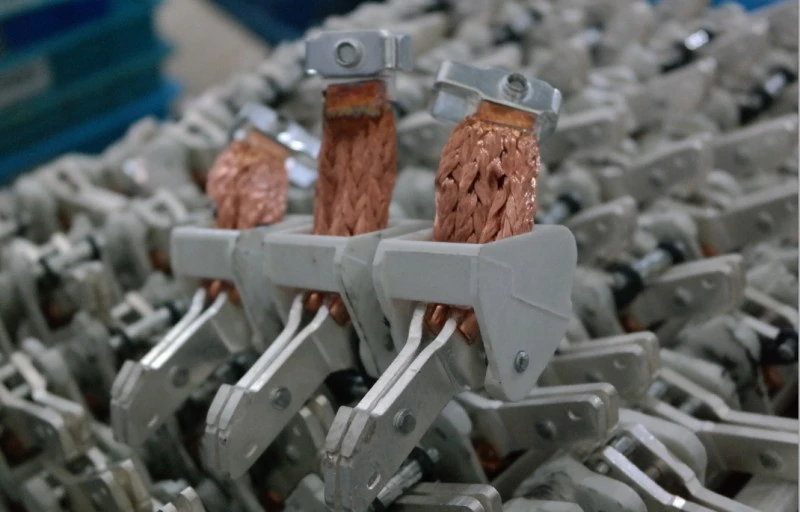

★ Hu rau:

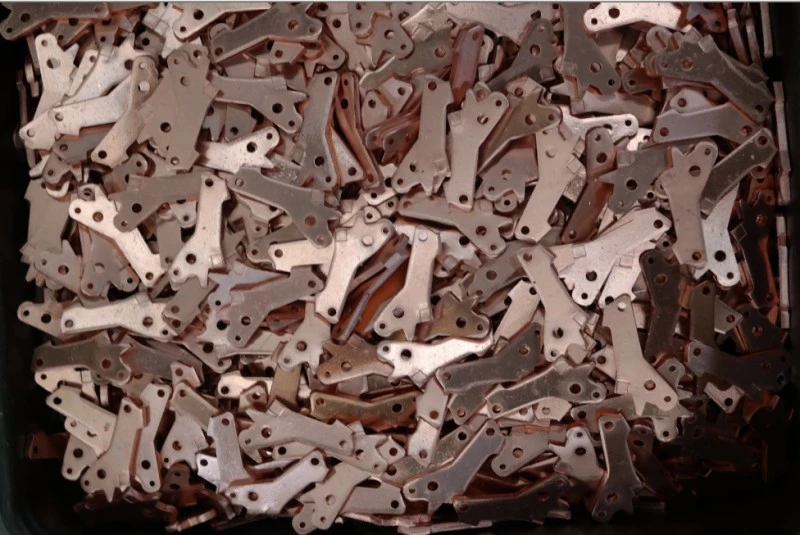

Kev sib cuag alloy yog txiav txim siab rau breakers los ntawm kev txiav txim siab tawg thiab nqa tam sim no qhov tseem ceeb thiab kev tsim kho Feem ntau cov nyiaj, graphite, npib tsib xee, wolfram alloy hu yog siv nyob rau hauv breakers Contacts, uas yog ua los ntawm silver-graphite alloys nrog ib tug smoothers qauv, yog siv nyob rau hauv taag (hauv qab) hu, silver wolfram hu, uas yog nyuaj, yog siv nyob rau hauv tsiv (sab saum toj) hu. Ib tug swaged qauv tau ua kom ntseeg tau nyob rau hauv kev sib cuag. Nyob rau hauv txoj kev no, swaged thiab nyuaj alloy tiv tauj muaj qhov chaw ntawm cov muag muag muag nyob rau hauv txhua qhov qhib-kaw.
Nyob rau hauv txoj kev no, qhov qis tshaj kuj yog guaranteed.Txiv kev sib cuag yuav tsum kov lub taag tiv tauj zoo heev thiaj li yuav muaj kev tiv thaiv tsis tshua muaj. Txawm li cas los xij, kev sib tiv tauj ntau dhau ua rau muaj kev puas tsuaj ntawm kev sib cuag hauv lub sijhawm luv dua li qub.Kev sib cuag cov hlau tseem ceeb heev rau kev noj qab haus huv qhib-kaw.
★ Arc Extinguisher Cell (Separator):
Separators yog siv los tua cov arc uas yog tsim thaum lub sij hawm ua hauj lwm ntawm lub breaker ua hauj lwm nyob rau hauv lub zog. Thaum tsiv kev sib cuag yog sib cais los ntawm kev sib cuag ruaj khov, tam sim no tseem ntws ntawm cov neeg sib cuag rau ib ntus thiab qhov no hu ua arc.Qhov no arc yuav tsum ploj mus nyob rau lub sijhawm luv luv.
★ Extinction ntawm Arc:
Arc raug thawb mus rau qhov sib cais vim qhov sib nqus ua haujlwm nyob ib ncig ntawm lub arc. Nyob rau hauv txoj kev no, arc txuas ntxiv thiab ua slim thiab tawg ntawm cov phaj sib cais (Daim duab-5). Vim yog cov yam ntxwv ntawm cov khoom siv nyob rau sab phab ntsa ntawm cov khoom sib cais, cov pa roj tawm los ntawm qhov kub siab los ntawm qhov arc. Cov pa roj no muaj qhov cuam tshuam tseem ceeb rau kev tuag ntawm lub arc.
Daim ntawv thov
CDADA DAM1 Tsau Hom Moulded Case Circuit Breaker (MCCB) tau ntseeg siab thoob plaws cov txheej txheem tseem ceeb:
★ Muaj: steel mills, roj & roj platforms, tshuaj nroj tsuag
★ Kev Noj Qab Haus Huv: Tsev Kho Mob lub ntsiab & sub-distribution boards
★ Tsheb thauj mus los: Railway signaling, tshav dav hlau lub hnab nqa khoom
★ Kev Lag Luam: Cov skyscrapers, cov chaw zov me nyuam, cov khw muag khoom, cov chaw sib tham
★ Public Venues: Theaters, stadiums, tsoom fwv tsev
Installation & Maintenance Advantages

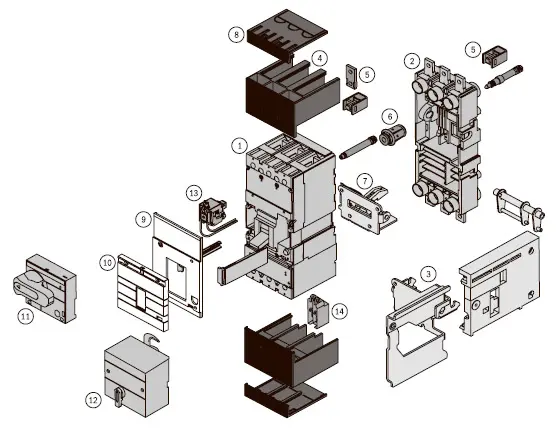

★ Kev koom ua ke yooj yim:
Cov khoom siv txheem muaj xws li busbars, theem teeb meem, thiab kho vajtse
Cov khoom siv xaiv tau: lub tswb hu, shunt / undervoltage tso tawm, hluav taws xob ua haujlwm mechanisms

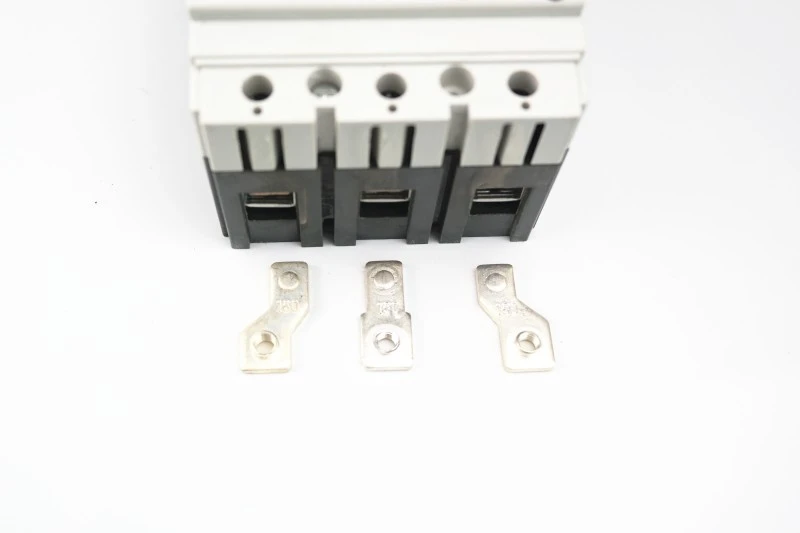

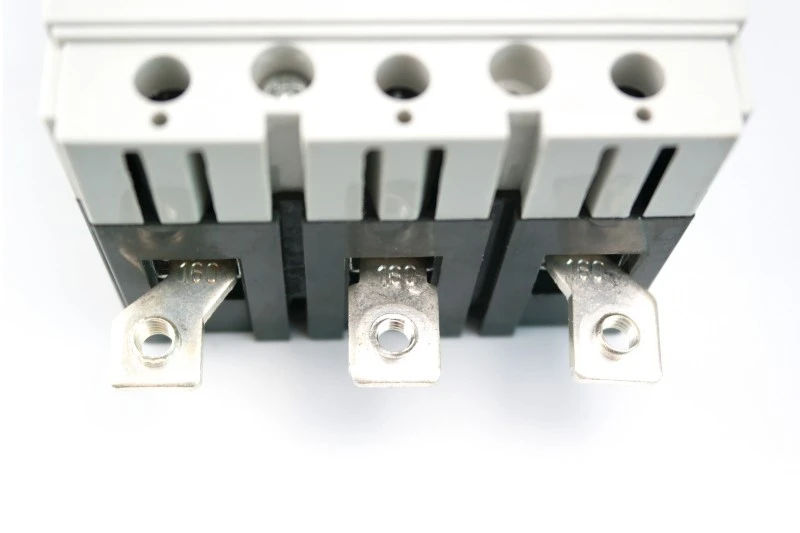

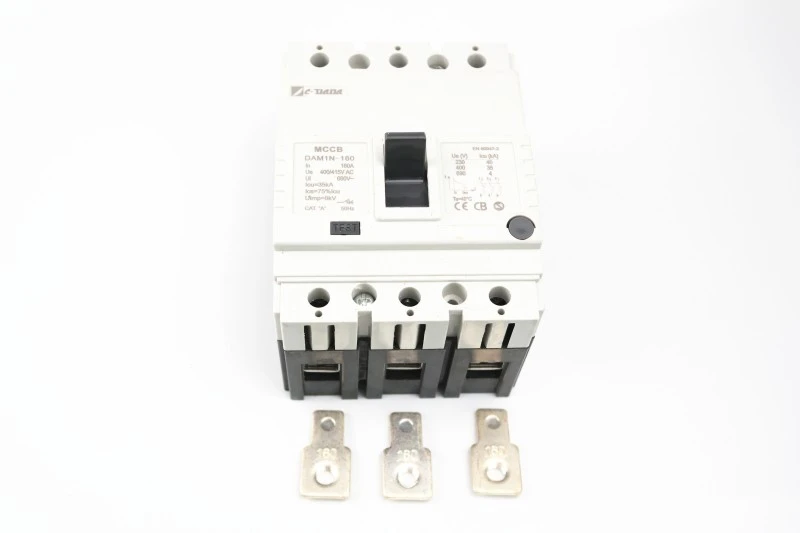

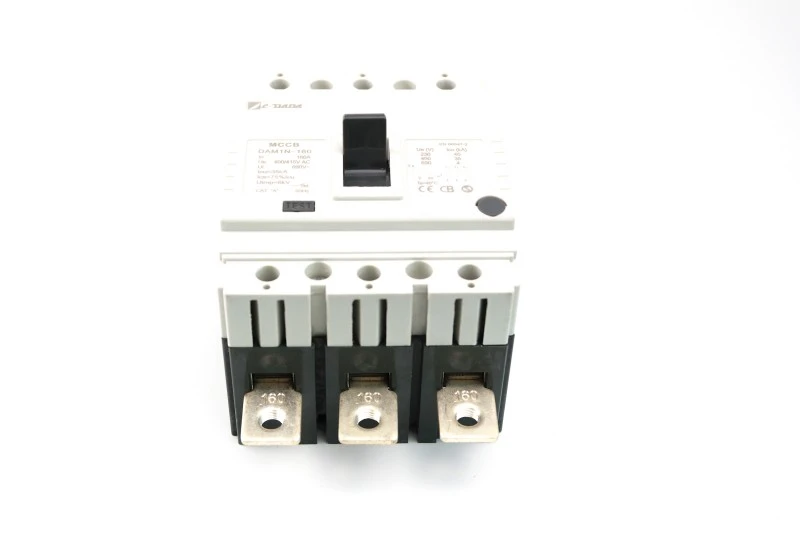

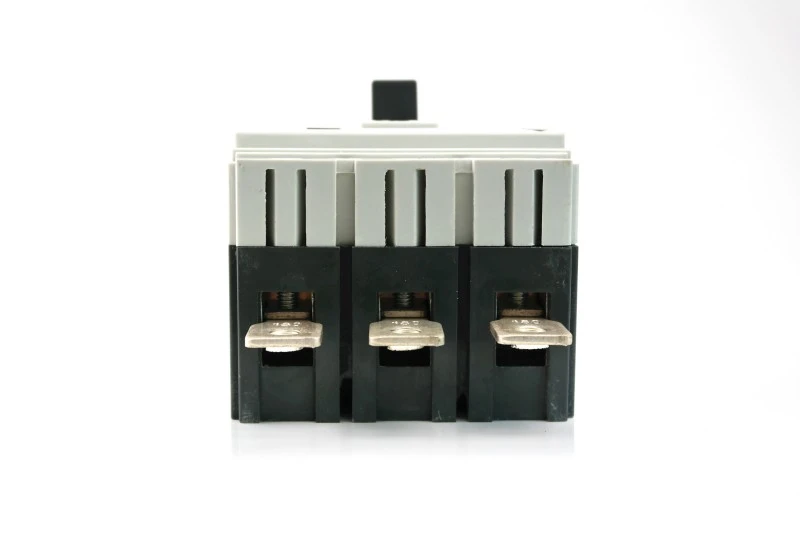

1) Txuas los ntawm txuas ntxiv busbar (duab 1)
2) Txuas los ntawm lub davhlau ya nyob twg (duab 2)

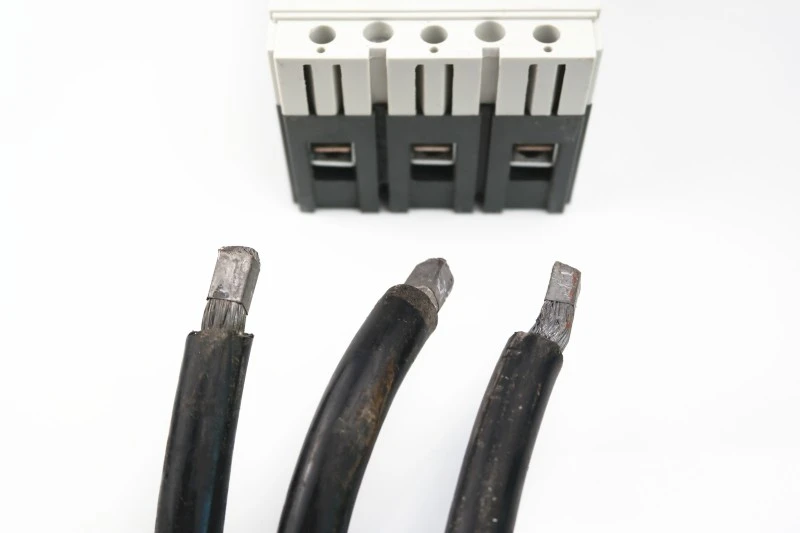

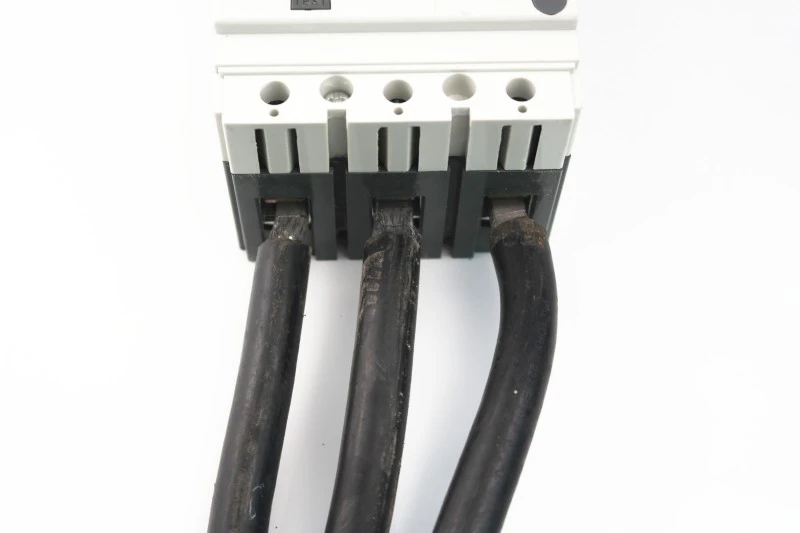

3) Txuas ncaj qha cable (daim duab 3) yam tsis siv cov hlua txuas.

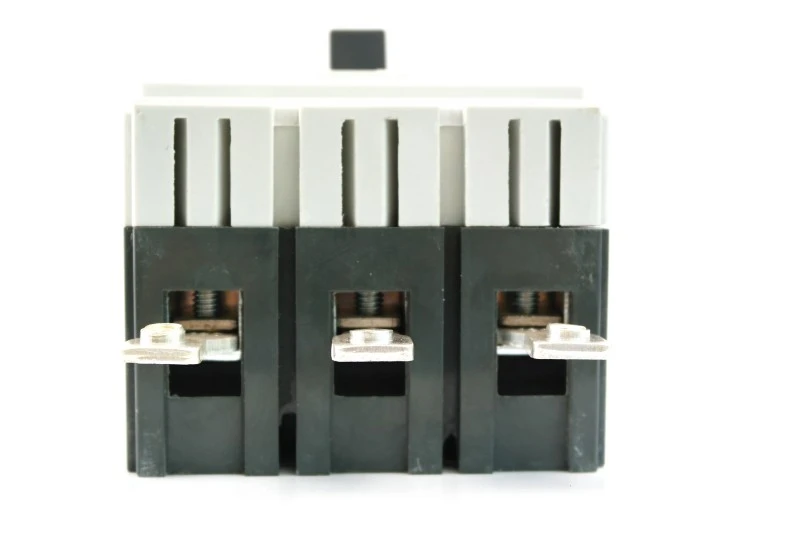

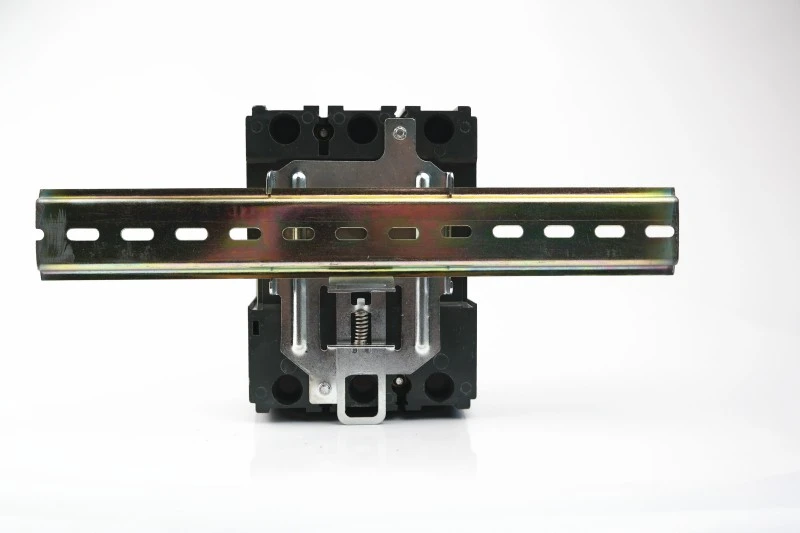

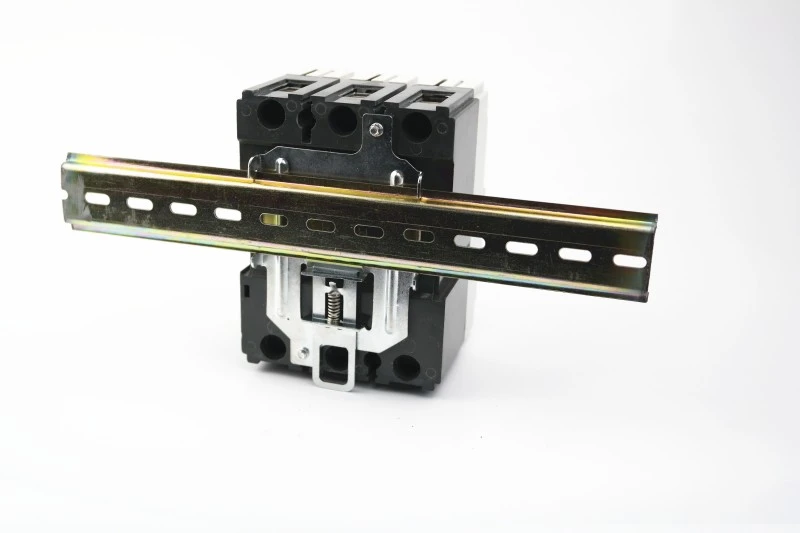

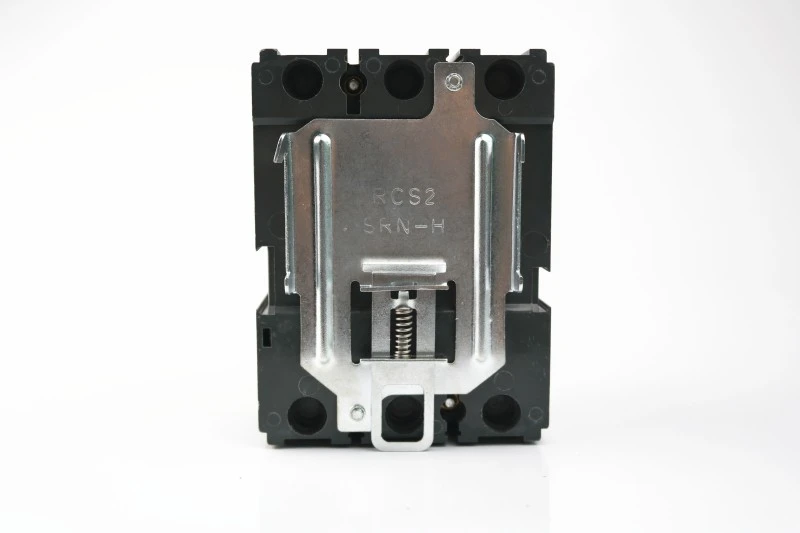

Nrog kev pab los ntawm tshwj xeeb clamp 125 thiab 160 units tuaj yeem ntsia tau rau hauv DIN-rail.
Breaker nrog clamp
clamp nrog DIN rail
clamp nrog DIN rail
★ Space-Saving Design:
10-20% sib dua thiab sib zog ntau dua li kev siv hauv tsev
Ua kom cov ntaub ntawv me me → cov khoom siv qis dua & cov nqi thauj khoom
★ Tus neeg siv-phooj ywg rov pib dua:
Clear TRIP qhia tiv thaiv qhov muag tsis pom rov qab
Audible "nias" lees paub tias muaj kev sib koom ua ke zoo
★ Yav Tom Ntej-Ready:
Txhawb nqa plug-in thiab kos tawm cov khoom siv (rau xaiv cov qauv)
Tau tshaj nrog ntse saib xyuas add-ons
Vim li cas thiaj xaiv CDADA?
1. Peb yog cov chaw tsim khoom rau 42+ xyoo. Peb lub tuam txhab nrhiav tau nyob rau hauv 1983, tsim ceev heev nyob rau hauv 40 xyoo.
2. Pab Pawg, suav nrog 3 lub chaw tsim khoom, muaj thaj tsam ntawm 52,400m² thiab ntiav ntau tshaj 500 tus neeg ua haujlwm. Peb tau nqis peev ze li kaum lab yuan txhawm rau nthuav peb txoj haujlwm thiab txhim kho peb cov kev cob qhia.
3. Lub Hoobkas kuaj xyuas los ntawm INTERTEK, DEKRA & GMC
4. High-strength cartons, pallet tiv thaiv, zoo rau kev thauj mus los ntev
Cov lus nug nquag nug (FAQ)
Q1: Puas yog DAM1 Tsau Hom Moulded Case Circuit Breaker tuaj yeem txuas rau ntawm DIN rail?
A1: Yog - qauv 125A thiab 160A tuaj yeem ntsia tau rau ntawm DIN rails siv qhov kev xaiv tshwj xeeb clamp. Kev ntsuas siab dua yog vaj huam sib luag-mounted nkaus xwb.
Q2: Daim ntawv pov thawj dab tsi DAM1 series tuav?
A2: Nws tau ntawv pov thawj nrog CE, CB, ASTA, KEMA, SEMKO, thiab RoHS, kom ntseeg tau tias ua raws li EU, Middle East, Southeast Asia, thiab tshaj.
Q3: Kuv yuav rov pib lub breaker li cas tom qab kev mus ncig?
A3: Ua ntej, txav lub zog mus rau OFF (koj yuav hnov ib nyem), ces rub nws mus rau ON. Tsis txhob yuam nws ncaj qha los ntawm TRIP mus rau ON.
Q4: Puas yog cov cuab yeej pabcuam tau sib xws?
A4: Yog - lub tswb hu, cov neeg sib txuas lus, shunt / undervoltage tso tawm, thiab cov neeg siv hluav taws xob tuaj yeem muab ntxiv yam tsis muaj kev cuam tshuam.
Q5: Puas yog DAM1 haum rau hloov cov khoom qub?
A5: Yog lawm. Nws cov hneev taw me me tso cai hloov ncaj qha ntawm cov cuab yeej cuab tam MCCBs hauv feem ntau cov vaj huam sib luag - txuag lub sijhawm thiab cov nqi kho dua tshiab.
