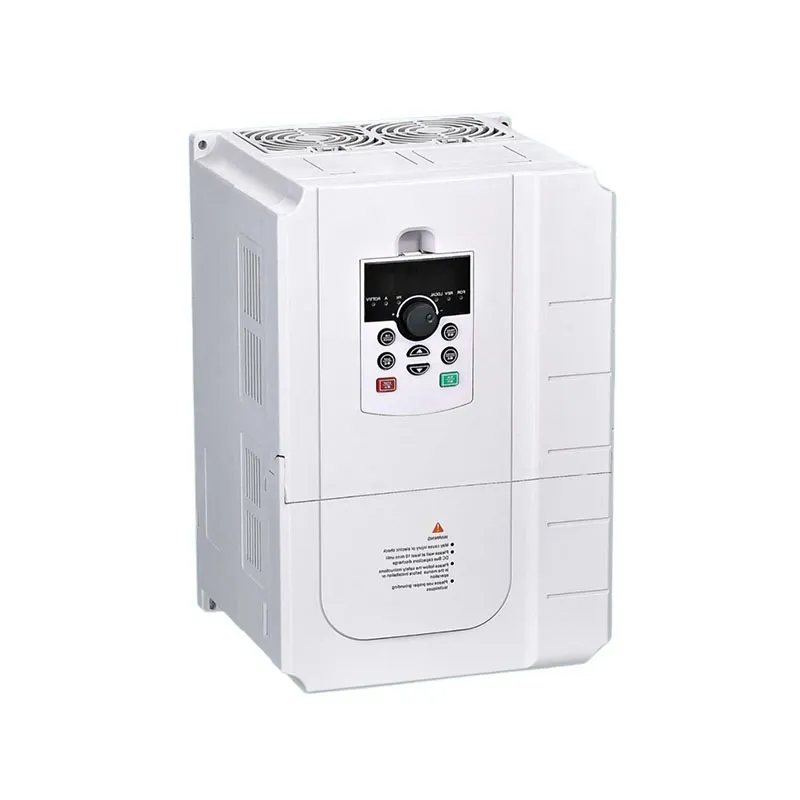

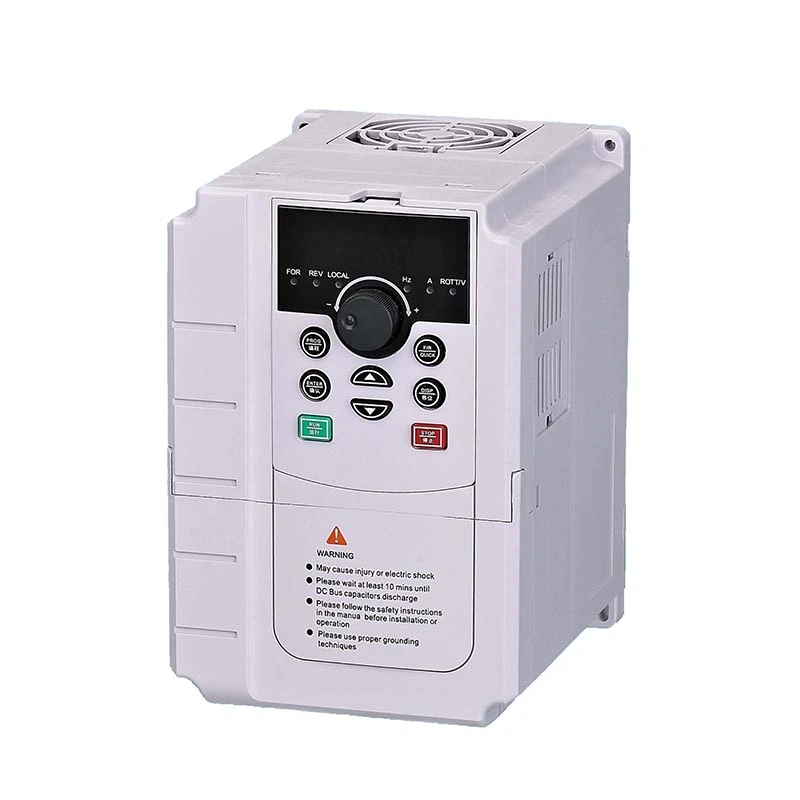

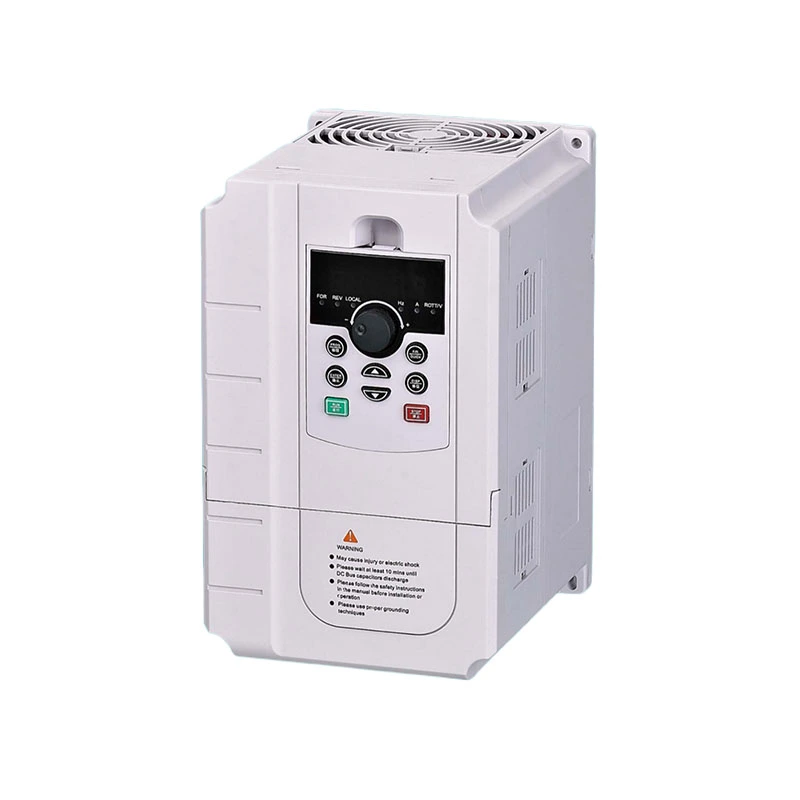

Hnub Ci Pump Inverter

Fais fab rau koj lub tshuab dej kom ruaj khov nrog CDADA Hnub Ci Pump Inverter-ib qho ntse, tawm-daim phiaj-npaj kev daws teeb meem tsim tshwj xeeb rau kev siv dej siv hnub ci hauv kev ua liaj ua teb, tsiaj txhu, dej, thiab cov dej hauv thaj chaw deb.

Tsis zoo li tus qauv PV inverters, CDADA Hnub Ci Pump Inverter no ua ke nrog kev ua haujlwm siab MPPT (Maximum Power Point Tracking) ncaj qha nrog 3-theem AC lub cev muaj zog tsav, ua kom ncaj qha hloov pauv ntawm hnub ci DC fais fab mus rau qhov sib txawv-zaus AC tsav submersible, nto, lossis centrifugal twj-tsis tas yuav tsum muaj kev sib txuas.

Muaj nyob rau hauv kev ntsuas hluav taws xob suav nrog 15kW (thiab scalable los ntawm 1.5kW txog 30kW +), nws txhawb 3-theem induction motors thiab nta adaptive V / F thiab vector tswj kom zoo pib, lub zog ua kom zoo, thiab kev ua haujlwm ruaj khov nyob rau hauv lub hnub hloov pauv. Ua-nyob rau hauv kev tiv thaiv-nrog rau qhuav-khiav, over/under-voltage, overcurrent, short-circuit, thiab lub cev muaj zog tiv thaiv khw muag khoom-ua kom ntseeg tau mus ntev nyob rau hauv hnyav nyob deb nroog ib puag ncig.

Nrog rau kev xaiv IP65 enclosure, RS485 / Modbus kev sib txuas lus, thiab kev saib xyuas lub xov tooj ntawm tes, CDADA inverter muab kev tswj hwm tus kheej, tsis tshua muaj kev tu dej nkag tau siv los ntawm lub hnub - zoo tagnrho rau kev ua liaj ua teb, cov zos, suab puam qhov dej, thiab eco-resorts.

Ntsiab nta & Specifications

Hom Tshuaj: CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD

Yam khoom: Hnub Ci Dej Twj Inverter (Off-Grid, Roj Teeb Dawb)

Lub Zog: 1.5kW - 30kW + (piv txwv li, 15kW 3-theem qauv)

Tawm tswv yim: DC los ntawm PV array (MPPT voltage ntau: e.g., 200-800V DC)

Cov zis: 3-theem AC (0-480V, 0-50 / 60Hz) rau cov twj tso kua mis txheem

Tswj hom: V / F + Sensorless Vector Control

MPPT Kev Ua Tau Zoo:> 99% - ua kom muaj txiaj ntsig zoo tshaj plaws txawm tias nyob hauv ib nrab shading

Start-up Method: Mos pib / Hnub Ci pib pib - tsis muaj kev cuam tshuam los ntawm phau ntawv

Kev Tiv Thaiv Tseem Ceeb:

Qhuav-khiav / Tsis muaj dej nrhiav pom

Tshaj / Hauv PV voltage

Overcurrent & luv-circuit

Lub cev muaj zog overload & theem poob

Kub kub

Kev sib txuas lus: RS485, Modbus RTU (yeem Wi-Fi / GPRS rau kev saib xyuas tej thaj chaw deb)

Cov ntaub ntawv pov thawj: IP20 (hauv tsev) lossis IP65 (nyob sab nraum zoov, xaiv tau)

Kev khiav hauj lwm kub: -25 ° C txog + 60 ° C (derating saum toj 50 ° C)

Daim ntaub ntawv: Agricultural irrigation, tsiaj txhu watering, lub zos dej mov, ciav systems, suab puam reclamation

Vim li cas thiaj xaiv CDADA Hnub Ci Pump Inverter?

★ Muaj tseeb Off-Grid Operation

Tsis muaj kab hluav taws xob lossis roj teeb uas xav tau - khiav ncaj qha los ntawm lub hnub ci vaj huam sib luag, txo cov nqi hluav taws xob thiab qhov nyuaj.

★ Intelligent Dry-Khiav Tiv Thaiv

Tsis siv neeg nres lub twj tso kua mis thaum dej tsawg-tiv thaiv lub cev muaj zog burnout thiab txuas lub neej ntawm cov cuab yeej siv.

★ High-Efficiency MPPT + Tswj lub cev muaj zog

Dual-core optimization ua kom cov dej tso tawm ntau tshaj ib watt ntawm lub hnub ci.

★ Rugged rau kev siv nyob deb nroog

Dav voltage input, siab kub kam rau ua, thiab xaiv IP65 ntsuam xyuas rau plua plav / ntub dej.

★ Yooj Yim Txhim Kho & Kho

Plug-thiab-tswj tsim nrog nws pib-rov pib dua thaum hnub tuaj-zoo tagnrho rau tej thaj chaw deb, tsis muaj chaw nyob.

★ Ntiaj teb no txhawb & nqi Advantage

Rov qab los ntawm Shanghai DADA pab pawg R & D, nrog tus nqi sib tw vs.

Tej kev siv

★ Agricultural Irrigation: Vineyards, rice fields, zaub teb

★ Tsiaj Tsiaj Dej: Tej thaj chaw deb nyuj ranches, tshis ua liaj ua teb

★ Kev Siv Hluav Taws Xob Hauv Nroog: Cov dej haus hauv zos hauv Africa/Asia/LATAM

★ Eco-Tourism: Off-grid resorts nrog hnub ci-powered ciav los yog pas dej ua ke

★ Kev Tiv Thaiv Kev Puas Tsuaj: Kev xa dej sai sai tom qab dej nyab lossis av qeeg

Cov lus nug nquag

Q1: Nws puas xav tau lub roj teeb lossis kab sib txuas?

A1: Tsis yog CDADA Solar Pump Inverters ua haujlwm 100% tawm-daim phiaj, kos lub zog ncaj qha los ntawm hnub ci vaj huam sib luag. Lawv pib thaum hnub tuaj thiab nres thaum hnub poob - tsis muaj lub zog hluav taws xob sab nraud xav tau.

Q2: Nws puas tuaj yeem ua haujlwm rau hnub huab cua?

A2: Yog - nrog txo cov zis. MPPT algorithm tsis tu ncua hloov kho kom tshem tawm lub zog siab tshaj plaws, txawm tias nyob rau hauv lub teeb qis. Pump ceev qeeb tab sis txuas ntxiv xa dej.

Q3: Kev tiv thaiv qhuav ua haujlwm li cas?

A3: Lub inverter saib xyuas lub cev muaj zog lossis kos npe tam sim no. Yog tias nws pom qhov txawv txav tsis zoo (qhia tias tsis muaj dej), nws kaw lub twj tso kua mis thiab rov ua dua tom qab lub sijhawm teem sijhawm - tiv thaiv kev puas tsuaj.

Q4: Kuv puas tuaj yeem siv nws nrog lub twj tso kua mis AC uas twb muaj lawm?

A4: Yog lawm - tsuav yog lub twj tso kua mis yog 3-theem induction hom thiab phim lub inverter qhov voltage thiab lub zog ntsuas (piv txwv li, 15kW inverter → ≤15kW twj tso kua mis). Ib-theem twj tso kua mis yuav tsum muaj cov qauv sib txawv.

Q5: Vim li cas thiaj xaiv CDADA dua lwm lub hnub ci twj tso kua mis hom?

A5: CDADA muab:

● Integrated MPPT + VFD nyob rau hauv ib chav tsev (tsis muaj ntxiv controllers)

● Kev ntseeg tau pov thawj hauv > 50 lub teb chaws

● Customizable kev sib txuas lus xaiv (Modbus, IoT)

● Local technical support & ceev spare qhov chaw

● Tus nqi zoo tshaj plaws rau kev siv nruab nrab-rau-siab-siab (5-30kW).
