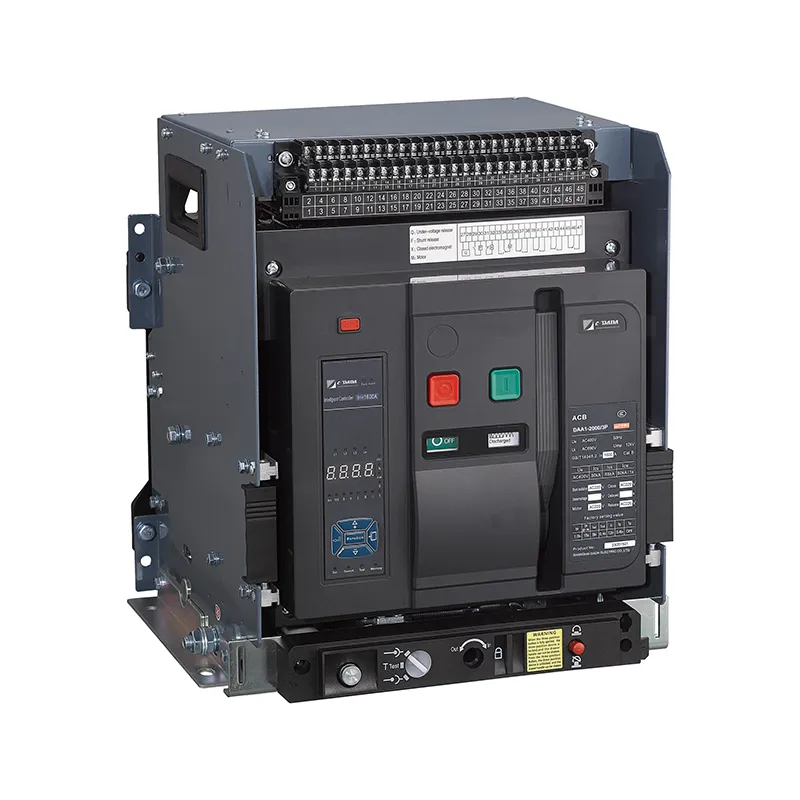

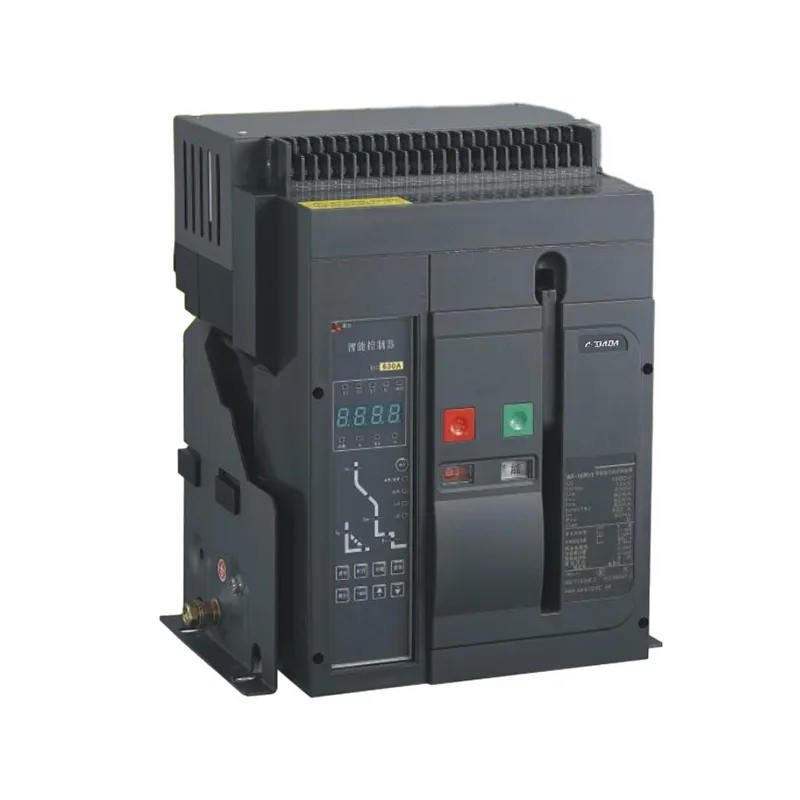

3 Theem Cua Circuit Court Breaker

Qhov no CDADA 3 theem cua Circuit Court breaker yog engineered rau AC 50Hz 690V tes hauj lwm nrog 400A-6300A tam sim no ntau yam rau ntau haiv neeg siv. Raws li lub Hoobkas tshaj lij, peb cov khoom lag luam muab kev tiv thaiv tag nrho tiv thaiv overload, luv luv Circuit Court, undervoltage thiab ib-theem grounding txhaum. Qhov siab heev 3P ACB no muaj kev tiv thaiv kev txawj ntse thiab qhib kev sib txuas lus nrog Plaub Qhov Chaw Taws Teeb, ua kom ntseeg tau tias kev ua tau zoo rau txhua qhov kev xav tau ntawm lub zog xa tawm.

Khoom Parameter (Specification)

Khoom Feature Thiab Daim Ntawv Thov

CDADA 3 theem cua Circuit Court breaker yog tsim los rau ntau yam kev siv xws li fais fab nroj tsuag, substations, thiab cov chaw tsim khoom loj. Muaj nyob rau hauv ob qho tib si ruaj thiab tub rau khoom hom, nws txhawb kub-swap txij nkawm, txo downtime. Nruab nrog cov tswj ntse, cov neeg siv tuaj yeem kho qhov kev tiv thaiv raws li kev xav tau tshwj xeeb.

Cov yam ntxwv tseem ceeb:

● Intelligent Controller Options: bse5 (H hom), bse4 (M hom), bse3 (L hom)

● Kev Tiv Thaiv Kev Ua Haujlwm: Tshaj dhau lub sijhawm ncua sijhawm ncua sijhawm ncua sijhawm, ncua sijhawm ncua sijhawm ncua sijhawm, txwv sijhawm sijhawm, ua haujlwm tam sim, kev tiv thaiv ib-theem hauv av

● Zaub & Tswb Functions: Real-time tam sim no thiab voltage zaub, overload tswb, self-check muaj nuj nqi

● Kev Sib Txuas Lus Sib Txuas: Qhib raws tu qauv txhawb nqa "Phob Chaw Taws Teeb"

Cov Lus Qhia Ntau Lawm

Tsim los ntawm SHANGHAI DADA ELECTRIC CO., LTD, txhua txhua 3 theem ACB raug kuaj nruj thiab cov txheej txheem tswj kom zoo.

Cov yam ntxwv tseem ceeb muaj xws li:

● Cov Khoom Siv Zoo: Oxygen-dawb tooj liab tiv tauj nrog nyiaj alloy overlays

● Kev Kub Kub: Ua haujlwm nyob rau hauv qhov kub thiab txias ntawm -5 ° C txog + 40 ° C, nrog rau kev xaiv qis dua (-10 ° C lossis -25 ° C) thiab siab dua (+ 40 ° C) huab cua thaum thov

● Kev Ua Haujlwm Qhov Siab: Txog li 2000m qhov siab, nrog kev kho kom haum rau qhov siab dua

● Environmental Resistance: IP30 tiv thaiv qib, haum rau cov pa phem theem III ib puag ncig

Cov tswv yim tu:

● Kev tshuaj xyuas tsis tu ncua ntawm qhov chaw sib tiv tauj thiab arc chutes

● Ua kom muaj kev sib raug zoo thiab ruaj ntseg mounting

● Kev soj ntsuam ib ntus ntawm kev tswj xyuas kev ua haujlwm ntse

FAQ

Q1: Dab tsi yog cov txheej txheem kev teeb tsa sib txawv rau CDADA 3 theem ACB?

A1: CDADA 3 Theem Cua Circuit Court Breakers muaj nyob rau hauv ob qho tib si ruaj thiab tub rau khoom hom, tso cai yooj yim raws li koj xav tau kev teeb tsa.

Q2: Qhov no puas tuaj yeem siv rau hauv peb-ncej thiab plaub-ncej kev teeb tsa?

A2: Yog lawm, CDADA 3 theem ACB muaj nyob rau hauv ob qho tib si 3P (tus qauv) thiab 4P teeb tsa, nyob ntawm seb koj xav tau daim ntawv thov.

Q3: Puas yog 3 theem ACB tuaj nrog tus tswj xyuas ntse?

A3: Thaum lub hauv paus qauv tuaj yeem ua haujlwm raws li kev sib cais yam tsis muaj kev tswj xyuas ntse, xaiv cov tswj kev txawj ntse (bse5, bse4, bse3) muaj rau kev tiv thaiv zoo dua thiab kev saib xyuas tej thaj chaw deb.

Q4: Yuav ua li cas lub impulse tiv taus voltage sib txawv nrog qhov siab?

A4: Lub impulse withstand voltage yog 8000V ntawm 2000 meters qhov siab thiab yuav tsum tsis txhob tshaj 12000V ntawm qhov siab dua.

Q5: Puas yog CDADA 3 theem ACB ua raws li cov qauv thoob ntiaj teb?

A5: Yog lawm, CDADA 3 theem ACB ua raws li ob lub teb chaws (GB14048.2) thiab thoob ntiaj teb (IEC60947-2) cov qauv, kom ntseeg tau tias nws siv tau thoob ntiaj teb.
