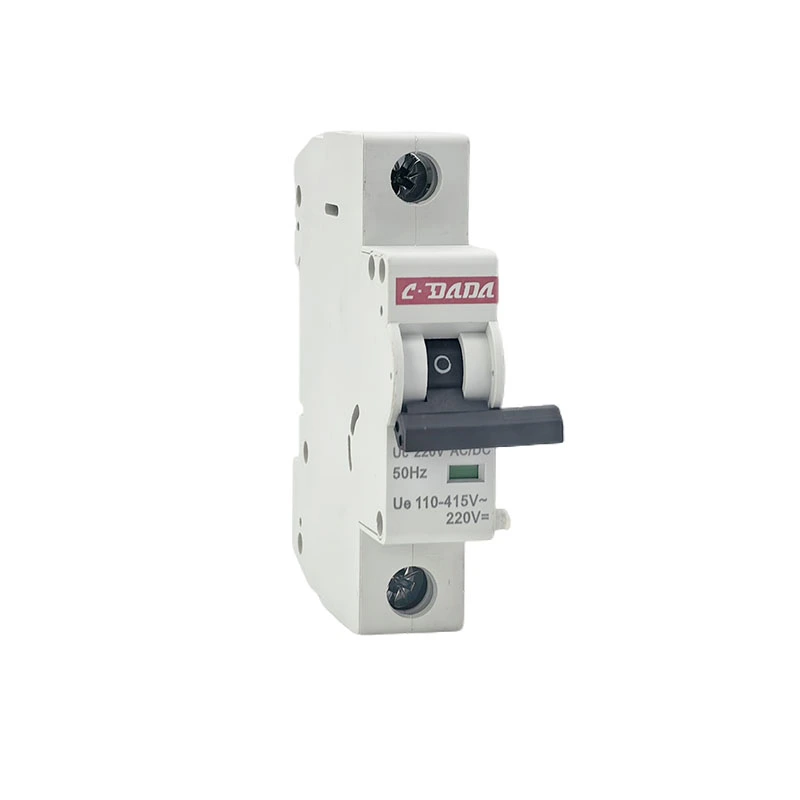

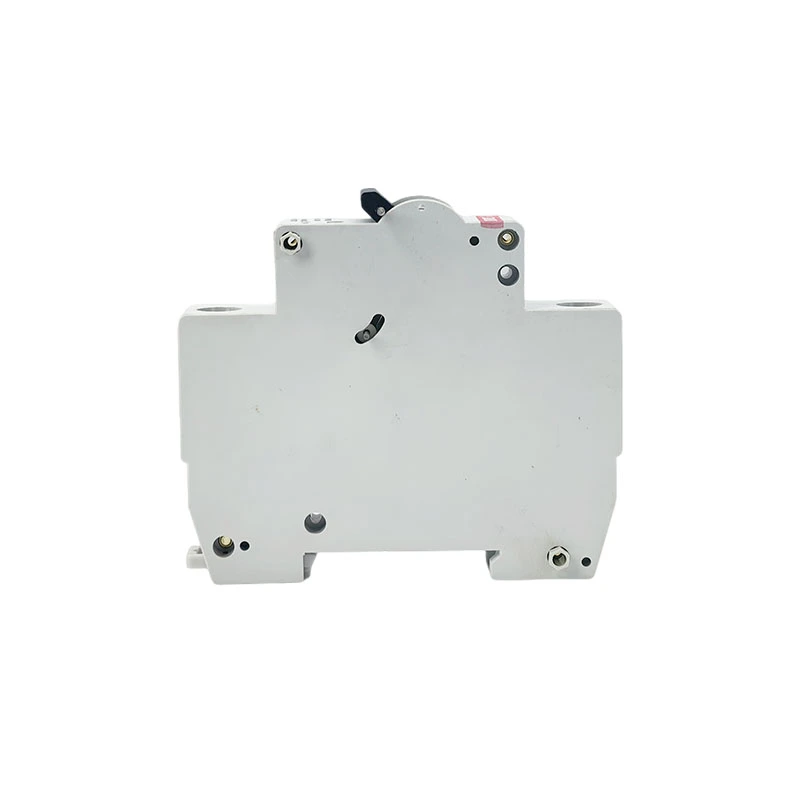

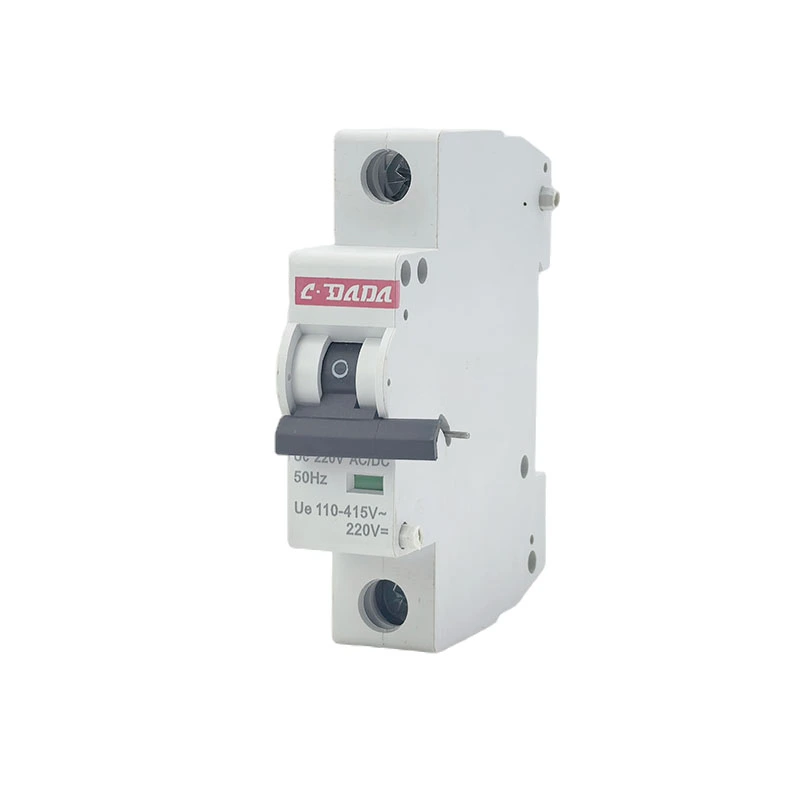

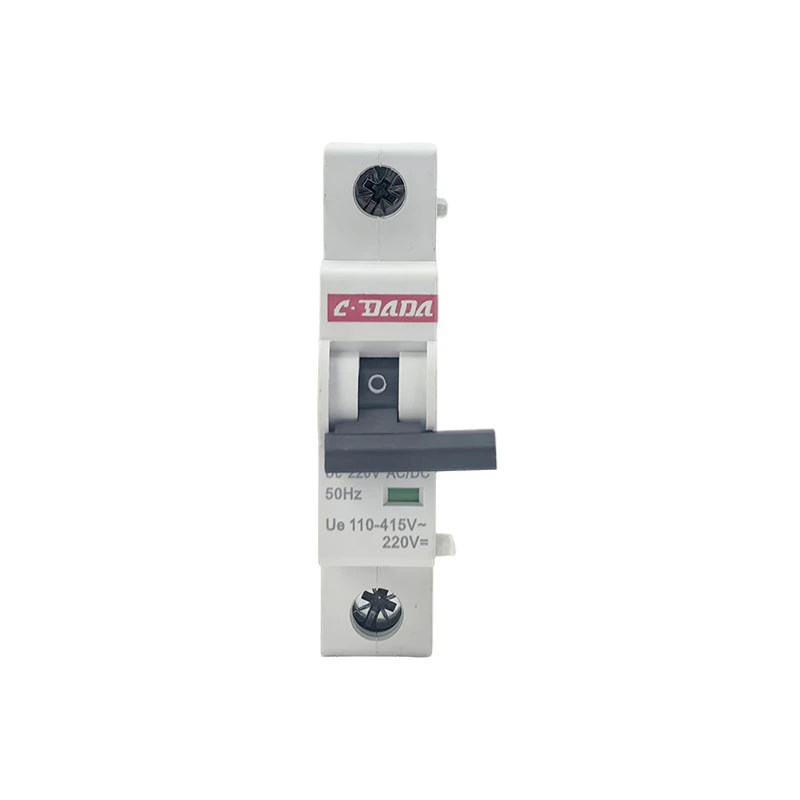

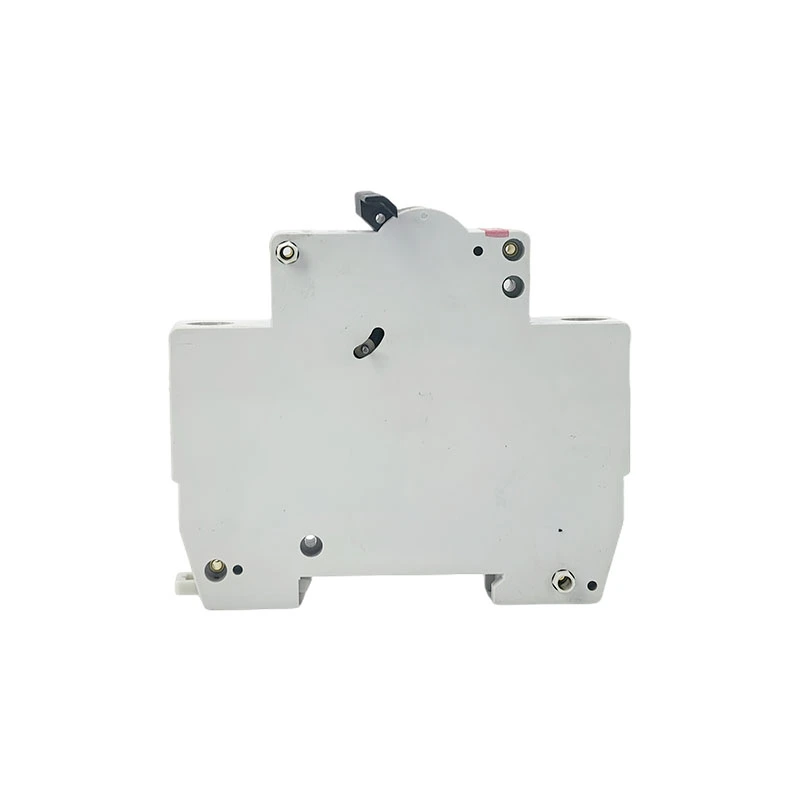

MCB Shunt Tso Tawm

CDADA yog lub Hoobkas txhim khu kev qha txij li xyoo 1983, peb MCB Shunt Release yog tsim los muab cov kev daws teeb meem rau kev tswj hwm koj lub DAB7-63 Circuit Court breakers. Txawm hais tias koj xav tau qhov chaw nres tsheb thaum muaj xwm txheej ceev lossis kev koom ua ke rau hauv lub tshuab hluav taws xob, peb qhov kev tso tawm shunt muaj qhov ua tau zoo thiab hloov pauv uas koj xav tau.

Khoom Taw Qhia

★ Lub Hom Phiaj: Kev ncua deb ntawm MCBs rau kev kaw thaum muaj xwm txheej ceev lossis kev siv lub tshuab ua haujlwm.

★ Voltage Range: Tau tshaj AC 50Hz (24V rau 400V) thiab DC (24V rau 220V) cov khoom siv.

★ Kev ntseeg tau: Ua haujlwm ntseeg tau li ntawm 70% txog 110% ntawm qhov ntsuas hluav taws xob.

★ Compatibility: Tsim tshwj xeeb rau DAB7-63 MCBs—tsis muaj adapters yuav tsum tau.

★ Yooj yim ntawm Kev Txhim Kho: Cov txheej txheem kev teeb tsa sai thiab yooj yim.

★ Peb Cov Lus Pom Zoo: Rau kev ua tau zoo, xyuas kom meej tias qhov kev siv hluav taws xob siv hluav taws xob poob qis hauv qhov kev teev tseg ntawm 70% txog 110% Peb.

Technical Specifications

Installation & Usage Guide

Txhawm rau kom tau txais txiaj ntsig zoo tshaj plaws ntawm koj CDADA MCB Shunt Release, ua raws li cov kauj ruam no:

★ Txheeb xyuas Compatibility: Xyuas kom cov tswj hluav taws xob sib tw nrog cov lus qhia tshwj xeeb ntawm shunt tso tawm.

★ Mounting: Txuas lub shunt tso ncaj qha mus rau sab laug ntawm DAB7-63 MCB.

★ Hluav taws xob: Txuas koj lub teeb liab tswj mus rau cov terminals uas tau xaiv rau ntawm shunt tso tawm.

★ Siv cov ntaub thaiv npog rau qhov ntev kom tsis txhob cuam tshuam.

★ Kev Ntsuas: Siv qhov kev tswj qhov hluav taws xob kom paub meej tias lub breaker qhib raws li qhov xav tau.

★ Cov Lus Qhia Txog Kev Kho Mob: Tsis tu ncua xyuas cov kev sib txuas ntawm cov xov hlau kom pom tias hnav lossis puas. Khaws thaj chaw ib ncig ntawm lub shunt tso tawm kom huv si thiab tsis muaj plua plav kom ntseeg tau tias kev ua haujlwm ruaj khov.

Wiring Diagram Overview

Daim duab txuas rau CDADA MCB Shunt Release yog ncaj nraim:

★ Tswj Teeb Meem: Txuas koj lub cuab yeej tswj hwm sab nraud rau cov khoom siv uas tau muab.

★ Breaker: Lub shunt tso tawm yog mechanically txuas mus rau lub breaker lub actuation mechanism, kom ntseeg tau tias tam sim ntawd disconnection thaum triggered.

★ Kev Ceeb Toom: Ib txwm kuaj xyuas koj cov xaim ua ntej siv lub zog kom tsis txhob muaj kev phom sij.

Cov lus nug nquag

Q1: MCB shunt tso tawm siv rau dab tsi?

A1: MCB shunt tso tawm tso cai rau kev sib txuas ntawm cov chaw taws teeb ntawm lub Circuit Court breaker, uas tuaj yeem yog qhov tseem ceeb rau kev nres thaum muaj xwm txheej ceev lossis kev koom ua ke rau hauv cov tshuab hluav taws xob.

Q2: Kuv puas tuaj yeem siv qhov kev tso tawm shunt nrog ib qho MCB?

A2: Tsis yog, CDADA MCB Shunt Release yog tsim tshwj xeeb rau kev siv nrog DAB7-63 series. Nws yuav tsis haum rau lwm lub npe yam tsis muaj kev hloov kho.

Q3: Puas yog shunt tso tawm haum rau ob qho tib si AC thiab DC daim ntawv thov?

A3: Yog lawm, peb cov shunt tso tawm txhawb nqa ob qho tib si AC (24V rau 400V) thiab DC (24V rau 220V) daim ntawv thov, muab ntau yam thoob plaws ntau qhov chaw.

Q4: Vim li cas thiaj xaiv CDADA shunt tso tawm rau lwm tus?

A4: Ntawm CDADA, peb muab qhov tseem ceeb:

● Kev Ua Haujlwm Zoo: Txhua chav ua haujlwm raug kuaj nruj.

● Yooj yim ntawm Kev Txhim Kho: Kev sib haum xeeb ncaj qha nrog DAB7-63 MCBs—tsis muaj cov khoom siv ntxiv ntxiv.

● Kev Pab Txhawb Cov Neeg Siv Khoom: Kev pabcuam ncaj qha los ntawm peb pab neeg ua haujlwm.

● Tus Nqi-Kev Ua Tau Zoo: Tus nqi sib tw yam tsis muaj kev cuam tshuam rau qhov zoo.

Daim ntawv kawg los ntawm CDADA

Xaiv txoj cai shunt tso tawm tuaj yeem txhim kho kev nyab xeeb thiab kev ua haujlwm ntawm koj lub tshuab hluav taws xob. Nrog CDADA, koj tsis yog tsuas yog tau txais cov khoom siv xwb - koj tau txais ib tus khub cog lus rau kev ua tau zoo hauv txhua qhov kev nthuav dav. Cia peb pab koj ua tiav kev thaj yeeb ntawm lub siab nrog peb cov kev ntseeg siab thiab siv tau yooj yim.
