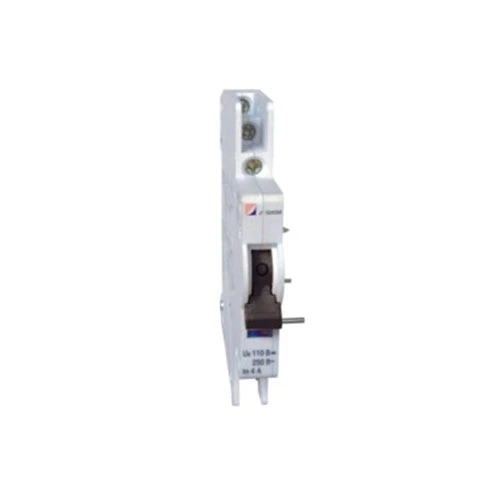

MCB Tswb thiab Pab Pawg Sib Txuas

CDADA yog cov chaw tsim khoom thiab cov chaw muag khoom nrog 40+ xyoo ntawm kev paub, peb tau pom ntau yam haujlwm uas cov neeg ua haujlwm vaj huam sib luag nco txog qhov tsis txaus ntseeg - txog thaum nws lig dhau lawm. Tias yog vim li cas peb thiaj li tsim CDADA MCB Tswb thiab Pab Pawg Sib Txuas (DAB7-FL): qhov kev daws teeb meem ntse, qhov chaw txuag uas muab rau koj ob lub cim tseem ceeb hauv ib qho module-breaker txoj hauj lwm (ON / OFF) thiab kev mus ncig vim li cas (overload / short-circuit).

Peb Cov Lus Qhia: Yog tias koj qhov kev tswj hwm yuav tsum paub qhov txawv ntawm phau ntawv tawm thiab kev mus ncig ua si, qhov no yog cov khoom siv ntxiv uas koj yuav tsum tau qhia. Tus qauv pabcuam kev sib cuag ib leeg tsis tuaj yeem qhia qhov txawv-tab sis peb tuaj yeem ua tau.

Dual-Function Design: Ib Module, Ob Lub Teeb Pom Kev

Lub CDADA MCB Tswb & Lub Chaw Pabcuam Tiv Thaiv muaj ob qho kev hloov pauv kev ywj pheej nrog tus neeg siv tshuab ntse ntse:

★ Daj qhov taw qhia ntawm "A": Ob qho kev tiv tauj ua haujlwm pabcuam → teeb liab MCB ON / OFF lub xeev

★ Qhov taw qhia daj ntawm "AL":

★ sab laug kev sib cuag = Pab (ON/OFF raws li txoj cai)

★ Txoj cai tiv tauj = Tswb (tsuas yog qhib thaum MCB mus ncig ua si vim yog qhov txhaum)

★ Qhov no txhais tau tias koj tuaj yeem xaim:

★ Lub teeb ntsuab qhia "lub zog rau"

★ Lub teeb liab lossis PLC tawm tswv yim los ua rau "lub tswb txhaum"

★ Tag nrho los ntawm ib qho ntxiv-rau module ntawm koj DAB7-63 MCB.

Technical Specifications

Tseem ceeb: Cov khoom siv no tsis tuaj yeem siv ib leeg-nws yuav tsum tau txuas ncaj qha mus rau DAB7-63 MCB.

Installation Guide (Los ntawm Peb Field Engineers)

★ Ua raws li cov kauj ruam no kom muaj kev nyab xeeb, txhim khu kev qha:

★ Fais fab OFF lub Circuit Court ua ntej installation.

★ Xaub lub DAB7-FL module mus rau sab laug ntawm DAB7-63 MCB kom txog thaum nws nyem.

★ Ruaj ntseg nrog rau daim kab xev ob sab (rau kev co kuj).

★ Txuas cov xov hlau mus rau 4 lub davhlau ya nyob twg (2 rau ib pab pawg sib cuag):

★ Siv cov khub sab laug rau kev pabcuam (txheej xwm)

★ Siv txoj cai khub rau lub tswb (tawm mus nrhiav)

★ Teem lub xim daj rau "AL" yog tias koj xav tau lub tswb ua haujlwm tsis raug.

★ Kev Xeem: Manually mus rau MCB-tsuas yog lub tswb hu xov tooj yuav tsum hloov lub xeev thaum mus txawv tebchaws txhaum.

★ Cov Lus Qhia Pro: Sau koj cov xov hlau kom meej! Ntau tus kws tshaj lij tsis meej pem nrog lub tswb ceeb toom thaum ua haujlwm.

Thaum twg koj yuav tsum siv qhov no hloov tus txheej txheem pabcuam kev sib cuag?

Cov ntawv thov raug:

★ Data center PDU saib xyuas

★ Hnub ci vaj huam sib luag thawv

★ Industrial tswj vaj huam sib luag

★ Tsev Tswj Xyuas Tsev (BMS)

★ of elevator lossis HVAC kev nyab xeeb circuits

Cov lus nug nquag

Q1: Kuv puas tuaj yeem siv qhov no ntawm cov tsis-CDADA MCBs?

A1: Tsis yog. Lub DAB7-FL yog mechanically thiab dimensionally tsim rau CDADA DAB7-63 breakers. Nws yuav tsis haum Schneider, ABB, lossis Siemens MCBs.

Q2: Lub tswb hu ua haujlwm li cas?

A2: Hauv MCB, ib qho kev sib tw latch txav txawv txav thaum lub sij hawm thermal / magnetic fault trip vs. Lub DAB7-FL kuaj pom qhov sib txawv ntawm qhov sib txawv thiab ua kom lub tswb hu rau thaum muaj kev ua txhaum tiag tiag.

Q3: Kuv puas xav tau ob qho tib si hu xov tooj?

A3: Tsis tas li. Koj tuaj yeem siv qhov kev pabcuam nkaus xwb, tsuas yog lub tswb, lossis ob qho tib si - nyob ntawm koj qhov kev tswj xyuas qhov kev xav. Lub module muab koj yooj yim.

Q4: Nws puas haum rau DC hnub ci daim ntawv thov?

A4: Yog! Nrog rau qhov ntsuas DC-12 ntawm 110V / 0.5A, nws yog qhov zoo tagnrho rau kev saib xyuas cov hlua hnub ci qhov twg koj yuav tsum kuaj xyuas PV array faults remotely.

Q5: Vim li cas thiaj xaiv CDADA tshaj cov khoom lag luam?

A5: Vim peb muab:

● Kev ntxub ntxaug txhaum tiag tiag (tsis yog qhov kev paub qhov chaw xwb)

● Seamless kev koom ua ke nrog DAB7 MCBs—tsis muaj daim hlau adapter

● Factory-tested mechanical coupling – tsis muaj kev ua si lossis tsis muaj teeb meem

● Qhov taw qhia pom pom tseeb (tus chij daj) rau kev txheeb xyuas qhov chaw

● Cov ntawv pov thawj thoob ntiaj teb (CE, CB, RoHS) rau cov haujlwm tsis muaj teeb meem

Daim ntawv kawg los ntawm CDADA R & D

Hauv cov tshuab hluav taws xob niaj hnub no, 'on / off' tsis txaus - koj xav tau kev txawj ntse. Peb MCB Tswb & Pab Pawg Sib Txuas hloov qhov yooj yim breaker rau hauv qhov kev kuaj mob, pab koj tsim cov ntse dua, muaj kev nyab xeeb dua. Thiab vim tias nws tau tsim los ntawm tib pab pawg uas tsim MCB, koj tau txais kev sib koom ua ke zoo tshaj plaws - tsis muaj kev kwv yees. " - Pab pawg tsim khoom CDADA

Npaj kom xaj? Peb muab:

● Kev txo nqi ntau rau cov neeg tsim vaj huam sib luag

● Pre-assembled MCB + DAB7-FL units (txuag kev ua haujlwm)

● Cov duab kos dawb & PLC cov qauv logic
