A 125 15KA Miniature Circuit Breakeryog tsim los rau cov tshuab hluav taws xob uas yuav tsum tau muaj peev xwm tam sim no thiab txhim khu kev qha tiv thaiv luv luv. Tsis zoo li cov qauv qis qis MCBs, 125A cov cuab yeej muaj peev xwm ua tau zoo tuaj yeem hais txog qhov xav tau ntawm cov ntawv thov kev faib tawm qhov twg qhov txhaum tam sim no yuav muaj ntau dua. Kab lus no piav qhia tias 125 15KA MCB ua haujlwm li cas, nws cov ntsiab lus tseem ceeb txhais tau li cas, qhov twg nws tuaj yeem siv tau, xaiv thiab nruab nws li cas kom raug, thiab pab pawg yuav khoom yuav tsum tshuaj xyuas ua ntej xaj. Nws kuj tseem tshawb txog cov qauv tsim qauv ntawm DAB7-125 series los ntawm Shanghai DaDa Electric Co., Ltd., suav nrog kev tiv thaiv thermal-magnetic, kev txwv tsis pub tsim tam sim no, loj cable terminals, thiab lub peev xwm tawg 15kA.
Cov Lus Qhia
- 125 15KA Miniature Circuit Breaker yog dab tsi?
- Vim li cas 125A thiab 15KA teeb meem?
- Txoj kev tiv thaiv ua haujlwm li cas?
- Cov yam ntxwv twg txhim kho kev ua tau zoo?
- Qhov twg tuaj yeem siv 125 15KA MCB?
- Ntsiab Specifications los soj ntsuam
- Yuav Xaiv Txoj Cai Configuration li cas
- Installation thiab Maintenance Considerations
- Cov teeb meem tshwm sim thiab kev txhawj xeeb txog kev yuav khoom
- Vim li cas Shanghai DaDa Electric Co., Ltd.
- Cov lus nug nquag
- Kev txiav txim zaum kawg
125 15KA Miniature Circuit Breaker yog dab tsi?
A 125 15KA Miniature Circuit Breaker yog cov cuab yeej tiv thaiv siab tam sim no tsim los cuam tshuam cov hluav taws xob hluav taws xob thaum muaj xwm txheej tsis zoo tshwm sim. Hauv kev tsim cov khoom lag luam, "125" feem ntau txheeb xyuas qhov ntsuas tam sim no txog li 125A, thaum "15KA" yog hais txog 15kA luv-circuit breaking peev nyob rau hauv cov xwm txheej thiab cov qauv siv.
Ob tug lej no piav txog cov yam ntxwv ntawm hluav taws xob sib txawv. Qhov ntsuas 125A cuam tshuam txog qhov tam sim no lub tshuab tawg yog tsim los nqa raws li kev ua haujlwm tau teev tseg. Daim duab 15kA cuam tshuam rau theem ntawm lub neej yav tom ntej luv luv-circuit tam sim no uas lub breaker tuaj yeem cuam tshuam kev nyab xeeb raws li nws cov xwm txheej.
Qhov kev sib txawv no yog qhov tseem ceeb thaum cov engineers piv cov hluav taws xob hluav taws xob. Qhov ntsuas tam sim no siab dua tsis tau txhais tau tias muaj peev xwm tawg luv luv dua. Ob qho tseem ceeb yuav tsum tau soj ntsuam los ntawm cov yam ntxwv hluav taws xob ntawm lub installation.

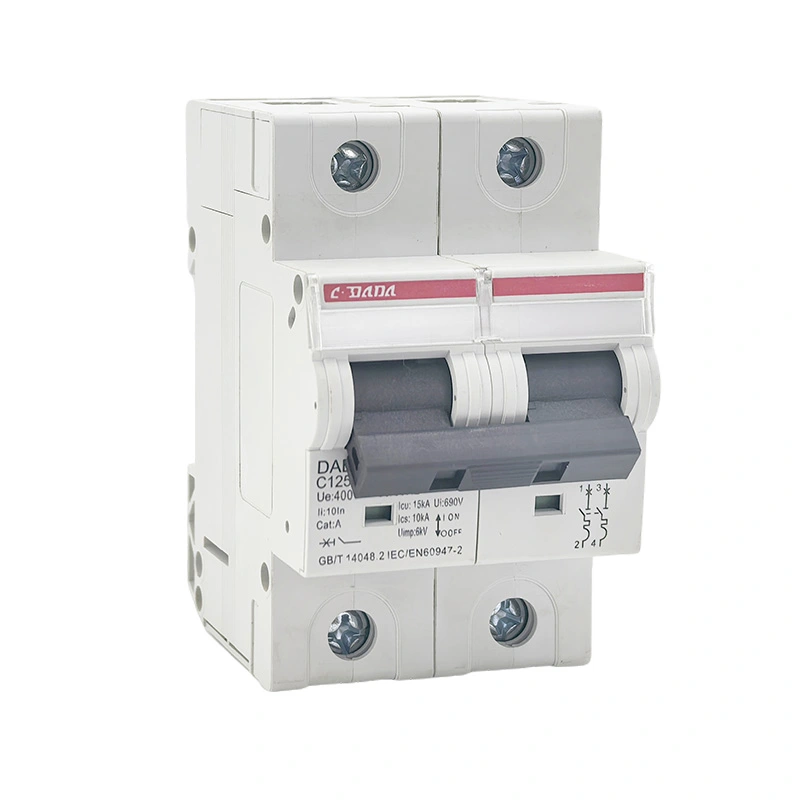

DAB7-125 series los ntawm Shanghai DaDa Electric Co., Ltd. Nws cov ntaub ntawv tshaj tawm cov khoom lag luam qhia txog 125A qhov siab tshaj plaws nyob rau tam sim no thiab kev xaiv muaj peev xwm tawg siab suav nrog 15kA. Cov chaw tsim khoom kuj tseem qhia txog kev tiv thaiv thermal-magnetic thiab qhov kev txwv tam sim no.
Vim li cas 125A thiab 15KA teeb meem?
Cov tshuab hluav taws xob faib hluav taws xob tuaj yeem muaj qhov yuam kev loj heev, tshwj xeeb tshaj yog nyob ze rau transformers, tis boards, industrial machinery thiab loj zog loads. Yog tias cov cuab yeej tiv thaiv raug cuam tshuam rau qhov ua txhaum tam sim no tshaj nws qhov muaj peev xwm cuam tshuam kev cuam tshuam, qhov tshwm sim tuaj yeem suav nrog cov khoom siv puas tsuaj, kev sib tsoo ntau dhau thiab muaj kev phom sij loj.
Lub peev xwm tawg 15kA muab kev cuam tshuam ntau dua li ntau tus qauv qis-tawg-muaj peev xwm MCBs. Qhov tseeb tsim nyog, txawm li cas los xij, nyob ntawm qhov tam sim no luv luv-circuit tam sim no ntawm qhov chaw teeb tsa thiab cov kev cai ntawm cov qauv hluav taws xob siv tau.
| Parameter | Qhov Nws Qhia | Vim Li Cas Nws Tseem Ceeb |
|---|---|---|
| 125 A | Rated tam sim no | Txiav txim siab qhov kev coj ua tam sim no ntawm tus breaker. |
| 15 kA | High short-circuit interruption muaj peev xwm | Pab lub breaker cuam tshuam cov kev ua txhaum cai tam sim no. |
| Thermal mus txawv tebchaws | Kev tiv thaiv overload | Teb rau cov xwm txheej tam sim no ntau dhau. |
| Sib nqus mus ncig | Kev tiv thaiv luv luv | Muab kev ua haujlwm sai thaum lub sijhawm ua txhaum loj. |
| Tam sim no txwv | Txo qhov yuam kev zog | tuaj yeem pab txo qhov kev ntxhov siab tso rau hauv cov khoom siv qis. |
Thaum tsim ib qho kev faib khoom, lub breaker yuav tsum tau xaiv los ntawm qhov tseeb load xam, tus neeg xyuas pib ntsuas, qhov yuam kev-tam sim no xam, voltage, zaus, ncej configuration thiab kev sib koom ua ke yuav tsum tsis yog los ntawm qhov ntsuas tam sim no ib leeg.
Txoj kev tiv thaiv ua haujlwm li cas?
Ib qho niaj hnub MCB feem ntau ua ke ob lub ntsiab lus tseem ceeb: kev tiv thaiv thermal thiab kev tiv thaiv hlau nplaum. Ob lub mechanisms hais txog ntau hom kev tshwm sim overcurrent.
Kev tiv thaiv thermal teb rau cov xwm txheej overload uas pheej ua dhau sijhawm. Thaum tam sim no tshaj qhov kev npaj ua haujlwm, cua sov ua rau lub thermal caij ua haujlwm thiab qhib lub voj voog.
Kev tiv thaiv hlau nplaum yog npaj rau cov teeb meem tam sim no. Cov lus teb sib nqus muaj zog tuaj yeem qhib lub tshuab mus ncig sai sai thaum muaj qhov luv luv luv.
Thaum kev sib cuag sib cais thaum muaj kev cuam tshuam, ib qho hluav taws xob arc yuav tsim. Internal arc-kev tswj cov qauv pab tswj thiab tua cov arc thaum muaj kev cuam tshuam.
Kev tsim kho tam sim no tuaj yeem txo qis lub zog tso cai hla dhau ntawm Circuit Court thaum lub sijhawm luv luv, pab txo kev ntxhov siab ntawm cov khoom sib txuas.
DAB7-125 cov ntaub ntawv cov khoom piav qhia txog kev ua haujlwm thermal thiab sib nqus, lub tshuab tsis muaj kev mus ncig, thiab kev tsim qauv tam sim no. Cov yam ntxwv no tshwj xeeb tshaj yog muaj feem xyuam rau cov ntawv thov uas cov cuab yeej tiv thaiv yuav tsum tau teb tas li rau ob qho tib si lub caij nyoog overloads thiab high-tam sim no txhaum.
Cov yam ntxwv twg txhim kho kev ua tau zoo?
Cov khoom siv tiv thaiv hluav taws xob tsis raug ntsuas tsuas yog los ntawm nws qhov kev ntsuas tam sim no. Kev tsim kho tshuab, tsim lub davhlau ya nyob twg, cov ntaub ntawv tiv tauj, mounting txoj kev thiab cov kev tswj hwm sab hauv tuaj yeem cuam tshuam rau kev siv tau.
- High breaking peev xwm:A 15kA specification muab lub peev xwm luv luv-circuit interruption ntau dua li cov pa hluav taws xob tsawg-tawg-muaj peev xwm MCBs.
- Loj cable terminals:Lub DAB7-125 series yog tsim los nrog loj terminals haum rau tooj liab thiab txhuas conductors mus txog 35mm² raws li cov chaw tsim tshuaj paus cov ntaub ntawv luam tawm.
- Tsis Siv Neeg Mechanism:Lub breaker tuaj yeem tuav nws txoj haujlwm tiv thaiv txawm tias thaum lub tshuab ua haujlwm tau tuav hauv ON txoj haujlwm.
- Kev tiv thaiv zoo:Ib qho kev qhia meej ntawm kev sib cuag tuaj yeem ua rau kev tshuaj xyuas thiab kev saib xyuas yooj yim dua.
- Thermal-magnetic kev ua haujlwm:Cov xwm txheej sib txawv overcurrent tuaj yeem hais los ntawm cov txheej txheem kev mus ncig ntxiv.
- DIN Rail Mounting:Modular mounting simplifies installation nyob rau hauv sib xws khoom faib.
- Nplaim-retardant enclosure:Cov ntaub ntawv luam tawm DAB7-125 qhia txog PA66 cov khoom siv hluav taws xob hluav taws xob.
Cov ntsiab lus no tseem ceeb rau cov neeg xa khoom thiab cov neeg sib koom ua ke vim tias kev txhim kho kev ua haujlwm thiab kev pabcuam tuaj yeem cuam tshuam rau tag nrho cov kev paub dhau los, tsis yog tus nqi pib yuav khoom xwb.
Qhov twg tuaj yeem siv 125 15KA MCB?
A 125A high-breaking-capacity MCB tuaj yeem txiav txim siab rau cov tshuab hluav taws xob xaim hluav taws xob uas qhov hluav taws xob tam sim no thiab theem ua txhaum poob qis hauv cov cuab yeej kev ua haujlwm tau teev tseg. Cov ntawv thov ib puag ncig tuaj yeem suav nrog cov chaw tsim khoom lag luam, cov tsev lag luam, cov khoom siv faib khoom thiab lwm cov khoom siv hluav taws xob siab dua.
| Daim ntawv thov | Yam yuav tsum tau muaj | Muaj peev xwm pab tau |
|---|---|---|
| Muaj kev faib tawm | Ntau dua tam sim no loads thiab xav tau kev txhaum | Muaj peev xwm tam sim no nrog kev tiv thaiv luv luv |
| Cov tsev lag luam | Txhim khu kev tiv thaiv kev faib tawm | Compact modular tiv thaiv rau kev faib circuits |
| Machinery systems | Kev tiv thaiv rau cov khoom siv hluav taws xob thiab feeders | Thermal thiab magnetic overcurrent teb |
| Distribution panels | Cov khoom siv tiv thaiv qhov chaw zoo | DIN-rail installation thiab modular tsim |
| Cov cuab yeej siv hluav taws xob ntau | Siab dua tam sim no | Txog 125A rated-tam sim no configuration nyob ntawm tus qauv xaiv |
Daim ntawv thov tsim nyog yuav tsum tau lees paub los ntawm kev tsim hluav taws xob ua tiav. Voltage, zaus, yav tom ntej ua txhaum tam sim no, tus neeg xyuas pib loj, qhov kub thiab txias, kev teeb tsa ncej thiab cov kev cai siv tau tuaj yeem hloov qhov kev xaiv tsim nyog.
Ntsiab Specifications los soj ntsuam
Cov neeg yuav khoom feem ntau tsom rau "125A" thiab "15kA" vim tias lawv nkag siab yooj yim. Txawm li cas los xij, kev yuav khoom tshaj lij yuav tsum muaj kev tshuaj xyuas dav dua.
| Specification | Kev yuav khoom |
|---|---|
| Rated tam sim no | Puas yog qhov kev ntsuam xyuas tau raug xaiv raws li kev ntsuas hluav taws xob thiab cov khoom siv hluav taws xob? |
| Kev tawg muaj peev xwm | Puas yog qhov tshwj xeeb 15kA muaj peev xwm tsim nyog rau kev ua txhaum tam sim no? |
| Rated voltage | Lub breaker puas phim qhov system voltage thiab kev faib khoom? |
| Tus naj npawb ntawm tus ncej | Puas yog lub voj voog xav tau 1P, 2P, 3P, 4P lossis lwm qhov kev teeb tsa? |
| Txoj kev nkhaus | Puas yog qhov kev xaiv tso tawm tus yam ntxwv sib haum nrog cov khoom sib txuas? |
| Cov qauv siv tau | Cov khoom puas ua tau raws li tus qauv xav tau rau lub hom phiaj kev lag luam thiab kev teeb tsa? |
| Terminal muaj peev xwm | Cov terminals puas tuaj yeem ua tau raws li tus neeg xyuas pib? |
| Txoj kev teeb tsa | Puas yog DIN-rail mounting lossis lwm qhov kev teeb tsa mounting xav tau? |
Piv txwv li, IEC 60947-2 thiab IEC / EN 60898-1 siv cov kev faib tawm sib txawv thiab cov qauv ntsuas rau cov hluav taws xob hluav taws xob. Cov ntaub ntawv tshaj tawm cov chaw tsim khoom tuaj yeem muaj ob qho tib si Icu thiab Icn terminology nyob ntawm tus qauv thiab cov khoom lag luam. Tus neeg yuav khoom yuav tsum xyuas kom meej tias qhov kev ntsuas twg siv rau ntawm qhov hluav taws xob thiab kev ua haujlwm ntawm qhov kev npaj tsim.
Yuav Xaiv Txoj Cai Configuration li cas
Xaiv 125 15KA Miniature Circuit Breaker yuav tsum pib nrog lub tshuab hluav taws xob ntau dua li cov khoom lag luam catalog. Ib txoj kev xaiv yooj yim tuaj yeem txo qhov kev pheej hmoo ntawm kev tsis sib haum nrog lub breaker nrog lub voj voog.
- Txiav txim qhov tsim tam sim no.Xam qhov kev cia siab tas mus li thiab tsis tu ncua load tam sim no.
- Txheeb xyuas qhov ntsuas tus neeg xyuas pib.Cov cuab yeej tiv thaiv yuav tsum tau koom tes nrog lub cable tso cai tam sim no raws li qhov tseeb kev teeb tsa.
- Txiav txim siab yav tom ntej luv-circuit tam sim no.Lub peev xwm tawg tau raug xaiv yuav tsum tsim nyog rau qib kev ua txhaum ntawm qhov chaw teeb tsa.
- Paub meej voltage thiab zaus.Xyuas kom lub breaker raug ntsuas rau qhov hluav taws xob.
- Xaiv tus ncej kev npaj.Xav txog qhov yuav tsum tau ua rau theem thiab nruab nrab conductors.
- Tshawb xyuas cov yam ntxwv ntawm kev mus ncig.Txoj kev nkhaus mus txawv tebchaws yuav tsum tsim nyog rau qhov kev sib txuas ntawm kev thauj khoom thiab kev cia siab rau cov xwm txheej.
- Txheeb xyuas cov qauv thiab cov ntawv pov thawj.Tshawb xyuas cov kev xav tau ntawm lub hom phiaj kev ua lag luam, qhov project specification thiab cov cai tswj hluav taws xob hauv zos.
- Tshawb xyuas lub cev sib raug zoo.Paub meej tias qhov ntev, qhov loj me, DIN-rail compatibility thiab vaj huam sib luag sib nrug.
Installation thiab Maintenance Considerations
Kev txhim kho kom raug yog qhov tseem ceeb rau txhua yam khoom siv tiv thaiv siab tam sim no. Txawm hais tias ib lub tshuab hluav taws xob tsim tau zoo tsis tuaj yeem them nyiaj rau cov khoom siv tsis raug, cov khoom siv xoob xoob, cov ntaub thaiv tsis zoo lossis kev teeb tsa tsis raug.
- Txheeb xyuas tus qauv breaker thiab ntsuas ua ntej kev teeb tsa.
- Cais cov khoom siv hluav taws xob thiab ua raws li cov txheej txheem kev nyab xeeb uas siv tau.
- Paub meej tias tus neeg xyuas pib hla ntu yog sib xws nrog lub davhlau ya nyob twg.
- Npaj cov conductors kom raug thiab zam kev puas tsuaj los yog tsis tsim nyog stripped cable xaus.
- Tighten terminals raws li cov chaw tsim khoom tau teev tseg.
- Xyuas kom lub breaker yog ruaj ntseg mounted ntawm lub DIN rail.
- Xyuas kom paub tseeb tias lub kaw lus muaj kev tiv thaiv tsim nyog thiab tshem tawm.
- Tshawb xyuas cov terminals ib ntus rau cov cim qhia ntawm overheating, discoloration lossis mechanical looseness.
- Ntsuam xyuas qhov kev tiv thaiv raws li kev saib xyuas ntawm lub installation.
Cov sijhawm tu yuav tsum muaj kev cuam tshuam txog ib puag ncig thiab lub luag haujlwm. Kev teeb tsa kev lag luam nrog kev thauj khoom siab, hloov pauv tsis tu ncua, plua plav, kev co lossis qhov kub siab tuaj yeem xav tau kev tshuaj xyuas ntau dua li cov khoom siv hluav taws xob hauv tsev.
Cov teeb meem tshwm sim thiab kev txhawj xeeb txog kev yuav khoom
Cov neeg yuav khoom ntawm MCBs tam sim no feem ntau ntsib ntau yam kev sib tw. Hais txog cov teeb meem no ua ntej kev yuav khoom tuaj yeem tiv thaiv kev qeeb thiab teeb meem kev teeb tsa.
Qee cov khoom lag luam hais txog tsuas yog ib qho "siab tawg peev xwm." Cov neeg yuav khoom yuav tsum thov qhov ntsuas qhov tseeb, tus qauv, qhov hluav taws xob thiab kev sim hauv paus.
Xaiv 125A yam tsis tau kuaj xyuas lub peev xwm cable thiab cov qauv tsim tam sim no tuaj yeem tsim teeb meem kev sib koom tes.
Cov conductors loj dua yuav tsum tau cov terminals tsim los lees txais qhov yuav tsum tau ua ntawm qhov chaw hla ntu. Terminal compatibility yuav tsum tau lees paub ua ntej yuav khoom.
Cov neeg yuav khoom thoob ntiaj teb feem ntau xav tau cov kev qhia tshwj xeeb, ntawv pov thawj, kos duab thiab cov ntaub ntawv khoom lag luam rau kev pom zoo qhov project.
Ib tus kws tshaj lij kev lag luam yuav tsum muaj peev xwm muab cov ntaub ntawv qhia meej txog cov khoom lag luam thiab pab cov neeg yuav khoom nkag siab txog qhov sib txawv ntawm qhov ntsuas tam sim no, tawg peev xwm, cov yam ntxwv mus txawv tebchaws thiab cov kev xav tau ntawm kev teeb tsa.
Vim li cas Shanghai DaDa Electric Co., Ltd.
Shanghai DaDa Electric Co., Ltd.tsim thiab tsim cov khoom tiv thaiv hluav taws xob rau kev lag luam thiab kev lag luam hluav taws xob. Nws cov khoom lag luam luam tawm suav nrog MCBs, MCCBs, RCBOs, RCCBs thiab lwm yam khoom siv tiv thaiv hluav taws xob.
DAB7-125 series yog nyob rau hauv daim ntawv thov uas yuav tsum tau muaj peev xwm tam sim no ntau dua thiab muaj peev xwm tawg luv luv. Cov ntawv tshaj tawm muaj xws li 15kA siab tawg peev xwm, thermal-magnetic mus txawv tebchaws muaj nuj nqi, tam sim no-limiting tsim, zoo tiv tauj thiab terminals haum rau loj conductors. :contentReference[oaicite:1]{index=1}
Cov chaw tsim khoom lub Hoobkas cov ntaub ntawv tseem piav qhia txog kev mob siab rau stamping, qhov chaw-welding, riveting, txhaj tshuaj molding thiab sib dhos rhiav, txhawb kev tsim khoom ntawm MCB thiab MCCB cov khoom. :contentReference[oaicite:2]{index=2}
Rau cov chaw muag khoom, hluav taws xob wholesalers, vaj huam sib luag tsim thiab OEM cov neeg siv khoom, hom kev tsim khoom muaj peev xwm yuav pab tau thaum cov khoom lag luam zoo ib yam, cov ntaub ntawv kev txawj ntse thiab kev txhawb nqa yog qhov tseem ceeb ntawm kev txiav txim siab yuav khoom.
| Kev yuav khoom | Relevant DAB7-125 Characteristic |
|---|---|
| High-tam sim no tiv thaiv Circuit Court | Rated tam sim no mus txog 125A |
| Cov kev cai luv luv luv dua | Txog li 15kA tawg peev xwm raws li cov ntaub ntawv tshaj tawm cov khoom lag luam |
| Kev tiv thaiv overload | Thermal mus ncig ua haujlwm |
| Luv-circuit teb | Sib nqus mus ncig ua haujlwm |
| Cov conductors loj dua | Loj cable terminals tsim rau conductors txog 35mm² raws li cov ntaub ntawv chaw tsim tshuaj paus |
| Vaj huam sib luag installation | Modular DIN-rail mounting tsim |
Cov khoom lag luam tshwj xeeb yuav tsum tau lees paub los ntawm cov ntaub ntawv tshiab tshaj plaws ua ntej qhov kev pom zoo ntawm qhov project, tshwj xeeb tshaj yog thaum lub breaker yuav raug ntsia rau hauv ib puag ncig siab-tam sim no lossis kev tswj hwm hluav taws xob.
Cov lus nug nquag
15KA yog hais txog 15kA luv luv-circuit breaking peev nyob rau hauv raws li cov kev cai xeem tau teev tseg. Nws qhia txog theem ntawm lub neej yav tom ntej luv luv-circuit tam sim no lub cuab yeej tsim los cuam tshuam raws li nws qhov kev ntsuam xyuas thiab tus qauv.
Tsis yog. Kev xaiv yuav tsum xav txog qhov muaj peev xwm ntawm tus neeg xyuas pib, cov yam ntxwv ntawm kev thauj khoom, qhov system voltage, ambient tej yam kev mob, txhaum tam sim no, ncej configuration thiab siv hluav taws xob yuav tsum tau.
125A yog txuam nrog qhov ntsuas tam sim no ntawm lub tshuab hluav taws xob, thaum 15kA hais txog nws lub peev xwm cuam tshuam luv luv. Lawv piav txog cov yam ntxwv sib txawv ntawm cov cuab yeej tiv thaiv.
Nws tuaj yeem raug txiav txim siab rau cov khoom siv hluav taws xob tsim hluav taws xob thaum lub tshuab hluav taws xob poob rau hauv cov khoom tau teev tseg thiab cov kev xav tau ntawm kev teeb tsa.
Tsis yog. Kev muaj peev xwm tawg tsuas yog ib qho kev xaiv xwb. Kev ntsuas hluav taws xob, ntsuas tam sim no, cov yam ntxwv ntawm kev mus ncig, kev sib koom ua ke ntawm tus neeg xyuas pib, kev teeb tsa ncej thiab kev teeb tsa yuav tsum tau ntsuas.
Kev tiv thaiv hluav taws xob tiv thaiv kev tiv thaiv kev tiv thaiv overload, thaum kev tiv thaiv hlau nplaum teb sai rau cov teeb meem tam sim no xws li luv luv.
Shanghai DaDa Electric tau luam tawm DAB7-125 cov ntaub ntawv hais tias nws cov cable loj loj yog tsim rau tooj liab thiab txhuas cables txog li 35mm². Lub caij nyoog tus neeg xyuas pib yuav tsum tau lees paub nrog cov ntaub ntawv tam sim no ua ntej kev teeb tsa.
Cov neeg yuav khoom yuav tsum thov cov ntaub ntawv qhia kev, cov qauv siv tau, ntsuas qhov ntsuas hluav taws xob, cov ntaub ntawv tawg-muaj peev xwm, cov yam ntxwv ntawm kev mus ncig, kos duab kos duab, cov ntaub ntawv davhlau ya nyob twg, cov ntawv pov thawj thiab cov ntsiab lus ntim cov ntsiab lus cuam tshuam rau lub khw muag khoom.
Kev txiav txim zaum kawg
A 125 15KA Miniature Circuit Breaker hais txog kev sib xyaw ua ke ntawm qhov yuav tsum tau ua: muaj peev xwm tam sim no siab thiab txhim kho qhov muaj peev xwm cuam tshuam luv luv. Rau cov engineers thiab pab pawg yuav khoom, kev nkag siab tias txhua qhov kev ntaus nqi sawv cev yog qhov tseem ceeb rau kev txiav txim siab qhov tseeb.
Qhov kev txiav txim siab tseem ceeb tshaj plaws tshaj li "125A" thiab "15kA" cov duab. Kev ntsuam xyuas tiav yuav tsum suav nrog cov ntsuas hluav taws xob, qhov txhaum tam sim no, cov yam ntxwv ntawm kev mus ncig, kev teeb tsa ncej, kev sib raug zoo ntawm tus neeg xyuas pib, cov qauv siv tau, kev teeb tsa ib puag ncig thiab lub cev qhov ntev.
Lub DAB7-125 series los ntawm Shanghai DaDa Electric Co., Ltd. ua ke nrog kev tiv thaiv tam sim no nrog thermal-magnetic kev ua haujlwm, kev txwv tam sim no, cov kab hluav taws xob loj loj thiab muaj peev xwm tshaj tawm txog li 15kA. Cov yam ntxwv no ua rau cov khoom lag luam cuam tshuam rau ntau yam kev lag luam thiab kev lag luam kev lag luam kev lag luam thaum sib raug zoo rau kev siv hluav taws xob.
