Cov lus qhia no piav qhia txog yuav ua li cas 6kA AC lub tshuab hluav taws xob me me ua haujlwm, qhov ntsuas 6kA txhais tau li cas, B, C, thiab D txoj kev mus ncig ua rau cuam tshuam li cas, thiab yuav ua li cas xaiv qhov tsim nyog ntsuas tam sim no thiab ncej teeb tsa. Nws kuj tseem txheeb xyuas qhov yuam kev ntawm kev yuav khoom thiab muab cov npe tshuaj xyuas rau cov kws ua haujlwm, cov neeg cog lus, thiab cov neeg yuav khoom ntsuas MCB cov kev daws teeb meem los ntawm cov tuam txhab xws liShanghai DaDa Electric Co., Ltd.
Cov Lus Qhia
- 6k ua AC Miniature Circuit Breaker yog dab tsi?
- Vim li cas 6kA tawg muaj peev xwm tseem ceeb?
- AC Miniature Circuit Breaker tiv thaiv Circuit Court li cas?
- Yam Kev Ntsuas Cov Neeg Yuav Khoom Yuav Tsum Tshawb Xyuas Dab Tsi?
- B, C, thiab D Trip Curves cuam tshuam li cas rau kev xaiv?
- Qhov twg 6kA AC Miniature Circuit Breakers nquag siv?
- Cov teeb meem dab tsi uas txoj cai MCB tuaj yeem pab tiv thaiv?
- Yuav ua li cas cov neeg yuav xaiv ib tug haum 6kA MCB?
- Common Selection yuam kev kom zam
- Vim li cas thiaj ua haujlwm nrog tus kws tshaj lij MCB Chaw tsim khoom?
- Cov lus nug nquag
- Hu rau Shanghai DaDa Electric Co., Ltd.

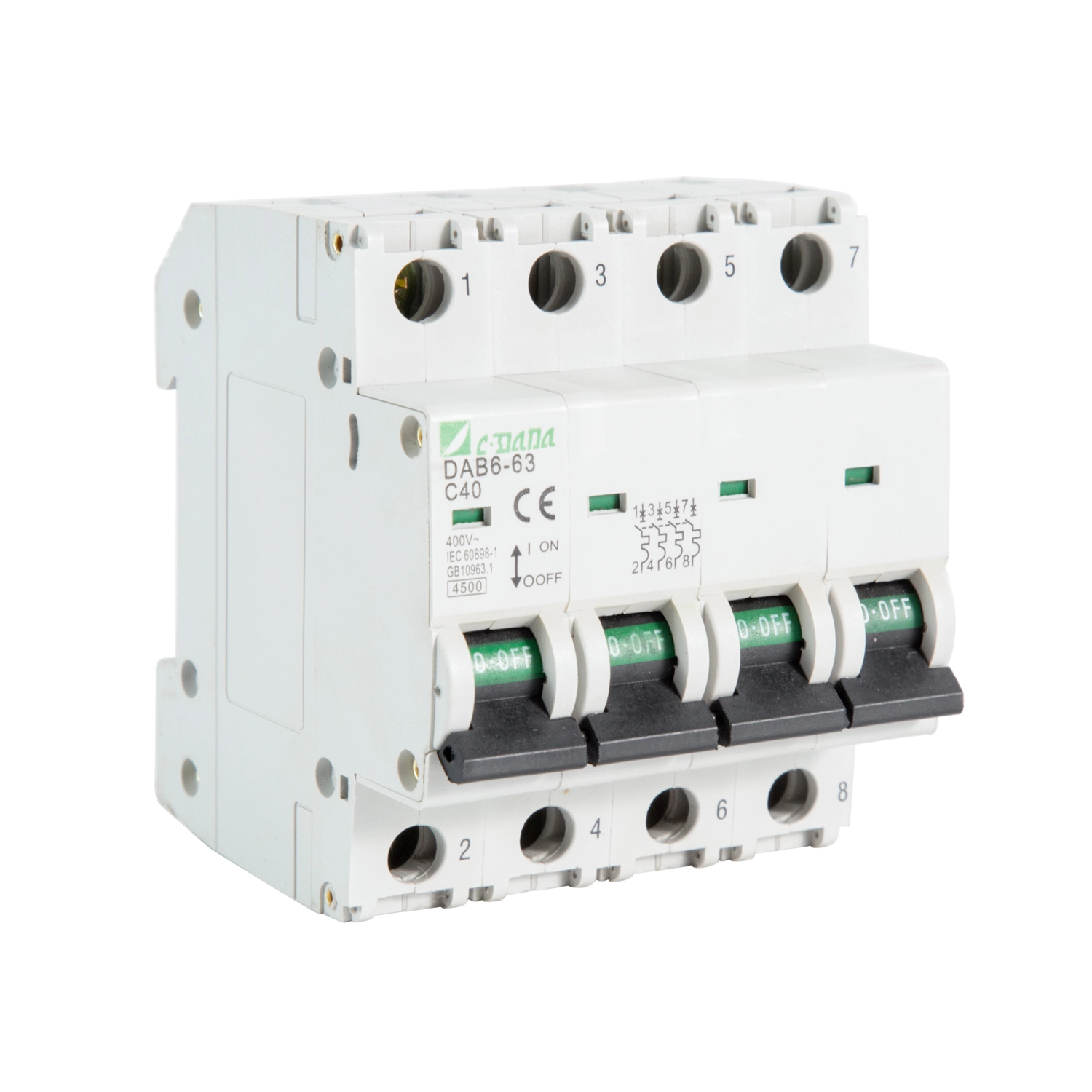

6k ua AC Miniature Circuit Breaker yog dab tsi?
Lub tshuab hluav taws xob me me, feem ntau hu ua MCB, yog cov khoom siv tiv thaiv kev hloov pauv tsim los txiav tawm hluav taws xob hluav taws xob thaum muaj xwm txheej tsis zoo tshwm sim. Tsis zoo li ib txwm fuse, MCB ib txwm tuaj yeem rov pib dua tom qab qhov kev ua txhaum raug tshem tawm, ua kom yooj yim rau kev rov ua haujlwm thiab kev saib xyuas.
Lub sij hawm6k uayog hais txog lub breaker qhov ntsuas luv luv-circuit breaking peev nyob rau hauv cov kev xeem uas siv tau. Hauv cov ntsiab lus yooj yim, 6kA MCB yog tsim los cuam tshuam kev cuam tshuam rau lub neej yav tom ntej luv luv tam sim no txog 6,000 amperes thaum cov kev cai tau teev tseg.
Cov khoom lag luam ua raws li IEC / EN 60898-1 feem ntau qhia txog qhov tsis muaj xws li ntsuas tam sim no, ntsuas qhov ntsuas hluav taws xob, zaus, tawg peev xwm, thiab cov yam ntxwv cuam tshuam tam sim. Kev lag luam MCB ntau yam tuaj yeem muab 6kA kev ntsuas thoob plaws qhov sib txawv tam sim no thiab kev teeb tsa ncej.
6k ua tsis yog qhov ua haujlwm tam sim no ntawm lub breaker. Piv txwv li, A 16A MCB yog npaj los nqa nws cov ntsuas tam sim no raws li cov xwm txheej tau teev tseg, thaum daim duab 6kA piav qhia nws lub peev xwm cuam tshuam luv luv. Ob qhov kev qhia tshwj xeeb no teb cov lus nug txog engineering sib txawv kiag li.
Vim li cas 6kA tawg muaj peev xwm tseem ceeb?
Short circuits tuaj yeem tsim cov tam sim no siab heev hauv lub sijhawm luv luv. Yog tias cov cuab yeej tiv thaiv tsis tuaj yeem cuam tshuam qhov txhaum tam sim no muaj nyob rau ntawm nws qhov chaw teeb tsa, qhov tshwm sim tuaj yeem suav nrog kev puas tsuaj loj heev, kub dhau, khoom siv tsis ua haujlwm, lossis hluav taws xob txaus ntshai.
Yog li ntawd, lub peev xwm tawg yuav tsum tsis txhob xaiv tsuas yog vim 6kA yog ib qho kev qhia tshwj xeeb. Cov yav tom ntej luv luv-circuit tam sim no ntawm lub installation taw tes yuav tsum tau soj ntsuam, thiab xaiv breaker yuav tsum muaj peev xwm cuam tshuam txaus rau qhov system.
| Parameter | Nws txhais li cas | Vim Li Cas Nws Tseem Ceeb |
|---|---|---|
| 6k ua | Rated luv-circuit breaking peev xwm | Txiav txim siab seb lub breaker puas tuaj yeem cuam tshuam qhov kev ua txhaum-tam sim no yam tsis raug cai |
| Rated tam sim no (hauv) | Qhov ntsuas tam sim no ntawm MCB | Yuav tsum koom tes nrog tus neeg xyuas pib muaj peev xwm thiab xav tau load |
| Rated voltage (Ue) | Kev khiav hauj lwm voltage rau daim ntawv thov | Yuav tsum tau sib haum nrog lub tshuab hluav taws xob |
| Trip Curve | Txhais qhov instantaneous magnetic tripping range | Pab tiv thaiv kev cuam tshuam tsis zoo thaum tswj kev tiv thaiv txhaum |
| Number of Poles | Tus naj npawb ntawm cov conductors hloov / tiv thaiv | Yuav tsum ua raws li kev teeb tsa hauv Circuit Court |
Cov chaw tsim khoom tshwj xeeb qhia tau hais tias 6kA MCBs muaj rau ntau qhov kev ntsuas tam sim no thiab kev teeb tsa hluav taws xob, suav nrog 230V thiab 400V AC faib tshuab.
AC Miniature Circuit Breaker tiv thaiv Circuit Court li cas?
Ib tug raug MCB muab cov thermal thiab magnetic tiv thaiv mechanisms. Ob txoj haujlwm no daws teeb meem hluav taws xob sib txawv.
- Kev tiv thaiv thermal:Ib qho kev txhawb nqa overload heats ib lub ntsiab bimetallic. Thaum qhov kub nce mus txog qhov pib ua haujlwm, lub tshuab tso tawm thiab qhib lub voj voog.
- Kev tiv thaiv magnetic:Lub siab luv luv-circuit tam sim no tsim ib qho kev sib nqus muaj zog uas ua rau lub tshuab ua haujlwm sai sai, disconnecting Circuit Court sai.
- Manual switching:MCB feem ntau tuaj yeem hloov tau manually rau kev sib cais hauv Circuit Court thaum kho lossis kev teeb tsa ua haujlwm.
Qhov kev sib xyaw ua ke no ua rau MCB haum rau circuits qhov twg ob qho tib si ntev-ntev overloads thiab tam sim ntawd luv-circuit txhaum yuav tsum tau hais. Cov khoom lag luam niaj hnub MCB feem ntau muab cov thermal thiab sib nqus tso tawm thiab tuaj yeem muab cov yam ntxwv B, C, lossis D nyob ntawm qhov xav tau.
Yam Kev Ntsuas Cov Neeg Yuav Khoom Yuav Tsum Tshawb Xyuas Dab Tsi?
Cov neeg yuav khoom feem ntau tsom mus rau qhov ntsuas tam sim no thiab tus nqi thaum saib xyuas lwm yam. Txhawm rau txhim khu kev qha qhov project, cov yam ntxwv hauv qab no yuav tsum tau kuaj ua ke.
| Specification | Kev txiav txim siab | Tus Neeg yuav khoom Checkpoint |
|---|---|---|
| Txhaum Muaj Peev Xwm | 6k ua | Paub meej tias nws tsim nyog rau qhov kev ua txhaum tam sim no |
| Rated Tam sim no | Kev thov nyob ntawm | Coordinate nrog load thiab conductor muaj peev xwm |
| Rated Voltage | Common AC faib voltages | Ua raws li qhov system voltage |
| Ntau zaus | 50/60Hz feem ntau teev | Paub meej tias kev sib raug zoo nrog daim phiaj hauv zos |
| Trip Yam ntxwv | B / C / D | Sib piv cov nkhaus kom thauj khoom inrush yam ntxwv |
| Ncej Configuration | 1P, 1P + N, 2P, 3P, 4P nyob ntawm cov khoom | Ua kom muaj kev sib txuas ntawm kev sib txuas |
| Mounting | DIN rail yog ntau | Paub meej tias compatibility nrog lub board faib |
| Cov qauv | IEC / EN 60898-1 lossis lwm tus qauv siv tau | Thov cov ntaub ntawv technical thiab ntawv pov thawj thaum xav tau |
Cov ntaub ntawv khoom lag luam los ntawm cov tuam txhab tsim khoom feem ntau muab cov kev ntsuas no ua ke es tsis yog kev kho lub peev xwm tawg raws li cov lus qhia tshwj xeeb.
B, C, thiab D Trip Curves cuam tshuam li cas rau kev xaiv?
Txoj kev mus ncig yog ib qho kev txiav txim siab tseem ceeb tshaj plaws thaum qhia txog MCB. Tsab ntawv piav qhia txog qhov kwv yees uas qhov kev tso tawm tam sim no sib nqus ua haujlwm cuam tshuam nrog lub ntsuas hluav taws xob tam sim no.
| Curve | Hom Sib Nqus Tripping Range | Daim ntawv thov |
|---|---|---|
| B | 3-5 × 3 | Tsawg-inrush loads, teeb pom kev zoo, resistive circuits |
| C | 5-10 × 1.5 hli | General-purpose thiab nruab nrab inductive loads |
| D | 10-20 × 10 hli | Higher-inrush loads xws li tej motors thiab transformers |
Cov kab no feem ntau cuam tshuam nrog IEC 60898-1 MCB cov yam ntxwv.
Piv txwv li, yog tias lub cev muaj zog ua rau ib ntus pib tam sim no ntau zaus ntau dua li nws qhov kev khiav hauj lwm tam sim no, qhov nkhaus uas muaj kev cuam tshuam loj tuaj yeem ua rau tsis tsim nyog thaum pib. Cov cuab yeej C-nqaj lossis D-nqaj yuav tsim nyog, nyob ntawm cov khoom siv thiab kev tsim hluav taws xob ua tiav.
Qhov twg 6kA AC Miniature Circuit Breakers nquag siv?
Ib qho 6kA AC me me Circuit Court breaker tuaj yeem tsim nyog rau ntau qhov kev siv hluav taws xob tsawg thaum qhov kev ua txhaum tiag tiag, qhov hluav taws xob, tam sim no, thiab kev teeb tsa yuav tsum poob rau hauv cov khoom siv tshwj xeeb.
- Kev faib chaw nyob:teeb pom kev zoo circuits, socket circuits, khoom siv hauv tsev, thiab ceg circuits.
- Cov tsev lag luam:cov chaw ua haujlwm faib cov boards, teeb pom kev zoo, cov chaw muag khoom, thiab cov khoom siv me me.
- Industrial tswj panels:auxiliary circuits, tswj cov cuab yeej, me me motors, thiab lwm yam tsim nyog tsawg-voltage loads.
- Cov kev pabcuam hauv tsev:HVAC hais txog cov khoom siv hluav taws xob, cov twj tso kua mis, teeb pom kev zoo, thiab kev faib hluav taws xob dav dav qhov twg qhov tshwj xeeb tsim nyog.
- Hluav taws xob faib khoom txee:ceg-circuit tiv thaiv thiab modular faib tshuab.
Daim ntawv thov tiag tiag yuav tsum tau txheeb xyuas qhov tseeb ntawm cov chaw tsim khoom cov ntaub ntawv cov khoom thiab cov kev xav tau ntawm kev teeb tsa. Kev ntsuas 6kA yuav tsum tsis txhob xav tias tsim nyog rau txhua qhov chaw hluav taws xob.
Cov teeb meem dab tsi uas txoj cai MCB tuaj yeem pab tiv thaiv?
Ib qho kev txhawj xeeb loj tshaj plaws ntawm kev yuav khoom tsis yog tsuas yog seb lub tshuab hluav taws xob puas ua haujlwm, tab sis seb nws ua haujlwm li cas raws li cov xwm txheej uas nws tau xaiv.
1. Tsis tu ncua overload
Ib lub voj voog nqa tam sim no ntev dhau lawm tuaj yeem ua rau tus neeg xyuas pib cua sov thiab cov khoom siv ntxov ntxov tsis zoo. Lub thermal tso tawm yog tsim los teb rau cov xwm txheej ruaj khov.
2. Kev puas tsuaj luv luv
Lub peev xwm tawg tsim nyog tso cai rau MCB cuam tshuam qhov cuam tshuam ntau dhau tam sim no yam tsis muaj tshaj li lub cuab yeej muaj peev xwm cuam tshuam.
3. Ntxim qab kawg
Txoj kev nkhaus tsis zoo tuaj yeem ua rau muaj kev cuam tshuam tsis tsim nyog thaum cov khoom pib. Kev sib piv B, C, lossis D cov yam ntxwv rau lub thauj khoom pab daws qhov teeb meem no.
4. Kev tu xyuas nyuaj
Modular MCB tuaj yeem muab kev sib cais ntawm phau ntawv yooj yim, pab cov kws tshaj lij hluav taws xob txheeb xyuas thiab ua haujlwm ntawm ib tus neeg lub voj voog yam tsis tas yuav kaw tag nrho cov kev faib tawm.
5. Kev yuav khoom tsis meej
Hauv B2B tej yaam num, tsis tiav kev specifications yuav ua rau cov khoom tsis ncaj ncees lawm, ncua kev pom zoo, los yog hloov cov nqi. Daim ntawv qhia cov khoom lag luam meej thiab cov txheej txheem kev ua haujlwm tau txo qis cov kev pheej hmoo no.
Yuav ua li cas cov neeg yuav xaiv ib tug haum 6kA MCB?
Cov txheej txheem xaiv cov tswv yim tuaj yeem muab faib ua ob peb kauj ruam. Qhov no pab cov engineers thiab pab pawg yuav khoom kom tsis txhob xaiv cov khoom lag luam nkaus xwb los ntawm cov npe catalog.
-
Txiav txim siab qhov system voltage.
Paub meej tias qhov nominal AC voltage thiab seb daim ntawv thov yog ib-theem lossis peb-theem. -
Xam lossis paub meej tias tus qauv tsim tam sim no.
Qhov ntsuas tam sim no ntawm MCB yuav tsum tau sib koom ua ke nrog qhov kev cia siab ntawm Circuit Court load thiab qhov tso cai tam sim no ntawm tus neeg xyuas pib. -
Txiav txim siab lub caij luv luv-circuit tam sim no.
Txheeb xyuas qhov muaj txhaum tam sim no ntawm qhov chaw teeb tsa thiab paub meej tias qhov kev xaiv 6kA tawg muaj peev xwm txaus. -
Ntsuas load inrush.
Txheeb xyuas seb lub Circuit Court puas muaj cov motors, transformers, capacitive khoom, hloov cov khoom siv hluav taws xob, lossis lwm yam khoom uas tsim cov khoom tseem ceeb tam sim no. -
Xaiv qhov kev mus ncig uas tsim nyog.
Xaiv B, C, lossis D raws li qhov tseeb load thiab kev tiv thaiv cov cai es tsis yog xaiv qhov kev xaiv ntau tshaj plaws. -
Xaiv tus ncej configuration.
Paub meej tias qhov project xav tau 1P, 1P + N, 2P, 3P, 3P + N, lossis lwm qhov kev teeb tsa txhawb nqa los ntawm cov khoom lag luam. -
Txheeb xyuas cov qauv thiab cov ntaub ntawv.
Thov cov ntaub ntawv siv tau, cov ntaub ntawv xeem, daim ntawv pov thawj, kos duab kos duab, thiab cov lus qhia kev teeb tsa. -
Xyuas vaj huam sib luag compatibility.
Txheeb xyuas qhov ntev ntawm DIN-rail, kev teeb tsa lub davhlau ya nyob twg, tus neeg xyuas pib ntau yam, cov khoom siv, thiab muaj qhov chaw nruab.
- □ Rated voltage paub tseeb
- □ Rated tam sim no paub tseeb
- □ 6kA rhuav pov thawj
- □ B/C/D nkhaus xaiv raws li kev thauj khoom
- □ Kev teeb tsa ncej tau lees paub
- □ Cov qauv siv tau lees paub
- □ Dimensions thiab DIN-rail mounting xyuas
- □ Thov daim ntawv pov thawj thiab cov ntaub ntawv xeem
- □ Kev tshuaj xyuas qhov chaw ua haujlwm
- □ Kev koom tes nrog kev tiv thaiv sab saud/kem nqes los txiav txim siab
Common Selection yuam kev kom zam
Txawm hais tias cov ntsiab lus tseem ceeb tshwm sim muaj tseeb, ntau qhov yuam kev tuaj yeem tsim teeb meem tom qab kev teeb tsa.
| yuam kev | Teeb meem muaj peev xwm | Kev xyaum zoo dua |
|---|---|---|
| Xaiv los ntawm amperage xwb | Lwm qhov tseem ceeb tsis sib xws | Ntsuas qhov voltage, nkhaus, tawg peev xwm, ncej, thiab cov qauv ua ke |
| Piv txwv tias txhua txhua 6kA breaker yog sib hloov | Cov khoom sib txawv tuaj yeem muaj qhov sib txawv thiab qhov ua tau zoo | Sib piv cov ntaub ntawv tiav |
| Kev siv txoj kev nkhaus tsis raug | Kev tsis txaus siab lossis tsis txaus rau kev thov kom haum | Ntsuas qhov tseeb load inrush |
| Ignoring yav tom ntej fault tam sim no | Lub peev xwm tawg yuav tsis txaus | Txheeb xyuas qhov ua txhaum theem ntawm qhov chaw teeb tsa |
| Overlooking conductor coordination | Kev tiv thaiv tej zaum yuav tsis zoo sib xws rau cov kab hluav taws xob | Coordinate MCB ntsuam xyuas nrog tus neeg xyuas pib muaj peev xwm |
| Kev yuav khoom tsis muaj ntaub ntawv | Kev pom zoo thiab kev teeb tsa yuav nyuaj | Thov cov ntaub ntawv qhia kev thiab ua raws cai ua ntej kev yuav khoom |
Kev sib koom tes kom raug ntawm qhov ntsuas tam sim no, tus neeg xyuas pib muaj peev xwm, tus yam ntxwv mus txawv tebchaws, thiab qib kev ua txhaum yog qhov tseem ceeb rau kev xaiv MCB.
Vim li cas thiaj ua haujlwm nrog tus kws tshaj lij MCB Chaw tsim khoom?
Rau kev ntim khoom loj, OEM cov haujlwm, kev sib koom ua ke, thiab kev tsim hluav taws xob vaj huam sib luag, qhov zoo ntawm cov khoom tsuas yog ib qho kev txiav txim siab. Cov neeg yuav khoom kuj xav tau cov kev qhia tshwj xeeb zoo ib yam, kev tsim khoom ruaj khov, kev sib txuas lus zoo, thiab cov ntaub ntawv uas txhawb nqa qhov kev pom zoo.
Shanghai DaDa Electric Co., Ltd.tuaj yeem suav tias yog tus khub tsim khoom rau cov neeg siv khoom tab tom nrhiav rau cov kev daws teeb meem me me hauv Circuit Court breaker thiab lwm yam khoom siv hluav taws xob tiv thaiv hluav taws xob tsawg. Rau cov neeg yuav khoom B2B, qhov kev ntsuam xyuas cov khoom siv tau zoo tshaj plaws yuav tsum tsom mus rau cov ntaub ntawv ntsuas ntsuas tsis yog kev lag luam thov ib leeg.
- Clear cov khoom specifications thiab technical parameters
- Txhais tau ntsuas tam sim no thiab voltage ranges
- Muaj kev xaiv tawg-muaj peev xwm
- Cov ntaub ntawv ncig-khoov rau qhov sib txawv load
- Cov khoom kos duab thiab cov ntaub ntawv installation
- Muaj ntawv pov thawj thiab cov ntaub ntawv ua raws
- Kev tsim khoom ruaj khov thiab cov txheej txheem tswj kom zoo
- Kev sib txuas lus rau kev ua haujlwm tshwj xeeb
- OEM / ODM kev them nyiaj yug yog qhov tsim nyog
Rau cov neeg xa khoom thiab cov khoom siv hluav taws xob, cov khoom siv hluav taws xob no tuaj yeem yog qhov tseem ceeb tshwj xeeb tshaj yog thaum cov khoom yuav tsum tau muab tso rau hauv cov khoom sib txawv los yog muag thoob plaws ntau lub khw.
Cov lus nug nquag
6k ua yog hais txog qhov ntsuas luv luv-circuit breaking peev nyob rau hauv cov kev xeem uas siv tau. Nws sawv cev rau 6,000 amperes thiab yuav tsum tsis txhob totaub nrog MCB qhov kev ntsuas tam sim no.
Tsis yog. Kev tsim nyog nyob ntawm qhov kev xav tau luv luv tam sim no, qhov system voltage, ntsuas tam sim no, tus yam ntxwv mus txawv tebchaws, kev teeb tsa ncej, kev teeb tsa, thiab cov kev cai siv. Qhov muaj txhaum tam sim no yuav tsum tau kuaj ua ntej xaiv lub breaker.
Ob tus lej piav qhia txog qhov sib txawv. 6kA yog qhov ntsuas qhov muaj peev xwm tawg, thaum 6A yog tus nqi ntsuas tam sim no. Lub breaker muaj peev xwm muaj 6A rated tam sim no thiab 6kA tawg peev xwm.
Lawv txheeb xyuas qhov sib txawv instantaneous magnetic tripping yam ntxwv. Raws li IEC 60898-1, B feem ntau cuam tshuam nrog kwv yees li 3-5 npaug ntawm qhov ntsuas tam sim no, C nrog kwv yees li 5-10 zaug, thiab D nrog kwv yees li 10-20 zaug.
Lub cev muaj zog tuaj yeem muaj qhov pib tam sim no, yog li C lossis D yam ntxwv yuav tsim nyog nyob ntawm lub cev muaj zog thiab Circuit Court. Qhov kev xaiv zaum kawg yuav tsum xav txog kev pib tam sim no, txhaum tam sim no, cable impedance, thiab kev sib koom tes nrog lwm yam khoom siv tiv thaiv.
Tsis tau. Yog hais tias qhov tam sim no luv luv-circuit tam sim no tshaj lub breaker lub rated tawg peev xwm, ib tug 6kA ntaus ntawv tej zaum yuav tsis tsim nyog. Lub breaker yuav tsum raug xaiv raws li qhov ua txhaum theem thiab siv tau rau kev tsim kho.
Cov neeg yuav khoom yuav tsum tau thov ib daim ntawv qhia ntxaws ntxaws, kev qhia tshwj xeeb, kos duab kos duab, cov lus qhia kev teeb tsa, cov ntaub ntawv siv tau los yog cov ntawv pov thawj, thiab cov qauv tsim khoom. Cov kev xav tau tshwj xeeb ntawm qhov project yuav xav tau cov ntaub ntawv ntxiv.
Kev sib xyaw ua ke ntawm cov khoom tsim, traceability, cov ntaub ntawv thev naus laus zis, kev tswj xyuas zoo, kev xa khoom muaj peev xwm, thiab kev txhawb nqa tom qab muag tuaj yeem cuam tshuam rau tag nrho cov nqi thiab kev ntseeg siab ntawm B2B hluav taws xob project.
Tsim kom muaj kev ntseeg siab dua Circuit Court tiv thaiv kev daws teeb meem
Xaiv ib6k ua AC Miniature Circuit Breakeryuav tsum pib nrog cov hluav taws xob tej yam kev mob ntawm daim ntawv thov es tsis yog cov khoom daim ntawv lo ib leeg. Rated tam sim no, tawg muaj peev xwm, mus txawv tebchaws nkhaus, voltage, ncej configuration, installation ib puag ncig, thiab kev cov ntaub ntawv tag nrho pab mus rau ib tug dependable tiv thaiv kev daws teeb meem.
Yog tias koj tab tom nrhiav MCBs rau cov phiaj xwm kev faib hluav taws xob, cov tswj vaj huam sib luag, cov tsev lag luam, cov ntawv thov hauv tsev, lossis cov khoom muag muag,Shanghai DaDa Electric Co., Ltd.tuaj yeem pab koj ntsuas cov khoom tsim nyog raws li koj qhov project xav tau.
Xav tau kev qhia tshwj xeeb, cov ntaub ntawv khoom, lossis kev txhawb nqa rau qhov kev yuav khoom ntau?Tiv tauj peblos tham txog koj daim ntawv thov thiab nrhiav ib qho kev daws teeb meem me me uas tsim nyog.
