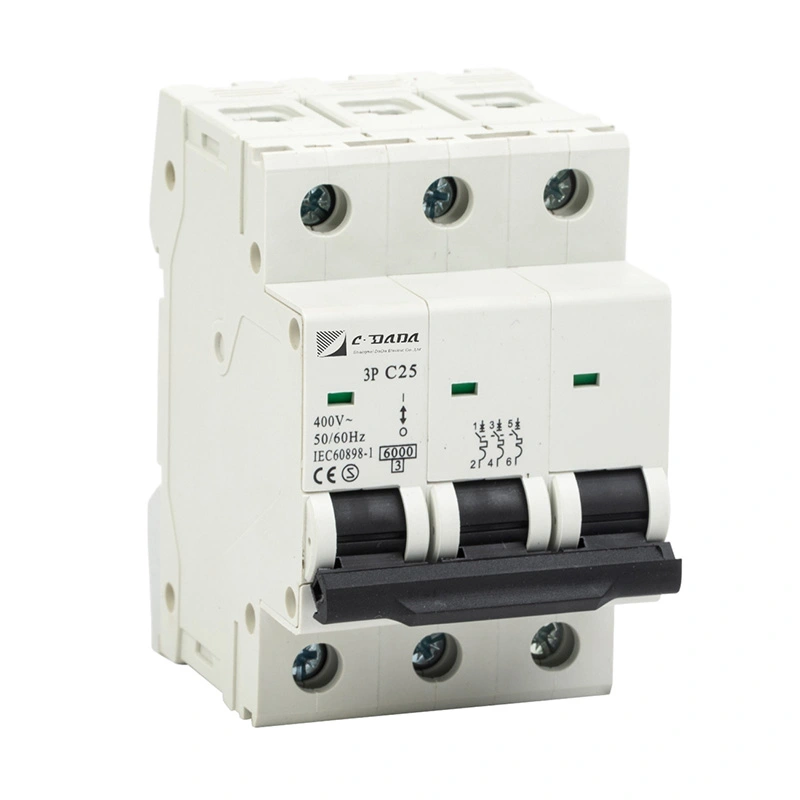

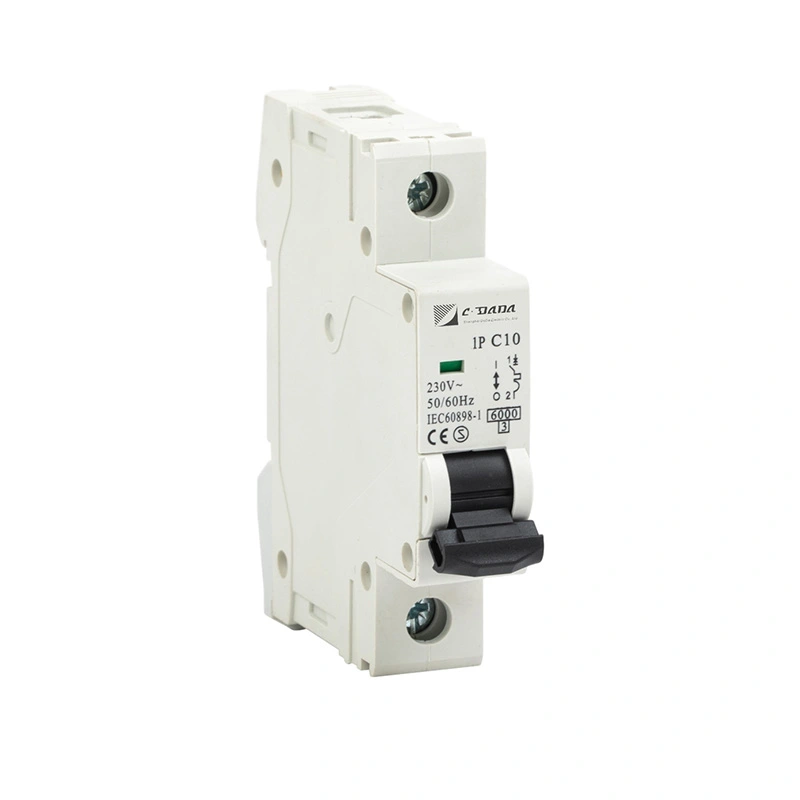

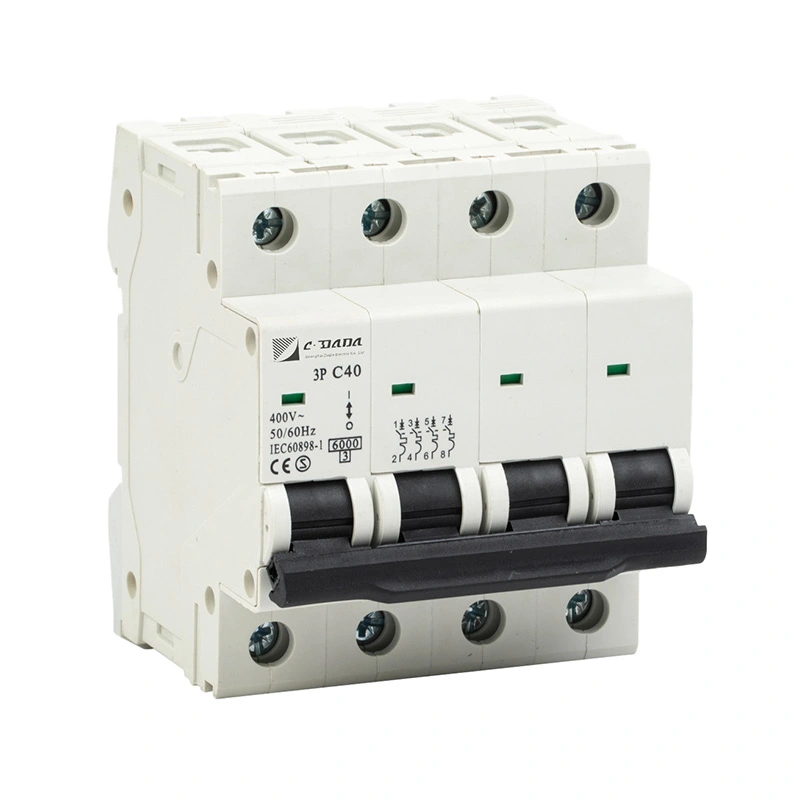

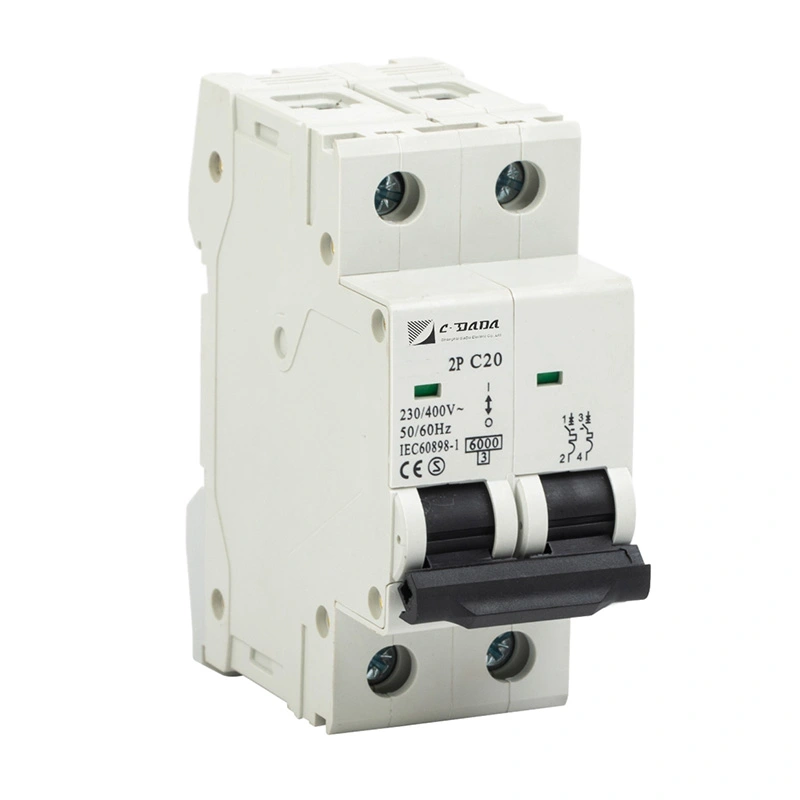

4.5kA 6kA Miniature Circuit Breaker
Model:ALFHA
CDADA yog cov chaw tsim khoom ntawm 4.5kA 6kA Miniature Circuit Breaker, tau lees paub nrog CCC thiab ISO9001 rau kev tiv thaiv kev nyab xeeb. Nws siv cov nplaim hluav taws kub hnyiab thiab cov thermal-magnetic tripping, yog ib qho yooj yim rau mount rau DIN rail thiab yooj yim los tswj. Nws ua ke nrog kev ua haujlwm ruaj khov nrog lub neej ua haujlwm ntev, zoo tagnrho rau thaj chaw, kev lag luam thiab kev lag luam hluav taws xob faib.
CDADA ALFHA 4.5kA 6kA Miniature Circuit Breaker yog qhov zoo tshaj plaws me me Circuit Court breaker, muab los ntawm peb lub Hoobkas nrog cov nqi ncaj qha. Nws muab kev ruaj ntseg overload thiab luv Circuit Court tiv thaiv rau cov hluav taws xob tsis tshua muaj hluav taws xob, nrog B / C / D tripping curves kom phim cov khoom sib txawv.
Ua nrog cov khoom siv hluav taws xob hluav taws xob thiab cov khoom ua kom zoo, nws ua kom muaj kev nyab xeeb rau cov tsev, cov chaw tsim khoom thiab cov khoom faib khoom.
Khoom nta & qhov zoo
★ Nplaim-retardant, unflaming plhaub, kub resistant, anti-daj
★ Visual indication window: liab rau ON, ntsuab rau OFF kom meej meej
★ Muab ob npaug rau rivets txhim kho cov khoom siv kom ruaj ntseg
★ Notched davhlau ya nyob twg clamps txo cov cua sov thiab txhim kho kev sib txuas ruaj khov
★ Ob chav xauv DIN rail clip rau ceev, ruaj khov
★ 90% ntawm cov khoom tsim hauv tsev kom ruaj khov zoo
★ 100% kev kuaj tag nrho ua ntej xa zaub mov
Daim ntawv thov
CDADA 4.5kA 6kA Miniature Circuit Breaker yog dav siv hauv:
★ Cov tsev nyob, cov tsev, villas
★ Chaw ua haujlwm, khw muag khoom, cov chaw pej xeem
★ Kev cob qhia kev lag luam, hluav taws xob faib vaj huam sib luag
★ Ntxuam, compressors, twj, hoisting mechanisms
★ Teeb pom kev zoo thiab cov khoom siv hluav taws xob me me
Technical Parameters
|
Yam khoom |
Specification |
|
Qauv |
ALFHA |
|
Txuj |
IEC 60898 - Cov |
|
Txhaum Muaj Peev Xwm |
4,5kA 6 |
|
Rated Tam sim no |
1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Ncej |
1P, 1P + N, 2P, 3P, 3P + N, 4P |
|
Tripping Curve |
B / C / D |
|
Rated Voltage |
AC 230/400V, 400/415V |
|
Rwb thaiv tsev Voltage |
500 V |
|
Impulse voltage |
4kv ua |
|
Kev tiv thaiv qib |
IP20 |
|
Kev teeb tsa |
35 hli DIN rail |
|
Ua haujlwm Temp |
-5 ℃ ~ + 40 ℃ |
|
Neeg kho tshuab lub neej |
20,000 cycles |
|
Hluav taws xob lub neej |
4,000 ~ 8,000 cycles |
|
Daim ntawv pov thawj |
ISO9001, CCC, ASTA |
Daim ntawv Dimensions
★ Txheem dav: 17.8mm ib tus ncej
★ Haum rau 35mm DIN rail mounting
★ Cov qauv tsim rau cov thawv ntim khoom txheem
★ Kev muaj peev xwm: 1-35mm² hloov tau / nruj cable
Kev Tswj Xyuas Zoo
★ ISO9001 kev tswj xyuas zoo
★ 100% Hoobkas calibration: 1.13In non-trip, 1.45Nyob rau hauv, 2.55In xeem
★ Sib nqus thiab thermal tripping tag nrho cov ntaub ntawv pov thawj
★ Kev ntsuas kub siab thiab qis qis
★ Tsis siv neeg ntau lawm thiab precision vuam
Ntim & Shipping
★ Txheem export thawv ntim
★ Txhua lub thawv sau nrog cov qauv, tam sim no, ncej, kom muaj nuj nqis
★ Shockproof puab cov khoom rau kev thauj mus los nyab xeeb
★ Haum rau hiav txwv, huab cua thiab av shipping
Cov Neeg Siv Khoom Zoo
CDADA 4.5kA 6kA Miniature Circuit Breaker tau muab rau cov neeg siv khoom hauv Tebchaws Europe, Southeast Asia, Middle East, Africa thiab South America.
★ Cov haujlwm hauv tsev nyob hauv UAE thiab Saudi Arabia
★ Kev lag luam xa hluav taws xob hauv Nigeria thiab Angola
★ Cov khoom siv hauv lub Hoobkas muaj nyob hauv lub teb chaws Yelemees thiab Qaib Cov Txwv
★ OEM kev koom tes nrog cov khoom siv hluav taws xob thoob ntiaj teb
★ Kev xa khoom mus sij hawm ntev rau cov neeg xa khoom thiab cov neeg cog lus
