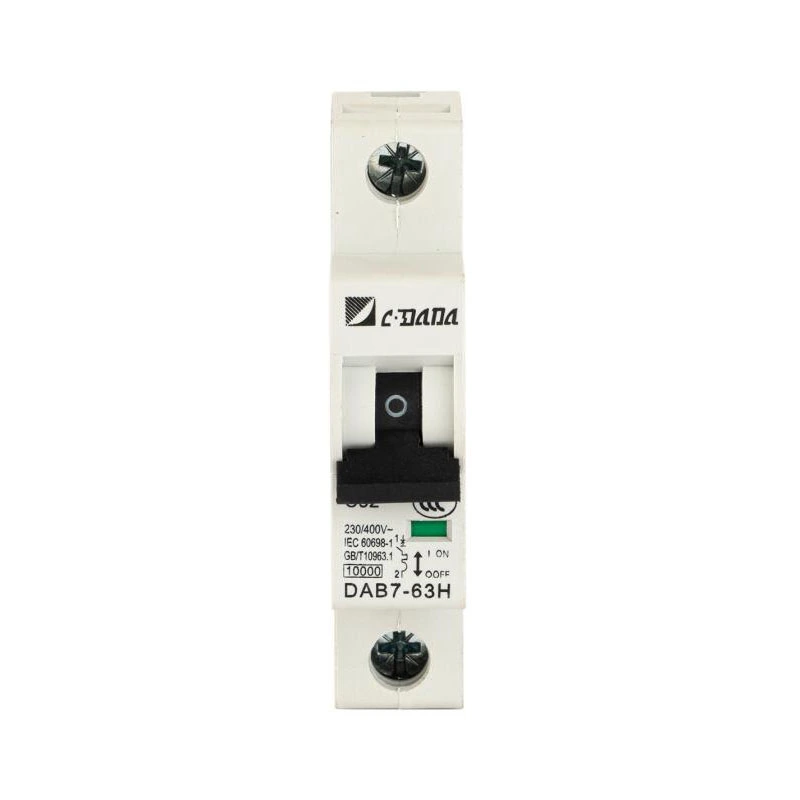

10KA AC Miniature Circuit Breaker

Rau kev thov cov ntawv thov uas muaj kev txhaum ntau dua thiab kev ruaj ntseg zoo dua yog tsis sib tham, CDADA DAB7-63H 10KA AC Miniature Circuit Breaker muab kev tiv thaiv qib kev lag luam hauv cov qauv me me. Tsim los ntawm Shanghai DADA Electric CO., LTD., qhov no 10kA me me Circuit Court breaker yog tsim los rau pawg panels, tis boards nyob rau hauv lub tsev, coj mus muag, thiab lub teeb muaj chaw - muab kev ntseeg siab thermal (overload) thiab electromagnetic (short-circuit) tiv thaiv nyob rau hauv 8 tam sim no kev ntsuas (6A–63A) thiab 1P / 2P / 3P configuration.

Tau ntawv pov thawj rau CE, CB, ASTA, thiab SEMKO, nws ua tau raws li cov qauv kev nyab xeeb thoob ntiaj teb. Nrog rau qib siab tshaj 13-phaj arc chamber, nyiaj-muaj kev sib cuag alloy, thiab kev sib txuas ob txoj kev xaiv (PIN / FORK), DAB7-63H ua kom nrawm dua arc extinction, txo qis cua sov, thiab txuas hluav taws xob lub neej-txawm tias nyob rau hauv kev hloov pauv ntau zaus lossis kub ambient kub.

Ntsiab Specifications

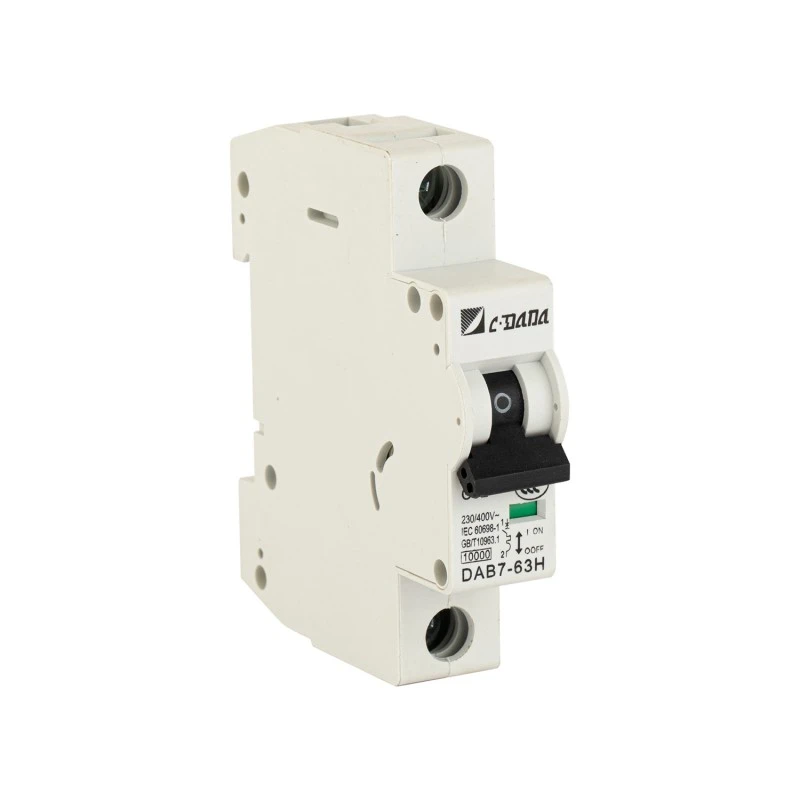

Model: DAB7-63H Series

Hom: AC Miniature Circuit Breaker (MCB)

Lub peev xwm tawg: 10kA @ 230 / 400V AC

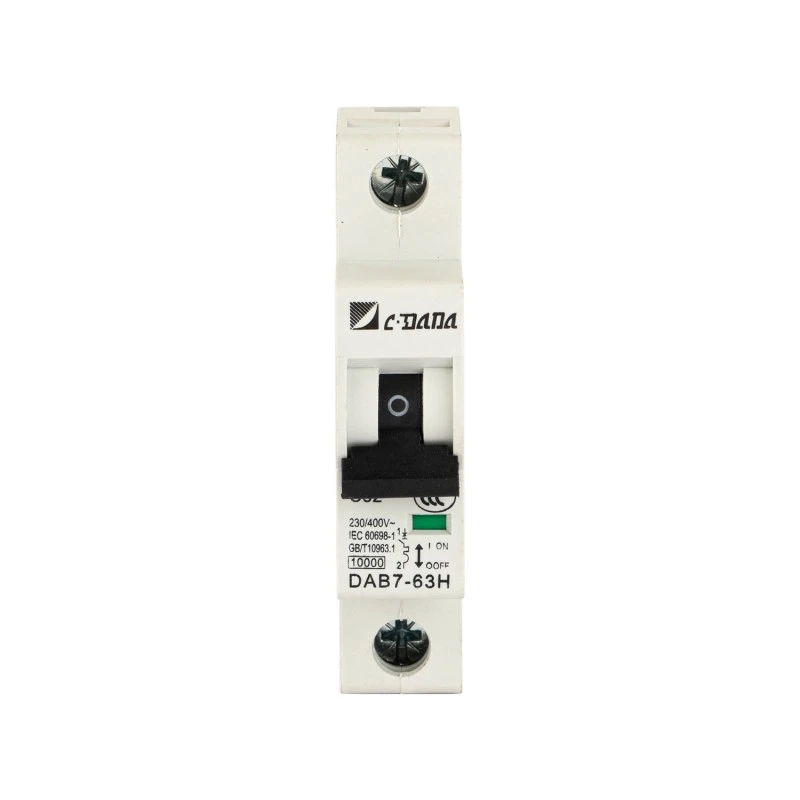

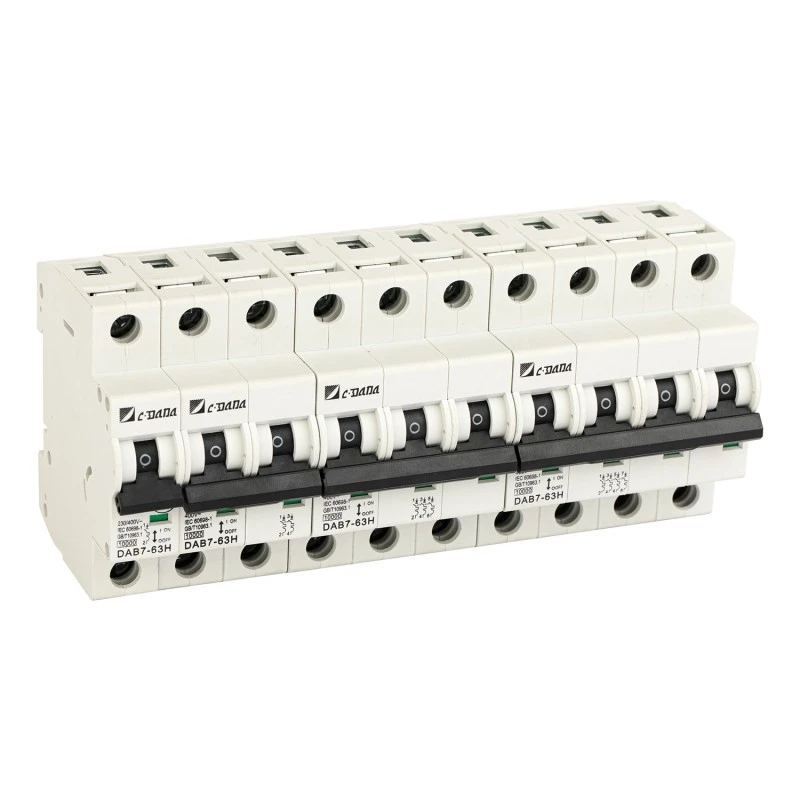

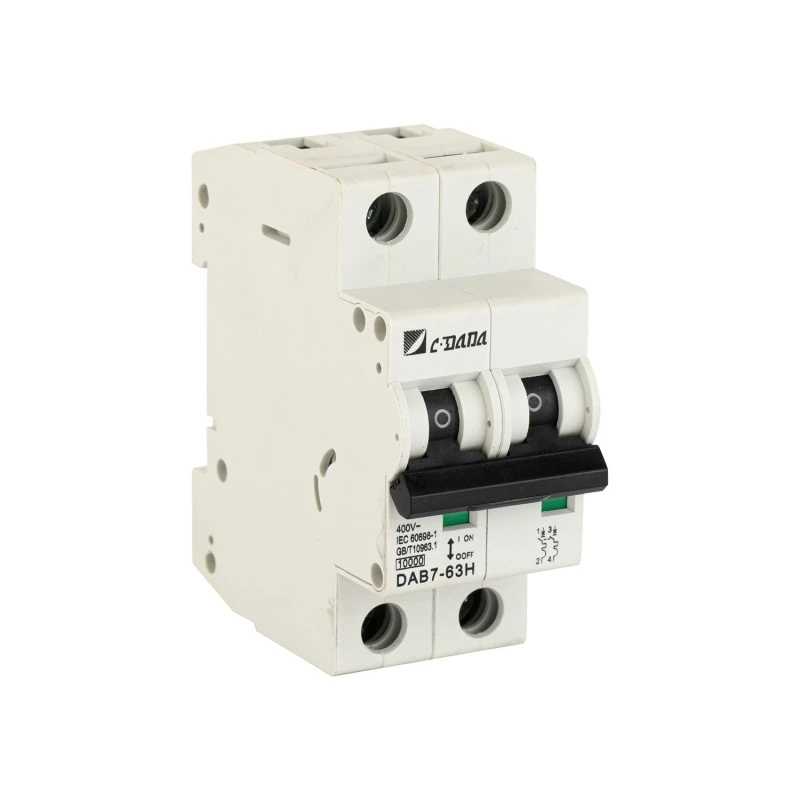

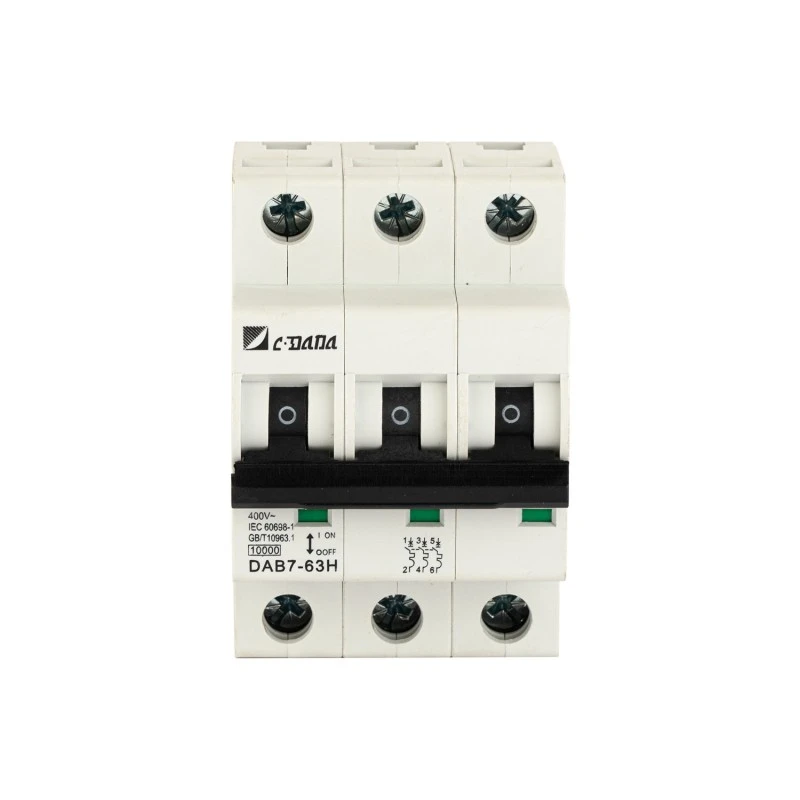

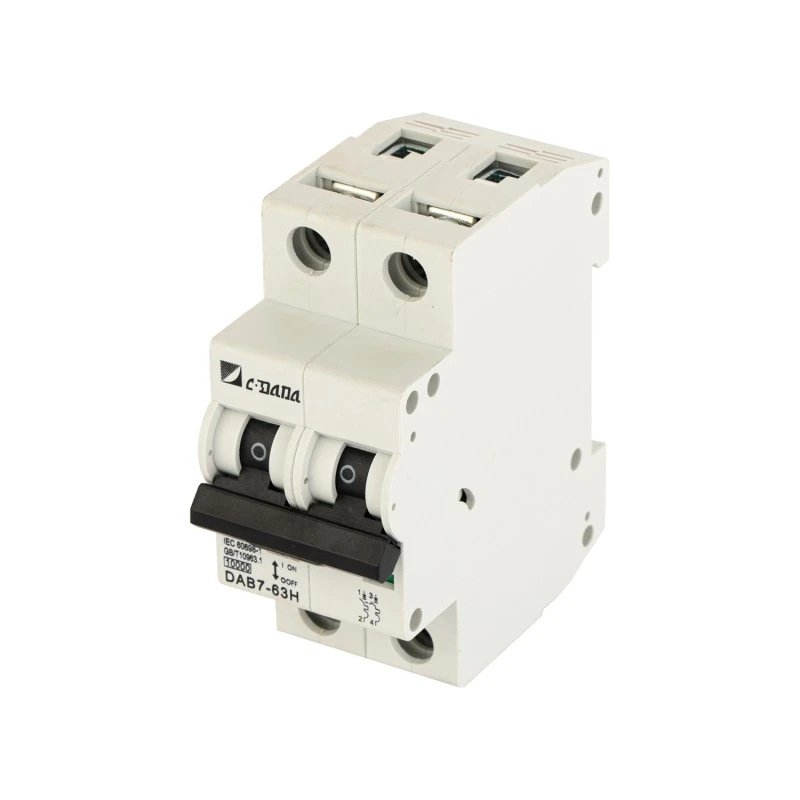

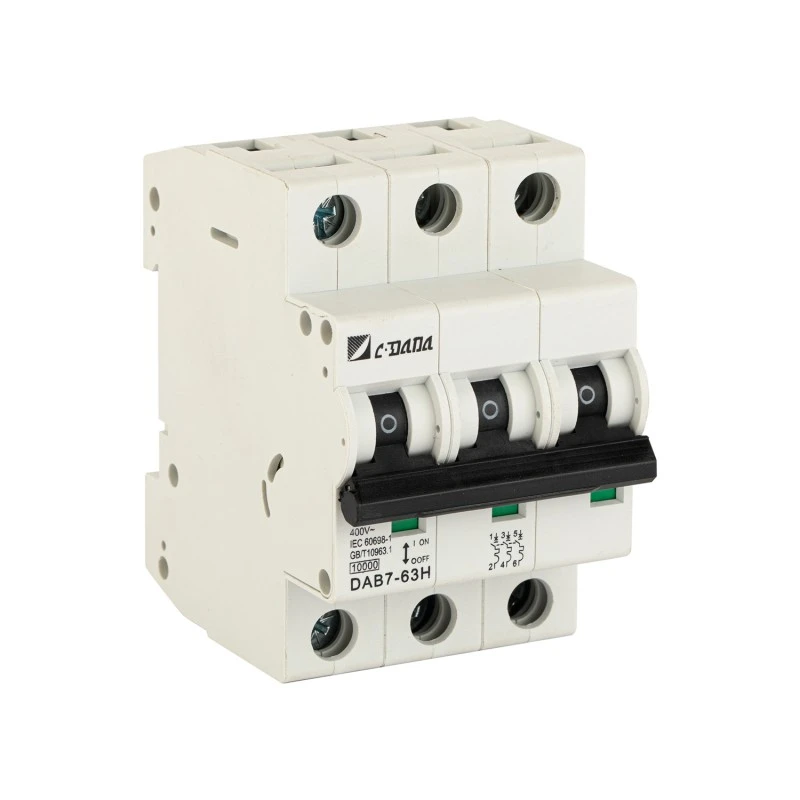

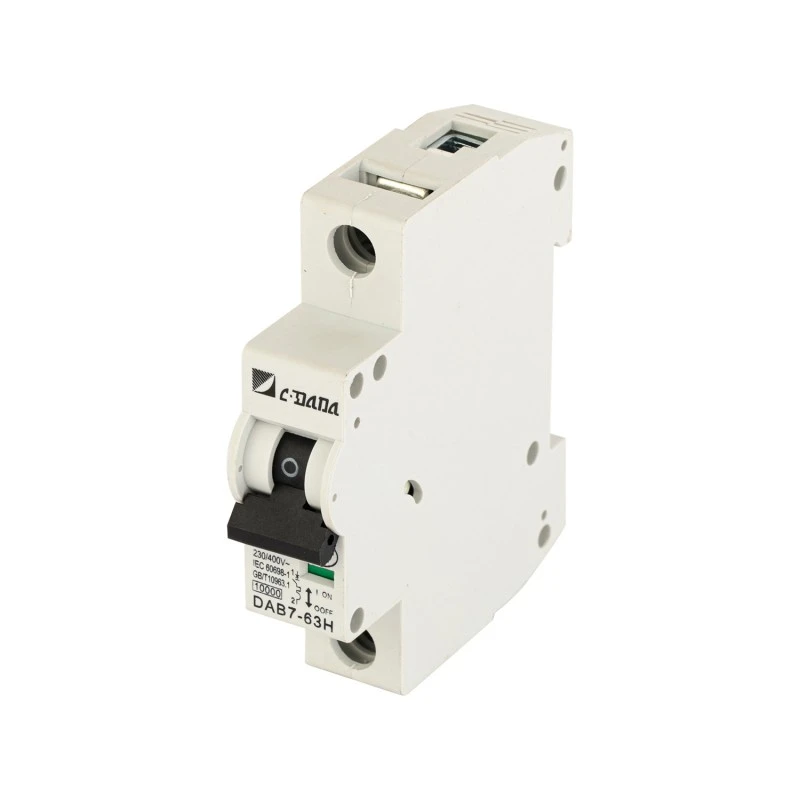

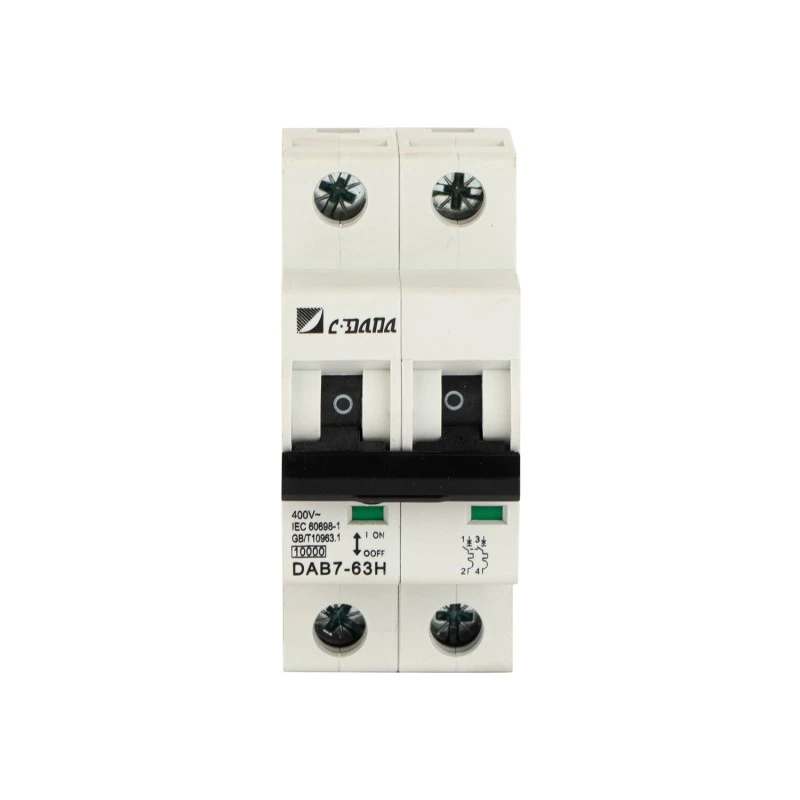

Loj: 1P, 2P, 3P

Rated tam sim no (hauv): 1A, 2A, 3A, 4A, 5A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

Kev khiav hauj lwm kub: -40 ° C rau + 50 ° C

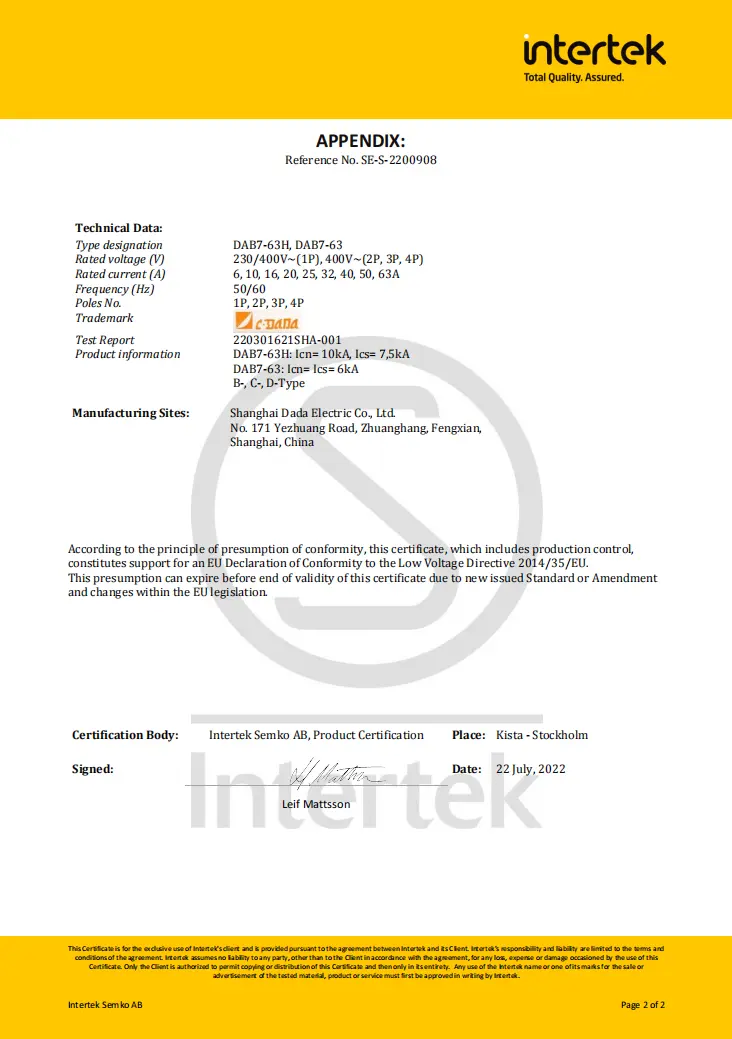

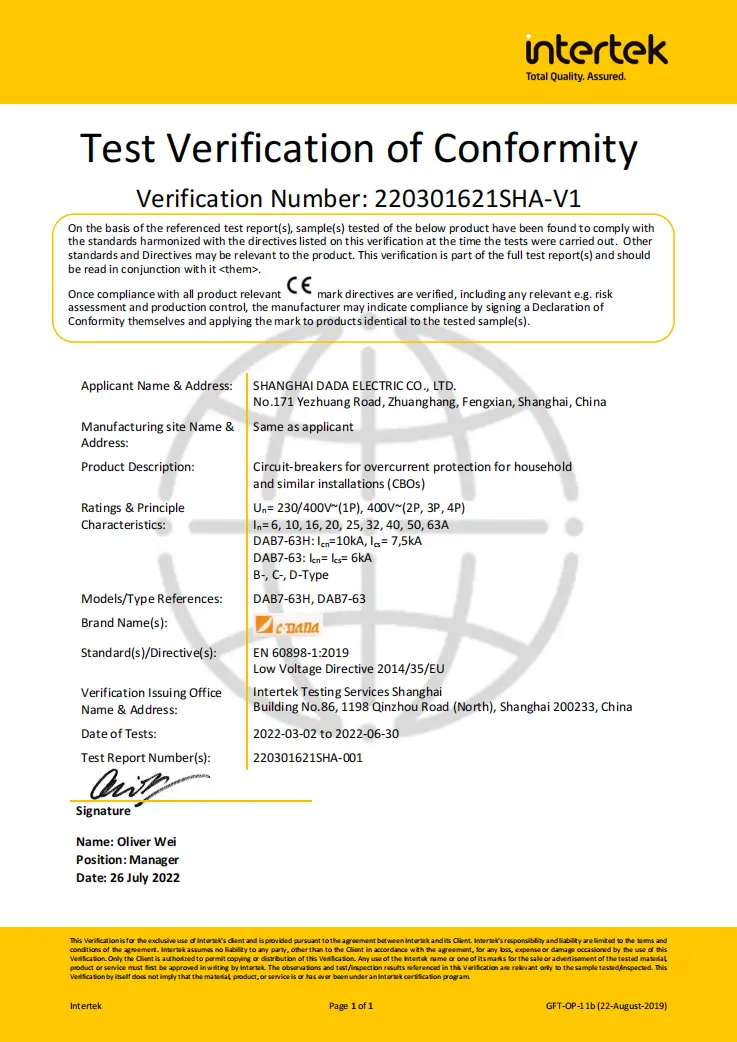

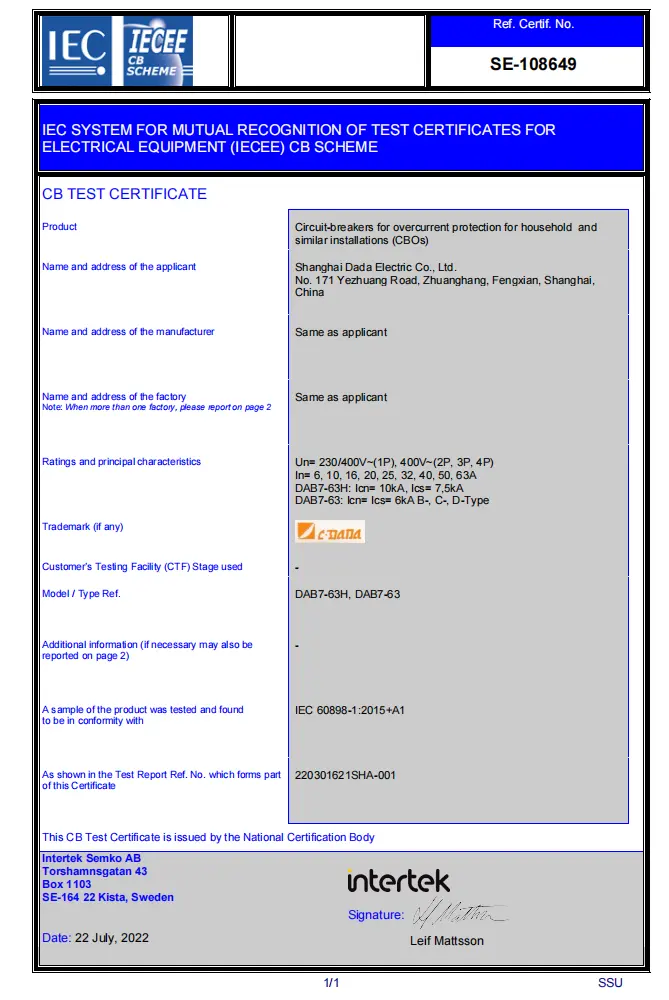

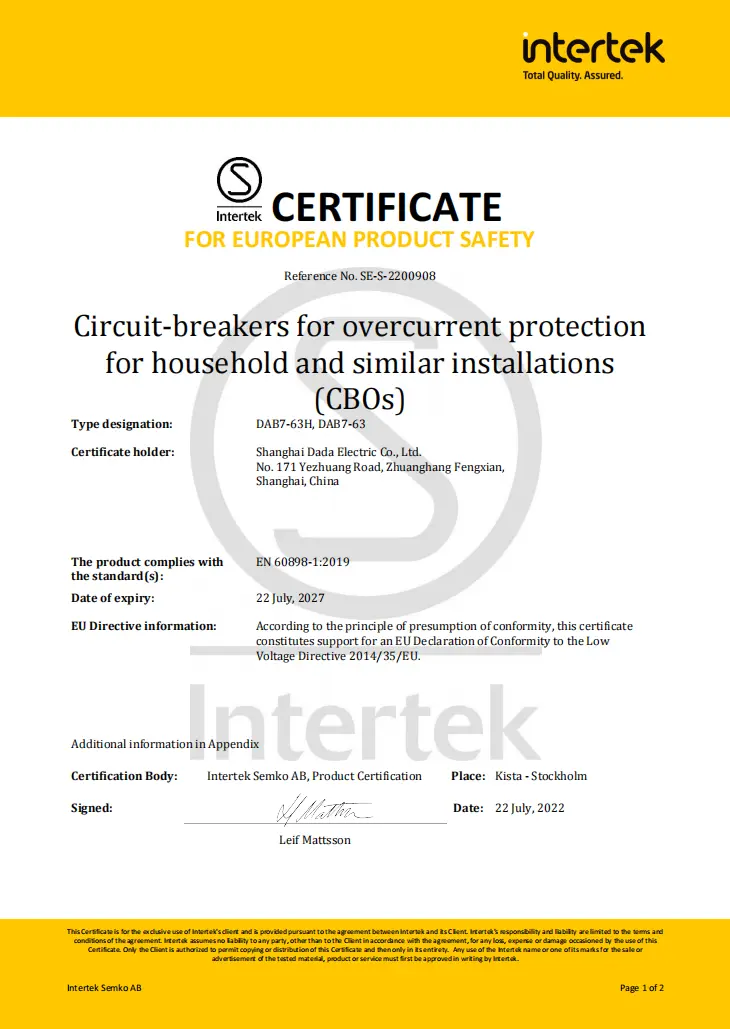

Daim ntawv pov thawj: CE, CB, ASTA, SEMKO

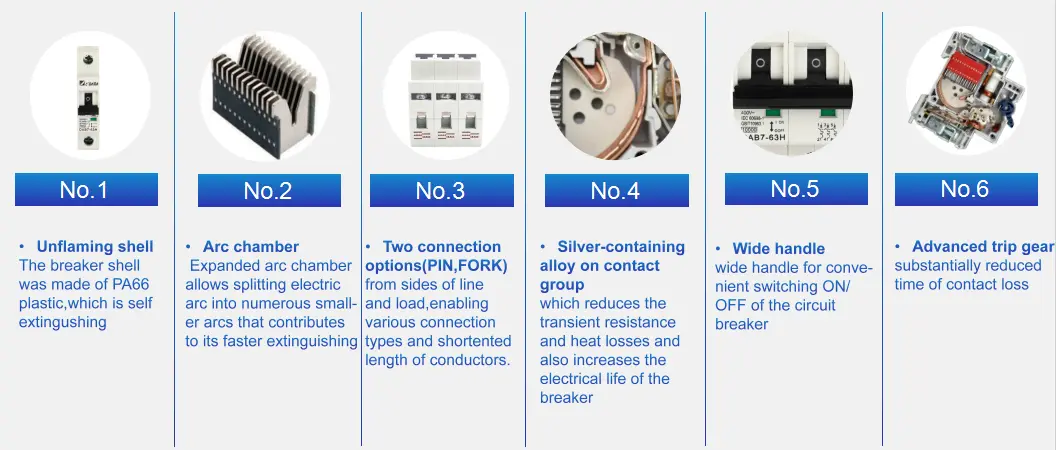

Cov yam ntxwv tseem ceeb tsim:

13-phaj arc chamber → ultra-ceev arc splitting & extinction

Silver-alloy hu → qis kuj, lub neej ntev

Dual terminal xaiv: PIN lossis FORK (kab & thauj khoom sab)

Visual ON/OFF/trip qhia qhov rais

Dav ergonomic kov rau kev ua haujlwm yooj yim

Flame-retardant, anti-daj vaj tse (UL94 V-0 sib npaug)

Super torque screws (kuaj mus rau 3 Nm) nrog + / - hla lub taub hau

DIN rail latch nrog dual xauv txoj haujlwm → ruaj ntseg mounting

Cov ntaub ntawv Technical

Vim li cas thiaj xaiv CDADA AC MCB 10kA?

★ Industrial-Grade Performance nyob rau hauv daim ntawv me me

Thaum cov txheej txheem MCBs muab 6kA, qhov ntsuas 10kA ntawm DAB7-63H ua rau nws tsim nyog rau cov chaw nyob ze rau cov khoom siv tseem ceeb - xws li cov chav hauv qab daus, cov plag tsev lag luam, lossis cov chaw ua haujlwm teeb pom kev zoo - qhov twg yuav muaj kev txhaum tam sim no siab dua.

★ Txhim khu kev ruaj ntseg & Durability

● Unflaming shell resists ignition thiab discoloration

● Ob chav quenching daim phiaj tiv thaiv cov roj kub ejection

● Kev ncig-dawb mechanism ua kom muaj kev sib txuas txawm tias tuav tuav ON

★ Tus nqi qis dua lub neej

Silver-alloy contacts thiab optimized terminals txo thermal poob thiab kev sib cuag vuam, ncua kev pab cuam lub neej - tshwj xeeb tshaj yog nyob rau hauv high-cycle daim ntaub ntawv.

★ Kev lees txais thoob ntiaj teb

Nrog ASTA (UK), SEMKO (Nordic), CE (EU), thiab CB (ntiaj teb), CDADA MCBs tau txais nyob rau hauv ntau tshaj 70 lub teb chaws - zoo tagnrho rau export-oriented vaj huam sib luag builders.

★ Installer-Friendly Tsim

★ Dav kov = ua haujlwm yooj yim dua

★ Cross-functional screws = tsis muaj kev poob qis

★ Qhov rai qhov xwm txheej ntshiab = kev kuaj pom pom sai

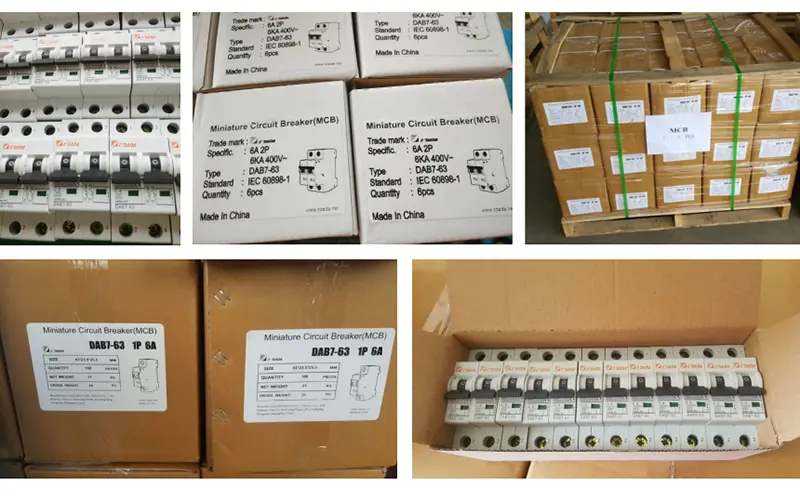

★ High-strength cartons, pallet tiv thaiv, zoo rau kev thauj mus los ntev

★ Lub sijhawm xa khoom sai rau kev txiav txim siab.

Ideal Applications

Commercial Buildings: Pem teb faib vaj huam sib luag, chav server, khw muag khoom

Lub teeb kev lag luam: Tshuab tswj circuits, me me motor feeders, rhiav sockets

Pej xeem Infrastructure: Tsev kawm ntawv, tsev kho mob, tsoom fwv chaw ua hauj lwm

High-Density Residential: Chav tsev blocks nrog centralized metering

Export Panels: Rau cov haujlwm uas xav tau ntawv pov thawj thoob ntiaj teb

Cov lus nug nquag

Q1: Qhov txawv ntawm 6kA thiab 10kA MCBs yog dab tsi?

A1: 10kA MCBs tuaj yeem cuam tshuam kev cuam tshuam ntau dua qhov txhaum tam sim no-ua rau lawv tsim nyog rau kev teeb tsa los ze zog rau lub tshuab hloov pauv lossis cov neeg tau txais txiaj ntsig tseem ceeb, qhov twg luv-circuit ntau tshaj 6kA. Siv 10kA hauv kev lag luam / kev lag luam sub-panels; 6kA feem ntau yog txaus rau qhov kawg circuits hauv tsev.

Q2: Puas yog 10KA AC Miniature Circuit Breaker muaj nyob rau hauv 3P rau peb-theem systems?

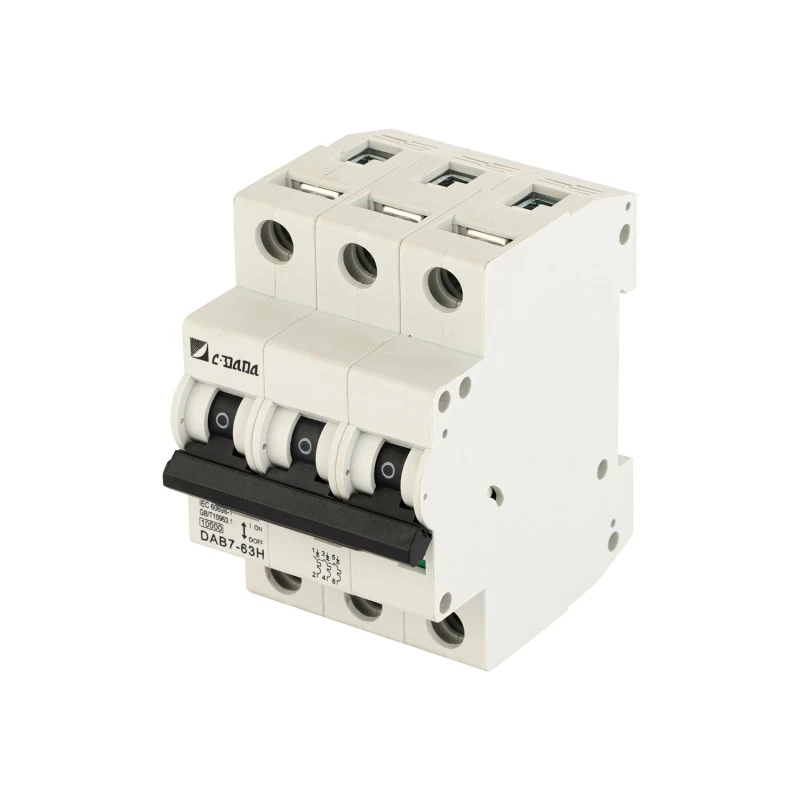

A2: Yog! Lub DAB7-63H muaj nyob rau hauv 1P, 2P, thiab 3P-zoo meej rau peb-theem teeb pom kev zoo, HVAC, lossis cov tshuab hluav taws xob.

Q3: Dab tsi yog "nyiaj-muaj alloy ntawm kev sib cuag" txhais li cas rau kev ua haujlwm?

A3: Nws txo qis kev tiv thaiv kev tiv thaiv, txo qis arcing thaum hloov pauv, thiab txuas ntxiv hluav taws xob lub neej-tshwj xeeb yog qhov tseem ceeb hauv circuits nrog kev ua haujlwm nquag lossis inductive loads.

Q4: Kuv puas tuaj yeem siv rab rawg-hom txuas nrog MCB no?

A4: Yog lawm! Nws txhawb nqa ob tus PIN thiab FORK terminals ntawm kab thiab thauj khoom sab-ua kom yooj yim, tsis tshua muaj kab hluav taws xob thiab luv dua cable khiav.

Q5: Vim li cas thiaj xaiv CDADA dua lwm hom 10kA MCB?

A5: CDADA sawv tawm vim:

● Muaj tseeb 10kA ntsuam xyuas nrog tag nrho cov ntawv pov thawj (tsis yog thov xwb)

● Advanced arc chamber (13 daim hlau) rau kev cuam tshuam zoo dua

● Cov kev xaiv dual lub davhlau ya nyob twg tsis tshua pom muaj nyob hauv chav kawm no

● -40 ° C rau + 50 ° C ua haujlwm - dav dua li ntau tus neeg sib tw

● OEM-npaj: zoo ib yam, kev txhawb nqa lus Askiv, bulk pricing
