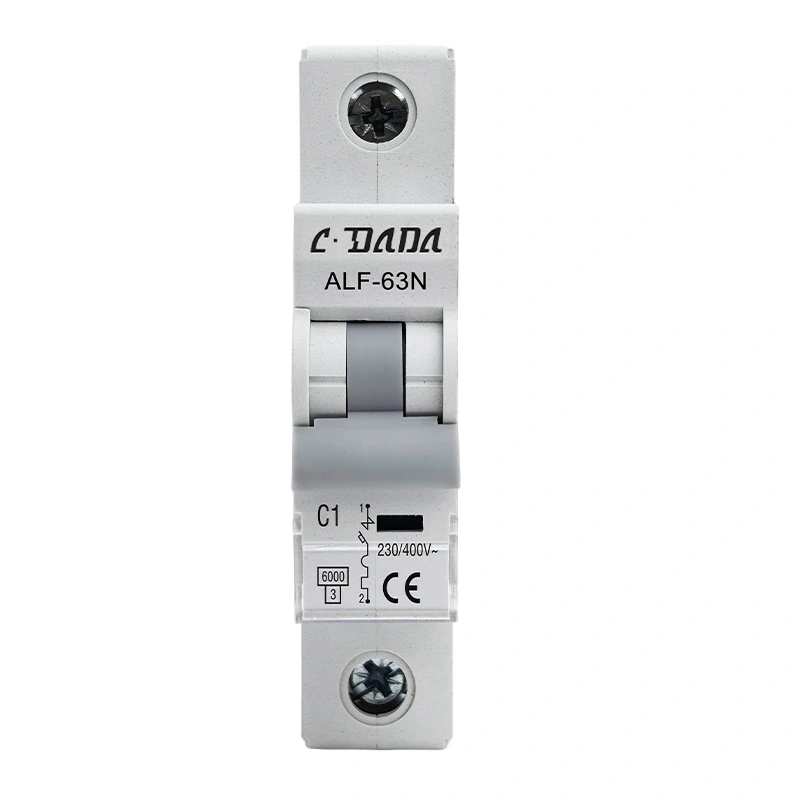

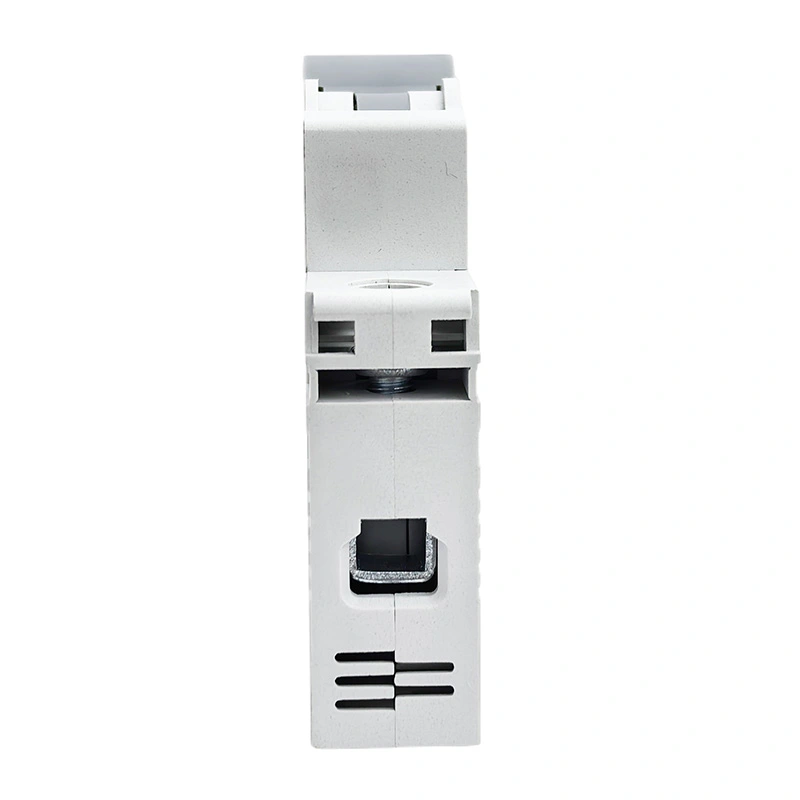

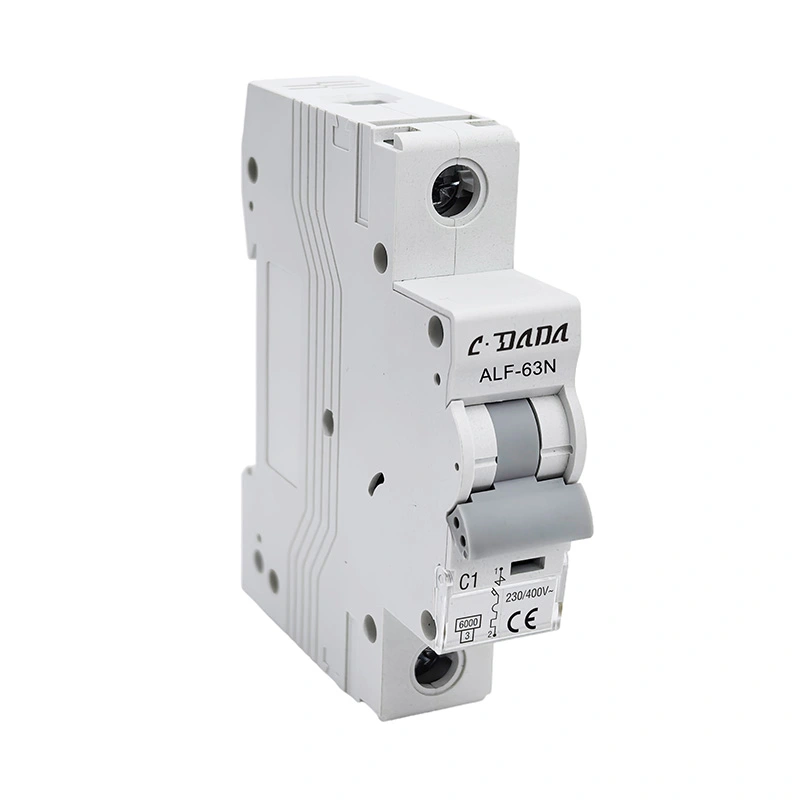

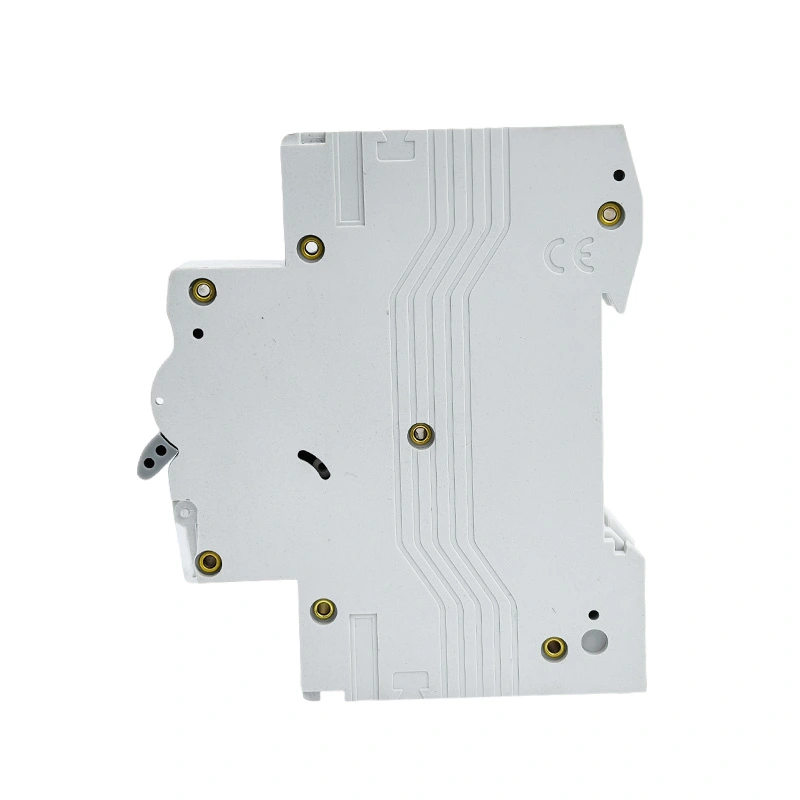

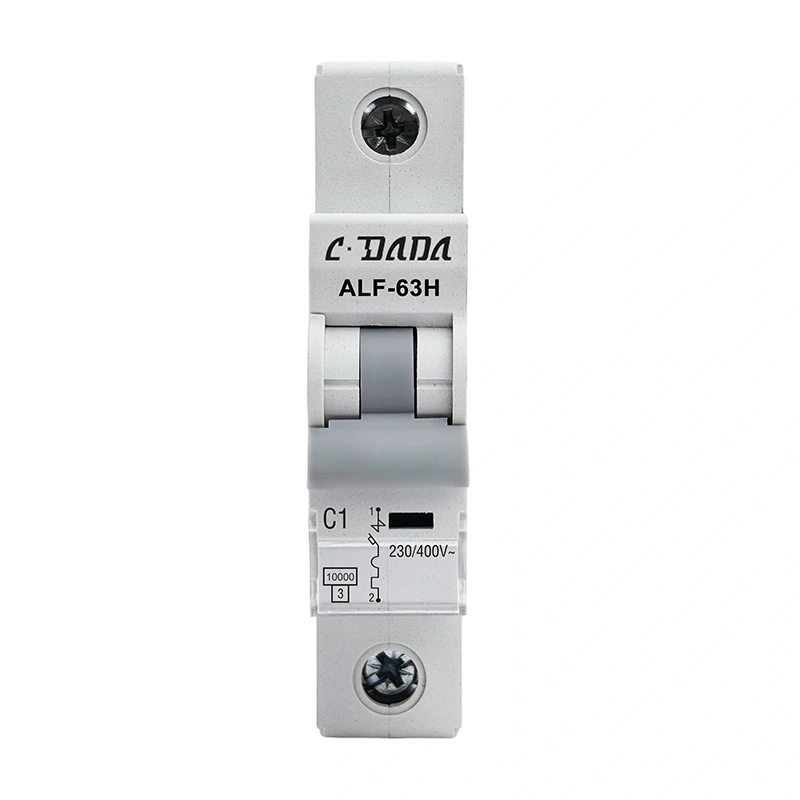

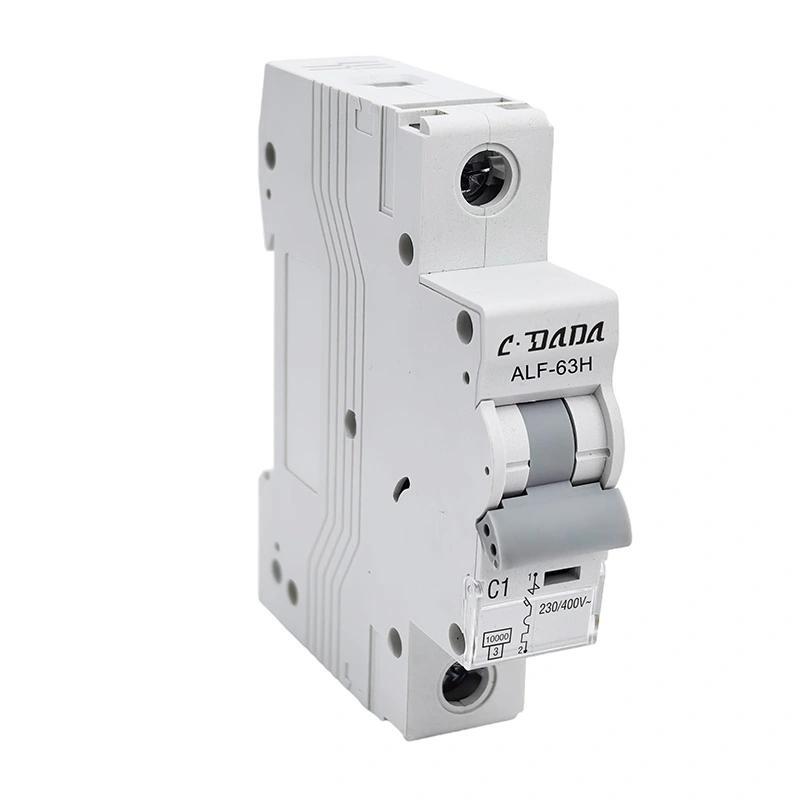

6KA 10kA Miniature Circuit Breaker

ALF-63N / H series siab tawg 6KA 10kA Miniature Circuit Breaker (MCB), ua raws li tus qauv IEC60898, MCB muaj cov yam ntxwv ntawm kev ua tau zoo, kev tiv thaiv muaj nuj nqi, lub sijhawm luv luv, thiab muaj peev xwm tawg siab, ntim me me thiab. Nws yog dav siv nyob rau hauv thiab overload ntawm contactors, switchgear, thiab hluav taws xob apparatus.

Hu rau CDADA thiab xaiv peb ua koj lub chaw tsim khoom, peb tuaj yeem muab kev pabcuam OEM / ODM.

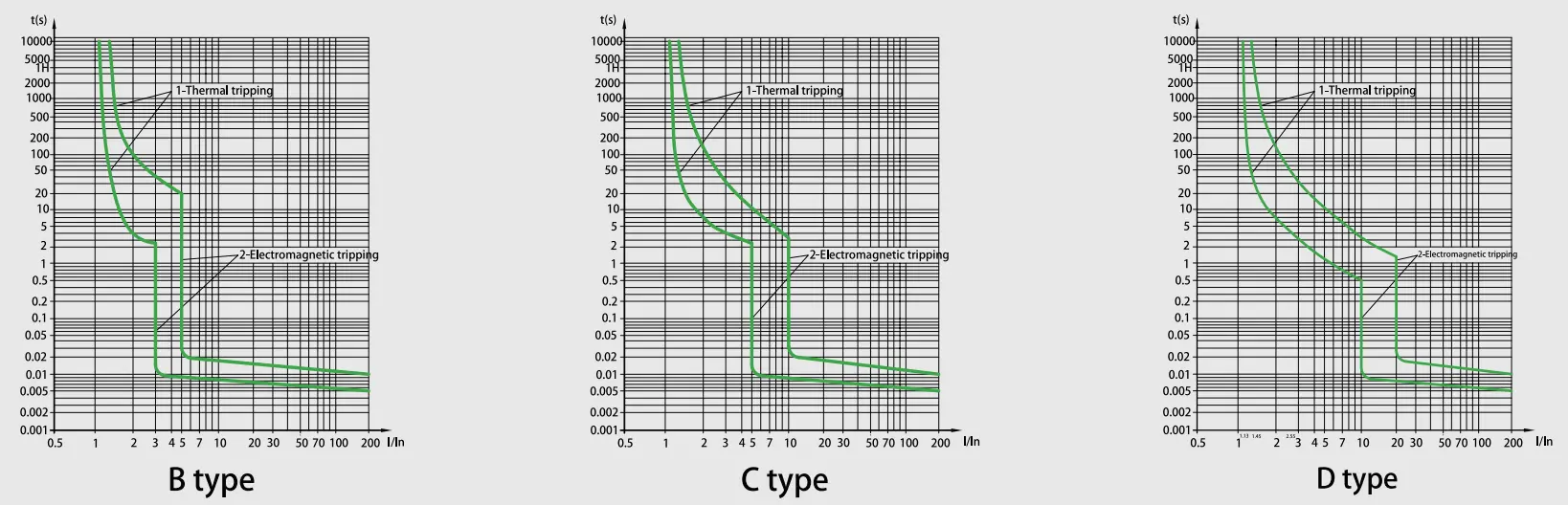

Yam ntxwv Curve

Technical Specification

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Txuj	TS EN / IEC 60898-1
Lub peev xwm tawg (kA)	6,10 ib
Kev tiv thaiv	Tawm tsam overload thiab luv luv Circuit Court
Rated tam sim no (A) Hauv	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Rated voltage (V)	1 PAC 230/400, 240/415
	1P + N, 2P, 3P, 3P + N, 4PAC400/415
Rated impulse withstand voltage Uimp (kV)	4
Rated rwb thaiv tsev voltage Ui (V)	500
Zog limiting cass	3
Ambient kub (℃)	-25 ~ + 40, Max.95% av noo
Thermal kev khiav hauj lwm txwv	1.13xln Tsis muaj tripping hauv ib teev
	1.45xIn Tripping hauv ib teev
Magnertic kev ua haujlwm	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Tus naj npawb ntawm tus ncej	1P, 1P + N, 2P, 3P, 3P + N thiab 4P
Hom kev mus ncig	Thermal / magnetic tso tawm
Terminal muaj peev xwm	16mm² hloov tau los yog 25mm² nruj mus txog 25A kev ntsuas
	25mm² hloov tau los yog 35mm²rigid los ntawm 32A txog 63A kev ntsuas
Kev tiv thaiv qib	IP20
Kev teeb tsa	Mounting ntawm 35mm DIN rail
Dav	17.8mm rau tus ncej

Circuit Breaker tso tus yam ntxwv

TSIS MUAJ.	Rated tam sim no ntawm kev tso tawm (A)	Thawj lub xeev	Kuaj tam sim no	Lub sijhawm tshwj xeeb	Cov txiaj ntsig yuav tau txais	Lus hais
1	1-63	lub xeev txias	1.13 Ib	t≤1h	Tsis mus ncig
2	1-63	raws li qhov kev xeem dhau los	1,45l ua	t <1h	taug kev	Teem caij tam sim no mus rau qhov teev tseg tsis tu ncua hauv 5s
3	Hauv ≤32	lub xeev txias	2.55 Ib	1s	taug kev
	Hauv> 32
4	1-63	lub xeev txias	3 Hauv	t≤0.1s	Tsis mus ncig	B hom
			5 Hauv	t <0.1s	taug kev	B hom
			5ln10 ua	t≤0.1s	Tsis mus ncig	C hom
			10 Ib	t <0.1s	taug kev	C hom
			20 ln	t≤0.1s	Tsis mus ncig	D hom
				t <0.1s	taug kev	D hom

Endurance (kev ua haujlwm)

Qeb	Lub voj voog ua haujlwm	Ua haujlwm zaus	Rated tam sim no
Hluav taws xob endurance	4000	240/h	1-32
		120/h	40-63 : kuv
Mechanical endurance	10000	240/h	1-63

Nta

★ Ultra-High Short-Circuit Breaking Peev Xwm

Advanced arc tswj thev naus laus zis ua kom muaj peev xwm cuam tshuam ntau dua piv rau cov qauv kev lag luam, ua kom muaj kev tiv thaiv kev ruaj ntseg rau kev lag luam qib hluav taws xob hauv cov xwm txheej tsis zoo.

★ Dual-Mode Connection Interface

Integrated hybrid davhlau ya nyob twg tsim txhawb nqa ob qho tib si nruj busbar docking thiab saj zawg zog cable clamping, ua kom cov cuab yeej tsis pub hloov mus rau ntau yam teeb meem kev teeb tsa thaum txo cov sij hawm xaim los ntawm 40%.

★ Lub Zog-Storage Mechanism rau Lub Neej Ntev

Lub caij nplooj ntoos hlav-pab kev khiav hauj lwm nrog 10,000 txhua yam cycles endurance, featuring hnav-compensation technology

★ Advanced Composite Enclosure

nrog rau lub koob meej-retarcant, tshav kub-resistant, thiab impulse-pov thawj cov khoom sib xyaw arc-quenching chambers rau cov xwm txheej txhaum cai.

★ Dynamic Current-Limiting Topology

Kev txawj ntse cia-los ntawm lub zog tiv thaiv txo qis qhov ua txhaum tam sim no los ntawm 65-80%, ua kom cov khoom siv qis qis kom zoo nrog 30% tag nrho cov nqi txo cov peev txheej.

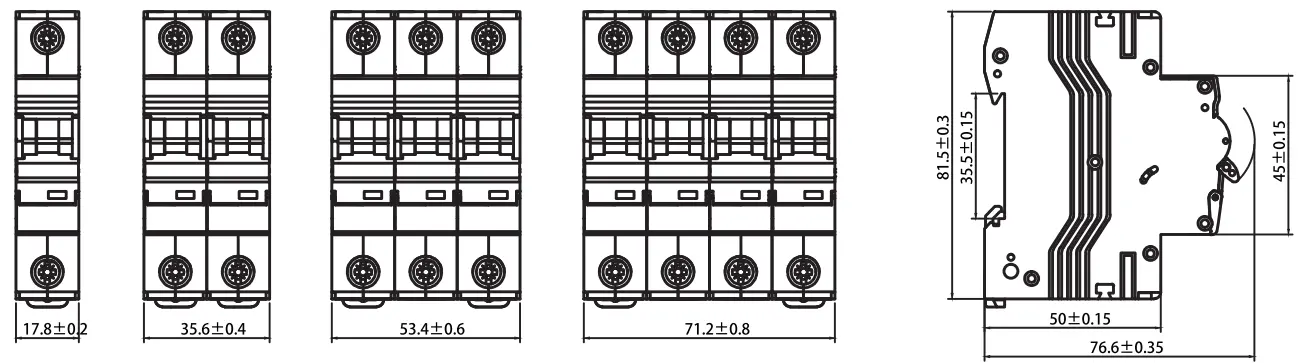

Qhia qhov ntev

Daim ntawv thov Scenario

★ Qhov Chaw Nyob: Cov neeg siv khoom siv thiab cov khoom faib khoom siv rau kev nyab xeeb hauv tsev.

★ Muaj: Kev tiv thaiv cov contactors, switchgear, thiab hnyav hluav taws xob apparatus.

★ Kev Lag Luam: Cov tsev ua haujlwm thiab cov khw muag khoom yuav tsum muaj kev ntseeg siab heev.

Kev Tswj Xyuas Zoo & Kev Xeem Txuj Ci

★ Txhua CDADA MCB tau kuaj xyuas nruj kom ua raws li IEC60898-1:

★ Thermal Tripping Test: Txheeb xyuas ntawm 1.13In (tsis yog mus txawv tebchaws) thiab 1.45In (mus ncig hauv 1 teev).

★ Magnetic Tripping Test: Precise release testing for B, C, thiab D yam ntxwv.

★ Hluav Taws Xob Endurance: Kev sim rau 4,000 lub sijhawm ua haujlwm.

★ Mechanical Endurance: Txheeb xyuas rau 10,000 cycles.

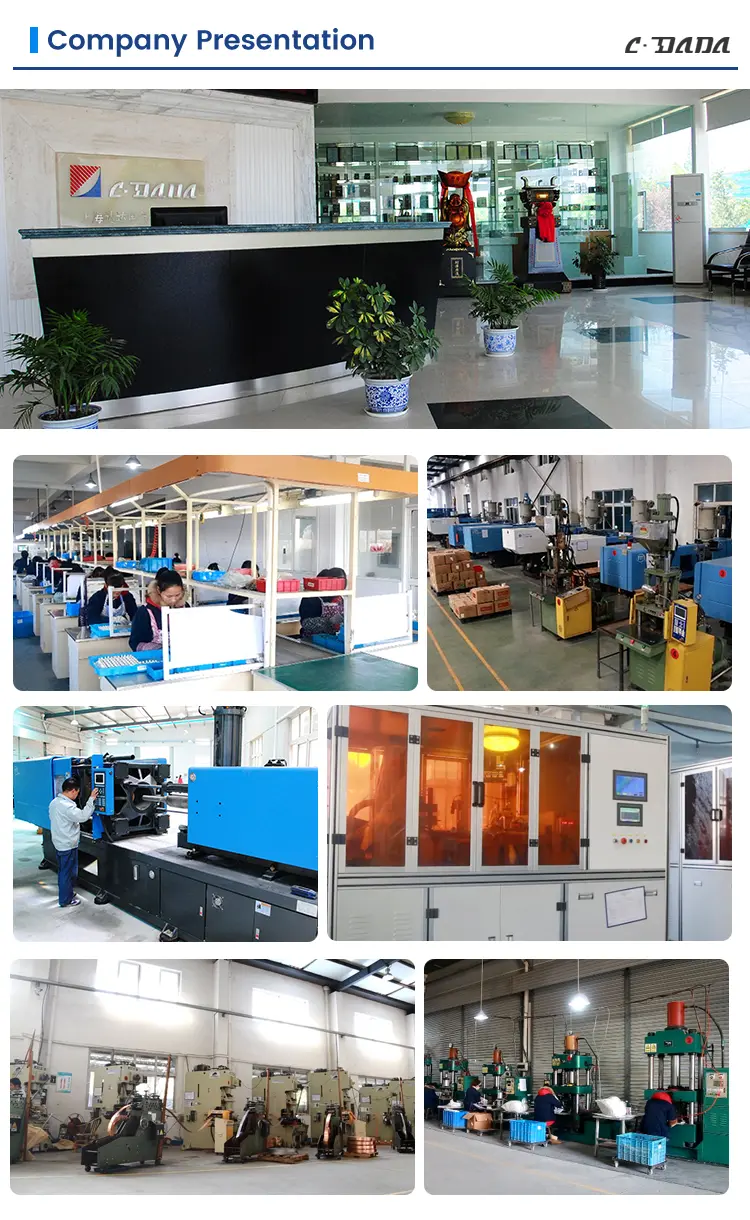

Lub Hoobkas muaj zog & kev txhawb nqa

Shanghai DADA Electric Co., Ltd. yog lub chaw tsim khoom nrog cov kab ntau lawm thiab pab pawg kws tshaj lij engineering. Peb muab:

★ Customized OEM / ODM kev pabcuam rau cov khoom lag luam thoob ntiaj teb.

★ Cov cuab yeej kuaj xyuas lub xeev-ntawm-tus-kos duab kom ntseeg tau tias qhov khoom xa tuaj tsis raug.

★ Ntiaj teb no Logistics Support: Optimized ntim rau hiav txwv thiab huab cua freight los xyuas kom meej cov khoom tuaj nyob rau hauv zoo meej mob.
