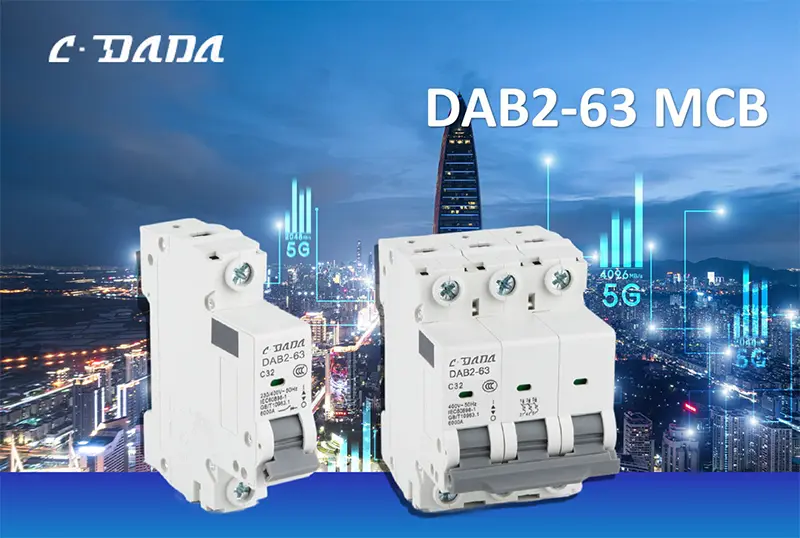

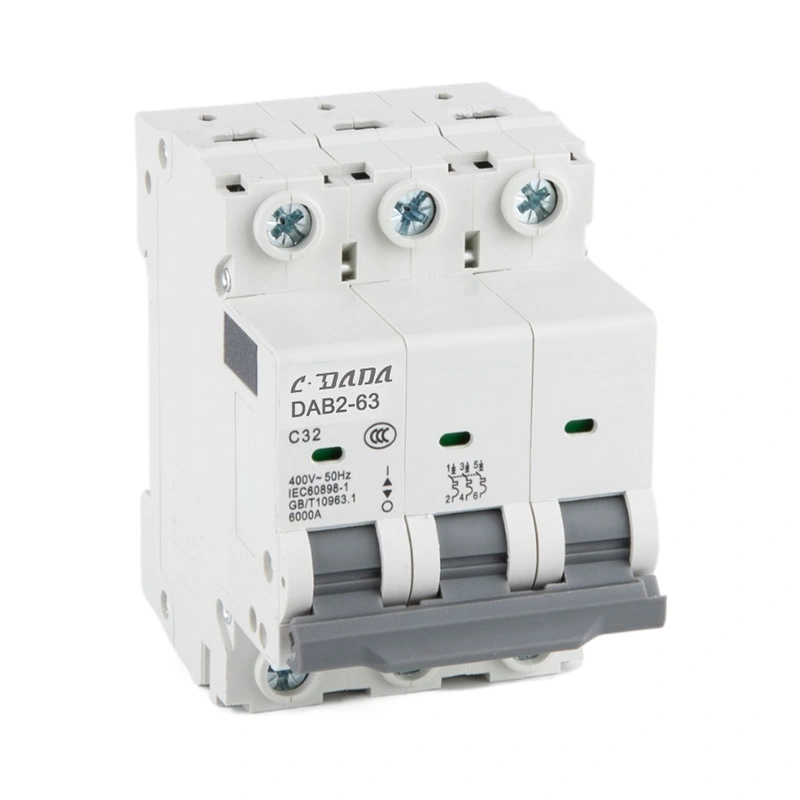

3 Theem MCB Breaker
Model:DAB2-63
Xaiv CDADA raws li koj qhov chaw tsim khoom thiab tus neeg muag khoom, thiab tau txais peb 3 Theem MCB Breaker, CE CB CCC tau ntawv pov thawj nrog 6kA tawg peev xwm rau kev lag luam thiab kev lag luam fais fab. Cov khoom no siv cov nplaim hluav taws kub hnyiab thiab cov thermal-magnetic tripping, yog ib qho yooj yim rau mount rau DIN rail thiab yooj yim los tswj. Nws ua ke nrog kev ua haujlwm ruaj khov nrog lub neej ntev ntawm kev siv tshuab thiab hluav taws xob, ua kom muaj kev ruaj ntseg tiv thaiv hluav taws xob rau peb-theem fais fab.
CDADA DAB2-63 3 Theem MCB Breaker yog lub tshuab hluav taws xob zoo me me uas tsim los rau peb-theem AC fais fab faib tshuab. Nws muab tag nrho overload thiab luv-circuit tiv thaiv, nrog B / C / D tripping curves kom phim cov loads sib txawv.
Ua los ntawm cov khoom siv hluav taws xob tsis zoo thiab cov khoom siv meej, qhov 3-theem MCB no tau siv dav hauv cov khoom siv hluav taws xob, cov khoom siv hauv tsev, thiab lub tsev hluav taws xob.
Qhov Zoo Tshaj Plaws
★ 3-theem compact tsim, haum rau cov qauv faib cov thawv
★ 6kA muaj peev xwm tawg tau zoo rau kev tiv thaiv luv luv
★ Visual indication window: liab ON / ntsuab OFF kom meej meej
★ Kev tuav dav rau kev ua haujlwm ruaj khov thiab kev sib txuas ruaj ntseg
★ Notched davhlau ya nyob twg clamps kom txo tau cov cua sov thiab txhim khu kev ruaj ntseg
★ Ob-locking DIN rail clip rau ceev, ruaj khov
★ nplaim-retardant plhaub, kub kub kuj
★ 100% tag nrho lub Hoobkas kuaj ua ntej ua zaub mov xa tuaj
Daim ntawv thov
★ CDADA 3 Theem MCB Breaker yog dav siv hauv:
★ Cov vaj tse nyob, kev lag luam thiab pej xeem lub tsev faib vaj huam sib luag
★ Kev cob qhia kev lag luam, cov chaw tsim khoom, thiab cov khoom siv hluav taws xob me me
★ Ntxuam, compressors, twj, hoisting machinery
★ Lub teeb pom kev zoo, lub qhov hluav taws xob, thiab peb-theem lub cev muaj zog circuits
★ Infrastructure, daim phiaj hluav taws xob, thiab cov phiaj xwm hluav taws xob
Technical Parameters
|
Yam khoom |
Specification |
|
Qauv |

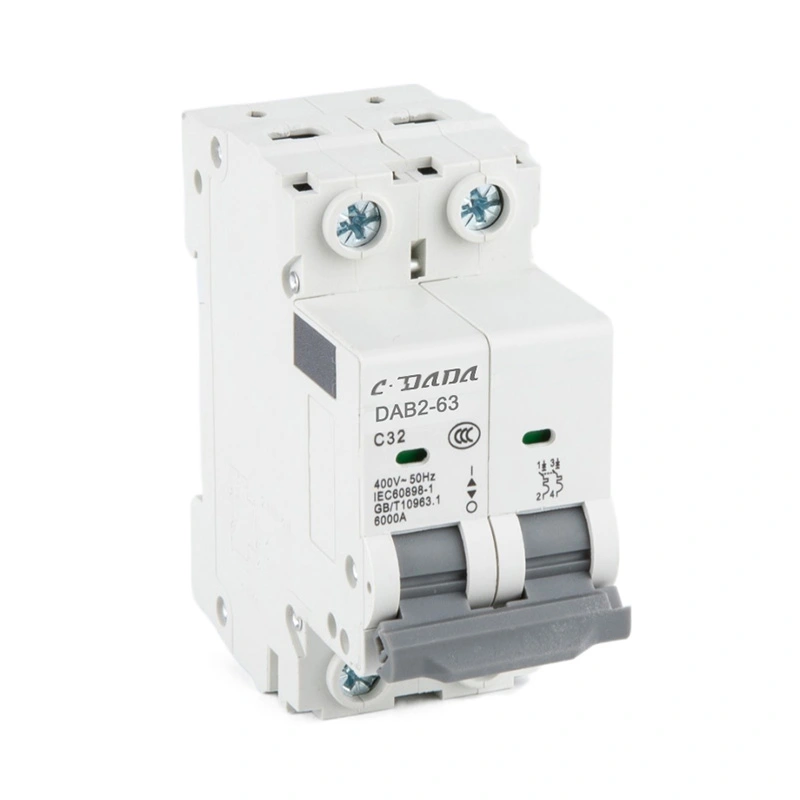

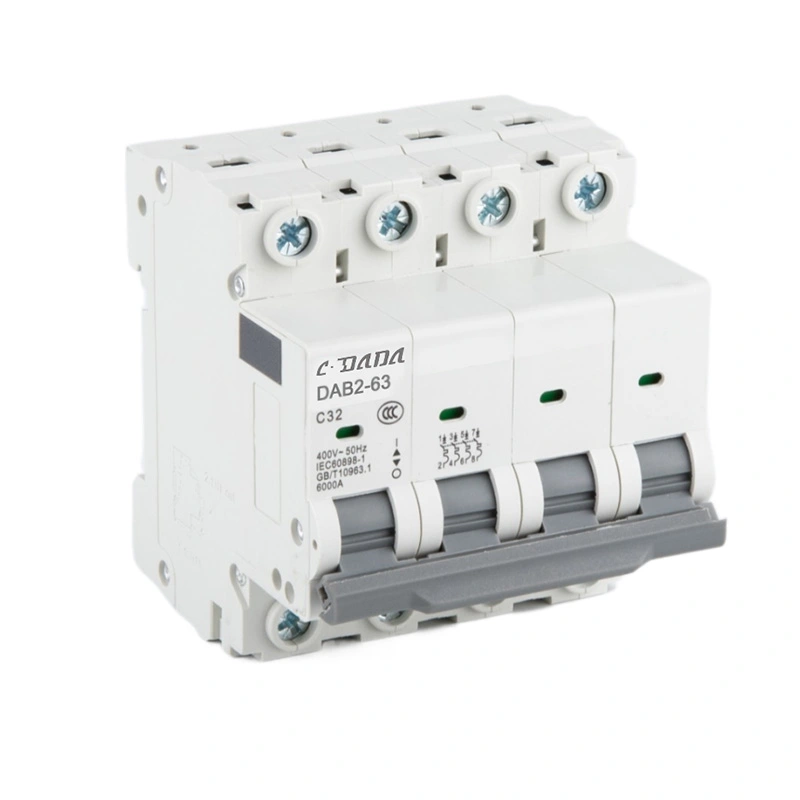

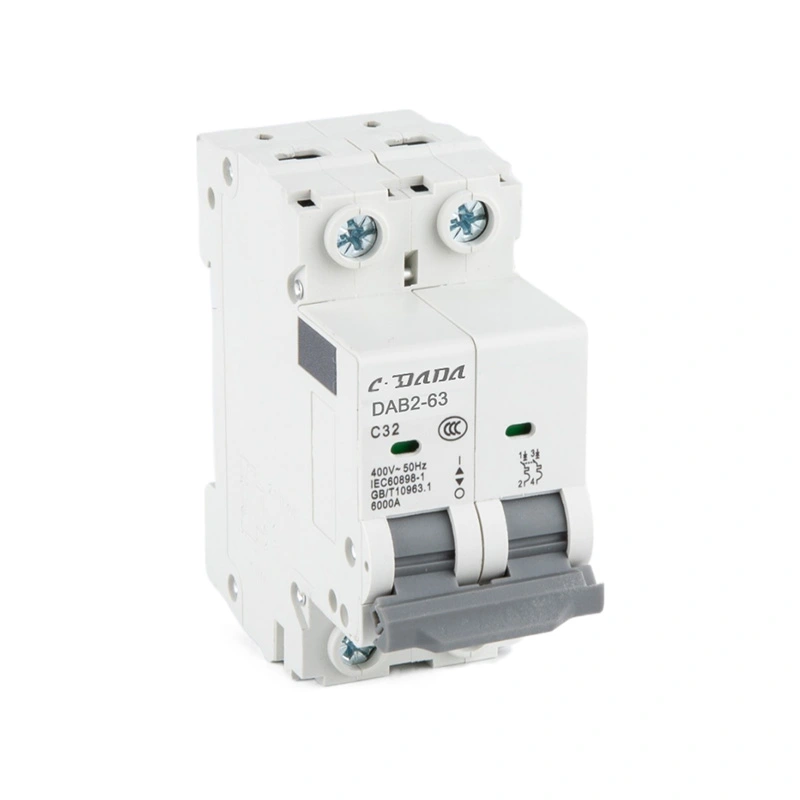

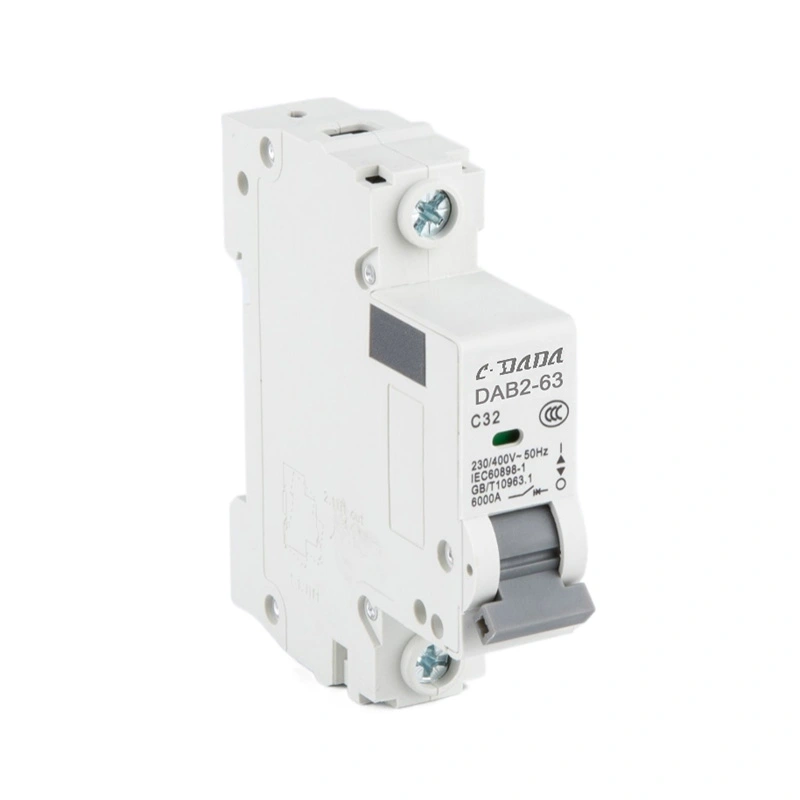

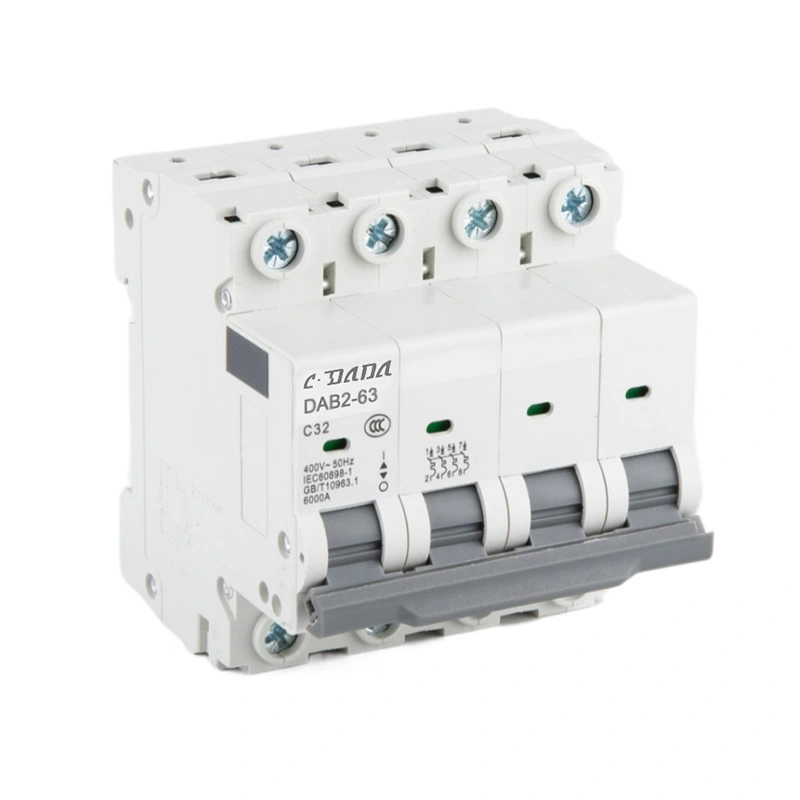

DAB 2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Txuj |
IEC 60898-1, GB10963.1 |
|
Daim ntawv pov thawj |
CE, CB, CCC, ASTA |
|
Txhaum Muaj Peev Xwm |
4,5kA 6 |
|
Rated Tam sim no |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B(3-5In), C(5-10In), D(10-20In) |
|
Rated Voltage |
400/415V AC |
|
Rwb thaiv tsev Voltage |
500V AC ua |
|
Impulse voltage |
4kv ua |
|
Kev tiv thaiv qib |
IP20 |
|
Kev teeb tsa |
35 hli DIN rail |
|
Neeg kho tshuab lub neej |
20,000 cycles |
|
Hluav taws xob lub neej |
10,000 cycles |
|
Flame Class |
UL94V 0 |
|
Ambient Temp |
-25 ℃ ~ + 45 ℃ |
|
Cov kab hluav taws xob |
0.75-35mm² khoom / stranded |
Daim ntawv Dimensions
★ Txheem dav: 17.8mm ib tus ncej
★ 3P tag nrho dav: 53.4mm
★ Mounting: 35mm DIN rail (txhua txoj haujlwm)
★ Hluav taws xob torque: 3.5N·m
★ Cov qauv tsim rau cov khoom siv hluav taws xob txheem
Kev Tswj Xyuas Zoo
★ ISO9001 kev tswj xyuas zoo
★ 90% ntawm cov khoom tseem ceeb tsim hauv tsev
★ 100% calibration: 1.13Nyob rau hauv tsis mus ncig, 1.45Nyob rau hauv kev mus ncig
★ Sib nqus tripping test (5In / 10In rau C-kov)
★ Kev ntsuas kub siab thiab qis qis
★ Kev laus thiab cov neeg kho tshuab lub neej pov thawj
Ntim & Shipping
★ Txheem export thawv nrog shockproof hauv ob sab phlu
★ Clear daim ntawv lo: qauv, ncej, tam sim no, kom muaj nuj nqis, ntawv pov thawj
★ Pab pawg lub thawv ntim kom tsis txhob khawb thiab puas
★ Haum rau kev thauj mus los hauv hiav txwv, huab cua, thiab av
★ Txhawb OEM ntim thiab kev cai daim ntawv lo
Cov Neeg Siv Khoom Zoo
★ CDADA 3 Theem MCB Breaker muaj kev koom tes ntev nrog cov neeg siv khoom thoob ntiaj teb:
★ Cov haujlwm hauv tsev & kev lag luam hauv Tebchaws Europe, Southeast Asia, Middle East
★ Lub Hoobkas muaj zog xa tawm hauv Africa, South America, Asia
★ OEM & ODM koom tes nrog cov khoom siv hluav taws xob thoob ntiaj teb
★ Kev xa khoom mus sij hawm ntev rau cov neeg xa khoom thoob ntiaj teb & cov neeg cog lus
★ Siv dav hauv cov phiaj xwm hluav taws xob, kev tsim kho vaj tse, thiab cov khoom siv hluav taws xob
