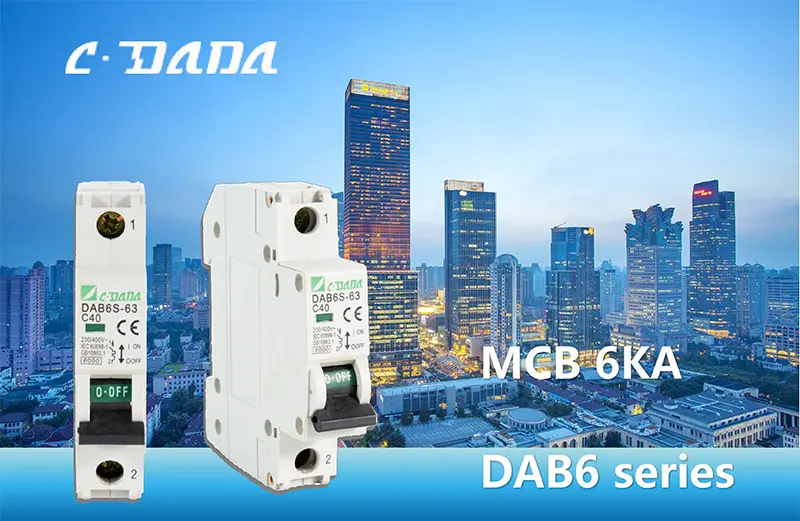

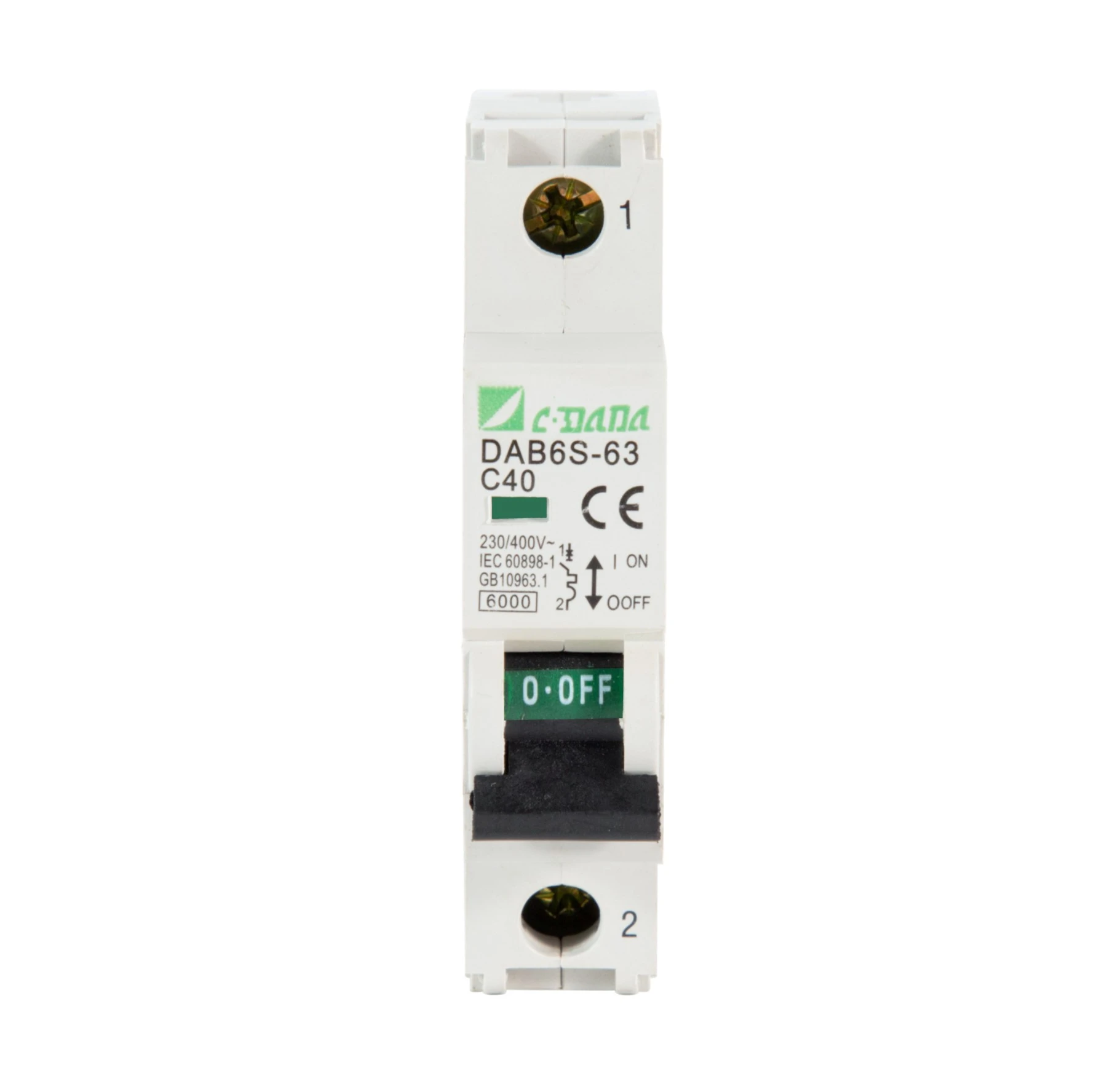

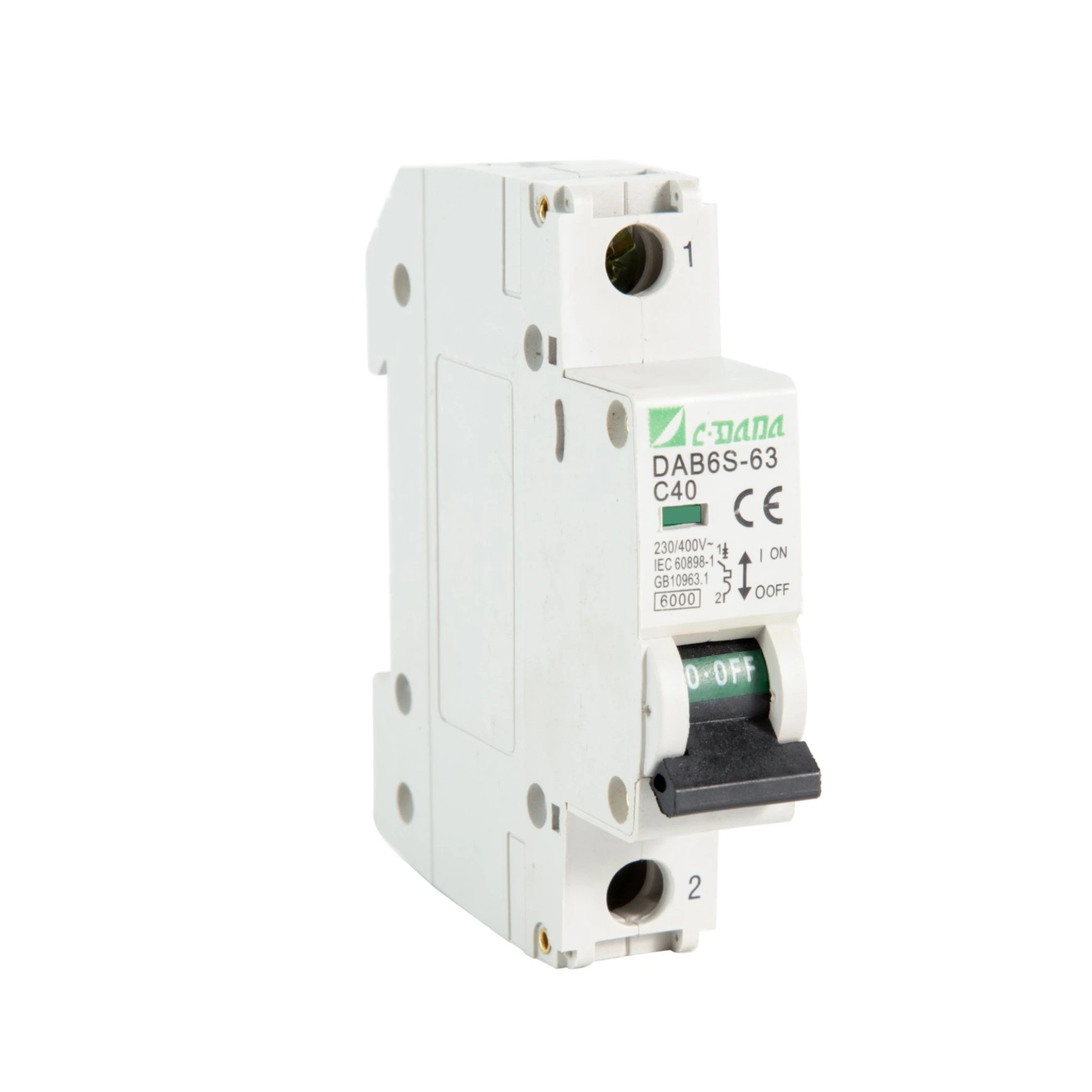

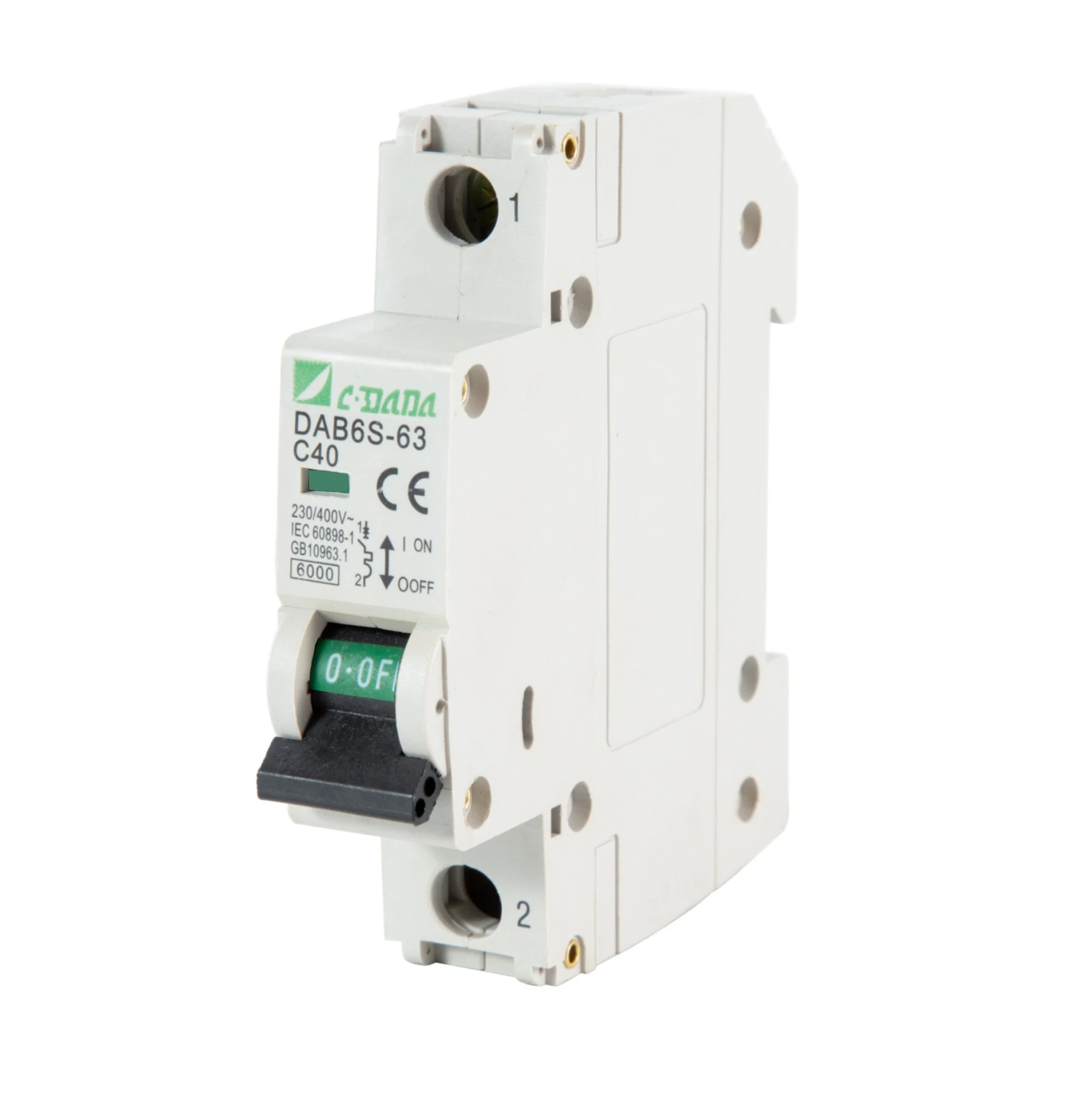

6kA AC Miniature Circuit Breaker

Ua kom ntseeg tau, muaj kev nyab xeeb, thiab muaj txiaj ntsig tiv thaiv hluav taws xob hauv tsev thiab cov tsev lag luam me nrog CDADA DAB6-63 6kA AC Miniature Circuit Breaker. Tsim los rau cov vaj huam sib luag hauv vaj tse, qhov no 6kA me me Circuit Court breaker muaj kev tshaj tawm thiab kev tiv thaiv luv luv hla ntau yam kev thauj khoom - los ntawm cov teeb pom kev zoo thiab cov khoom siv (B nkhaus) rau cov motors uas muaj cov hluav taws xob loj xws li twj thiab hoists (D nkhaus).

Nrog cov ntawv pov thawj CE thiab CB, lub davhlau ya nyob twg muaj zog tsim, thiab kev ua haujlwm kub ntawm -40 ° C txog + 50 ° C, DAB6-63 muab kev ua tau zoo nyob rau hauv txhua qhov kev nyab xeeb. Nws qhov kev hloov kho dav dav ua kom muaj kev ruaj ntseg ua haujlwm, thaum lub ntsuas hluav taws xob txo cov cua sov thiab txhim kho kev sib txuas ruaj khov-ua rau nws xaiv ntse rau cov kws hluav taws xob, cov neeg tsim khoom, thiab OEM vaj huam sib luag.

Ntsiab Specifications

Model: DAB 6-63 Series

Hom: AC Miniature Circuit Breaker (MCB)

Lub peev xwm tawg: 6kA @ 230 / 400V AC

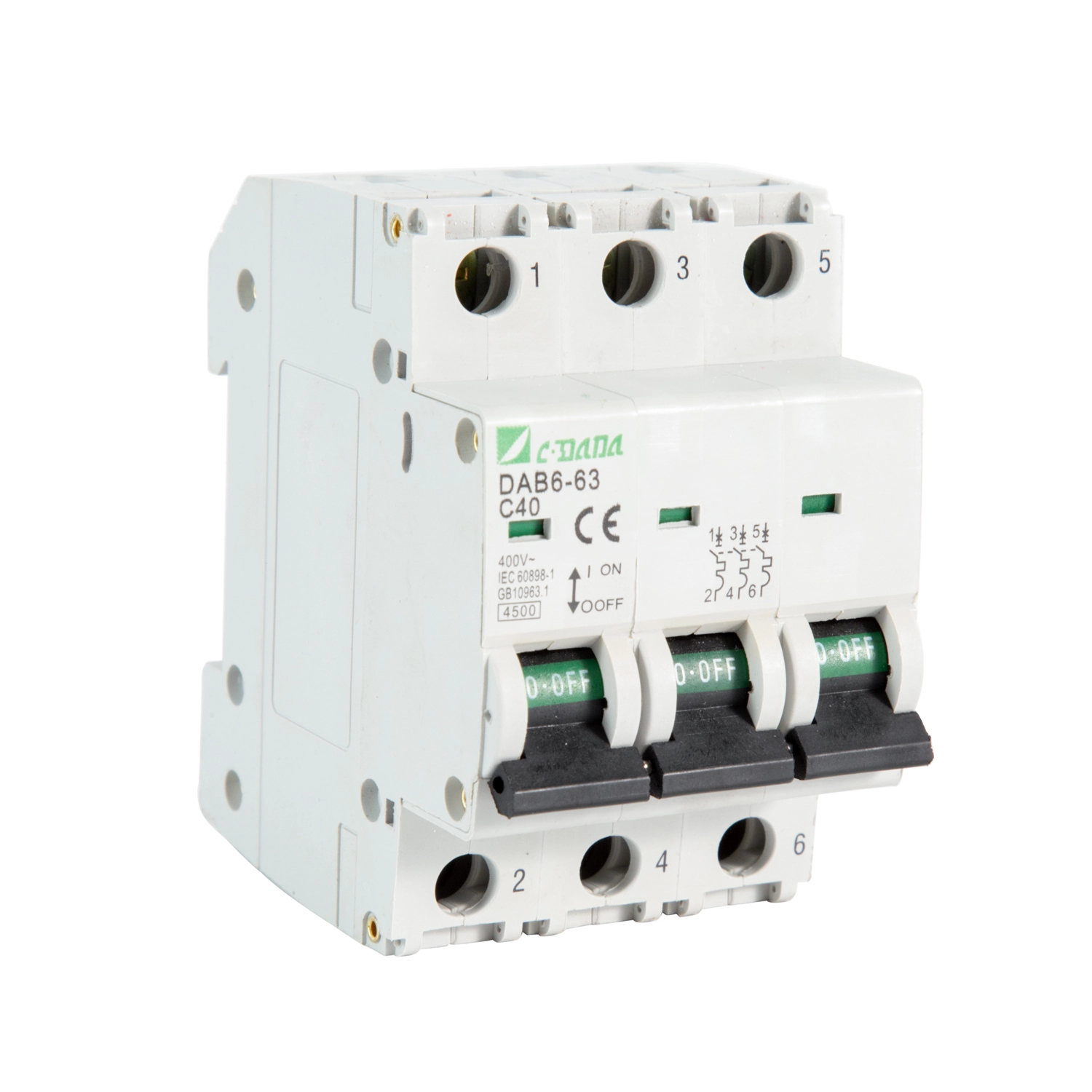

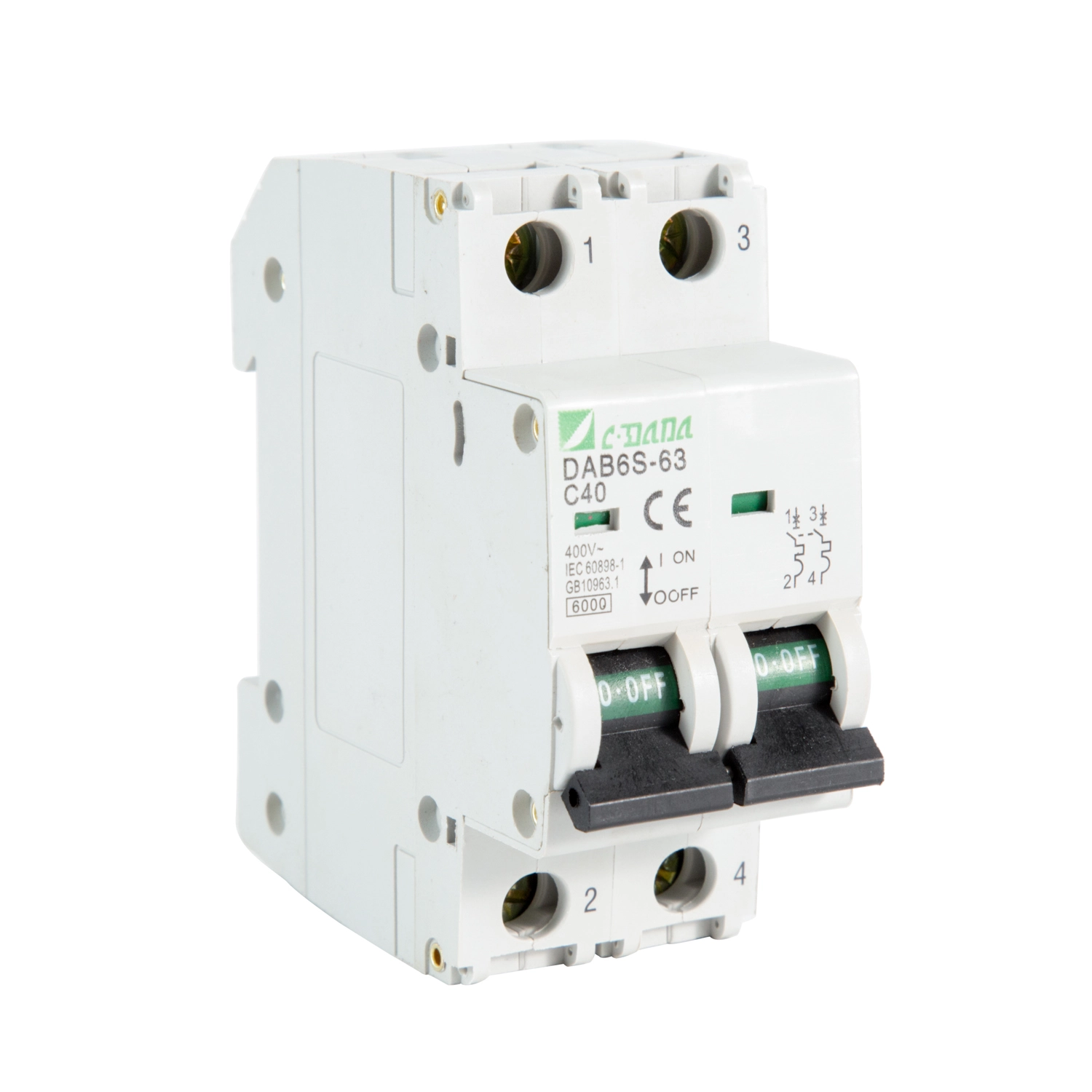

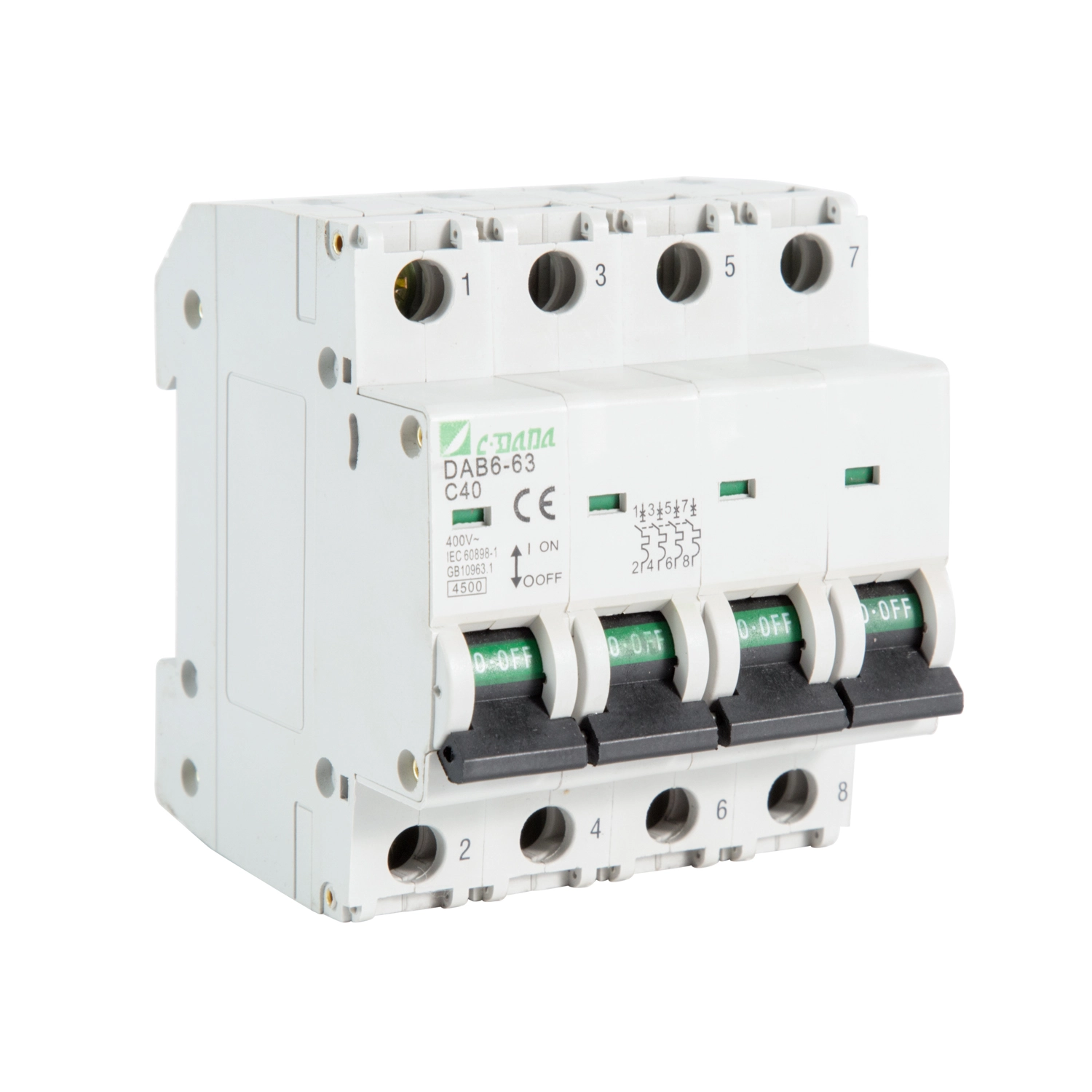

Loj: 1P, 2P, 3P, 4P

Trip Curves:

B: Rau cov teeb pom kev zoo & qhov hnyav (3-5 × Hauv)

C: Rau lub hom phiaj dav dav (5-10 × Hauv)

D: Rau siab inrush loads xws li compressors / twj tso kua mis (10-20 × Hauv)

Rated Tam sim no (Nyob rau hauv): 1A - 63A (tus qauv kauj ruam)

Kev khiav hauj lwm kub: -40 ° C rau + 50 ° C

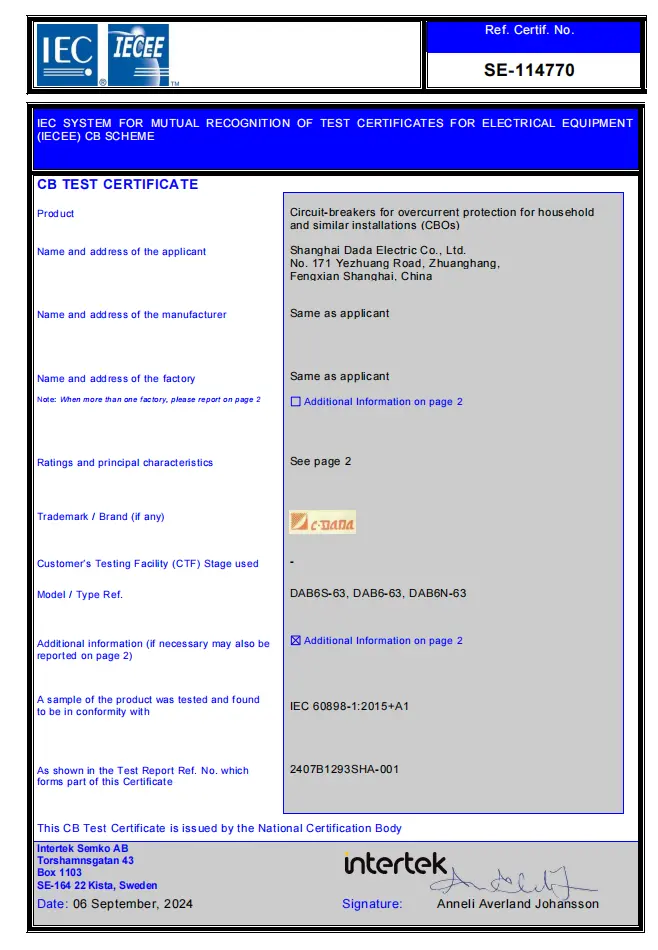

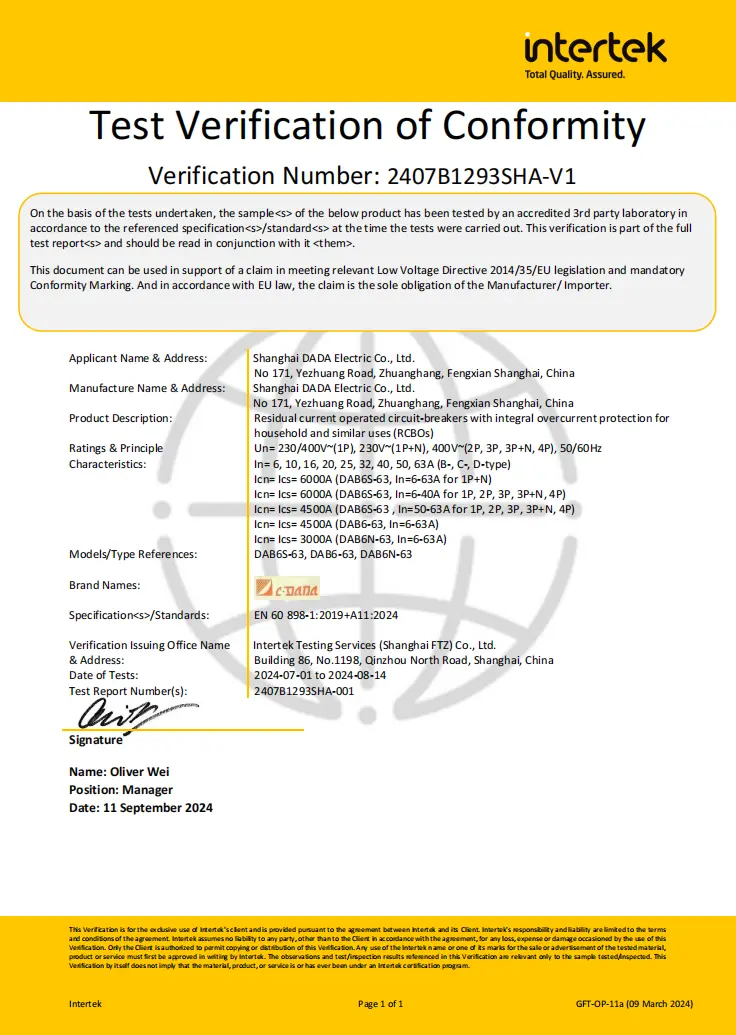

Ntawv pov thawj: CE, CB

Cov yam ntxwv tseem ceeb:

★ Notched davhlau ya nyob twg clamps → qis thermal poob, siab zog txhua yam

★ Kev ua haujlwm dav dua → tuav tau zoo dua thiab thaj chaw tiv tauj

★ luv-circuit tiv thaiv mechanisms

★ DIN rail mountable (tus qauv 35mm)

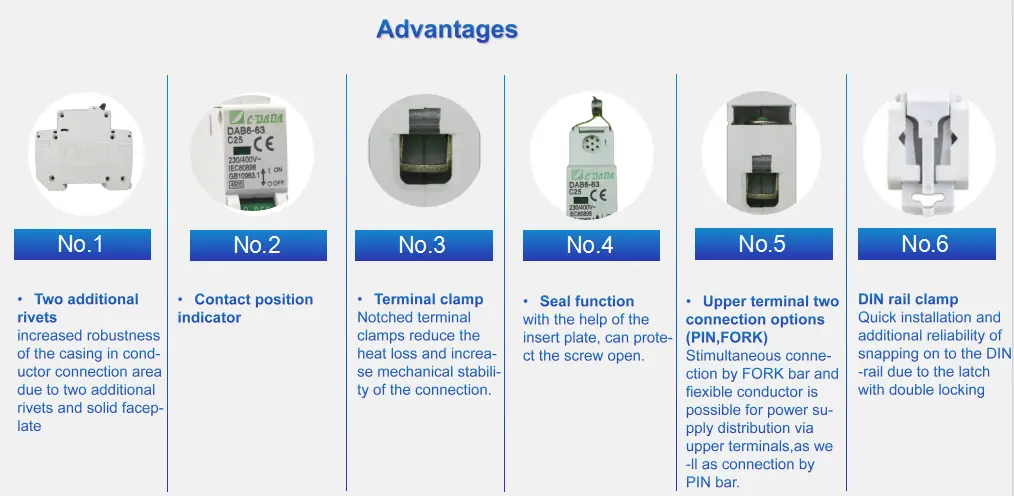

Qhov zoo

Cov ntaub ntawv Technical

Vim li cas thiaj xaiv CDADA 6kA AC Miniature Circuit Breaker?

★ Kev Tiv Thaiv Kev Txiav Txim rau Txhua Qhov Ncauj

Xaiv txoj kev mus rau sab xis (B / C / D) kom phim koj daim ntawv thov - zam kev mus ncig ua si thaum ua kom muaj kev nyab xeeb.

	Kuaj tam sim no	Tripping lub sij hawm	Daim ntawv thov
B Curve	3 ln 5 ib ln	0.1 32A)	Hom B tsuas yog siv tau rau cov khoom hnyav: -Electric heater-Dej rhaub-Electric furmace
C Curve	5 Hauv 10 ln	0.1 32A)t<0.1s	Hom C yog haum rau cov khoom siv thauj khoom: - Teeb - Lub qhov hluav taws xob - Lub cev muaj zog me me
D Curve	10 ln 20 Ib	0.132A) t <0.1s	Tswj thiab tiv thaiv circuits nrog instantaneous surge tam sim no (cov motors loj)

★ Tsim kom muaj kev ntseeg siab hauv huab cua huab cua

Ua haujlwm tsis zoo los ntawm Arctic txias (-40 ° C) mus rau huab cua sov (+ 50 ° C) - zoo tagnrho rau cov haujlwm thoob ntiaj teb.

★ Tsawg zog poob, kev nyab xeeb dua

Patented notched davhlau ya nyob twg clamps nce kev sib cuag siab, txo qhov tsis kam, tsim hluav taws kub, thiab hluav taws kub.

★ Tus neeg siv-phooj ywg tsim

Lub lever wider txhim kho kev ua haujlwm ntawm phau ntawv - tseem ceeb thaum muaj xwm txheej ceev lossis hloov pauv ntau zaus.

★ Trusted Ntiaj teb no ua raws

Cov ntawv pov thawj CE thiab CB ua kom muaj kev lees paub hauv Tebchaws Europe, Middle East, Africa, thiab Asia - txhawb nqa los ntawm Shanghai raws li kev tswj hwm zoo.

★ Zoo meej rau kev siv vaj tse & teeb pom kev lag luam Compact, nqi-zoo, thiab yooj yim rau nruab-zoo tagnrho rau chav tsev, chaw ua haujlwm, tsev kawm ntawv, thiab cov chaw muag khoom.

Tej kev siv

Tsev: Teeb pom kev zoo circuits, qhov hluav taws xob qhov hluav taws xob, cov khoom siv hauv chav ua noj

Apartments & Condos: Floor-level boards

Chaw Ua Haujlwm Me: HVAC, IT khoom, kos npe

Cov Khw Muag Khoom: Zaub teeb pom kev zoo, POS systems

Kev Lag Luam Lub Teeb: Tswj vaj huam sib luag rau cov kiv cua, cov twj me me, compressors

Cov lus nug nquag nug (FAQ)

Q1: "6kA" txhais li cas ntawm MCB?

A1: Nws yog qhov luv-circuit breaking peev-qhov siab tshaj plaws tam sim no (6,000 amps) MCB tuaj yeem cuam tshuam yam tsis muaj kev puas tsuaj. Haum rau feem ntau cov tsev nyob thiab lub teeb ua lag luam.

Q2: Kuv yuav tsum xaiv qhov kev mus ncig twg rau hauv tsev?

A2:

B nkhaus: Qhov zoo tshaj plaws rau cov teeb pom kev zoo thiab cov qhov rooj dav dav

C nkhaus: Pom zoo rau lub tshuab cua txias, tshuab ntxhua khaub ncaws, lossis lub tshuab me me

D nkhaus: Tsuas yog xav tau rau cov khoom siv hluav taws xob siab zoo li cov twj tso dej lossis lub elevator

Q3: MCB puas tuaj yeem siv rau sab nraum zoov?

A3: Yog lawm - tsuav yog lub kaw lus muab kev tiv thaiv IP. Lub 6kA AC Miniature Circuit Breaker nws tus kheej muaj kev ntseeg siab ntawm -40 ° C txog + 50 ° C, ua rau nws tsim nyog rau garages, sheds, lossis meter thawv hauv huab cua hnyav.

Q4: Cov terminals puas siv tau nrog cov qauv cables?

A4: Yog - nws lees txais cov khoom lag luam lossis cov hlua khi tooj liab mus txog 25mm², thiab cov qauv tsim clamp ua kom muaj kev ruaj ntseg, tsis tshua muaj kev sib txuas.

Q5: Vim li cas thiaj xaiv CDADA dua lwm hom 6kA MCB?

A5: CDADA muab:

● Muaj ntawv pov thawj CE & CB (tsis yog tus kheej tshaj tawm)

● Kev ua haujlwm kub ntau dua li ntau tus neeg sib tw

● Txhim kho lub davhlau ya nyob twg tsim kom muaj cua sov qis thiab lub neej ntev dua

● Clear B/C/D daim ntawv lo kom yooj yim xaiv

● OEM-phooj ywg tus nqi nrog cov khoom zoo ib yam los ntawm cov chaw tsim khoom hauv Suav teb
