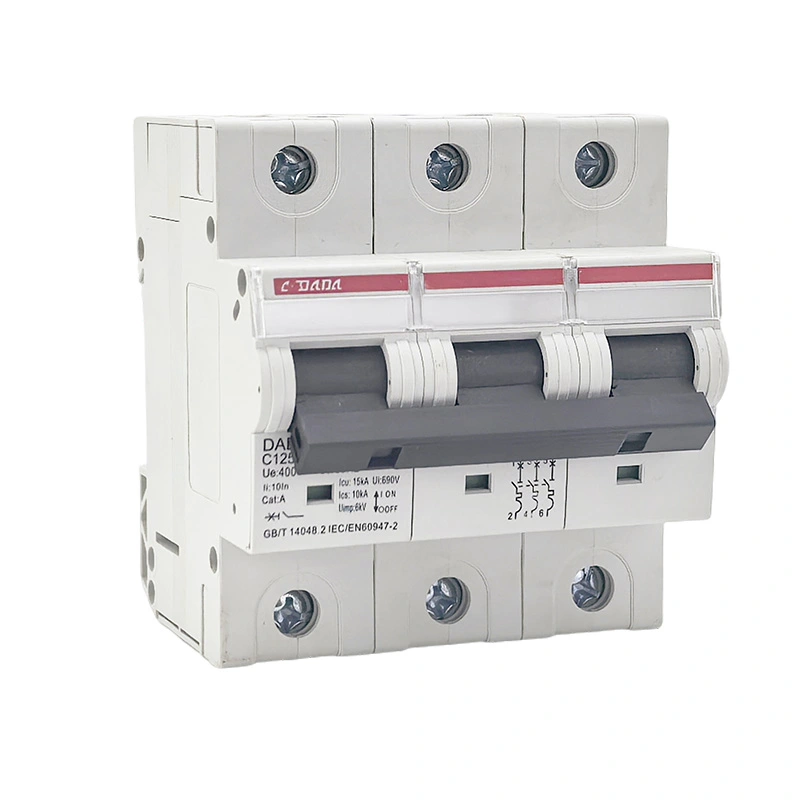

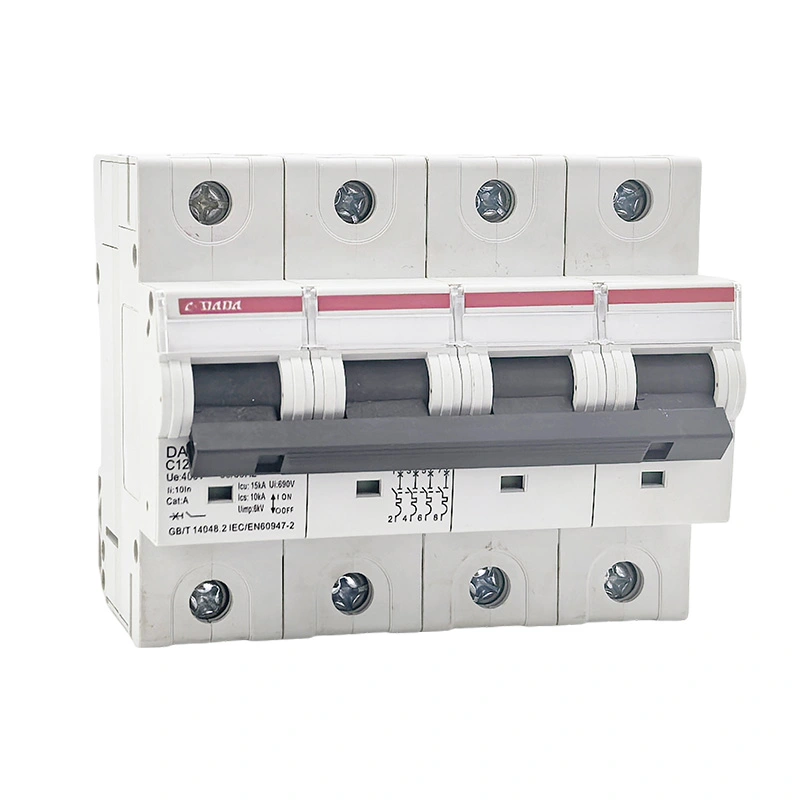

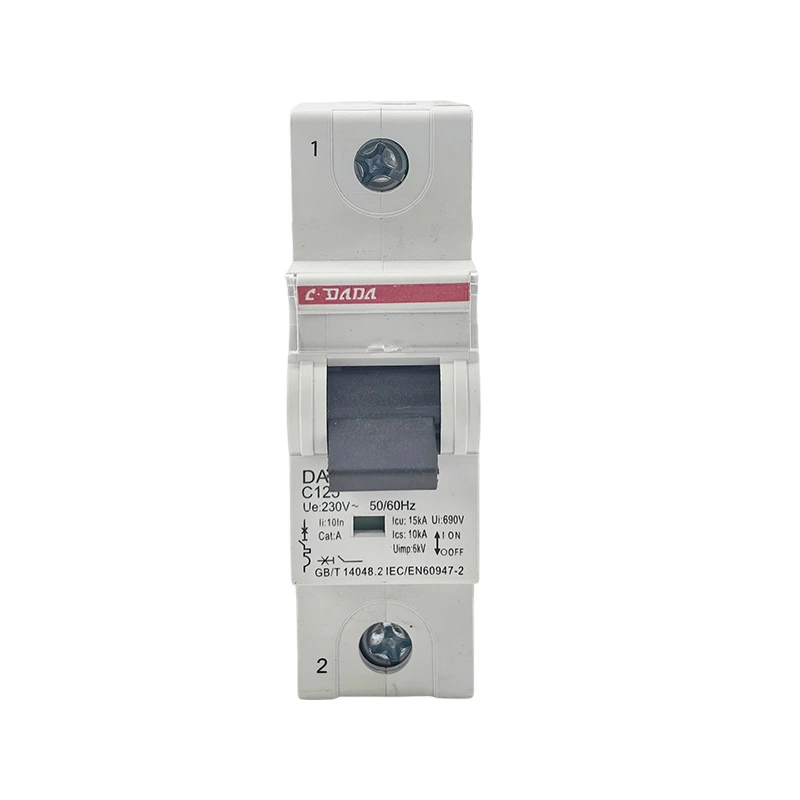

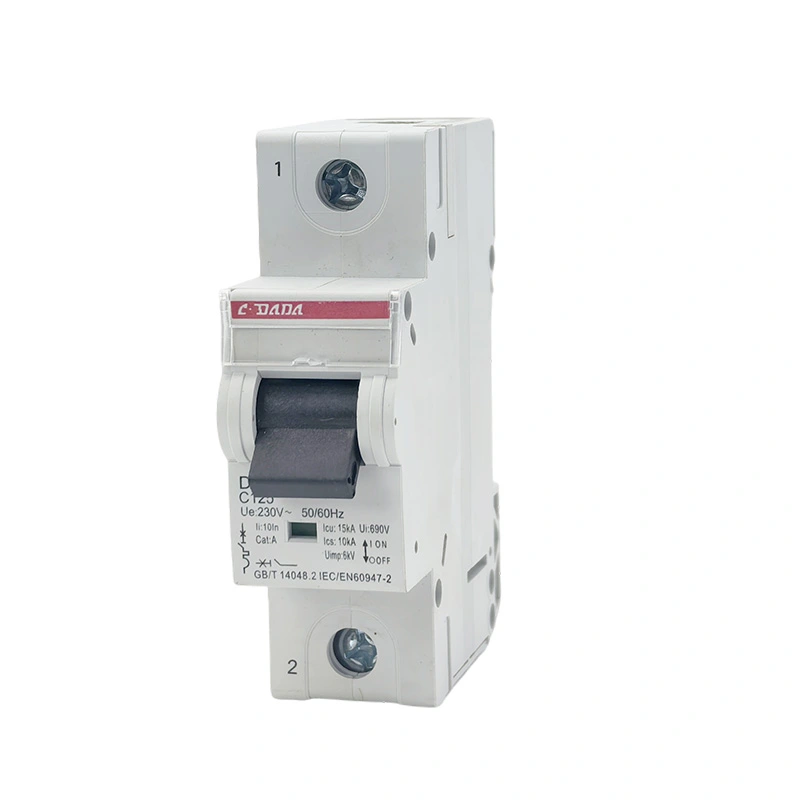

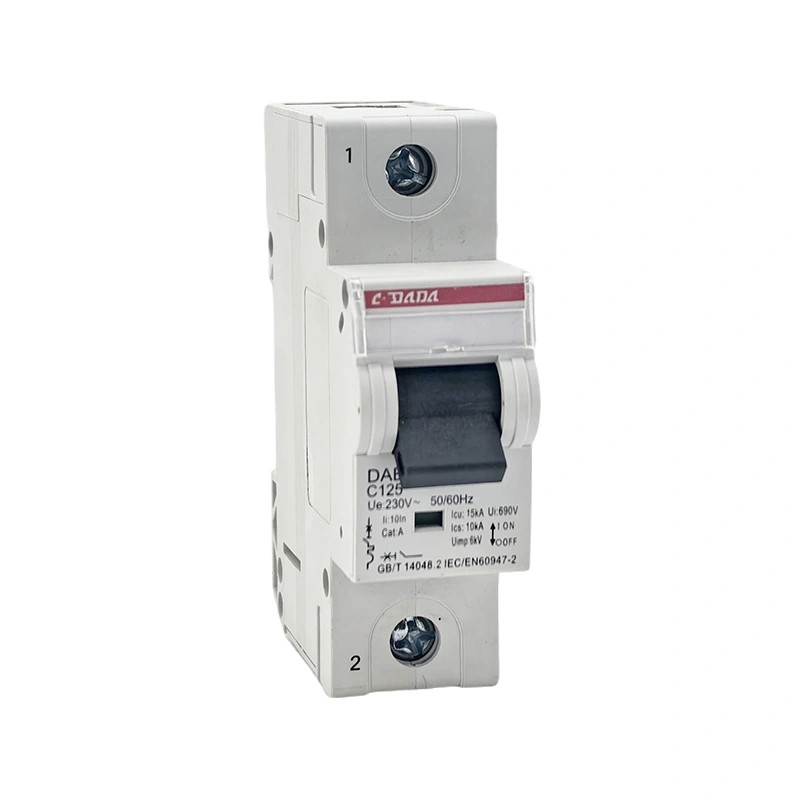

125 15KA Miniature Circuit Breaker
Model:DAB7-125N / DAB7-125H
Raws li ib tug txhim khu kev qha chaw tsim tshuaj paus ntawm 125 15KA Miniature Circuit Breaker, CDADA cov khoom yog ib tug high-kev ua tau zoo 125A MCB nrog 15kA tawg peev xwm rau hnyav-duty fais fab faib. Nws siv PA66 nplaim-retardant plhaub thiab dual arc chamber tsim, yooj yim rau mount ntawm DIN rail thiab yooj yim los tswj. Nws sib txuas cov qauv kev sib cuag nrog cov qauv kev lag luam-qib durability, ua tiav ultra-ntev kev pab cuam lub neej rau cov circuits loj tam sim no.
CDADA DAB7-125 125 15KA Miniature Circuit Breaker yog lub luag haujlwm hnyav-tawg hluav taws xob me me Circuit Court ntawm nws tus kheej tsim los ntawm Shanghai DADA Electric. Nrog 10kA / 15kA ultra-siab tawg peev xwm, 125A loj ntsuas tam sim no, thiab 27mm (1.5M) compact dav, nws tuaj yeem hloov cov tsoos molded rooj plaub Circuit Court breakers rau hnyav-tam sim no tiv thaiv.
Txais ob chav arc chamber, silvered hu, thiab PA66 nplaim-retardant khoom, nws muab kev ruaj ntseg thiab ruaj khov overload, luv luv Circuit Court, thiab kev tiv thaiv kev sib cais rau kev lag luam, kev lag luam, thiab nyob hauv high-power circuits.
Product Functions
★ Kev tiv thaiv overload
★ Kev tiv thaiv luv luv
★ Kev sib cais ntawm kev nyab xeeb
★ Kev tuav tswj ntawm / tawm
★ ruaj khov loj-tam sim no kis tau tus mob

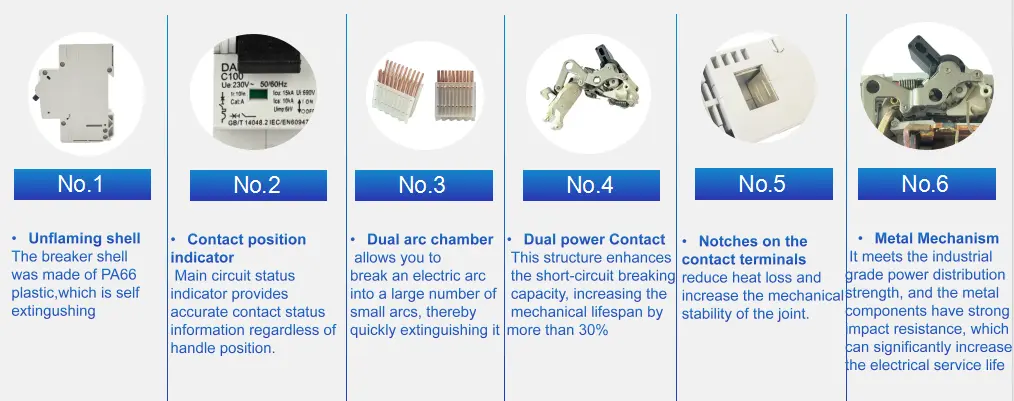

Cov Khoom Tseem Ceeb Zoo
★ 15kA ultra-siab tawg peev xwm, hloov MCCB rau kev siv hnyav
★ Dual arc chamber, arc extinguishing ceev nce 30%
★ Silvered caij nplooj ntoos hlav tiv tauj, tsis tshua muaj cua sov poob, kev pab lub neej ntev
★ PA66 nplaim-retardant plhaub, nws tus kheej-extinguishing, kub tsis kam
★ Dual fais fab kev sib cuag qauv, muaj zog luv luv-circuit withstand
★ Notched terminals, ntau dua mechanical stability thiab thaiv kev ruaj khov
★ Industrial-qib hlau mechanism, muaj zog cuam tshuam tsis kam
★ 27mm nqaim dav, txuag chaw faib khoom txee

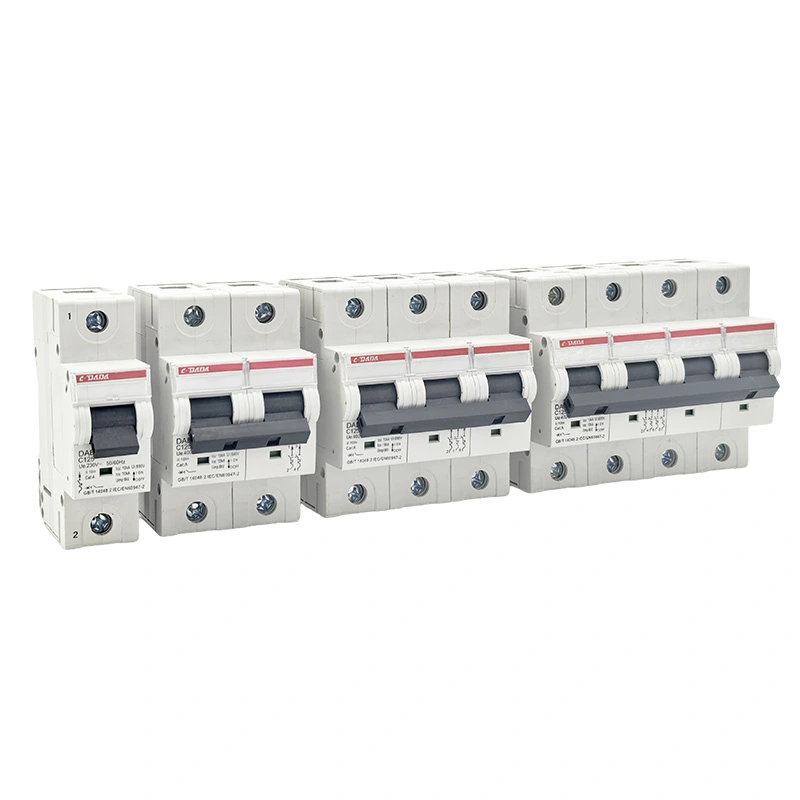

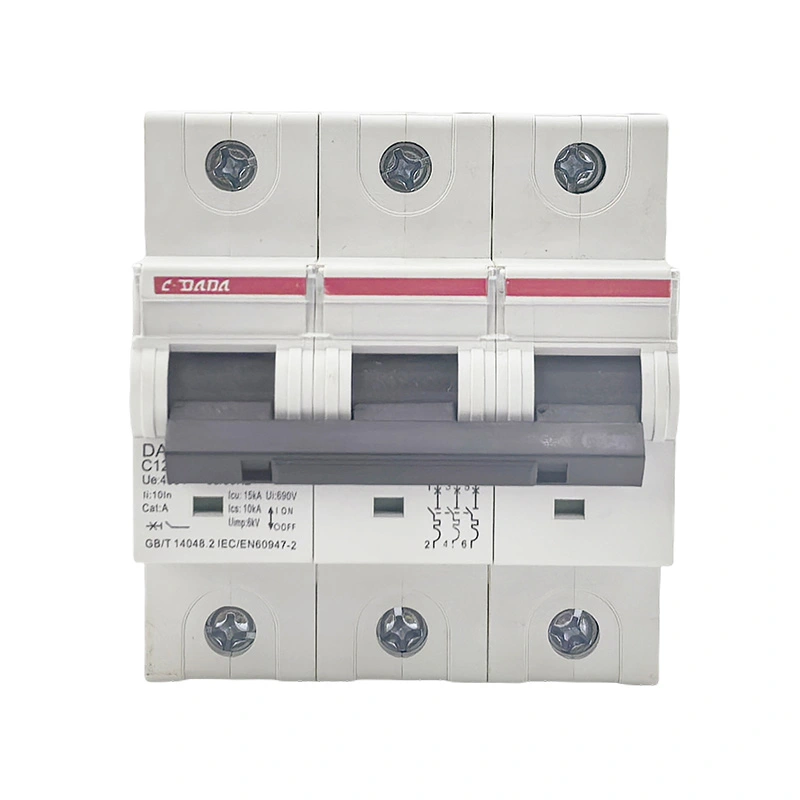

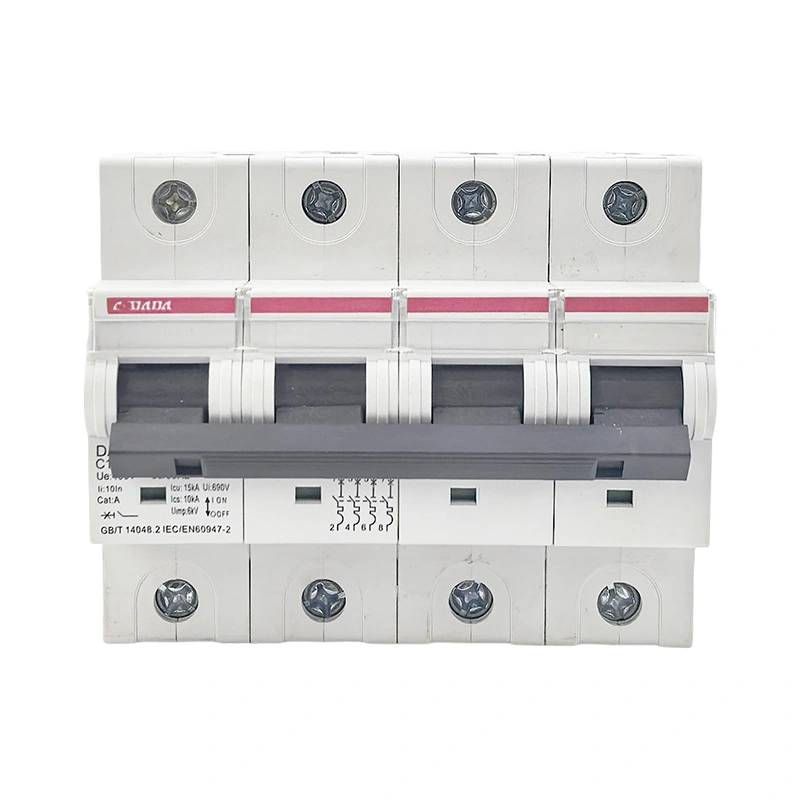

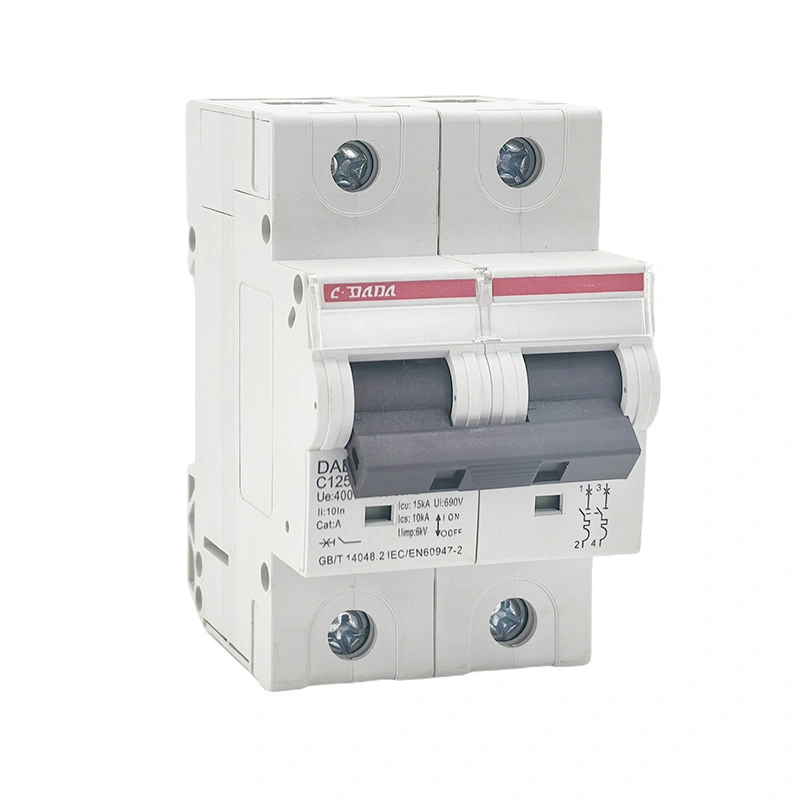

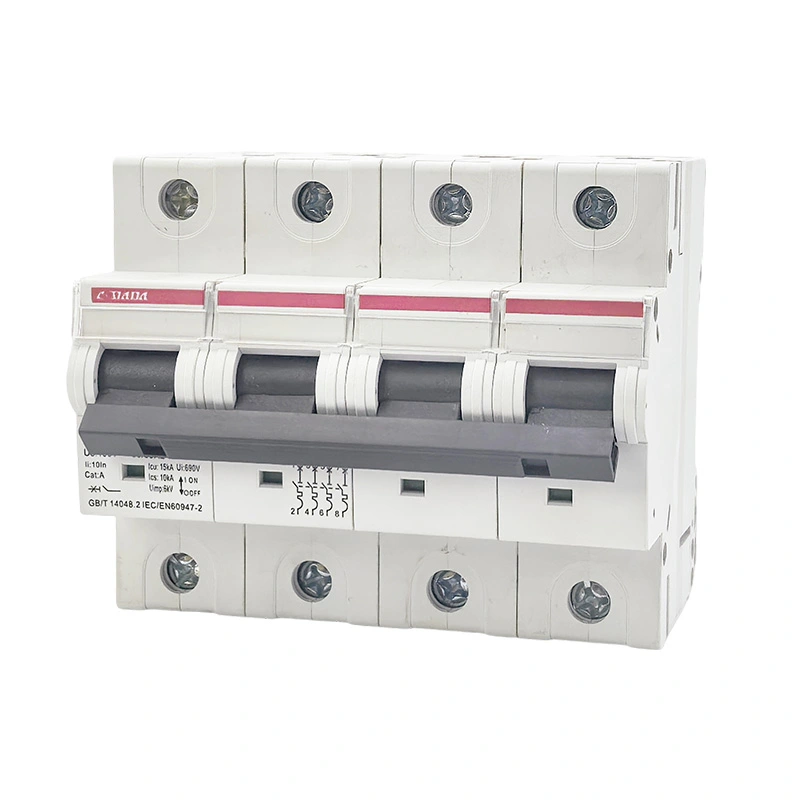

★ 1P / 2P / 3P / 4P tiav ncej, dav tam sim no mus txog 125A
★ Txhawb tooj liab & txhuas hlau txuas
Daim Ntawv Thov & Siv Scenarios
★ CDADA 125 15KA Miniature Circuit Breaker yog dav siv hauv:
★ Cov chaw tsim khoom lag luam, kev cob qhia, thiab cov khoom siv hluav taws xob loj
★ Cov tsev lag luam, khw muag khoom, tsev so, thiab cov tsev ua haujlwm
★ Cov tsev nyob hauv tsev, cov tsev siab siab, thiab cov khoom loj tuaj
★ Fais fab faib khoom, lub thawv-hom substations, thiab zaum kawg faib tshuab
★ Cov twj loj loj, kiv cua, compressors, thiab lub cev muaj zog
★ Infrastructure, kev tsim kho, thiab kev kho dua tshiab
Technical Parameters Table
|
Yam khoom |
Specification |
|
Qauv |
DAB 7-125N / DAB 7-125H |
|
Khoom npe |
MCB 125 15 KA |
|
Txuj |
IEC 60898-1 |
|
Rated Tam sim no |
Txog li 125A |
|
Txhaum Muaj Peev Xwm |
10kA (N), 15kA (H) |
|
Ncej |
1P, 2P, 3P, 4P |
|
Rated Voltage |
400/415V AC |
|
Ntau zaus |
50/60Hz |
|
Rwb thaiv tsev Voltage |
500 V |
|
Impulse voltage |
4kv ua |
|
Tripping Curve |
B, C, D |
|
Kev tiv thaiv qib |
IP20 |
|
Neeg kho tshuab lub neej |
8,500x ua |
|
Hluav taws xob lub neej |
4,000-15,000 zaug |
|
Kev Muaj Peev Xwm |
1-35 hli |
|
Kev khiav hauj lwm Temp |
-5 ℃ ~ + 40 ℃ |
|
Kev teeb tsa |
35 hli DIN rail |
|
Dav |
27 hli (1.5M) |
Daim ntawv Dimensions
★ Dav: 27mm (1P), 54mm (2P), 81mm (3P), 108mm (4P)
★ Qhov siab: 90mm
★ Ntev: 75.5mm
★ Mounting: Txheem 35mm DIN rail
★ Haum rau cov pa hluav taws xob tsawg-voltage tis thawv
Standard Test Yam khoom
★ 1.13Nyob rau hauv kev xeem tsis-tripping (≥1h)
★ 1.45 Hauv kev sim tripping (<1h)
★ 2.55Nyob rau hauv overload nkaus xeem
★ Sib nqus instantaneous tripping xeem
★ ntsuas kub nce
★ Dielectric tiv taus qhov ntsuas hluav taws xob
★ 10kA/15kA luv-circuit breaking test
★ Mechanical & Electrical Life Test
★ Kev ntsuas kub & qis ua haujlwm
Kev Tswj Xyuas Zoo
Txheej txheem xeem
★ 1. Raw khoom tuaj xyuas
★ 2. Tsis siv neeg stamping & txhaj tshuaj molding
★ 3. Precision los ua ke & kev xeem ib nrab
★ 4. 100% tag nrho tripping calibration
★ 5. Tiv thaiv qhov ntsuas hluav taws xob & rwb thaiv tsev
★ 6. luv luv-circuit breaking muaj peev xwm pov thawj
★ 7. Qhov tshwm sim & qhov ntsuas qhov ntev
★ 8. Cov khoom tiav kev laus & kev sim zaum kawg

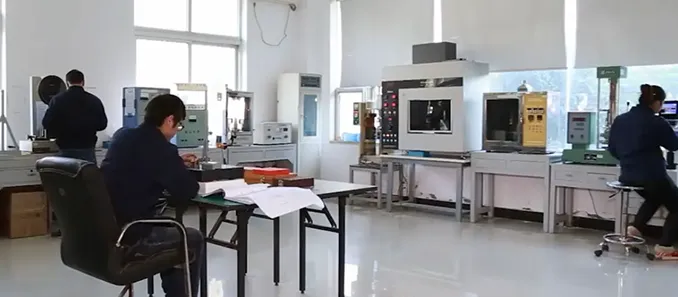

Cov khoom siv kuaj
★ Tsis siv neeg tripping calibration system
★ Short-circuit xeem platform
★ Kub nce mus kuaj chamber
★ Tiv thaiv voltage tester
★ Lub tshuab kuaj lub neej
★ High & low temperature ib puag ncig chamber

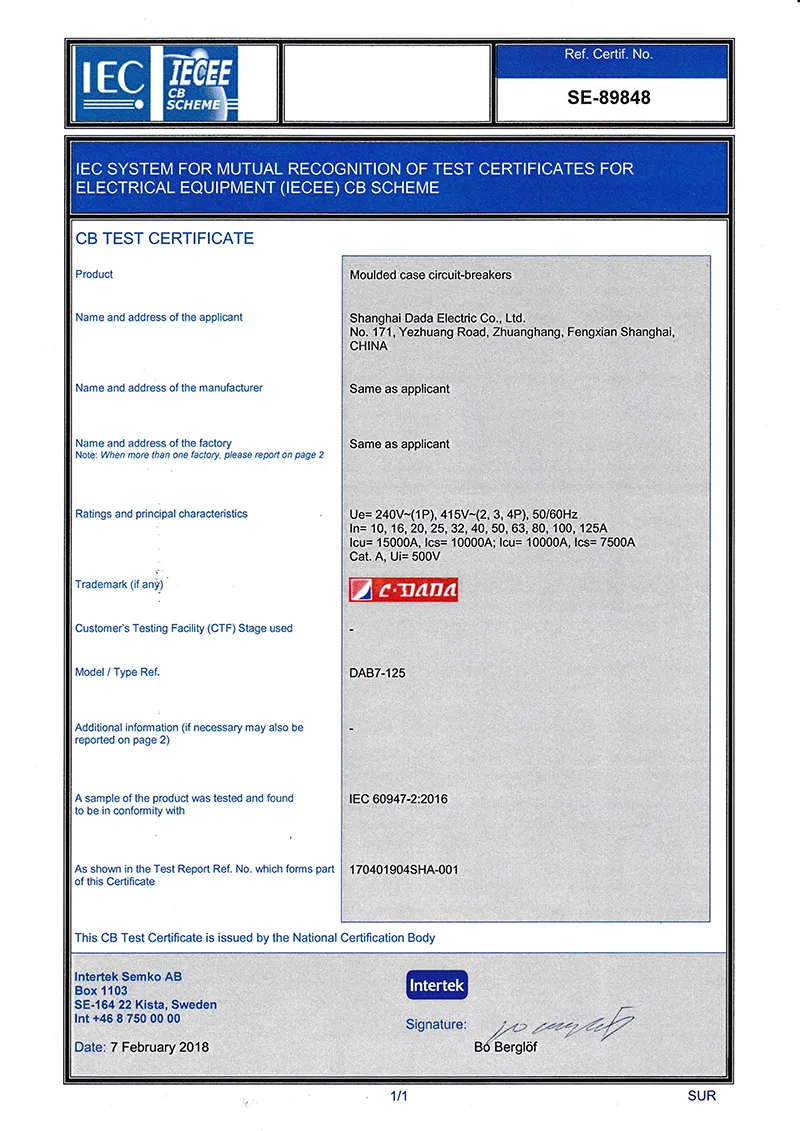

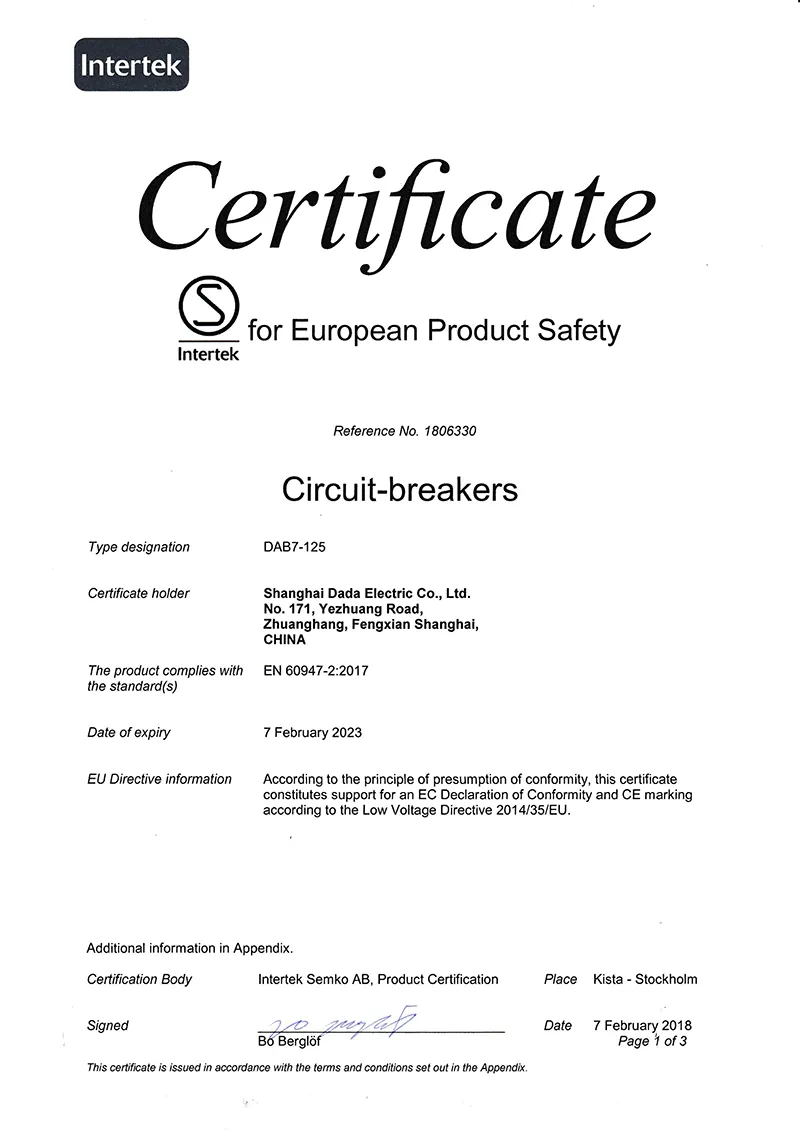

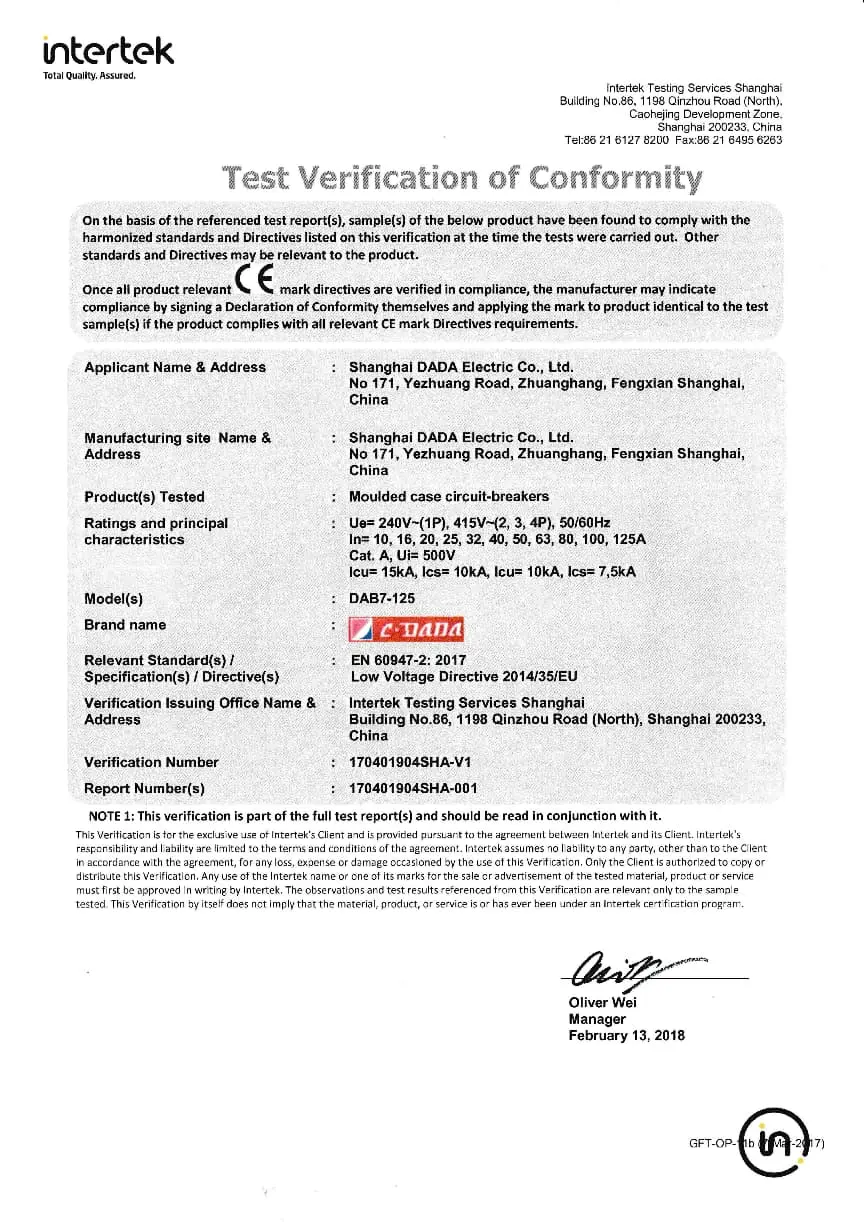

Cov ntawv pov thawj
CE, CB, IEC60898-1, ISO9001, CCC, ROHS
Ntim & Shipping
★ Txheem export thawv + shockproof puab hauv ob sab phlu
★ Pab pawg ntim rau txhua yam khoom
★ Clear daim ntawv lo: qauv, tam sim no, ncej, kom muaj nuj nqis, ntawv pov thawj
★ Haum rau hiav txwv, huab cua, kev thauj mus los hauv av
★ Txhawb OEM ntim & kev cai logo
Cov neeg siv khoom siv & Cov Ntaub Ntawv Ua tiav
★ Muaj kev tiv thaiv hluav taws xob tseem ceeb hauv Tebchaws Europe, Southeast Asia, Middle East
★ Lub tsev loj loj & kev lag luam tsim hluav taws xob tuaj
★ OEM kev koom tes nrog cov khoom siv hluav taws xob thoob ntiaj teb
★ Lub sij hawm ntev bulk mov rau thoob ntiaj teb distributors
★ Kev faib hluav taws xob rau kev tsim kho vaj tse hauv Africa & South America
★ Cov cuab yeej siv siab tam sim no txhawb rau cov chaw tsim khoom thiab cov mines

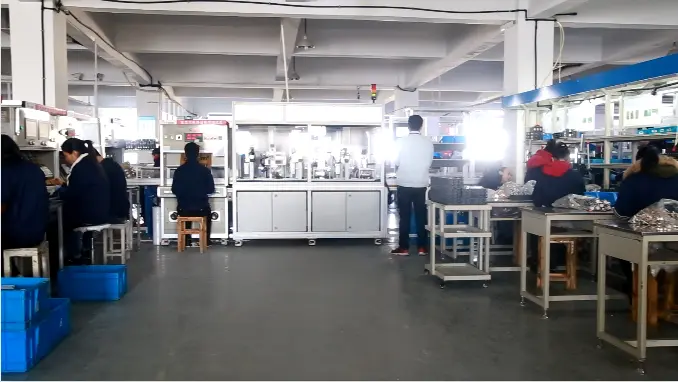

CDADA Lub Hoobkas muaj zog
★ 40+ xyoo kev R & D thiab kev tsim khoom
★ 50,000 ㎡ niaj hnub ntau lawm puag
★ Puv-automatic txhaj tshuaj, stamping, vuam, sib dhos kab
★ 90% core Cheebtsam tsim nyob rau hauv-tsev
★ Pab neeg R & D & pab neeg tswj kom zoo
★ Lub hli muaj peev xwm tshaj 5 lab daim
★ Ua kom tiav pwm kev txhim kho & kev muaj peev xwm kho tau
Vim li cas thiaj xaiv CDADA?
★ ruaj khov zoo, 100% kev soj ntsuam tag nrho ua ntej xa zaub mov
★ Ultra-siab tus nqi-kev ua tau zoo, hloov MCCB nrog tus nqi qis
★ Kev xa khoom sai, Tshuag loj rau cov qauv qauv
★ Kev txhawb nqa kev tshaj lij & kev pab cuam tom qab muag
★ Txais OEM / ODM customization
★ Daim ntawv pov thawj thoob ntiaj teb, tsim nyog rau kev lag luam thoob ntiaj teb
★ Kev koom tes ntev nrog cov neeg siv khoom los ntawm 80+ lub teb chaws
Cov lus teb rau cov neeg siv khoom

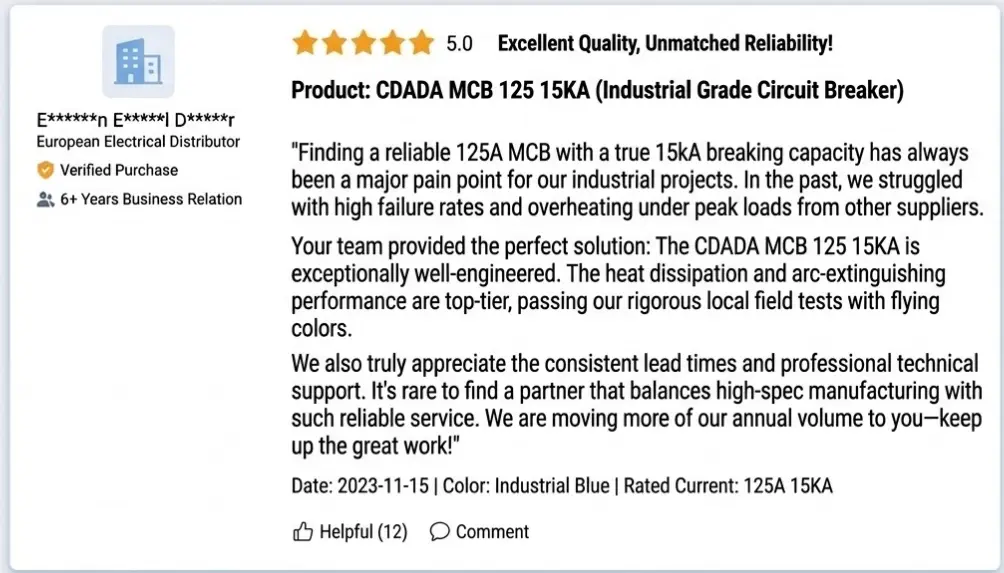

"CDADA 125 15KA Miniature Circuit Breaker yog qhov ruaj khov thiab txhim khu kev qha, zoo meej rau peb cov kev lag luam tseem ceeb. Kev tawg muaj peev xwm yog 15kA tiag, zoo zoo li European hom. Peb tau koom tes rau 5 xyoos, xa khoom raws sijhawm, kev pabcuam zoo heev." - Distributor
