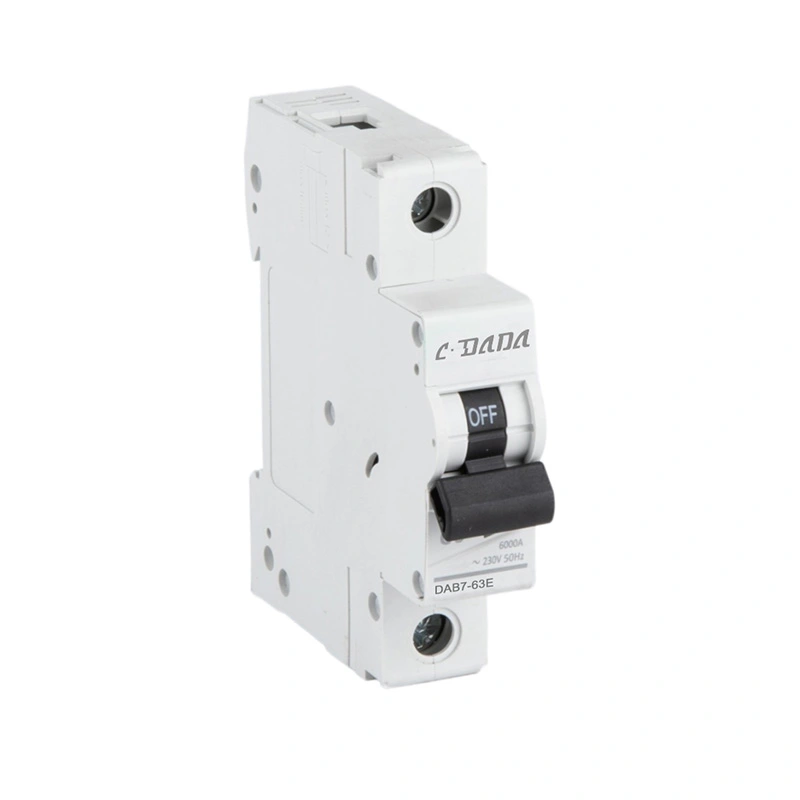

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Xav tiv tauj CDADA, thiab tau txais peb 1P 6kA AC Miniature Circuit Breaker nrog lub Hoobkas ncaj nqe, muab kev txhim khu kev qha overload thiab luv-circuit tiv thaiv nrog compact DIN-rail tsim. Cov khoom no nta cov thermal-magnetic tripping thiab meej cov xwm txheej qhia, yooj yim rau nruab thiab tswj. Nws muab kev ua haujlwm ruaj khov rau cov vaj tsev nyob thiab lub teeb ua lag luam, ua kom muaj kev ruaj ntseg fais fab nrog lub neej ua haujlwm ntev.
CDADA 1P 6kA AC Miniature Circuit Breaker yog qhov zoo tshaj plaws ib leeg-ncej me me Circuit Court breaker tsim rau AC cov tshuab hluav taws xob tsawg. Nws muab kev tiv thaiv kev ruaj ntseg tiv thaiv overloads thiab luv circuits, zoo tiv thaiv hluav taws xob circuits thiab cov khoom siv txuas nrog. Ua tau raws li cov qauv thoob ntiaj teb nruj, qhov AC MCB no zoo tagnrho rau cov neeg xa khoom, OEMs thiab cov neeg cog lus hluav taws xob nrhiav kev ruaj ntseg, kev tiv thaiv tus nqi zoo.
Khoom nta & qhov zoo
★ Compact Design: Qhov chaw-txuag qauv tsim nyog rau cov qauv faib boards
★ Muaj peev xwm tawg: 6kA luv-circuit cuam tshuam muaj peev xwm ua kom muaj kev nyab xeeb
★ Precision Tripping: Thermal-magnetic tripping unit xyuas kom meej overload & luv-circuit tiv thaiv
★ Ntshiab Status Indication: Pom tau ON/OFF lub qhov rais kom ceev Circuit Court pov thawj
★ Kev Ruaj Ntseg: Cov terminals zoo nrog kev sib txuas ruaj khov, txo kev tiv thaiv kev tiv thaiv
★ Kev Tsim Kho Kom Zoo: Cov vaj tsev nyob nrog cov nplaim hluav taws kub
★ Kev Txhim Kho Yooj Yim: Txheem 35mm DIN-rail mount rau kev sib dhos ceev
★ Kev Txhim Kho Zoo: 100% kev tshuaj xyuas tag nrho ua ntej xa zaub mov, kev ua haujlwm zoo ib yam
Daim ntawv thov
★ CDADA 1P 6kA AC Miniature Circuit Breaker yog dav siv hauv:
★ Cov tsev nyob, chav tsev thiab villas
★ Cov tsev ua haujlwm, khw muag khoom thiab chaw lag luam
★ Lub teeb muaj kev cob qhia thiab cov chaw tsim khoom
★ Cov khw muag khoom, tsev so thiab tsev noj mov
★ Cov chaw pej xeem thiab cov phiaj xwm vaj tse
★ Teeb pom kev zoo thiab cov khoom siv hluav taws xob me me tiv thaiv
Technical Parameters
|
Yam khoom |
Specification |
|
Qauv |
CDADA Series AC MCB |
|
Txuj |
IEC 60898 - Cov |
|
Hom |
AC MCB (Miniature Circuit Breaker) |
|
Ncej |
1 P, 2, 3P, 4P |
|
Txhaum Muaj Peev Xwm |
6k ua |
|
Rated Tam sim no |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Tripping Curve |
B, C, D (yeem) |
|
Rated Voltage |
AC 230V, 400V |
|
Rwb thaiv tsev Voltage |
600 V |
|
Impulse voltage |
6kv ua |
|
Kev tiv thaiv qib |
IP20 |
|
Kev teeb tsa |
35 hli DIN Rail |
|
Ua haujlwm kub |
-5 ℃ ~ + 40 ℃ |
|
Neeg kho tshuab lub neej |
≥20,000 kev ua haujlwm |
|
Hluav taws xob lub neej |
≥4,000 kev ua haujlwm (ntawm qhov ntsuas tam sim no) |
|
Kev Ua Raws Cai |
IEC 60898-1, IEC 60898-2 |
Daim ntawv Dimensions
★ Dav: 17.8mm rau ib tus ncej (tus qauv ib tus ncej loj)
★ Qhov siab: kwv yees li 85-92mm (nws txawv ntawm qhov ntsuas tam sim no)
★ Qhov tob: kwv yees li 68-72mm
★ Kev Muaj Peev Xwm: 1.5-16mm² hloov tau los yog tawv tooj liab cable
★ Standard Compatibility: Fits tag nrho 35mm DIN rail systems (TS35/7.5, TS35/15)
IEC 60898-1 Cov

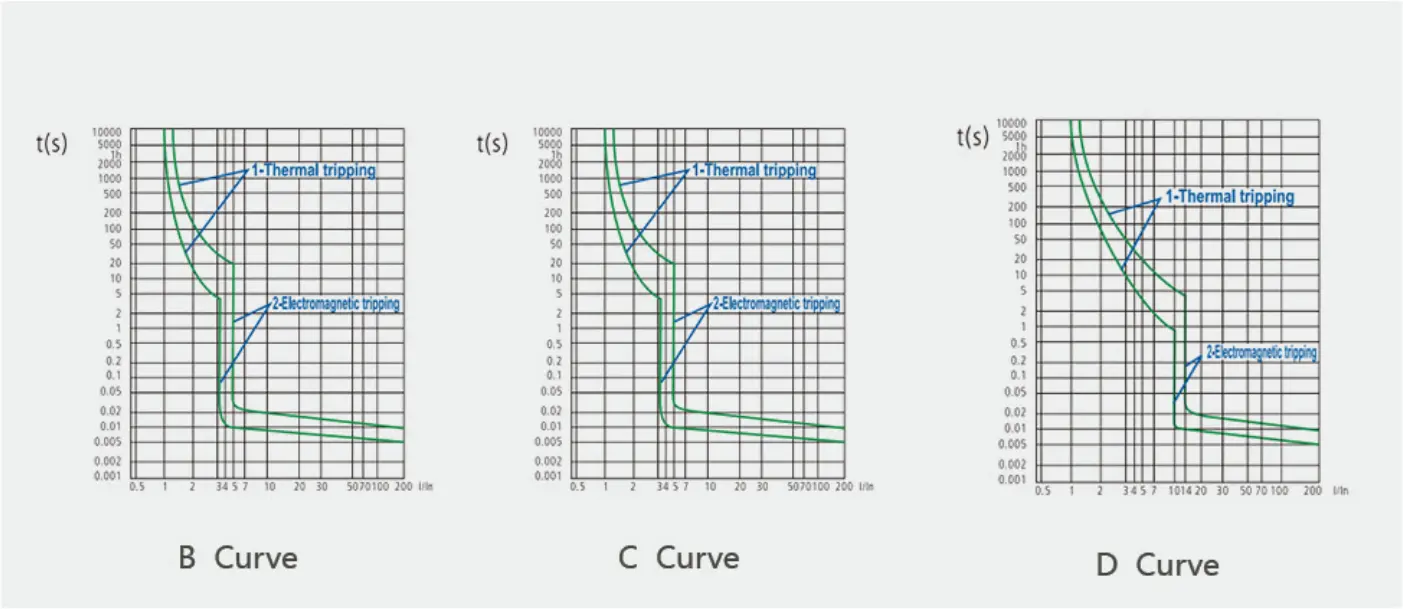

Sib nqus tso
Thaum lub caij luv luv Circuit Court tshwm sim, instantaneous tripping yog tiav los ntawm ib tug hlau nplaum nrog ib tug hlau core. Raws li 1EC60898 tus qauv, cov khoom no tuaj yeem muab faib ua peb hom: B, C, thiab D.
|
|
Kuaj tam sim no |
Tripping lub sij hawm |
Daim ntawv thov |
|
B Curve |
3 ln 5 ib ln |
0.1 |
Hom B tsuas yog siv tau rau cov khoom hnyav: -Electric heater-Dej rhaub-Electric furmace |
|
C Curve |
5 Hauv 10 ln |
0.1 |
Hom C yog haum rau cov khoom siv thauj khoom: - Teeb - Lub qhov hluav taws xob - Lub cev muaj zog me me |
|
D Curve |
10 ln 20 Ib |
0.1 |
Tswj thiab tiv thaiv circuits nrog instantaneous surge tam sim no (cov motors loj) |
Kev tso cua sov
●Thaum overload tshwm sim nyob rau hauv Circuit Court, lub bimetallic sawb ntawm lub Circuit Court breaker yuav khoov vim cua sov, ua rau cov neeg mus disconnect thiab ua rau thermal tripping;
● Tus qauv IEC txhais lub sij hawm tripping rau txawv overload tam sim no;
● Qhov ntsuas qhov ntsuas kub ib puag ncig yog 30 ° C.
|
Kuaj tam sim no |
Tripping lub sij hawm |
|
1.13 ib |
t z 1h (hauv ≦ 63A) |
|
1,45l ua |
t <1h (Nyob rau hauv ≦ 63A) |
|
2,55l ua |
1s <1h <60s(In≤32A) 1s |

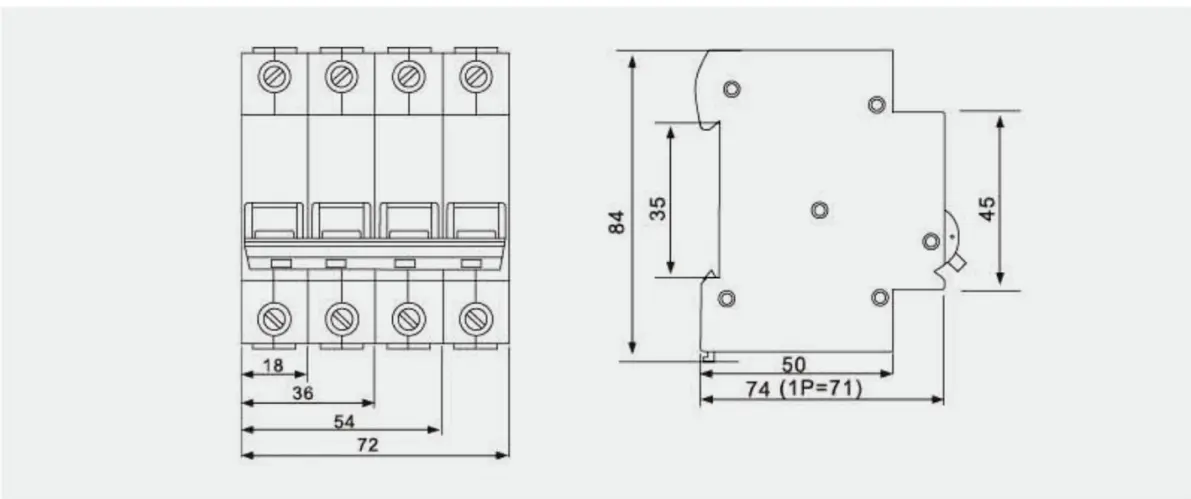

● Khoom thiab installation qhov ntev (MM)
Cov khoom yog mounted rau ib tug qhia rail nrog ib tug siab tshaj plaws kev twb kev txuas muaj peev xwm ntawm 25 hli2.
Kev Tswj Xyuas Zoo
★ ISO9001 Certified Manufacturing: nruj me ntsis kev tswj hwm zoo thoob plaws hauv ntau lawm
★ Kev Ntsuas Kev Ntsuas: 100% kev soj ntsuam nrog rau cov yam ntxwv tsis zoo, ntsuas kub thiab ntsuas hluav taws xob
★ Kev Tsim Khoom Hauv Tsev: 90% ntawm cov khoom tseem ceeb tsim tawm sab hauv kom zoo sib xws
★ Kev Ntsuas Ib puag ncig: Kev ua haujlwm siab / qis qis, cov av noo tsis kam lees paub
★ Kev Pov Hwm Kev Ntseeg: Kev sim ua kom ntev ntev rau kev ua haujlwm ntev
Ntim & Shipping
★ Txheem Export Ntim: Corrugated cartons nrog kev tiv thaiv
★ Clear Labeling: Tus qauv naj npawb, qhov ntsuas tam sim no, tus lej suav, kom muaj nuj nqis thiab cov ntaub ntawv pov thawj
★ Kev Tiv Thaiv Ntim: pab pawg lub thawv rau 12 chav tiv thaiv kev puas tsuaj thaum caij tsheb npav
★ Shipping Options: Tsim nyog rau kev thauj mus los hauv hiav txwv, huab cua thiab av; muaj nyob rau tej khoom xa tuaj
★ Ntim Kev Cai: OEM ntim cov kev xaiv muaj rau cov neeg koom tes
Cov Neeg Siv Khoom Zoo
★ CDADA 1P 6kA AC Miniature Circuit Breaker tau tsim kev koom tes ntev nrog cov neeg siv khoom thoob ntiaj teb:
★ Cov Haujlwm Hauv Tsev: Muab rau cov neeg tsim vaj tsev nyob hauv Southeast Asia, Middle East thiab South America
★ Kev Txhim Kho Kev Lag Luam: Koom tes nrog cov neeg cog lus hluav taws xob hauv Tebchaws Europe, Africa thiab Asia rau kev lag luam hauv tsev
★ Kev Koom Tes OEM: Kev koom tes nrog cov khoom siv hluav taws xob thoob ntiaj teb rau kev sau ntawv ntiag tug thiab kev daws teeb meem
★ Daim Ntawv Thov Kev Lag Luam: Muab rau cov chaw tsim khoom rau kev siv tshuab thiab khoom siv tiv thaiv
★ Distributor Networks: Ua haujlwm nrog cov neeg xa khoom hauv cheeb tsam hauv ntau dua 30 lub teb chaws kom tau raws li kev lag luam hauv zos
