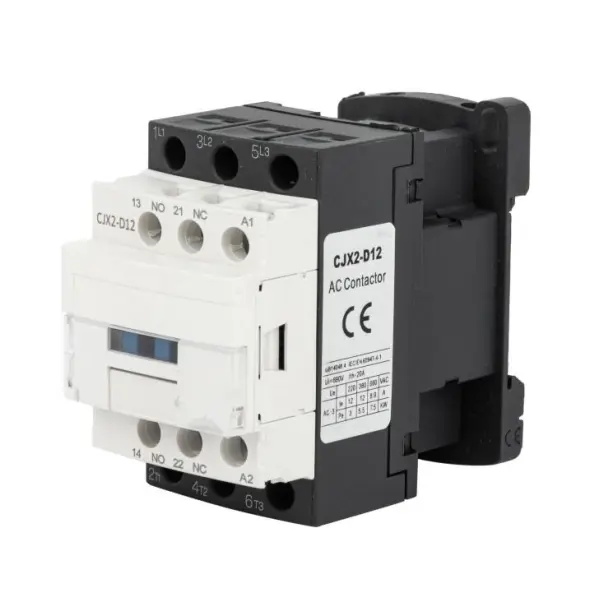

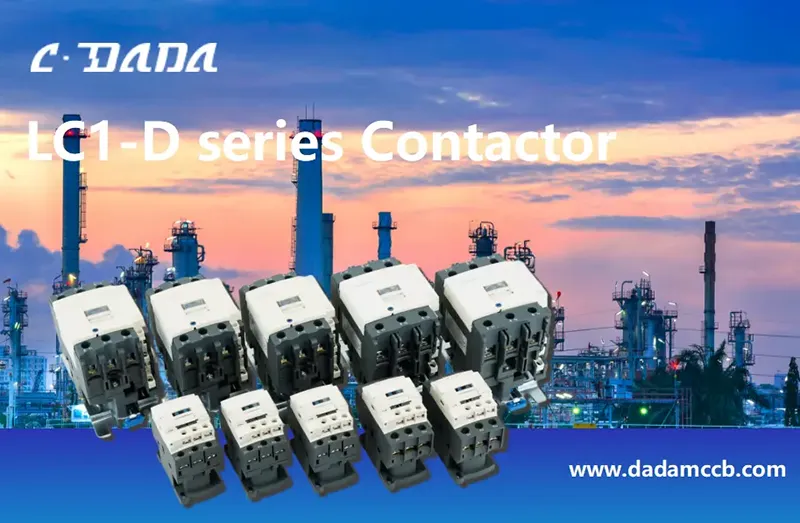

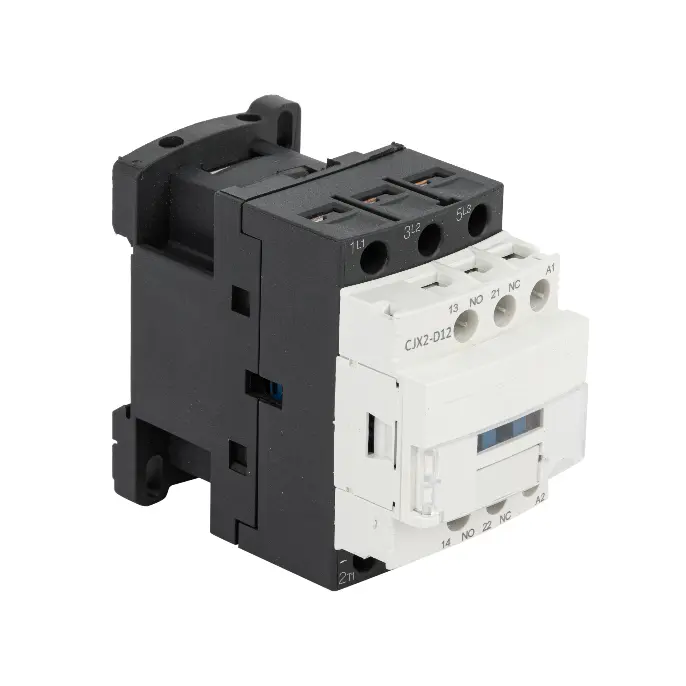

D Contactor
Model:LC1-D Series
Shanghai DADA Hluav Taws Xob yog cov chaw tsim khoom txhim khu kev qha thiab peb muaj peb tus kheej lub npe, CDADA. Peb D Contactor (LC1-D Series) yog IEC 60947-4-1 tau ntawv pov thawj, 3P / 4P, mus txog 620A, AC-3 / AC-4 rated. Wide coil voltage xaiv. Peb pom zoo cov khoom no rau kev tswj lub cev muaj zog & kev lag luam automation, tiv tauj peb rau kev tsocai.
Engineer txhim khu kev qha lub cev muaj zog tswj thiab hloov hluav taws xob nrog CDADA LC1-D Series D Contactor ua haujlwm siab AC contactor tsim los ntawm Shanghai DADA Electric CO., LTD kom ua tau raws li IEC / EN 60947-4-1 cov qauv. Ua rau kev lag luam, kev lag luam, thiab kev siv vaj tse, LC1-D series txhawb 3-ncej lossis 4-ncej kev teeb tsa nrog cov ntsuas tam sim no los ntawm 9A txog 95A (txog 620A hauv cov khoom siv hnyav) thiab tswj 3-theem squirrel-cage motors mus txog 45kW (ntawm 1530, AC lub luag haujlwm).
Nruab nrog tus qauv 1NO + 1NC auxiliary contacts, nws ua ke seamlessly nrog thermal overload relays rau tag nrho lub cev muaj zog tiv thaiv. Nrog AC lossis DC coil xaiv (24V-600V), AC-3 thiab AC-4 siv pawg, thiab cov qauv tsim muaj zog rau 690V rwb thaiv tsev, CDADA D Contactor muab kev ua tau zoo nyob rau hauv nquag pib-nres cycles, conveyor systems, twj, compressors, thiab HVAC ib puag ncig-C 2000m qhov siab.
Ntsiab Specifications
Series: D Contactor
Hom Tshuaj: CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD
Txheem: IEC / EN 60947-4-1
Ntawv pov thawj: CE
Ncej: 3P lossis 4P (xaiv tau)
Rated Ua Haujlwm Tam Sim No (AC-3): 9A - 95A (txog 620A hauv kev txuas ntxiv)
Lub cev muaj zog tswj (AC-3):
380/415V: 4kW - 45kW
660/690V: mus txog 45kW
Kev siv pawg: AC-3 (squirrel-cage motors), AC-4 (plug & inching)
Rated rwb thaiv tsev Voltage: 690V AC
Ambient Kub: -5 ° C txog + 40 ° C
Qhov siab: ≤ 2000m
Mounting: ntsug dav hlau ± 5 °, Mounting Qeb III
Kev Sib Txuas Lus: 1NO + 1NC (tus qauv ntawm txhua tus qauv)
Coil Options:
AC 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V
Lub hwj chim: 24V, 36V, 48V, 110V, 220V
Cov ntaub ntawv Technical
|
Cov khoom |
Qauv |
Qauv: LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
Qauv: LC1-D32 |
|
|
Ncej |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Sib cuag |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
||
|
Rated pa cua sov tam sim no (A) AC-1 |
20 |
20 |
30 |
40 |
50 |
||
|
Rated ua haujlwm tam sim no (A) |
380/400V |
AC-1 AC-4 |
9 |
12 |
18 |
25 |
32 |
|
3.5 |
5 |
7.7 |
8.5 |
12 |
|||
|
660/690V |
AC-3 AC-4 |
6.6 |
8.9 |
12 |
18 |
21 |
|
|
1.5 |
2 |
3.8 |
4.4 |
7.5 |
|||
|
Rated rwb thaiv tsev voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Lub zog tswj 3-theem lub cev muaj zog (AC-3) |
kW |
AC 220/230V 380/415V AC 660/690V AC |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
4 |
5.5 |
7.5 |
11 |
15 |
|||
|
5.5 |
7.5 |
10 |
15 |
18.5 |
|||
|
AC coil (V) |
24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600 |
||||||
|
DC kauj (V) |
24, 36, 48, 110, 220 |
||||||
|
Cov khoom |
Qauv |
LC1-D40 |
LC1-D50 |
Qauv: LC1-D65 |
Qauv: LC1-D80 |
Qauv: LC1-D95 |
|
|
Ncej |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Cov khoom siv hluav taws xob: AC-15, Ue = 4 15V le = 0.95A Ith = 10A |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
1 NPO + 1 NC |
||
|
Rated pa cua sov tam sim no (A) AC-1 |
60 |
80 |
80 |
110 |
110 |
||
|
Rated ua haujlwm tam sim no (A) |
380/400V |
AC-3 AC-4 |
40 |
50 |
65 |
80 |
95 |
|
18.5 |
24 |
28 |
37 |
44 |
|||
|
660/690V |
AC-3 AC-4 |
34 |
39 |
42 |
49 |
49 |
|
|
9 |
12 |
14 |
17.3 |
21.3 |
|||
|
Rated rwb thaiv tsev voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Lub zog tswj 3-theem lub cev muaj zog (AC-3) |
KW |
AC 220/230V 380/415V AC 660/690V AC |
11 |
15 |
18.5 |
22 |
25 |
|
18.5 |
22 |
30 |
37 |
45 |
|||
|
30 |
37 |
37 |
45 |
45 |
|||
|
AC coil (V) |
24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600 |
||||||
|
DC kauj (V) |
24, 36, 48, 110, 220 |
||||||
|
Cov khoom |
Qauv |
Qauv: LC1-D115 |
Qauv: LC1-D150 |
Qauv: LC1-D170 |
Qauv: LC1-D205 |
Qauv: LC1-D245 |
|||||||
|
Ncej |
3 |
3 |
3 |
3/4 |
3/4 |
||||||||
|
Rated pa cua sov tam sim no (A) AC-1 |
200 |
200 |
200 |
275 |
280 |
||||||||
|
Rated ua haujlwm tam sim no (A) |
380/400V |
AC-3 AC-4 |
115 |
150 |
170 |
205 |
245 |
||||||
|
50 |
65 |
70 |
75 |
85 |
|||||||||
|
660/690V |
AC-3 AC-4 |
70 |
90 |
100 |
108 |
115 |
|||||||
|
25 |
32 |
35 |
38 |
40 |
|||||||||
|
Rated rwb thaiv tsev voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||||||||
|
Lub zog tswj 3-theem lub cev muaj zog (AC-3) |
kW |
380/415V AC 660/690V AC |
55 |
75 |
75 |
90 |
110 |
||||||
|
80 |
100 |
100 |
110 |
140 |
|||||||||
|
AC coil (V) |
110, 127, 220, 240, 380, 415, 440, 480, 500, 600 |
||||||||||||
|
Cov khoom |
Qauv |
Qauv: LC1-D300 |
Qauv: LC1-D410 |
Qauv: LC1-D475 |
Qauv: LC1-D620 |
||||||||
|
Ncej |
3/4 |
3/4 |
3/4 |
3/4 |
|||||||||
|
Rated pa cua sov tam sim no (A) AC-1 |
360 |
430 |
580 |
850 |
|||||||||
|
Rated ua haujlwm tam sim no (A) |
380/400V |
AC-3 AC-4 |
300 |
410 |
475 |
620 |
|||||||
|
124 |
150 |
185 |
188 |
||||||||||
|
660/690V |
AC-3 AC-4 |
190 |
235 |
290 |
360 |
||||||||
|
60 |
72 |
85 |
170 |
||||||||||
|
Rated rwb thaiv tsev voltage (V AC) |
690 |
690 |
690 |
690 |
|||||||||
|
Lub zog ntawm kev tswj 3-theem lub cev muaj zog (AC-3) |
kW |
380/415V AC 660/690V AC |
160 |
200 |
250 |
335 |
|||||||
|
220 |
280 |
330 |
450 |
||||||||||
|
AC coil (V) |
110, 127, 220, 240, 380, 415, 440, 480, 500, 600 |
||||||||||||

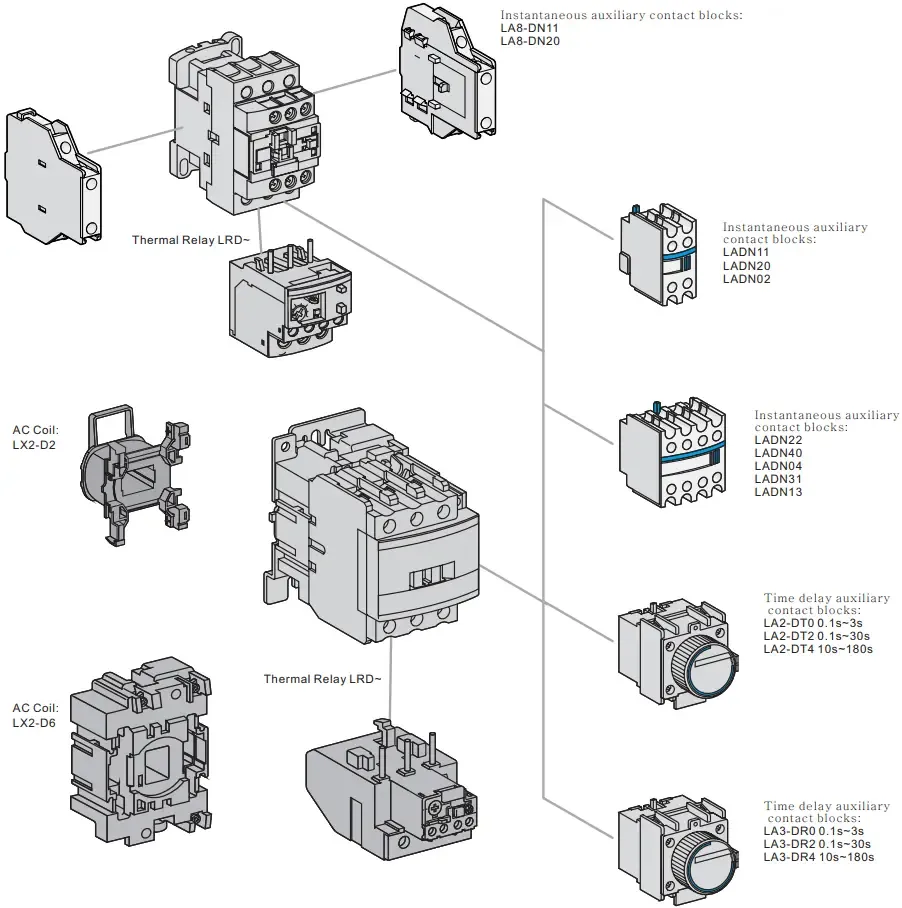

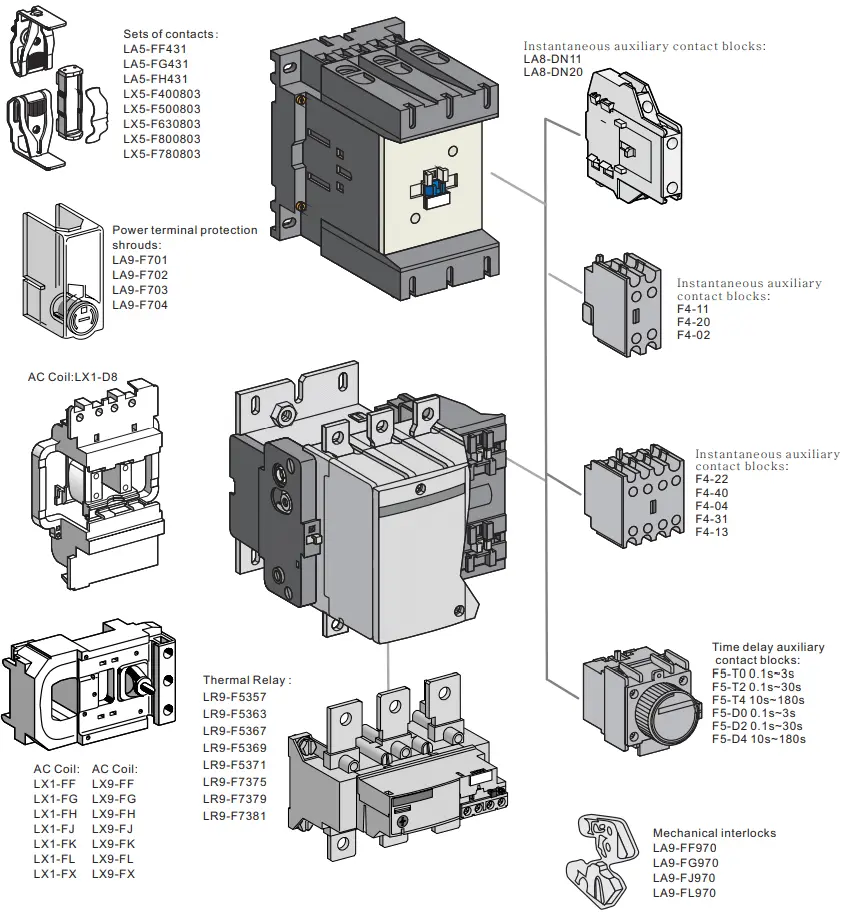

Khoom siv
Vim li cas thiaj xaiv CDADA D Contactor?
★ Muaj tseeb IEC Ua Raws Cai
Tsim thiab sim rau IEC / EN 60947-4-1 - Kev lees paub thoob ntiaj teb thiab kev sib koom ua haujlwm.★ Tag Nrho Lub Cev Tswj Xyuas Kev daws teeb meem
Ua ke nrog CDADA thermal overload relays rau kev ua kom tiav lub cev muaj zog pib sib dhos-overload + luv luv + kev sib cais.★ Dav Voltage Flexibility
Xaiv los ntawm 13 AC thiab 5 DC coil voltages-zoo tagnrho rau cov haujlwm thoob ntiaj teb lossis cov vaj huam sib luag-voltage.★ Robust rau Hnyav plaub ntug
Txhawb AC-4 lub luag haujlwm (nrawm thim rov qab / ntsaws) - zoo meej rau cranes, elevator, thiab conveyors.★ Plug-and-Play Kev koom ua ke
Standard 1NO + 1NC pab neeg sib cuag pab kom yooj yim interlocking, signaling, los yog PLC tawm tswv yim.★ Muaj-Qib Kev Ntseeg
Kev sim rau siab hluav taws xob endurance, tsis tshua muaj kev sib cuag tsis kam, thiab ruaj khov arc tsuj-ua kom poob qis.★ Peb qhov zoo tseem ceeb yog: 1) Ua tiav cov ntawv pov thawj thoob ntiaj teb, 2) Muaj peev xwm OEM / ODM muaj zog, 3) Kev ua haujlwm siab tus nqi, 4) Txhim khu kev lag luam loj loj, 5) Kev xa tawm ntau heev.
★ Peb cov khoom raug xa tawm mus rau cov teb chaws Asia, Middle East, South America, Africa, Europe, thiab CIS lub teb chaws, nrog rau kev tsom mus rau kev lag luam Belt thiab Road.
Tej kev siv
Lub cev muaj zog Starters: Twj, kiv cua, compressors, mixers
HVAC Systems: Chiller & blower tswj
Industrial Automation: Conveyor kab, ntim tshuab
Kev Tswj Tsev: Kev tswj of elevator, teeb pom kev hauv tsev
Zog & Dej: Kev kho cov dej khib nyiab, cov kav dej
Cov lus nug nquag
Q1: "D Contactor" txhais li cas?
A1: "D" yog hais txog cov npe series (LC1-D) siv thoob ntiaj teb rau qhov qauv no, qauv AC contactor platform. Nws tsis yog ib qho kev faib tawm - tab sis tau lees paub dav dav hauv vaj huam sib luag lub tsev rau nws cov kev sib raug zoo nrog cov khoom siv xws li overload relays thiab mechanical interlocks.
Q2: Qhov txawv ntawm AC-3 thiab AC-4 lub luag haujlwm yog dab tsi?
A2:● AC-3: Ib txwm pib / nres ntawm squirrel-cage motors (piv txwv li, twj, kiv cua). Txo kev ntxhov siab.
● AC-4: nquag ntsaws, inching, lossis thim rov qab (piv txwv li, cranes, hoists). Kev ntxhov siab hluav taws xob siab dua → xav tau kev sib cuag muaj zog dua. → CDADA LC1-D tau ntsuas rau ob qho tib si, ua kom muaj ntau yam.
Q3: Kuv puas tuaj yeem siv tus contactor no yam tsis muaj overload relay?
A3: Tsis pom zoo rau lub cev muaj zog. Lub contactor tsuas yog hloov lub zog - nws tsis tiv thaiv overloads. Ib txwm ua khub nrog lub thermal lossis hluav taws xob overload relay rau kev nyab xeeb ntawm lub cev muaj zog.
Q4: Puas yog 4-ncej versions muaj?
A4: Yog! Txhua tus qauv LC1-D txhawb nqa 3P lossis 4P kev teeb tsa-zoo tagnrho rau nruab nrab-hloov daim ntawv thov lossis 4-wire systems.
Q5: Vim li cas thiaj xaiv CDADA dua lwm tus D-series contactors?
A5: CDADA muab:● Qhov tseeb IEC 60947-4-1 ua raws li cov ntaub ntawv xeem
● Dav coil voltage ntau (xws li 415V, 480V, 600V rau kev xa tawm)
● Zoo ib yam nrog nyiaj-alloy hu thiab arc chutes
● OEM-phooj ywg tus nqi thiab tus qauv xa rov qab sai
● Cov ntawv pov thawj thoob ntiaj teb (CE) thiab cov ntaub ntawv Askiv
