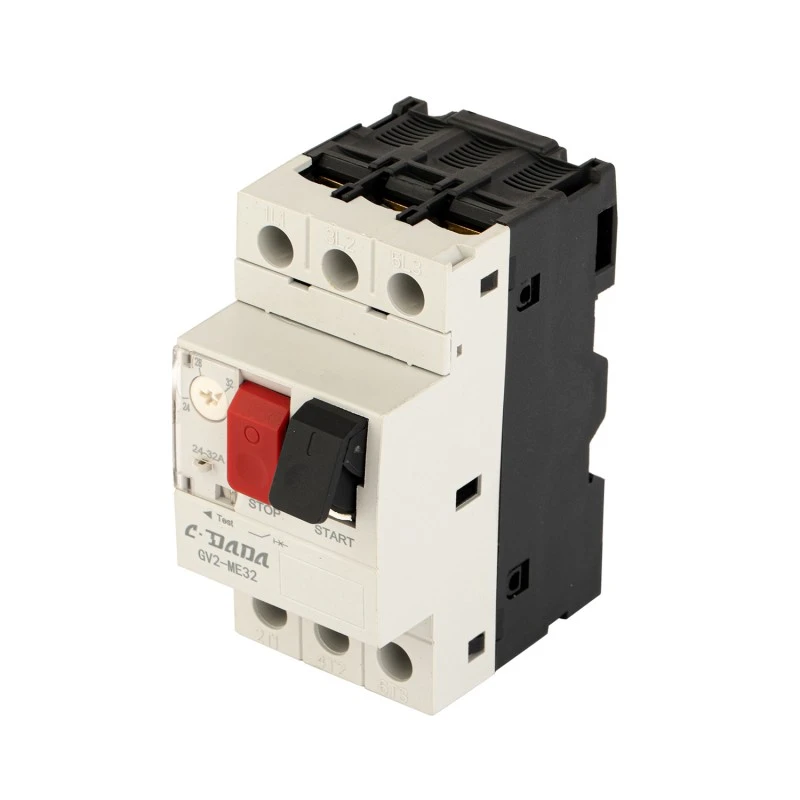

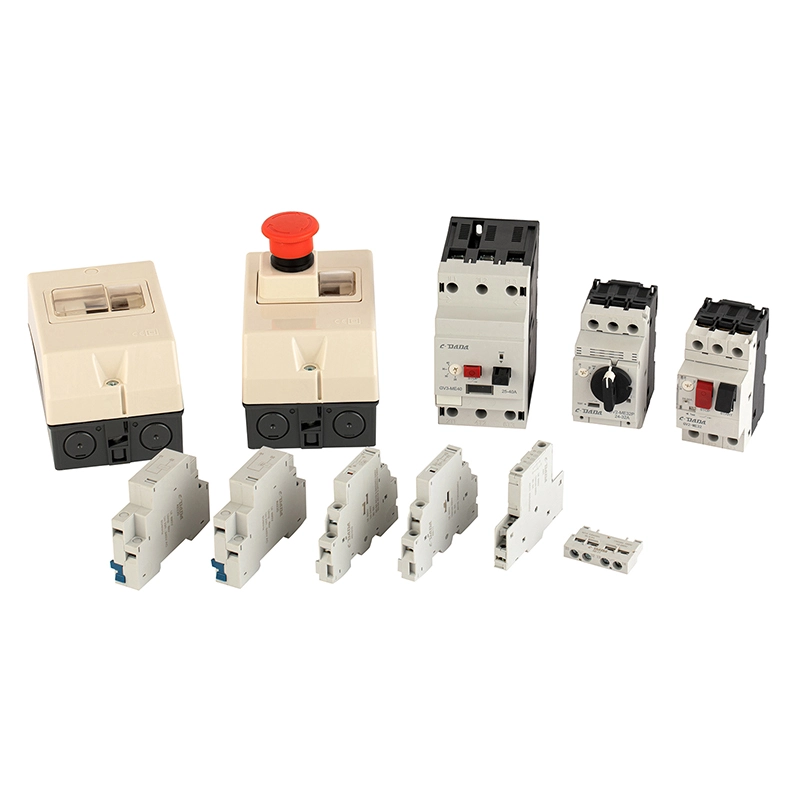

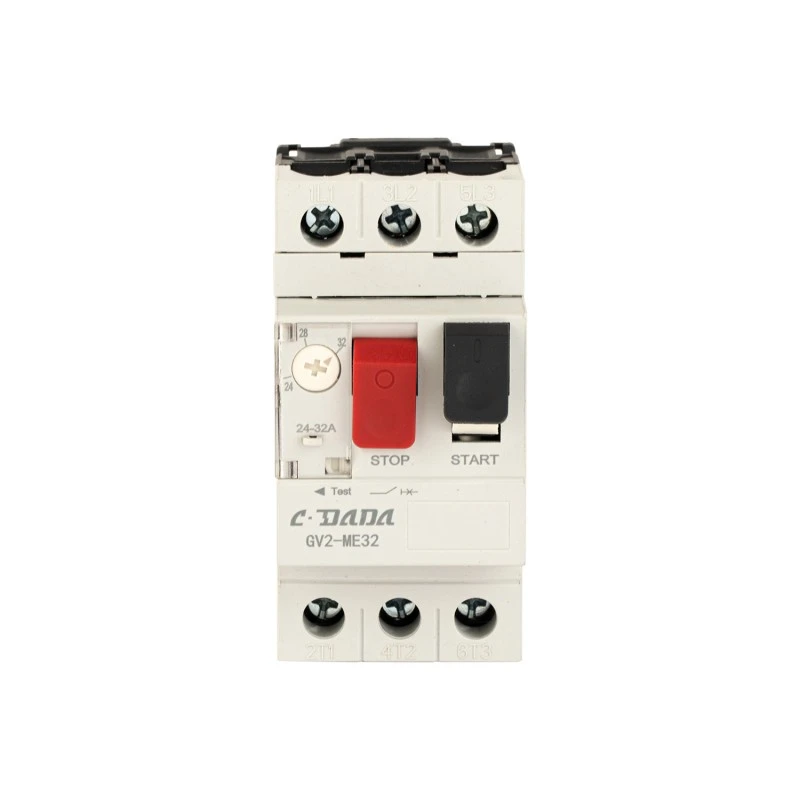

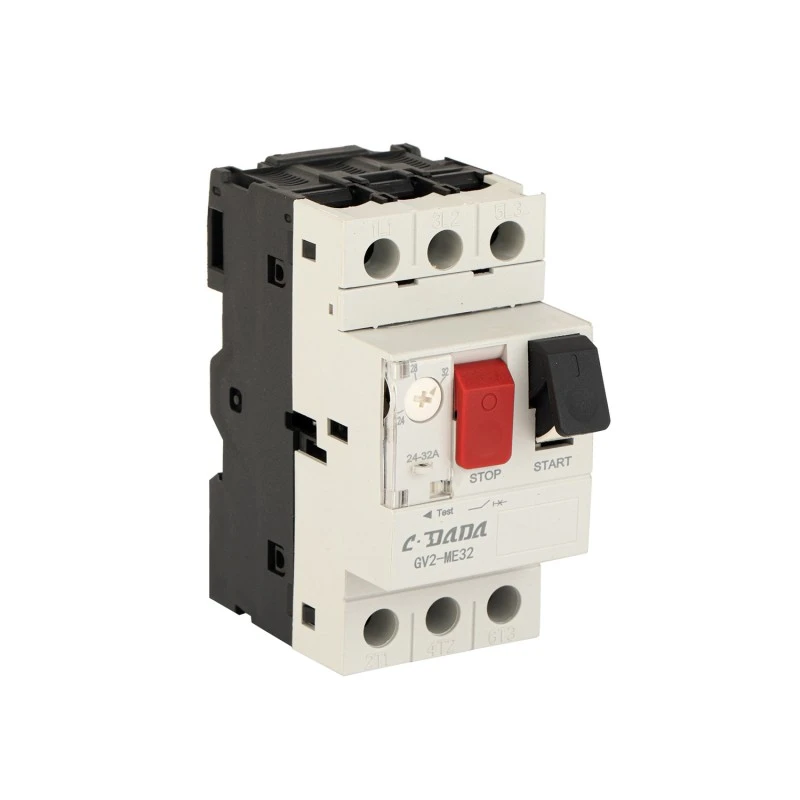

GV2 2P Motor Protection Circuit Breaker

Yooj yim rau kev tiv thaiv lub cev muaj zog nrog CDADA GV2 2P Tsav Tiv Thaiv Circuit Court Breaker (MPCB) ib qho kev ua haujlwm siab, kev cog lus tsim los ntawm Shanghai DADA Electric CO., LTD. siv lub tshuab thev naus laus zis tshiab tiam tom ntej thiab ua tiav kev tsim khoom. Tsim los rau ib-theem lossis ob-theem lub cev muaj zog circuits, GV2 2P integrates overload, short-circuit, phase-loss (rau 3-theem daim ntawv thov thaum siv hauv pawg), thiab kev sib cais ua haujlwm hauv ib qho DIN-rail mounted device.

Nrog rau qhov hloov kho qhov ntau ntawm 0.1A txog 32A, thermal them nyiaj rau ambient kub variations, thiab ib tug rated rwb thaiv tsev voltage ntawm 690V, nws ua kom ntseeg tau kev tiv thaiv rau me me motors nyob rau hauv lub twj tso kua mis, kiv cua, compressors, conveyors, thiab HVAC systems. Muaj ntawv pov thawj rau CE cov qauv, muaj 110,000 txhua yam thiab hluav taws xob ua haujlwm, thiab nruab nrog cov khoom siv xaiv xws li kev sib txuas lus, shunt tso tawm, thiab kev tso tawm hluav taws xob, CDADA GV2 MPCB muab kev ua haujlwm qib siab hauv qhov chaw txuag 2-ncej hom.

Ntsiab Specifications

Qauv Series: GV2 2P MPCB

Hom Tshuaj: CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD

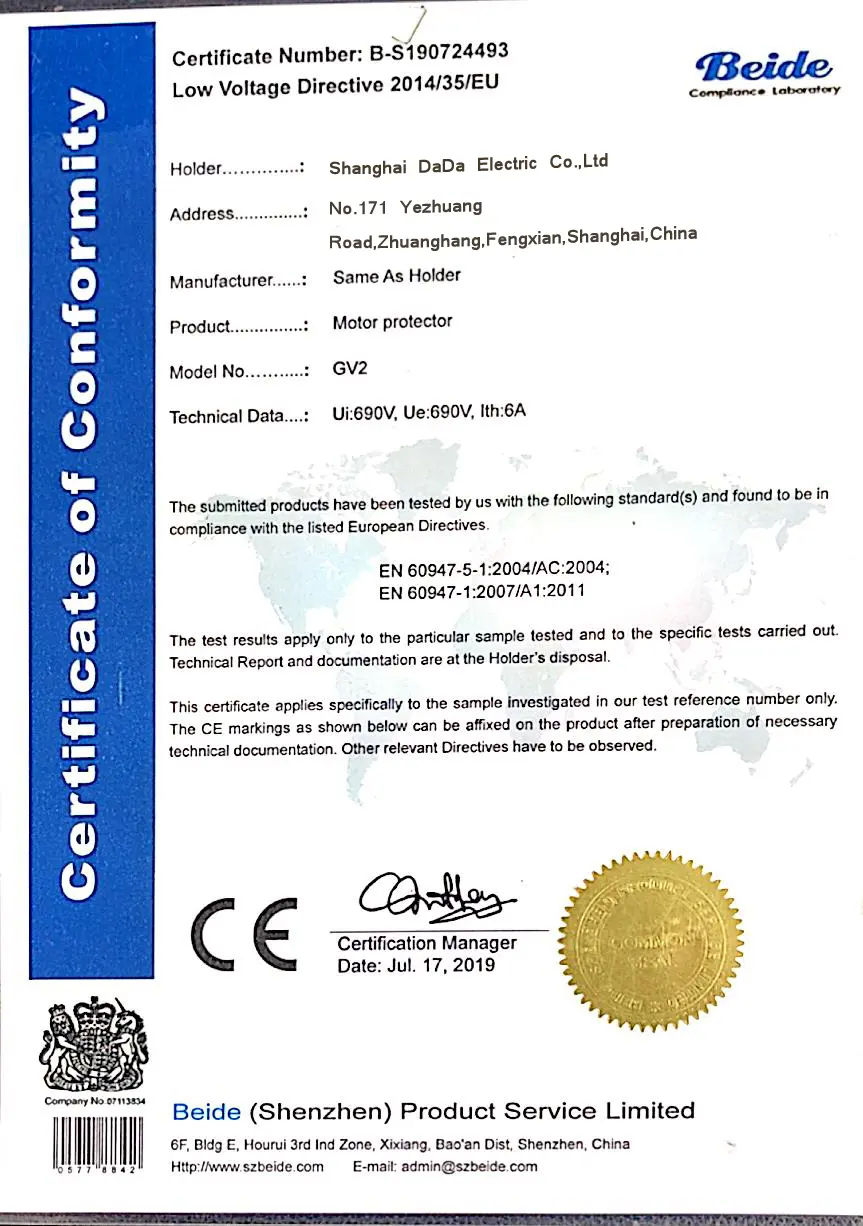

Ntawv pov thawj: CE

Ncej: 2P (zoo tagnrho rau ib-theem motors lossis ua ib feem ntawm 3-theem tiv thaiv teeb)

Teem caij tam sim no: 0.1A - 32A (adjustable ntawm dial)

Ncej ntsuas: 32A

Rated Ua Haujlwm Voltage: 690V AC

Rated rwb thaiv tsev Voltage (Ui): 690V

Impulse Withstand Voltage (Uimp): 6000V

Ua hauj lwm zaus: 50/60Hz

Chav Kawm: 10A (tus qauv rau lub hom phiaj dav dav)

Kev tiv thaiv muaj nuj nqi:

★ Thermal overload tiv thaiv

★ Kev tiv thaiv luv luv

★ Phase-poob tiv thaiv * (* thaum siv hauv 3-ncej teeb tsa lossis kev sib koom ua ke)

★ Kev cais muaj nuj nqi (pom pom tawg)

★ Built-in kub them nyiaj

Mechanical Life: 110,000 ua haujlwm

Hluav taws xob lub neej (AC-3, 400V): 110,000 ua haujlwm

Tightening Torque: 1.7Nm

Hom Kev Ua Haujlwm: Push-button ON / OFF nrog qhov taw qhia meej txog kev mus ncig

Mounting: 35mm DIN rail

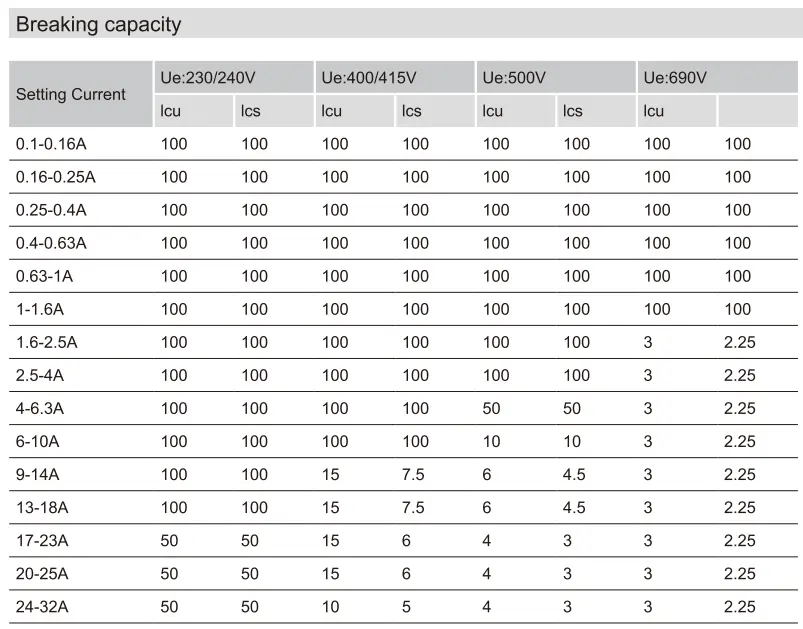

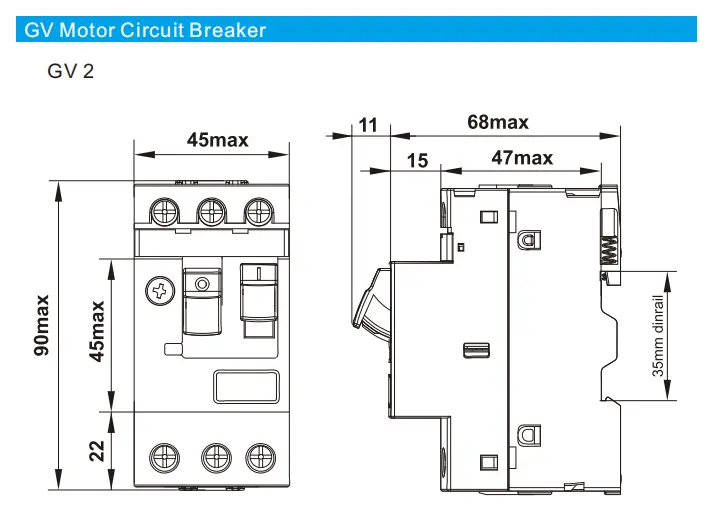

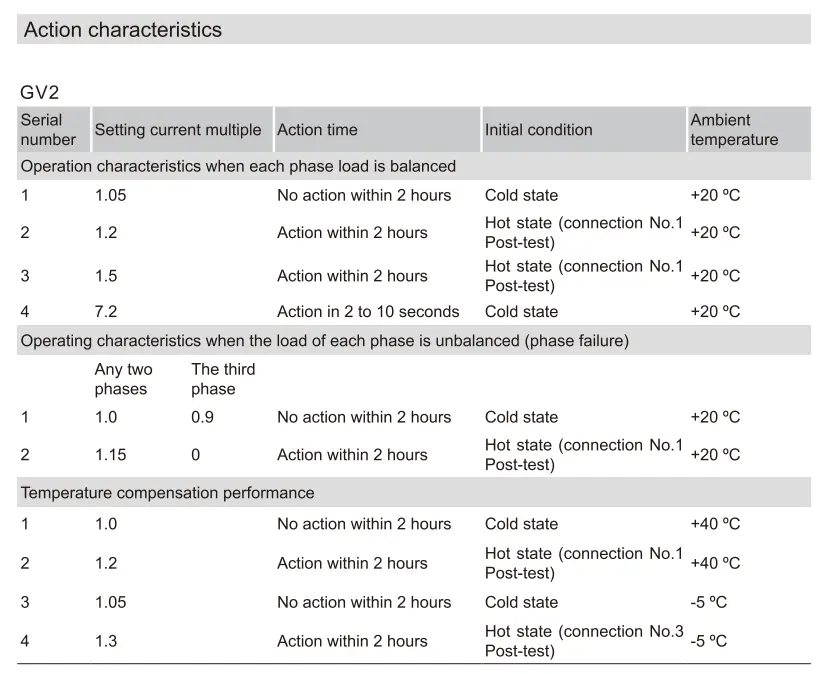

Cov ntaub ntawv Technical

Vim li cas thiaj xaiv CDADA GV2 2P Motor Protection Circuit Breaker?

★ All-in-One Motor Protection

Muab cov hluav taws xob hluav taws xob sib txuas + thermal overload relay + isolator - tshem tawm qhov xav tau ntawm cov khoom sib cais.

★ Precision & ruaj khov

Kub-compensated mechanism ua kom tsis tu ncua tsis hais txog kev hloov pauv ntawm qhov chaw nyob (xws li, kev cob qhia kub lossis hauv qab daus txias).

★ Siab Durability

110,000 txhua yam / hluav taws xob voj voog - ua tau zoo tshaj ntau tus neeg sib tw hauv kev ntseeg tau ntev.

★ Chaw-Txuag 2P Tsim

Qhov zoo tshaj plaws rau kev tswj vaj huam sib luag, OEM machinery, thiab retrofit tej yaam num uas vaj huam sib luag vaj tse yog txwv.

★ Puv Accessory Ecosystem

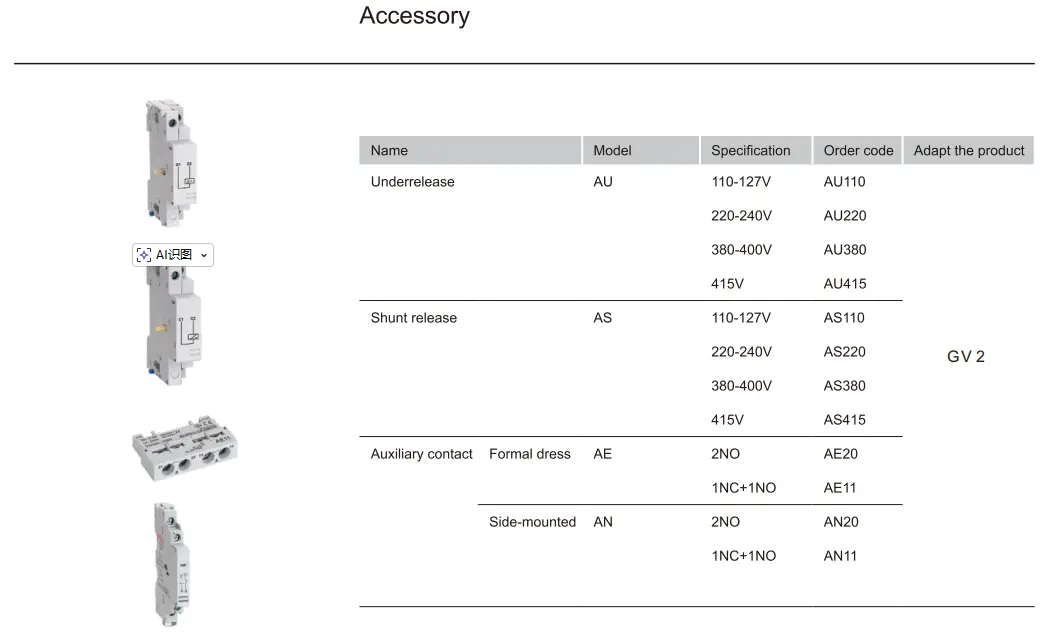

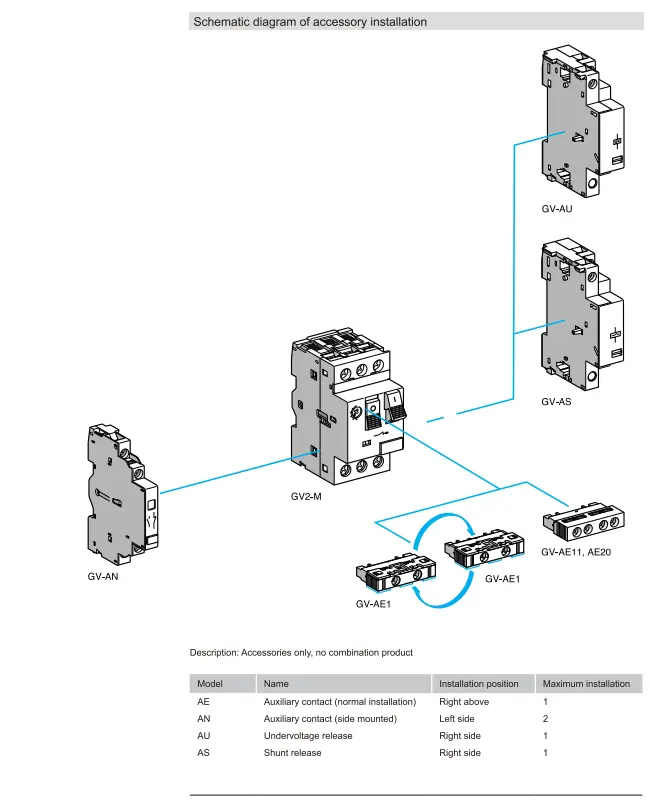

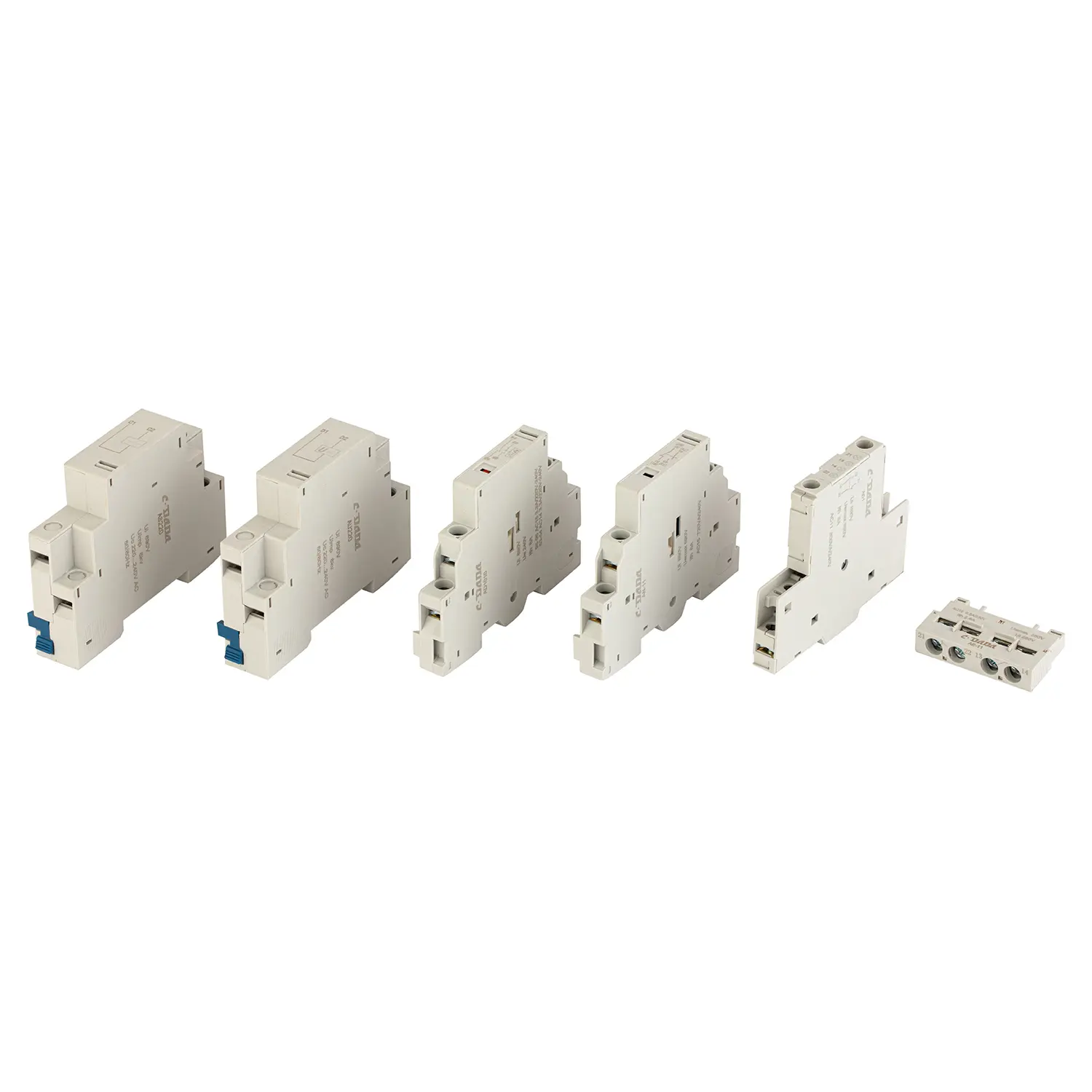

Txhawb AE (pem hauv ntej pab), AN (sab pab), AU (undervoltage tso), AS (shunt mus txawv tebchaws) - ua kom cov chaw taws teeb teeb liab, pib kaw, lossis PLC kev koom ua ke.

★ Kev Ua Raws Li Ntiaj Teb

CE tau ntawv pov thawj nrog 690V kev ntsuam xyuas - haum rau European, Asian, African, thiab Latin American kev lag luam.

★ Kev sib raug zoo tau lees paub los ntawm cov cuab yeej siv tshuab tsim khoom, cov txheej txheem kev khiav hauj lwm, kev tshuaj xyuas cov khoom nkag, kev sim ua tiav, thiab qhov kawg 100% kev sim ua haujlwm rau qhov tsis tseem ceeb.

Tej kev siv

Single-Phase Motors: Pumps, garage door openers, me compressors

OEM Machinery: Ntim tshuab, khoom noj khoom haus

HVAC Systems: Ntxuam coil units, chillers me me

Tsev Automation: of the elevator auxiliaries, ventilation controls

Retrofit Projects: Hloov fuses + thermal relays nrog MPCB integrated

Cov lus nug nquag

Q1: Dab tsi yog qhov txawv ntawm MPCB thiab tus qauv Circuit Court breaker?

A1: Lub Motor Protection Circuit Breaker (MPCB) zoo li GV2 muab:

● Kho thermal overload tiv thaiv (nrog rau lub cev muaj zog FLC)

● Sib nqus luv-circuit tiv thaiv

● Phase-lossis nrhiav tau (hauv 3P versions)

● Kev cais tawm muaj nuj nqi

→ Standard MCBs tsuas yog muab luv luv-circuit thiab ruaj overload tiv thaiv-tsis yog lub cev muaj zog-optimized.

Q2: Puas tuaj yeem 2P GV2 tiv thaiv 3-theem lub cev muaj zog?

A2: Tsis yog ib leeg. Rau 3-theem motors, koj xav tau peb GV2 units (ib zaug ib theem) ua ke, los yog siv 3P MPCB. Txawm li cas los xij, 2P GV2 yog qhov zoo tshaj plaws rau ib-theem motors lossis tswj circuits.

Q3: "Trip Class 10A" txhais li cas?

A3: Nws txhais tau tias ceev npaum li cas lub breaker mus txawv tebchaws nyob rau hauv overload. Chav kawm 10A txhais tau tias nws yuav mus hauv 10 vib nas this ntawm 7.2 × qhov chaw tam sim no-zoo tagnrho rau cov qauv squirrel-cage motors tsis muaj siab pib torque.

Q4: Nws puas them nyiaj rau qhov kub thiab txias?

A4: Yog! Lub bimetallic strip yog thermally compensated, yog li tripping tseem muaj tseeb txawm tias ntsia hauv 0 ° C warehouse lossis 50 ° C enclosure.

Q5: Vim li cas thiaj xaiv CDADA GV2 dua lwm lub npe?

A5: CDADA muab:

● Muaj ntawv pov thawj CE tiag nrog cov ntawv xeem

● Automated ntau lawm → zoo ib yam & tus nqi qis

● Tag nrho accessory compatibility (AE/AN/AU/AS)

● Cov nqi sib tw rau OEMs thiab cov neeg xa khoom

● Kev txhawb nqa ceev ceev thiab cov ntaub ntawv ua lus Askiv
