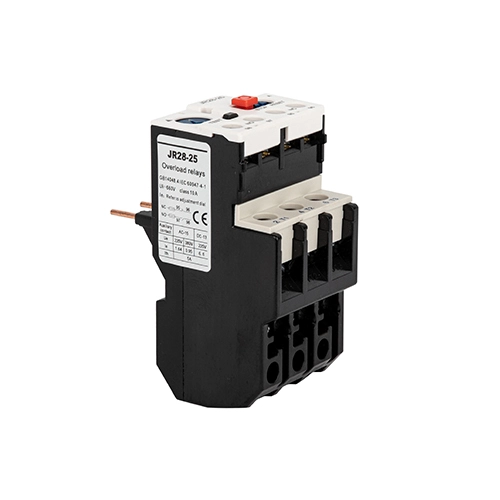

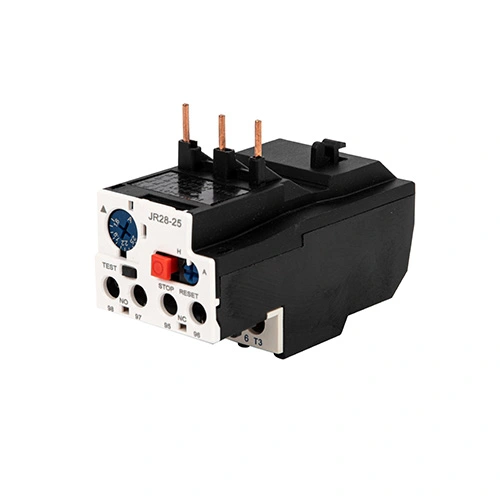

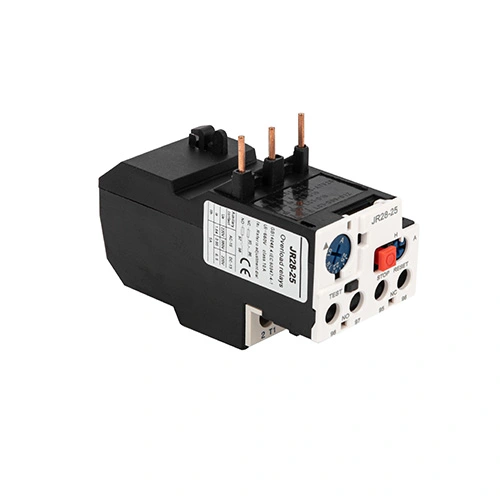

JR28 Thermal Overload Relay

Tiv thaiv koj lub cev muaj zog nrog JR28 Thermal Overload Relay, kev tiv thaiv muaj zog thiab ntse tsim los ntawm CDADA, cov chaw tsim khoom txhim khu kev qha hauv Suav teb. Tsim los rau seamless kev koom ua ke nrog CDADA D-series contactors (D9 txog D150), JR28 relay muab kev tiv thaiv kev tiv thaiv:

● Ntau dhau

● Theem tsis ua hauj lwm (poob ib theem)

● Lub sijhawm pib lub cev muaj zog ntev heev

● Ntev ntev rotor stalling

Nrog rau qhov kev hloov kho tam sim no los ntawm 0.1A txog 140A, JR28 series npog cov ntawv thov los ntawm cov kiv cua me mus rau cov twj loj thiab cov twj tso kua mis. Nws nta lub pob ntsuas rau kev tswj xyuas qhov ntsuas hluav taws xob, qhov taw qhia meej txog kev mus ncig, phau ntawv los yog tsis siv neeg rov pib xaiv, thiab lub hau kaw kom tiv thaiv kev hloov pauv tsis raug cai. Ua los ntawm cov pov thawj bimetallic thermal thev naus laus zis thiab ua raws li IEC 60947-4-1, CDADA JR28 ua kom ntseeg tau, kev tiv thaiv lub cev muaj zog hauv kev xav tau thoob ntiaj teb.

Ntsiab Specifications

Series: JR28 Thermal Overload Relay

Hom Tshuaj: CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD

Compatibility: Tsim rau D9, D12, D18 ... mus txog D150 contactors (LC1-D / F series)

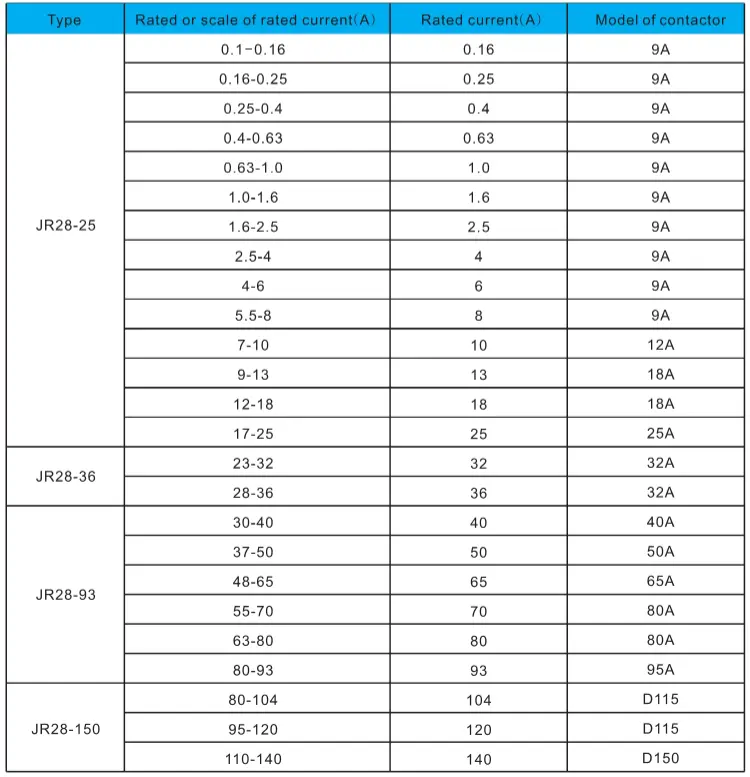

Kev ntsuas tam sim no: 0.1A - 140A (ntau tus qauv: JR28-25, JR28-36, JR28-93, JR28-150, thiab lwm yam)

Ncej: 3-ncej (saib txhua theem rau qhov tsis sib xws)

Kev tiv thaiv muaj nuj nqi:

★ Thermal overload

★ Theem tsis ua hauj lwm nrhiav pom

★ Lub sijhawm pib saib xyuas ntev

★ Rotor rooj tiv thaiv

Pib dua hom: Phau ntawv los yog tsis siv neeg (los ntawm kev xaiv hloov)

Kuaj Khawm: Simulates mus txawv tebchaws - qhib ob qho tib si TSIS thiab NC pab tiv tauj

Nres khawm: Qhib NC kev sib cuag nkaus xwb (rau kev ceeb toom thaum muaj xwm ceev)

Trip Indicator: Visual flag qhia tau tias tripped status

Chaw Xauv: Npog tuaj yeem kaw rau kev ua haujlwm tamper pov thawj

Kev Pabcuam Tiv Thaiv: Txheem 1NO + 1NC (rau lub tswb, PLC tawm tswv yim, lossis kev cuam tshuam)

Mounting: Snap-on tsim ncaj qha mus rau CDADA contactors

Daim ntawv pov thawj: Ua raws li IEC / EN 60947-4-1 (CE cov ntaub ntawv muaj)

Vim li cas thiaj xaiv CDADA JR28 Thermal Overload Relay?

★ Cov Kev Pabcuam Tam Sim No

Los ntawm 0.1A mus rau 140A-txhawb txhua yam los ntawm fractional HP motors mus rau 110kW + industrial drives.

★ Tag Nrho Compatibility nrog D-Series Contactors

Engineered kom haum D9 txog D150-ua kom zoo meej txhua yam thiab thermal kev sib koom tes.

★ Advanced Diagnostic Nta

★ TEST khawm tshawb xyuas kev tswj cov thaiv tsis muaj hluav taws xob cuam tshuam

★ STOP khawm enables sab nraud signaling

★ Trip indicator speeds up troubleshooting

★ Muaj-Qib Kev Ntseeg

Muaj tseeb bimetallic thermal mechanism (tsis yog hluav taws xob) - tiv thaiv EMI, voltage spikes, thiab software txhaum.

★ Kev Nyab Xeeb & Ua Raws Cai Npaj

Sealable npog ua tau raws li ISO, CE, thiab lub Hoobkas tshawb xyuas qhov yuav tsum tau ua rau cov chaw kaw.

★ Kev Tiv Thaiv Tus Nqi Zoo

Tiv thaiv kom tsis txhob muaj lub cev muaj zog, txo lub sijhawm poob qis, thiab txuas ntxiv lub neej ntawm cov cuab yeej siv - zoo tagnrho rau OEMs thiab kev sib koom ua ke.

★ Ntim cov ntsiab lus sib txawv ntawm cov khoom. Peb muab cov ntaub ntawv no rau hauv peb cov lus hais thiab cov npe ntim khoom. Txheem export thawv yog tsim los rau kev pom zoo palletization thiab ntim ntim.

Tej kev siv

★ Lub cev muaj zog Starter Assemblies: Paired nrog contactors rau twj, kiv cua, conveyors

★ HVAC Systems: chillers, cua txias yees, cua handlers

★ Dej & Dej khib nyiab: Submersible thiab centrifugal twj

★ Kev tsim khoom: tov khoom, extruders, ntim kab

★ Mining & Kev Tsim Kho: Crushers, hoists, cua kiv cua

Cov lus nug nquag

Q1: Qhov txawv ntawm JR28 thiab LRD series yog dab tsi?

A1: Ob leeg yog thermal overload relays los ntawm CDADA. JR28 series txhawb nqa siab dua tam sim no (txog 140A) thiab yog tsim los rau cov contactors loj (txog D150), thaum LRD feem ntau npog qis qis (txog ～104A). Ua haujlwm tau zoo, lawv muaj kev tiv thaiv zoo sib xws - tab sis JR28 tau ua kom zoo rau kev ua haujlwm hnyav.

Q2: Kuv puas tuaj yeem siv JR28 Thermal Overload Relay nrog cov tsis-CDADA contactors?

A2: Txawm hais tias muaj peev xwm ua tau rau qee qhov, kev ua tau zoo thiab kev txhawb nqa yuav tsum tau ua ke nrog CDADA D-series contactors (D9-D150). Mechanical haum, kub dissipation, thiab kev sib koom ua ke nkhaus yog validated raws li ib tug system.

Q3: Yuav ua li cas tiv thaiv theem tsis ua haujlwm hauv JR28?

A3: Yog tias ib theem poob lawm, qhov seem ntawm ob lub conductors nqa tam sim no tsis sib npaug, ua rau cov cua sov asymmetric hauv bimetallic strips. JR28 kuaj pom qhov tsis txaus ntseeg no thiab mus ncig sai dua li qhov qub dhau, tiv thaiv lub cev muaj zog winding puas.

Q4: Puas yog phau ntawv rov pib dua muaj kev nyab xeeb dua li pib pib dua?

A4: Yog - rau cov txheej txheem tseem ceeb. Phau ntawv rov pib dua yuam tus neeg teb xov tooj los tshuaj xyuas thiab tshem tawm qhov txhaum ua ntej rov pib dua. Nws pib rov pib dua yog tsim rau cov khoom siv tsis tu ncua lossis cov chaw taws teeb uas muaj qhov tseem ceeb txuas ntxiv (piv txwv li, cov twj tso kua mis txias).

Q5: Vim li cas thiaj xaiv CDADA JR28 thoob ntiaj teb hom?

A5: CDADA muab:

● Muaj tseeb thermal sib txawv mechanism nrog cov neeg siab

● Kev sib raug zoo nrog D9–D150 contactors—plug-and-play kev ntseeg tau

● Kev sim, nres, rov pib dua, thiab foob ua haujlwm hauv ib chav tsev compact

● Cov nqi sib tw nrog CE-raws li zoo

● Kev txhawb nqa ceev ceev thiab cov ntaub ntawv Askiv rau cov neeg siv khoom thoob ntiaj teb
