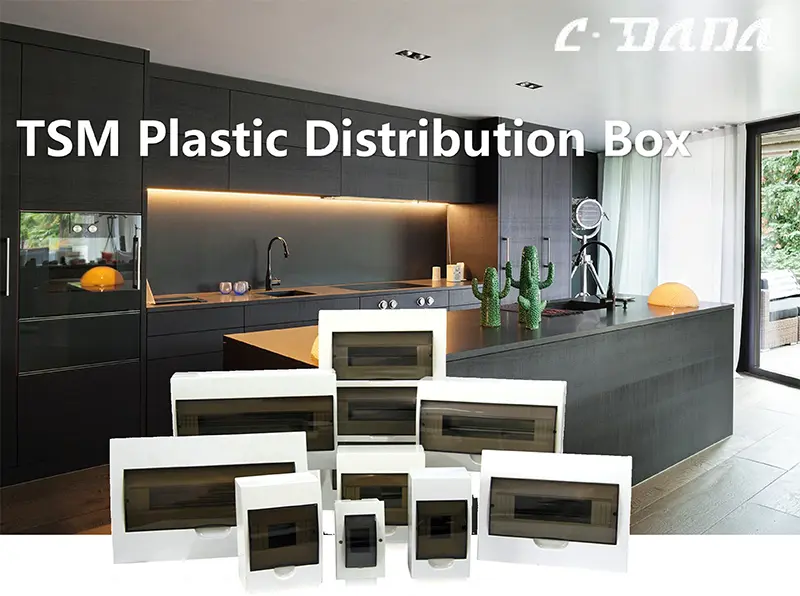

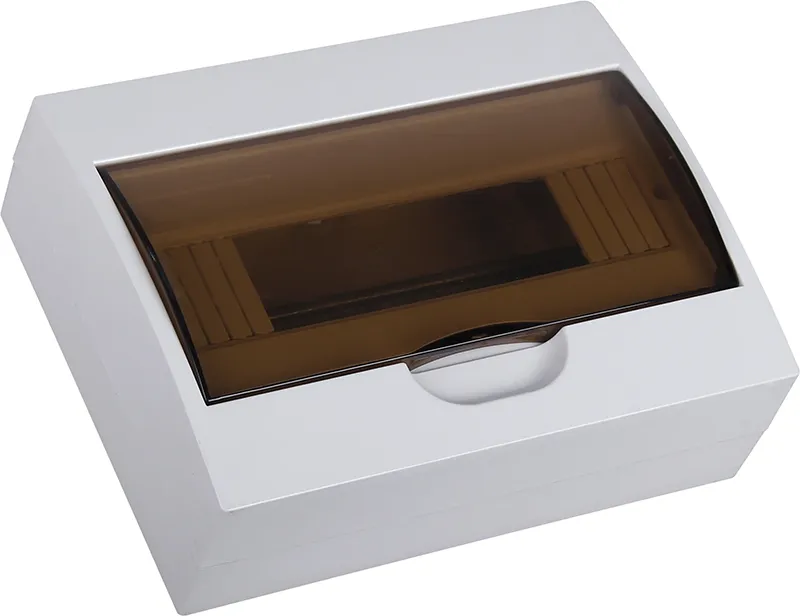

TSM Plastic Distribution Box

Ntawm Shanghai DADA Electric CO., LTD, lub Hoobkas tshaj lij Tuam Tshoj, peb tsim lub TSM Yas Distribution Box tsis yog raws li ib feem-tab sis raws li thawj kab ntawm kev nyab xeeb thiab style hauv koj lub tshuab hluav taws xob. Txawm hais tias koj yog tus kws tshaj lij hluav taws xob, tus neeg cog lus, lossis tus neeg ua haujlwm tshwj xeeb, peb paub tias koj xav tau lub thawv uas yooj yim rau nruab, txhim khu kev qha nyob rau lub sijhawm, thiab pom kev sib haum nrog niaj hnub sab hauv. Yog vim li cas peb thiaj li tau tsim cov TSM series nrog lub zog siab ABS, siv lead ua ntshiab polycarbonate npog, thiab kev hloov pauv ntse - yog li koj tuaj yeem xaiv, nruab, thiab tsis nco qab nrog kev ntseeg siab.

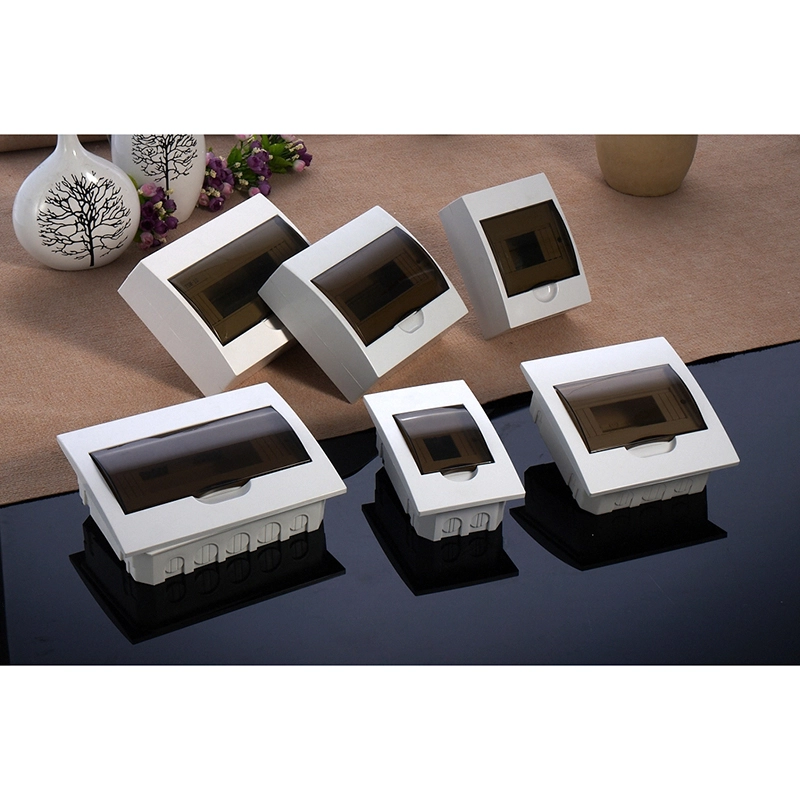

Peb Cov Lus Pom Zoo: Rau cov tsev nyob hauv tsev, villas, lossis chaw ua haujlwm retrofits, xaiv tus qauv zais (R-hom) rau kev ua kom huv ntawm phab ntsa. Rau kev cob qhia, hauv qab daus, lossis kev teeb tsa ceev, mus nrog qhov chaw-mounted (M-hom) - tsis tas yuav txiav.

Khoom Taw Qhia

Khoom siv: Kev cuam tshuam siab, nplaim hluav taws-retardant ABS polymer plhaub + pob tshab PC npog

Lub hauv paus hom: Yas puag (P) - lub teeb yuag tsis tau ruaj khov rau kev siv sab hauv tsev

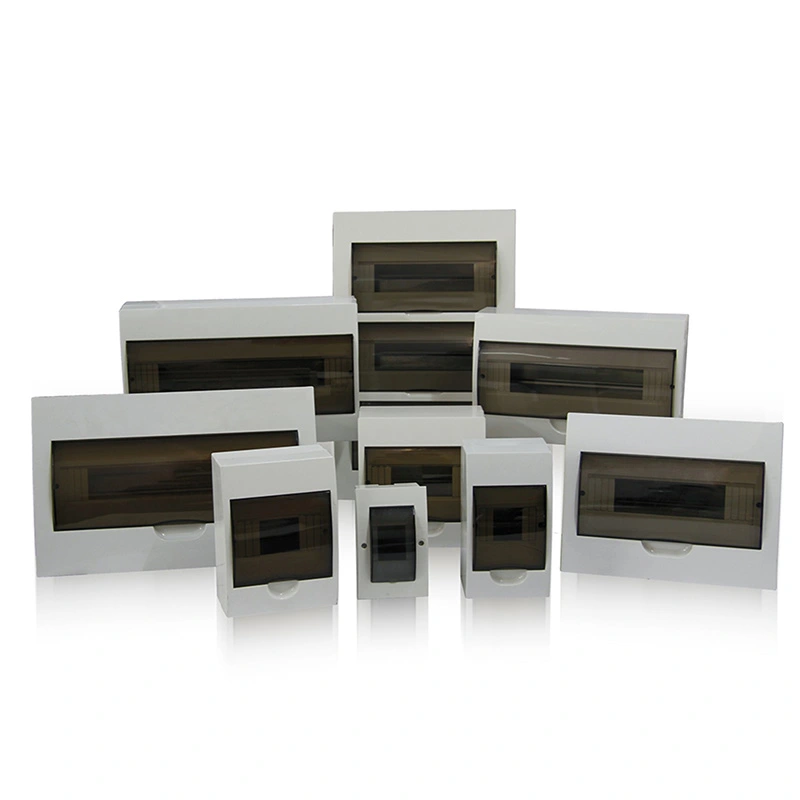

Kev xaiv Circuit Court: 4, 6, 8, 12, 15, 18, 24, 36 ncej - scalable rau txhua qhov load

Mounting:

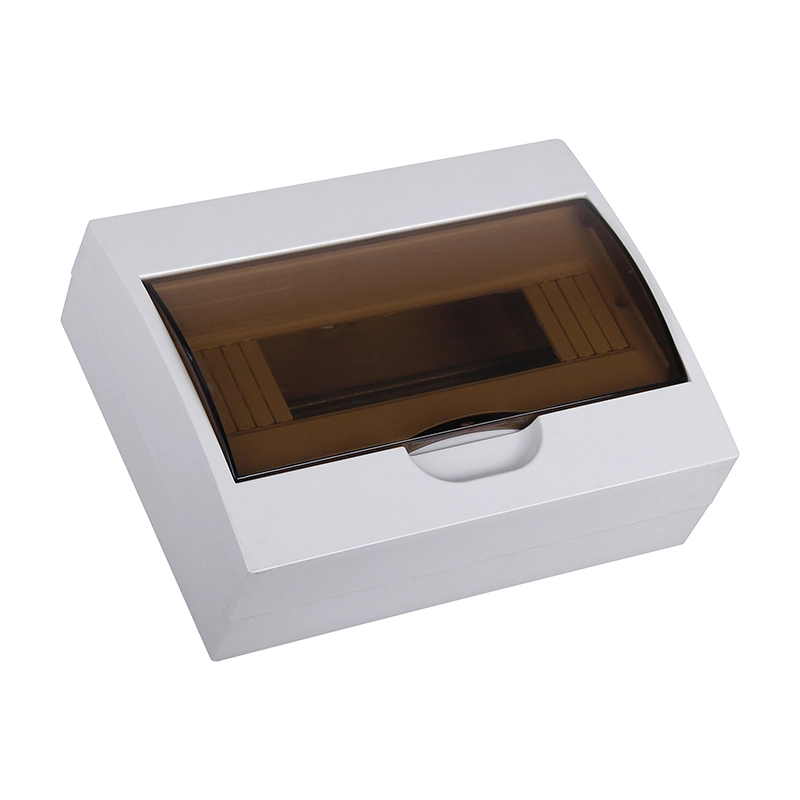

M = Nto-mounted (qhib)

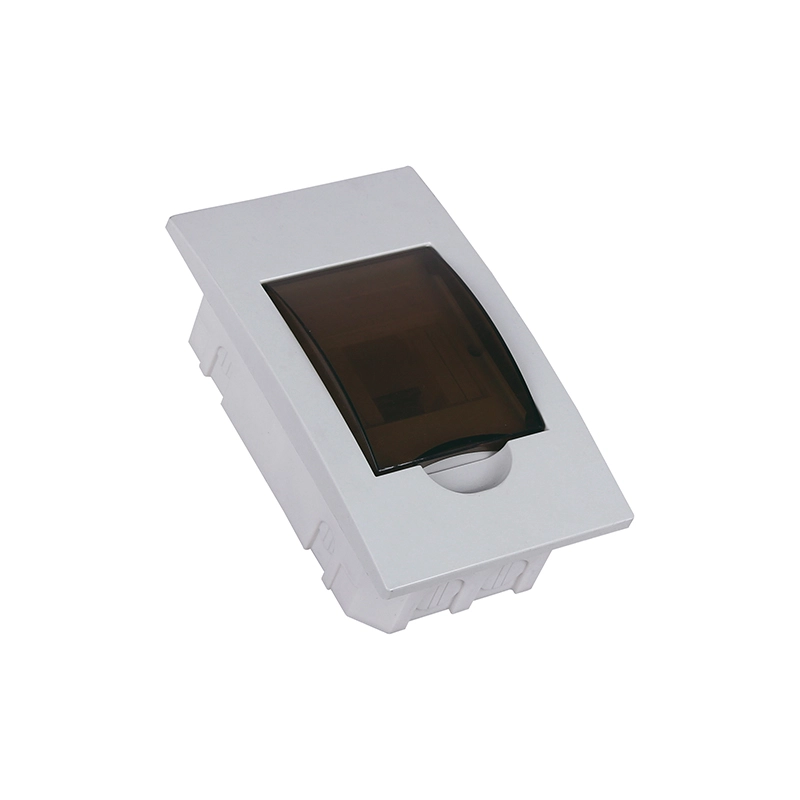

R = Concealed-mounted (flush)

Npog: Pob tshab (A) - cia koj pom cov xwm txheej tawg ntawm ib nrais muag

Rated Tam sim no: 63A | Short-Circuit Ua Peev Xwm: 10kA

Kev Tiv Thaiv Kev Ntsuas: IP40 (qhov chaw qhuav hauv tsev nkaus xwb)

Standard Xim: Dawb

Custom Finishes: Tsaus ntsuab, xim av, kaus ntxhw lub ntsej muag npog muaj rau kev tsim-kev ua haujlwm

Installation Tswv yim los ntawm peb cov engineers: Nco ntsoov tawm 10-15mm tshem tawm ib ncig ntawm lub thawv zais thaum lub sij hawm txiav tawm ntawm phab ntsa kom tso cai rau plaster kam rau ua. Siv peb cov drilled pre-drilled mounting flanges-lawv ua kom zoo kawg nkaus nrog cov qauv sib txawv.

Tus Qauv Xaiv Phau Ntawv Qhia

Nco tseg: Tus "P" hauv lub npe qauv = Plastic Base (vs. hlau puag "I"). Xaiv P rau tus nqi-zoo, lub teeb yuag sab hauv tsev siv qhov twg cov khoom siv tsis zoo yuav tsis xav tau.

Dimensions & Packing (Key Models)

Tswv yim Logistics: Rau cov thawv ntim khoom, sib tov cov thawv me me thiab loj kom zoo dua qhov chaw. Peb muab stackable cartons nrog rau cov ces kaum - zoo tagnrho rau kev thauj mus los ntev.

Aesthetic & Functional Design

Peb ntseeg hais tias cov hluav taws xob vaj huam sib luag yuav tsum tsis txhob muab zais - lawv yuav tsum sib xyaw kom zoo nkauj. Yog vim li cas TSM Plastic Distribution Box nta:

★ Lure Ivory los yog xim ntsej muag lub ntsej muag uas ntxiv ntoo, marble, lossis pleev xim rau phab ntsa

★ Tsis-dawb lub PC npog - nyob ruaj khov rau> 10 xyoo nyob hauv tsev

★ Smooth snap-on mechanism - tsis muaj qhov xav tau rau kev tshuaj xyuas txhua hnub

Kev Tswj Xyuas & Kev Nyab Xeeb Kev Qhia (Los ntawm CDADA R & D Team)

✅ Ua:

★ Tshawb xyuas cov khoom tawg txhua lub hlis twg los ntawm lub npog pob tshab

★ Xyuas kom tag nrho cov terminals yog torqued rau spec thaum pib

★ Daim ntawv lo qhia meej meej ntawm lub qhov rooj sab hauv

❌ Tsis txhob:

★ Nruab nyob rau hauv chav dej, sab nraum zoov, los yog plua plav rhiav (IP40 ≠ ya raws / plua plav pov thawj)

★ Tshaj dhau 63A tag nrho tam sim no

★ Siv cov khoom siv tsis yog DIN rail

Nco ntsoov: Qhov no yog qhov khoob khoob khoob khoob. Ib txwm ua khub nrog cov ntawv pov thawj MCBs (xws li CDADA DAB7 series) ntsuas rau koj lub nra.

Cov lus nug nquag

Q1: Qhov txawv ntawm TSM Yas (P) thiab Hlau Base (I) qauv yog dab tsi?

A1: Yas puag (P) yog sib dua thiab siv nyiaj ntau dua - zoo meej rau kev siv hauv tsev. Hlau puag (I) muaj ntau dua rigidity thiab hauv av-pom zoo rau cov chaw lag luam lossis kev vibration siab. Rau feem ntau lub tsev, P yog txaus thiab nqi-zoo.

Q2: Kuv puas tuaj yeem siv lub thawv no sab nraum zoov lossis hauv chaw nres tsheb?

A2: Tsis yog. Nrog IP40 ntsuam xyuas, nws tsuas yog tsim nyog rau qhov chaw qhuav, sab hauv tsev. Rau garages, sheds, los yog sab nraum zoov meter chav, xav txog peb IP65-rated hlau enclosures.

Q3: Puas yog lub npog pob tshab hloov tau?

A3: Yog! Lub hau yog modular thiab snap-fit. Peb muab cov npog seem dawb los yog xim xim-tsuas yog phim koj tus lej qauv.

Q4: Koj puas suav nrog busbars lossis nruab nrab tuav?

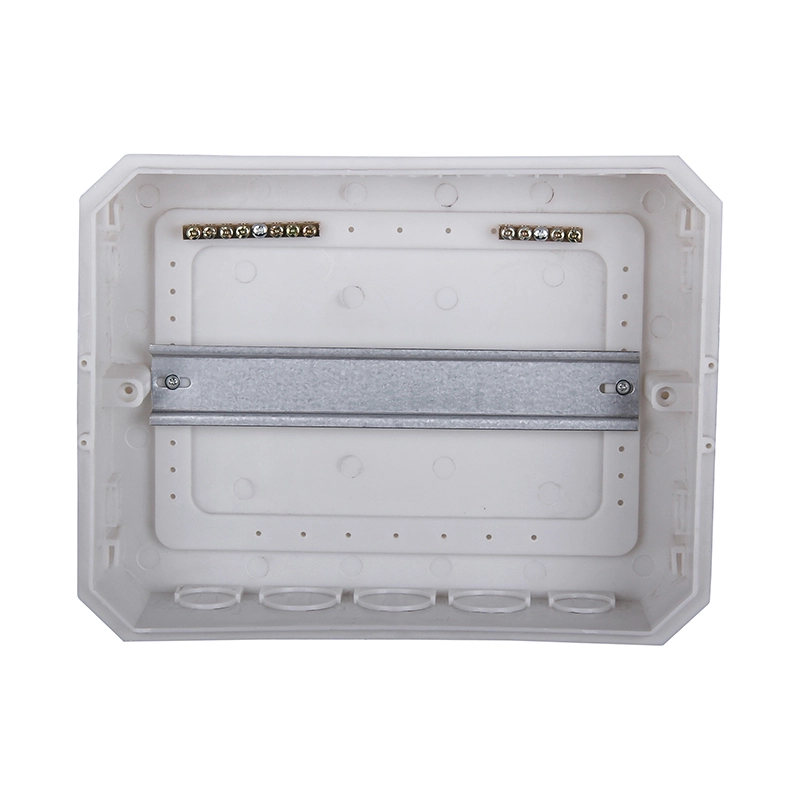

A4: Standard units muaj xws li nruab nrab thiab lub ntiaj teb terminal blocks. Phase busbars (rau MCB cov tswv yim) yog xaiv tau - qhia rau peb paub koj qhov kev teeb tsa, thiab peb yuav ua ntej sib dhos.

Q5: Vim li cas thiaj xaiv CDADA TSM Yas DB tshaj cov npe hauv zos?

A5: Vim peb muab:

● Cov khoom siv zoo ib yam (tsis muaj cov yas rov ua dua tshiab)

● Precise DIN rail alignment – ​​tsis muaj wobble thaum inserting breakers

● Cov ntaub ntawv ua raws li thoob ntiaj teb (RoHS, IEC-npaj)

● Tsim yooj (xim, qhov ntau thiab tsawg, mounting)

● Kev txhawb nqa ncaj qha rau lub Hoobkas - tsis muaj cov neeg nruab nrab, cov lus teb sai dua
