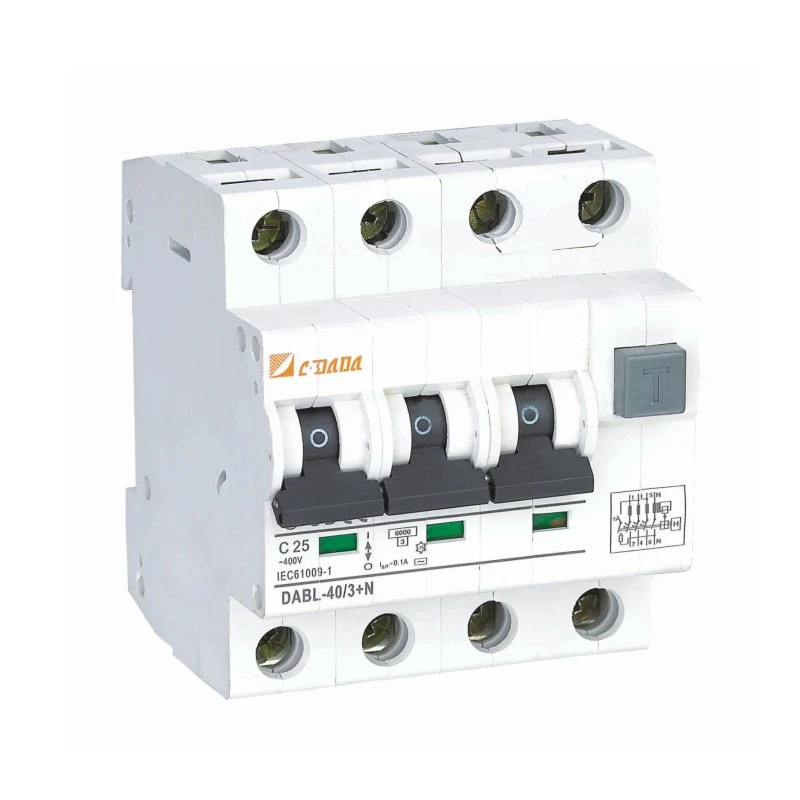

2P 4P Electronic Hom RCBO
Model:DABL-63
Koj tuaj yeem tso siab tau xaiv CDADA ua koj li 2P 4P Electronic Hom RCBO (DABL-63) chaw tsim khoom thiab cov khoom siv. Peb cov khoom yog CE / CB / RoHS tau ntawv pov thawj. Ua ke 30mA to + overload + tiv thaiv luv luv. 6kA, -25 ° C rau + 40 ° C, zoo tagnrho rau sab nraum zoov / chaw nres tsheb circuits.
Ua kom muaj kev nyab xeeb siab tshaj plaws hauv kev teeb tsa hluav taws xob niaj hnub nrog CDADA DABL-63 2P 4P Electronic Type RCBO - lub compact, ntse seem tam sim no Circuit Court breaker nrog overcurrent tiv thaiv engineered los ntawm Shanghai DADA Electric CO., LTD. Tsim los rau 2P (1 + N) thiab 4P (3 + N) daim ntawv thov, RCBO hluav taws xob no muab plaub-hauv-ib qho kev tiv thaiv:
Kev tiv thaiv hluav taws xob poob siab (ntawm 30mA residual tam sim no nrhiav tau),
Kev tiv thaiv overload,
Kev cuam tshuam luv luv (6kA tawg),
Surge suppression (integrated D-chav kawm varistor).
Qhov zoo tshaj plaws rau cov khoom siv sab nraum zoov, teeb pom kev hauv chaw nres tsheb, hauv qab daus circuits, thiab cov khoom siv khoom noj khoom haus, DABL-63 ua tau raws li CE, CB, thiab RoHS cov qauv thiab nta cov khoom siv hluav taws xob sib txawv rau kev kuaj xyuas qhov tsis zoo. Nrog rau 2-module DIN dav, kev ywj pheej ntawm kev sib cuag qhov taw qhia, thiab -25 ° C rau + 40 ° C kev khiav hauj lwm ntau yam, nws tau tsim kom muaj kev ntseeg siab thoob plaws cov huab cua sib txawv thiab chaw nyob / kev lag luam.
Ntsiab Specifications
Qauv: DABL-63 Series
Hom: Hluav taws xob RCBO (Residual Current Breaker with Overcurrent Protection)

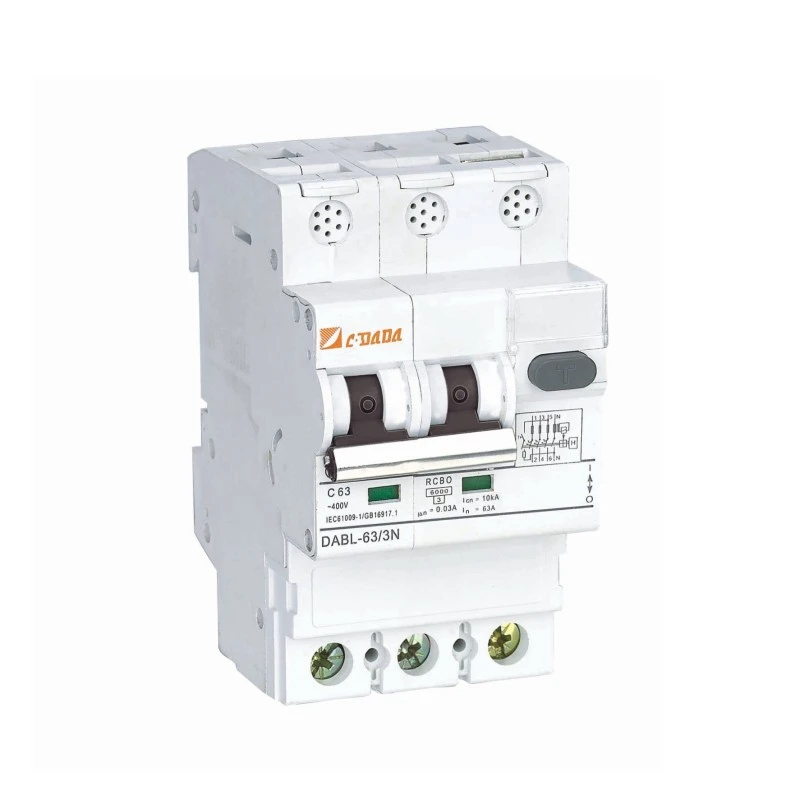

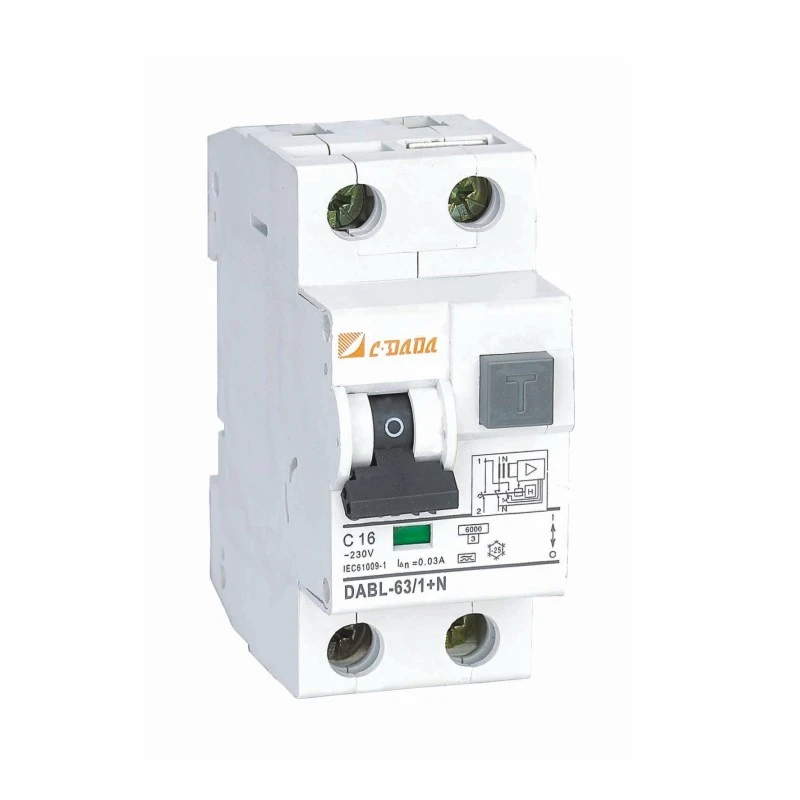

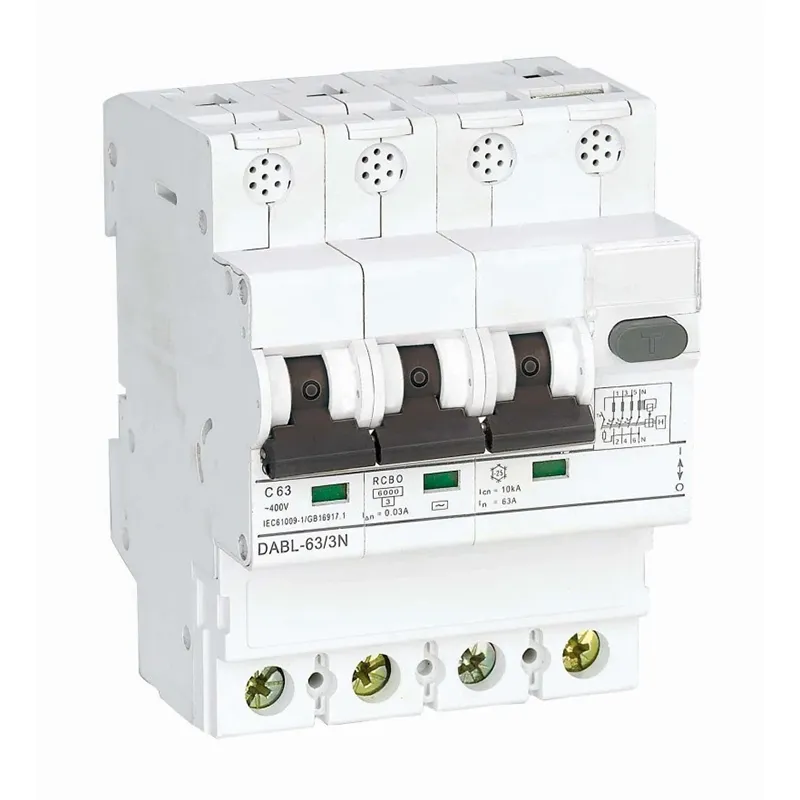

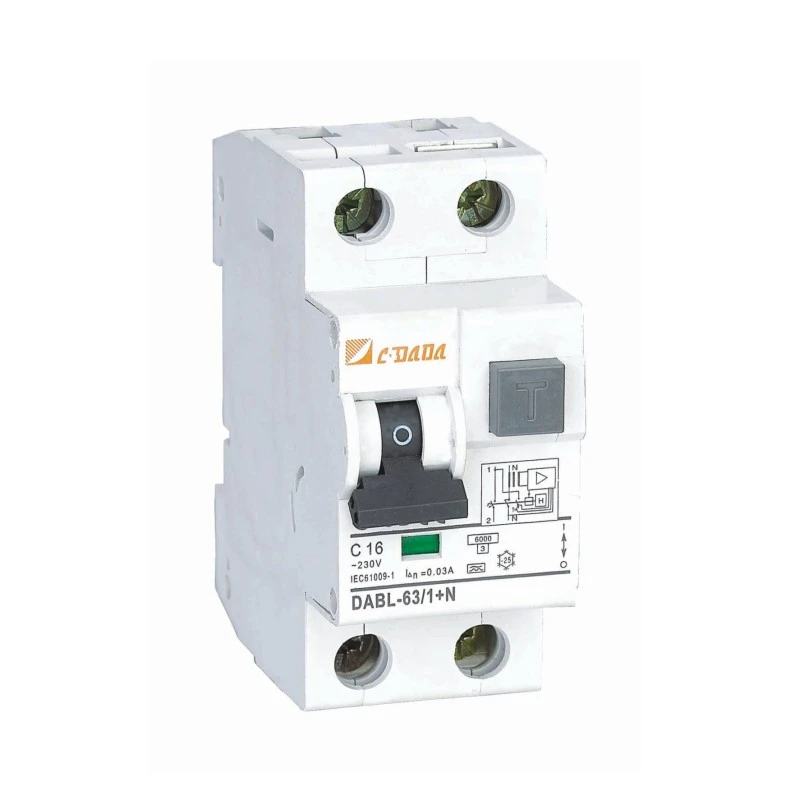

Ncej: 2P (1 + N) lossis 4P (3 + N)
Rated Tam sim no (Hauv): Feem ntau 6–63A (raws li DAB7-63 platform)
Residual Sensitivity (I△n): 30mA (tus qauv rau kev tiv thaiv tus kheej)
Lub peev xwm tawg: 6kA, 10kA
Kev tiv thaiv muaj nuj nqi:
Residual tam sim no (xws li)
Overload (kub)
Luv Circuit Court (electromagnetic)
Surge overvoltage (ntawm built-in D-chav kawm varistor)

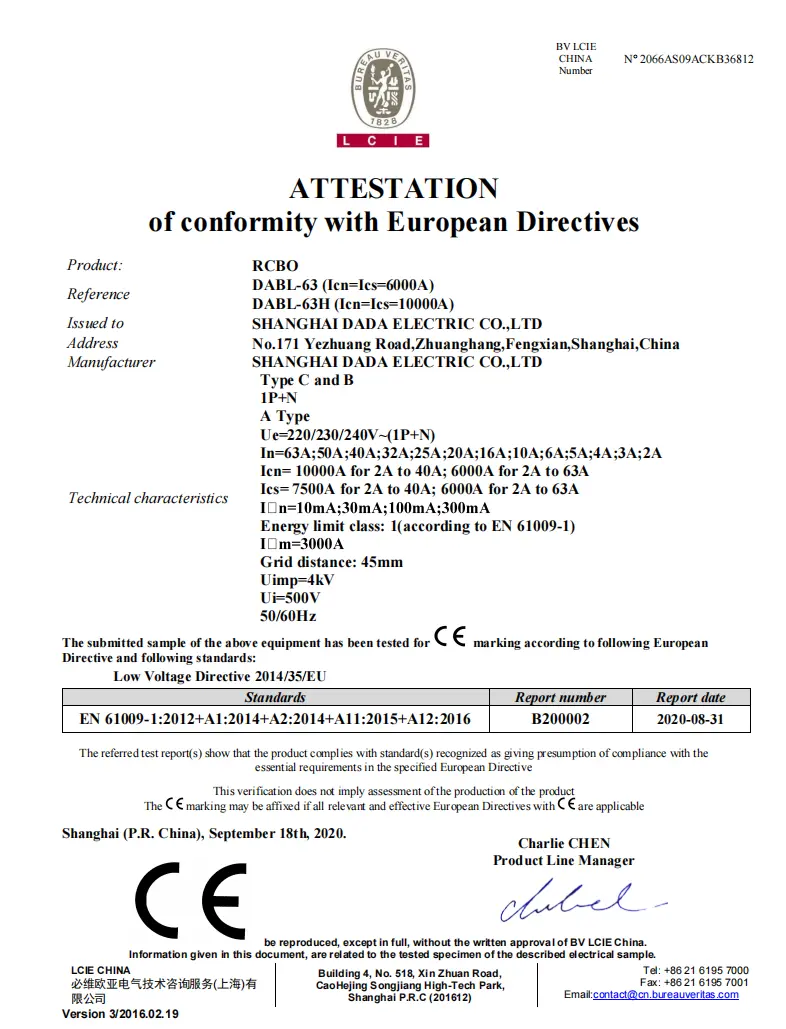

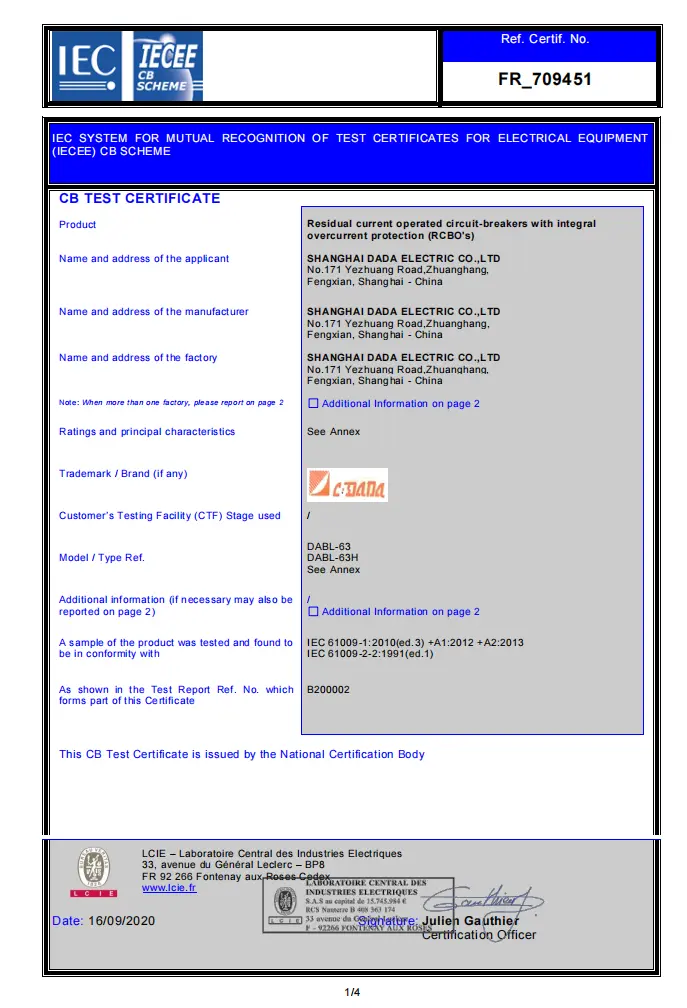

Daim ntawv pov thawj: CE, CB, RoHS
Kev khiav hauj lwm kub: -25 ° C mus + 40 ° C
Mounting: 2-module dav ntawm 35mm DIN rail
Cov ntaub ntawv Technical
|
RCBO DAB-63 Electronic type |
||
|
Kev tiv thaiv kev faib hluav taws xob dav dav (IEC / EN 61009) |
|
|
|
Ncej tus lej |
1 P + N |
|
|
Kev ua haujlwm hluav taws xob |
||
|
Rated tam sim no Hauv (A) |
6, 10, 16, 20, 25, 32, 40, 50, 63A |
|
|
Tso tawm hom |
Hom hluav taws xob |
|
|
Muaj nuj nqi |
Kev tiv thaiv luv luv Circuit Court, to, overload, dhau voltage, cais |
|
|
Hom qhov seem tam sim no |
AC thiab A |
|
|
Rated zaus f (Hz) |
50-60 Hz |
|
|
Rated ua hauj lwm voltage Ue (V) AC |
230/400 Nws |
|
|
Rated residual tam sim no tsab ntawv tsa suab I△n (mA) |
10, 30, 100, 300 |
|
|
Rated residual tam sim no tsis muaj zog I△no(mA) |
5, 15, 25, 50, 300 |
|
|
cosf |
0.5 |
|
|
Rwb thaiv tsev voltage Ui |
500 V |
|
|
Rated impulse withstand voltage Uimp |
6 kvu |
|
|
Instantaneous tripping yam |
B/C/D |
|
|
Rated luv Circuit Court Icn (kA) |
6kA thiab 10kA |
|
|
Lub neej ua haujlwm (O ~ C) |
Neeg kho tshuab |
12000 |
|
Hluav taws xob |
6000 |
|
|
Kev sib txuas thiab kev teeb tsa |
|
|
|
Kev tiv thaiv qib |
IP40 |
|
|
Hlau mm² |
1 ~ 25 |
|
|
Ua haujlwm kub (nrog rau qhov nruab nrab txhua hnub ≤ 35 ℃) |
-5 ～ + 40 ℃ |
|
|
Resistance rau humidity thiab cua sov |
Chav kawm 2 |
|
|
Altitude saum hiav txwv |
≤2000 |
|
|
txheeb ze humidity |
+ 20 ℃ , ≤ 90% ; + 40 ℃ , ≤ 50% |
|
|
Pollution degree |
2 |
|
|
Kev teeb tsa ib puag ncig |
Tsis txhob pom kev poob siab thiab kev co |
|
|
Installation chav kawm |
Chav Kawm Ⅱ, Chav Kawm Ⅲ |
|
|
Kev sib xyaw nrog accessories |
||
|
Sib cuag |
Yog lawm |
|
|
Tswb hu |
Yog lawm |
|
|
ALT + AUX |
Yog lawm |
|
|
Shunt tso |
Yog lawm |
|
|
Kev tso tawm undervoltage |
- |
|
|
Overvoltage tso tawm |
Yog lawm |
|
|
Dimensions (hli) (WxHxL) |
a |
35 |
|
b |
80.4 |
|
|
c |
72 |
|
Cov yam ntxwv tseem ceeb:
★ Hluav taws xob sib txawv module → siab rhiab heev & ceev teb
★ Independent contact indicator (pom tseeb ON/OFF/trip status)
★ "TEST" khawm rau kev kuaj xyuas ua haujlwm txhua hli
★ Notched davhlau ya nyob twg clamps → qis cua sov, muaj zog tuav
★ Cross-functional screws (+/–) → yooj yim installation, tsis muaj qhov poob
★ Silver-bearing contact alloy → ntev lub neej, qis tsis kam
Vim li cas thiaj xaiv CDADA Electronic RCBO?
★ All-in-One Protection hauv 2 Modules
Hloov cais MCB + RCCB + surge protector-txuag qhov chaw, nqi, thiab thaiv kev nyuaj.★ Txhim kho kev nyab xeeb nrog kev tiv thaiv kev kub ntxhov
Kev sib xyaw ua ke nrog cov khoom siv hluav taws xob ntawm kev tiv thaiv kev sib txawv, D-chav kawm varistor thiab kev sib koom ua ke Circuit Court breaker ntawm DAB7-63 series ua kom muaj 4 hom kev tiv thaiv: los ntawm qhov seem tam sim no (tshuaj tiv thaiv hluav taws xob), luv luv Circuit Court; overload thiab surge overvoltage.★ Qhov Tseeb Tseeb Pom Pom
Tsis zoo li cov txheej txheem tawg, qhov taw qhia kev sib tiv tauj qhia tau tias muaj kev tiv tauj tiag tiag-txawm tias tus kov yog tuav tuav ON.★ Installer-Friendly Tsim
● Dav qhov kub thiab txias → haum rau cov chaw nres tsheb uas tsis muaj cua sov lossis cua sov
● Notched terminals → ruaj ntseg, tsis tshua muaj kev sib txuas
● Dual-drive screws → ua haujlwm nrog cov cuab yeej tiaj tus lossis Phillips
★ Ntiaj teb no Certified
CE, CB, thiab RoHS pom zoo kom ua raws li cov teb chaws Europe, Asia, Africa, thiab tshaj-zoo tagnrho rau export panels.
★ Zoo meej rau thaj chaw muaj kev pheej hmoo siab
Pom zoo rau cov chaw tawm sab nraum zoov, qhov chaw ntub dej, chaw nres tsheb, thiab hauv qab daus uas muaj kev poob siab thiab hluav taws kub siab.★ Nrog ntau xyoo dhau los ntawm kev xa mus rau Russia thiab European lub teb chaws ntxiv rau tag nrho South America, Europe, Asia, thiab Australia, CDADA tau them rau koj!
★ Txij li nws yog peb txoj cai rau 100% tshuaj xyuas txhua yam khoom uas tawm ntawm peb lub chaw, peb tuaj yeem lav nrog qhov tseeb tias cov khoom lag luam ua haujlwm tau 100% raug ua ntej nws tawm ntawm peb lub chaw.
★ Peb zoo siab uas koj tuaj xyuas peb txhua lub sijhawm! Qhov no yog tib txoj kev uas peb tuaj yeem muaj kev tswj xyuas tag nrho cov sij hawm tsim khoom thiab cov txheej txheem dhau los.
Tej kev siv
Outdoor Sockets: Rau cov cuab yeej vaj, EV chargers, hnub so teeb
Chaw nres tsheb & Hauv qab nthab teeb pom kev zoo: ntub dej, qhov chaw txias
Cov khoom siv hluav taws xob: tshuab ntxhua khaub ncaws, tshuab ntxhua khaub ncaws, tub yees
Rhiav Lub Hwj Chim: Qhov twg cov cuab yeej thiab cov dej noo ua ke
Cov Vaj Huam Sib Luag Hauv Tsev: Compact, multi-tiv thaiv kev daws teeb meem
Cov lus nug nquag nug (FAQ)
Q1: Qhov txawv ntawm RCCB thiab RCBO yog dab tsi?
A1: Ib qho RCCB tsuas yog kuaj pom qhov seem (xws li) tam sim no - nws tsis tiv thaiv overload lossis luv circuits. Ib qho RCBO (zoo li DABL-63) sib txuas RCCB + MCB hauv ib lub cuab yeej - muab cov dej xau + tshaj + kev tiv thaiv luv luv.
Q2: Puas yog RCBO no puas tiv thaiv kev nce siab?
A2: Yog! Nws suav nrog D-chav kawm varistor uas ua rau muaj kev cuam tshuam dhau sijhawm dhau los (piv txwv li, los ntawm xob laim lossis hloov surges) - qhov tsis tshua muaj nyob hauv cov qauv RCBOs.
Q3: Vim li cas xaiv ib qho hluav taws xob RCBO tshaj ib qho hluav taws xob? A3:
● Hluav taws xob RCBOs muaj kev nkag siab zoo dua, qhov me me, thiab tuaj yeem ua ke nrog cov haujlwm ntxiv (xws li kev tiv thaiv surge).
● Lawv xav tau kab hluav taws xob ua haujlwm - yog li tsis zoo yog tias qhov nruab nrab tsis tuaj yeem ntseeg tau.
● Electromagnetic hom ua haujlwm ntawm 0V tab sis loj dua thiab tsis muaj cov yam ntxwv ntse.
→ Rau cov chaw nyob ruaj khov, hluav taws xob RCBOs zoo li DABL-63 yog qhov zoo.
Q4: Puas yog 30mA txaus rau kev tiv thaiv tus kheej?
A4: Yog. 30mA yog tus qauv thoob ntiaj teb (IEC) qhov pib rau kev tiv thaiv kev poob siab ntawm lub neej.
Q5: Vim li cas thiaj xaiv CDADA rau hluav taws xob RCBO?
A5: CDADA sawv tawm vim:
● Muaj tseeb 4-hauv-1 tiv thaiv (xws li + overload + luv Circuit Court)
● Compact 2-module tsim txuag vaj huam sib luag qhov chaw
● Independent contact indicator kom paub meej qhov xwm txheej
● Cov ntawv pov thawj thoob ntiaj teb (CE/CB/RoHS)
● OEM-npaj: zoo ib yam, kev txhawb nqa lus Askiv, bulk pricing
Hot Tags: 2P 4P Electronic Hom RCBO, Tuam Tshoj, Chaw tsim tshuaj paus, chaw muag khoom, Hoobkas
