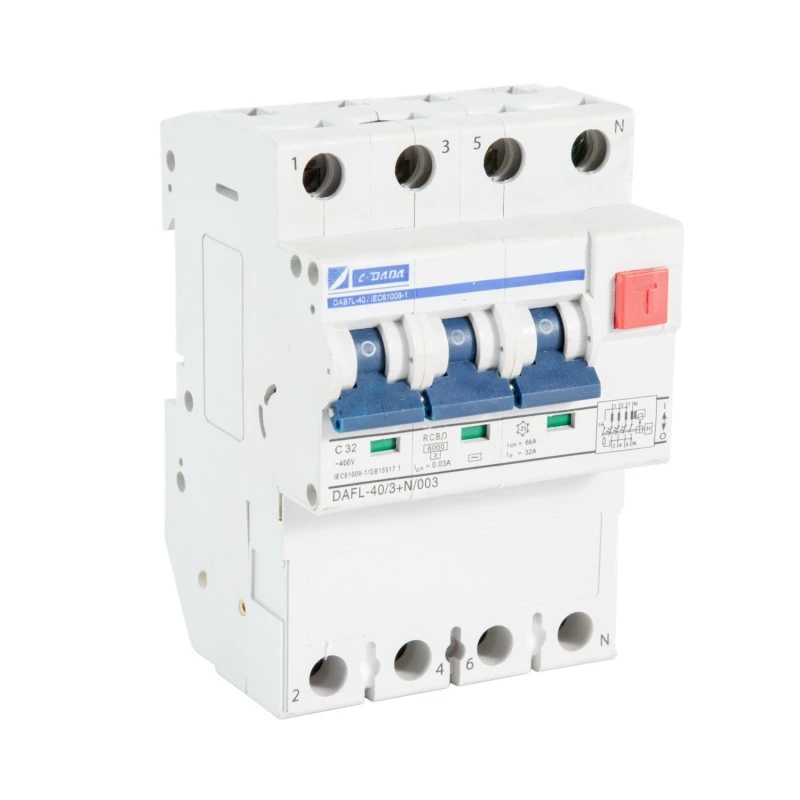

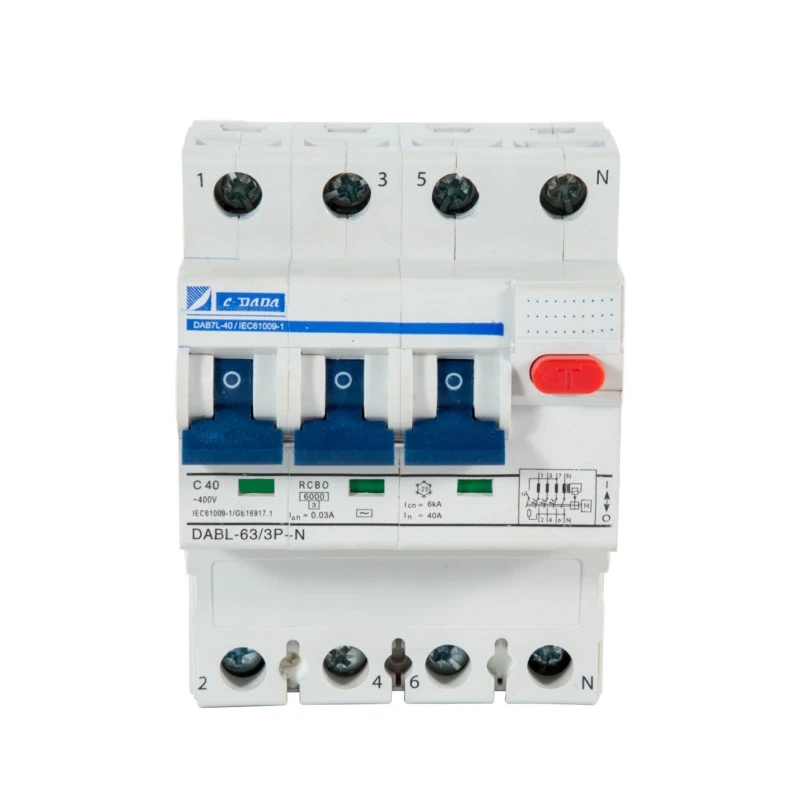

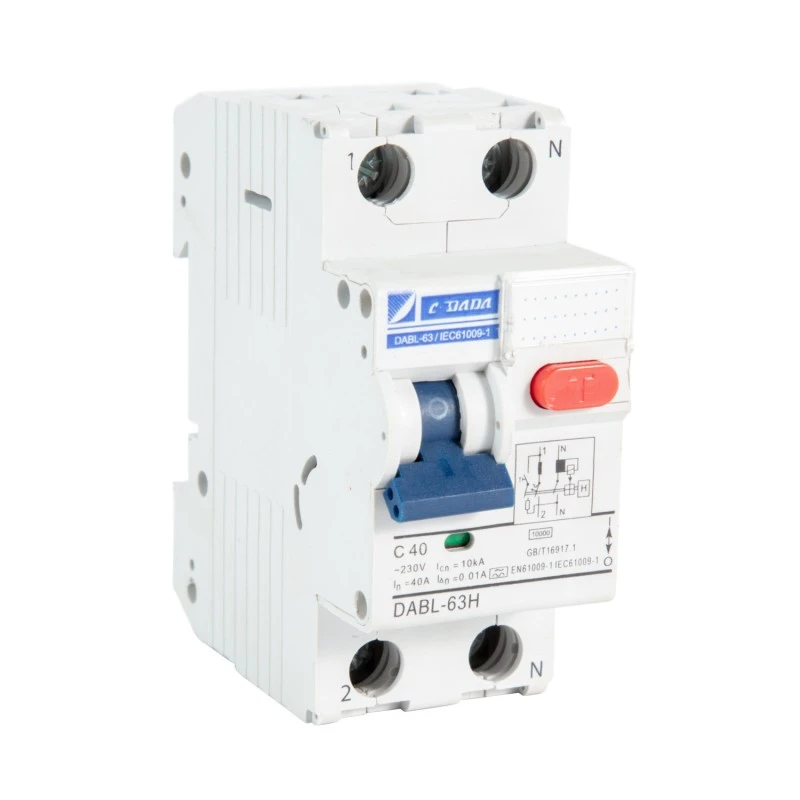

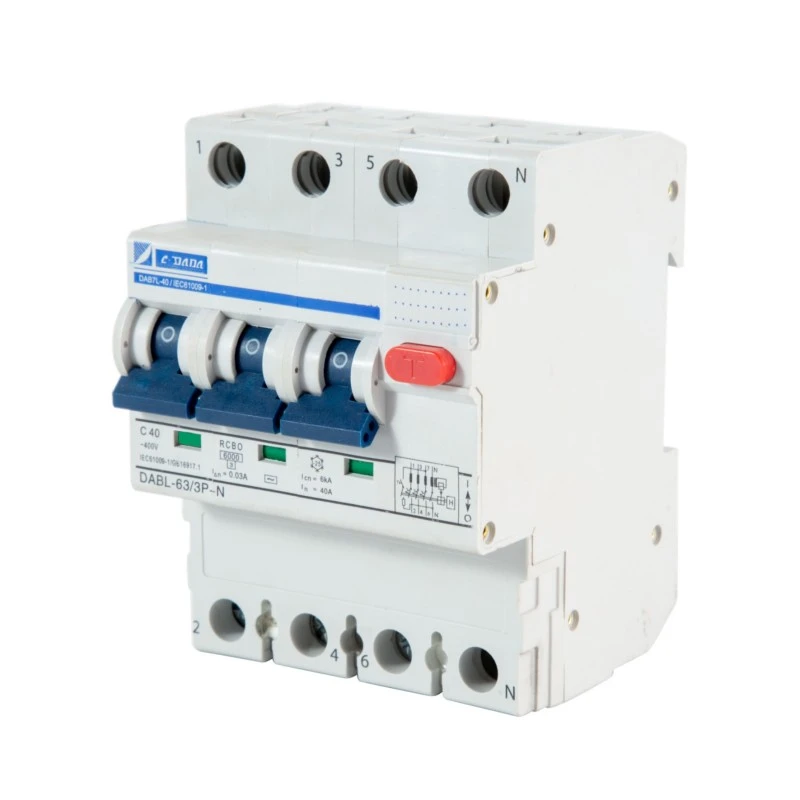

2P 4P Electromagnetic RCBO

Rau qhov tsis muaj kev nyab xeeb nyob rau hauv ib puag ncig uas muaj kev ntseeg siab tsis muaj zog, Shanghai DADA Electric CO., LTD. nthuav qhia CDADA DABF-63 2P 4P Electromagnetic RCBO qhov tseeb 2P / 4P electromagnetic residual tam sim no Circuit Court breaker nrog kev tiv thaiv overcurrent uas ua haujlwm yam tsis muaj hluav taws xob lossis hluav taws xob sab nraud. Tsim los rau IEC cov qauv, RCBO no muab peb qhov kev tiv thaiv tseem ceeb hauv ib lub cuab yeej:

★ Kev tiv thaiv hluav taws xob poob siab (ntawm 30mA qhov seem tam sim no tshawb pom),

★ Kev tiv thaiv overload (thermal mechanism),

★ Kev cuam tshuam luv luv (magnetic tso tawm, 6kA).

Pom zoo rau cov khoom siv sab nraum zoov, chaw nres tsheb, hauv qab daus, thiab kev teeb tsa nyob deb nroog, DABF-63 tseem ua haujlwm txawm tias qhov nruab nrab poob, qhov hluav taws xob tawg, lossis thaum tsaus ntuj - qhov tseem ceeb ntawm kev siv hluav taws xob. Nrog rau qhov taw qhia kev ywj pheej ntawm kev sib cuag, -25 ° C txog + 40 ° C kev khiav hauj lwm ntau yam, thiab cov qauv siv hluav taws xob zoo, nws muab kev ua haujlwm tsis zoo uas nws tseem ceeb tshaj plaws.

Ntsiab Specifications

Qauv: DAB-63 Series

Hom: Electromagnetic RCBO (Tsis muaj hluav taws xob, tsis muaj lub zog txhawb nqa)

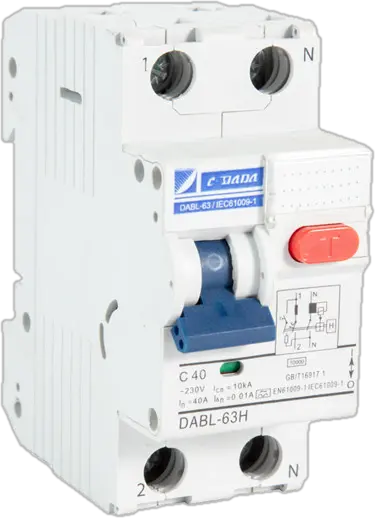

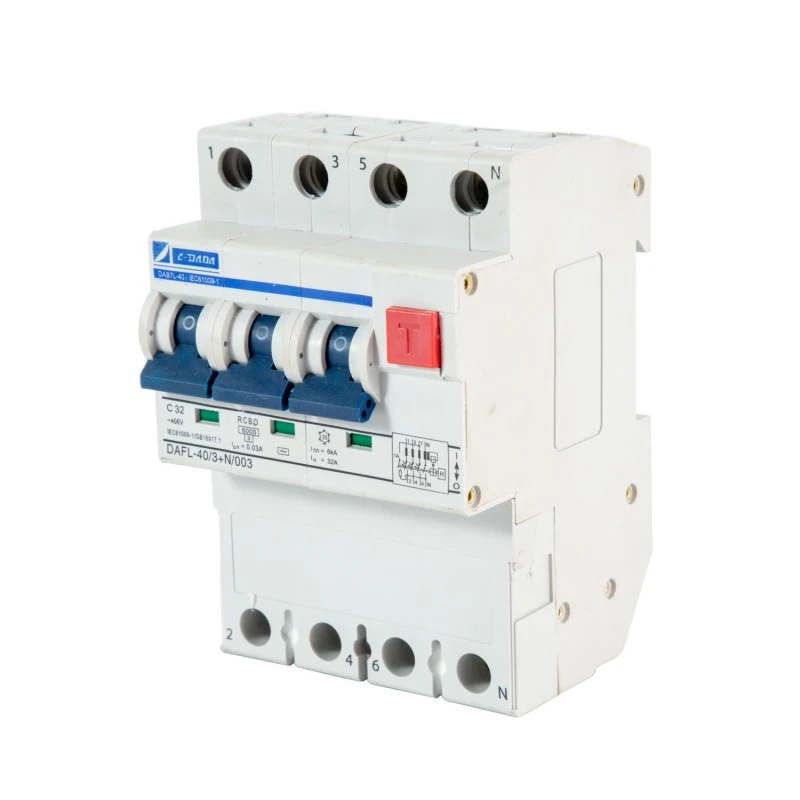

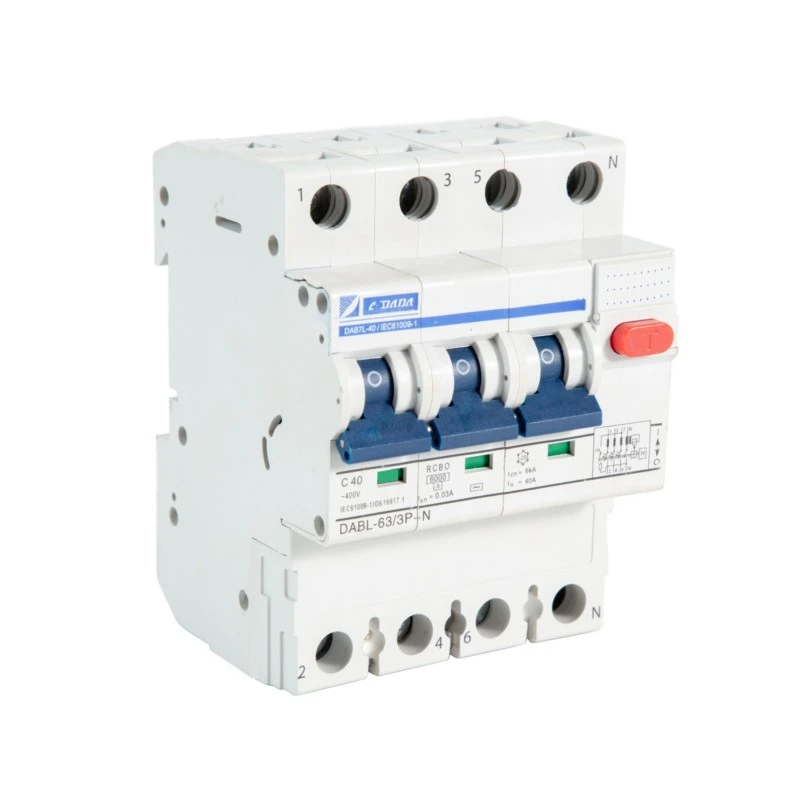

Ncej: 2P (1 + N) lossis 4P (3 + N)

Rated Tam sim no (Nyob rau hauv): 6–63A (ntau yam raws li DAB7 platform)

Residual Sensitivity (I△n): 30mA (tus qauv rau kev tiv thaiv tus kheej; 100mA yeem)

Tsis-Tripping Tam sim no: 0.5 × I△n

Lub sij hawm mus ncig ntawm I△n: ≤ 0.1s

Lub peev xwm tawg: 6kA

Kev tiv thaiv muaj nuj nqi:

Residual tam sim no (xws li) - electromagnetic sensing

★ Tshaj dhau - bimetallic thermal

★ luv Circuit Court – sib nqus tso tawm

★ Kev Ua Haujlwm Kub: -25 ° C txog + 40 ° C

Mounting: 2-module dav ntawm 35mm DIN rail

Cov yam ntxwv tseem ceeb:

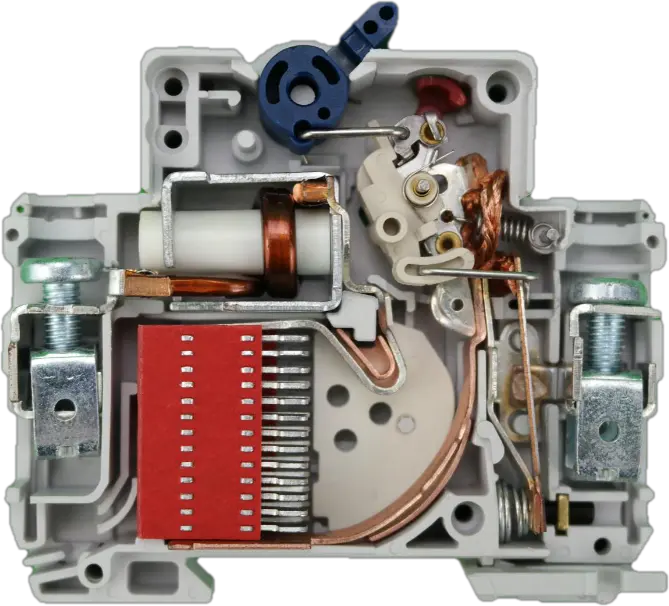

★ Ntshiab electromagnetic txawv mechanism

★ Independent hu rau txoj hauj lwm qhia (muaj tseeb ON / OFF / mus txawv tebchaws raws li txoj cai)

★ "TEST" khawm rau kev kuaj xyuas ua haujlwm txhua hli

★ Notched davhlau ya nyob twg clamps → qis thermal poob, muaj zog tuav

★ Silver-bearing contacts → siab durability, tsis tshua muaj zog

★ Cross-functional screws (+/–) → yooj yim installation

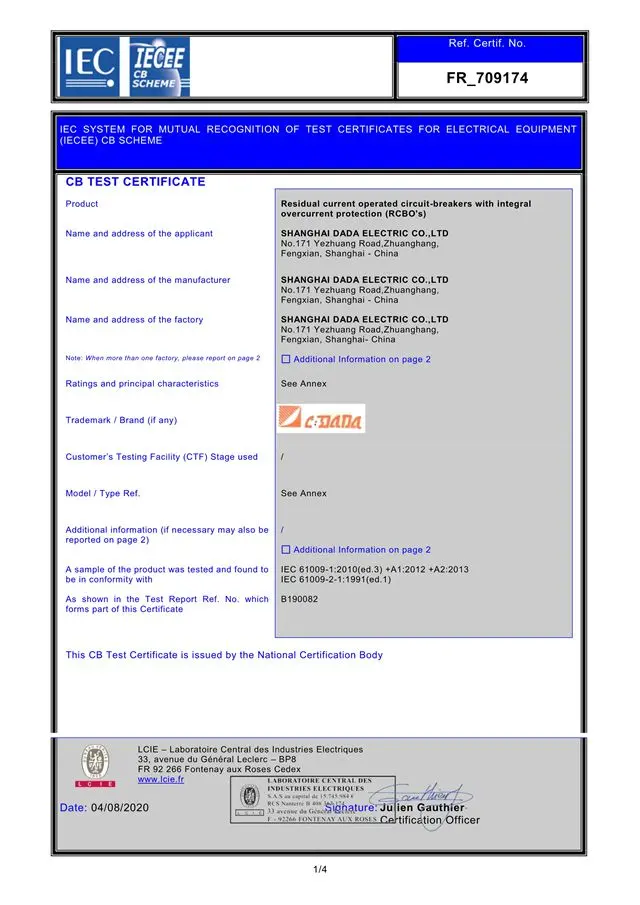

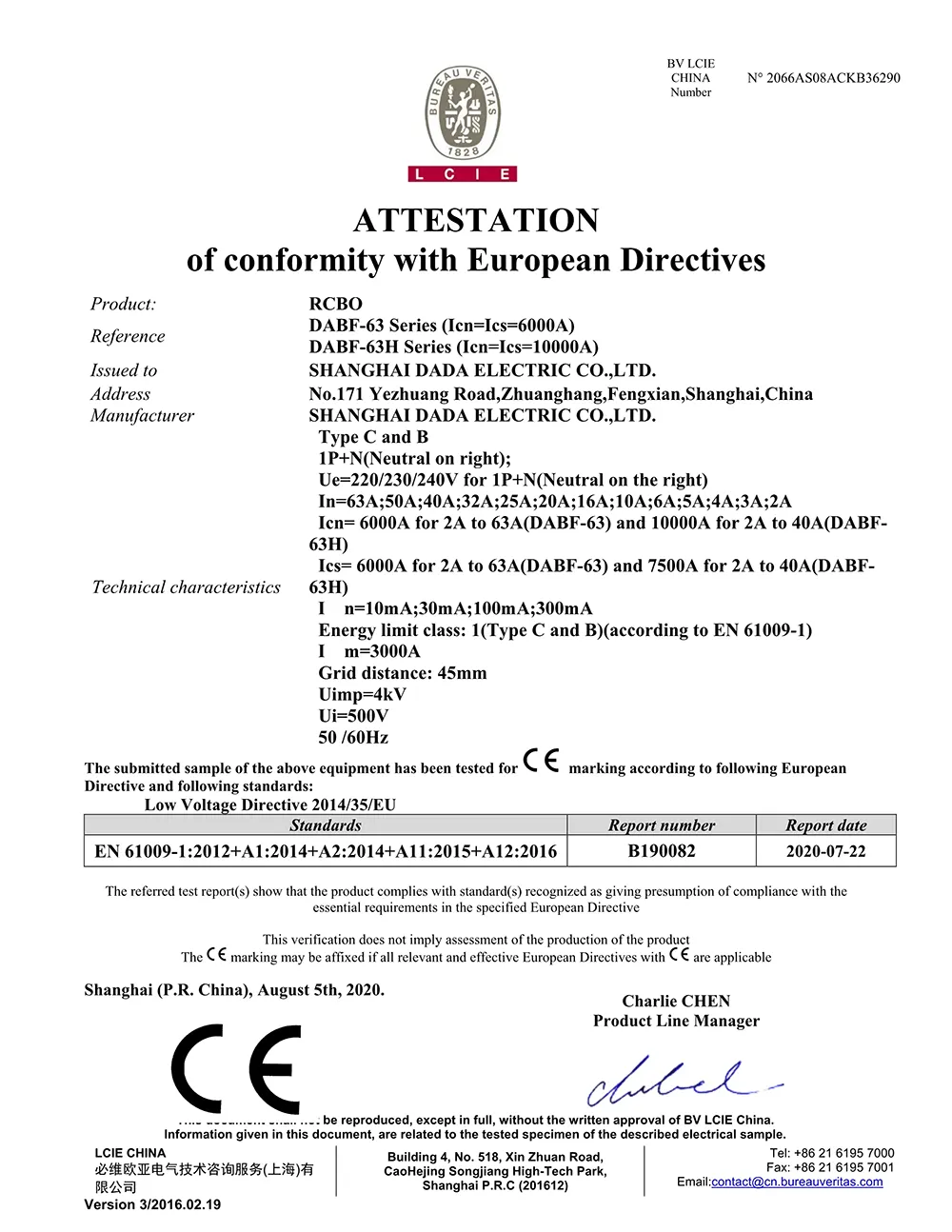

★ Cov ntawv pov thawj: CE, CB (RoHS cov ntaub ntawv ua raws)

Vim li cas thiaj xaiv CDADA Electromagnetic RCBO?

★ Ua haujlwm tsis muaj zog - Puas tau

Tsis zoo li hluav taws xob RCBOs, peb 2P 4P Electromagnetic RCBO yuav tsum tsis muaj kab hluav taws xob txhawm rau txhawm rau txhawm rau tiv thaiv kev tiv thaiv thaum nruab nrab tsis ua haujlwm, brownouts, lossis ua tiav kev tawg.

★ Zoo tagnrho rau qhov hnyav lossis qhov chaw deb

Zoo meej rau thaj chaw nyob deb nroog, qhov chaw tsim kho, ua liaj ua teb, tunnels, thiab cov cheeb tsam uas tsis ruaj tsis khov uas cov khoom siv hluav taws xob tuaj yeem ua haujlwm tsis zoo.

★ Inherently Fail-Safe

Tsis muaj semiconductors = tsis muaj kev laus, tsis muaj software yuam kev, tsis muaj EMI rhiab heev. Tsuas yog pov thawj electromagnetic physics.

★ Clear ua hauj lwm xwm txheej

Qhov taw qhia kev sib cuag ntawm tus kheej qhia tau hais tias muaj kev tiv tauj tiag tiag - qhov tseem ceeb rau kev saib xyuas thiab kev tshuaj xyuas kev nyab xeeb.

★ Compact & ntseeg tau

2-module loj txuag vaj huam sib luag qhov chaw, thaum nyiaj-alloy hu thiab cov terminals muaj zog ua kom lub neej ntev.

★ Ntiaj teb no ua raws

Muaj ntawv pov thawj rau IEC, CE, thiab CB cov qauv - ntseeg siab rau kev xa tawm thiab cov haujlwm thoob ntiaj teb.

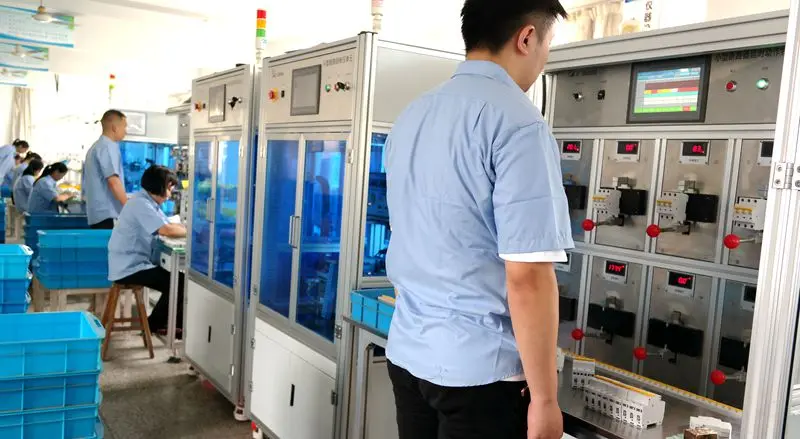

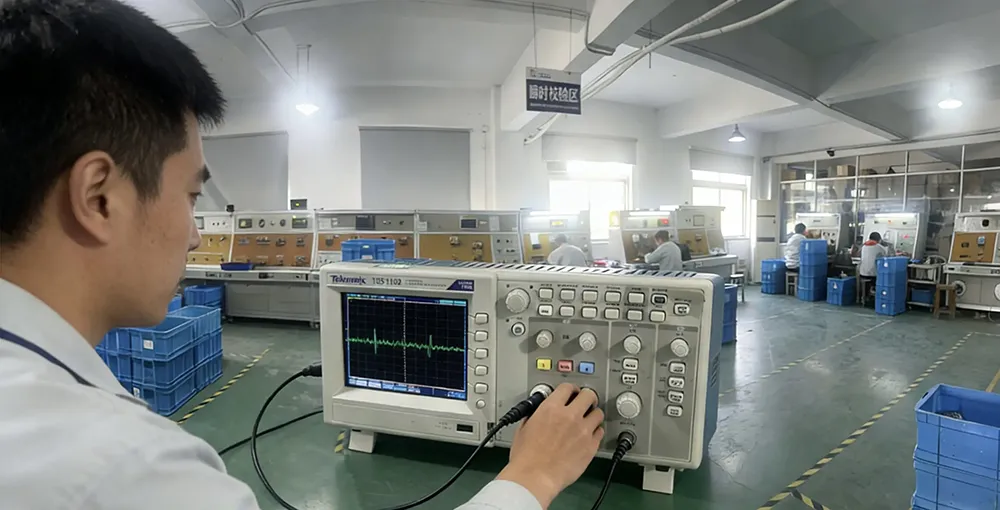

★ Txij li nws yog peb txoj cai rau 100% tshuaj xyuas txhua yam khoom uas tawm ntawm peb lub chaw, peb tuaj yeem lav nrog qhov tseeb tias cov khoom lag luam ua haujlwm tau 100% raug ua ntej nws tawm ntawm peb lub chaw.

★ Peb yuav txuas ntxiv txhim kho peb cov kev txawj ntse los ntawm kev nqis peev hauv cov khoom siv, cov txheej txheem, cov neeg, thiab cov ntawv pov thawj uas yuav cuam tshuam rau peb cov khoom thiab qhov kawg ntawm peb cov neeg siv khoom txaus siab.

Tej kev siv

Cov phiaj xwm hluav taws xob nyob deb nroog

Outdoor Sockets & EV Charging Points (piv txwv li)

Garages, Basements & Workshops (dawb, txias ib puag ncig)

TT Earthing Systems (qhov nruab nrab kev ncaj ncees tsis zoo)

Backup Circuits & Emergency Panels

Cov lus nug nquag

Q1: Dab tsi yog qhov txawv ntawm hluav taws xob thiab hluav taws xob RCBOs?

A1:

Q2: Puas yog RCBO no muab kev tiv thaiv kev kub ntxhov?

A2: Tsis yog. Muaj tseeb electromagnetic RCBOs tsis suav nrog varistors lossis surge surge-cov uas xav tau cov khoom siv hluav taws xob. Yog xav tau kev tiv thaiv surge, ua ke nrog ib qho SPD cais (surge protective device).

Q3: Puas yog 30mA txaus rau kev tiv thaiv tus kheej?

A3: Yog. 30mA yog IEC tus qauv pib rau kev tiv thaiv txoj sia tiv thaiv kev sib cuag ncaj qha hauv vaj tse thiab kev lag luam.

Q4: Nws puas tuaj yeem siv los tiv thaiv tus neeg tau txais txiaj ntsig?

A4: Yog - nrog 6kA tawg muaj peev xwm, DABF-63 tuaj yeem ua haujlwm los tiv thaiv cov khoom siv me me, tshwj xeeb hauv TT systems.

Q5: Vim li cas thiaj xaiv CDADA rau electromagnetic RCBO?

A5: CDADA muab:

● Kev tsim hluav taws xob tiag (tsis muaj hluav taws xob zais)

● Muaj peev xwm ua haujlwm 0V

● 2-module compact loj—tsis tshua muaj rau hom electromagnetic

● Independent contact indicator for security verification

● Cov ntawv pov thawj thoob ntiaj teb (CE/CB) thiab OEM-npaj kev txhawb nqa
