2P Hloov Hloov Hloov
Model:SF Series

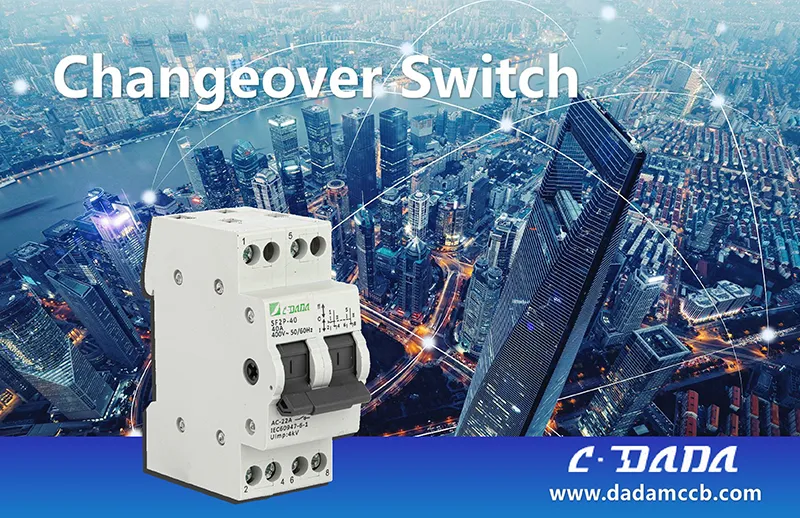

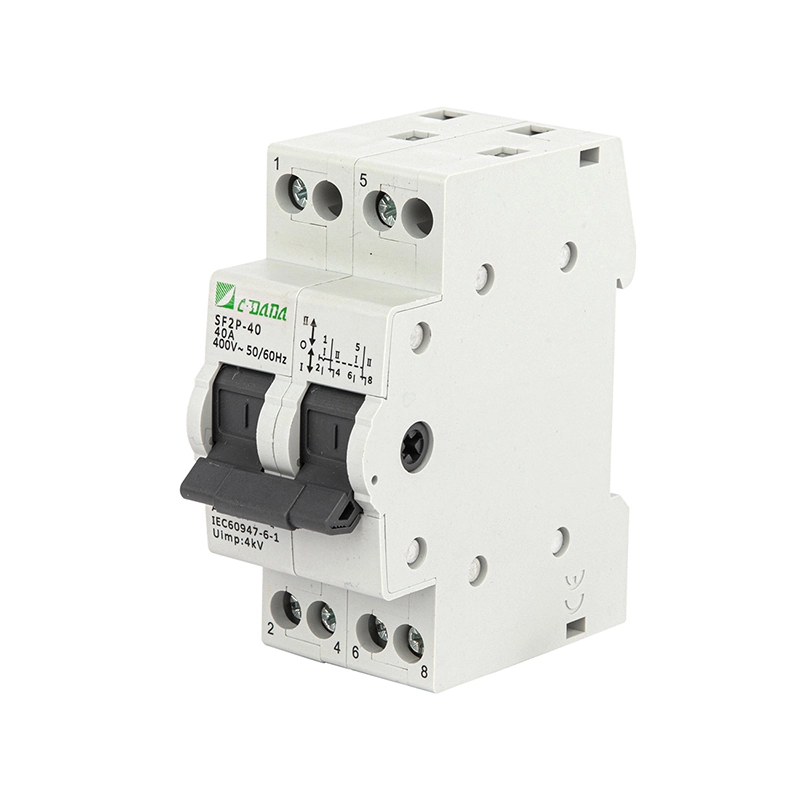

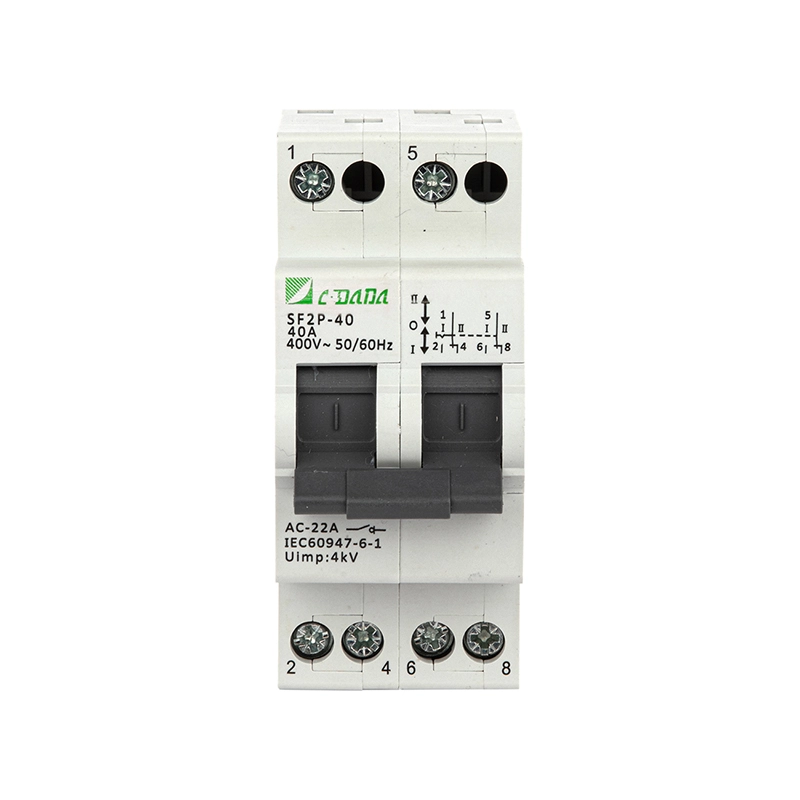

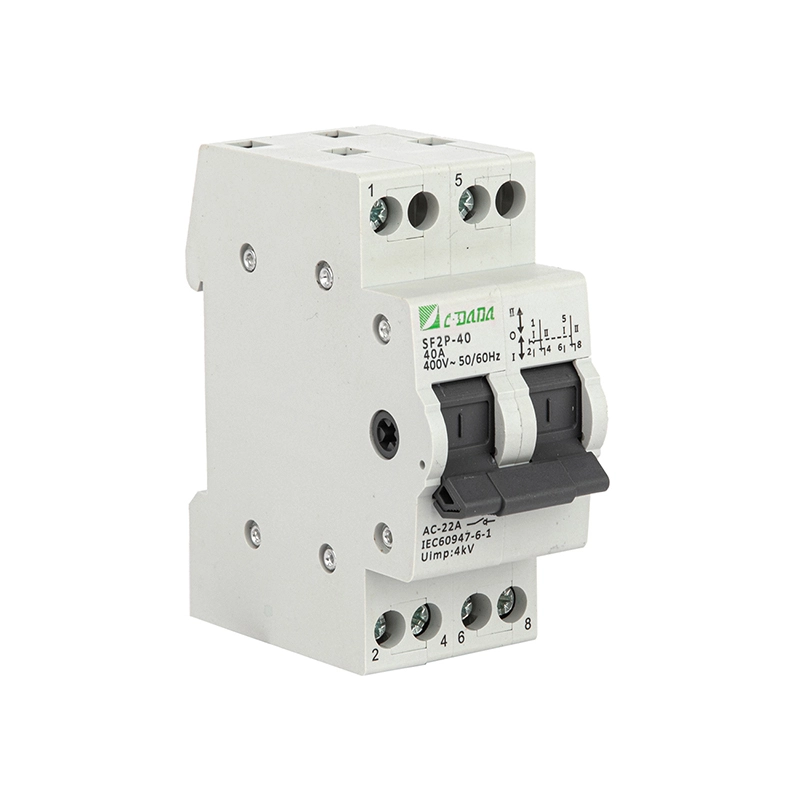

2P Hloov Hloov Hloov yog 16-125A, DIN-rail mounted, IEC60947-3 tau ntawv pov thawj. Yog tias koj tab tom nrhiav rau cov chaw tsim khoom thiab cov chaw muag khoom ntawm cov khoom no, koj tuaj yeem xaiv CADAD. Phau ntawv 3-txoj hauj lwm (I-O-II) rau ob lub zog hloov pauv. Nws tuaj yeem siv rau kev hloov pauv lub tshuab hluav taws xob thaub qab, kev tswj lub cev muaj zog & ntsuas hluav taws xob.
Xyuas kom muaj kev nyab xeeb thiab txhim khu kev qha hluav taws xob hloov nrog CDADA SF Series 2P Hloov Hloov Hloov, nws yog qhov tsim nyog rau kev hloov pauv hloov hluav taws xob tseem ceeb hauv thaj chaw, kev lag luam, thiab kev siv teeb pom kev zoo. Qhov no DIN-rail mounted micro hloov pauv txhawb nqa ob lub zog los yog thauj khoom nrog kev ua haujlwm 3-txoj haujlwm: I -OFF-II, ua kom tsis muaj kev sib hloov ntawm lub ntsiab / kab sib chaws thiab cov khoom siv thaub qab / lub tshuab hluav taws xob, lub cev muaj zog rau pem hauv ntej / rov qab tswj, lossis theem / voltage xyuas circuits.
Rated rau AC 50/60Hz, 230-400V, thiab tam sim no ntawm 16A txog 125A, CDADA 2P hloov pauv hloov ua raws li IEC 60947-3 thiab EN 60947-3 cov qauv. Featuring ON / OFF txoj hauj lwm qhia, high-conductivity hu, thiab lub caij nplooj ntoos hlav-pab ceev-ua / so mechanism, nws ua kom ruaj khov kev ua tau zoo txawm nyob rau hauv nquag phau ntawv ua hauj lwm. Tsim los rau kev teeb tsa modular nrog rau MCBs thiab cov neeg tiv tauj, nws yog qhov zoo tshaj plaws rau kev faib cov boards hauv cov tsev, chav dej twj tso kua mis, cov txee hauv xov tooj, thiab cov teeb pom kev zoo thaum muaj xwm ceev.
Ntsiab Specifications
Series: SF Series 2P Phau Ntawv Hloov Hloov Hloov
Hom Tshuaj: CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD
Ncej: 2P (Dual Ncej) - muaj nyob rau hauv 1P txog 4P variants
Rated tam sim no: 16A - 125A (derate mus rau 80% saum 40 ° C ambient)
Rated Voltage: 230/400V AC, 50/60Hz
Rwb thaiv tsev Voltage (Ui): 500V
Kev Siv Qeb: AC-22A (sib xyaw resistive & inductive loads)
Short-Time Withstand Current (Icw): 12 × Ie rau 1s
Ua Peev Xwm: 20 × Ie, t = 0.1s
Mechanical Life: 8,500 ua haujlwm
Hluav taws xob lub neej: 1,500 ua haujlwm (hauv qab load)
Pollution Degree: II
Mounting: Txheem TH35 DIN rail
Kev Ua Haujlwm: Phau ntawv 3-txoj haujlwm tuav (I - O - II)
Indicators: Pom ON/OFF txoj hauj lwm los ntawm kev tuav tuav
Terminals: Cable lossis busbar txuas
Tightening Torque:
1.2 N·m (16–40A)
3.5 N·m (63–125A)
Daim ntawv ceeb toom kev nyab xeeb: Tsis muaj qhov hluav taws xob tua hluav taws → yuav tsum tau siv nrog cov fuses / MCBs rau kev tiv thaiv luv luv
Technical data sheet
|
Specification |
Kev piav qhia |
|
Khoom muaj nuj nqi |
Hloov pauv hloov nrog peb txoj haujlwm => I-0-II Hloov pauv hloov nrog qhov chaw tawm ntawm qhov chaw Supply_input davhlau ya nyob twg nyob rau sab saum toj thiab Supply _output / load los yog cov davhlau ya nyob twg hauv qab li ntawm hager SF263) Common (Supply _output/load) tuaj yeem nyob rau sab saum toj lossis hauv qab tab sis idally peb nyiam qhov ntau hauv qab |
|
|
|
|
Cov khoom lag luam |
1 Ncej 63A hauv 1 module loj |
|
2 Ncej 63A hauv 2 module loj |
|
|
3 Ncej 63A hauv 2 module loj |
|
|
4 Ncej 63A hauv 4 module loj |
|
|
Kev ntsuas fais fab |
Lub hwj chim 1P / 2P = 230V / 400V Lub hwj chim 3P / 4P = 400V / 415V (yog tias muaj qhov ntsuas hluav taws xob ntau dua li nws tau txais ib yam nkaus) |
|
Ua haujlwm kub |
-20/25 ° C txog 40 ° C_min 50 ° C / 70 ° C (nrog derating tau txais) |
|
Cia kub |
-40 ° C rau 80 ° C |
|
Kev tiv thaiv qib |
IP2X |
|
Chav kawm tiv thaiv |
2 |
|
Kev siv qeb |
AC-21A |
|
AC-22A |
|
|
AC-23A_zoo siab muaj |
|
|
DC-21 _Nyob zoo |
|
|
Hluav taws xob yam ntxwv |
zaus 50/60Hz |
|
Rwb thaiv tsev voltage Ui 3P / 4P = 690V Rwb thaiv tsev voltage Ui 1P / 2P = 508V |
|
|
Rated impulse withstand voltage Uimp = 4kVmin |
|
|
Hluav taws xob durability ntawm nominal tam sim no = 5000cycles yam tsawg kawg nkaus |
|
|
Mechanical durability ntawm nominal tam sim no = 10000cycles yam tsawg kawg nkaus |
|
|
rated luv-lub sij hawm tiv taus tam sim no (Icw) = 20 xIN rau 1sec_Must have |
|
|
Rated short-circuit making (Icm) = 20 * Hauv Icm=5kA_Nice to have |
|
|
Txuj & Ntawv pov thawj |
IEC60947-3_Yuav tsum muaj |
|
AS/NZS 60947.3_Yuav tsum muaj |
|
|
RCM_yuav tsum muaj |
|
|
CE_Nyob zoo |
|
|
Wiring Terminal yam |
Ntsia hlau hom |
|
Kev muaj peev xwm |
16mm2 Multi strain / saj zawg zog cable thiab nruj / ib leeg strained cable_Yuav tsum muaj |
|
25mm2 Multi strain / saj zawg zog cable thiab nruj / ib leeg strained cable (qhov tseem ceeb tshaj) |
|
|
Pab txhawb |
Pad xauv _Hager lossis lwm yam TBC |
|
Aux contact_Nice to have |
|
|
Hu rau Txoj Haujlwm Indicator_Zoo kom muaj voltage indicator_Nyob zoo rau muaj Led _Nyob zoo os |
|
|
Bus barr compatibility zoo ib yam li 2K0153 hager 'nyob rau hauv rooj plaub uas muaj dav hlau nyob hauv qab'_Nice kom muaj |
Vim li cas thiaj xaiv CDADA 2P Hloov Hloov Hloov?
★ Muaj kev nyab xeeb 3-txoj haujlwm cais
Qhov tseeb OFF (O) txoj hauj lwm disconnects ob qhov chaw-tseem ceeb rau kev saib xyuas thiab kev tiv thaiv kev nyab xeeb.
★ DIN-Rail Modular Tsim
Kev teeb tsa hauv vib nas this nrog MCBs-txuag qhov chaw thiab ua kom yooj yim rau kev teeb tsa vaj huam sib luag hauv cov tsev ntse lossis OEM enclosures.
★ Kev ntseeg siab tiv tauj
Optimized dynamic-static contact geometry ua kom tsis muaj zog thiab ruaj khov mus ntev.
★ Ntiaj teb no ua raws
Kev lees paub rau IEC 60947-3 tau lees paub hauv Tebchaws Europe, Asia, Africa, thiab Latin America.
★ Tus neeg siv-kev ua haujlwm nyab xeeb
Caij nplooj ntoos hlav-pab mechanism tiv thaiv ib nrab kev koom tes; ncua kev xaiv xaiv rau 63A + qauv.
★ Kev siv ntau yam
Los ntawm lub tshuab hluav taws xob hloov mus rau lub cev muaj zog kev taw qhia rov qab-ib qho kev hloov, ntau lub zog.
Tej kev siv
Backup Power Systems: Hloov ntawm cov khoom siv hluav taws xob thiab lub tshuab hluav taws xob
Kev tswj lub cev muaj zog: Kev xa rov qab / thim rov qab ntawm cov twj me me lossis kiv cua
Ntsuas Circuits: Voltage / theem xaiv hauv metering panels
Tsev Automation: Dual HVAC chav hloov hloov, hloov teeb pom kev kub ceev
Telecom & Data Centers: Redundant PSU qhov chaw xaiv
Hais txog CDADA
★ Peb qhov zoo tseem ceeb yog:
1) Ua tiav cov ntawv pov thawj thoob ntiaj teb,
2) Muaj peev xwm OEM / ODM,
3) High nqi-kev ua tau zoo piv,
4) Txhim khu kev lag luam loj loj muaj peev xwm,
5) Kev paub ntau yam export.
★ Peb cov khoom raug xa tawm mus rau cov teb chaws Asia, Middle East, South America, Africa, Europe, thiab CIS lub teb chaws, nrog rau kev tsom mus rau kev lag luam Belt thiab Road.
★ Peb nqis peev tsis tu ncua hauv R&D, saib xyuas cov qauv thoob ntiaj teb thiab cov qauv kev lag luam, thiab koom tes nrog cov kws tshaj lij kev lag luam los txhim kho peb cov khoom lag luam.
Cov lus nug nquag
Q1: Kuv puas tuaj yeem hloov pauv tau?
A1: Tsis pom zoo. SF series 2P Hloov Hloov Hloov Hloov tsis muaj qhov hluav taws xob tua hluav taws xob. Ib txwm de-energize lub Circuit Court ua ntej hloov, los yog tsuas yog siv rau tsis muaj-load hloov lwm lub tsev (xws li, isolator function). Rau kev hloov pauv nyob, xav txog motorized ATS lossis fused hloov disconnectors.
Q2: Vim li cas thiaj muaj "O" (OFF) txoj haujlwm?
A2: Lub chaw OFF txoj haujlwm ua kom muaj kev sib cais ua tiav los ntawm ob qhov chaw siv hluav taws xob - qhov tseem ceeb rau kev saib xyuas kev nyab xeeb thiab tiv thaiv rov qab rau hauv cov tshuab hluav taws xob lossis cov tshuab hluav taws xob.
Q3: Kuv puas xav tau fuses nrog qhov hloov pauv no?
A3: Yog. Txij li thaum nws tsis tuaj yeem cuam tshuam qhov tsis raug tam sim no, ib txwm ua ke nrog cov fuses ntws los yog MCBs ntsuas rau koj lub cev qhov kev xav tau luv luv tam sim no.
Q4: Nws puas tuaj yeem tswj lub cev muaj zog?
A4: Yog - rau cov motors me, 2P hloov tuaj yeem thim rov qab cov theem sib lawv liag thaum xaim raug. Xyuas kom lub cev muaj zog nres thiab de-energized ua ntej hloov cov kev taw qhia.
Q5: Vim li cas thiaj xaiv CDADA dua lwm lub npe?
A5: CDADA muab:
● Muaj tseeb 3-txoj haujlwm mechanical interlock (tsis muaj lub xeev ntab)
● DIN-rail compatibility nrog thoob ntiaj teb vaj huam sib luag qauv
● Nthuav pom qhov taw qhia ntawm txoj haujlwm hloov
● Robust caij nplooj ntoos hlav mechanism rau txhim khu kev qha kev sib cuag siab
● Cov nqi sib tw nrog tag nrho daim ntawv pov thawj IEC thiab kev txhawb nqa
