DIN Rail Hloov Hloov Hloov 125A
Yuav CDADA DIN Rail Hloov Hloov Hloov 125A, ua cov chaw tsim khoom hauv Suav teb nrog 40+ xyoo ntawm kev paub, peb cov khoom yog IEC60947-3 tau ntawv pov thawj, 3-txoj hauj lwm (I-O-II), rau dual fais fab hloov mus txog 400V. Phau ntawv, DIN-mounted, zoo tagnrho rau generator thaub qab & muaj vaj huam sib luag.

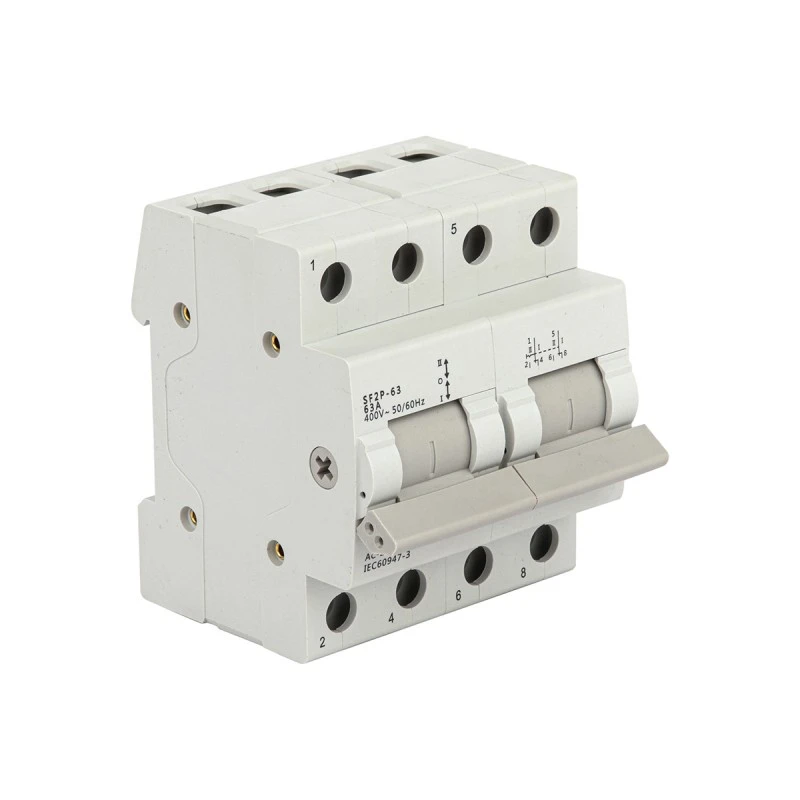

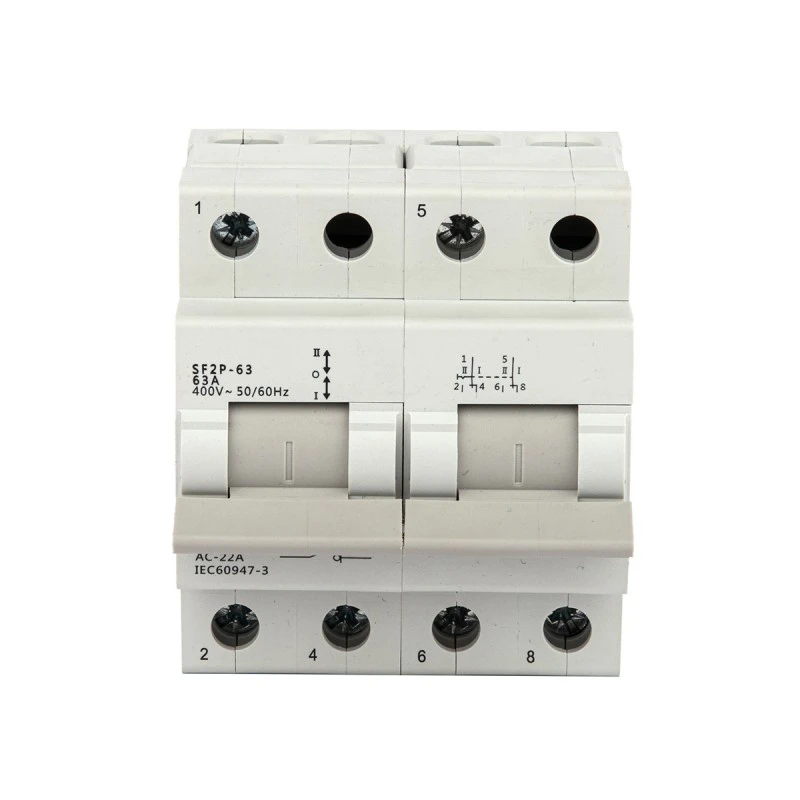

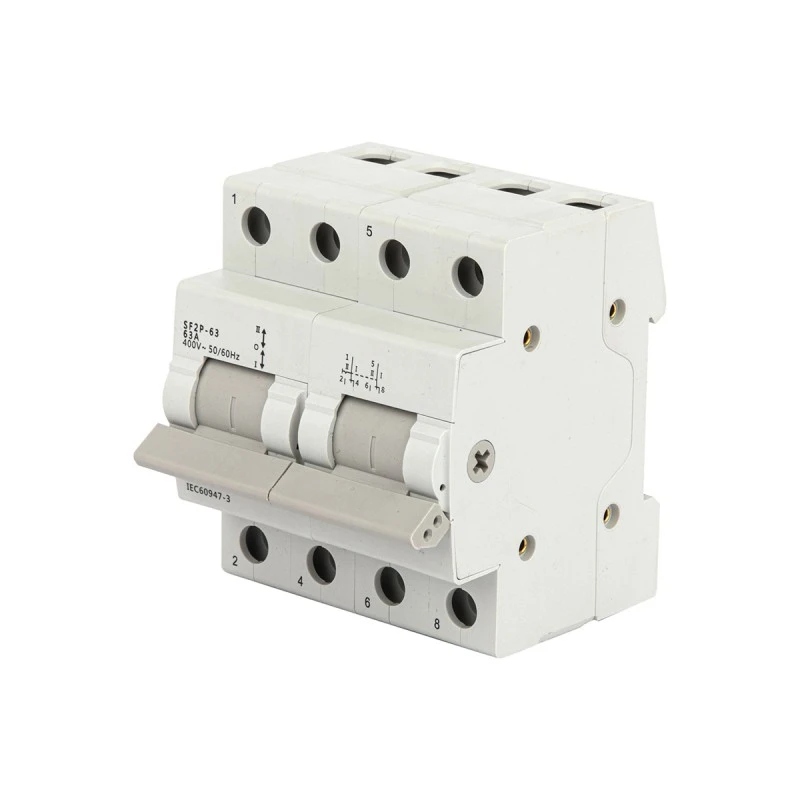

CDADA SF Series DIN Rail Hloov Hloov Hloov 125A yog qhov muaj zog, ua haujlwm hloov pauv kev daws teeb meem tsim los ntawm Shanghai DADA Electric CO., LTD rau kev ntseeg siab dual lub zog lossis kev hloov pauv hauv kev lag luam, kev lag luam, thiab kev siv vaj tse. Ua raws li IEC 60947-3 thiab EN 60947-3, qhov hloov pauv no txhawb nqa AC 50 / 60Hz tshuab mus txog 400V thiab ua haujlwm txuas ntxiv mus txog 125A nyob rau hauv AC-22A siv qeb (sib xyaw resistive thiab inductive loads).
Featuring ib tug meej 3-txoj hauj lwm phau ntawv tuav (I – OFF – II), nws enables kev nyab xeeb hloov ntawm lub ntsiab daim phiaj thiab backup generator, dual transformers, los yog redundant circuits, thaum lub chaw OFF txoj hauj lwm ua kom tiav kev sib cais-tseem ceeb rau kev saib xyuas thiab kev nyab xeeb. Tsim los rau tus qauv TH35 DIN rail mounting, nws integrates seamlessly rau niaj hnub faib boards nrog rau MCBs, contactors, thiab surge protectors.
Nrog rau kev sib cuag zoo, lub caij nplooj ntoos hlav-pab ceev-ua / tawg mechanism, thiab precision-lubricated nyob rau hauv cov khoom, 125A qauv xa 8,500 txhua yam kev ua haujlwm thiab 1,500 hluav taws xob voj voog nyob rau hauv rated. Nco tseg: nws tsis muaj qhov hluav taws xob tua hluav taws xob, yog li yuav tsum tau siv nrog cov fuses los yog cov hluav taws xob hluav taws xob rau kev tiv thaiv luv luv.
Cov ntsiab lus tseem ceeb (125A Model)
| Qauv: | SF Series DIN Rail Hloov Hloov Hloov - 125A |
| Hom Tshuaj: | CDADA | Chaw tsim tshuaj paus: Shanghai DADA Electric CO., LTD |
| Ncej: | Muaj nyob rau hauv 1P, 2P, 3P, 4P (xws li xav tau) |
| Rated Tam sim no: | 125A (derate mus rau 100A yog ambient> 40 ° C) |
| Rated voltage: | 230V / 400V AC, 50 / 60Hz |
| Rwb thaiv tsev Voltage (Ui): | 500 V |
| Kev siv qeb: | AC-22A |
| Short-Time Withstand Current (Icw): | 12 × 125A = 1,500A rau 1 vib nas this |
| Ua Peev Xwm: | 20 × 125A = 2,500A ntawm t = 0.1s |
| Mechanical Life: | 8,500 kev ua haujlwm |
| Hluav taws xob lub neej: | 1,500 kev ua haujlwm (hauv qab load) |
| Pollution Degree: | II |
| Mounting: | TH35 DIN rail, ntsug installation nkaus xwb |
| Kev ua haujlwm: | Phau ntawv 3-txoj hauj lwm tuav (I – O – II) |
| Terminals: | Cable los yog busbar, max 50mm² tooj liab hlau |
| Tightening Torque: | 3, 5nm |
| Kev Nyab Xeeb Kev Nyab Xeeb: | IEC 60947-3, EN 60947-3 |
| Arc cuam tshuam: | ❌ Tsis muaj arc chamber → tsis ua txhaum tam sim no cuam tshuam |
Vim li cas thiaj xaiv CDADA DIN Rail Hloov Hloov Hloov 125A?
★ Kev ntseeg siab tam sim no
Engineered rau nruam 125A lub luag haujlwm-zoo tagnrho rau cov twj loj, HVAC units, lossis cov ntaub ntawv chaw thaub qab.
★ Kev cais tawm tiag tiag nrog OFF Txoj Haujlwm
Center "O" txoj hauj lwm disconnects ob qhov chaw, tshem tawm cov kev pheej hmoo ntawm backfeed los yog kev huam yuaj.
★ DIN-Rail Npaj rau niaj hnub vaj huam sib luag
Txuag qhov chaw thiab yooj yim installation nyob rau hauv compact los yog modular faib boards.
★ Industrial-Grade Construction
Caij nplooj ntoos hlav-loaded hu, lubricated spindle, thiab 50mm² lub davhlau ya nyob twg muaj peev xwm ua kom ruaj khov mus ntev.
★ Ntiaj teb no Standards ua raws
Kev lees paub rau IEC 60947-3 - lees paub thoob ntiaj teb rau kev lag luam thiab kev siv teeb pom kev lag luam.
★ Kev Taw Qhia Kev Ua Haujlwm Zoo
suav nrog cov lus pom zoo txuas ntxiv rau 125A qauv - xyuas kom muaj kev tswj hwm, kev hloov pauv mus tas li.
Tej kev siv
Kev Hloov Hluav Taws Xob Thaum Muaj Xwm Ceev: Daim phiaj loj ↔ Lub tshuab hluav taws xob (tsev kho mob, telecom yees)
Redundant Power Systems: Dual UPS lossis transformer hloov
Industrial Machinery: Qhov chaw xaiv rau cov motors loj lossis cua sov tshuab
Kev Tswj Lub Tsev: Thaub qab teeb pom kev zoo lossis lub zog ua haujlwm of elevator
Kev sib txuas txuas ntxiv dua tshiab: Daim phiaj sib piv nrog hnub ci hybrid system cais
Hais txog CDADA
★ Peb muaj cov kws tshaj lij R & D pab neeg, muaj txheej txheem kev tsim kho. tuaj yeem muab kev pabcuam zoo heev.

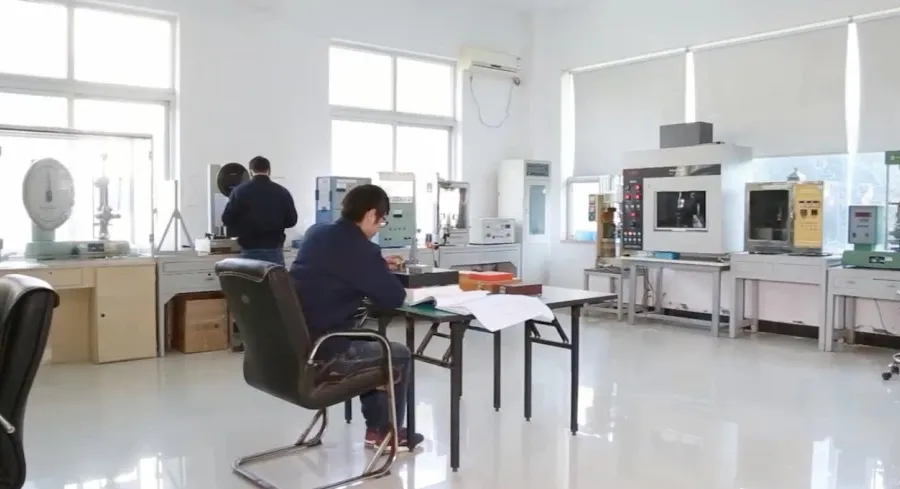

★ Peb muaj kev ua haujlwm tag nrho, peb lub chaw soj nstuam tuaj yeem kuaj pom, peb tuaj yeem ua cov thermal load, sib nqus, thiab tripping txwv, lub neej mechanism, EMC hauv peb chav kuaj.
★ peb muab cov kev pabcuam kev sib koom ua ke rau cov neeg xa khoom, cov neeg sawv cev, thiab OEM cov koom tes hauv kev lag luam tseem ceeb, muab kev txhawb nqa muag, cov khoom lag luam, thiab cov nqe lus sib tw.

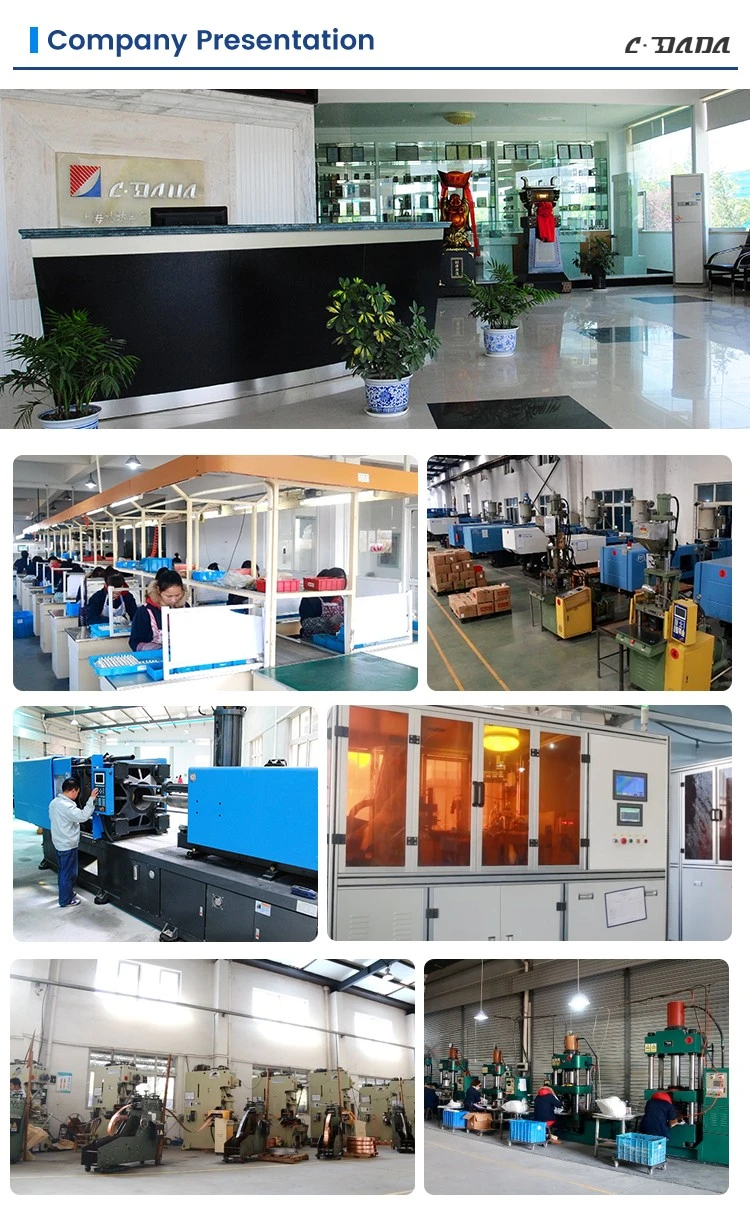

★ Lub tuam txhab profile
Cov lus nug nquag
Q1: Kuv puas tuaj yeem hloov DIN Rail Hloov Hloov Hloov 125A hauv qab thauj khoom?
A1: Tsis yog. Qhov kev hloov no tsis muaj peev xwm tua hluav taws. Nws yuav tsum tau ua tsuas yog thaum de-energized los yog siv nruj me ntsis raws li ib tug cais (tsis muaj-load switching). Rau kev hloov chaw nyob, siv qhov hloov pauv hloov pauv tsis siv neeg (ATS) lossis fused motorized hloov.
Q2: Vim li cas tus qauv 125A yuav tsum muaj ob txhais tes lossis txuas ntxiv?
A2: Lub caij nplooj ntoos hlav mechanism nyob rau hauv high-tam sim no qauv generates tseem ceeb inertial quab yuam. Kev ua haujlwm ib leeg tuaj yeem ua rau kev sib cuag tsis tiav, ua rau arcing lossis overheating. CDADA pom zoo ob txhais tes los yog lub Hoobkas muab kev txuas ntxiv rau kev nyab xeeb, ua haujlwm puv sijhawm.
Q3: Dab tsi cable loj yuav tsum tau rau 125A?
A3: Siv 50mm² tooj liab cable (raws li muab specs). Xyuas kom cov terminals raug nruj rau 3.5 N·m kom tsis txhob muaj cua sov.
Q4: Kuv puas xav tau fuses nrog qhov hloov pauv no?
A4: Yog. Txij li thaum nws tsis tuaj yeem cuam tshuam qhov luv-circuit tam sim no, ib txwm nruab cov fuses lossis MCBs ntsuas rau koj lub cev qhov kev ua txhaum yav tom ntej. Qhov kev hloov tsuas yog muab kev cais tawm ntawm phau ntawv / hloov pauv.
Q5: Vim li cas thiaj xaiv CDADA tshaj cov neeg sib tw rau 125A hloov pauv?
A5: CDADA muab:
● Muaj tseeb 3-txoj haujlwm mechanical interlock (tsis muaj lub xeev ntab)
● IEC 60947-3 daim ntawv pov thawj nrog kev lees paub thoob ntiaj teb
● Optimized thermal tsim rau DIN-rail enclosures
● Nthuav pom qhov taw qhia ntawm txoj haujlwm hloov
● Cov nqi sib tw nrog kev txhawb nqa ua lus Askiv
