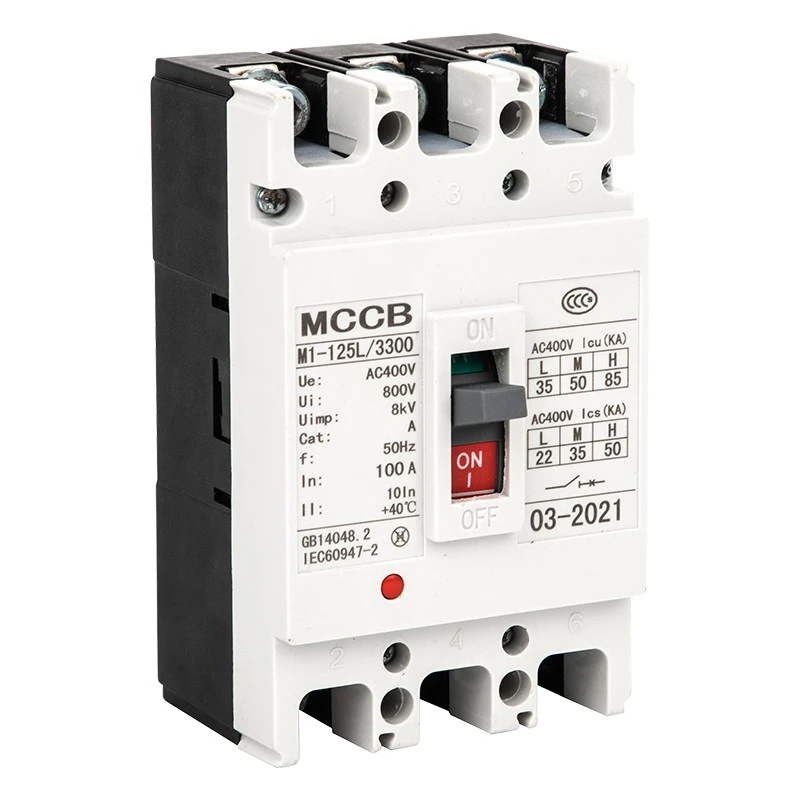

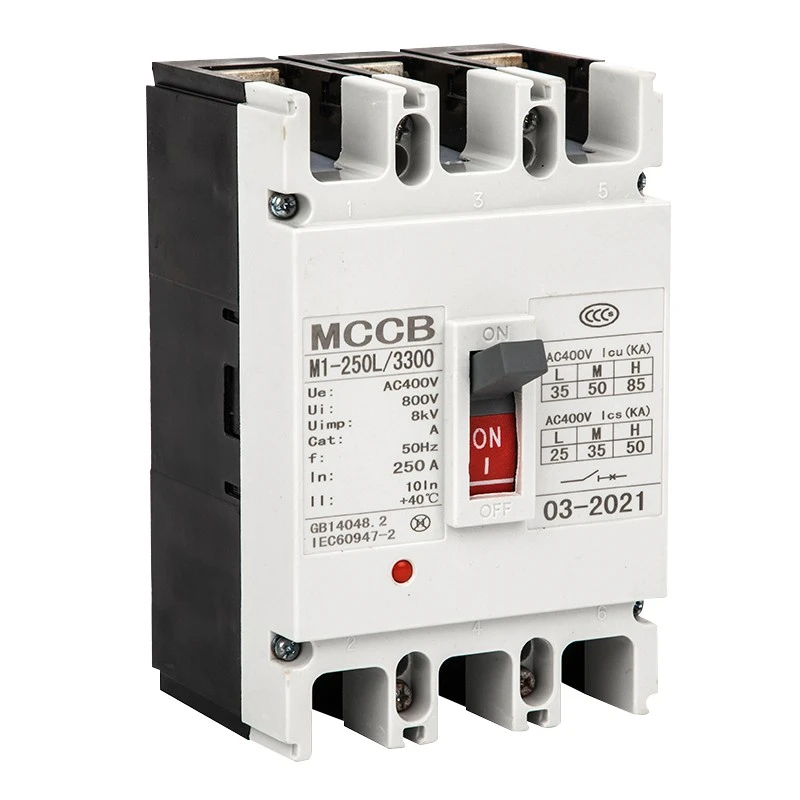

CM1 Moulded Case Circuit Breaker
Model:DAM2 (CM1) Series
Qhov CDADA CM1 Moulded Case Circuit Breaker (MCCB) no yog tsim los rau kev muag khoom ntau, nrog IEC60947-2 ntawv pov thawj thiab kev ua haujlwm ruaj khov rau kev lag luam fais fab. Lub CM1 MCCB siv cov qauv muaj zog thiab txhim khu kev qha tripping mechanism, yooj yim rau nruab thiab tswj. Nws muab cov kev tiv thaiv ntse nrog cov qauv tsim, ua kom lub neej ntev kev pab cuam hauv kev faib hluav taws xob thiab kev siv hnyav.
Qhov no DAM2 (CM1) series CM1 Moulded Case Circuit Breaker yog cov khoom siv hluav taws xob tiv thaiv hluav taws xob ua haujlwm siab uas tsim los ntawm Shanghai DADA Electric Co., Ltd., cov chaw tsim khoom thiab cov khoom siv hauv Suav teb. Nrog cov ntsuas hluav taws xob hluav taws xob txog li 800V, ntsuas kev ua haujlwm voltage 400V / 690V, thiab ntsuas tam sim no los ntawm 63A txog 1600A, nws yog dav siv rau kev faib hluav taws xob, kev tiv thaiv hluav taws xob, kev tswj lub cev muaj zog thiab tsis tshua muaj kev hloov pauv.
Cov koob no txhawb kev teeb tsa ntsug thiab kab rov tav, ua raws li IEC60947-2 tus qauv, thiab muab tag nrho cov overload, luv-circuit thiab under-voltage tiv thaiv rau cov khoom siv fais fab.
Khoom nta
★ Rated rwb thaiv tsev voltage: 800V; Ua haujlwm voltage: 400V / 690V
★ Tam sim no ntau yam: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Breaking peev: L tus qauv, M nruab nrab, H siab tawg hom
★ Thermal-magnetic & electromagnetic dual tso hom
★ Vertical / kab rov tav installation, haum rau kev siv cais
★ Dav ambient kub ntau yam: -5 ℃ ~ + 40 ℃
★ Qhov siab ≤2000m, kev ua qias tuaj 3
Daim ntawv thov
CDADA CM1 Moulded Case Circuit Breaker yog dav siv nyob rau hauv kev lag luam thiab kev siv hluav taws xob hauv pej xeem, suav nrog cov chaw tsim khoom, tsev, cov ntaub ntawv chaw, chaw nres tsheb fais fab, kev tsim kho vaj tse, khoom siv tshuab, thiab cov khoom siv hluav taws xob. Nws kuj yog siv rau kev tiv thaiv lub cev muaj zog, kev hloov pauv hauv Circuit Court, thiab kev nyab xeeb fais fab hauv kev tsim kho, metallurgy, petrochemical thiab lwm yam lag luam.
Technical Parameters
★ Cov Qauv: IEC60947-2, GB14048.2
★ Zaus: AC 50Hz / 60Hz
★ Ncej: 1P, 2P, 3P, 4P
★ Tso Tawm: Thermal-magnetic (ob npaug), electromagnetic (instantaneous)
★ Instantaneous teeb tsa: Kev faib tawm hom 10In ± 20%; Lub cev muaj zog 12In ± 20%
★ Kev teeb tsa: Cov kab hluav taws xob pem hauv ntej, cov kab hluav taws xob hauv qab, hom ntsaws
★ Kev Ua Haujlwm: Phau ntawv, hluav taws xob ua haujlwm mechanism
|
Qauv |
Ncej |
Rated tam sim no (A) |
Rated kev khiav haujlwm hluav taws xob (V) |
Rated rwb thaiv tsev hluav taws xob (V) |
Rated qhov kawg luv luv - Circuit Court tawg peev xwm (Icu) |
Flashover nyob deb (mm) |
||
|
Test voltage (V) |
Icu (kA) |
Ics (kA) |
||||||
|

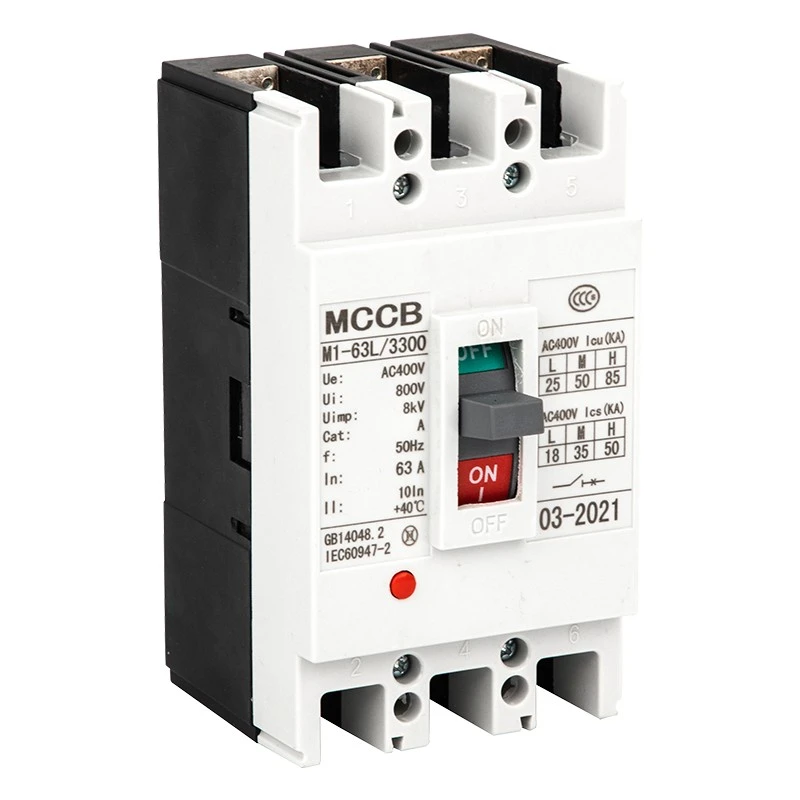

DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400 × 1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40. 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤ 50 |
|
|
DAM2M-100 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2, 3, 4 |
20 |
10 |
|||||
|
DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2, 3, 4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2, 3, 4 |
20 |
10 |
|||||
|

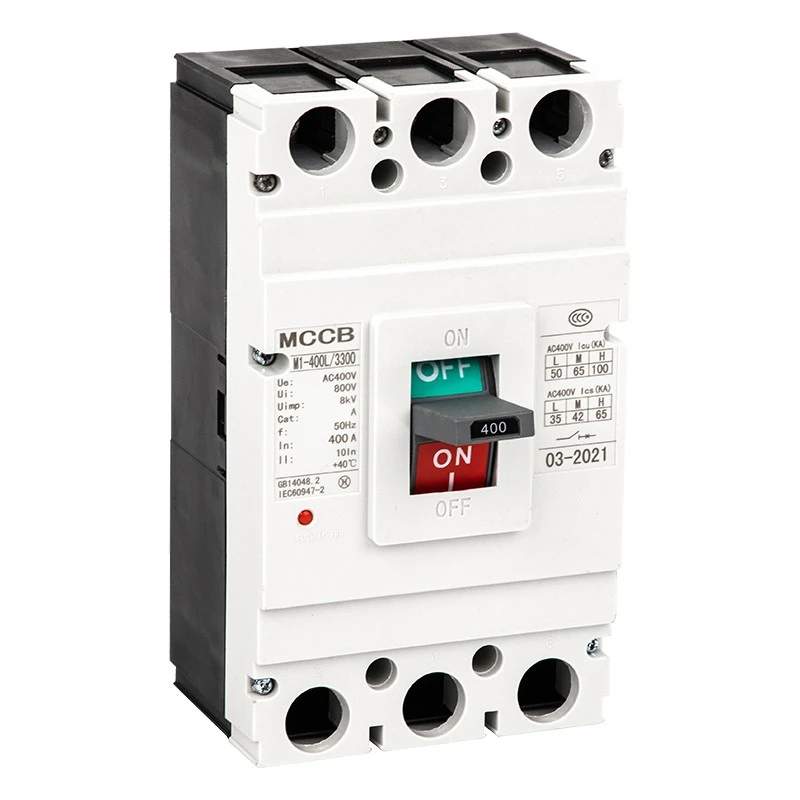

DAM2L-400 |
3 |
225, 250, 315. 350.400 Nws |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|

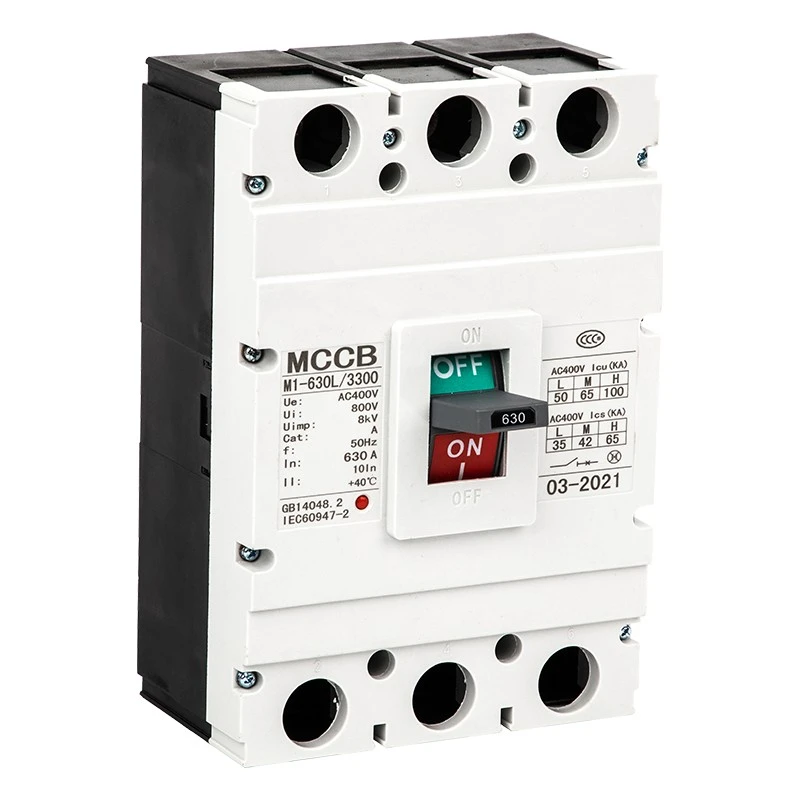

DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|

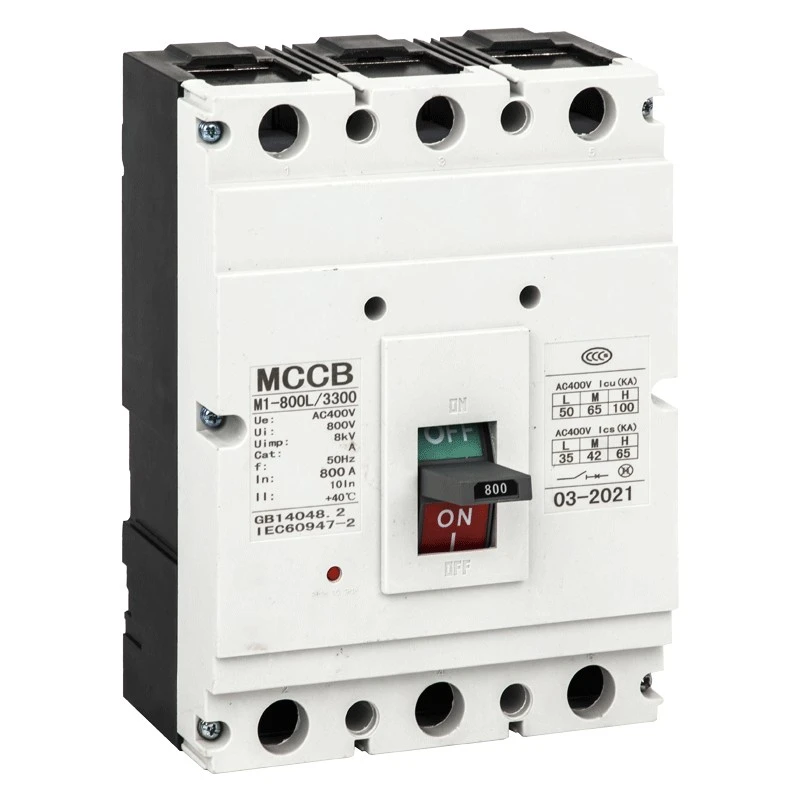

DAM2M-800 |
3 |
630, 700, 800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM 2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
DAM 2-1250 |
3 |
690 |
25 |
12.5 |
||||
Daim Ntawv Qhia & Installation Dimensions
Peb CM1 MCCB muab cov ntaub ntawv tiav qhov ntev rau 63A-1600A qauv, suav nrog cov xaim pem hauv ntej, xaim rov qab thiab hom ntsaws. Qhov ntau thiab tsawg thav duab sib txawv (63/100/225/400/630/800/1250/1600) tau sib phim H, H1, H2 qhov ntev rau cov txheej txheem kev teeb tsa. Phau ntawv thiab hluav taws xob kev khiav hauj lwm mechanism qhov siab kuj yog tus qauv rau kev sib dhos yooj yim.
Accessories & Functions
Sab hauv Accessories
★ Shunt tso tawm: 70% -110% rated voltage rau txhim khu kev qha tripping
★ Nyob rau hauv-voltage tso tawm: 35% -70% voltage poob rau kev tiv thaiv tsis siv neeg
★ Pab txhawb kev sib cuag & lub tswb hu: Cov lus qhia tawm tswv yim thiab lub tswb tsis raug
★ Pre-paid meter siab tso tawm: Ncua tripping 0.5–2s
Sab nrauv Accessories
★ Kev tuav tswj mechanism
★ Hluav taws xob (lub cev muaj zog) kev ua haujlwm mechanism
★ Phase separators, mounting screws, busbars khoom siv

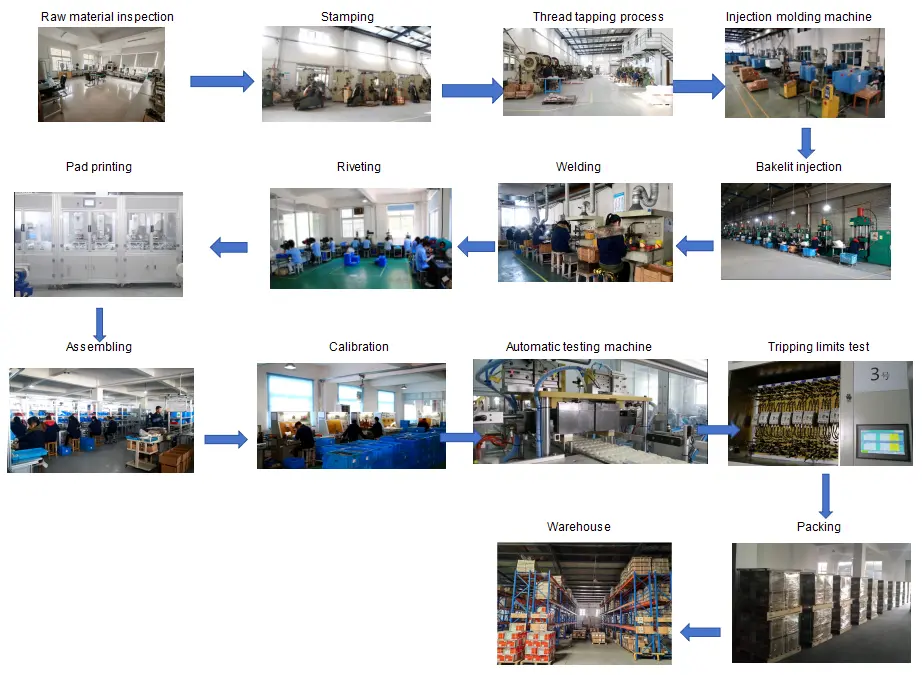

Zoo Tswj Flow
Kev tshuaj xyuas cov khoom siv raw → Kev tsim khoom → Sib dhos kab → Kev mus ncig ua si kuaj → Kev ntsuas kub nce siab → Kev ntsuas luv luv → Kev laus → Kev kuaj pom & qhov ntsuas → ntim → Kev tshuaj xyuas zaum kawg ua ntej xa khoom

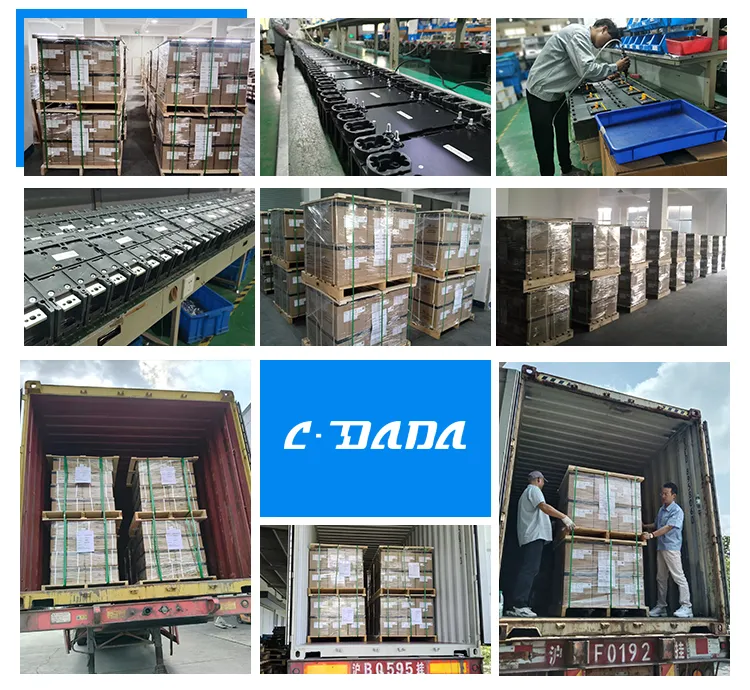

Ntim & Shipping
★ Txheem export thawv + ntoo pallet rau kev nyab xeeb kev thauj mus los
★ Daim ntawv lo: qauv, tam sim no, ncej, kom muaj nuj nqis, daim ntawv pov thawj
★ Haum rau hiav txwv, huab cua thiab av logistics
Cov ntawv pov thawj
IEC60947-2, GB14048.2, CE, CB, ROHS thiab lwm yam kev pom zoo thoob ntiaj teb.
Cov neeg siv khoom sib koom tes
CDADA DAM2 series MCCB tau muab rau cov neeg siv khoom thoob ntiaj teb, suav nrog cov khoom siv hluav taws xob sib koom ua ke, cov khoom lag luam tsim khoom, cov chaw tsim khoom siv hluav taws xob, cov neeg cog lus tsim kho thiab OEM hom hauv Europe, Southeast Asia, Middle East, Africa thiab South America. Peb muab cov khoom lag luam ruaj khov thiab cov kev daws teeb meem rau cov neeg koom tes ntev.
