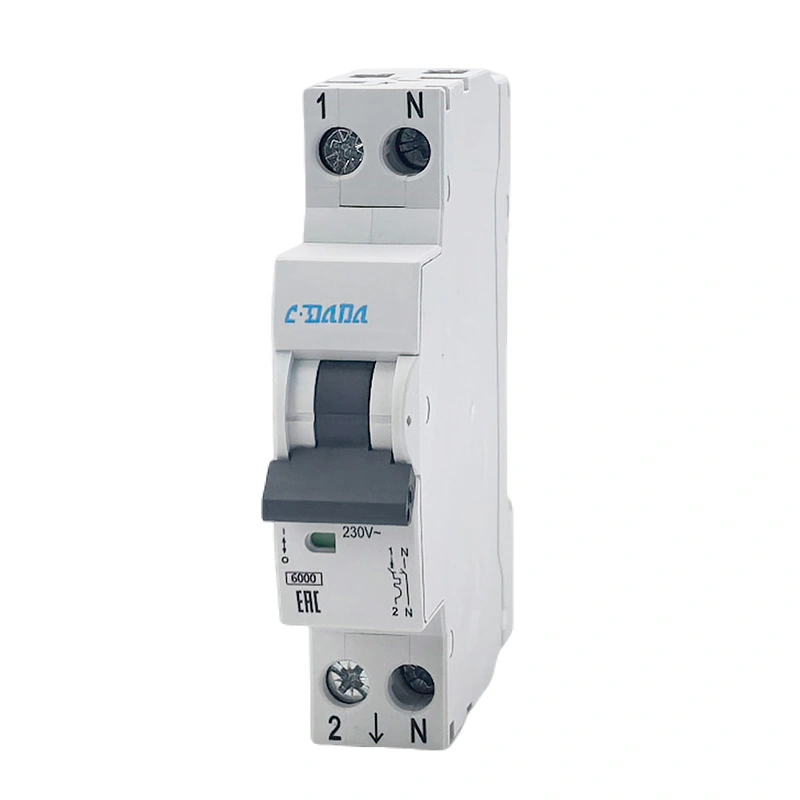

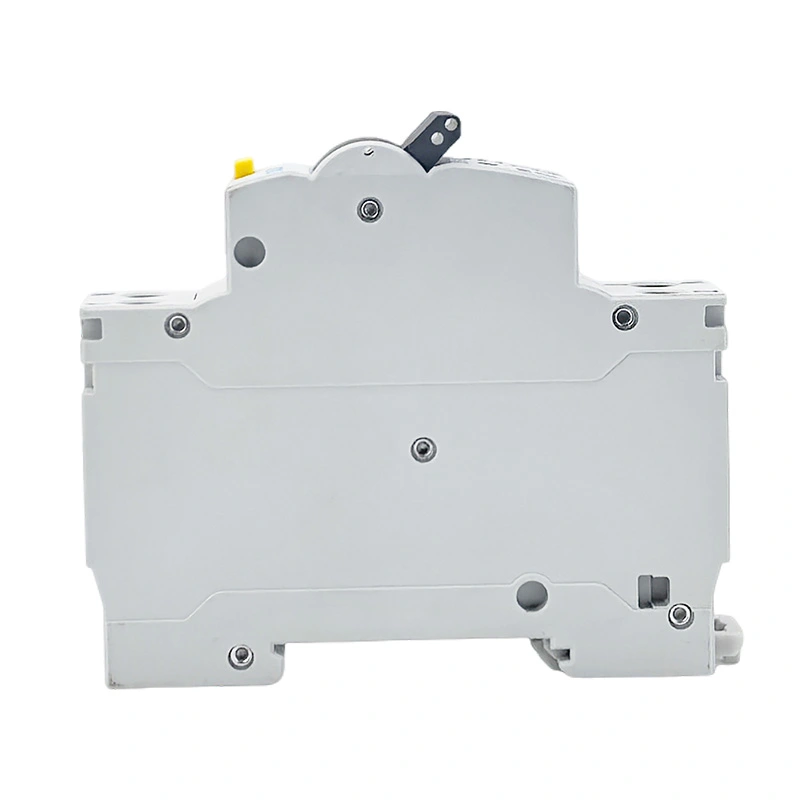

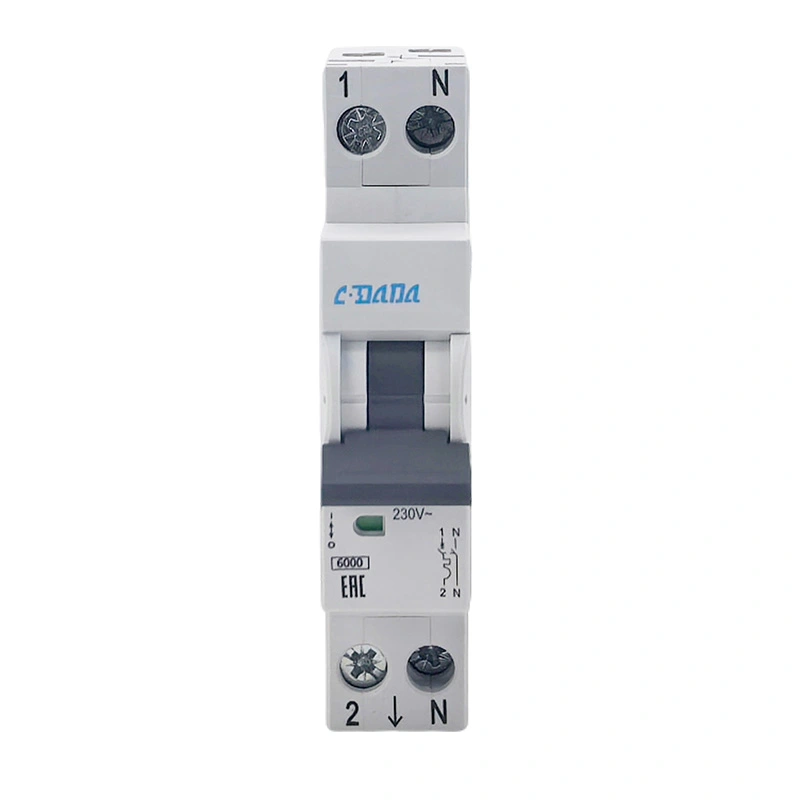

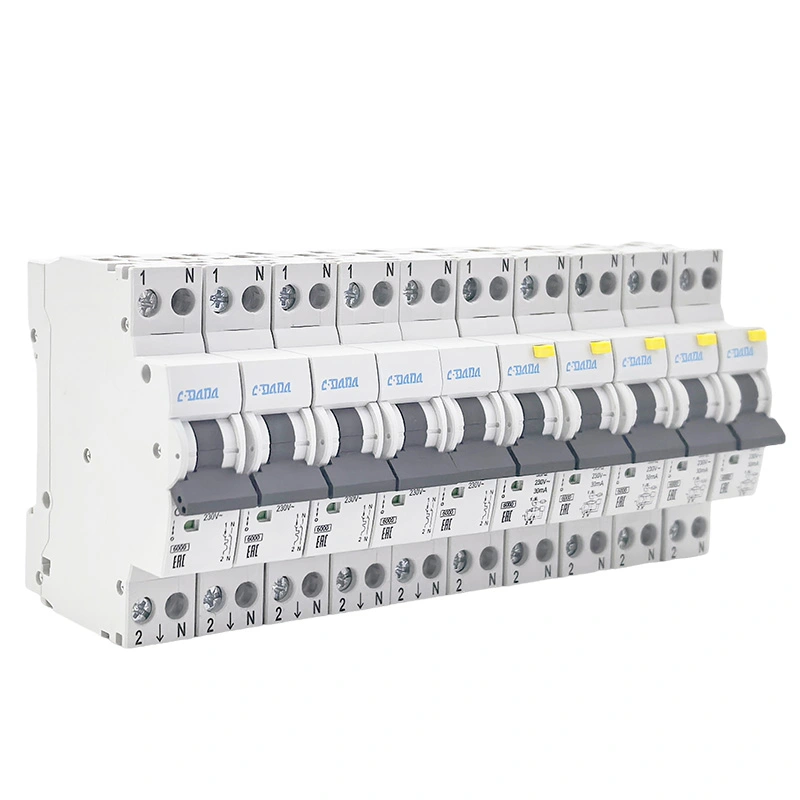

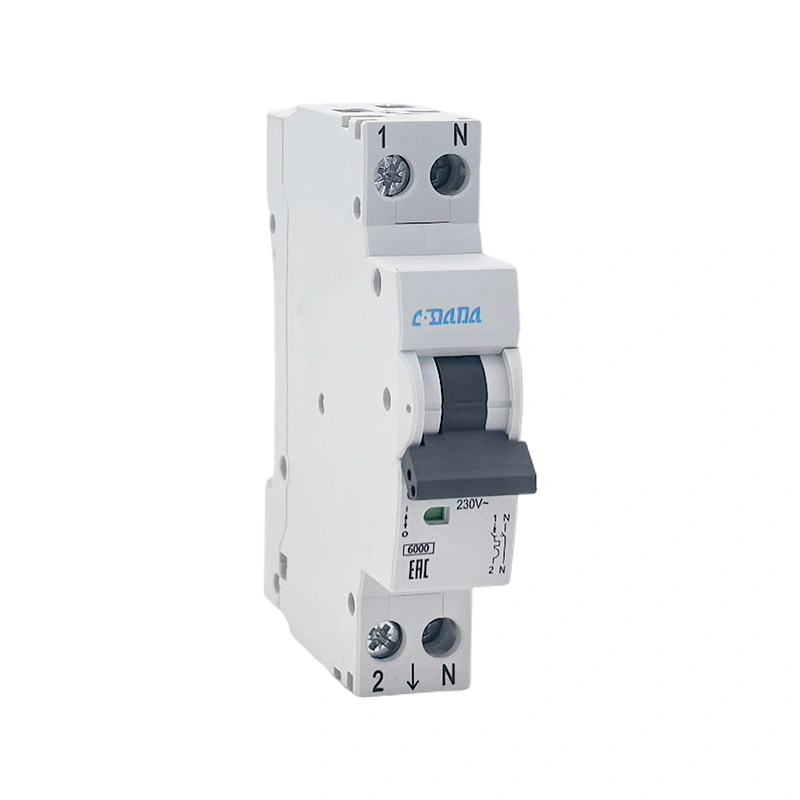

Miniature Circuit Breaker DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA yog qhov zoo tshaj plaws rau kev yuav khoom ntau, qhov zoo 1P + N me me Circuit Court breaker raws li IEC60898-1 rau kev nyab xeeb hauv tsev thiab kev lag luam tiv thaiv hluav taws xob. Nws siv dual break-point tsim thiab ruaj khov thermal-magnetic tripping, yooj yim rau nruab ntawm DIN rail thiab yooj yim los tswj. Nws muab cov qauv txhim khu kev qha nrog lub neej ua haujlwm ntev, ua kom muaj kev nyab xeeb ntawm lub zog hluav taws xob rau ntau lub tshuab hluav taws xob qis.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA yog tus kws tshaj lij 1P + N dual-break me me Circuit Court breaker ntawm nws tus kheej tsim los ntawm Shanghai DADA Electric, cov chaw tsim khoom txhim khu kev qha nrog 40+ xyoo ntawm kev paub. Nrog 6kA siab tawg muaj peev xwm, synchronous lag luam, thiab N-ncej "ua ntej, tawg tom qab" tsim, nws zoo txhim kho arc extinguishing kev ua tau zoo thiab tiv thaiv circuits thiab khoom siv yam xyuam xim. Siv dav hauv cov thawv ntim khoom, kho kom zoo nkauj hauv tsev, lub zog ua lag luam, thiab cov teeb pom kev zoo, nws yog thawj qhov kev xaiv rau cov neeg yuav khoom thoob ntiaj teb, cov neeg xa khoom thiab cov neeg siv khoom OEM.

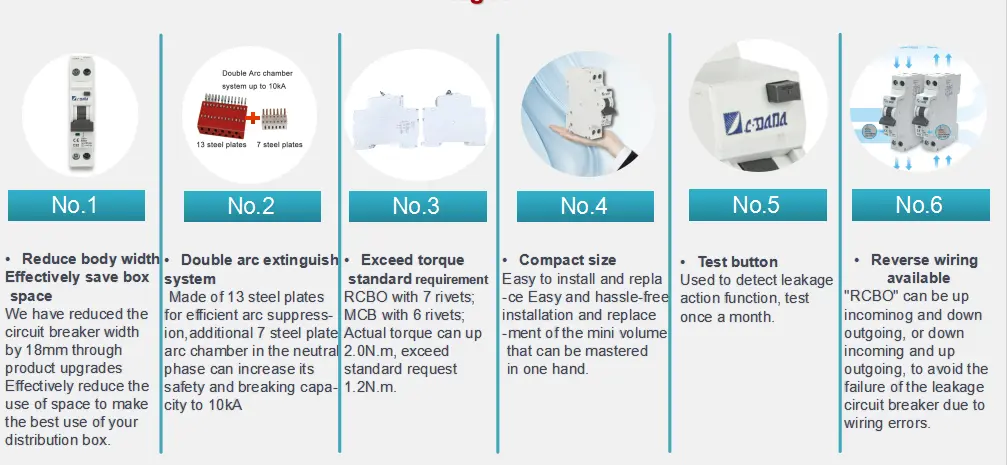

Qhov Zoo ntawm MCB DPN 6KA yog dab tsi?
★ 1P + N DPN qauv, dual so cov ntsiab lus, muaj kev nyab xeeb thiab txhim khu kev qha
★ N ncej ua ntej thiab tawg tom qab, txhim khu arc tawg peev xwm
★ 6kA lub peev xwm tawg tiag, muaj zog tiv thaiv luv luv
★ Compact 17.8mm dav, txuag txee qhov chaw
★ B/C tripping curves muaj rau cov khoom sib txawv
★ IP20 qib tiv thaiv, nyab xeeb kov
★ Kev xaim dav dav: 1-25mm² hloov tau yooj yim cable
★ DIN rail mounting, ceev thiab ruaj khov installation
★ Kub thiab kub tsis kam: -25 ℃ ~ + 50 ℃
★ Lub neej ua haujlwm ntev txog 20,000 zaug
Daim ntawv thov
CDADA Miniature Circuit Breaker DPN 6KA yog dav siv hauv:
★ Cov tsev nyob, cov tsev, villas, kho kom zoo nkauj hauv tsev
★ Chaw ua haujlwm, khw, tsev so, tsev kawm ntawv, tsev kho mob
★ Teeb pom kev zoo, lub qhov hluav taws xob, cov khoom siv hluav taws xob me me
★ Cov khoom siv hauv tsev: lub tshuab rhaub dej, cua txias, hluav taws xob cua sov
★ Qub Circuit Court reconstruction thiab faib lub thawv kho dua tshiab
★ Kev lag luam thiab pej xeem tsis tshua muaj hluav taws xob hluav taws xob faib tshuab
Technical Parameters Table
| Yam khoom | Specification |
| Qauv | DAB 7N-40 |
| Khoom npe | MCB DPN 6 KA |
| Txuj | IEC 60898-1 |
| Ncej | 1P + N (2P) |
| Txhaum Muaj Peev Xwm | 6k ua |
| Rated Tam sim no | 6A, 16A, 20A, 25A, 32A, 40A |
| Rated Voltage | AC 220/230/240V |
| Ntau zaus | 50/60Hz |
| Tripping Curve | B/C |
| Rwb thaiv tsev Voltage | 500 V |
| Impulse voltage | 4kv ua |
| Kev tiv thaiv qib | IP20 |
| Neeg kho tshuab lub neej | 20,000 zaug |
| Hluav taws xob lub neej | 6,000 zaug |
| Terminal Torque | 1.5nm 1 |
| Kev Muaj Peev Xwm | 1-25 mm² |
| Kev khiav hauj lwm Temp | -25 ℃ ~ + 50 ℃ |
| Qhov ntev | 82.5 × 73.2 × 17.8 hli |
Daim ntawv Dimensions
★ Ntev: 82.5mm
★ Qhov siab: 73.2mm
★ Dav: 17.8mm (tus qauv 1-module dav)

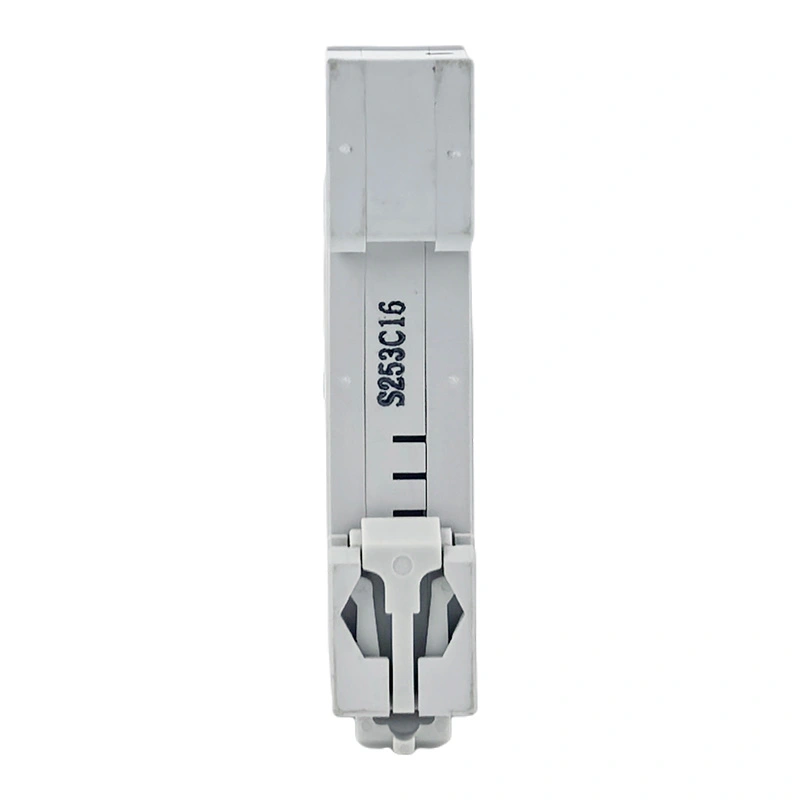

★ Mounting: 35mm DIN rail
★ Hlau: haum rau 1-25mm² saj zawg zog / nruj cable
★ Busbar thickness: 0.8-2mm
Standard Test Yam khoom
★ 1.13Nyob rau hauv kev xeem tsis-tripping (≥1 teev)
★ 1.45In tripping test (<1 teev)
★ 2.55Nyob rau hauv overload nkaus xeem
★ Sib nqus instantaneous tripping xeem (3In / 5In rau B / C nkhaus)
★ Dielectric tiv taus qhov ntsuas hluav taws xob
★ ntsuas kub nce
★ Luv-circuit breaking peev xwm (6kA)
★ Mechanical & Electrical Life Test
★ Kev ntsuas kub & qis ua haujlwm

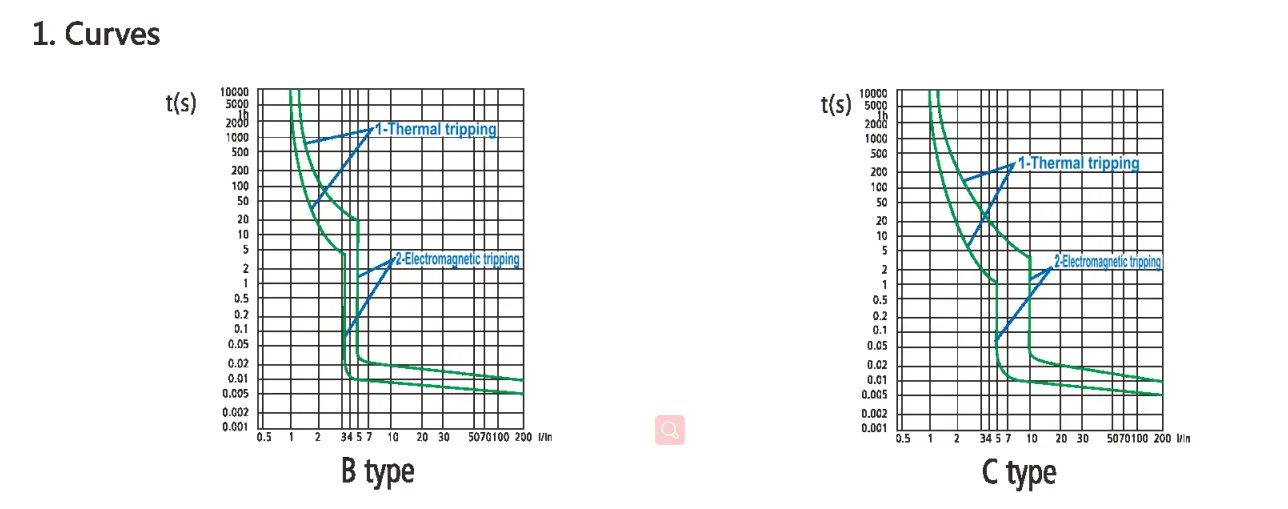

Tripping Yam ntxwv Curves
IEC 60898-1 Cov
Sib nqus tso
Thaum lub caij luv luv Circuit Court tshwm sim, instantaneous tripping yog tiav los ntawm ib tug hlau nplaum nrog ib tug hlau core. Raws li IEC60898 tus qauv, cov khoom no tuaj yeem muab faib ua peb hom: B, C, thiab D.
|
|
Kuaj tam sim no | Tripping lub sij hawm | Daim ntawv thov |
| B Curve | 3l5 ib |
0.1 |
Hom B tsuas yog siv tau rau cov khoom thauj: -Electric heater-Dej rhaub-Electric furmace |
| C Curve | 5ln10 ua |
0.1 |
Hom C yog tsim rau cov khoom siv thauj khoom zoo tib yam: - Teeb - lub qhov hluav taws xob - lub zog me me |
Kev tso cua sov
●Thaum overload tshwm sim nyob rau hauv Circuit Court, lub bimetallic sawb ntawm lub Circuit Court breaker yuav khoov vim cua sov, ua rau cov neeg mus disconnect thiab ua rau thermal tripping;
● Tus qauv IEC txhais lub sij hawm tripping rau txawv overload tam sim no;
● Qhov ntsuas qhov ntsuas kub ib puag ncig yog 30 ° C.
| Kuaj tam sim no | Tripping lub sij hawm |
| 1.13 ib | t z 1h (hauv ≦ 63A) |
| 1,45l ua | t <1h (Nyob rau hauv ≦ 63A) |
| 2,55l ua | 1s <1h <60s(In≤32A) 1s |

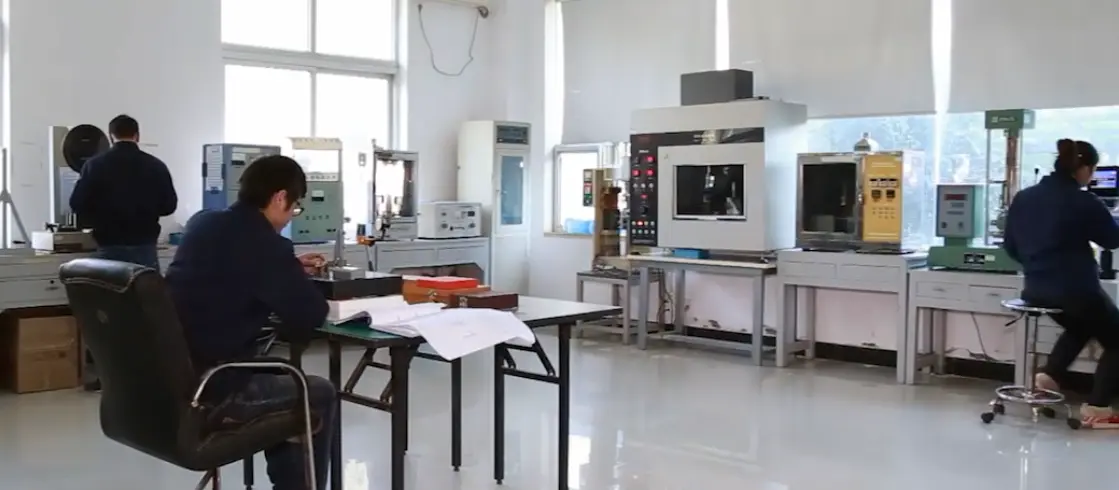

Kev Tswjhwm Zoo
1. Raw khoom tuaj kuaj & ntawv pov thawj
2. Tsis siv neeg txhaj tshuaj molding & precision hlau stamping
3. Semi-tiav khoom sib dhos & calibration
4. 100% tag nrho tripping yam ntxwv kuaj
5. Tiv thaiv voltage & rwb thaiv tsev kev ua tau zoo
6. Kev ntsuas kub thiab tsis kub aging
7. Cov tsos, qhov loj me & logo tshuaj xyuas
8. Kev ntim khoom zaum kawg & kev tshuaj xyuas khoom xa tuaj
Ntim & Shipping
★ Txheem export thawv nrog shockproof hauv ob sab phlu
★ Pab pawg lub thawv ntim kom tsis txhob khawb
★ Clear daim ntawv lo: qauv, tam sim no, ncej, kom muaj nuj nqis, ntawv pov thawj
★ Haum rau kev thauj mus los hauv hiav txwv, huab cua thiab av
★ Txhawb OEM ntim, kev cai logo thiab daim ntawv lo
Cov Neeg Siv Khoom Zoo
CDADA MCB DPN 6KA tau raug xa tawm mus rau ntau tshaj 50 lub teb chaws thiab cheeb tsam:
★ Kev xa khoom mus sij hawm ntev rau cov neeg muag khoom nyob sab Europe thiab Asian
★ Kev kho vaj tse hauv tsev nyob hauv Middle East & Africa
★ OEM kev koom tes nrog cov npe nrov thoob ntiaj teb hluav taws xob
★ Kev faib hluav taws xob txhawb nqa rau cov neeg tsim vaj tsev
★ Kev txiav txim ruaj khov los ntawm cov neeg cog lus hluav taws xob thiab cov neeg koom ua ke
Vim li cas thiaj xaiv DADA Electric?
★ 40+ xyoo ntawm kev paub dhau los hauv Circuit Court breaker R&D thiab ntau lawm
★ 90% core Cheebtsam tsim nyob rau hauv lub tsev, ruaj khov zoo tswj
★ ISO9001 tau ntawv pov thawj, tag nrho ua raws li cov qauv thoob ntiaj teb
★ Ua tiav cov ntawv pov thawj: CE, CB, CCC, thiab lwm yam.
★ Muaj peev xwm ntau lawm, xa khoom sai rau kev txiav txim ntau
★ Kev txhawb nqa kev tshaj lij thiab kev pabcuam tomqab muag
★ Txais OEM & ODM customization kom tau raws li kev lag luam xav tau
★ Ntiaj teb no logistics system, kev nyab xeeb thiab xa tuaj raws sij hawm
