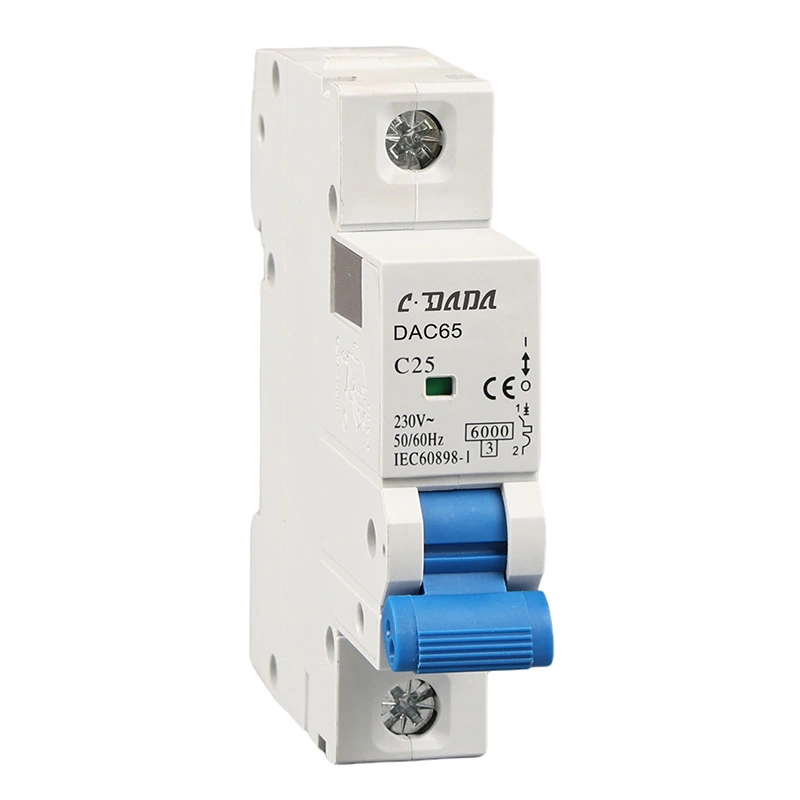

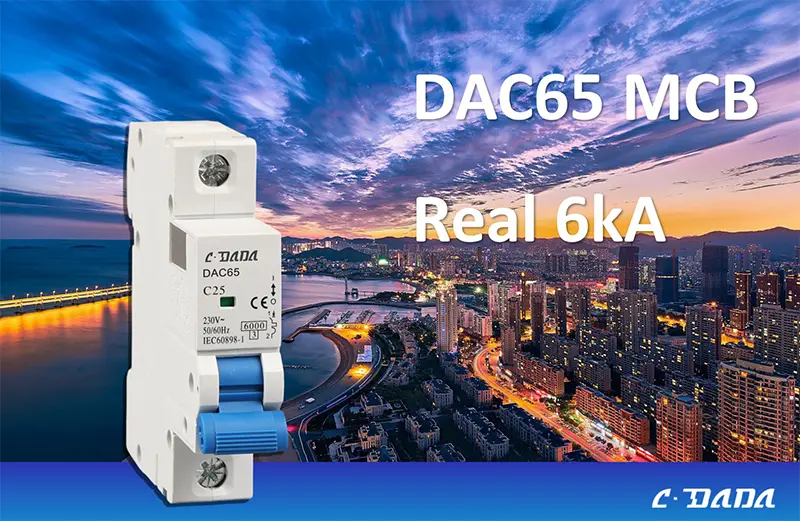

Miniature Circuit Breaker REAL 6KA
Model:DAC65
Hu rau CDADA hnub no thiab cia peb ua koj tus neeg muag khoom ntawm Miniature Circuit Breaker REAL 6KA, qhov zoo tshaj plaws me me Circuit Court breaker raws li IEC / EN60898 rau kev tiv thaiv hluav taws xob txhim khu kev qha. Nws nta thermal magnetic tripping thiab nplaim taws-retardant plhaub, yog ib qho yooj yim rau nruab ntawm DIN rail, thiab yog yooj yim los tswj. Nws muab cov kev ua tau zoo ruaj khov nrog cov qauv tsim, ua tiav lub neej ntev kev pab cuam rau thaj chaw thiab kev lag luam hluav taws xob.
CDADA DAC65 Miniature Circuit Breaker REAL 6KA yog ib qho kev ua haujlwm siab me me Circuit Court breaker tsim rau AC 50 / 60Hz lub zog. Nws muab kev tiv thaiv zoo tshaj thiab tiv thaiv luv luv, nrog B / C / D tripping curves kom haum cov khoom sib txawv. Siv dav hauv kev faib khoom, cov tsev nyob, cov chaw tsim khoom, thiab cov chaw lag luam, nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg yuav khoom thoob ntiaj teb thiab cov neeg koom tes OEM.
Qhov Zoo Tshaj Plaws
★ REAL 6kA muaj peev xwm tawg tau ruaj khov rau kev tiv thaiv luv luv
★ Thermal-magnetic tso tawm kom raug thiab nrawm nrawm
★ Compact loj: 17.8mm ib tug ncej, qhov chaw-txuag rau txee
★ IP20 tiv thaiv qib, nyab xeeb rau kov thiab ua haujlwm
★ Kev xaim dav dav: txhawb nqa 0.5-63A, hloov tau yooj yim thiab nruj cables

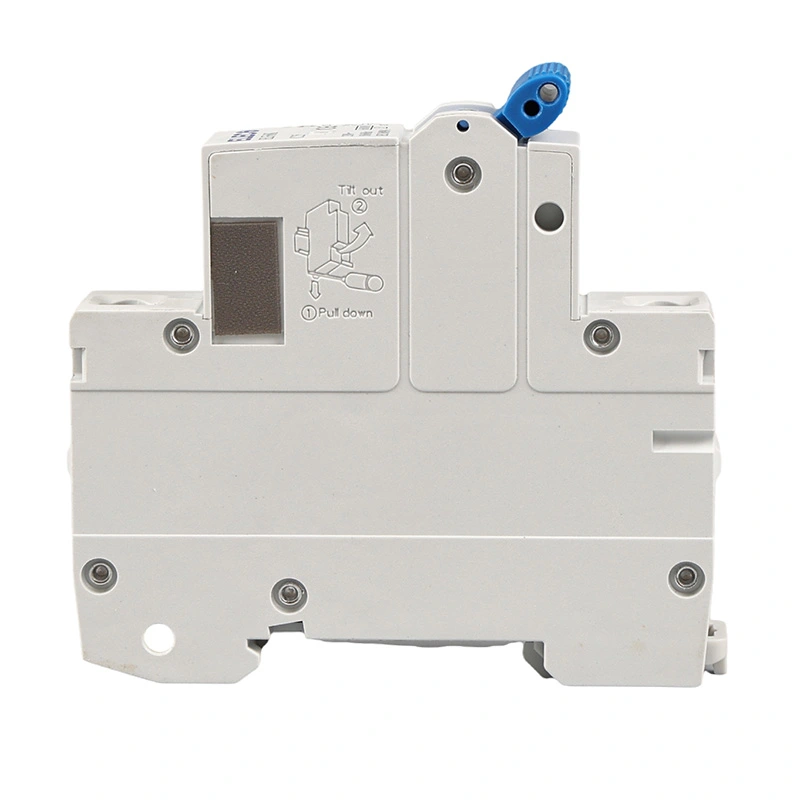

★ DIN rail mounting rau ceev installation
★ nplaim-retardant plhaub, kub kub kuj
★ Kev ua haujlwm ruaj khov hauv -5 ℃ ~ + 40 ℃ ambient ib puag ncig
Daim ntawv thov
CDADA Miniature Circuit Breaker REAL 6KA yog siv dav hauv:
★ Cov tsev nyob, cov tsev, villas
★ Chaw ua hauj lwm, khw malls, tsev so, pej xeem vaj tse
★ Kev cob qhia kev lag luam, cov khoom siv hluav taws xob me me
★ Cov teeb pom kev zoo, lub qhov hluav taws xob, cov khoom faib tawm
★ Ntxuam, twj, compressors thiab me me motors
★ Infrastructure thiab hluav taws xob renovation tej yaam num
Technical Parameters
| Yam khoom | Specification |
| Qauv | DAC65 MCB REAL 6KA |
| Txuj | IEC / EN60898 |
| Txhaum Muaj Peev Xwm | 6k ua |
| Rated Tam sim no | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |

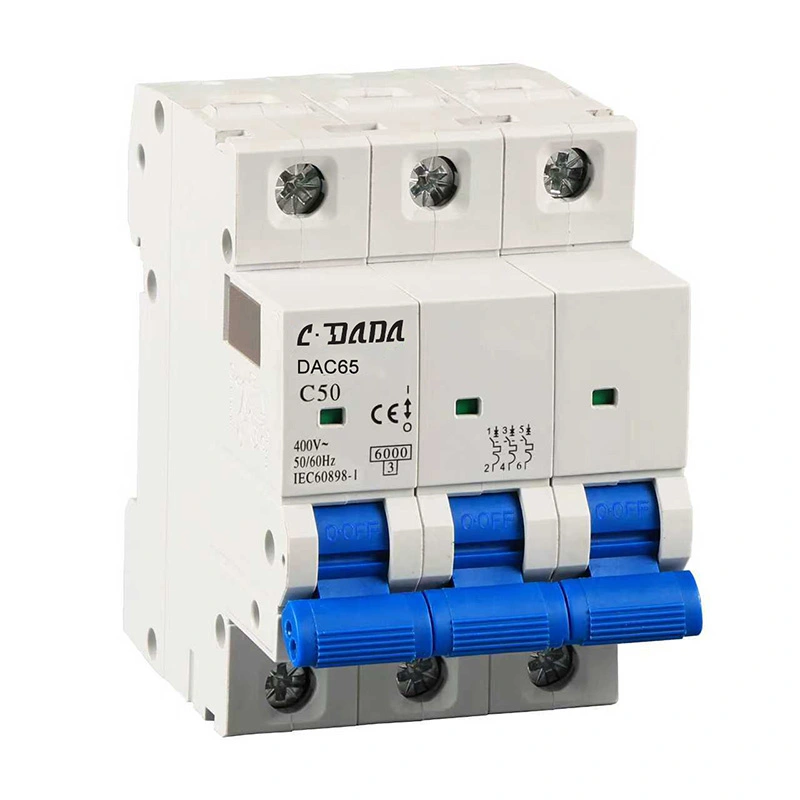

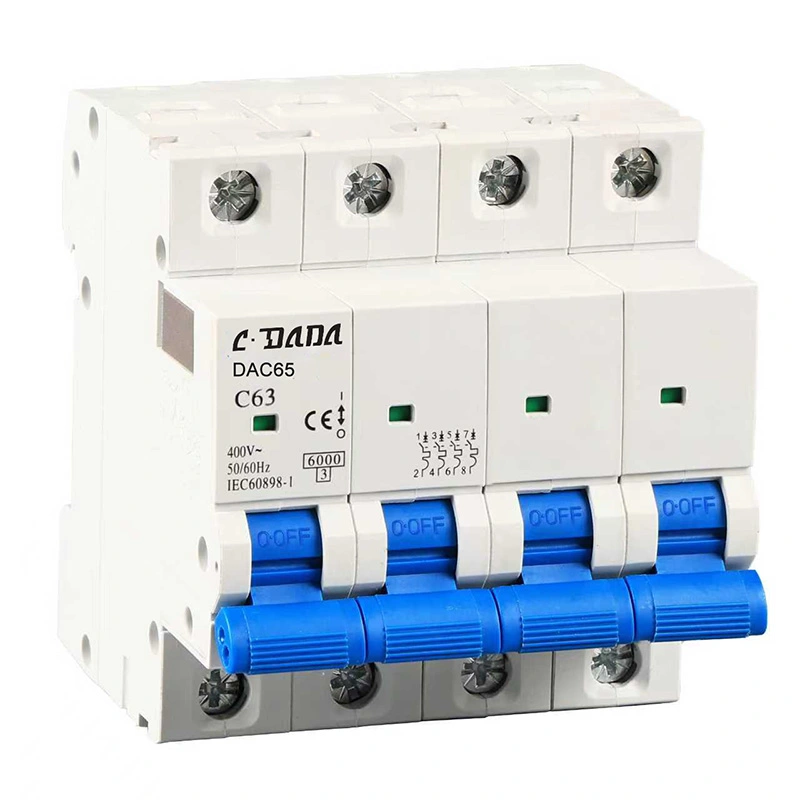

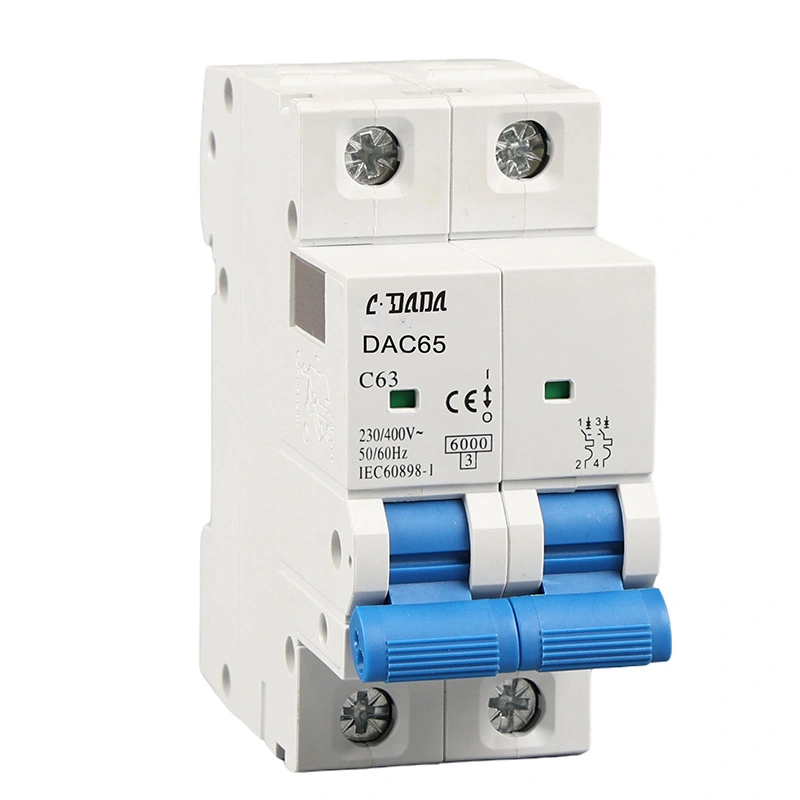

| Ncej | 1P, 1P + N, 2P, 3P, 3P + N, 4P |
| Tripping Curve | B(3-5In), C(5-10In), D(10-20In) |
| Rated Voltage | 1p: 240V; 2P: 240/415V; 3P / 4P: 415V |
| Rwb thaiv tsev Voltage | 500 V |
| Impulse voltage | 6kv ua |
| Zog txwv chav kawm | 3 |
| Kev tiv thaiv qib | IP20 |
| Kev teeb tsa | 35 hli DIN rail |
| Terminal Hom | Lug type / Pin type |
| Ambient Kub | -5 ℃ ~ + 40 ℃ |

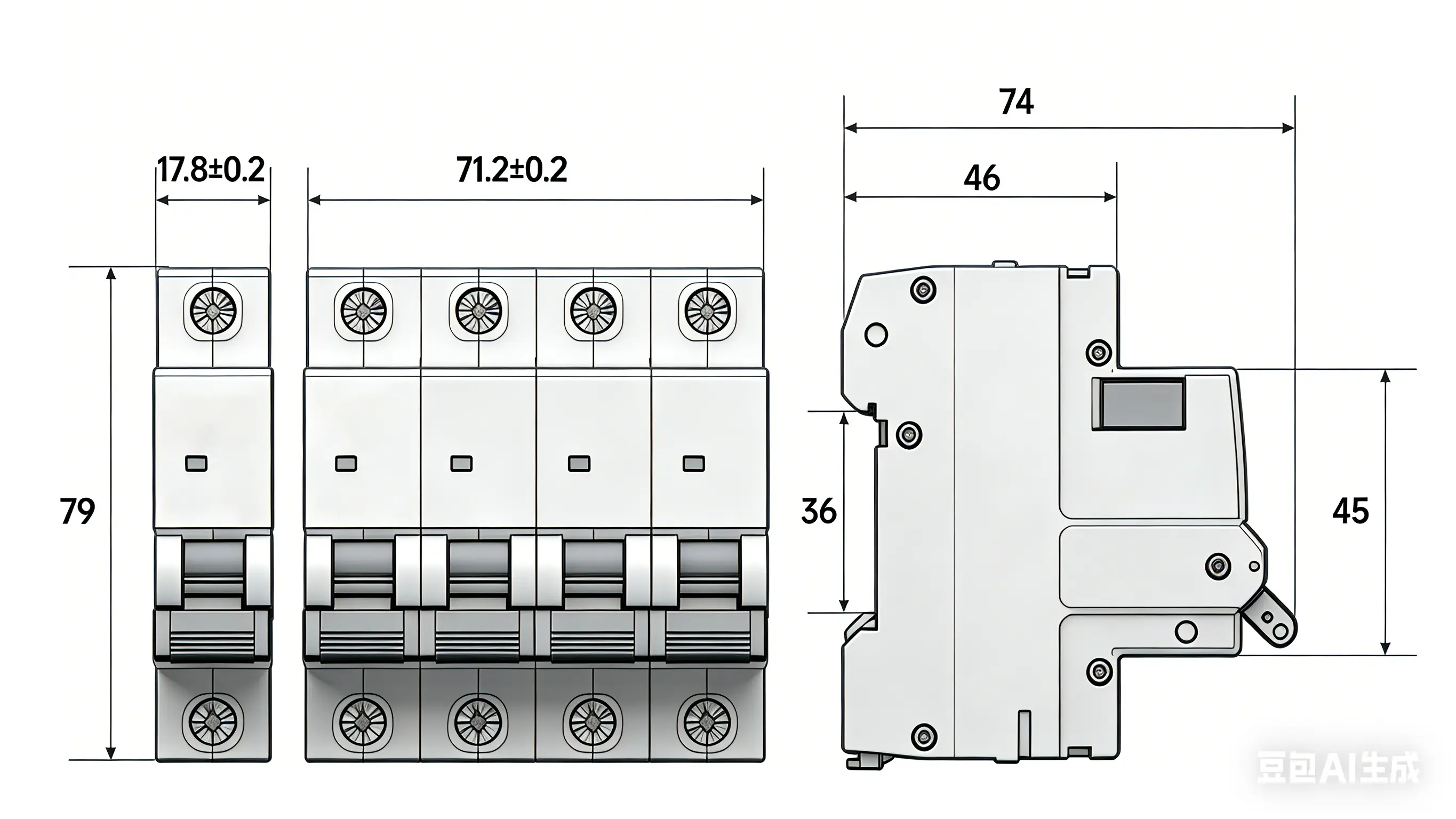

Daim ntawv Dimensions
★ Dav: 17.8mm rau ib tus ncej
★ Mounting: Txheem 35mm DIN rail
★ Muaj peev xwm xaim: Txog li 35mm² rigid cable
★ Cov qauv tsim rau cov thawv ntim khoom txheem
Standard Test Yam khoom
★ 1.13Nyob rau hauv kev xeem tsis-tripping (≥1h)
★ 1.45 Hauv kev sim tripping (<1h)
★ Sib nqus tripping yam ntxwv kuaj
★ ntsuas kub nce
★ Dielectric voltage tuaj yeem kuaj
★ Luv-circuit breaking peev xwm (6kA)
★ Mechanical & hluav taws xob endurance test

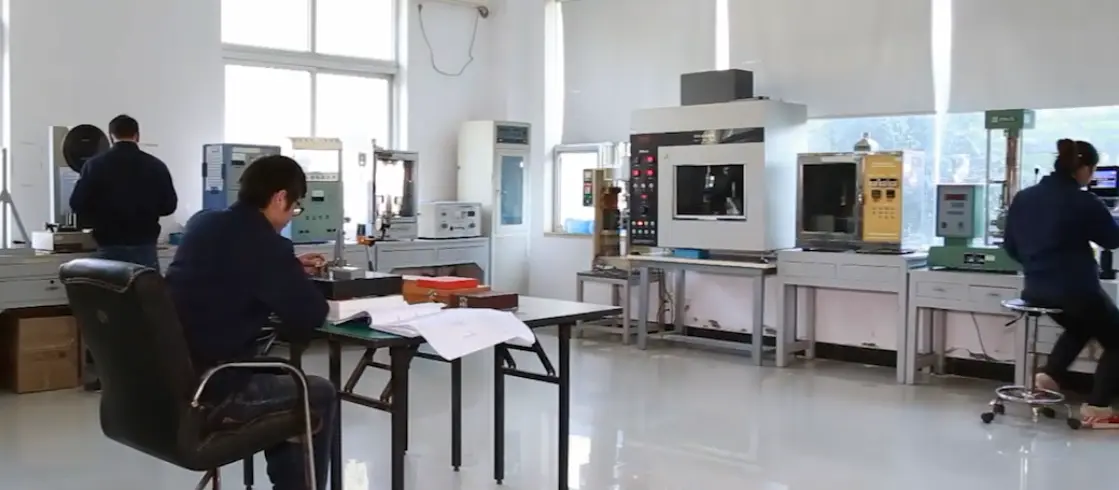

Kev Tswjhwm Zoo
1. Raw khoom tuaj xyuas
2. Tsis siv neeg ntau lawm & precision sib dhos
3.100% tag nrho tripping calibration
4. Kev ntsuas kub / qis qis
5. Tiv thaiv voltage & rwb thaiv tsev kuaj

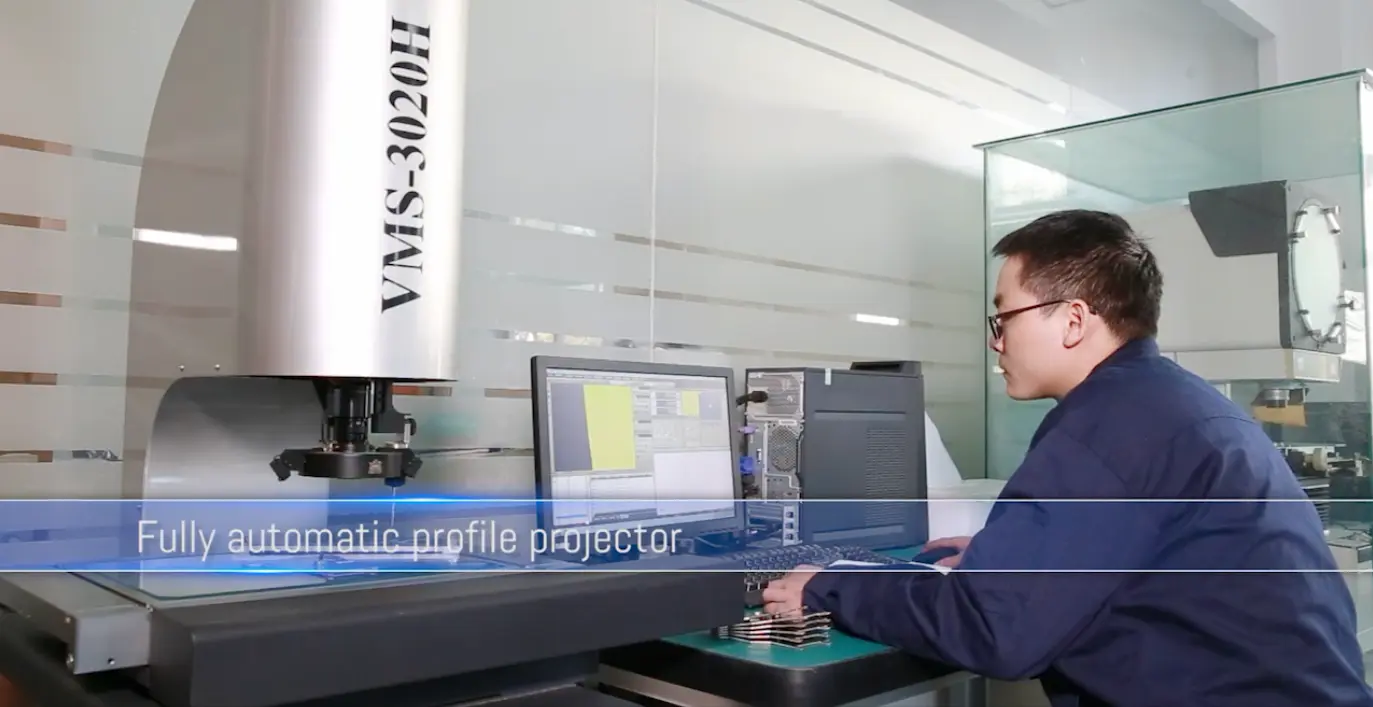

6. Cov tsos mob & qhov ntsuas qhov ntev
7. Kev tshuaj xyuas zaum kawg ua ntej ntim
Ntim & Shipping
★ Txheem export thawv nrog shockproof puab hauv ob sab phlu
★ Clear daim ntawv lo: qauv, tam sim no, ncej, kom muaj nuj nqis, ntawv pov thawj
★ Pab pawg lub thawv ntim kom tsis txhob khawb thiab puas
★ Haum rau kev thauj mus los hauv hiav txwv, huab cua thiab av
★ Txhawb OEM daim ntawv lo & ntim kev cai
Cov Neeg Siv Khoom Zoo
CDADA Miniature Circuit Breaker REAL 6KA muaj kev koom tes ntev thoob ntiaj teb:
★ Kev muab khoom ntau rau cov neeg muag khoom nyob sab Europe thiab cov neeg cog lus
★ Cov chaw nyob & kev lag luam hauv Middle East & Africa
★ OEM kev koom tes nrog cov khoom siv hluav taws xob thoob ntiaj teb
★ Fais fab kev faib tshuab nyob rau sab hnub tuaj Asia & South America
★ Kev txiav txim mus sij hawm ntev los ntawm cov neeg xa khoom thiab cov khoom siv hluav taws xob
